Summary

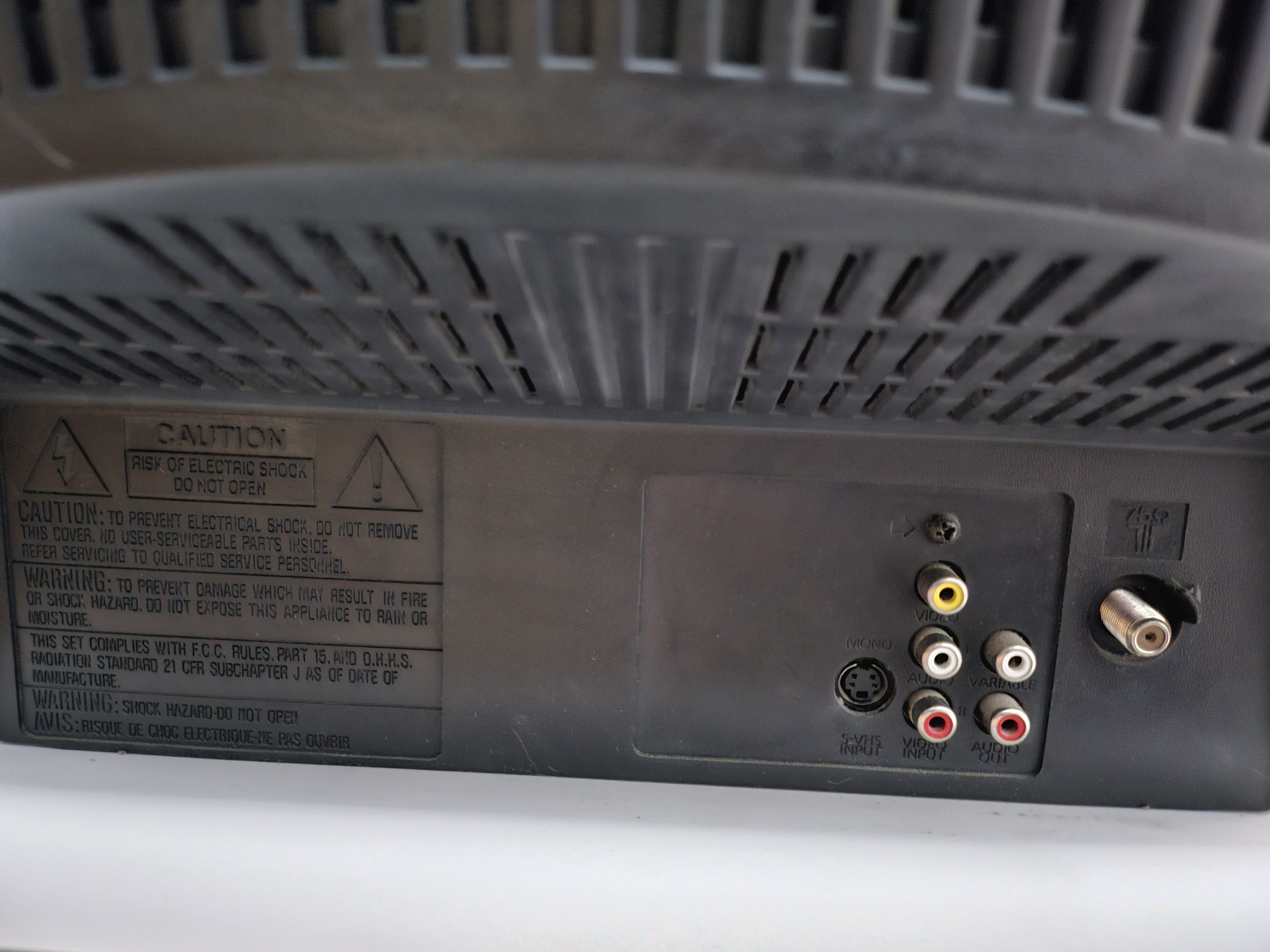

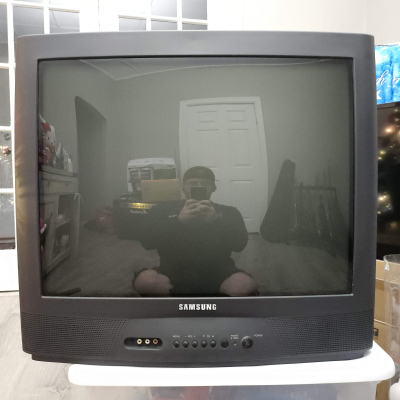

27" curved-screen CRT by Samsung, made in Mexico in 1999. Has RF, composite, and s-video inputs with stereo sound.
(Special thanks to Kenneth Hale for the pics!)
Manuals
Notes

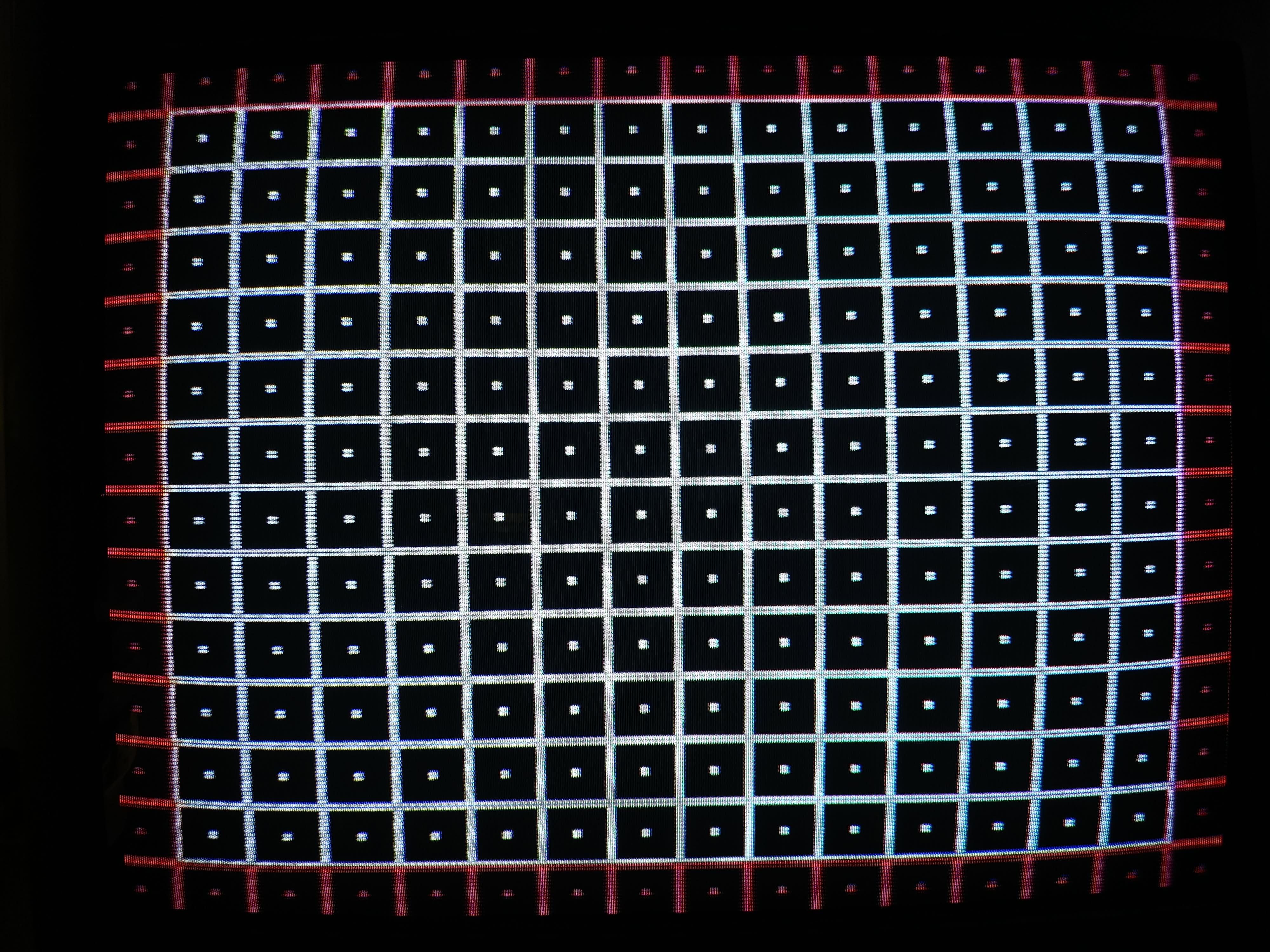

RCA tube model has a flatter curvature and finer pitch. However, it has linearity issues.
Set can be RGB modded thanks to the Philips jungle chip. It also supports 50hz and other oddball frequencies, but only once you RGB mod it will it be in color.

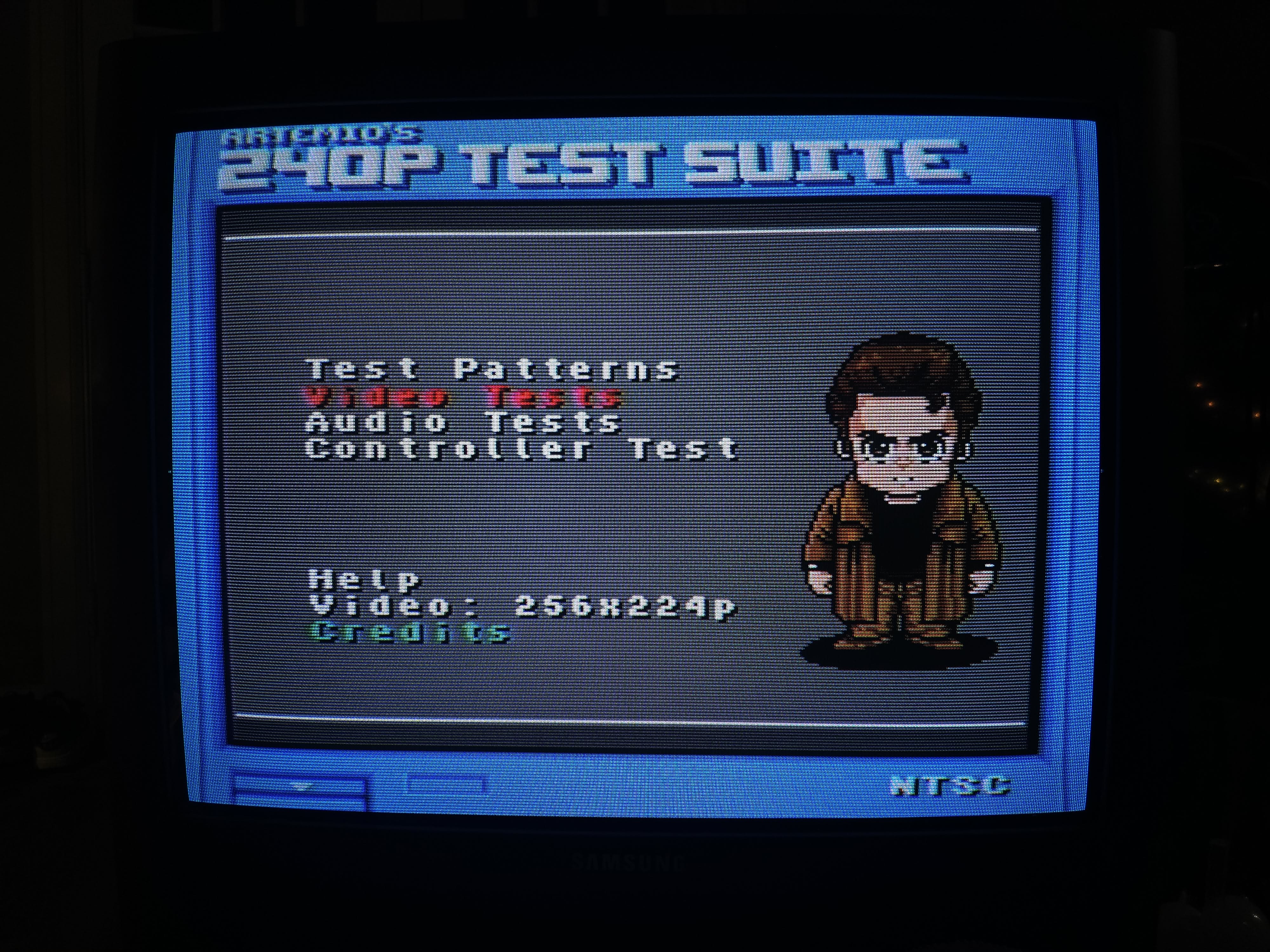

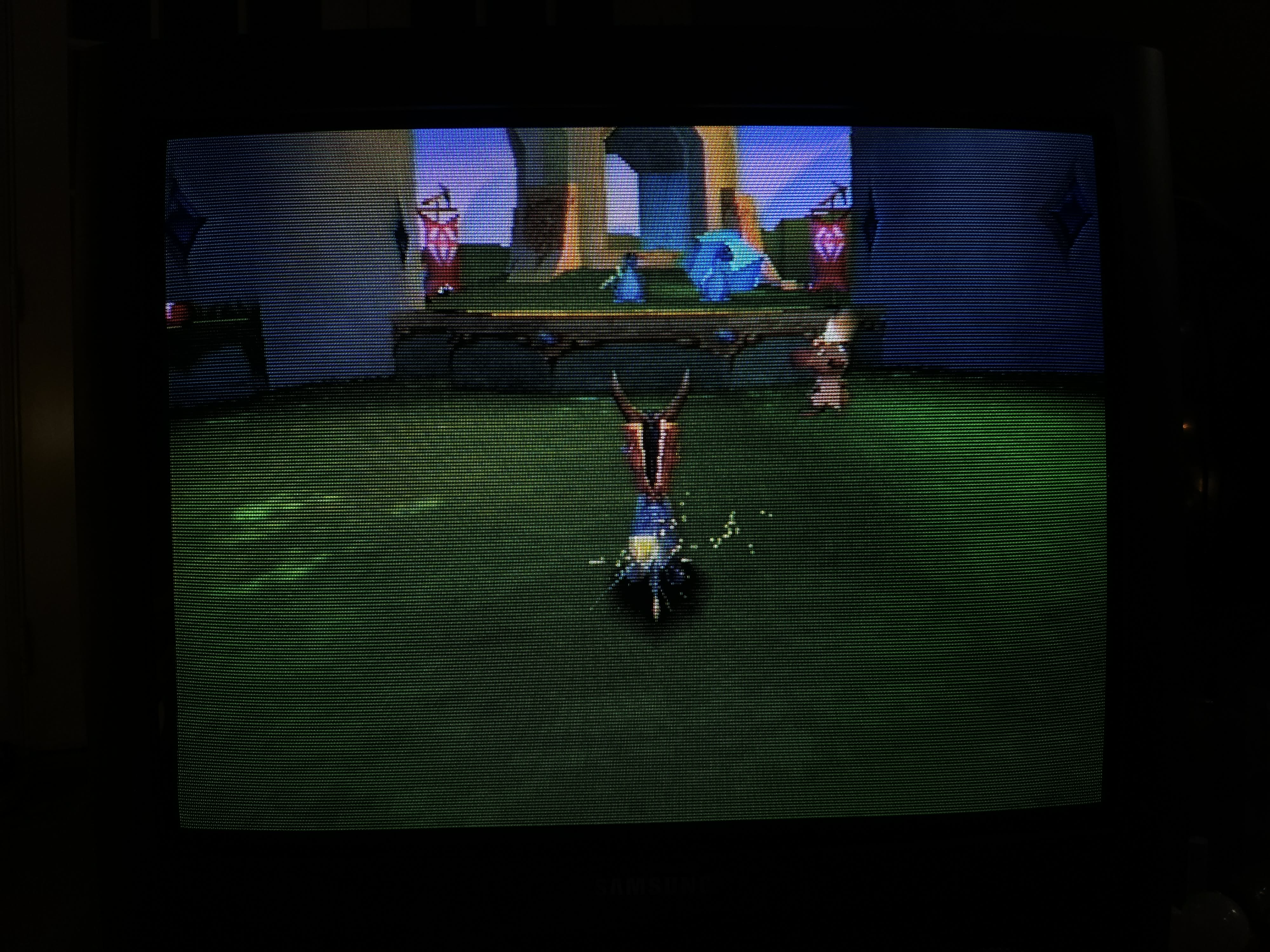

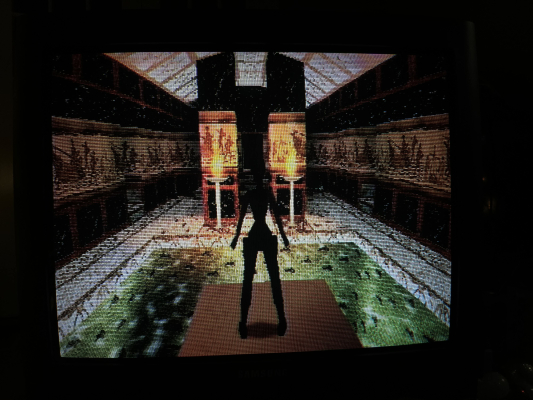

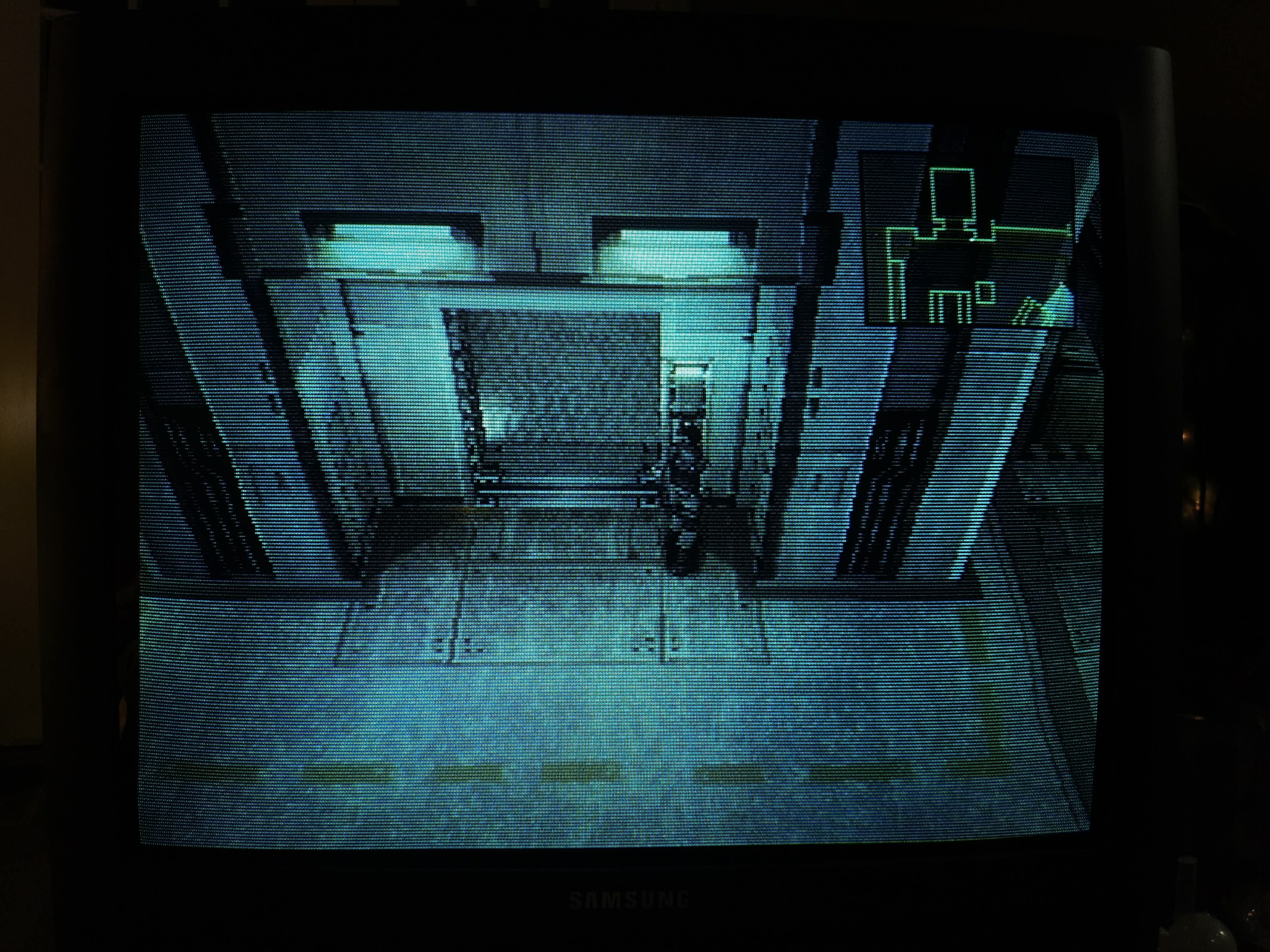

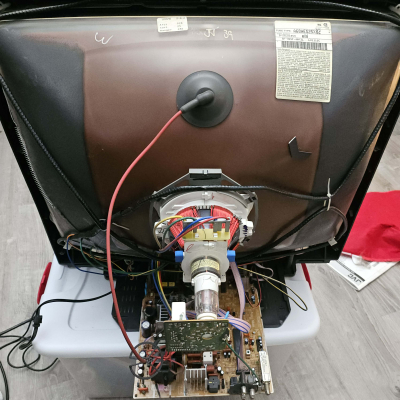

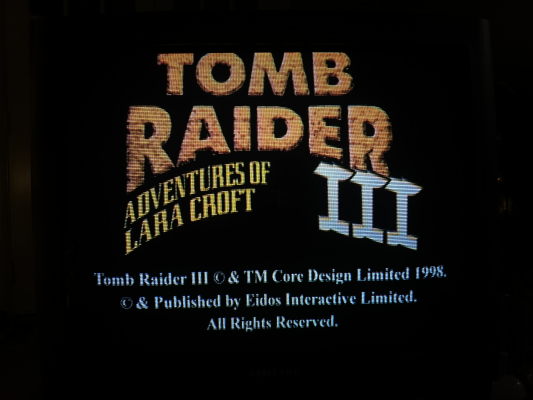

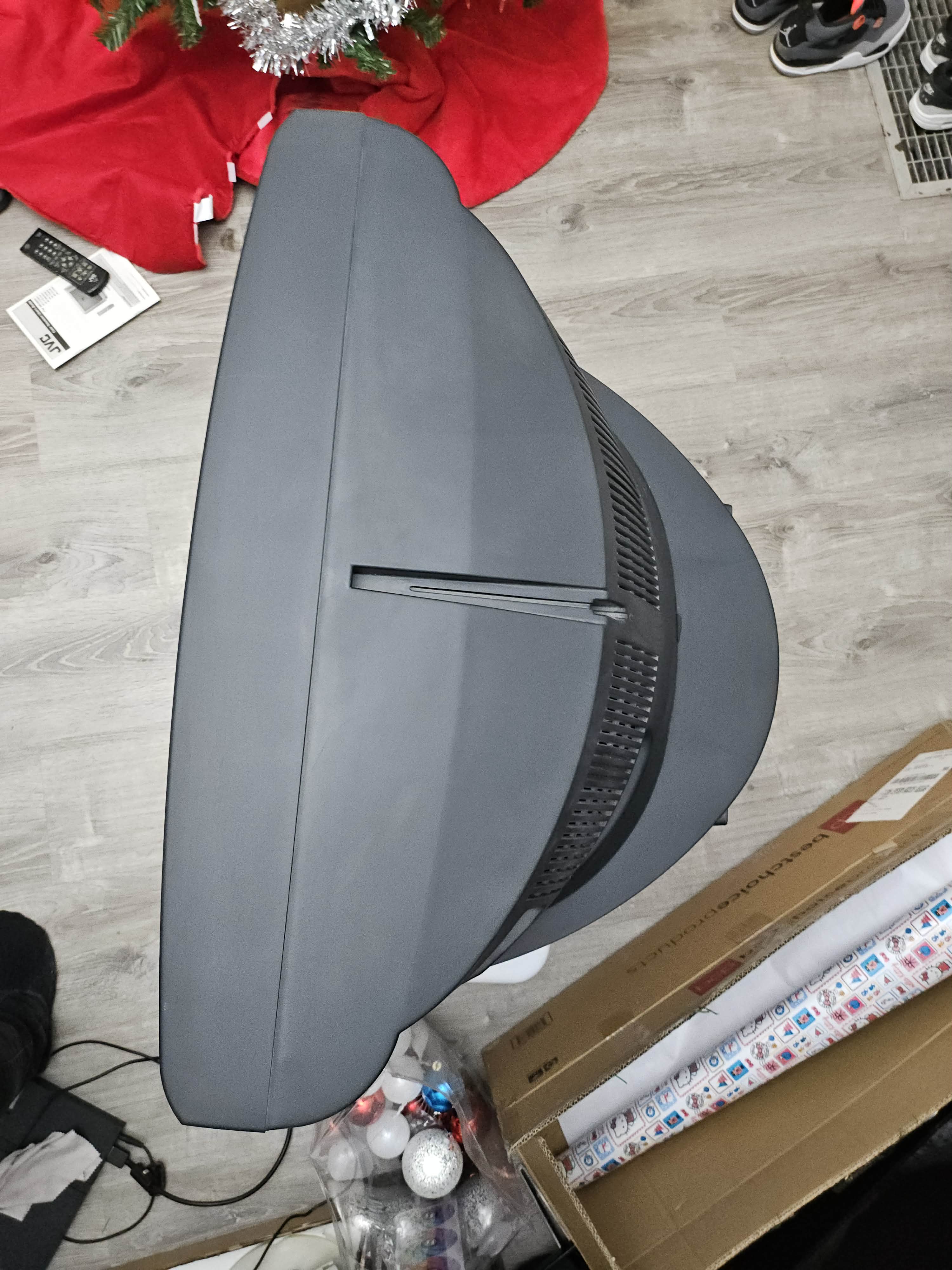

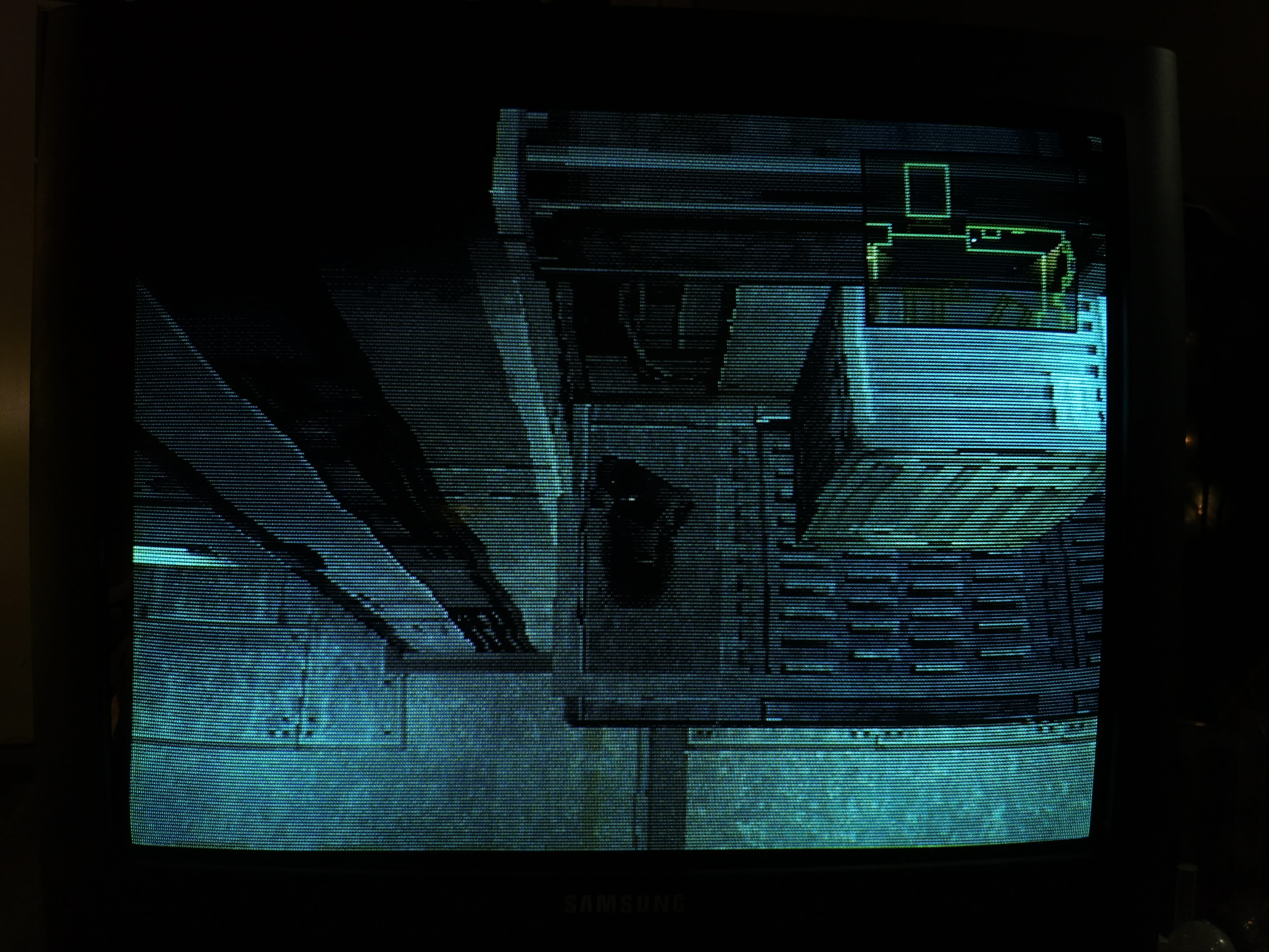

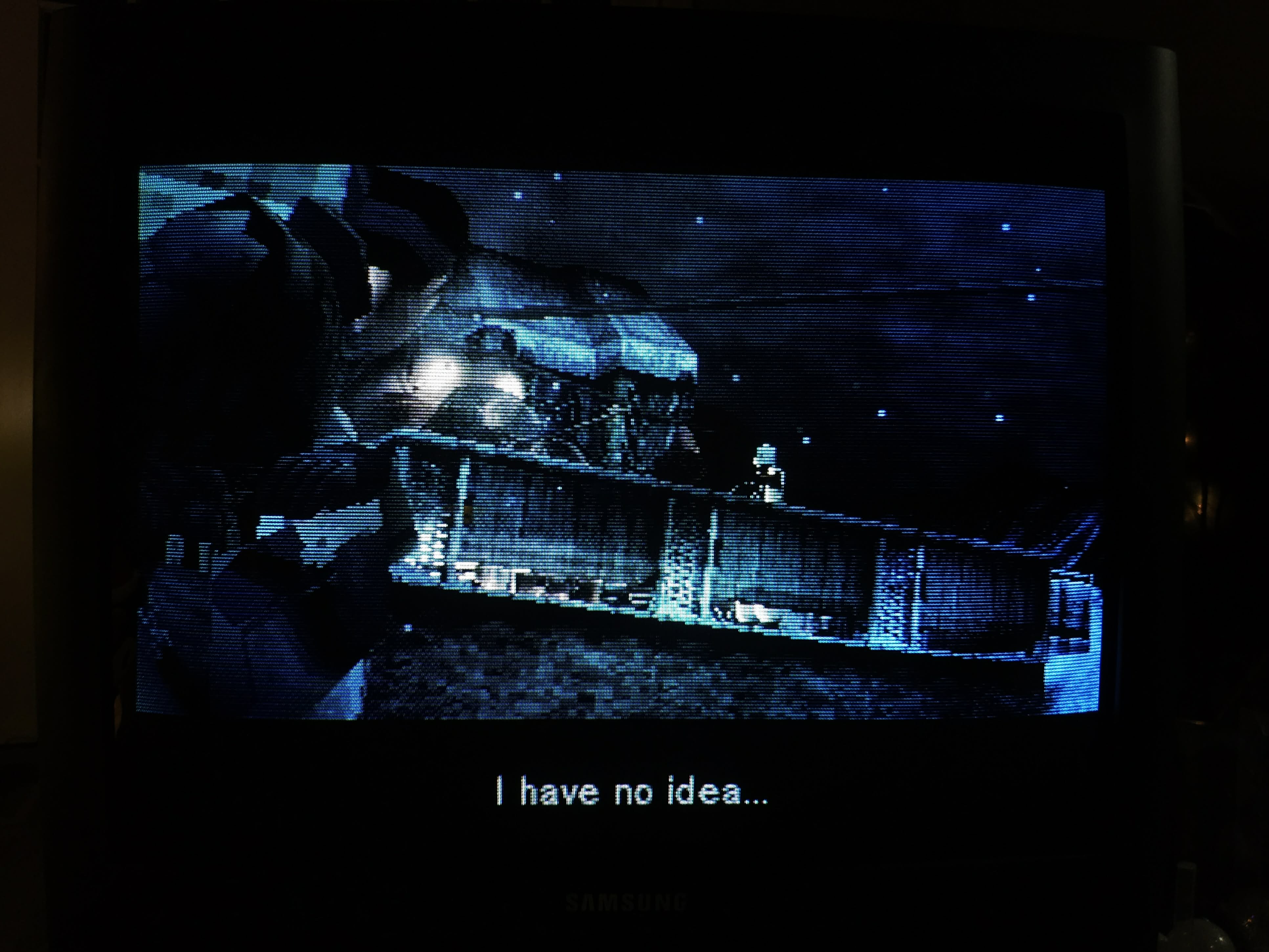

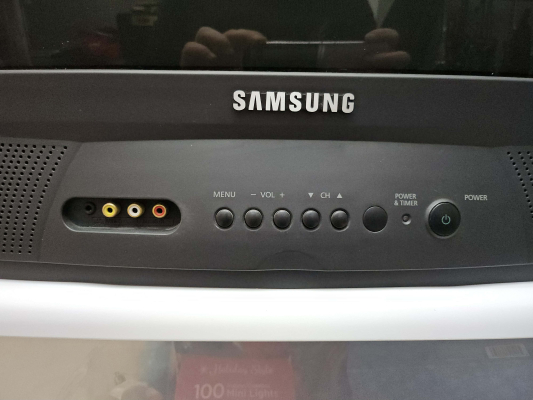

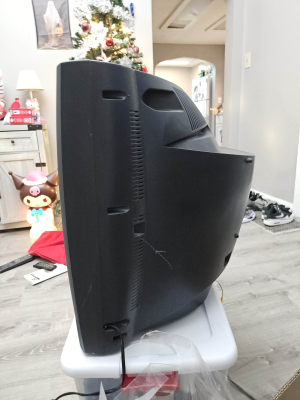

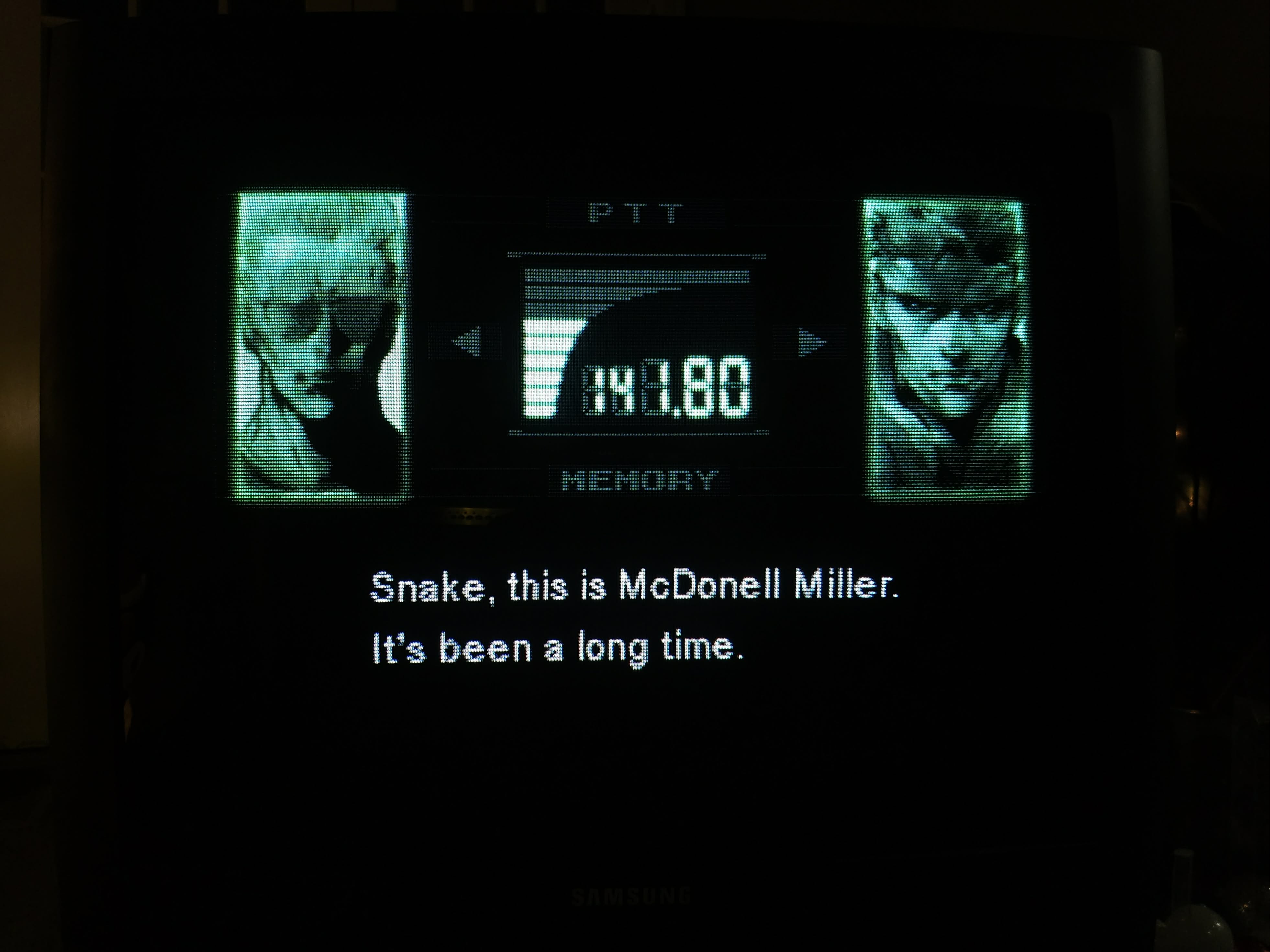

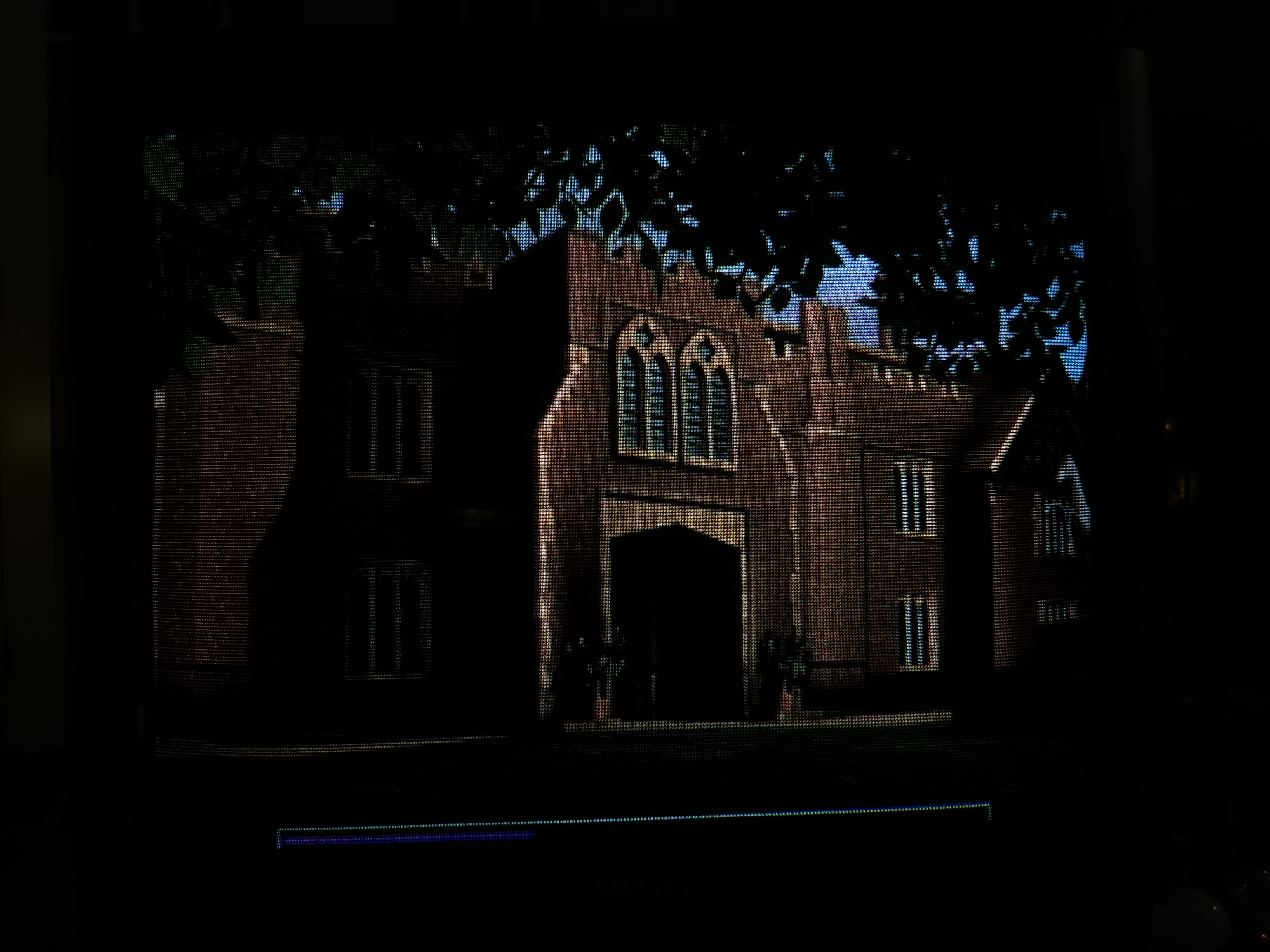

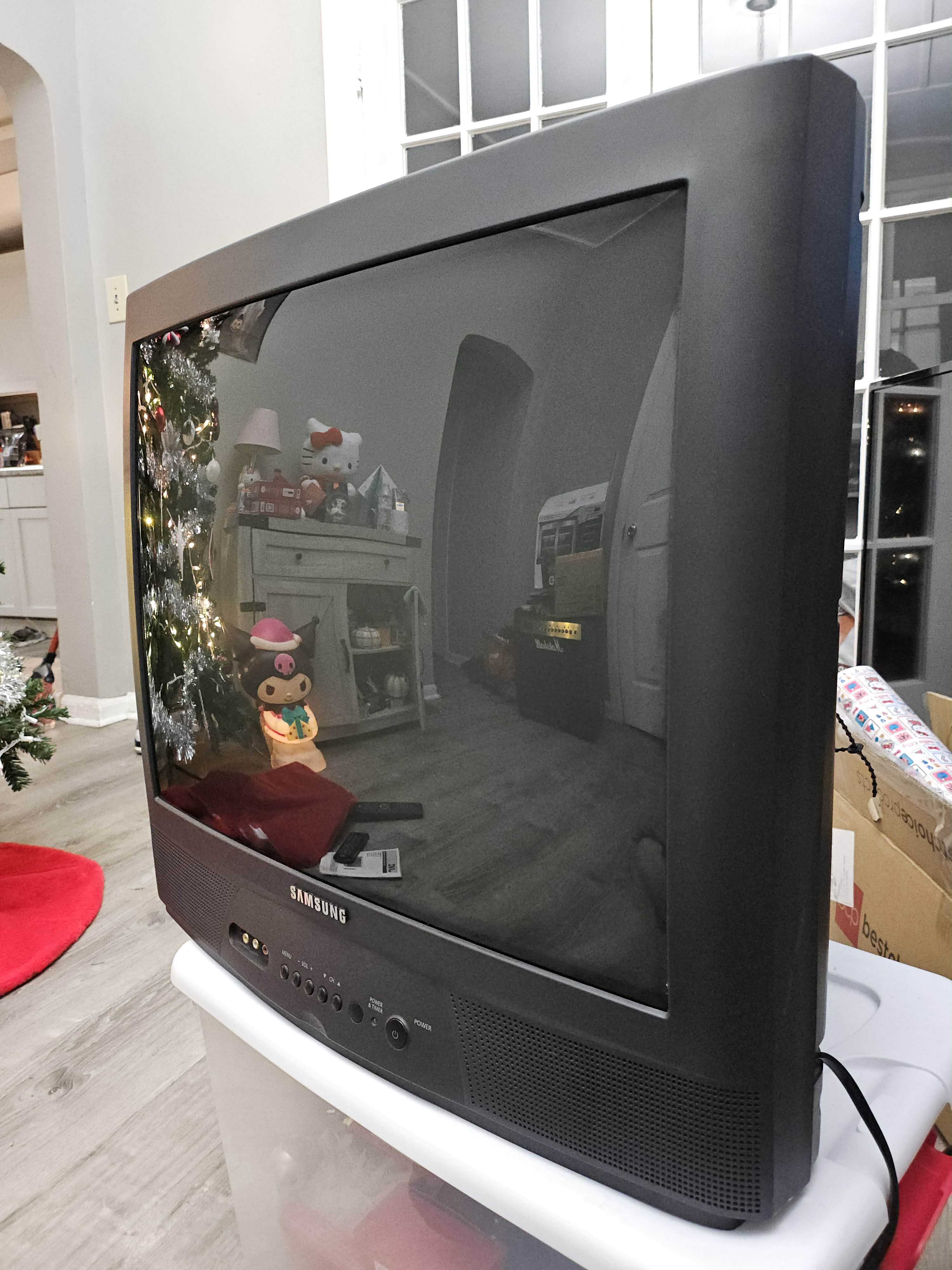

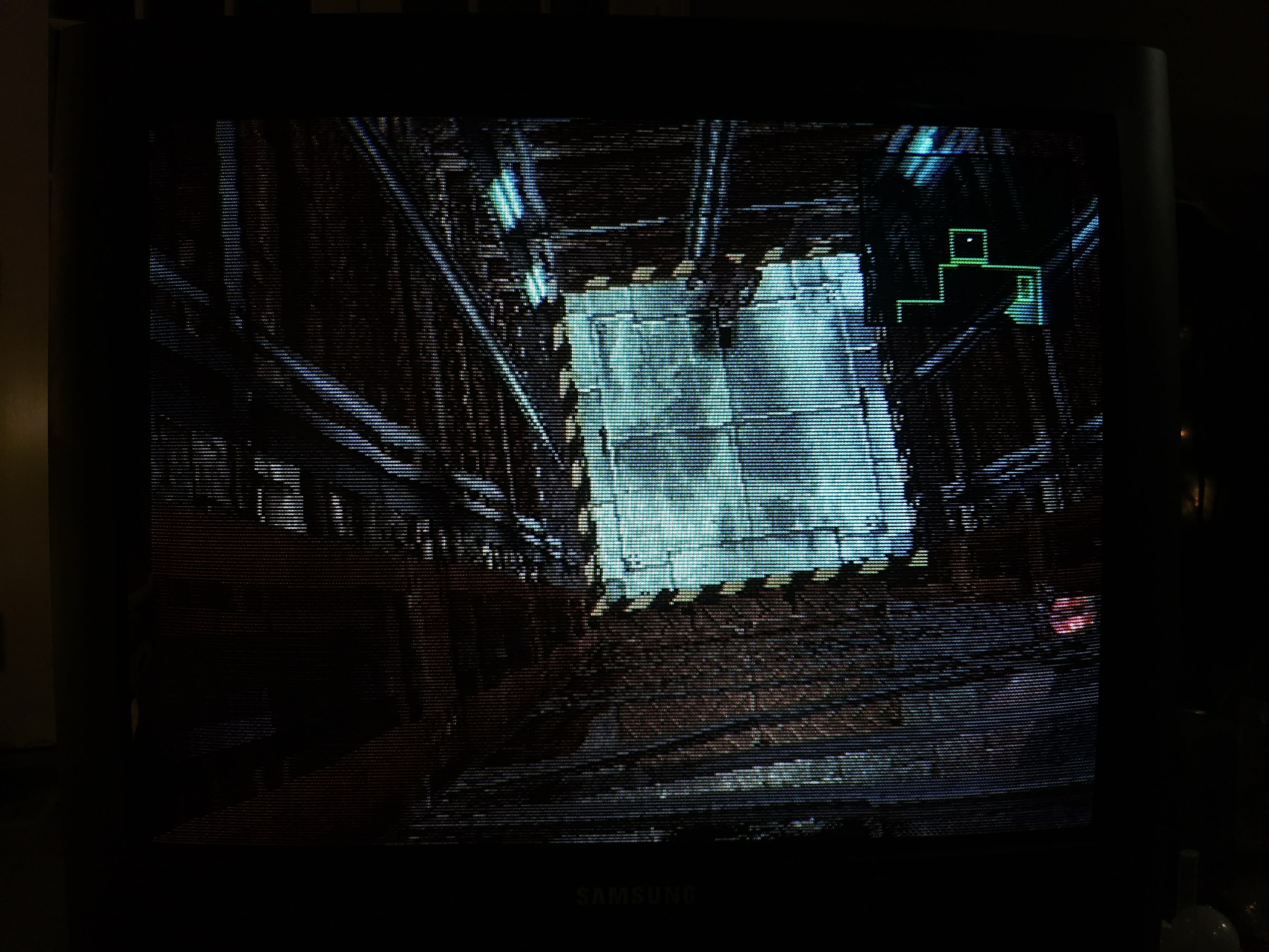

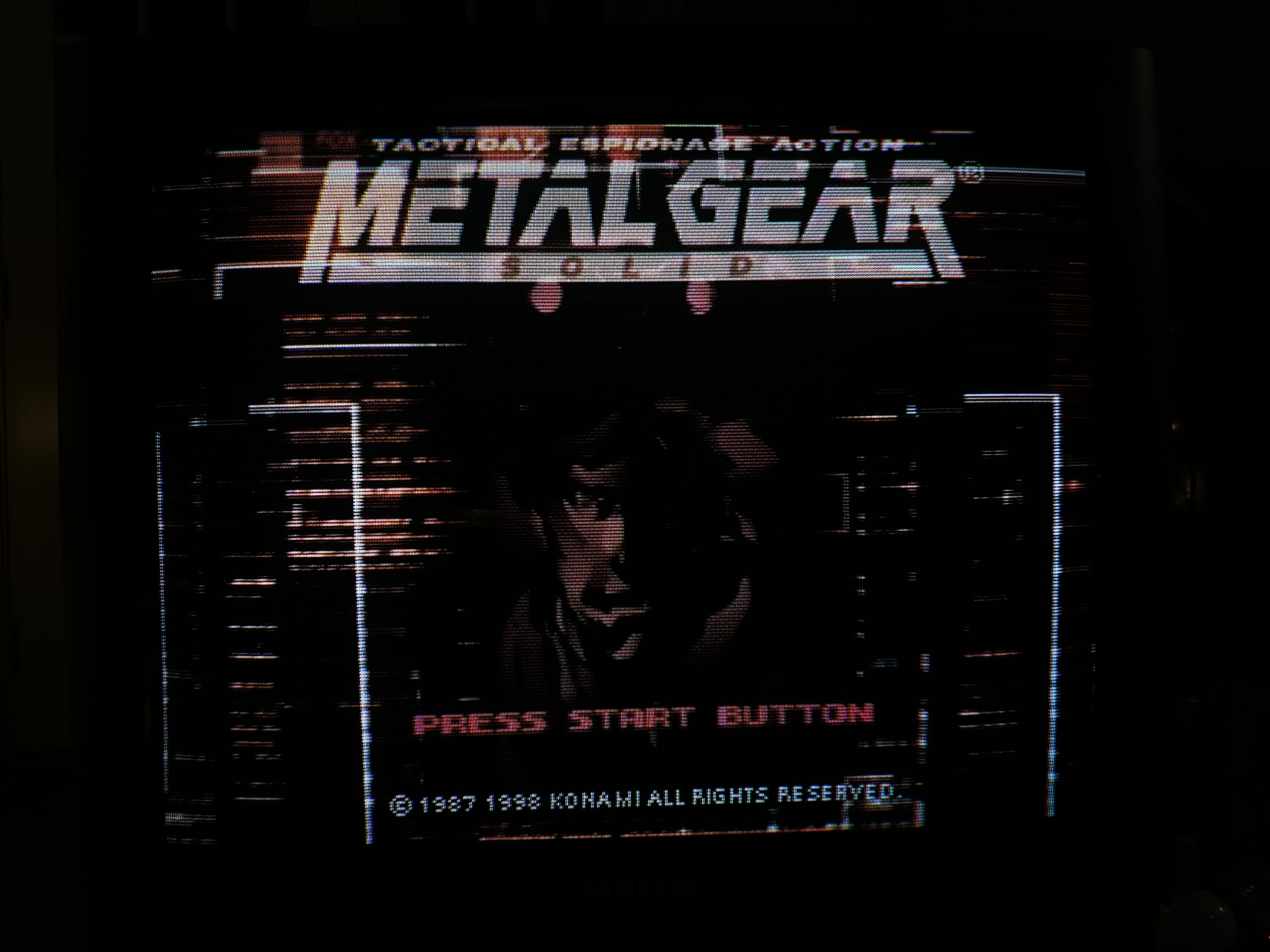

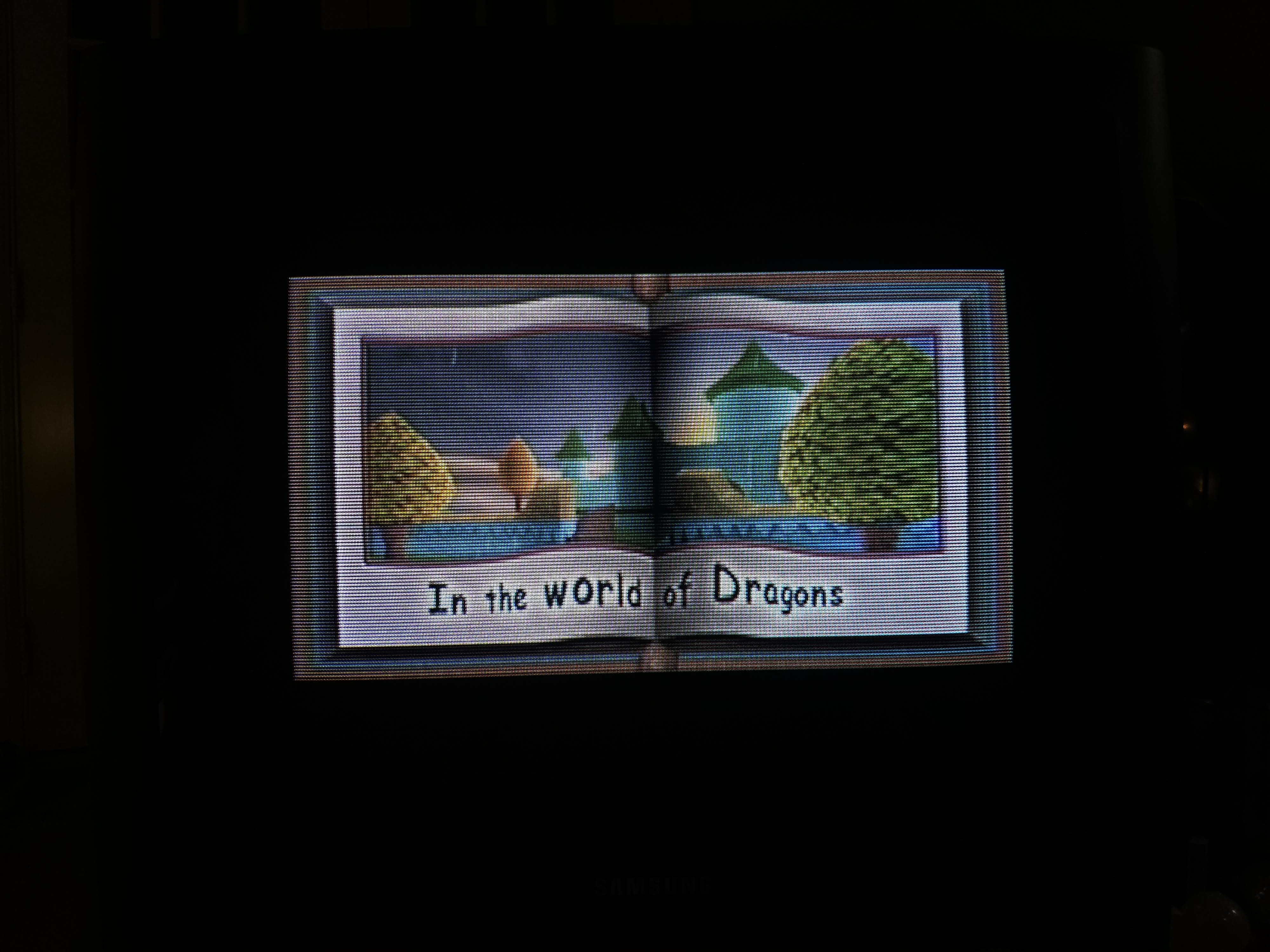

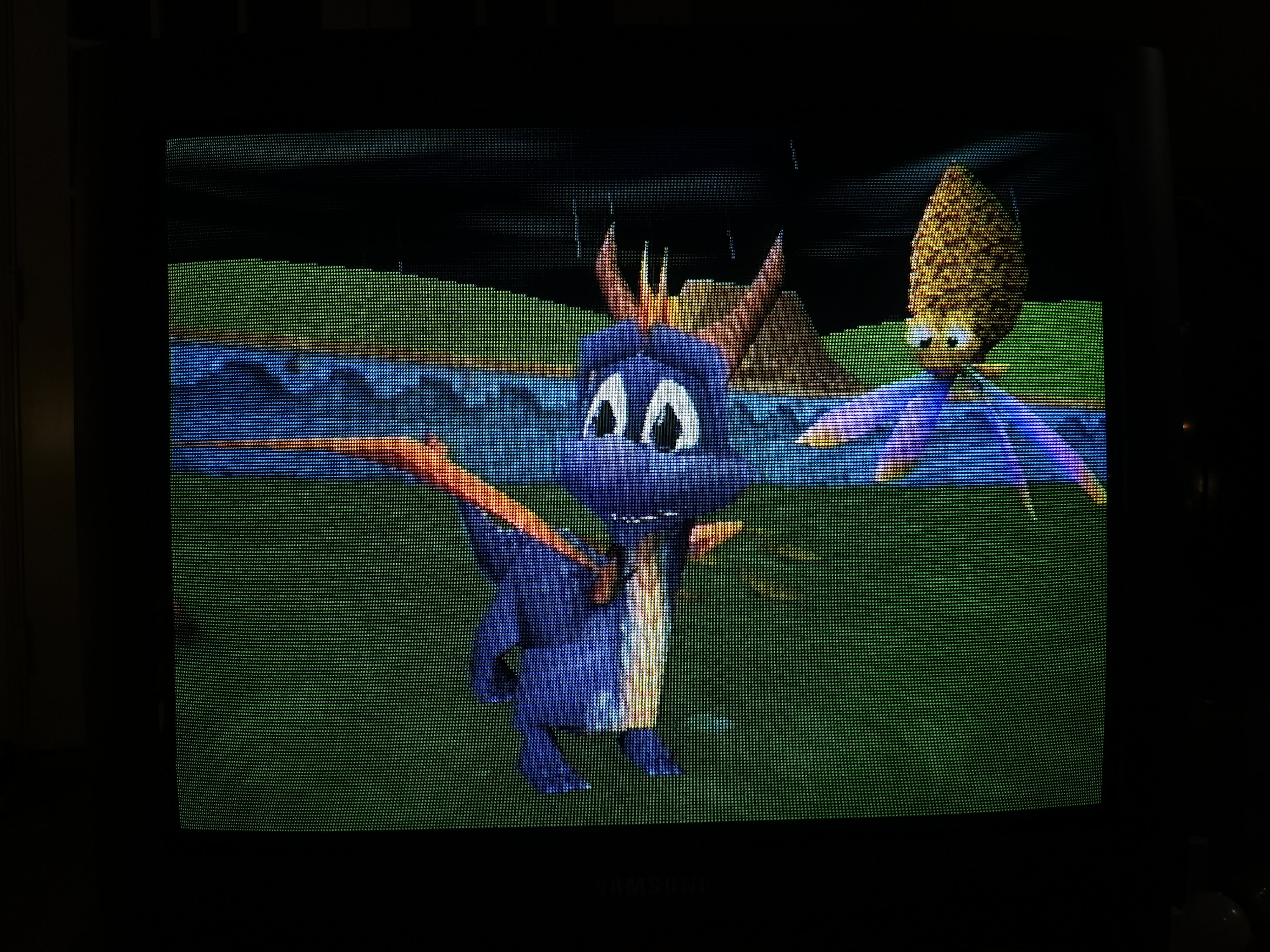

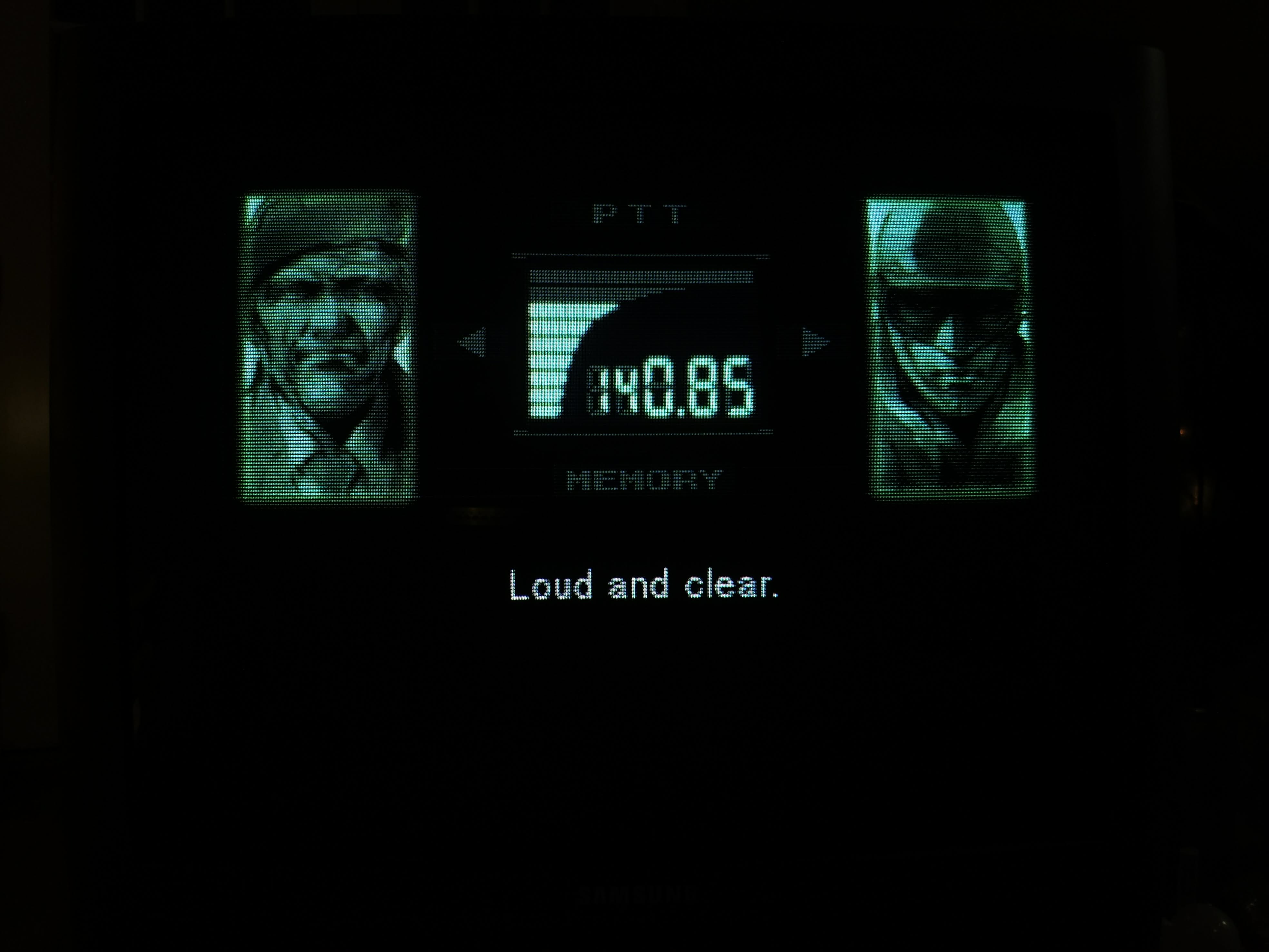

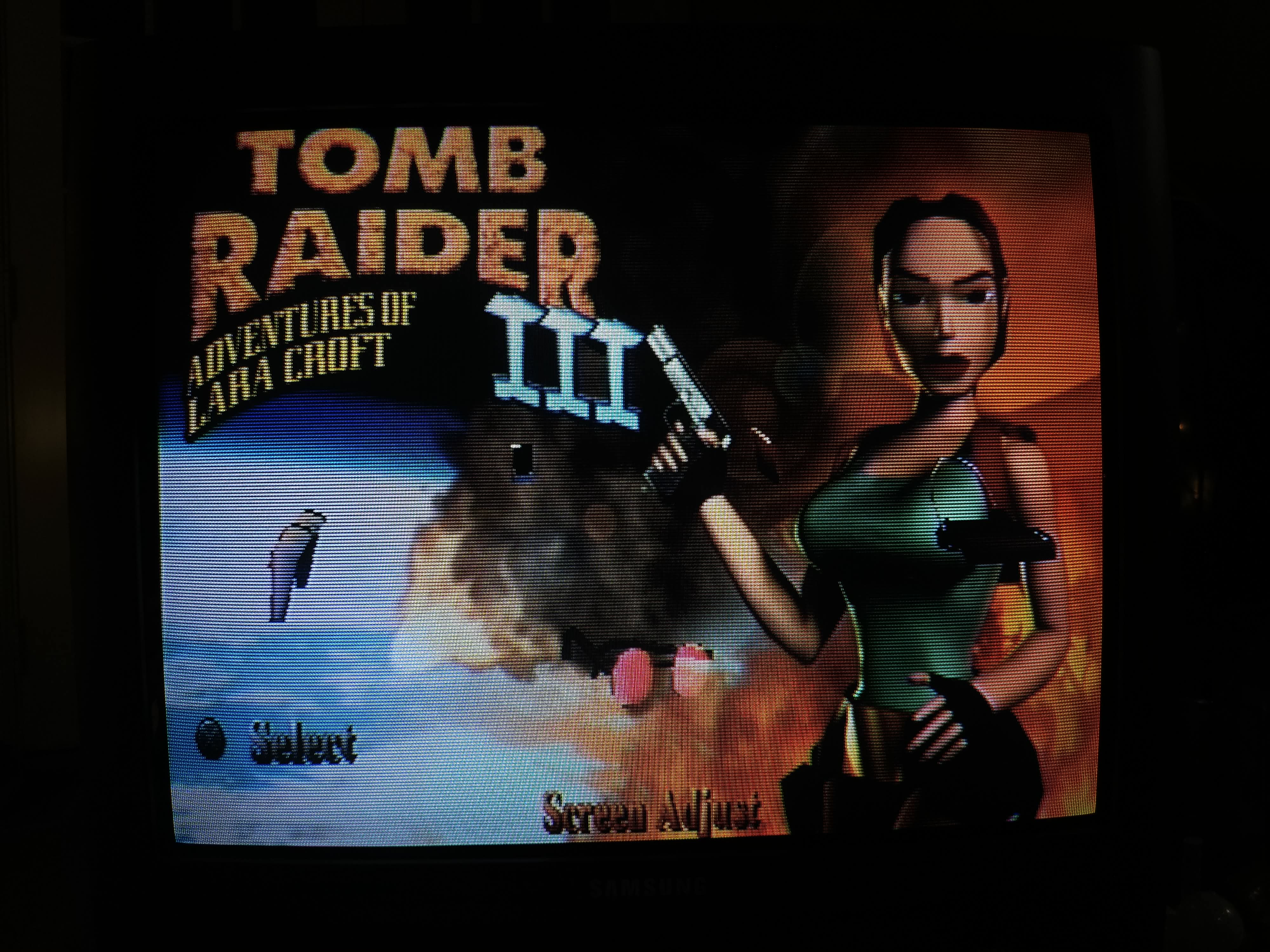

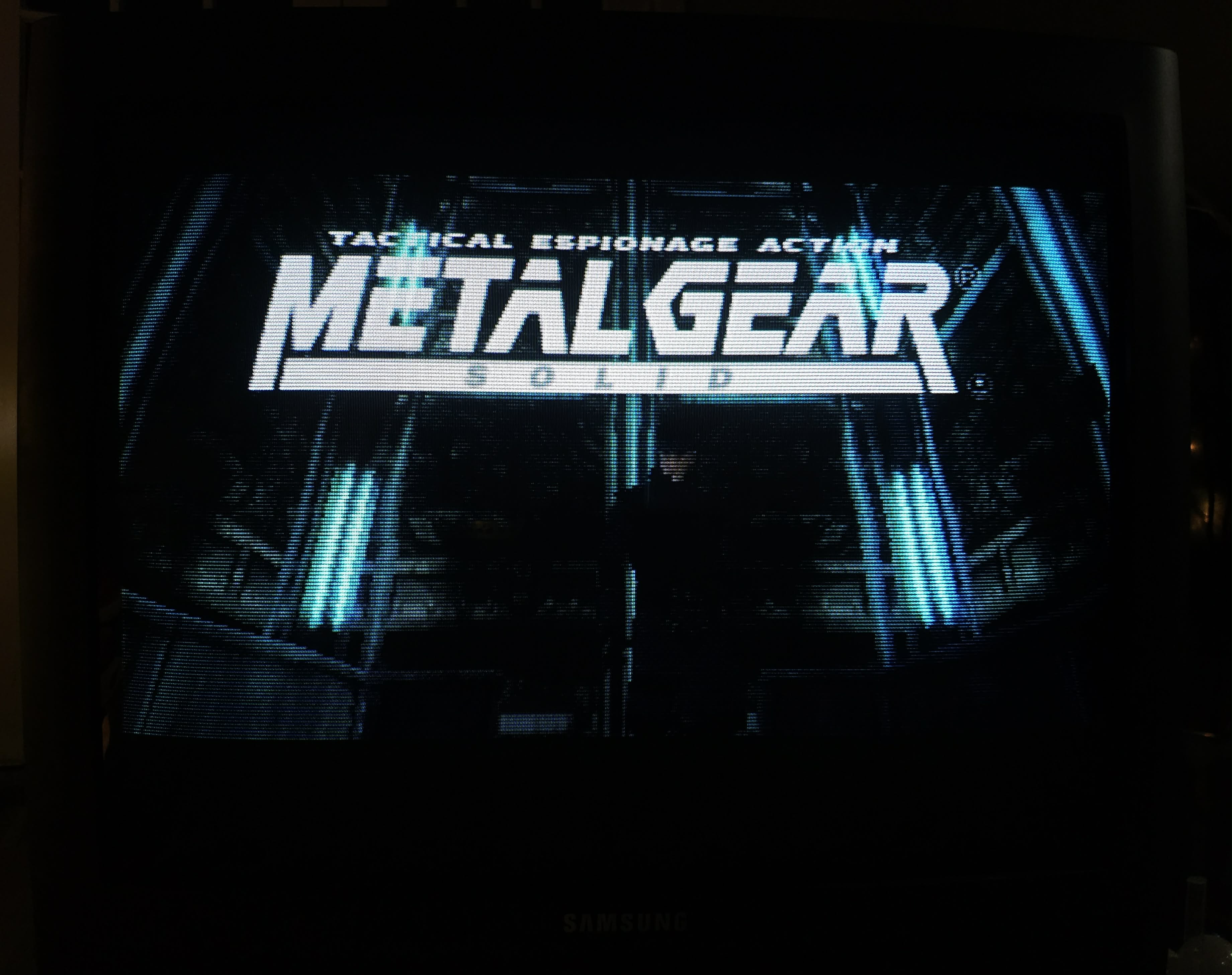

Gallery
| Specifications | |
|---|---|
| Brand: | Samsung |
| Manufacturer: | Samsung |

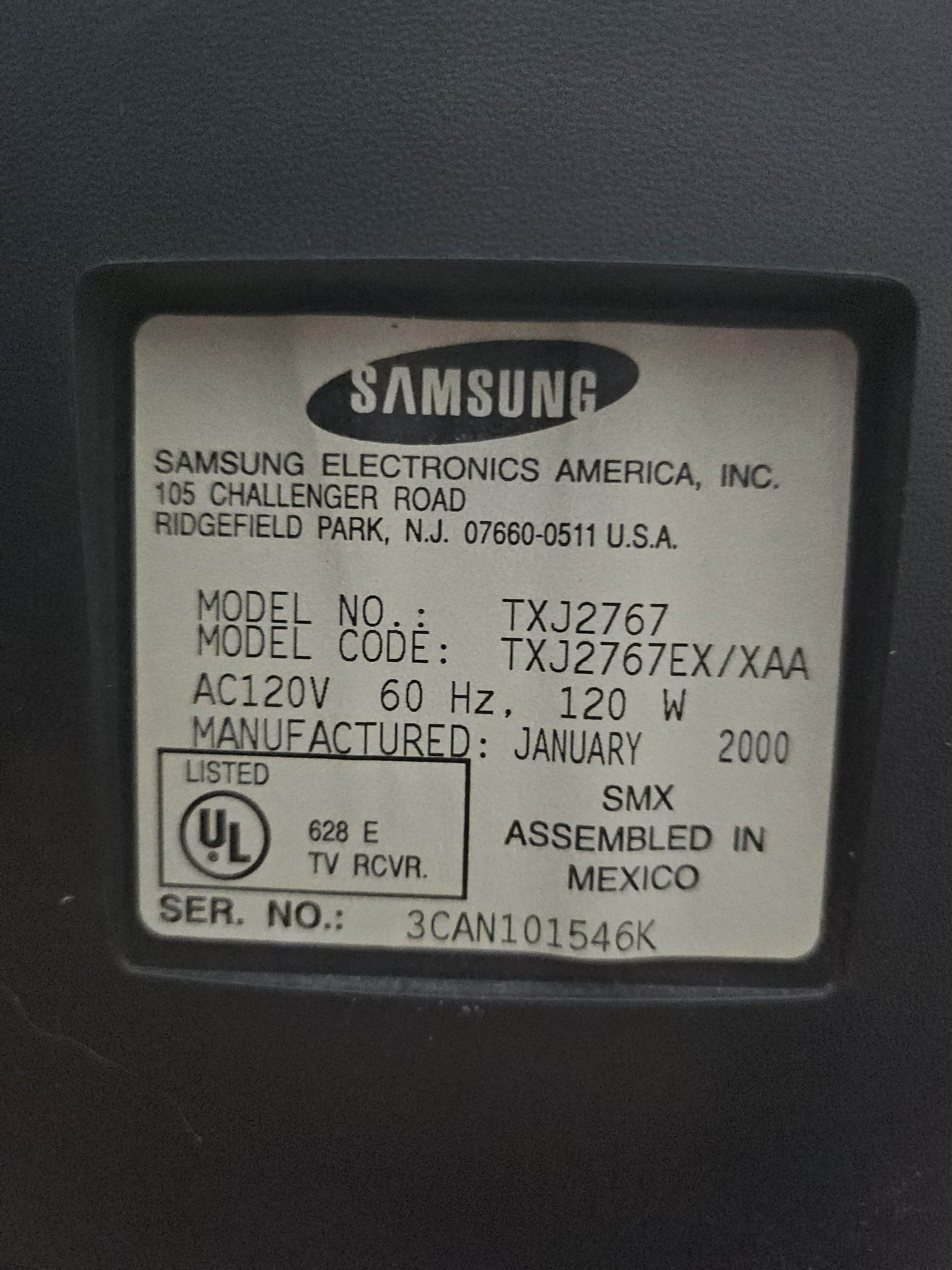

| Model: | TXJ2767 |
| Series: | TXJ |
| Viewable Size: | 27" |
| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7845 |

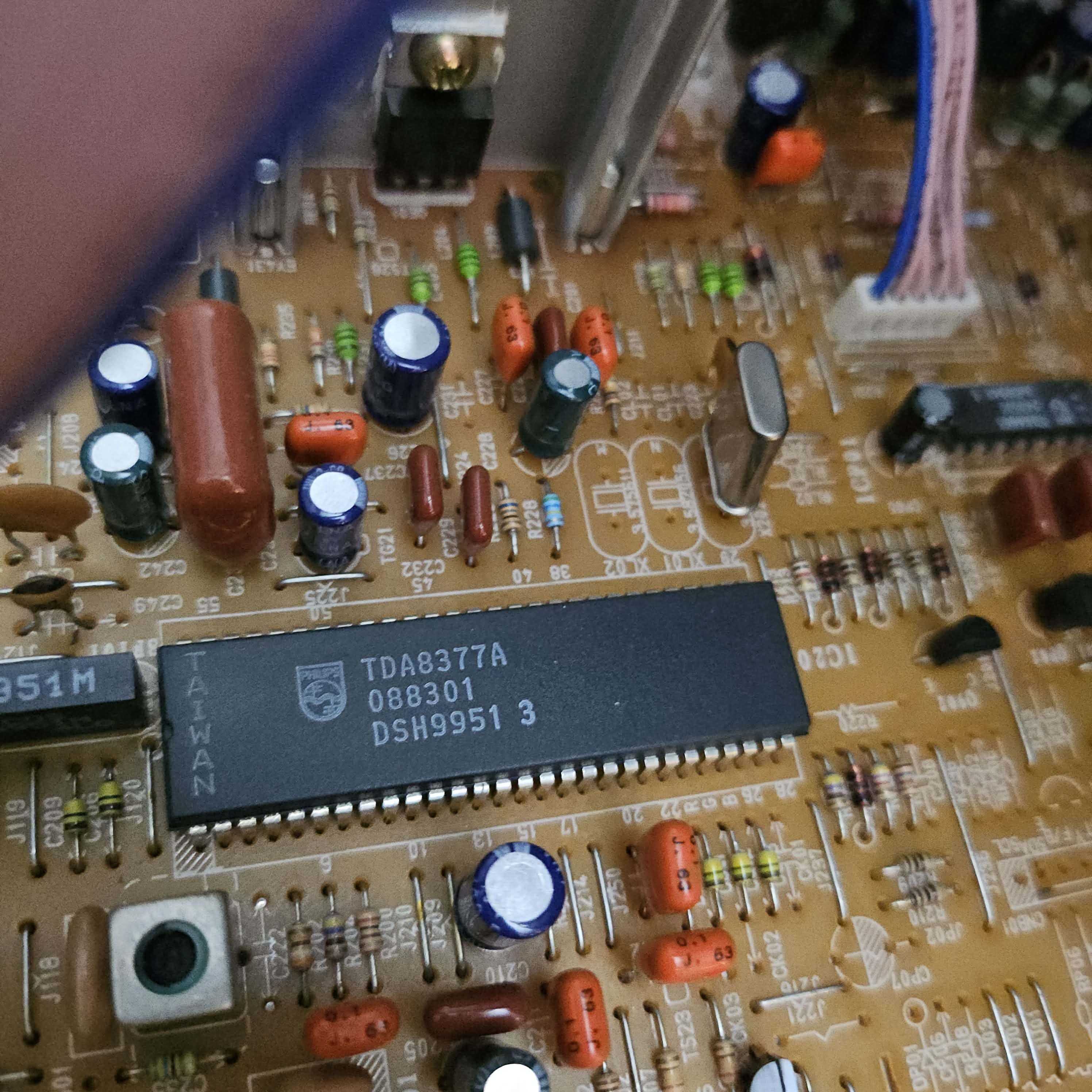

| Jungle IC: | Philips, TDA8377, TDA8377A |

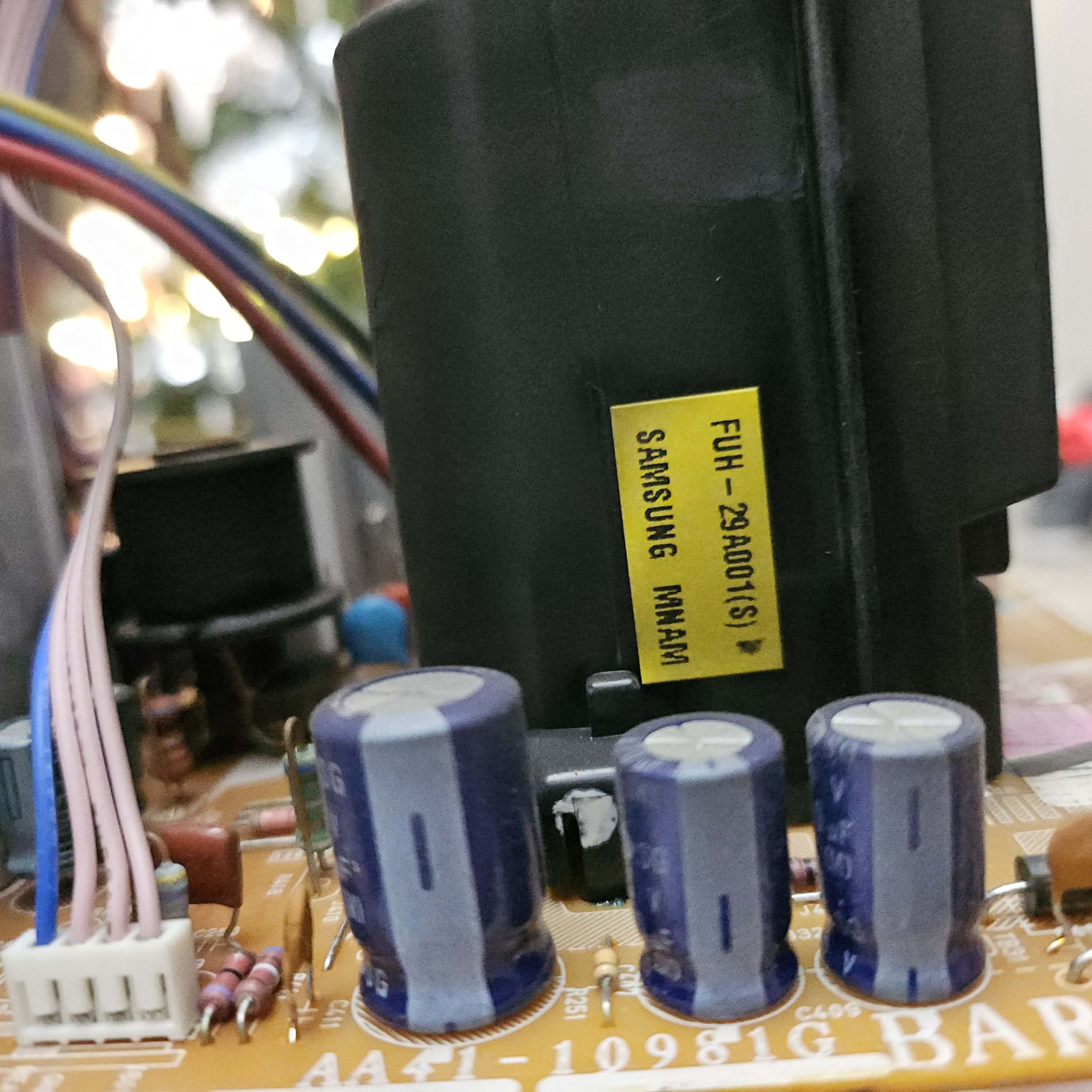

| Flyback: | FUH-29A001(S) |
| Focus Type: | Single |

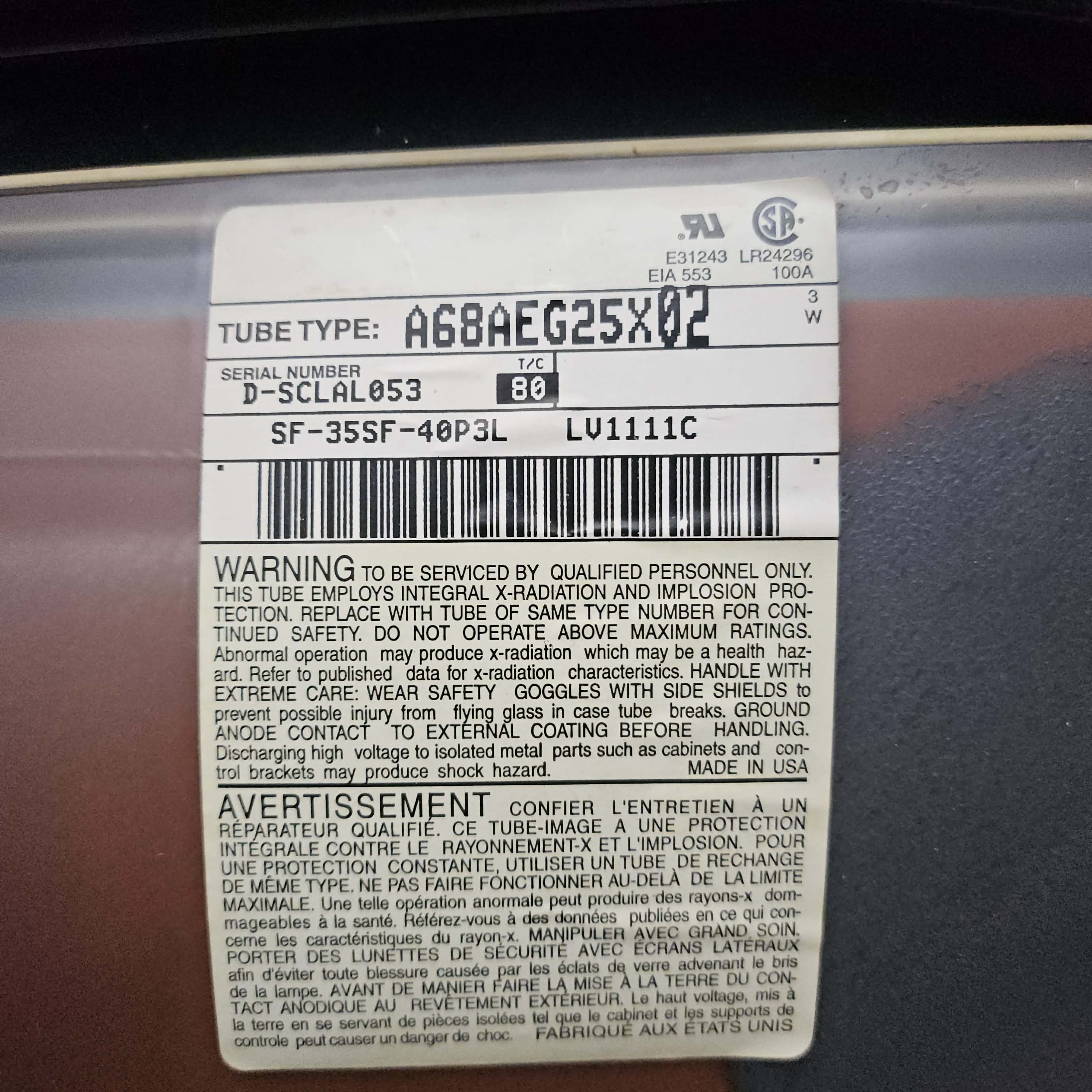

| Tube: | Thomson , RCA , A68AEG25X , A68AEG25X02 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

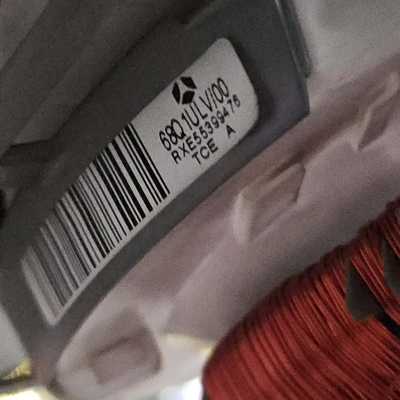

| Yoke: | RXE55399476, 68Q1ULV/00 |
| Speakers: | Stereo |
| Remote: | AA59-10109D |
| Chassis: | K51A |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 299 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Measurements |
