Summary

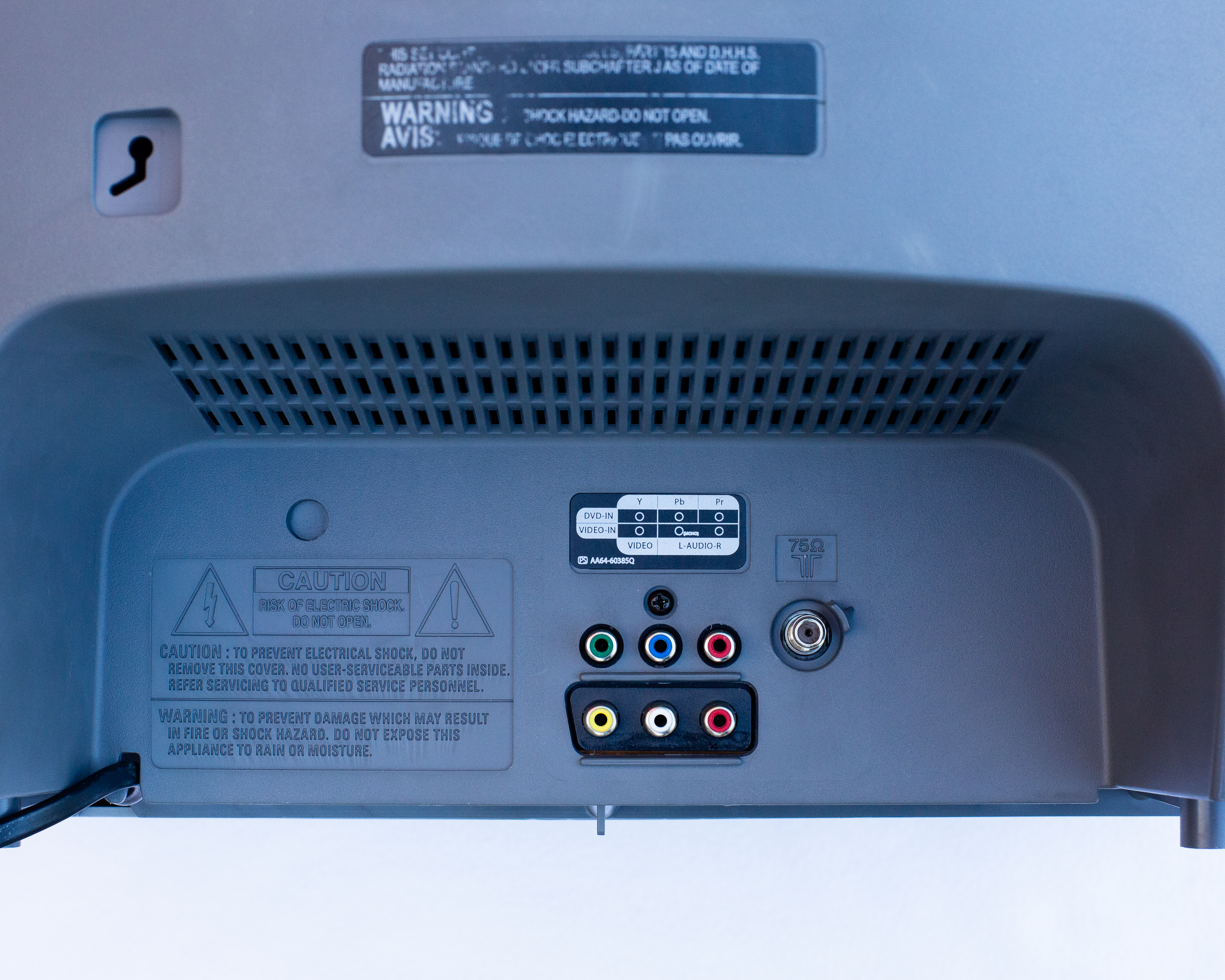

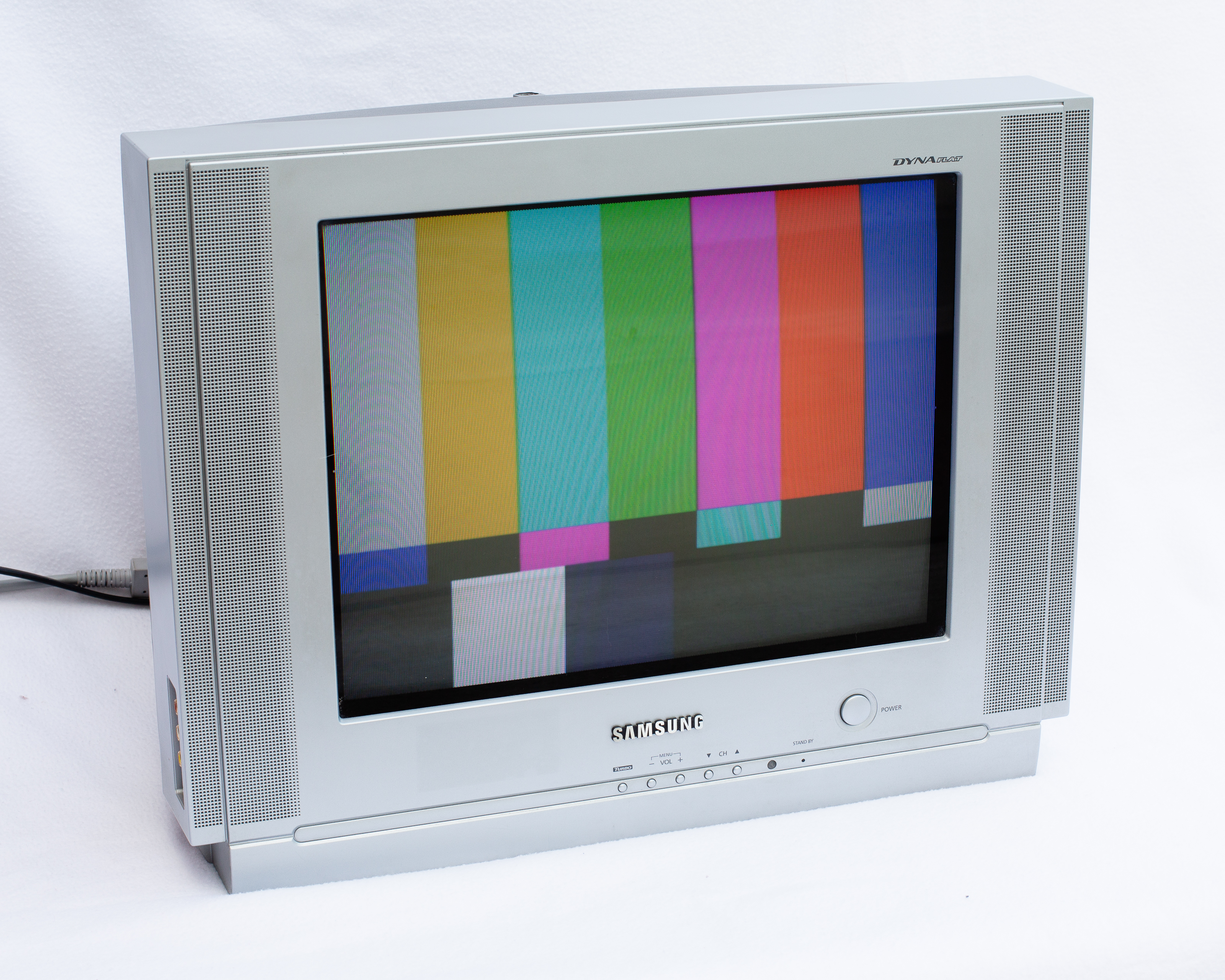

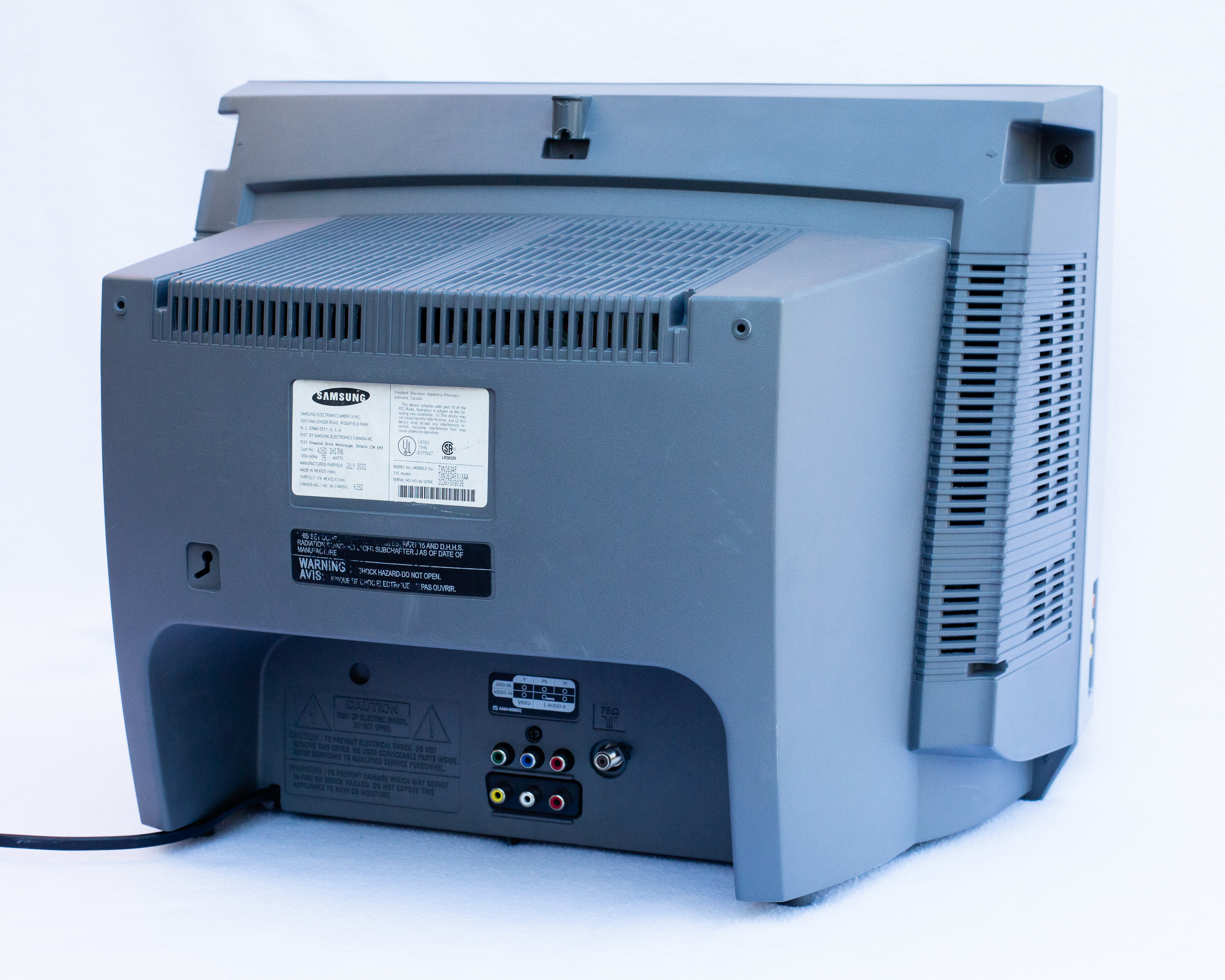

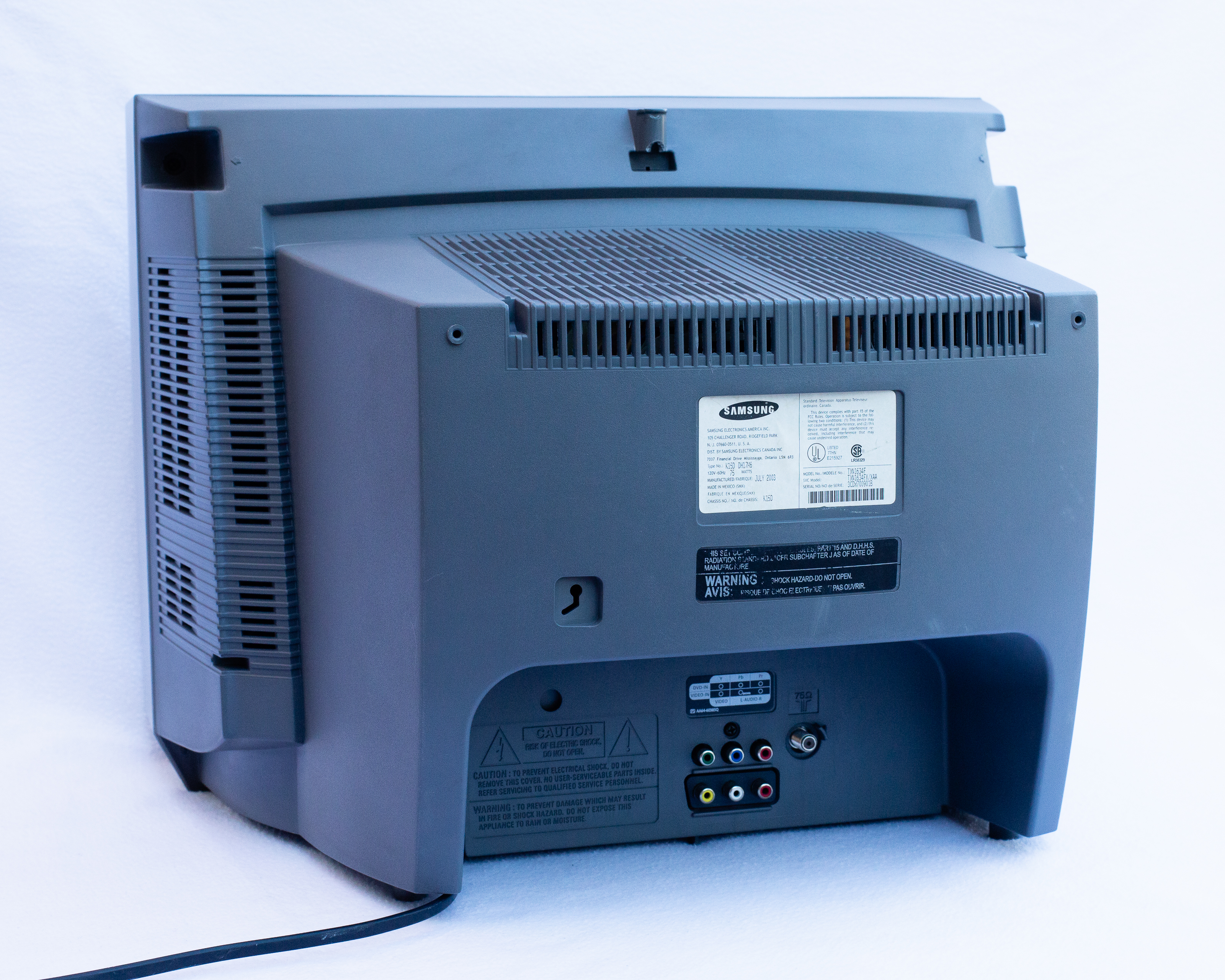

A late model small flat screen with YPbPr input.

Manuals & Promo Materials

• Owner's Manual

Notes

Samsung uses a totally different naming convention internally for their television models. The model name used to look up the service manual is: CL15K5MNFX

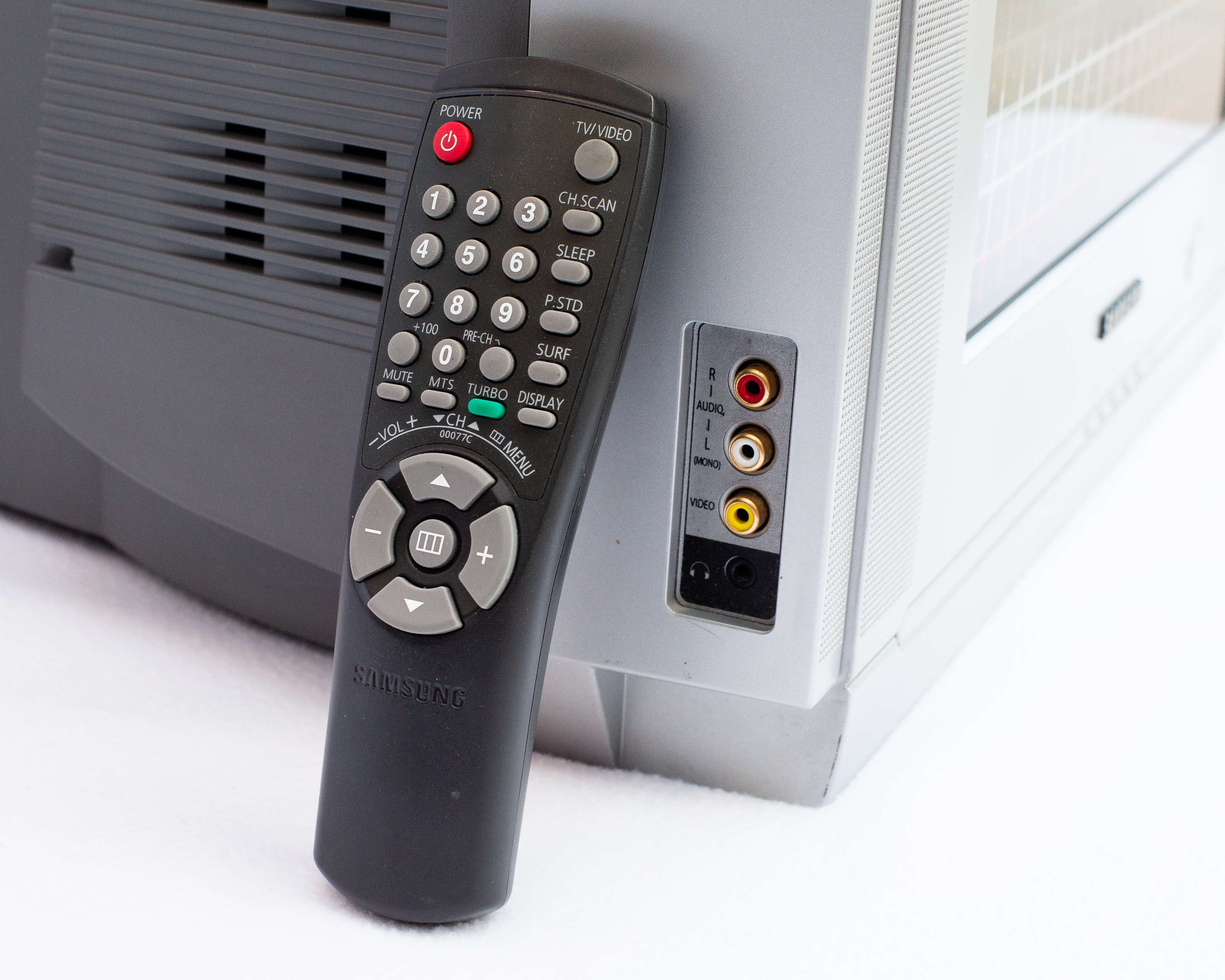

To access service menu: turn the TV off then, using the remote, press each button in sequence: MUTE, 1, 8, 2, POWER

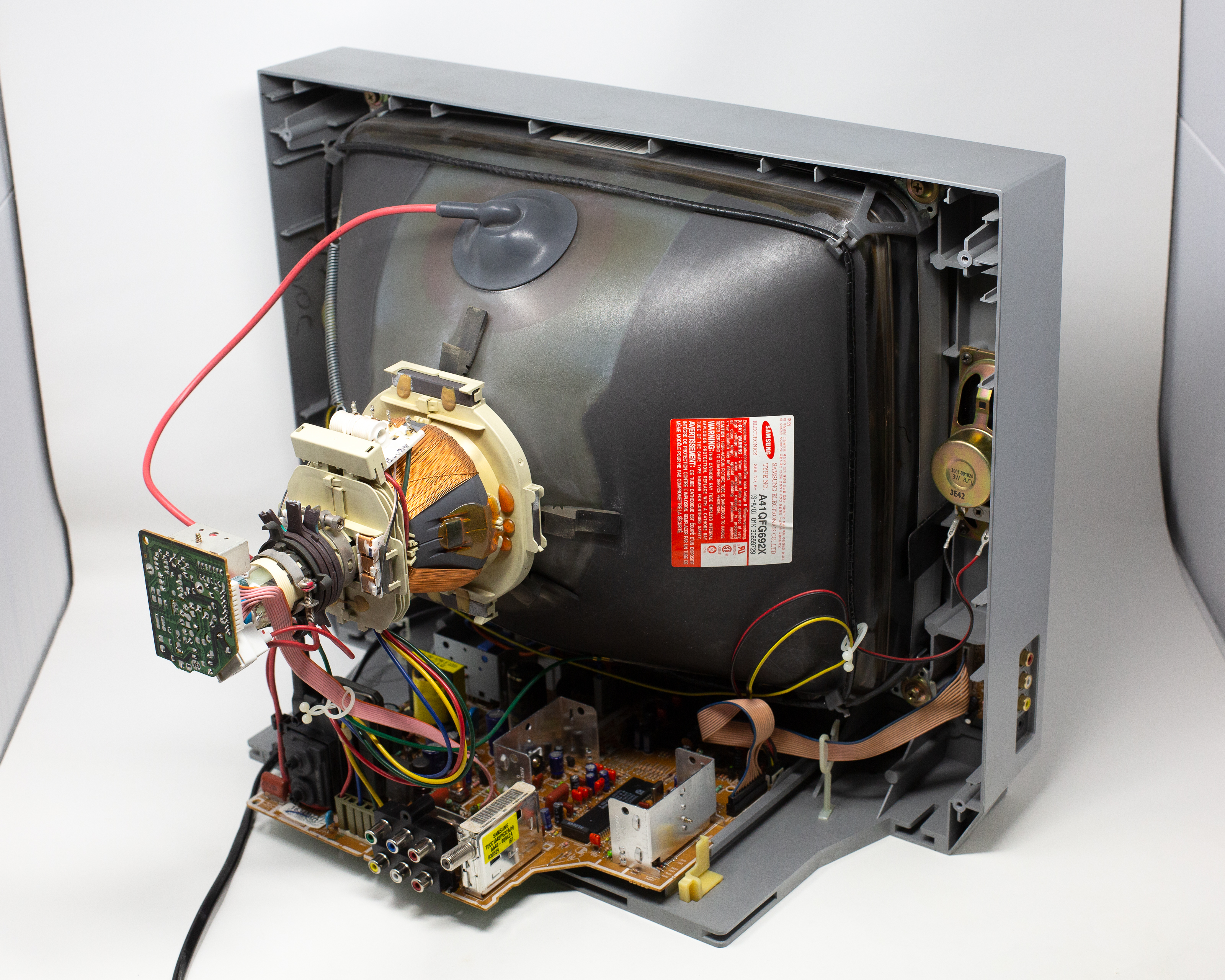

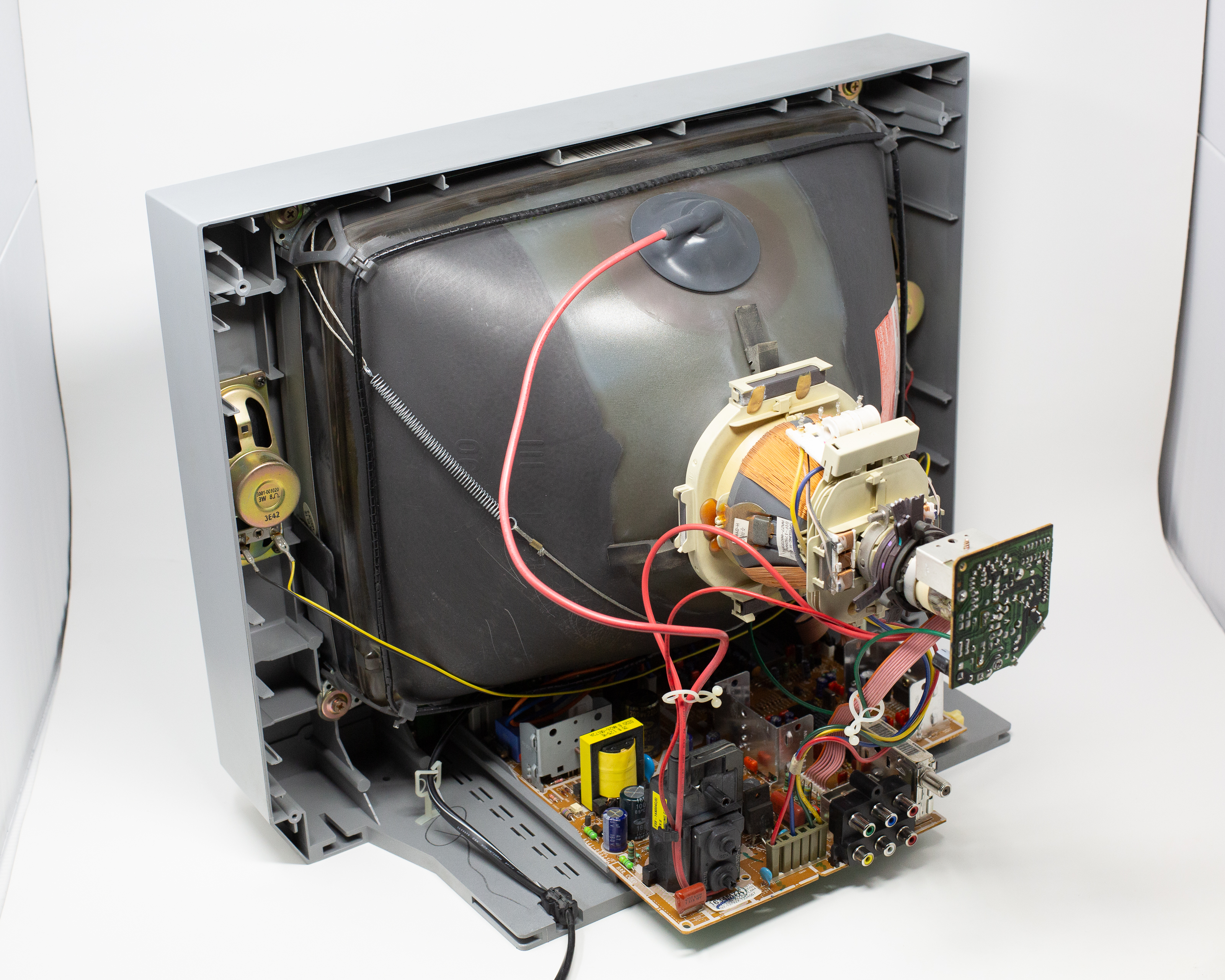

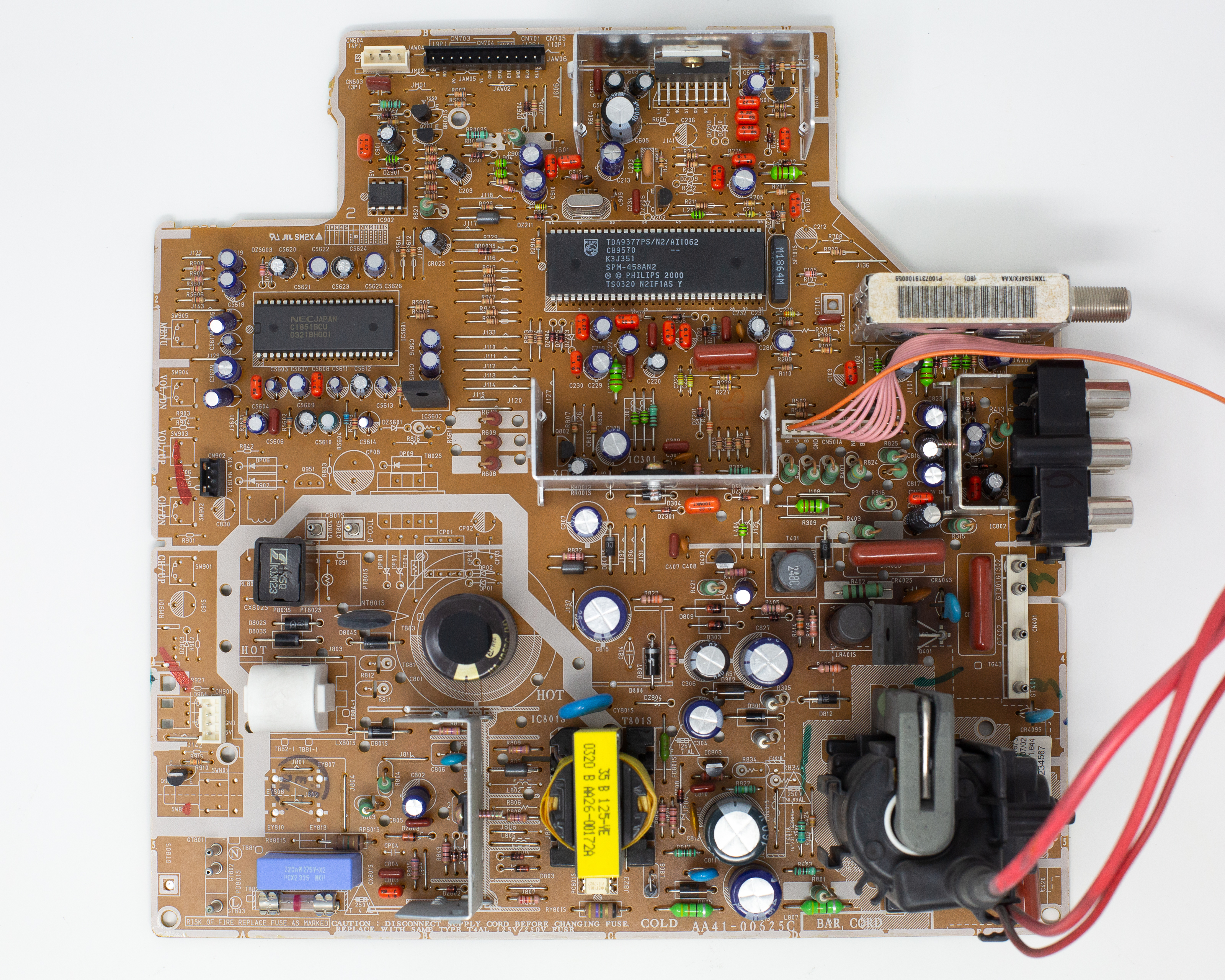

One of the coils on the circuit board has two ceramic disc magnets glued to the top of it, but the magnets may fall off over time resulting in a significantly narrower screen image. Horizontal size cannot be adjusted in the service menu, so the only way to correct this is to re-attach the magnets to the coil in the correct orientation. Alternatively, the original magnets may be substituted with much thinner neodymium magnets.
