Summary

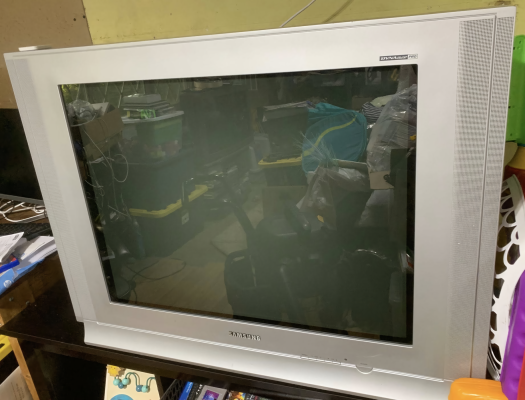

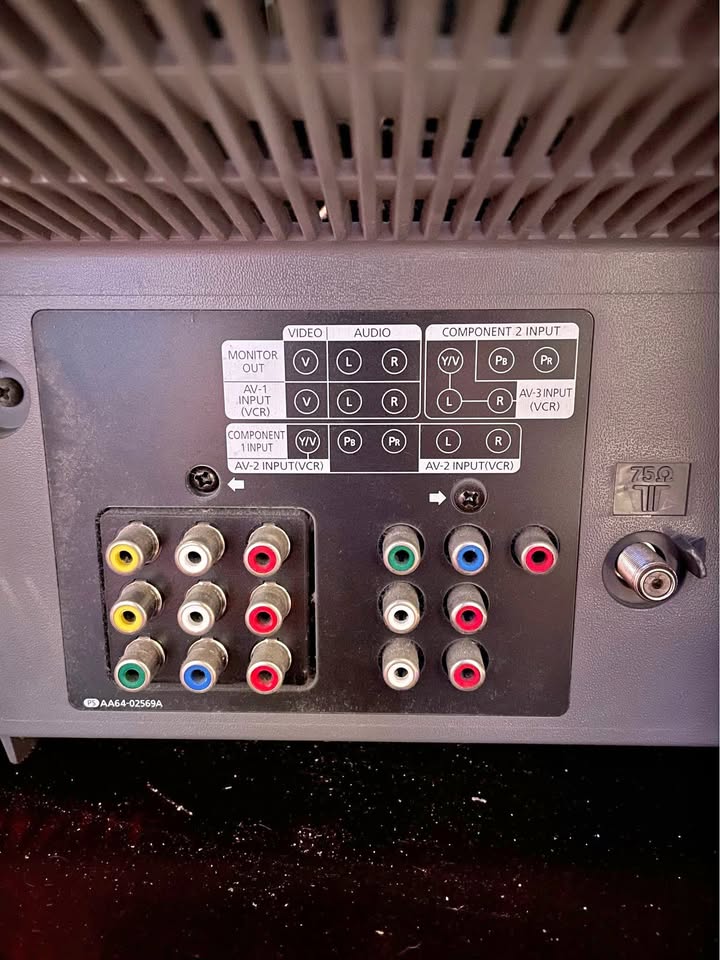

32" HD CRT by Samsung, made in Mexico in 2003. Has RF, composite, s-video and component inputs.
Manuals
Notes
Picture processing is kinda meh due to the Micronas jungle. There's weird luma/choma misalignment artifacts over component, so I recommend adjusting LTI and CTI in the service menu to minimize these artifacts.
If you pop open the set there's an "Easter egg" of sorts on the Korea-produced picture tube. If you look on the top of the anti-implosion band, there's the words "OMEGA" emblazoned on a sticker. Apparently this tube was the largest Samsung produced, so they must have been very proud of it.

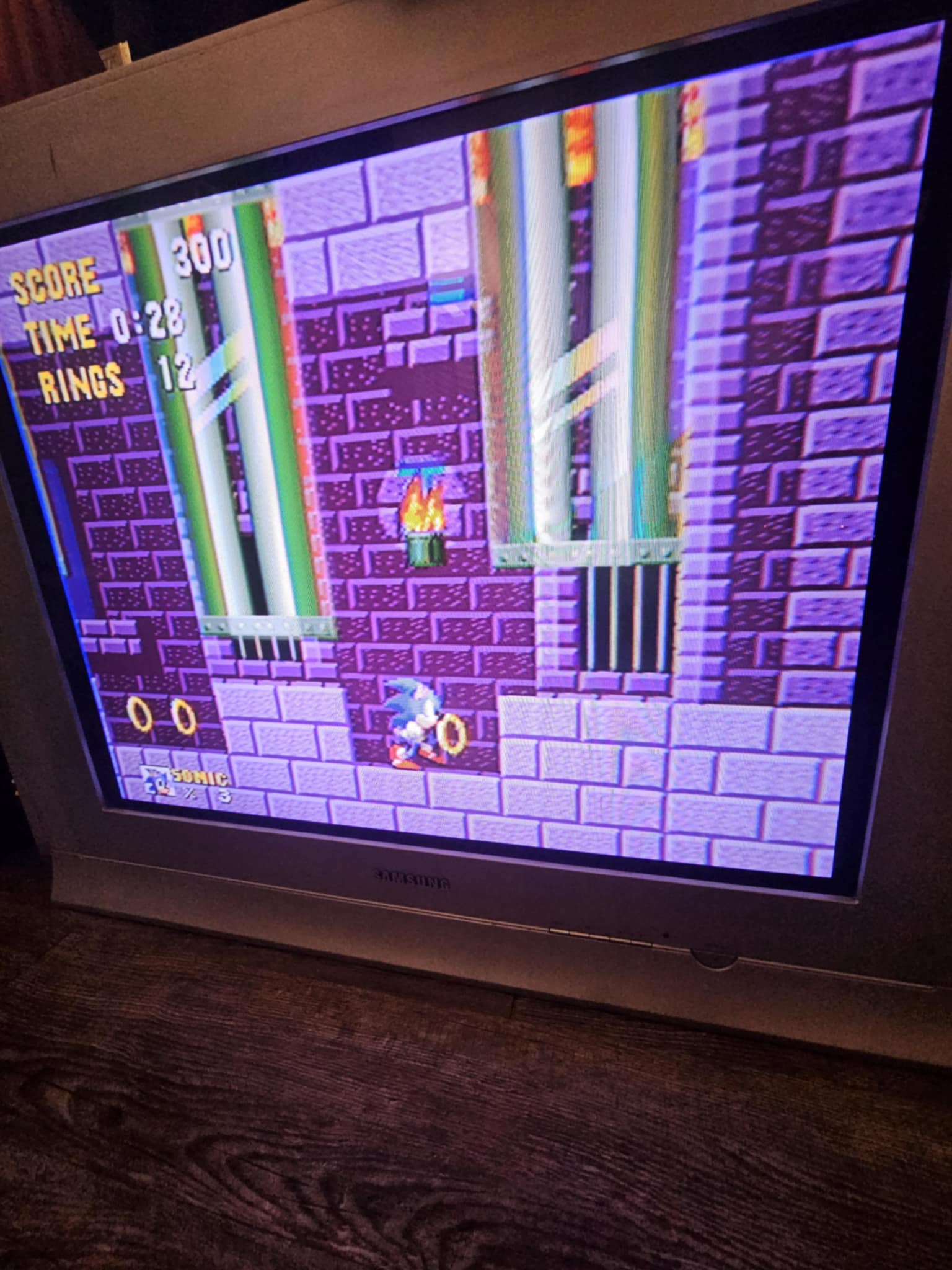

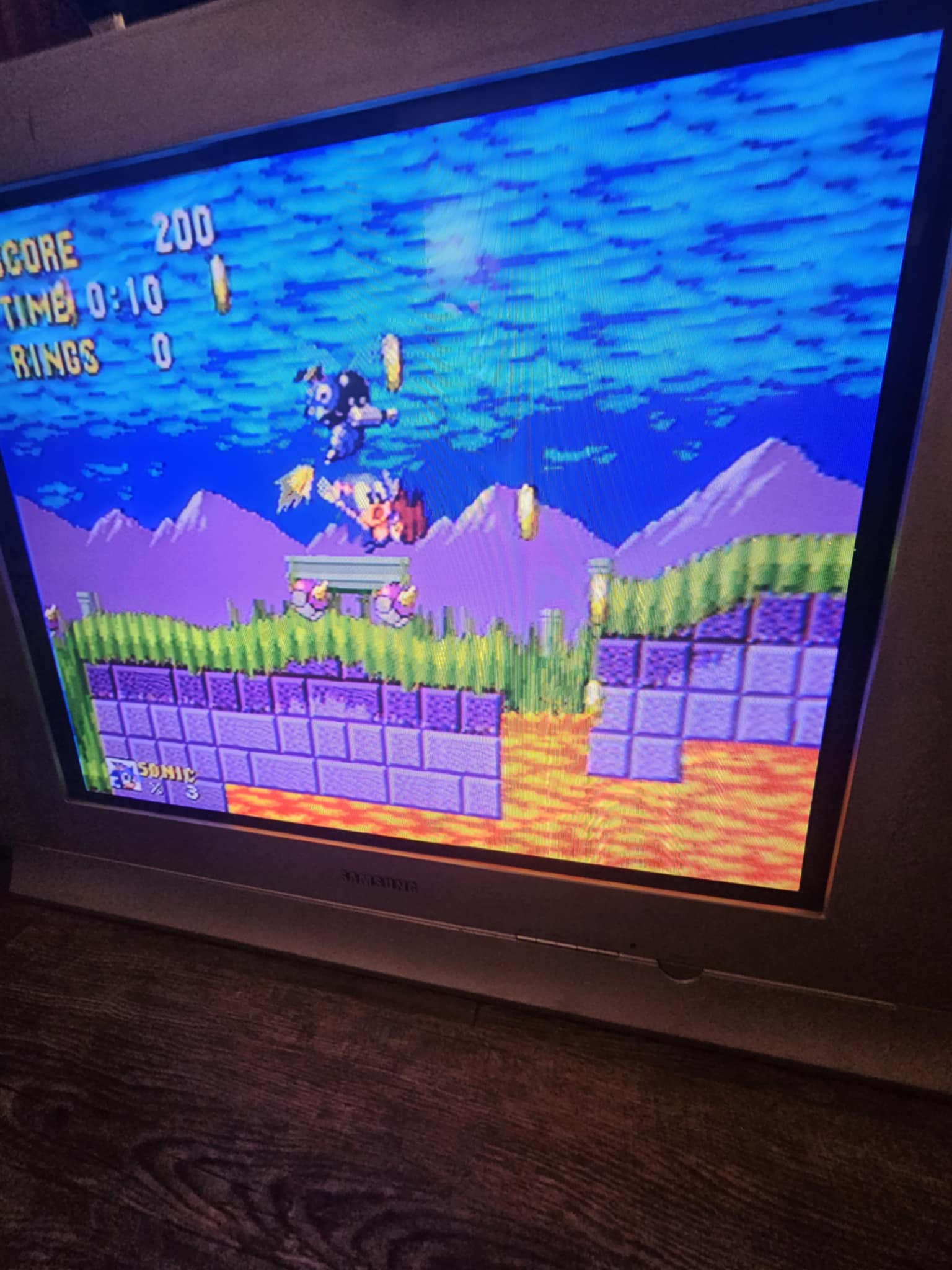

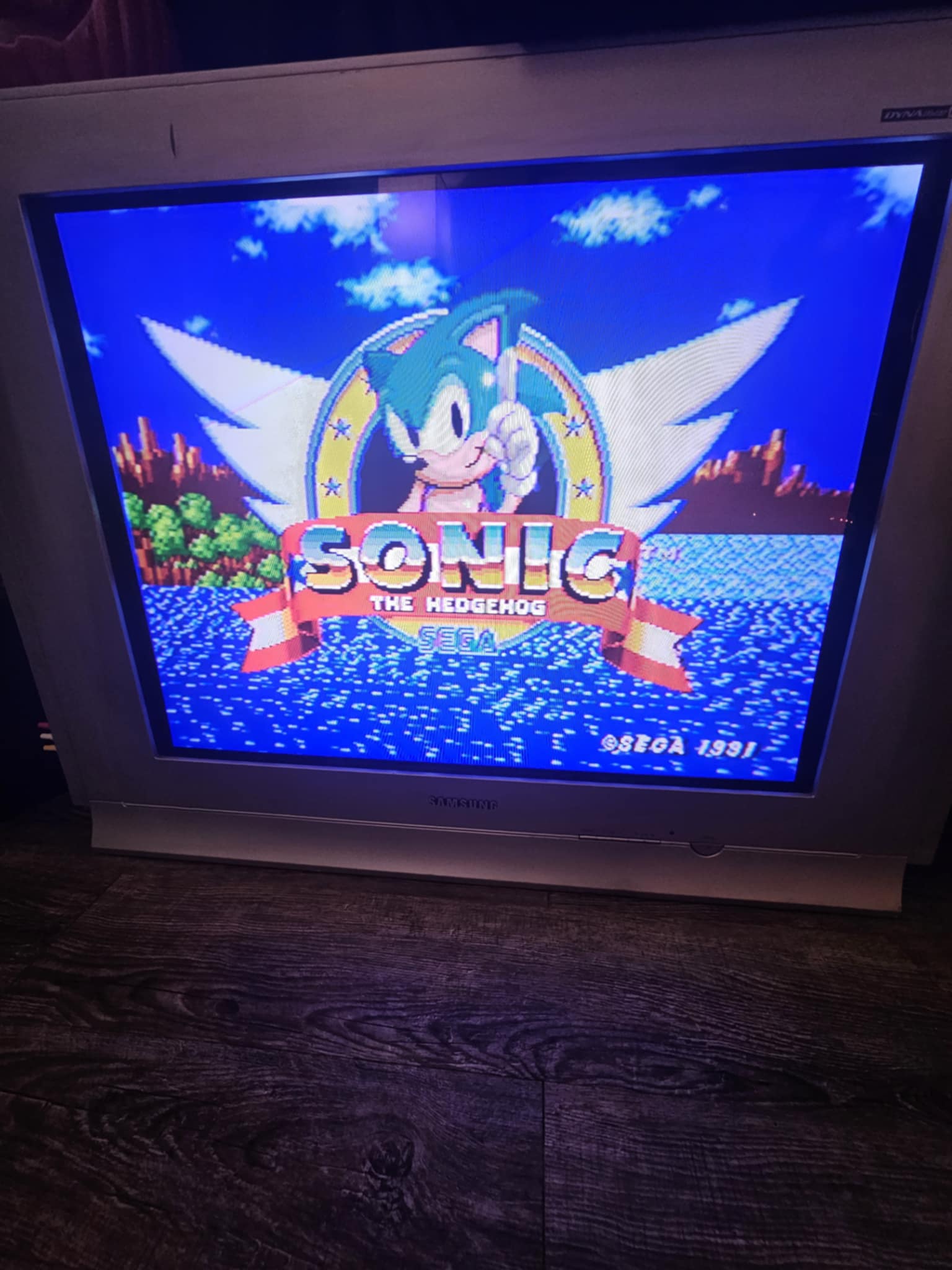

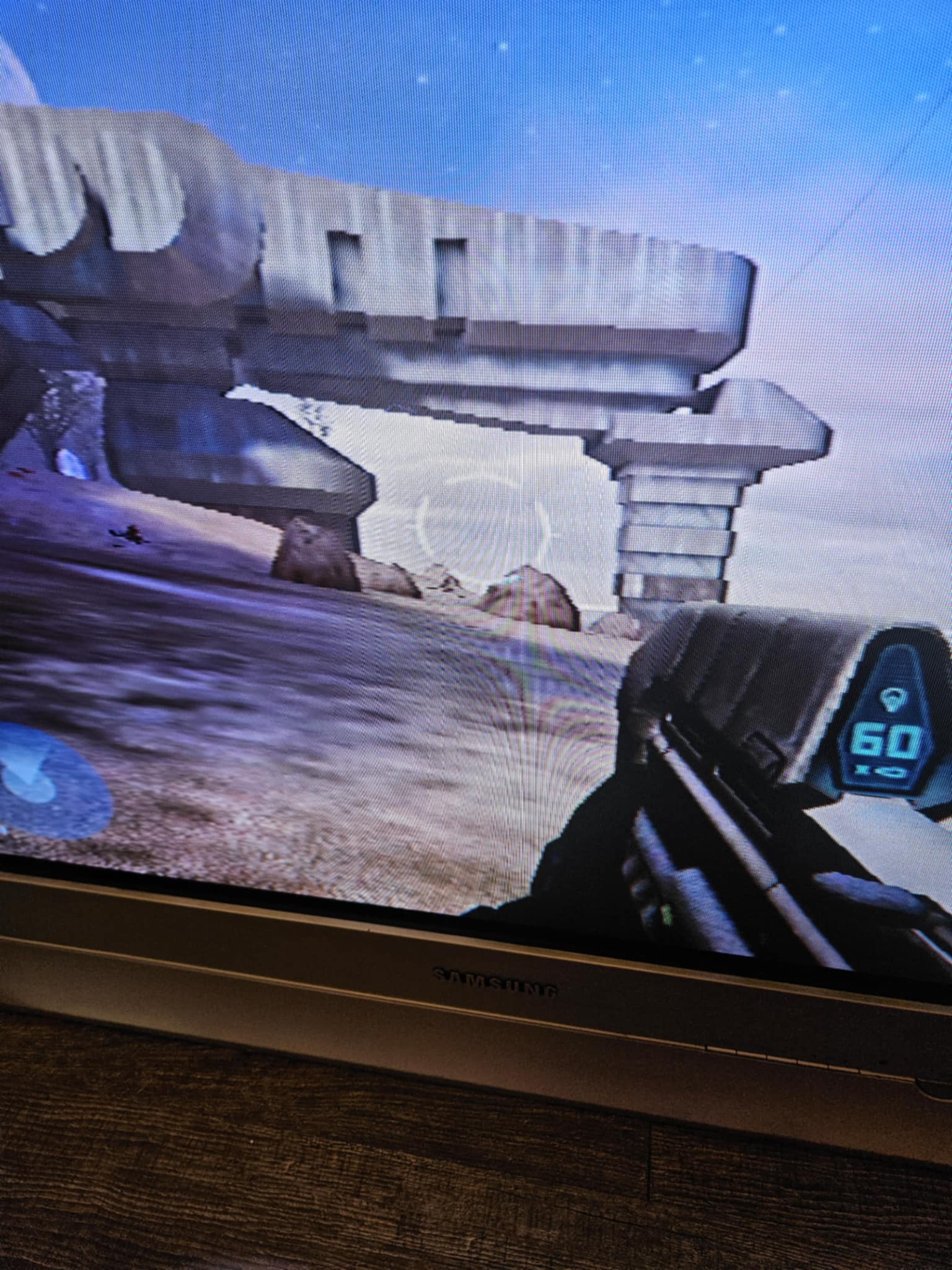

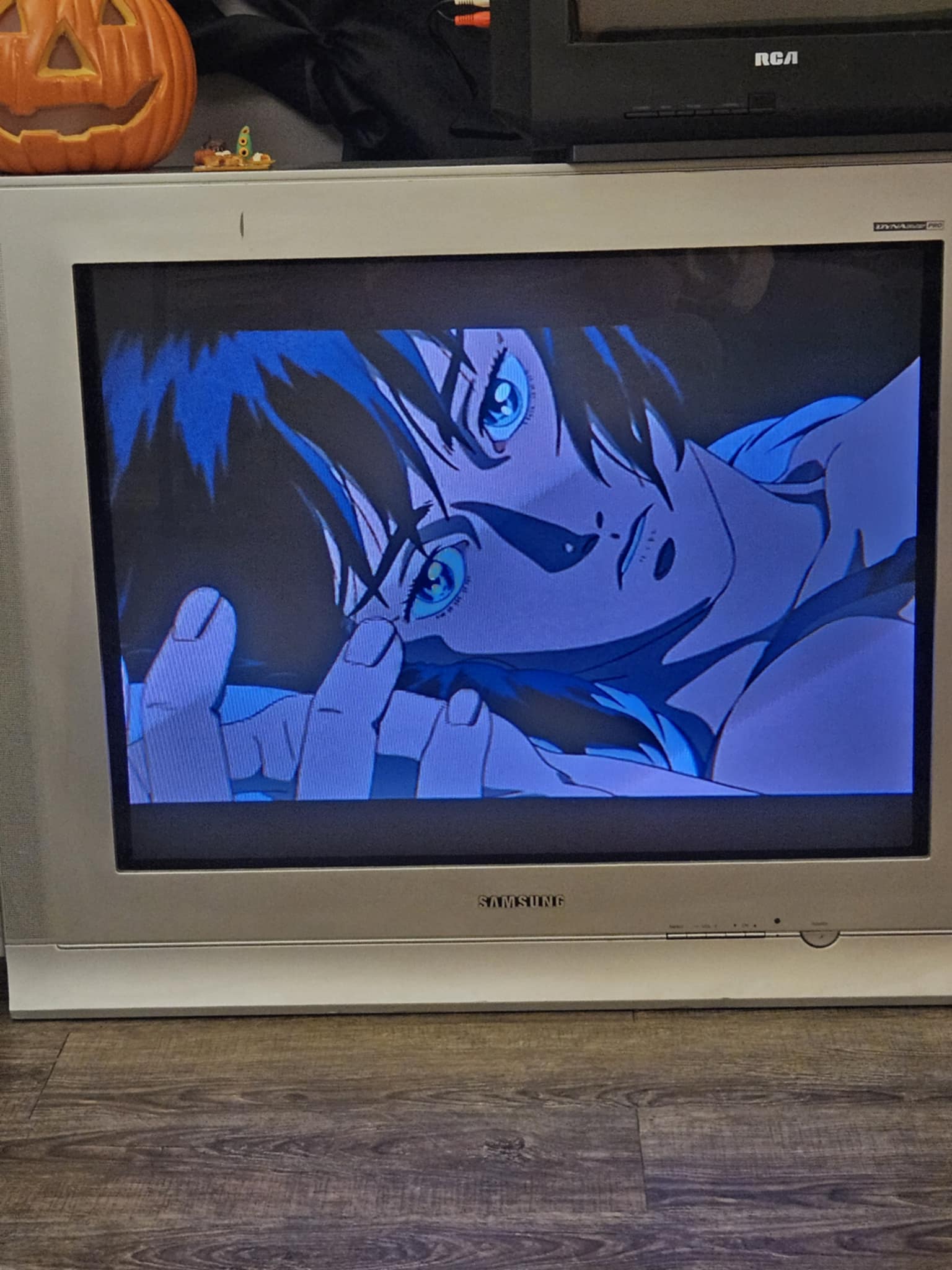

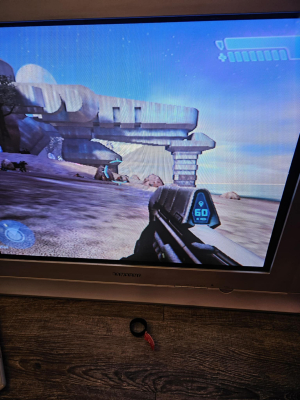

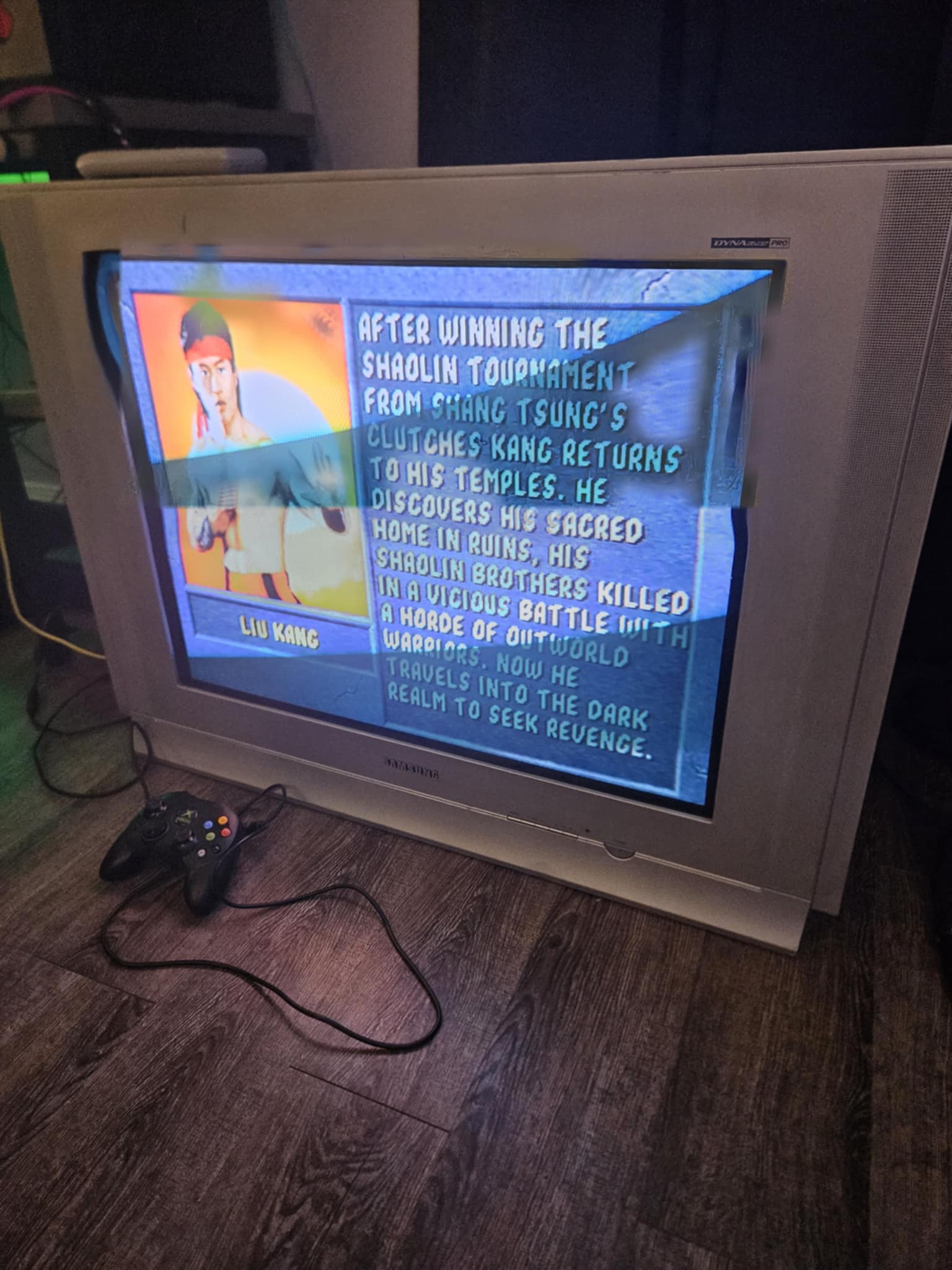

Gallery
| Specifications | |
|---|---|
| Brand: | Samsung |
| Manufacturer: | Samsung |
| Model: | TXN3245FP |
| Series: | Dynaflat Pro |
| Viewable Size: | 32" |
| Inputs: | Composite, RF |
| Native Resolutions: | 1080i, 480p |
| Scaled Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 33.75 kHz, 31 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Micronas, DDP3315C, DDP3315 |
| Flyback: | FUJ-29C002C(S) |
| Focus Type: | Dual |
| Tube: | Samsung , A80QEA891X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Remote: | 3F14-00034-371 |
| Chassis: | K55A |
| Weight: | 148.81 lbs (67.5 kg) |
| Dimensions (W/H/D): |
880 x 690 x 585 mm
(34.6 x 27.1 x 23") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| MSRP: | 699 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
