Summary
Sanyo 25" Color Television With Remote Control. You'll be in total control with this TV with a 24-button remote. On-screen menu display, one-button automatic color control and automatic shut-off/off-timer.
Manuals
Notes

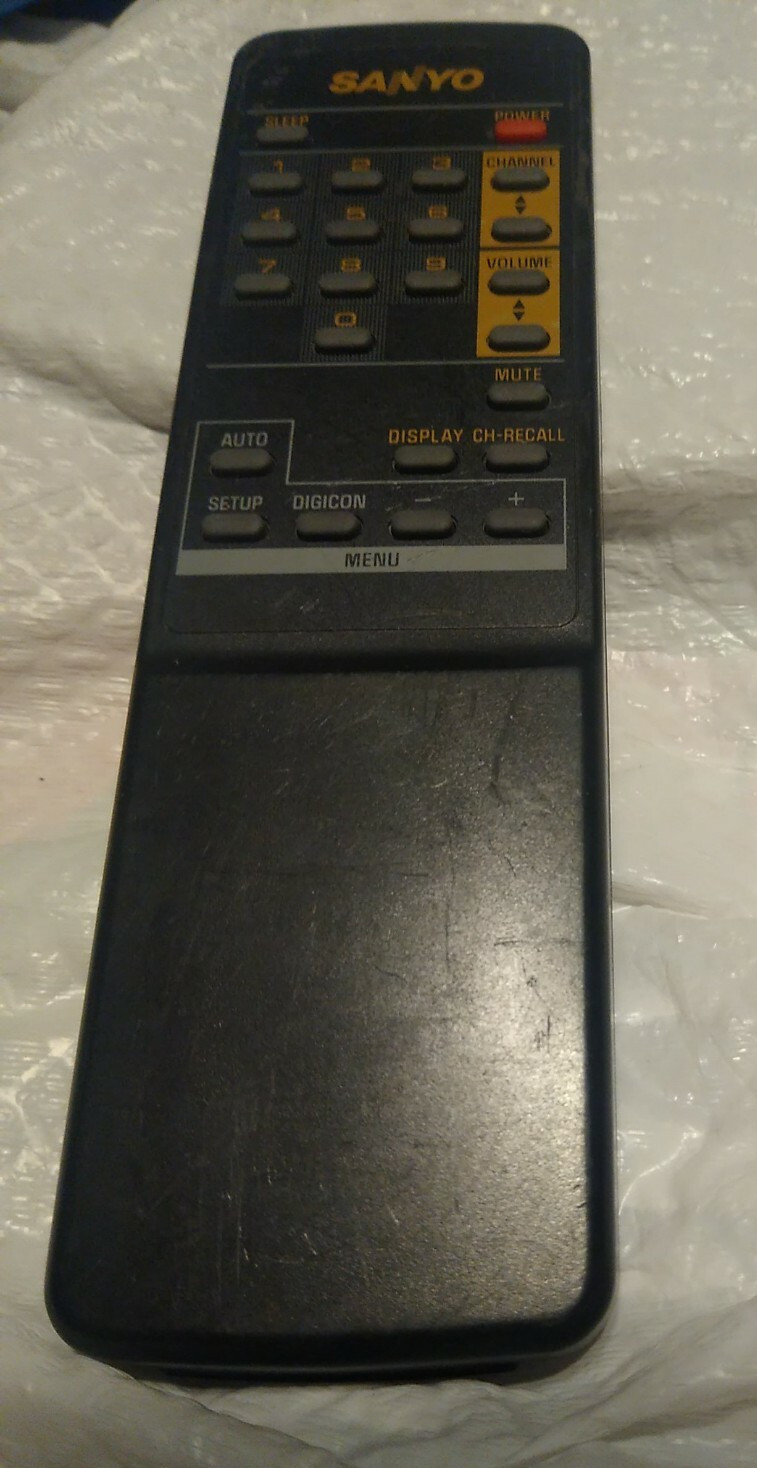

Adjusting picture settings requires a remote with a 'Digicon' button.

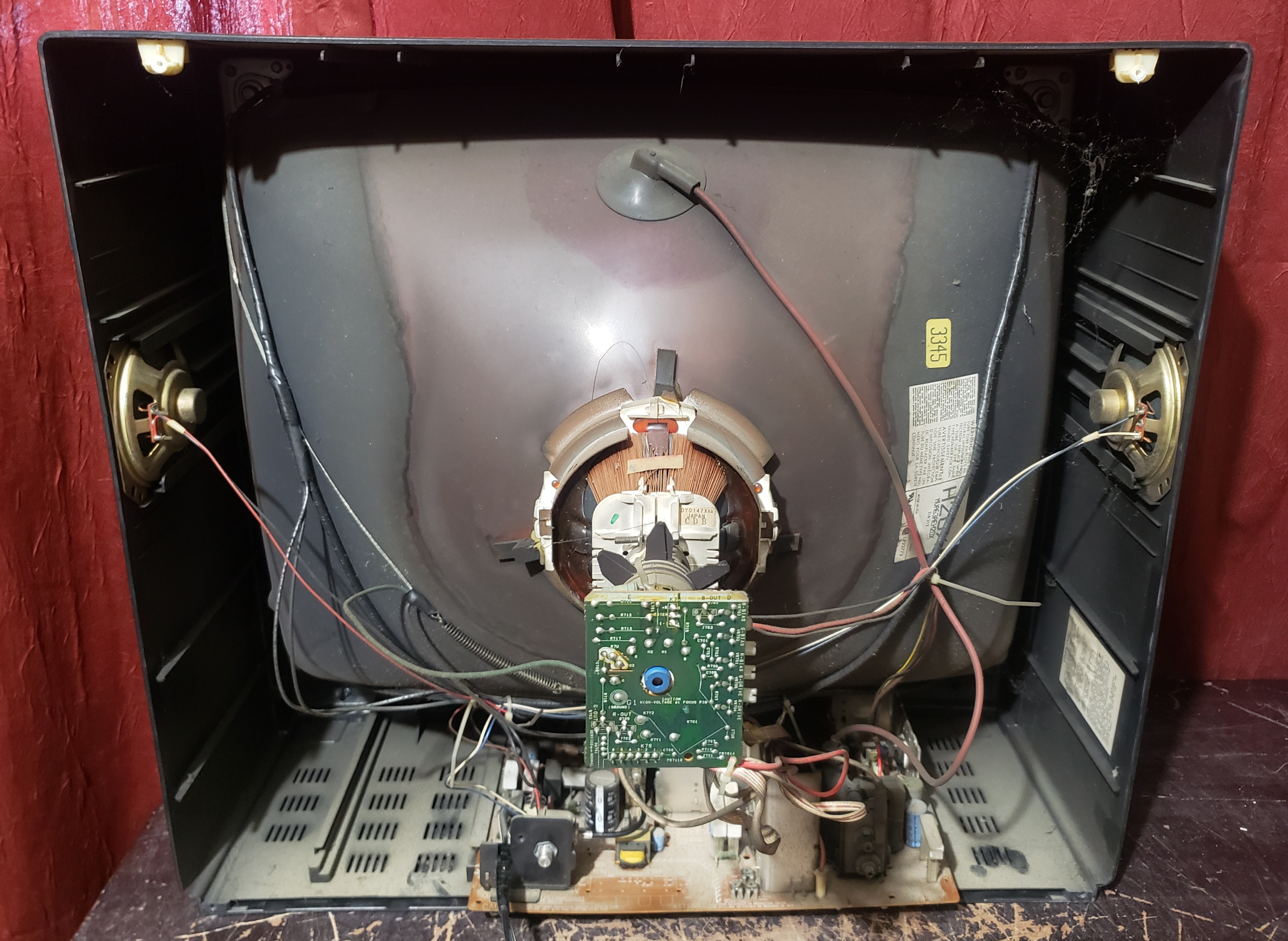

There are unpopulated spaces on the PCB for adding a composite input.
Gallery
| Specifications | |
|---|---|
| Brand: | Sanyo |
| Manufacturer: | Sanyo |
| Model: | DS25230 |
| Series: | DS |
| Viewable Size: | 25" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |

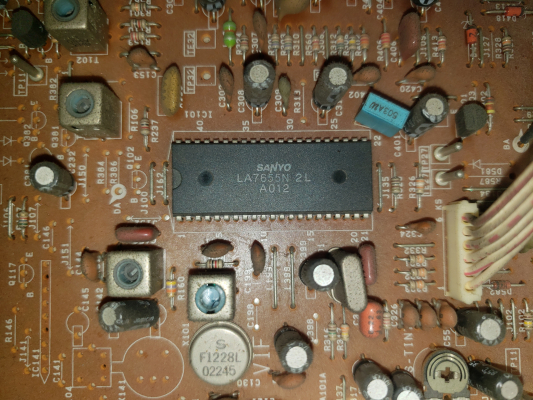

| Jungle IC: | Sanyo, LA7655N |
| Comb Filtering: | None |

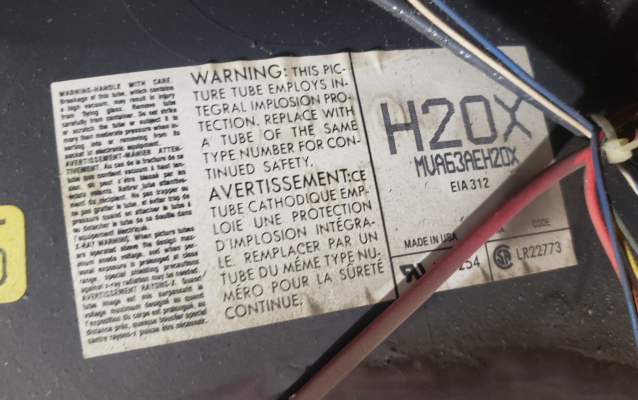

| Tube: | MVA63AEH20X , A63AEH20X |
| Mask: |
Slot
|
| Tint: | Dark |

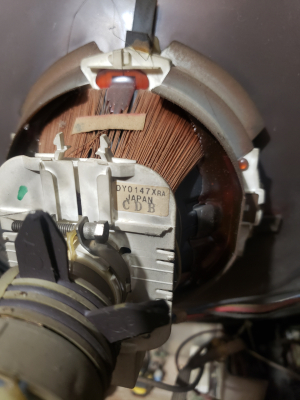

| Yoke: | DY0147XRA |
| Yoke Horz. Resistance: | 1.6 ohm |
| Yoke Vert. Resistance: | 6.0 ohm |
| Speakers: | Stereo |
| Chassis: | 25230-00 |
| Application: | Consumer |

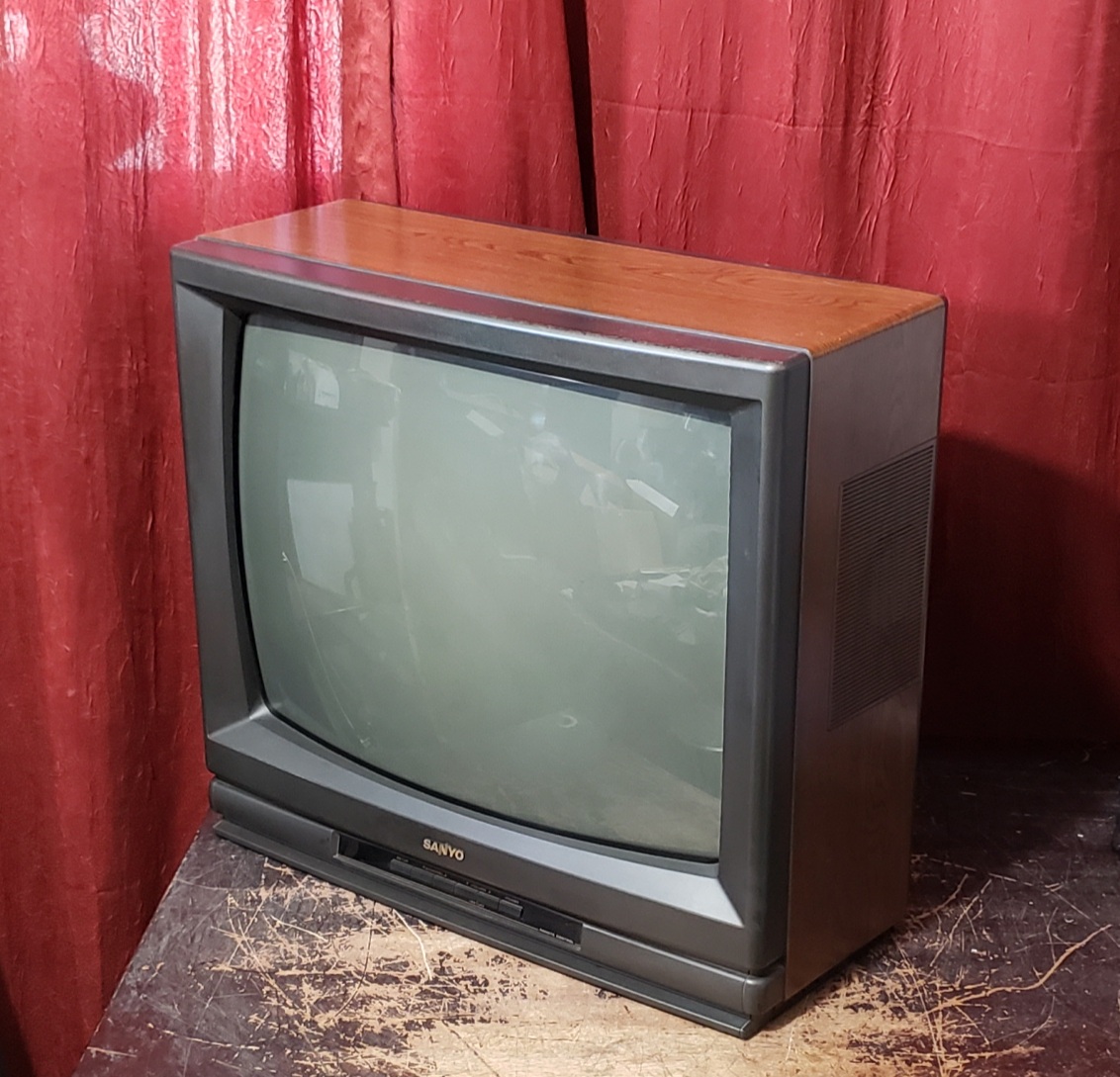

| Cabinet Material: | Plastic, Simulated Woodgrain |
| Launched: | 1992 |
| MSRP: | 288 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mods: | Composite |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Measurements |
