Summary

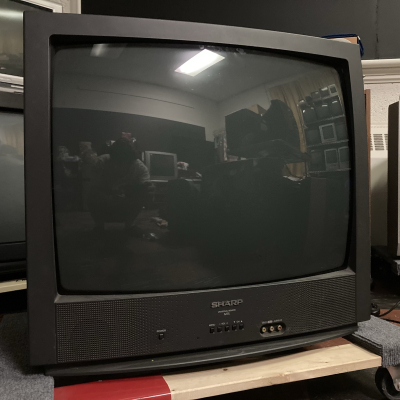

27" color TV by Sharp. Has RF and two composite inputs. Made in Mexico in 2001.
Manuals
Notes

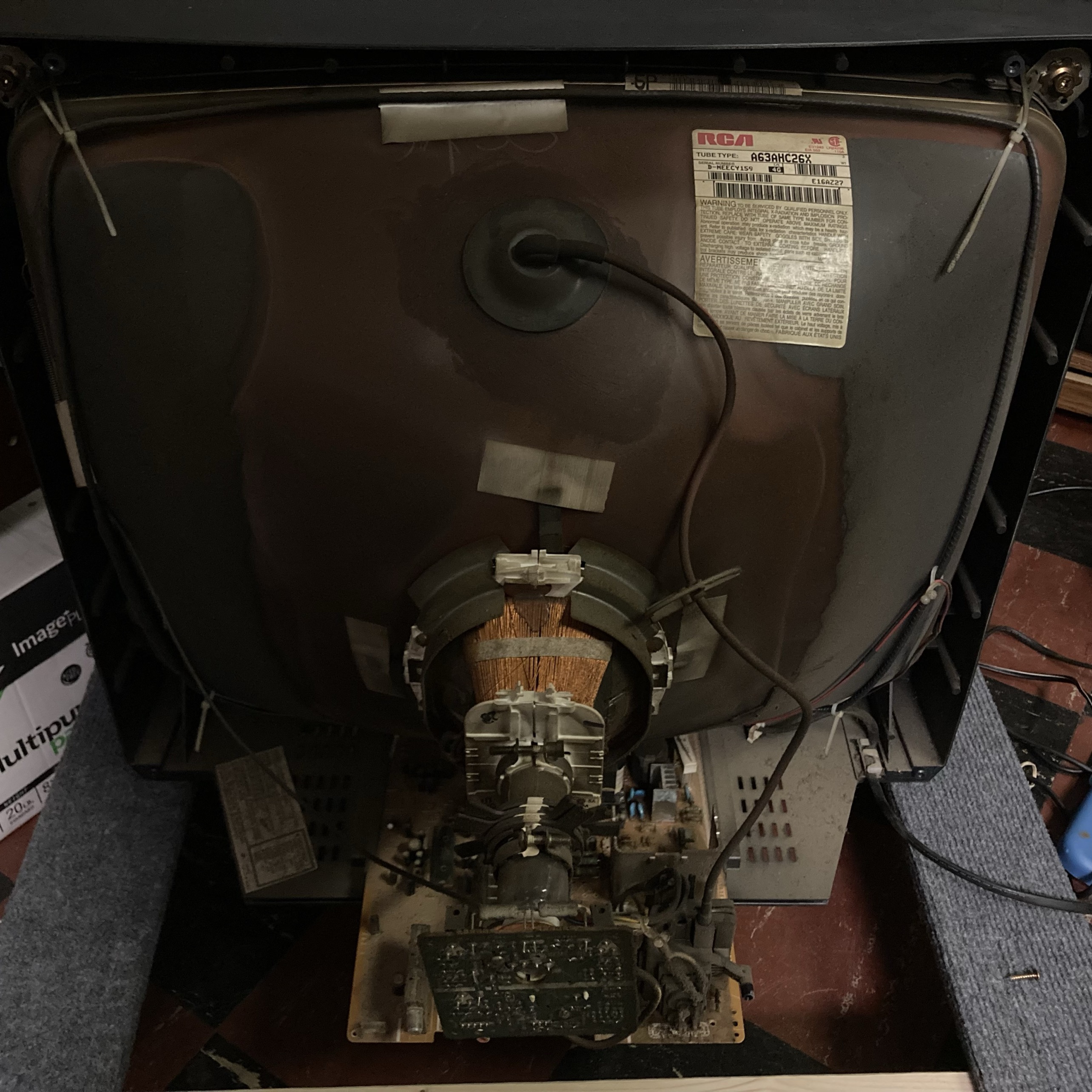

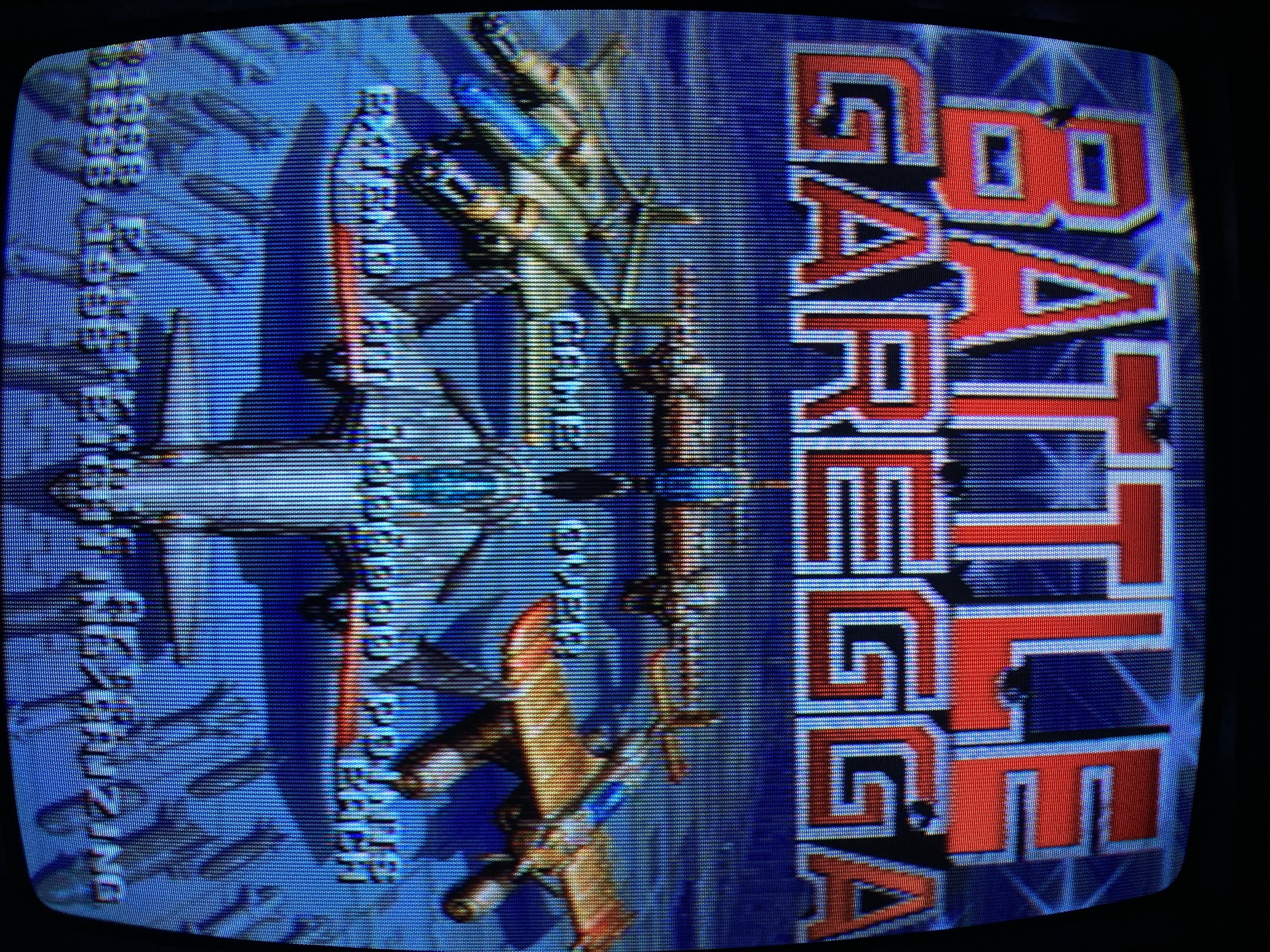

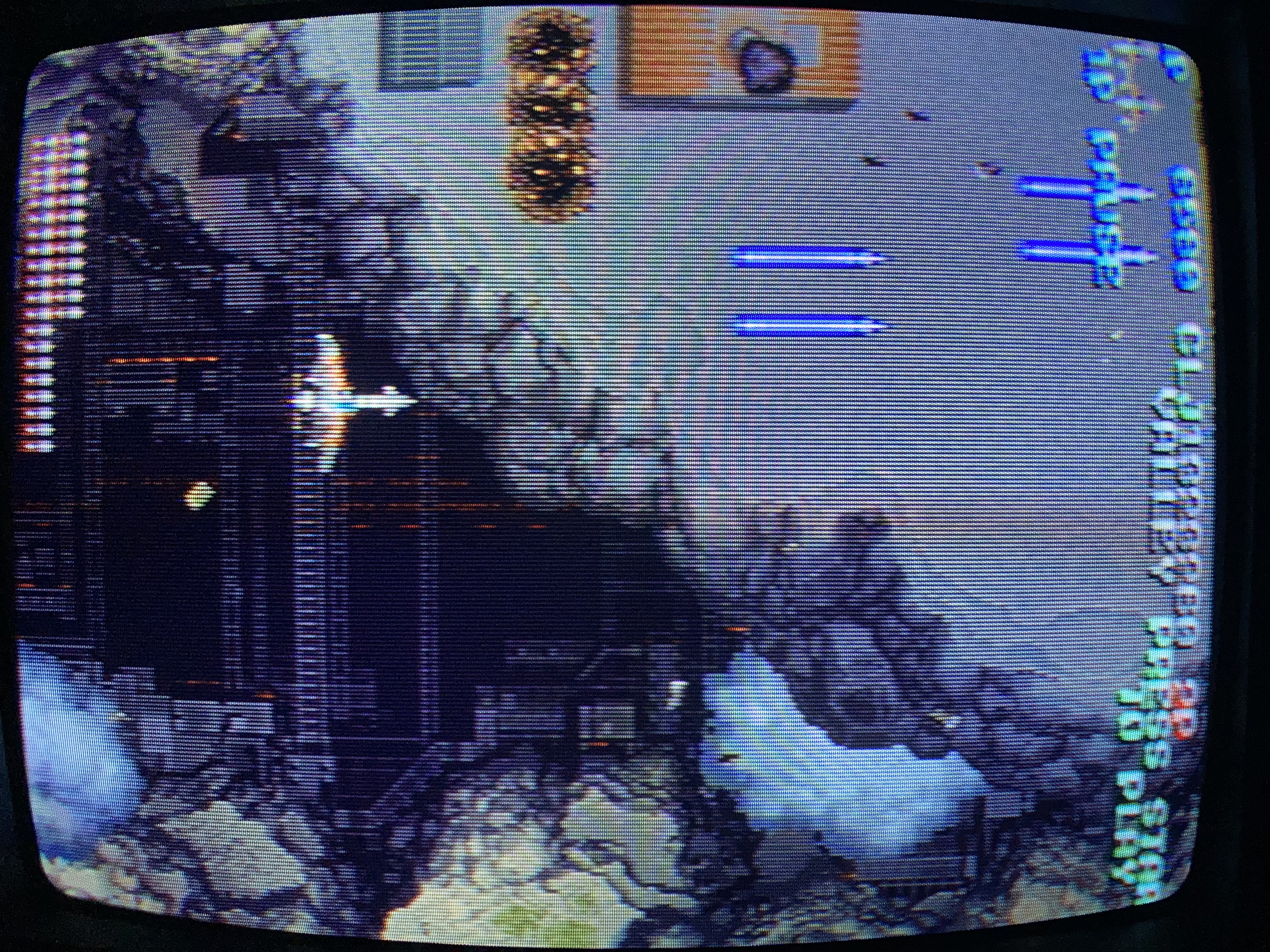

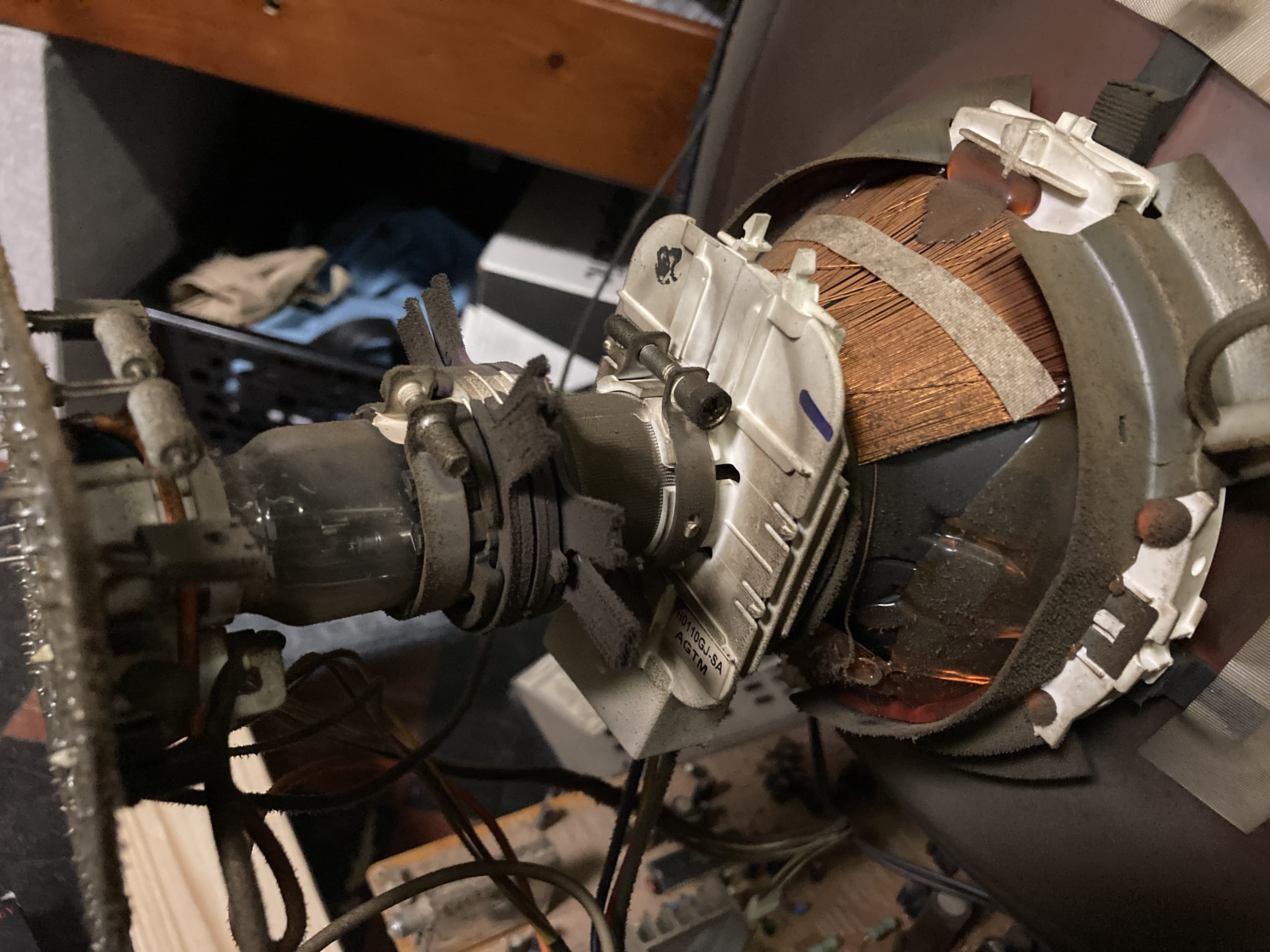

There were three tubes that came in this model, either by Philips, Samsung, or RCA. The pictures you see are of the RCA tube, and tubes by that company tend to develop very blurry corners more faster than the other brands.

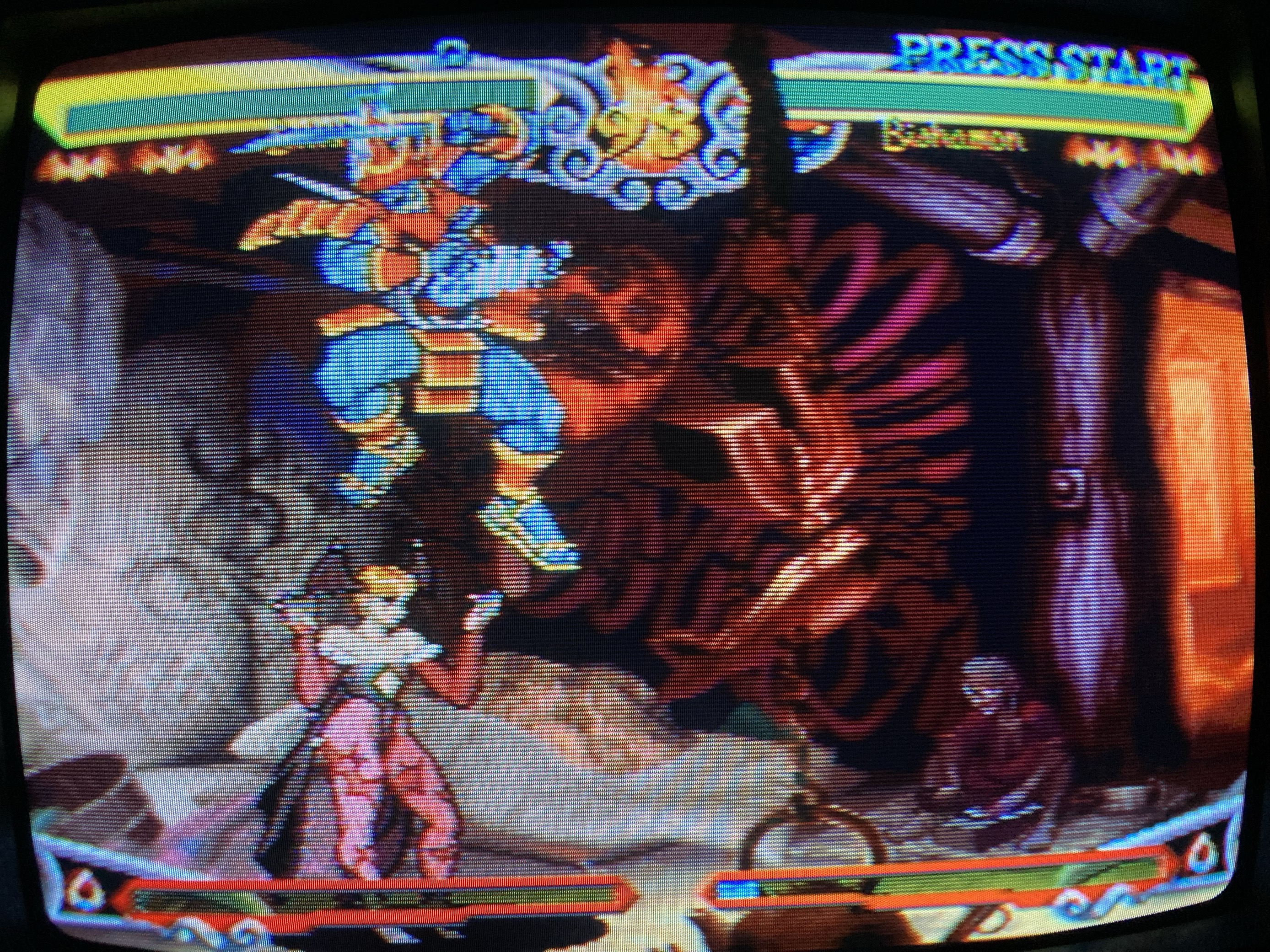

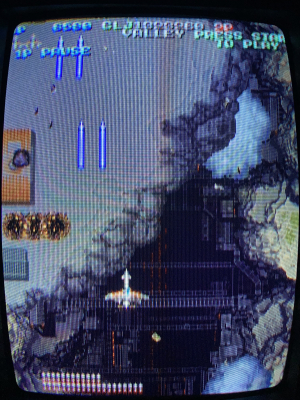

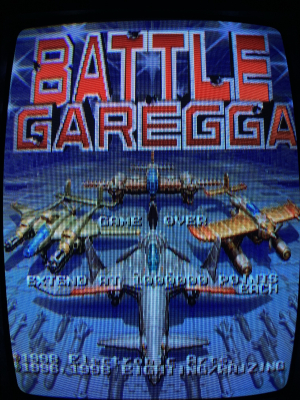

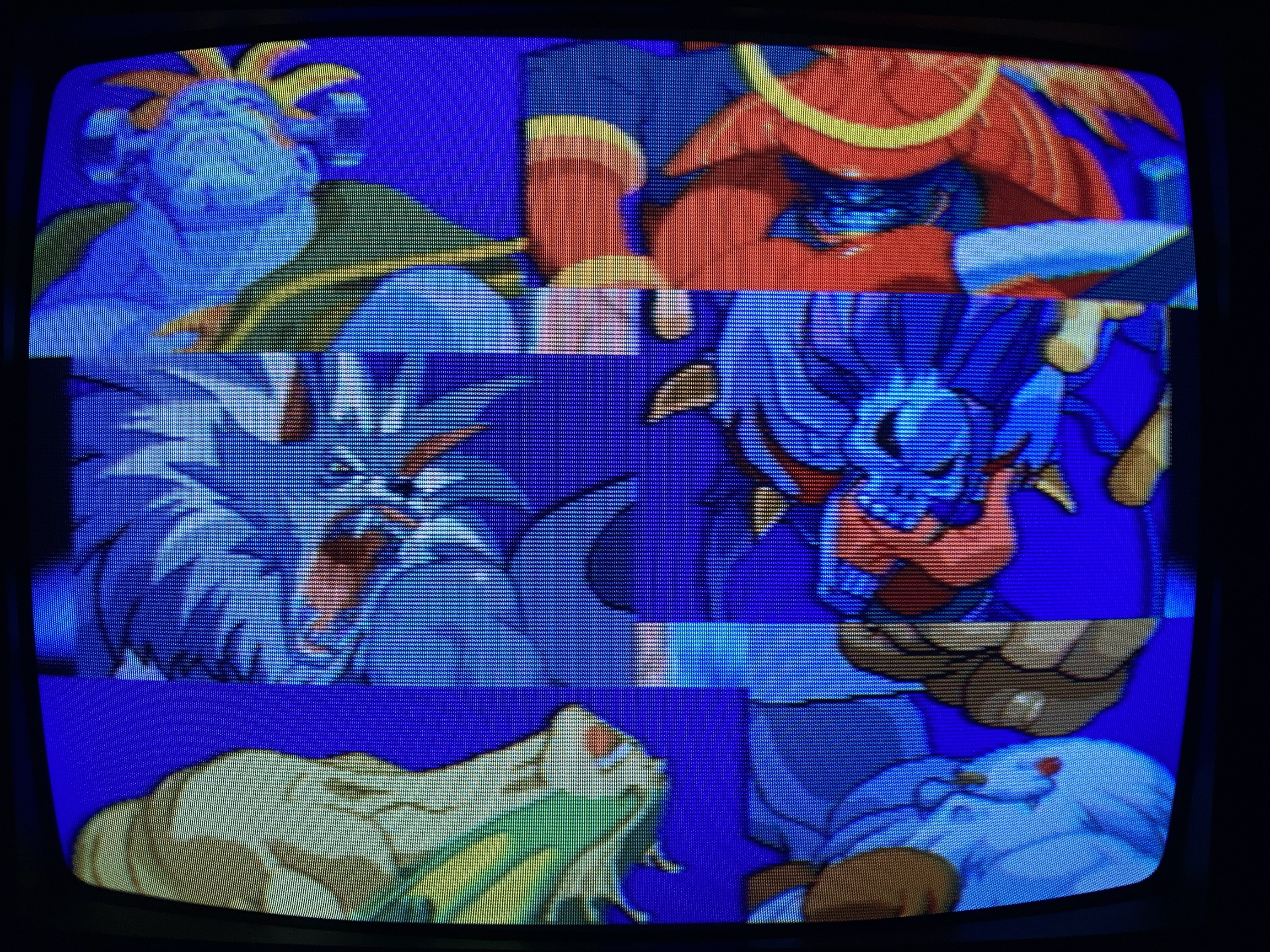

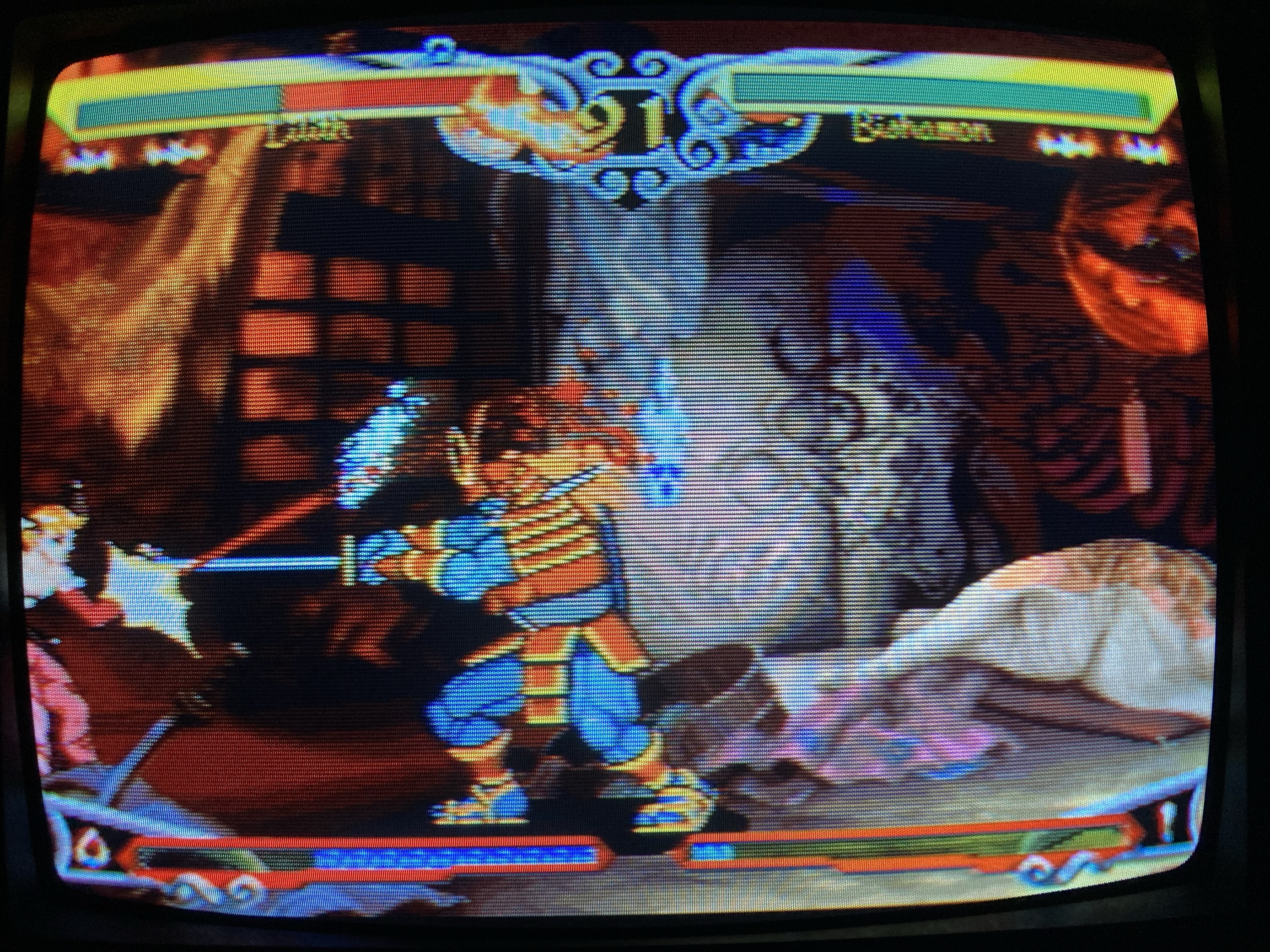

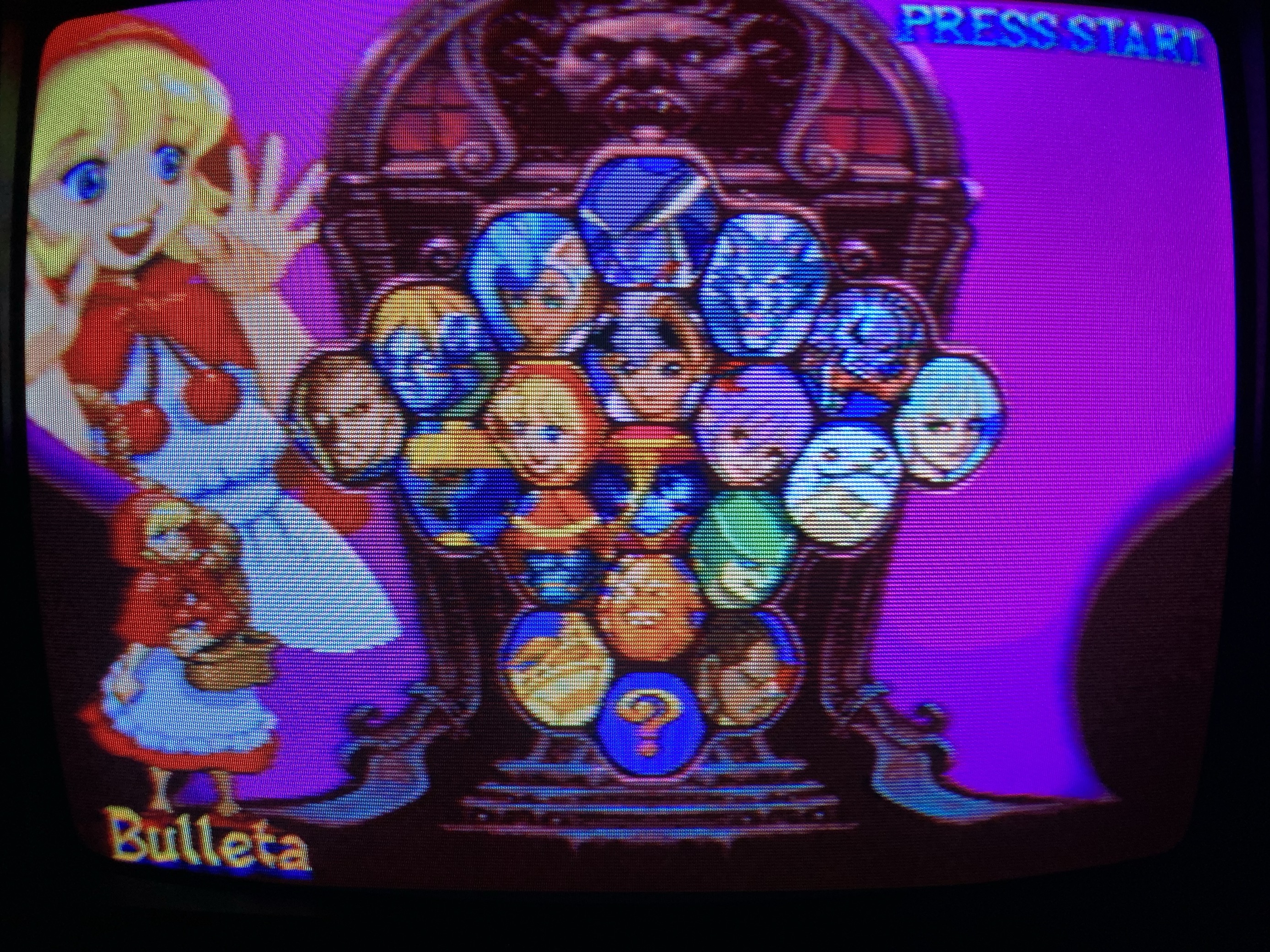

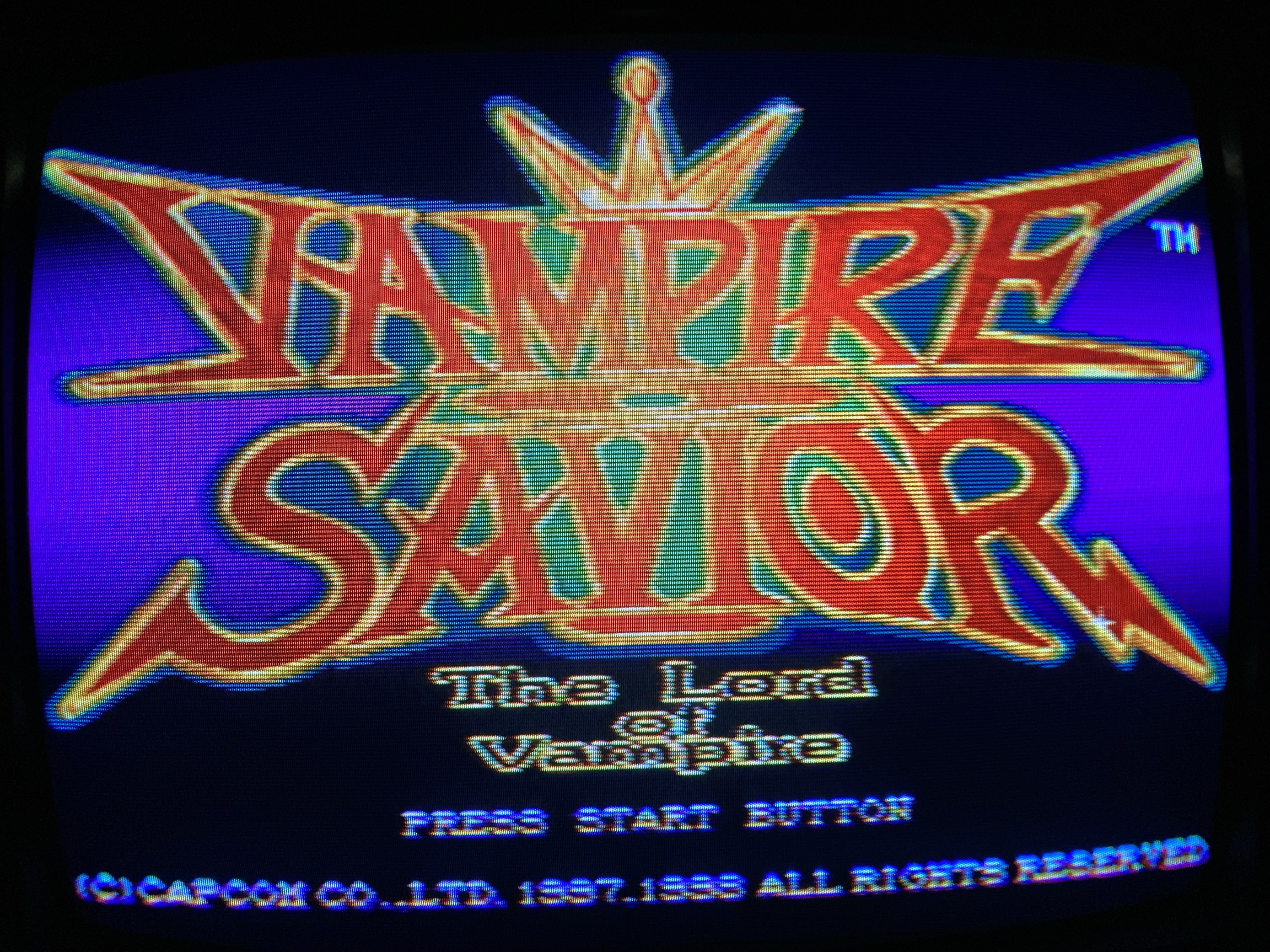

Composite looks pretty good due to filtering. This set cannot be modded for RGB due to the digital OSD.
Gallery
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | Sharp |
| Manufacturer: | Sharp |

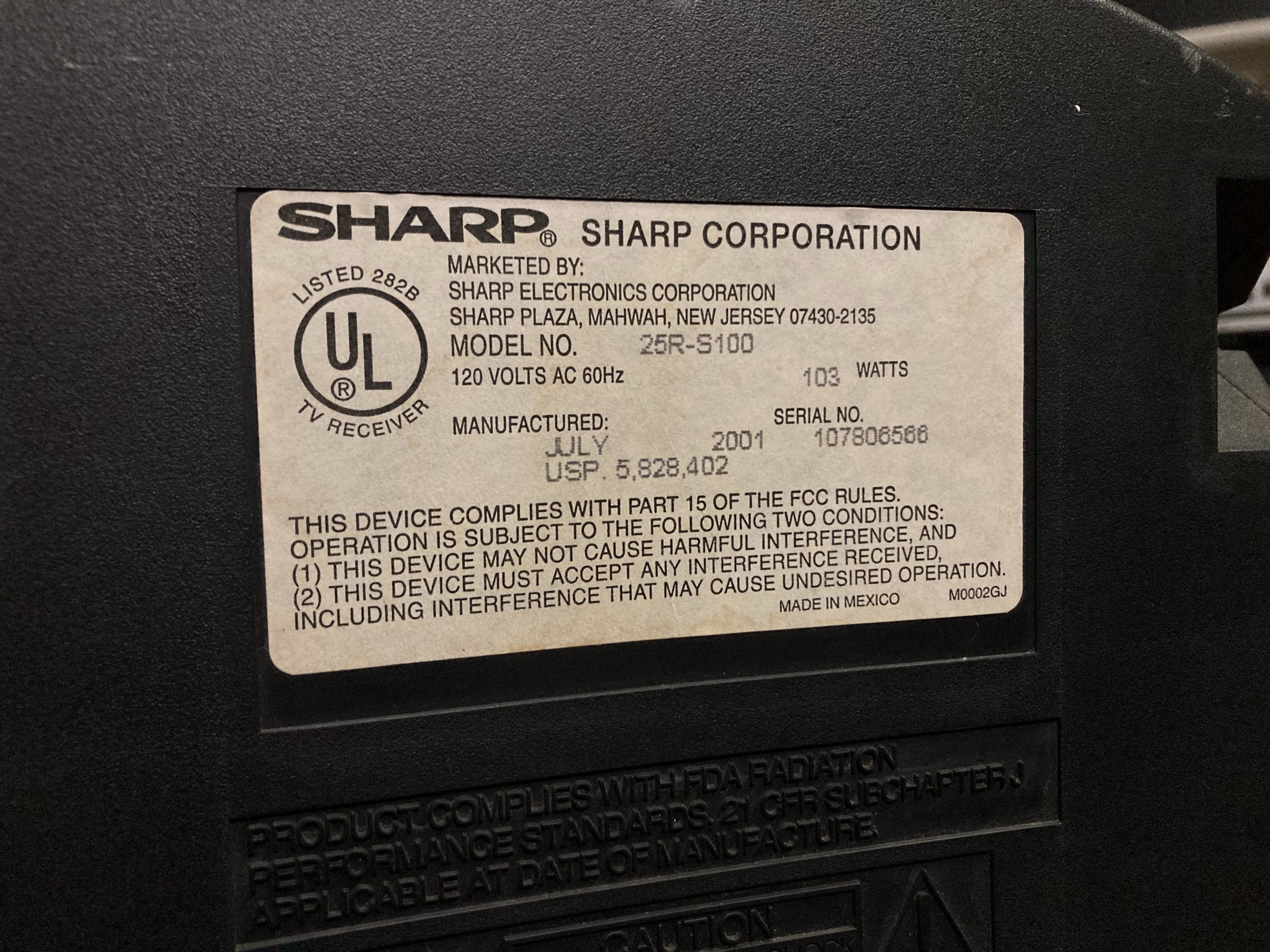

| Model: | 25R-S100 |
| Series: | R |
| Viewable Size: | 25" |

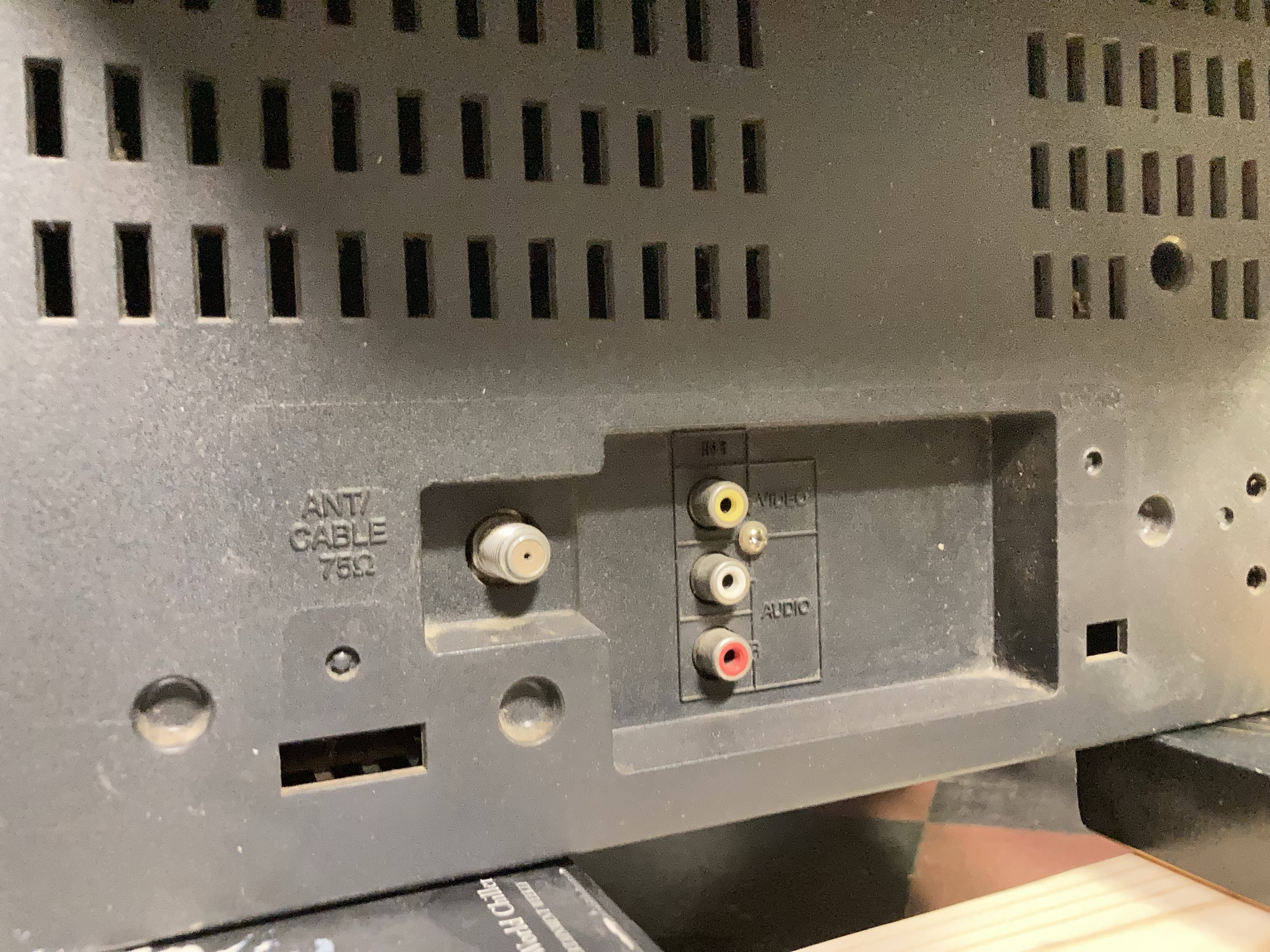

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

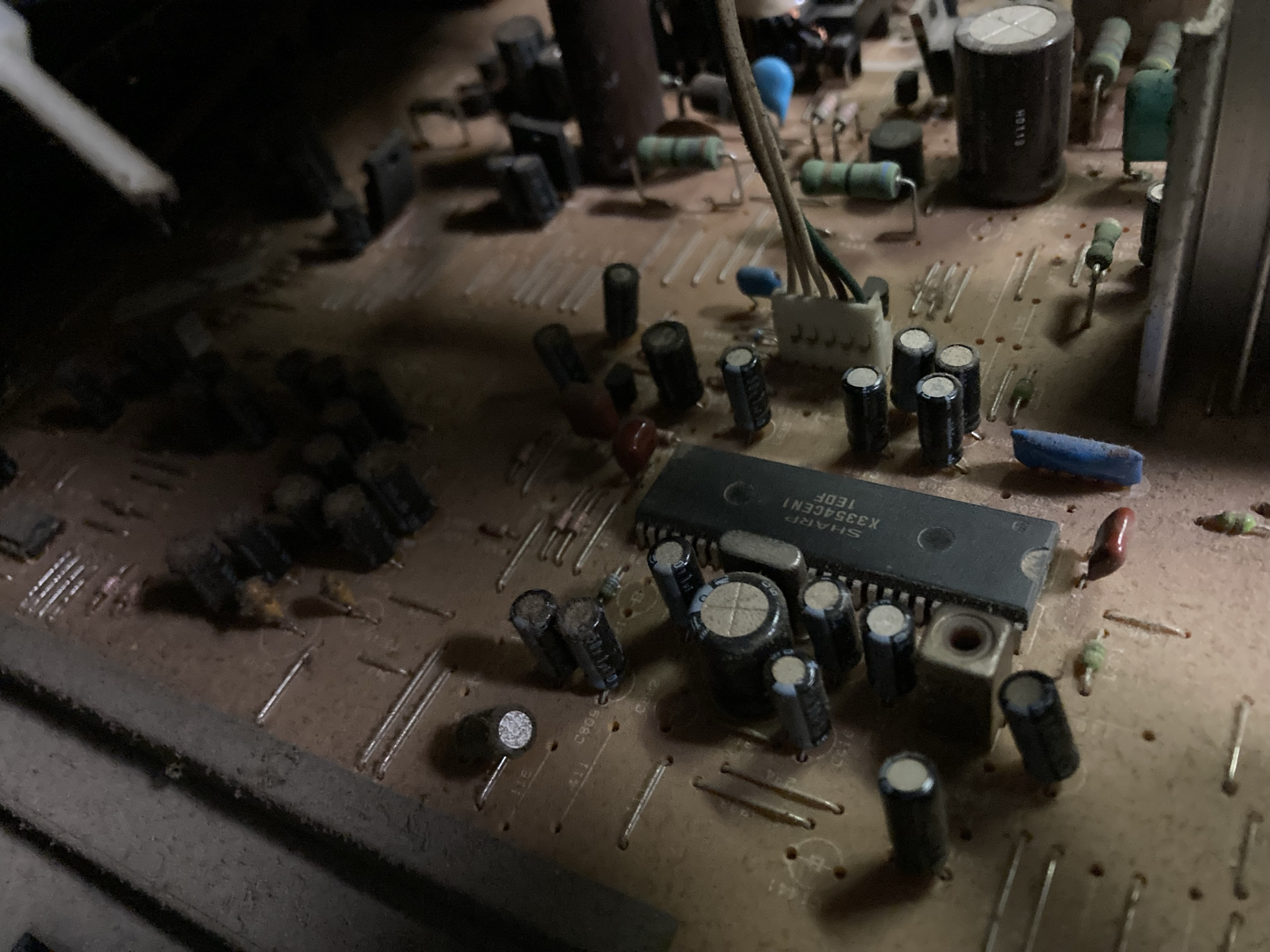

| Jungle: | Sharp, X3354CEN1, IX3354CE |

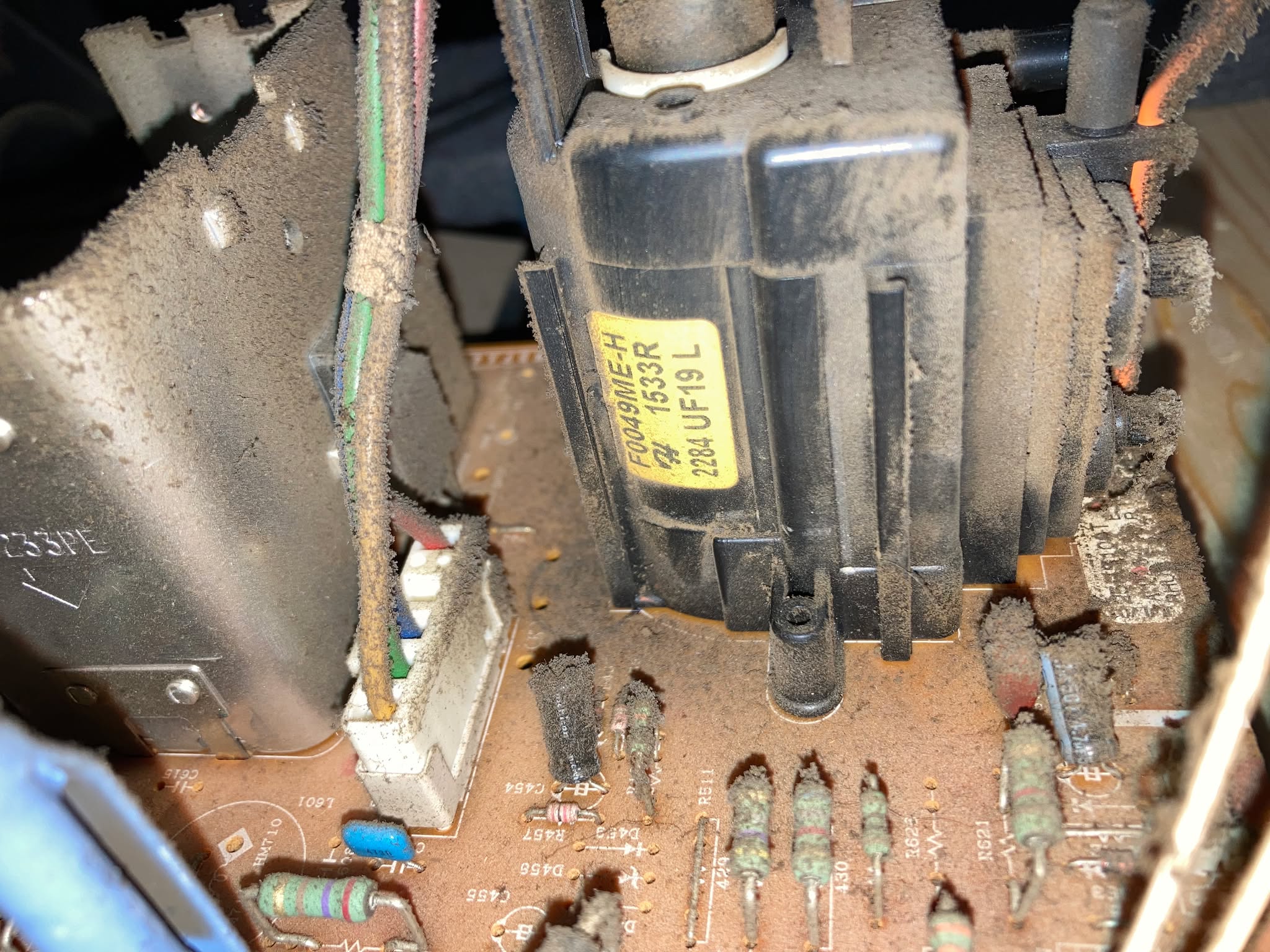

| Flyback: | F0049ME-H |
| Focus Type: | Single |

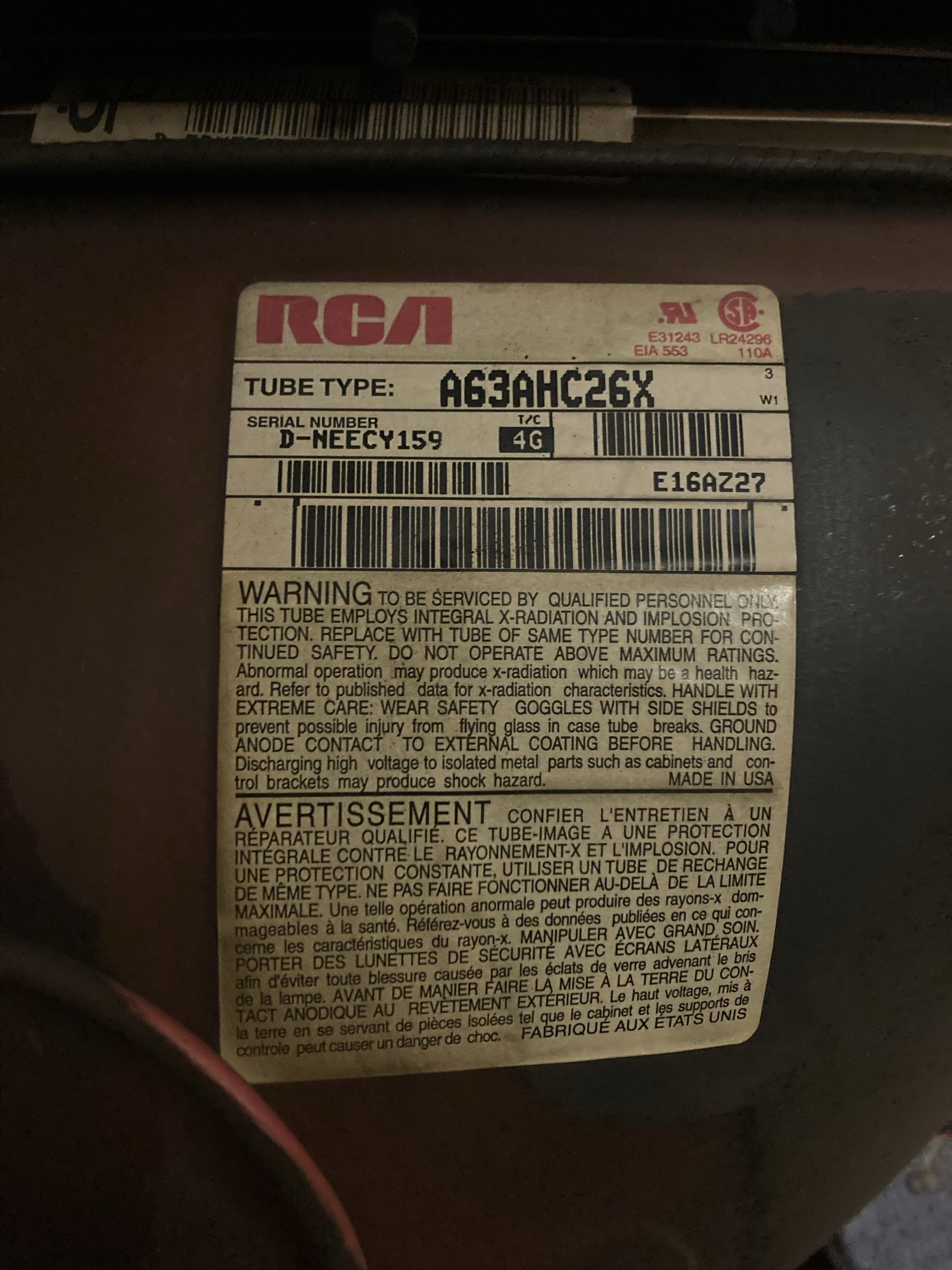

| Tube: | Samsung , Philips , A63AFW32X , A63QDB891X , RCA , A63AFW36X , A63AHC26X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | H0110GJ-SA |
| Speakers: | Stereo, 1.5W x 2 |
| Remote: | G1626SA |
| Chassis: | SN-012 |
| Weight: | 61.7 lbs (28 kg) |
| Dimensions (W/H/D): |
626.5 x 563 x 514.5 mm
(24.6 x 22.1 x 20.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 239 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
