Summary
36" curved screen CRT by Sharp, made in Mexico in 2003. Has RF, composite, S-Video, and component inputs.
Manuals
Media & Promo Materials
Notes
To access the service menu, unplug the CRT, hold down the volume down and channel up buttons, and plug the CRT in. The CRT will automatically power on in the service menu.

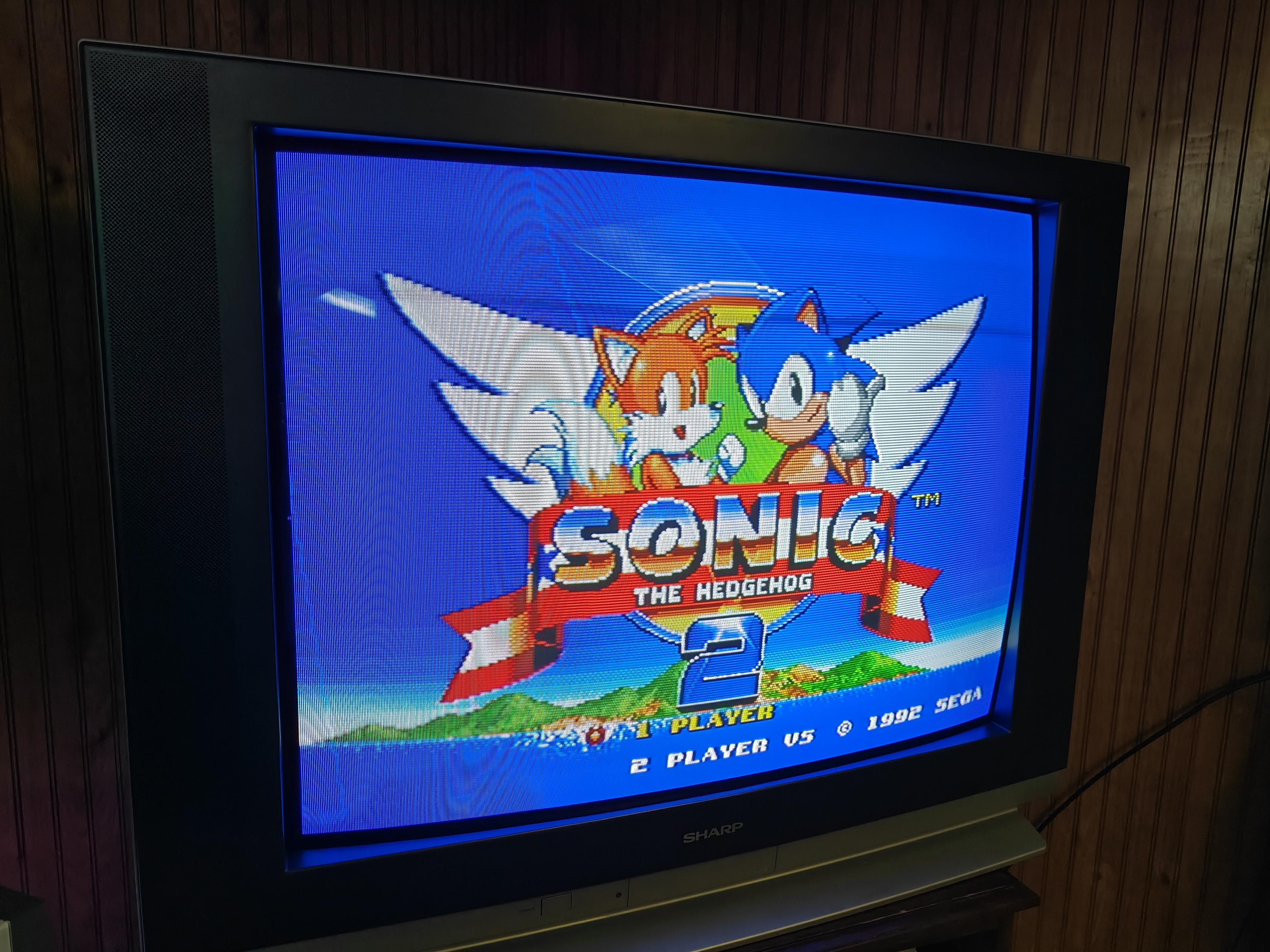

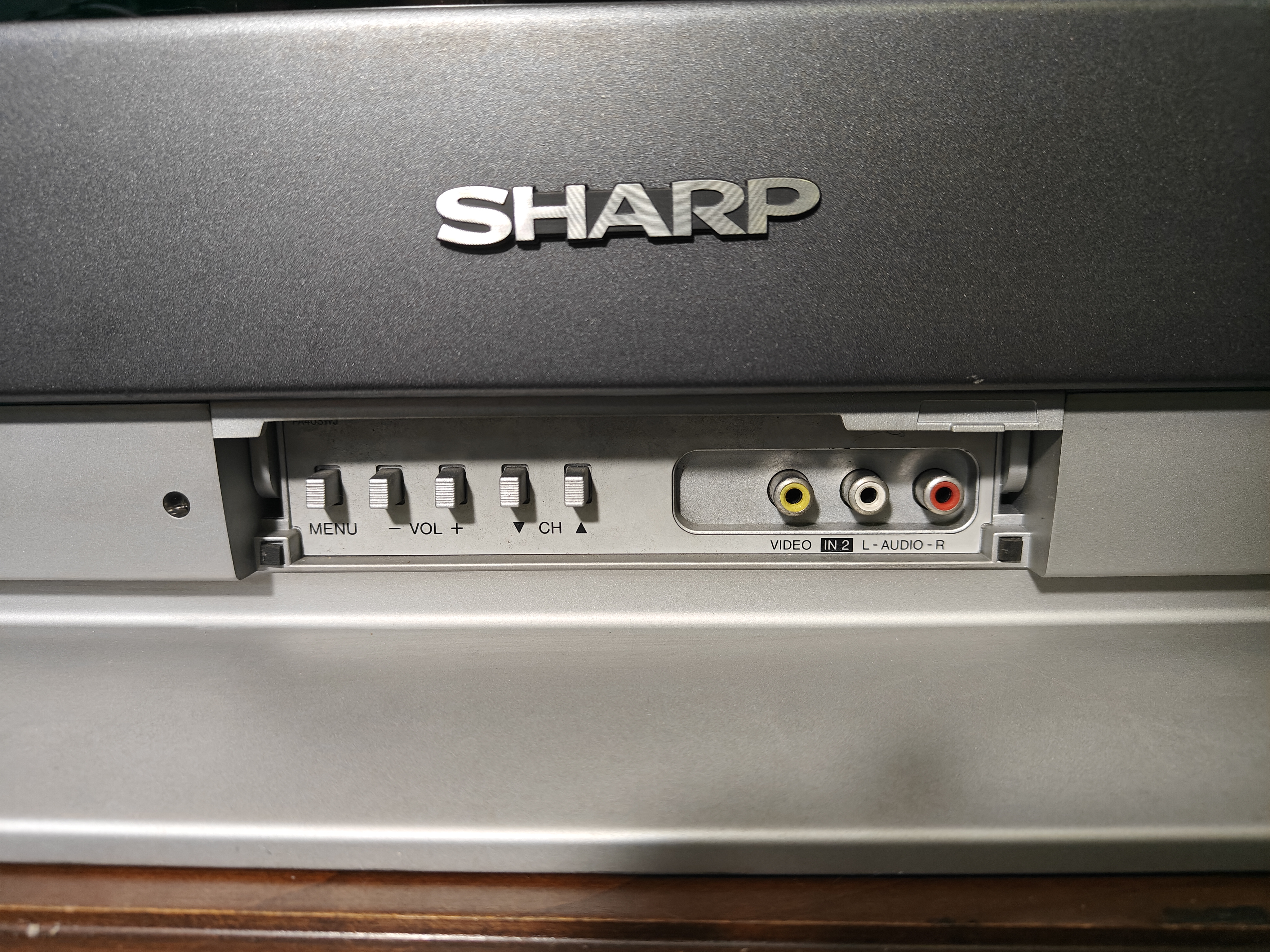

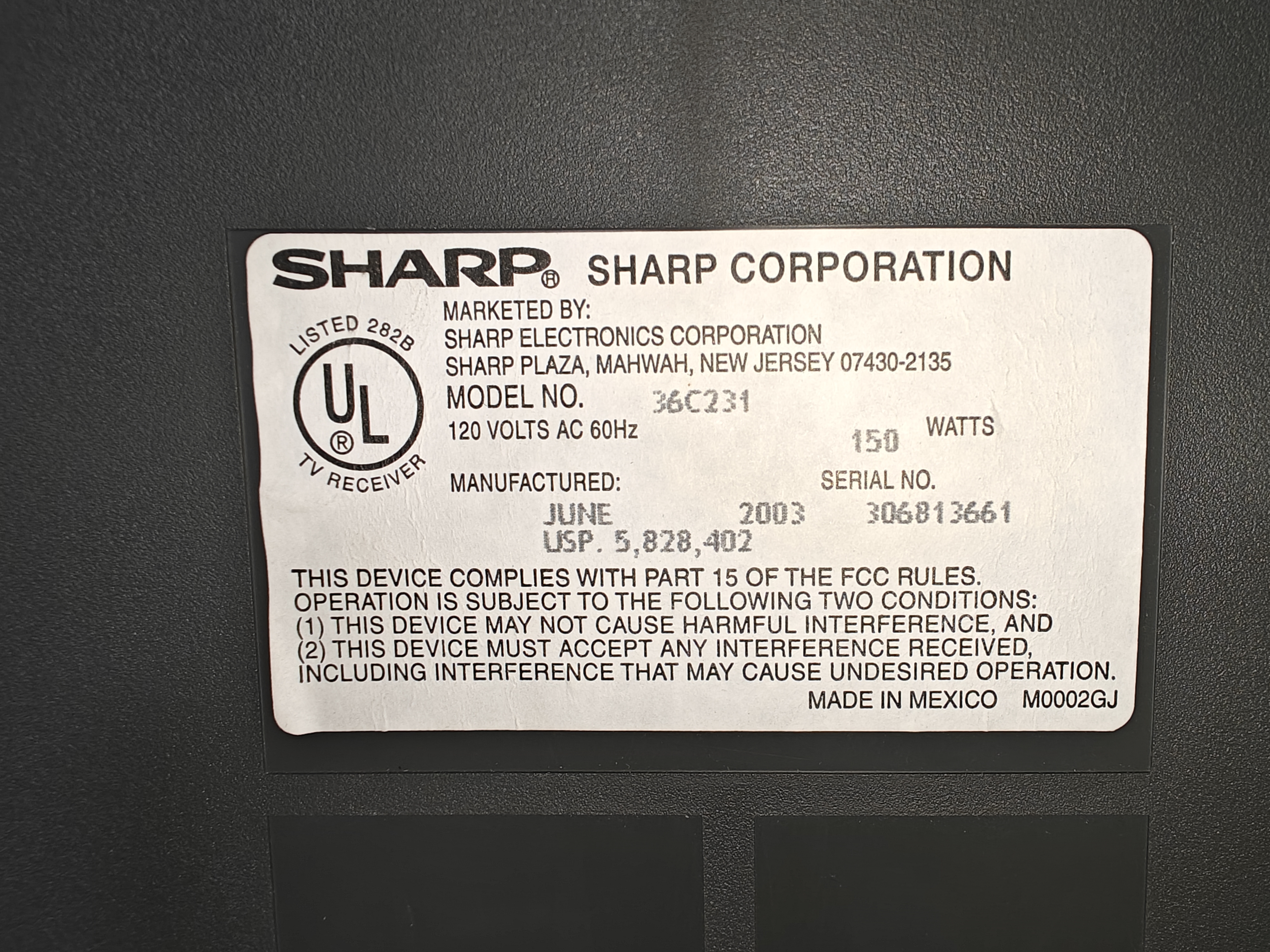

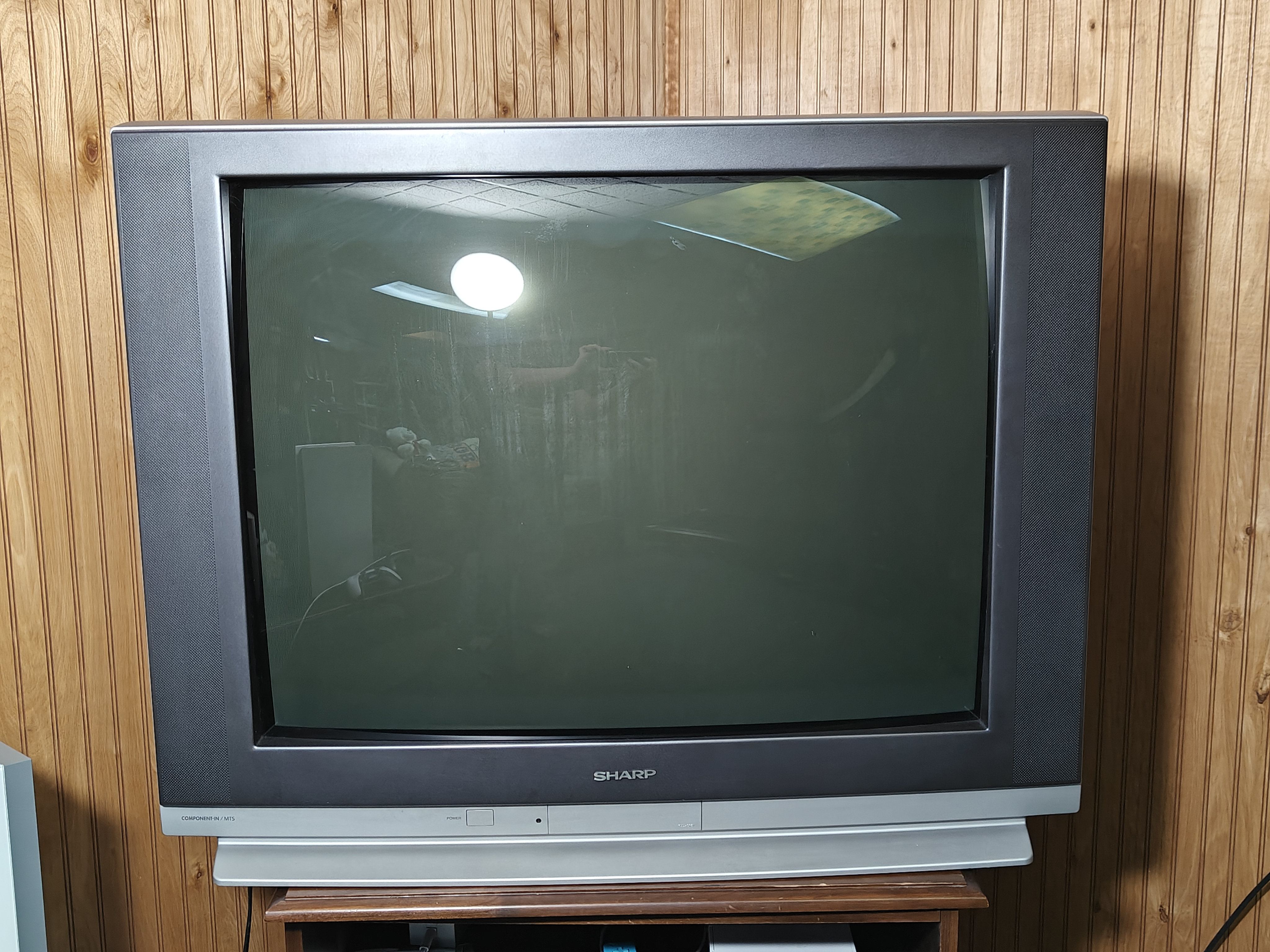

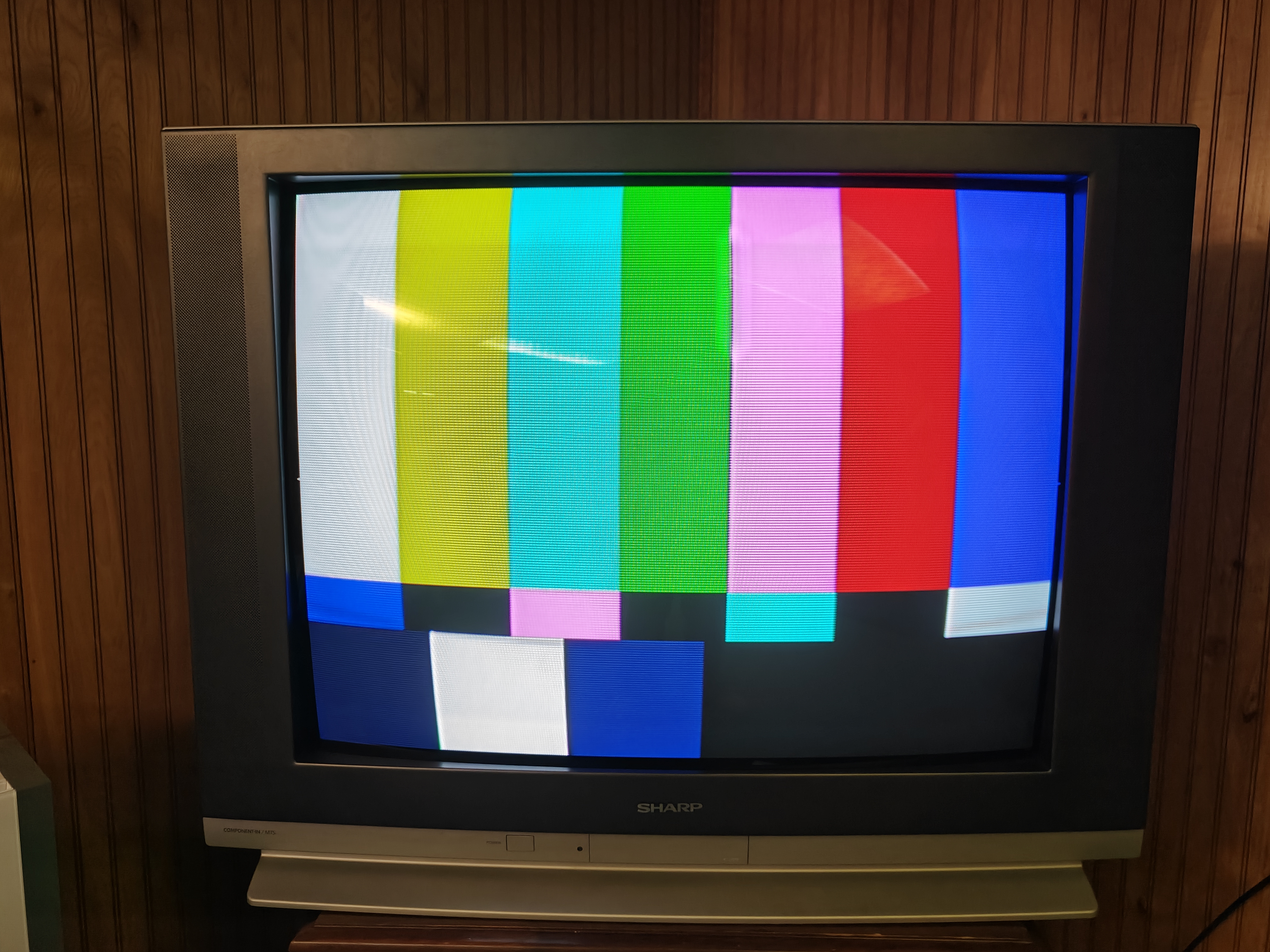

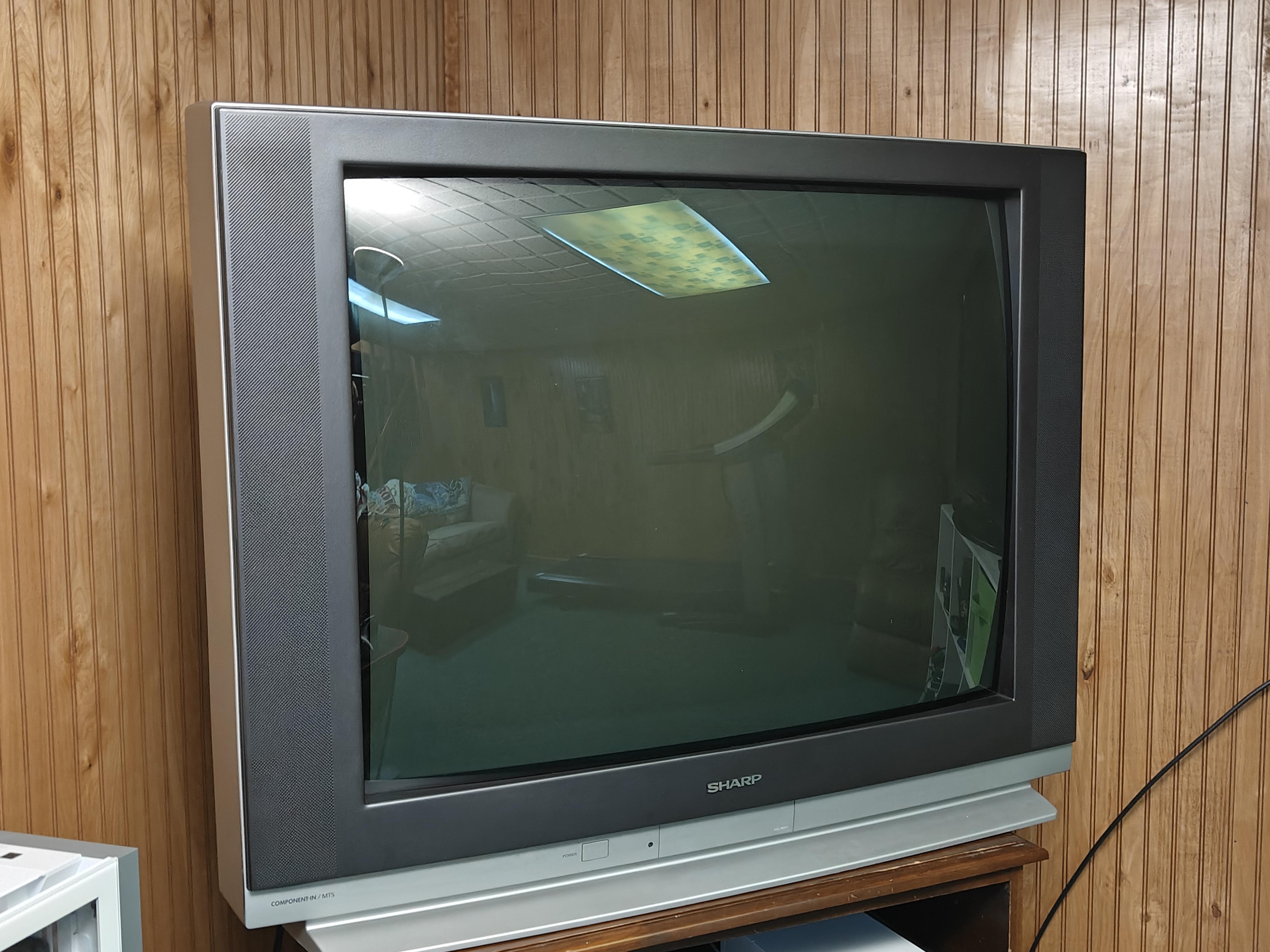

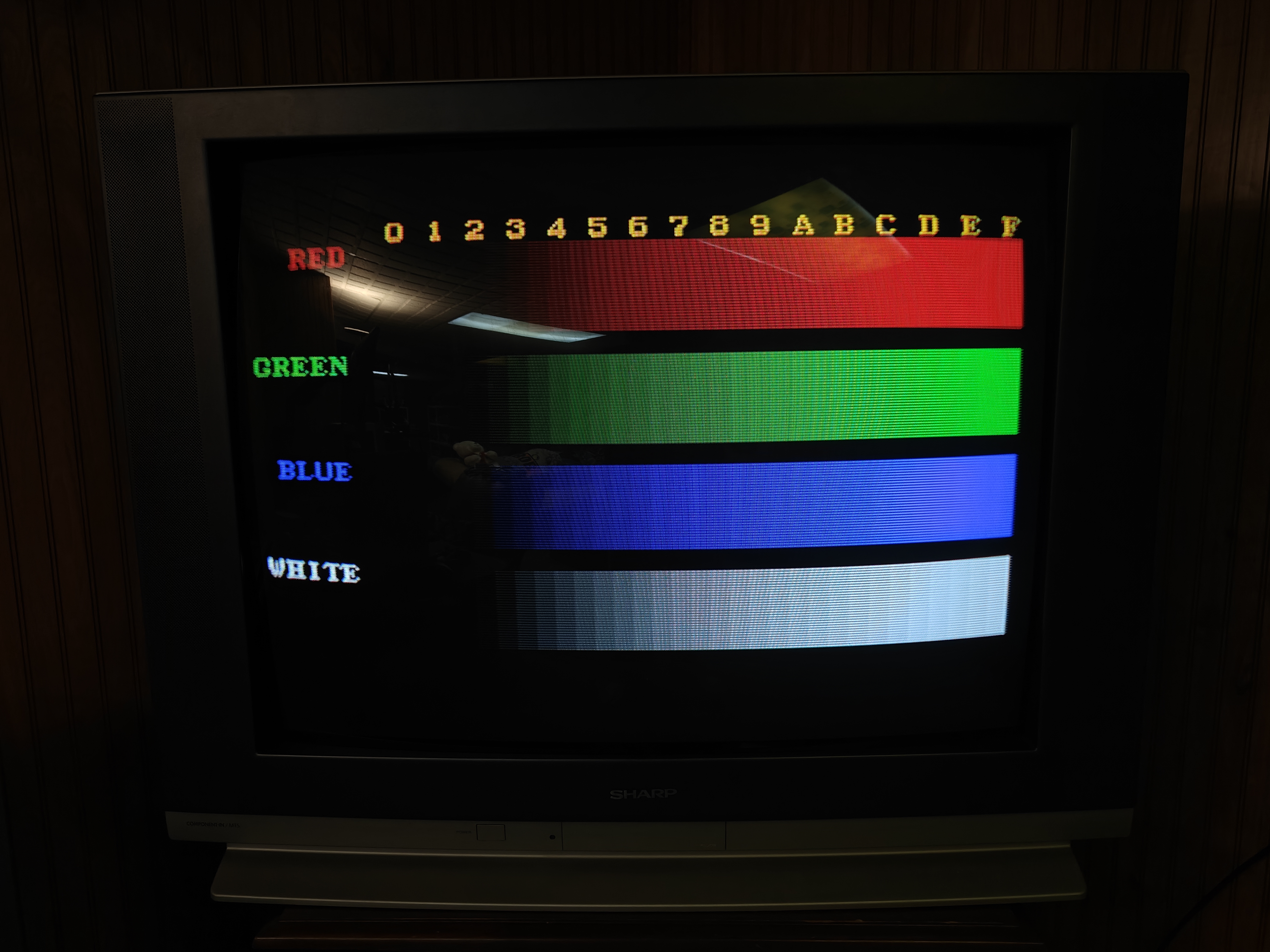

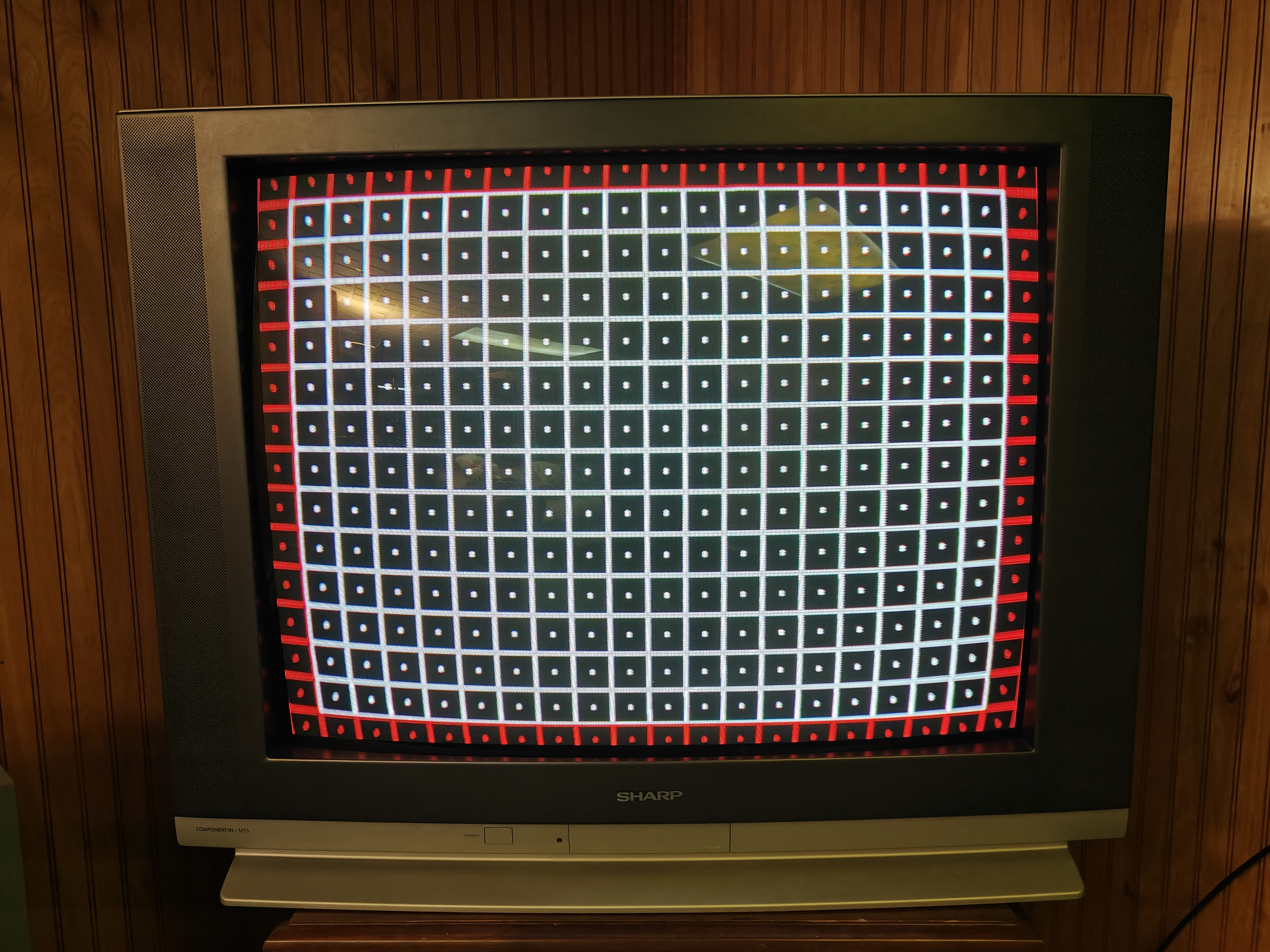

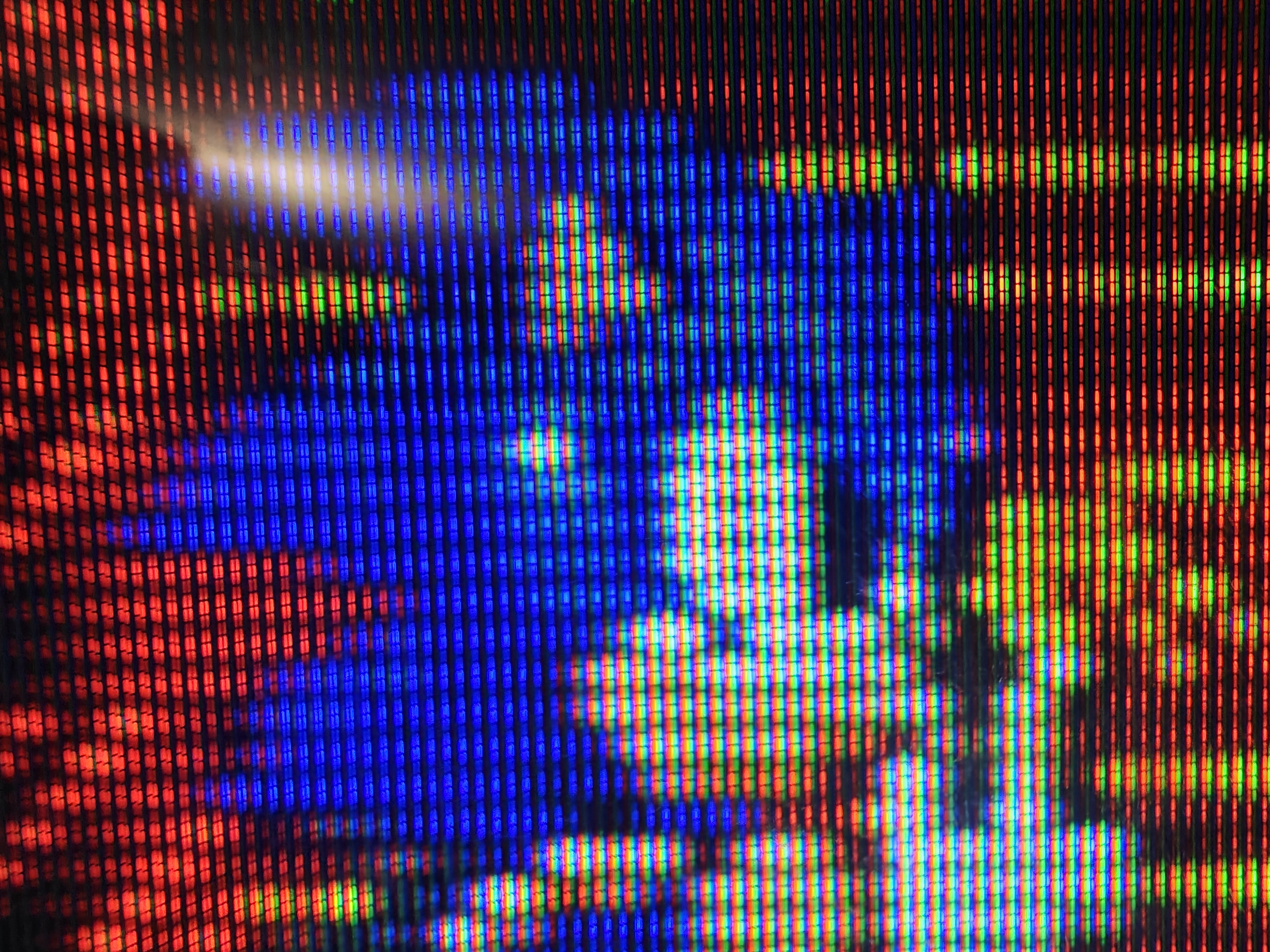

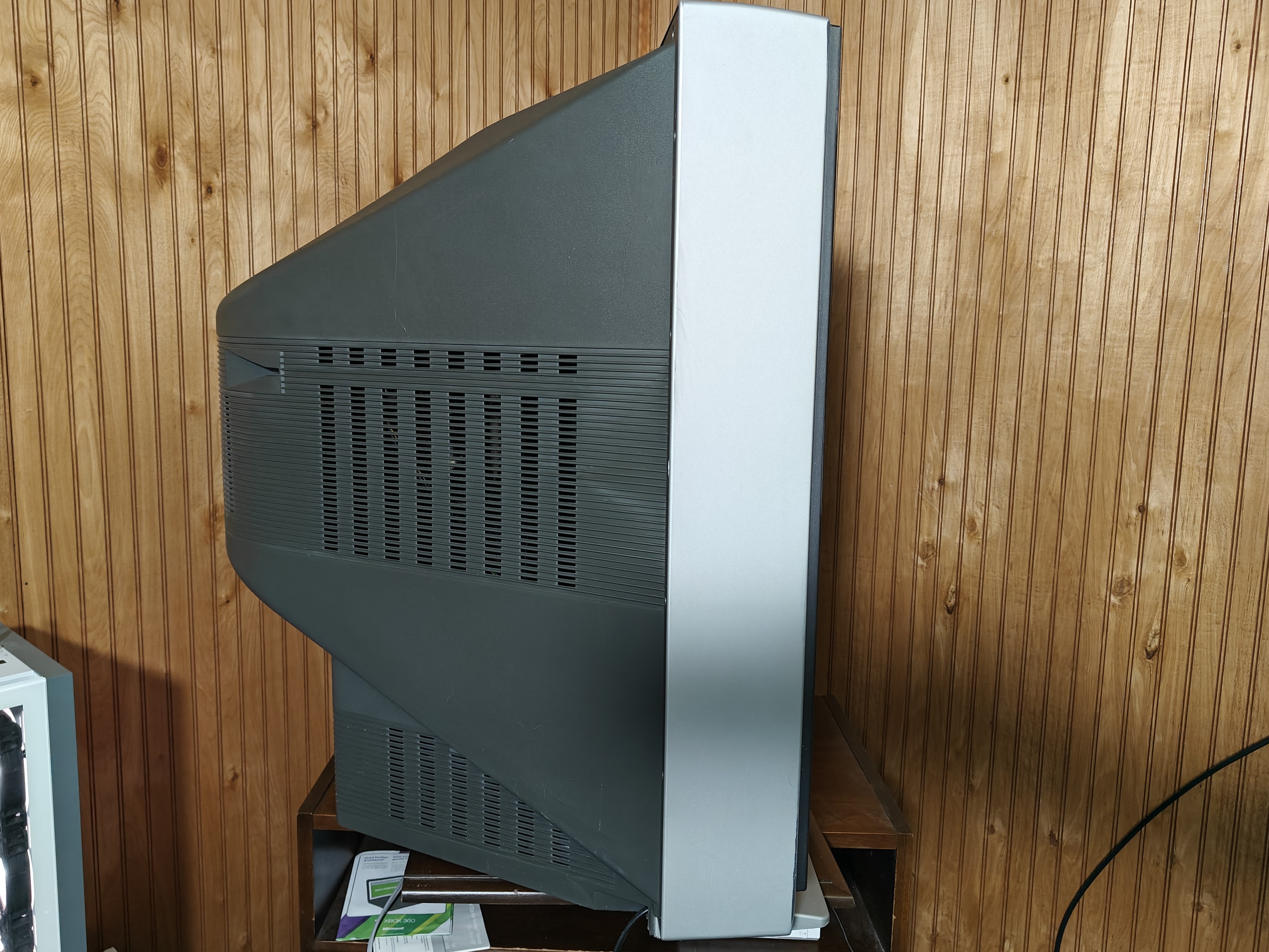

Gallery
| Specifications | |
|---|---|
| Brand: | Sharp |
| Manufacturer: | Sharp |
| Model: | 36C231 |
| Series: | C |
| Viewable Size: | 36" |

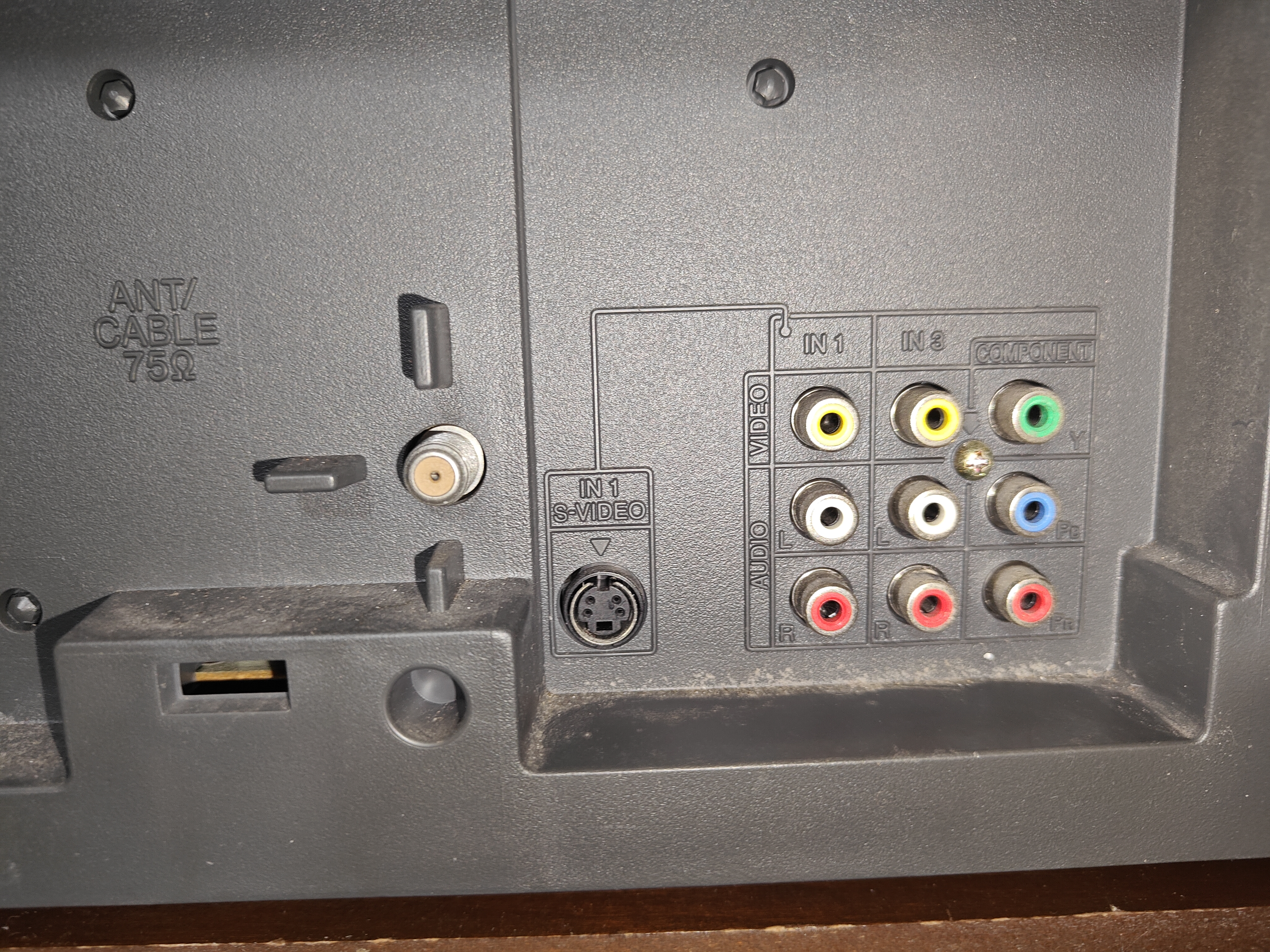

| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Service Menu, OSD Customer Controls |
| Vertical Output IC: | Philips, TDA8177 |
| Jungle IC: | Toshiba, TB1253AN |
| Comb Filtering: | 2-Line Digital |
| Comb Filter IC: | Toshiba, TC90A45F |
| Flyback: | RTRNFA039WJZZ |
| Focus Type: | Single |
| Tube: | RCA , A80AEJ15X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | (ITC) |
| Speakers: | Stereo, 3W x 2 |
| Remote: | RRMCG1324CESC |
| Chassis: | GB-3U |
| Weight: | 149 lbs (67.6 kg) |
| Dimensions (W/H/D): |
960 x 758 x 627 mm
(37.7 x 29.8 x 24.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission |
