Sony CPD-100ES
Matt Ross
February 25, 2024, 2:21 am
February 25, 2024, 2:21 am
Summary

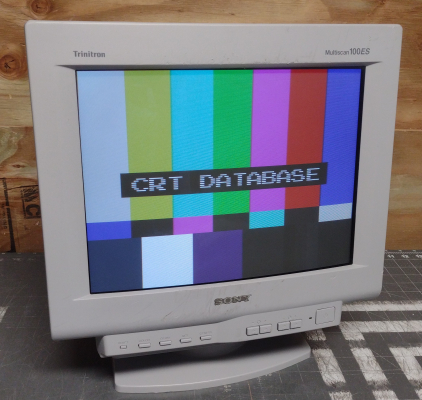

Compact 15" computer monitor from Sony. Picture is very sharp and it has a 70 kHz horizontal scan rate, allowing for 1024x768 up to 85 Hz.
Literature
Notes
This monitor will accept composite sync via the H Sync pin. It also supports sync on green.
Service adjustments to this (and other Sony PC monitors) must be done using Sony's DAS software, which is a DOS-based predecessor to WinDAS.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | CPD-100ES |
| Series: | CPD |
| Viewable Size: | 14" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC, Sync on Green |
| Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Max: | 30 kHz, 70 kHz |
| Vertical Max: | 50 Hz, 120 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Software Calibration |
| Vertical Output IC: | TDA8172 |
| Flyback: | 1-453-231-11, 8-598-954-20, X-4033-083-1, NX-4130//J1E |
| Tube: | Sony Trinitron , M36LDJ15X |
| Heater Voltage: | 6.3v |
| Deflection: | 90 deg. |
| Mask: | Aperture Grille |
| Pitch: | .25mm |
| Tint: | Dark |
| Yoke: | 8-451-469-21 |
| Yoke Horz. Inductance: | 0.14848 mH |
| Yoke Vert. Inductance: | 4.714 mH |
| Yoke Horz. Resistance: | 0.573 ohms |
| Yoke Vert. Resistance: | 7.18 ohms |
| Speakers: | None |
| Chassis: | X2R |
| Weight: | 14kg, 30.8lbs |
| Application: | Computer Monitor |
| Launched: | 1997 |
| Country of Manufacture: | USA |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
