Summary

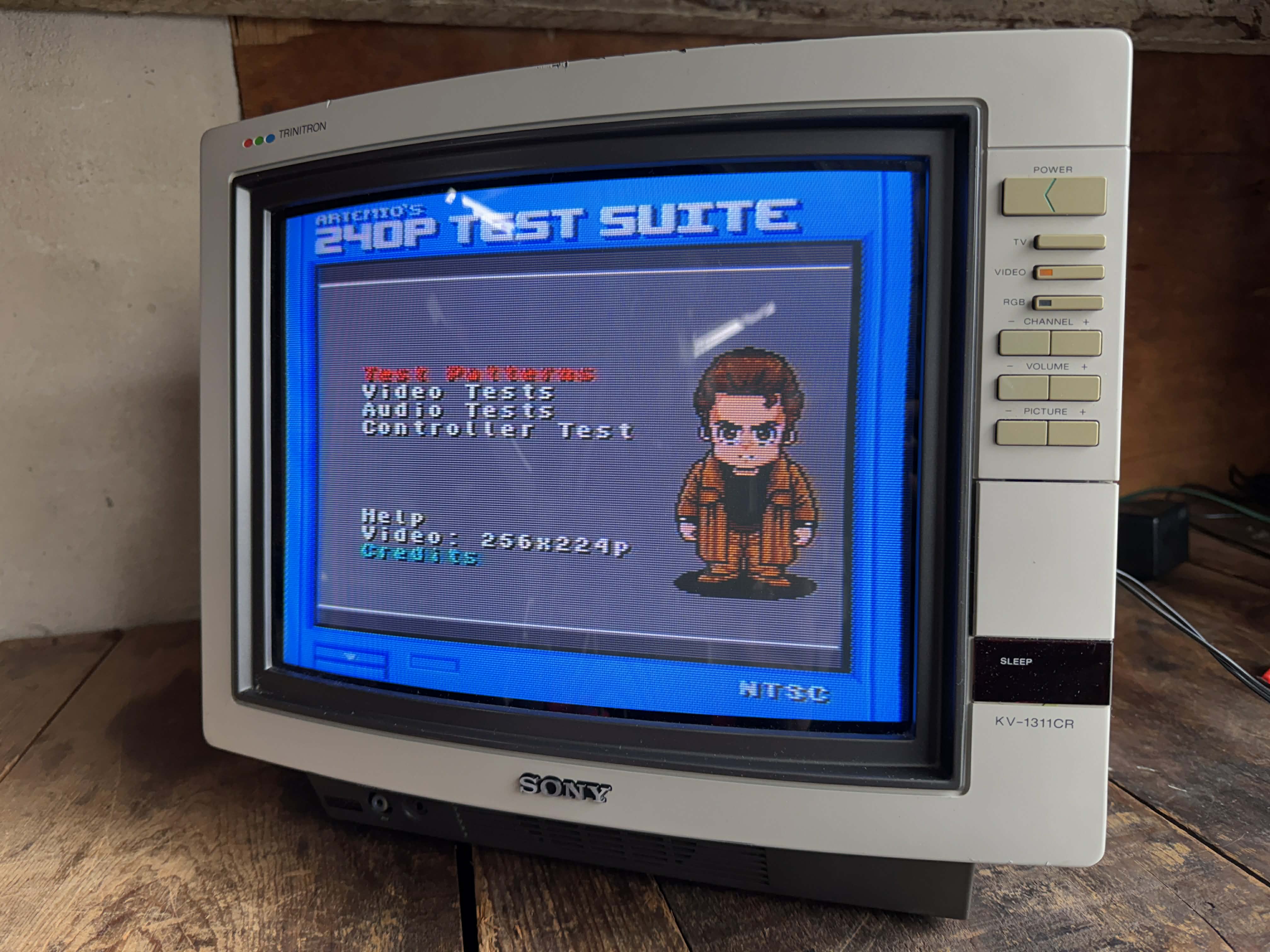

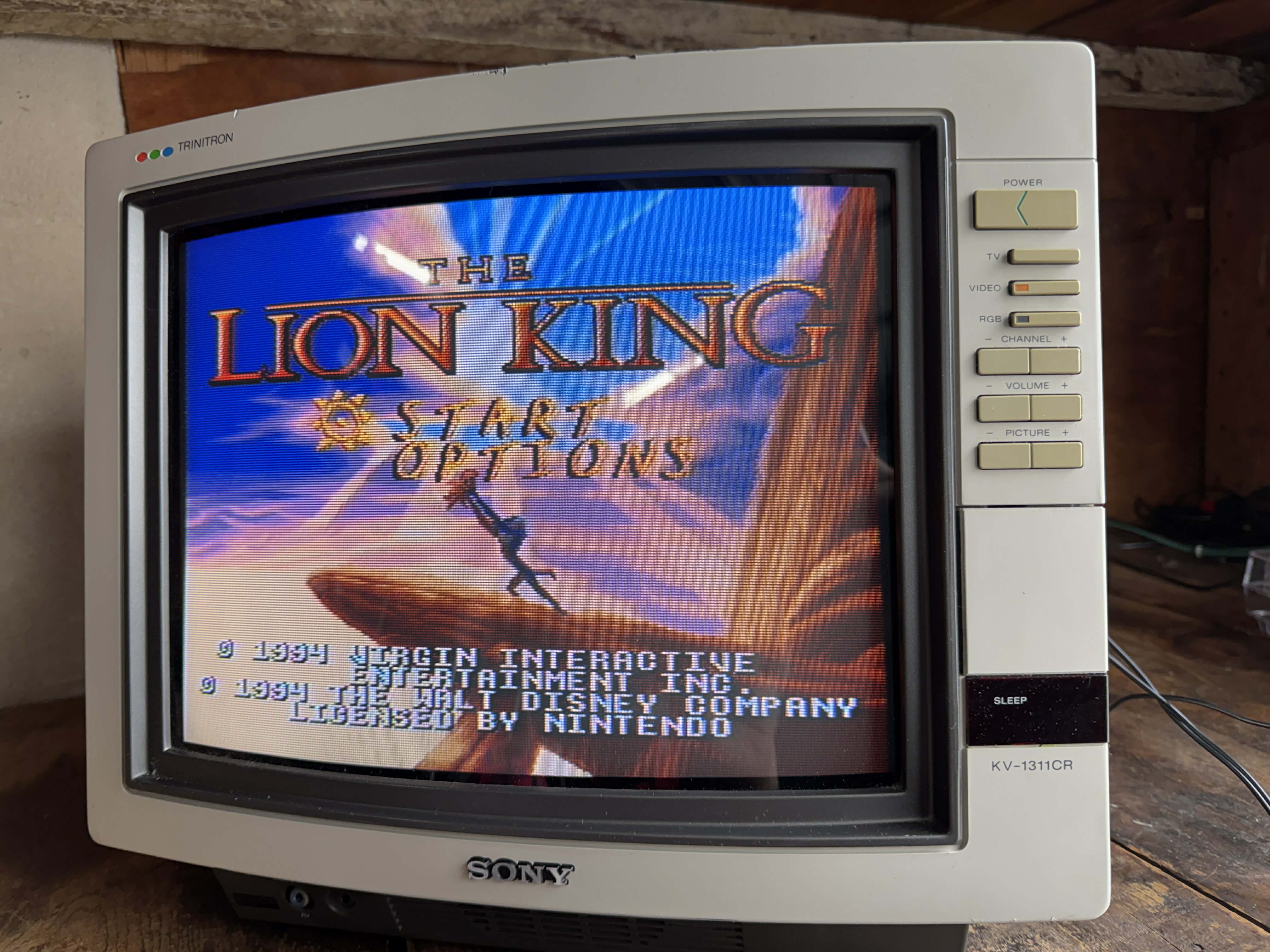

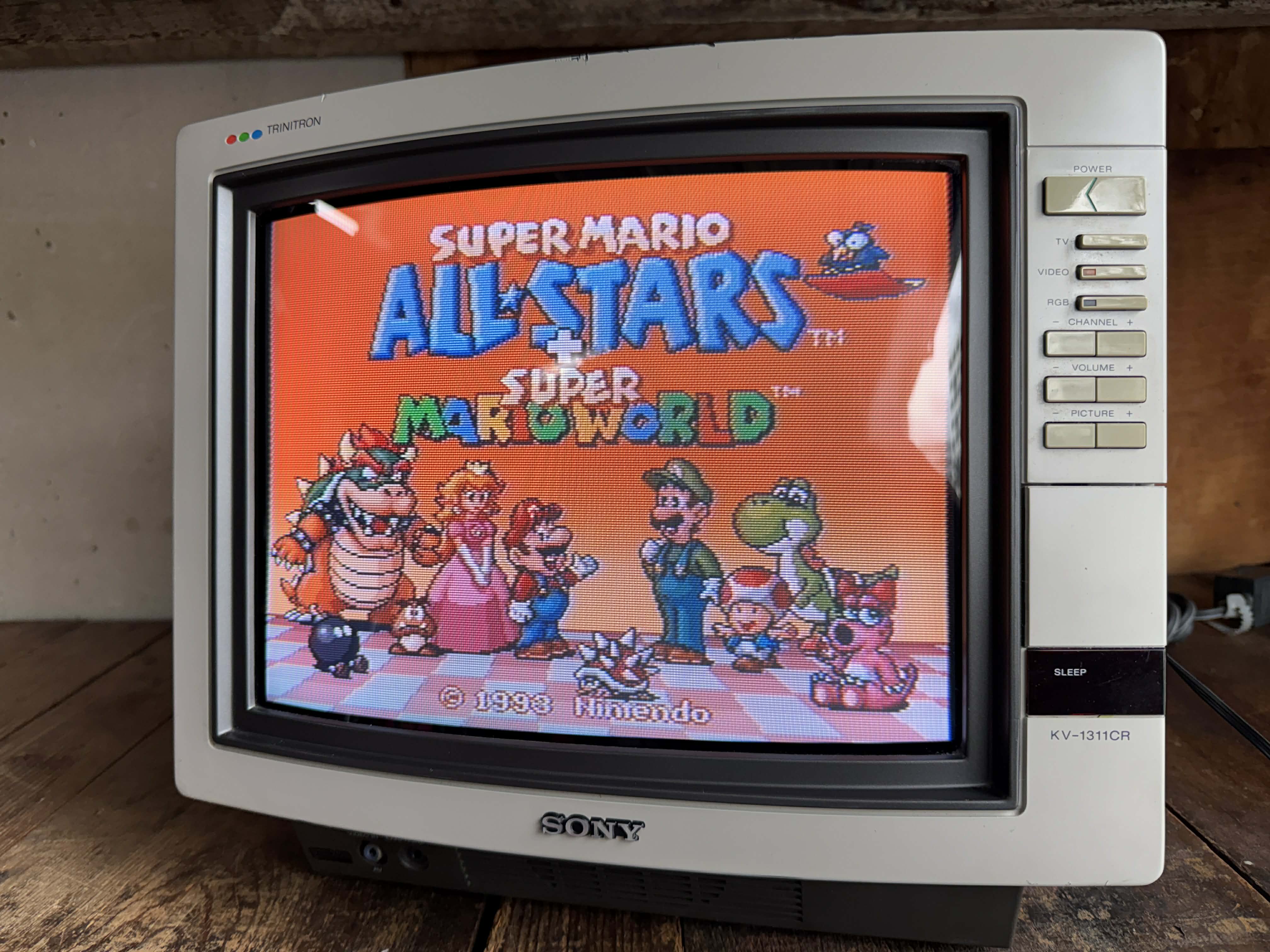

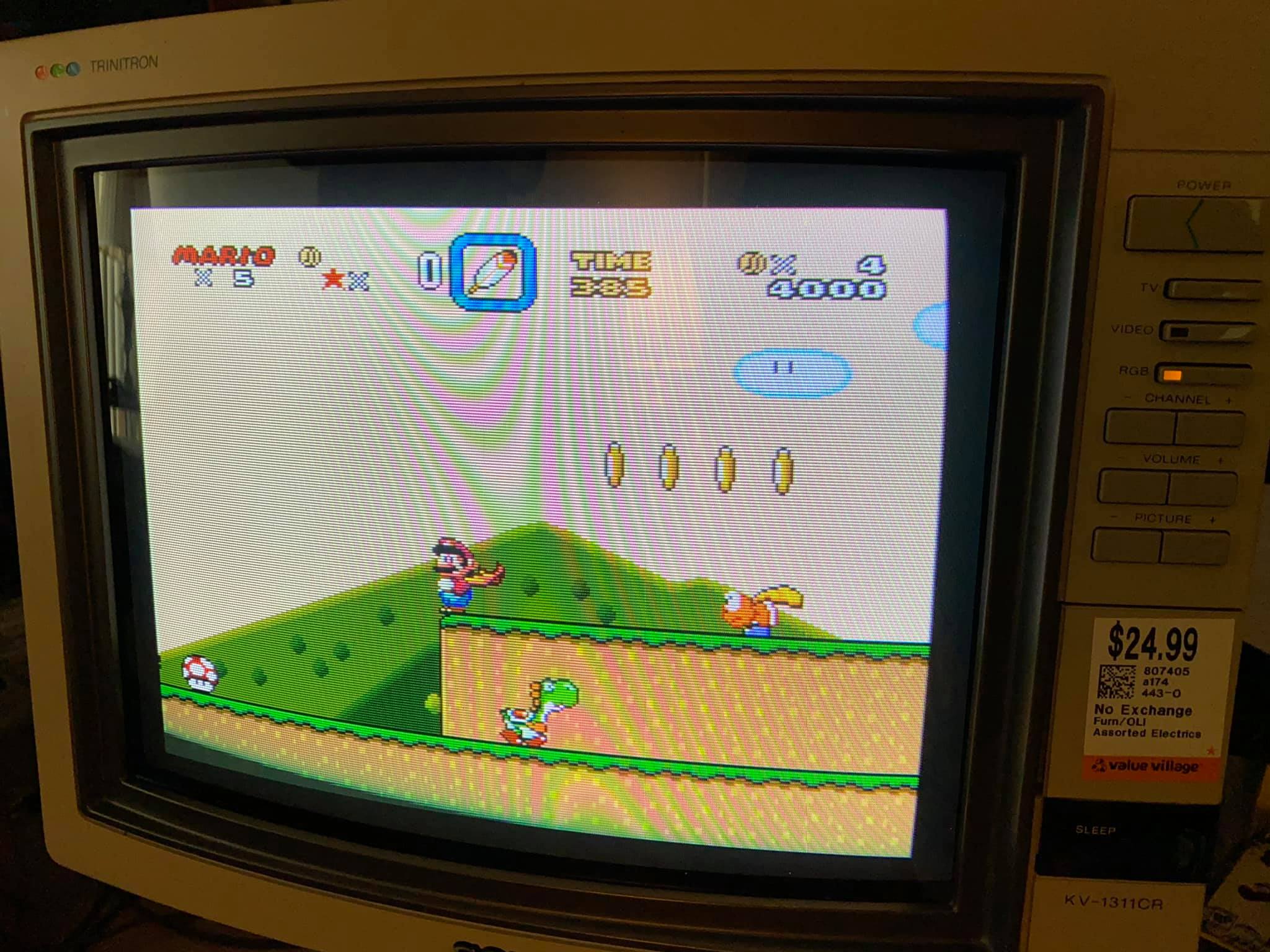

13" TV-monitor hybrid by Sony, made in Japan in 1985. Has RF, composite, CGA and analog RGB inputs with mono sound.
(Special thanks to Felipe Ortiz for some of the pics!)
Manuals
Notes
This set is essentially a TV variant of the Sony PVM-1390, although this set came out first.

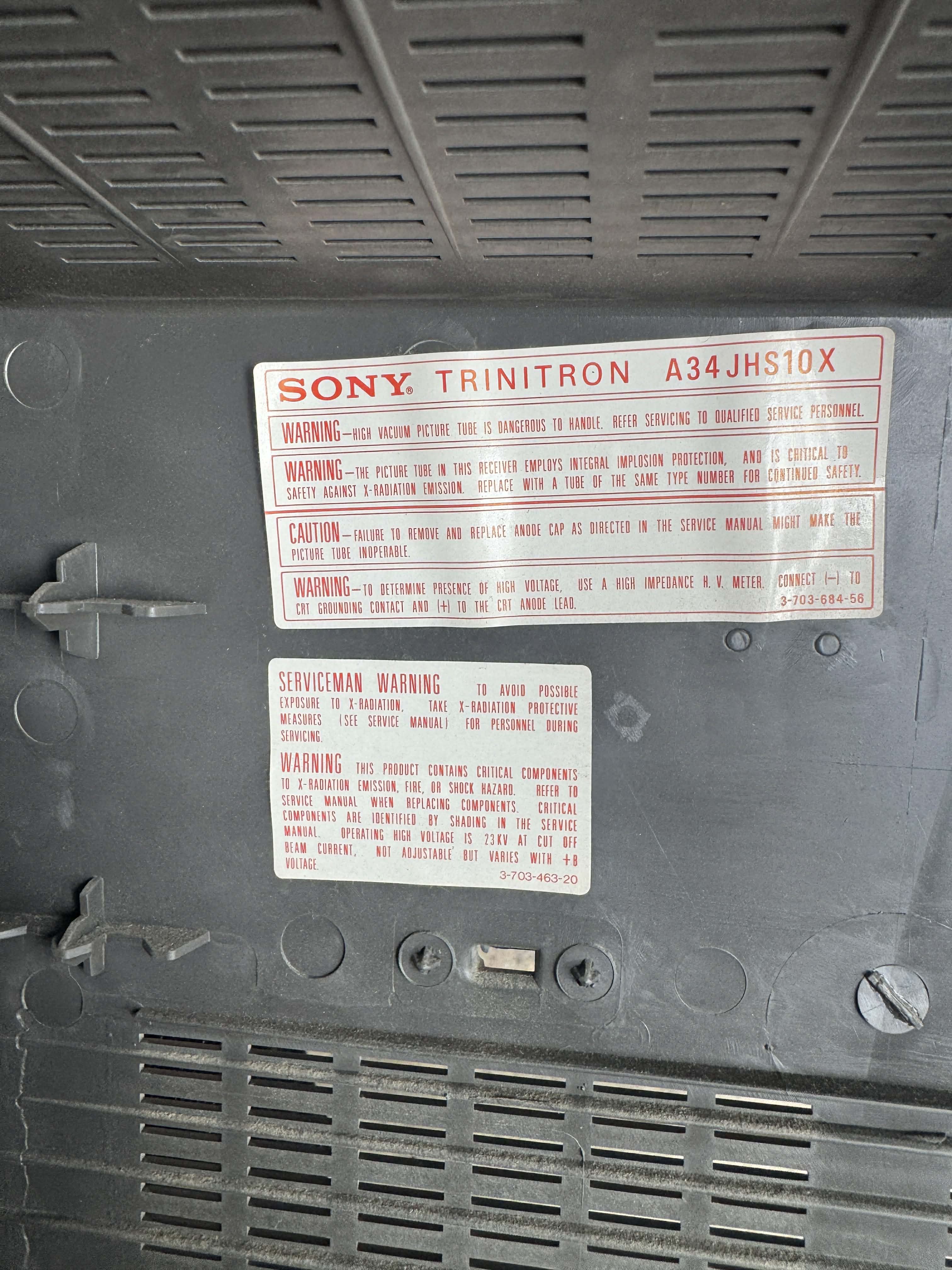

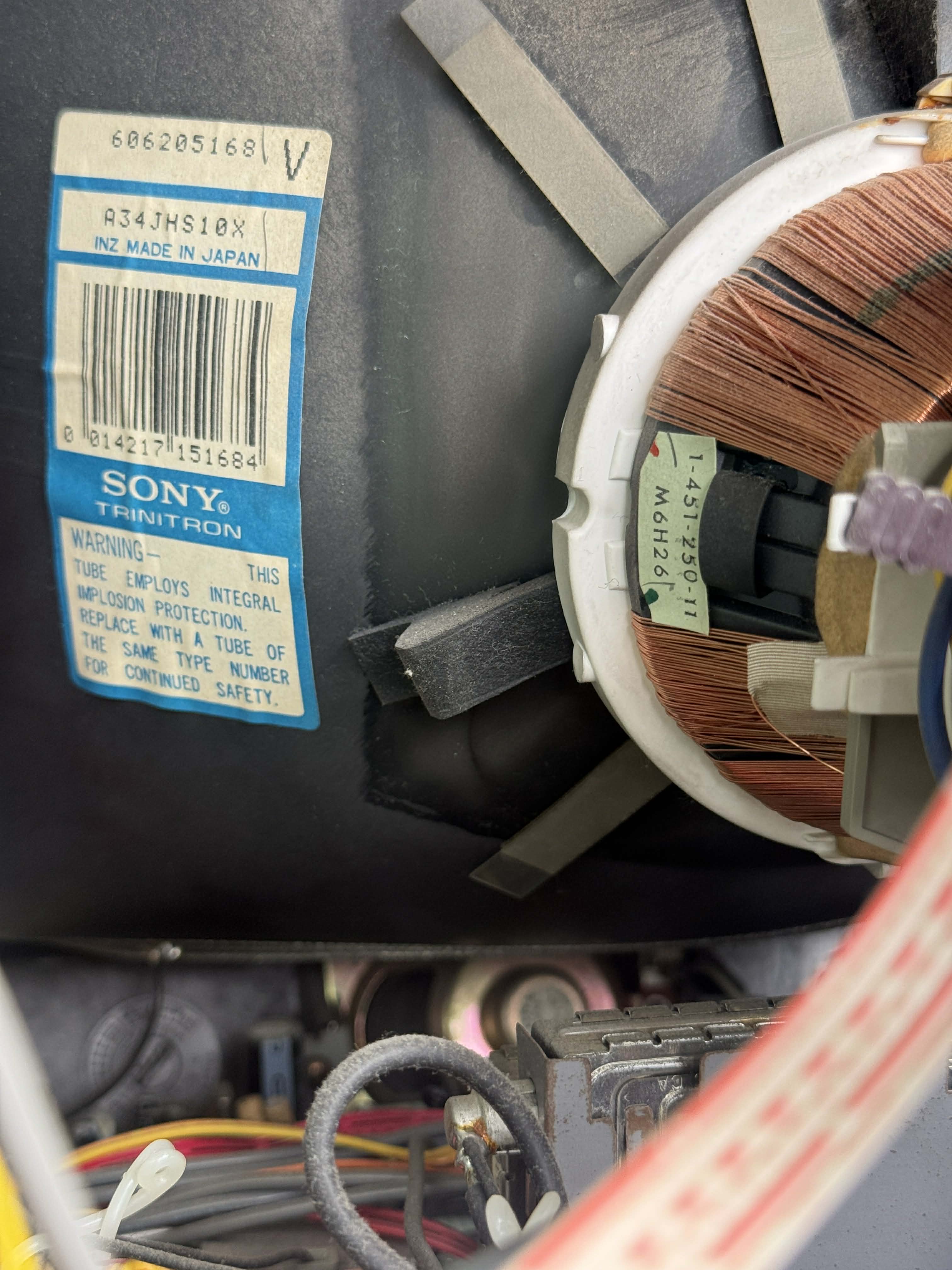

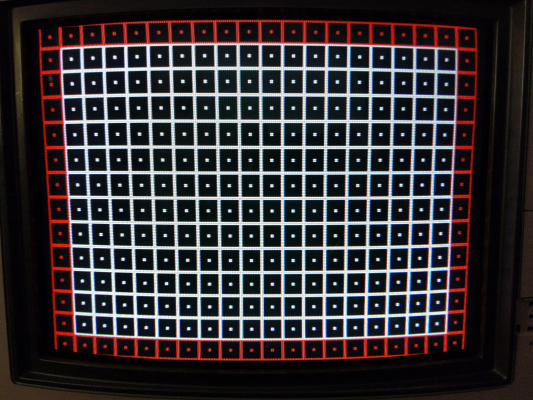

Contains a 450-TVL tube, A34JHS10X, although other Trinitron tubes may be compatible.

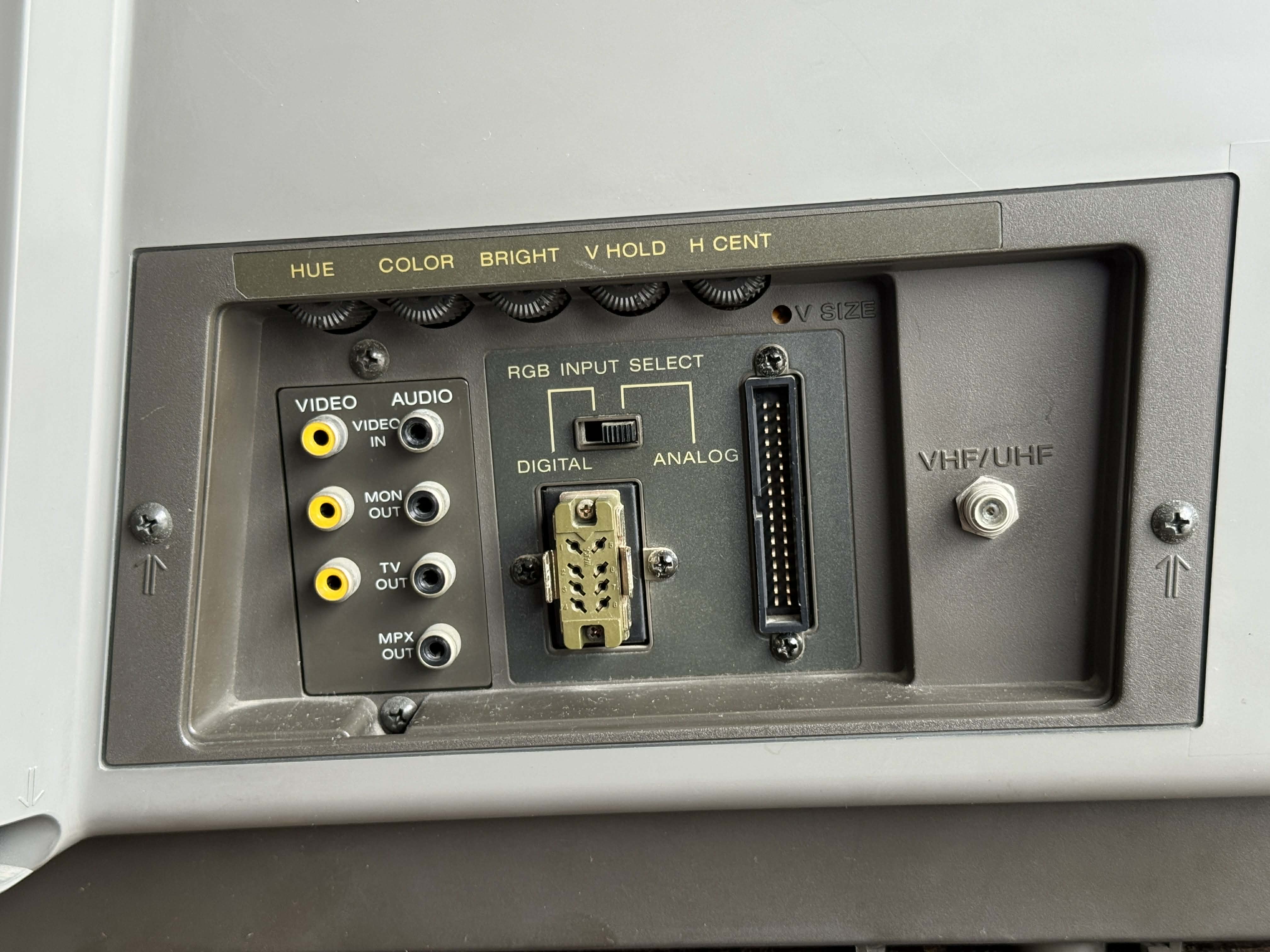

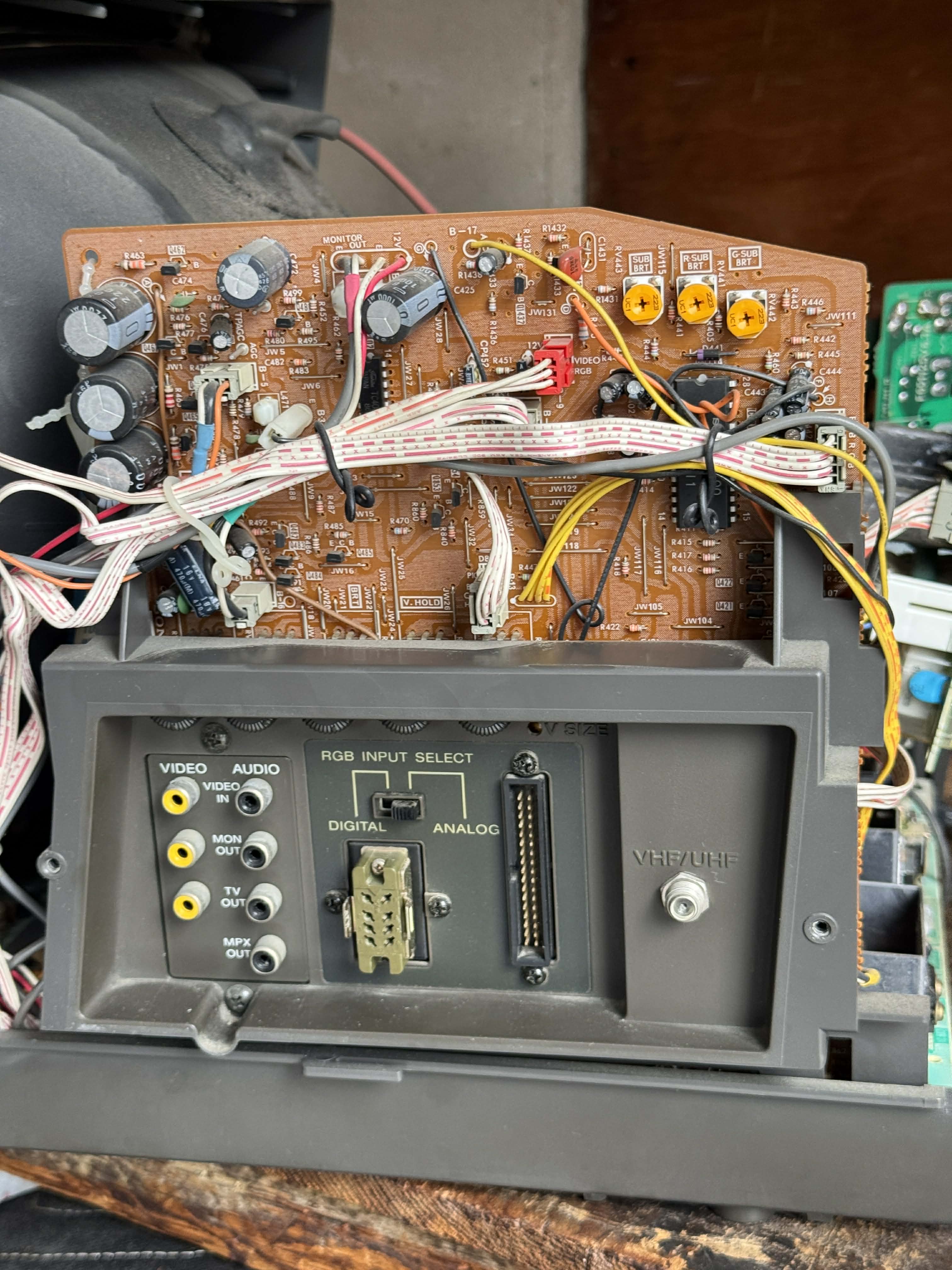

Uses a 34-pin analog RGB input. Sunthar sells adapters on his site HERE

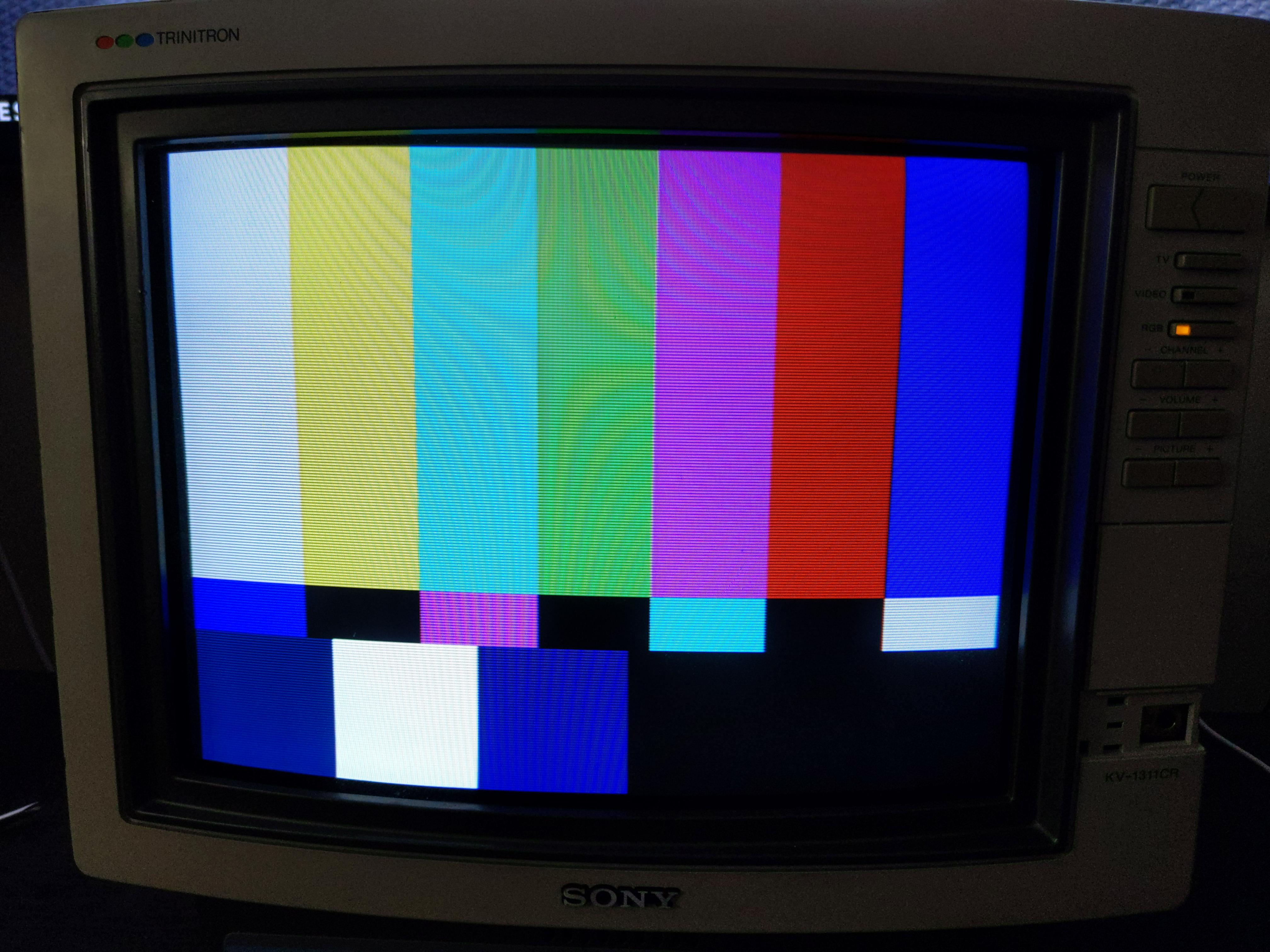

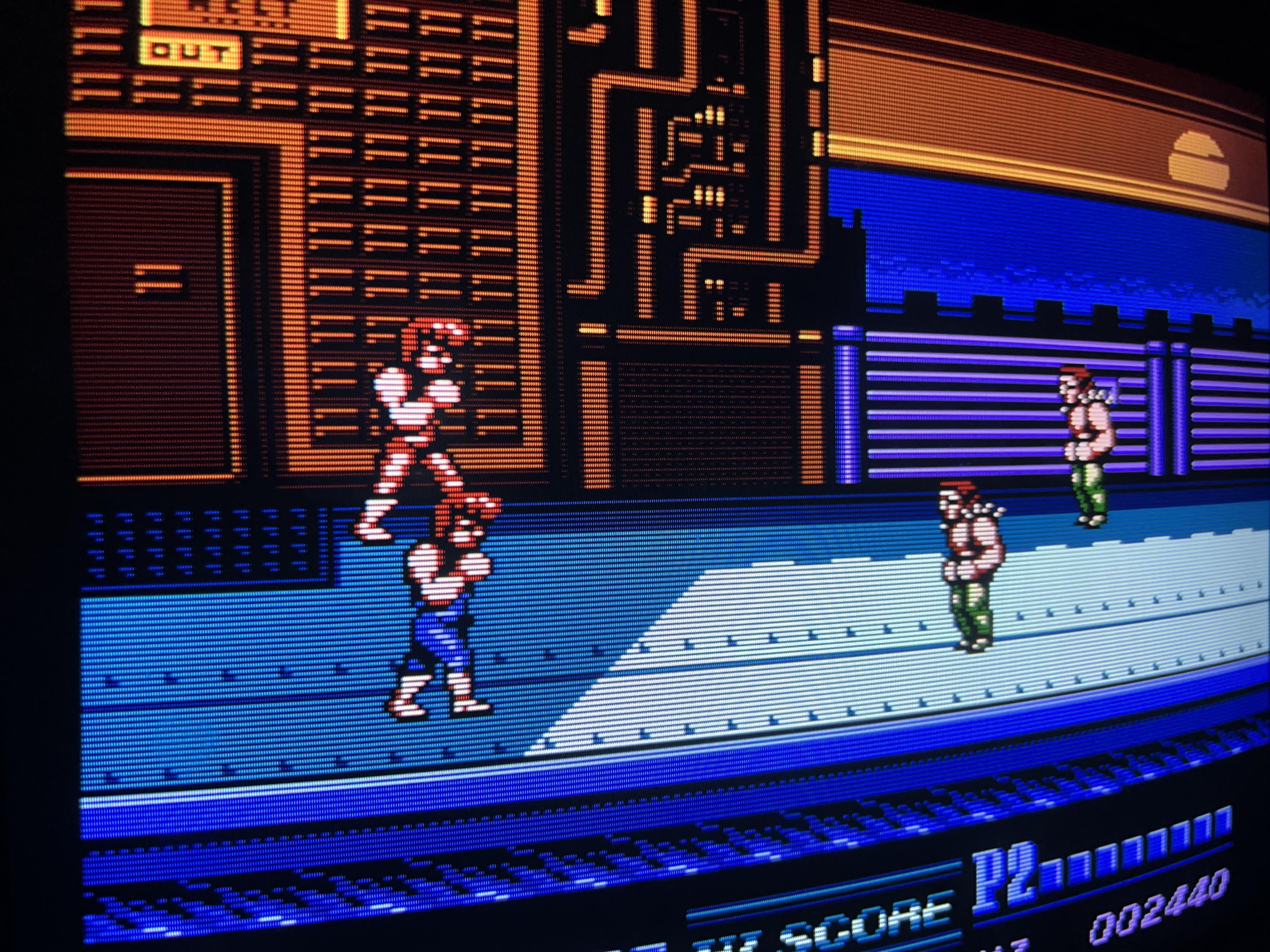

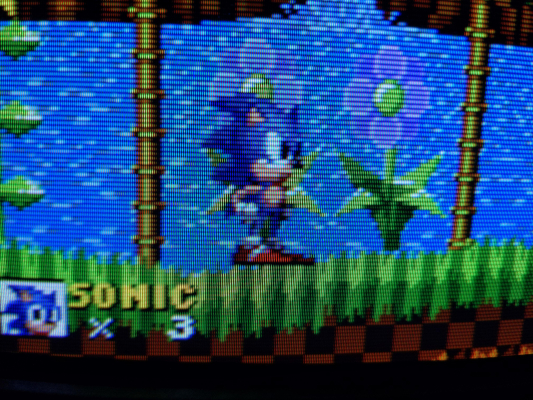

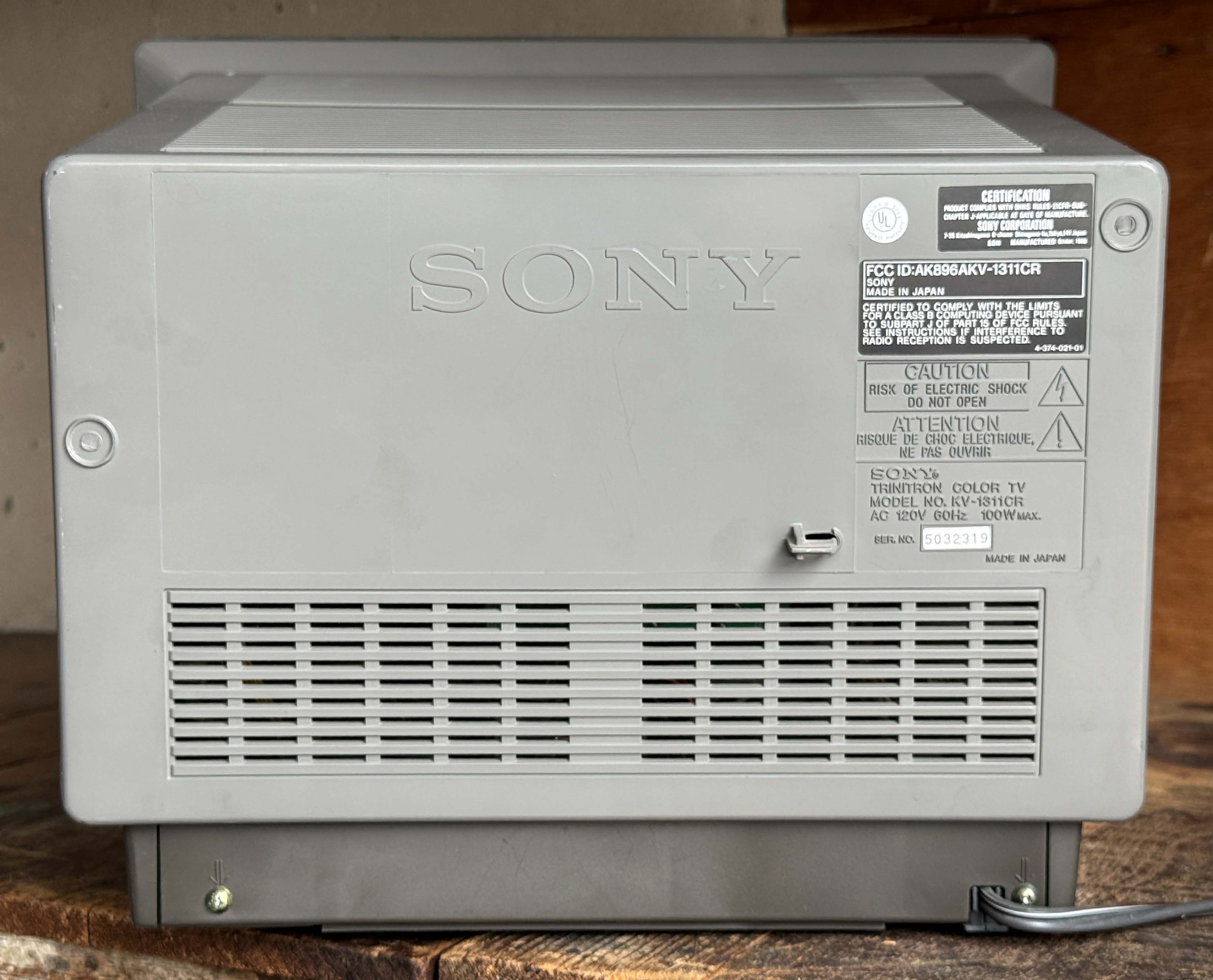

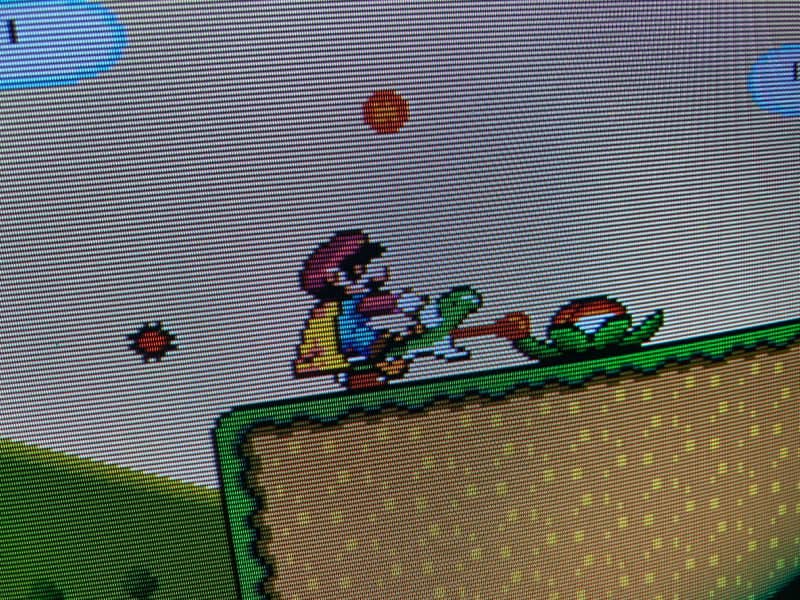

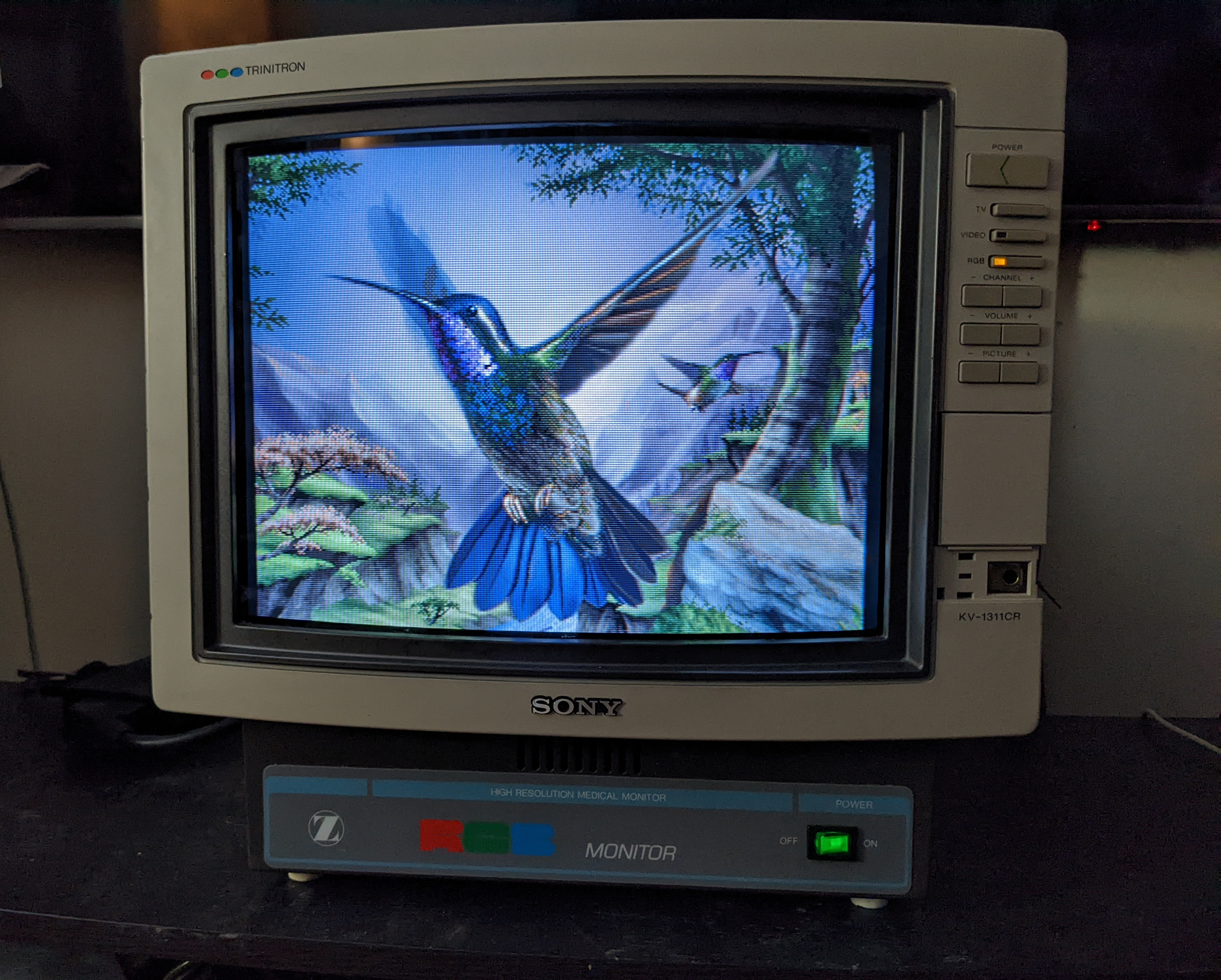

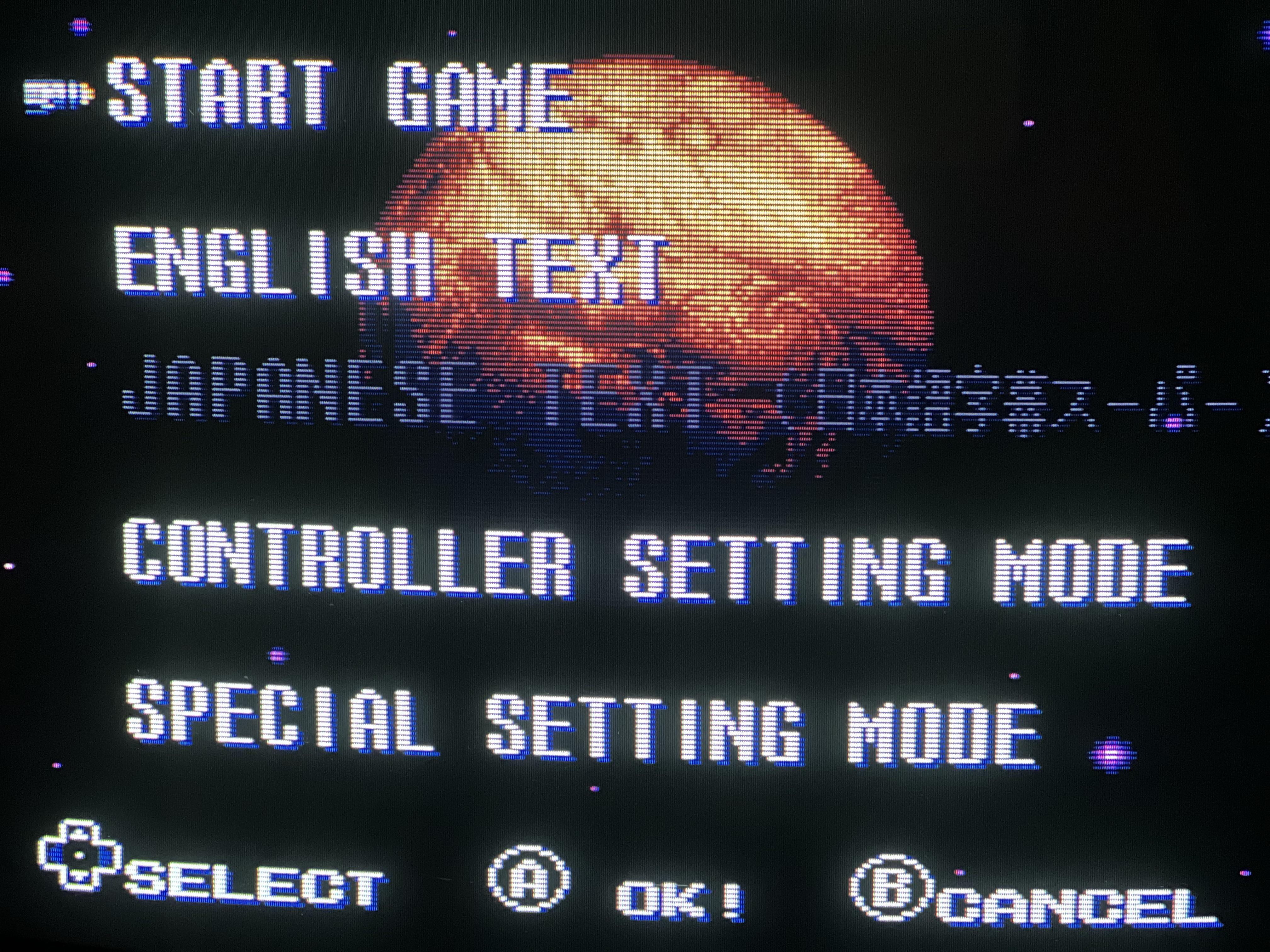

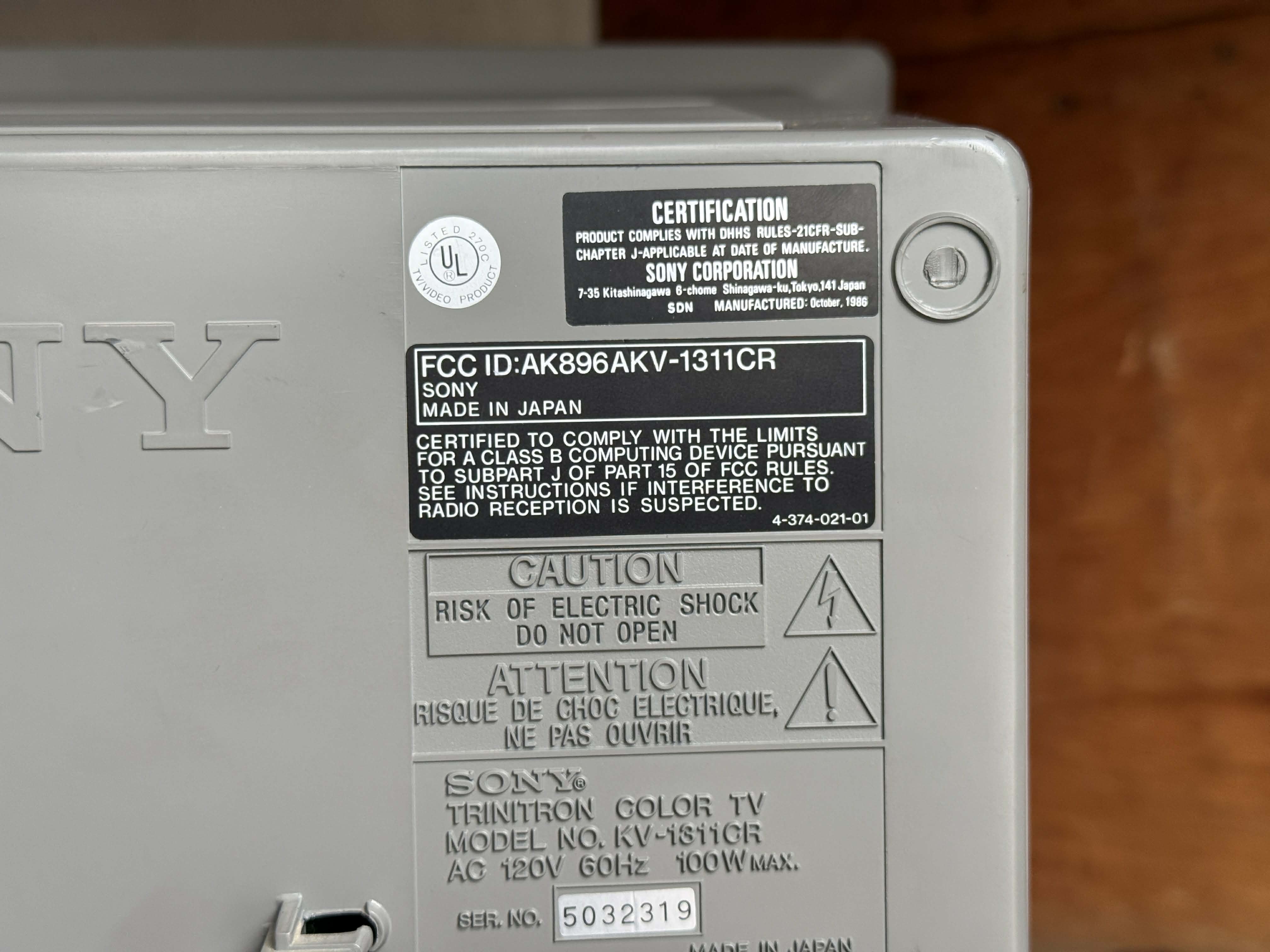

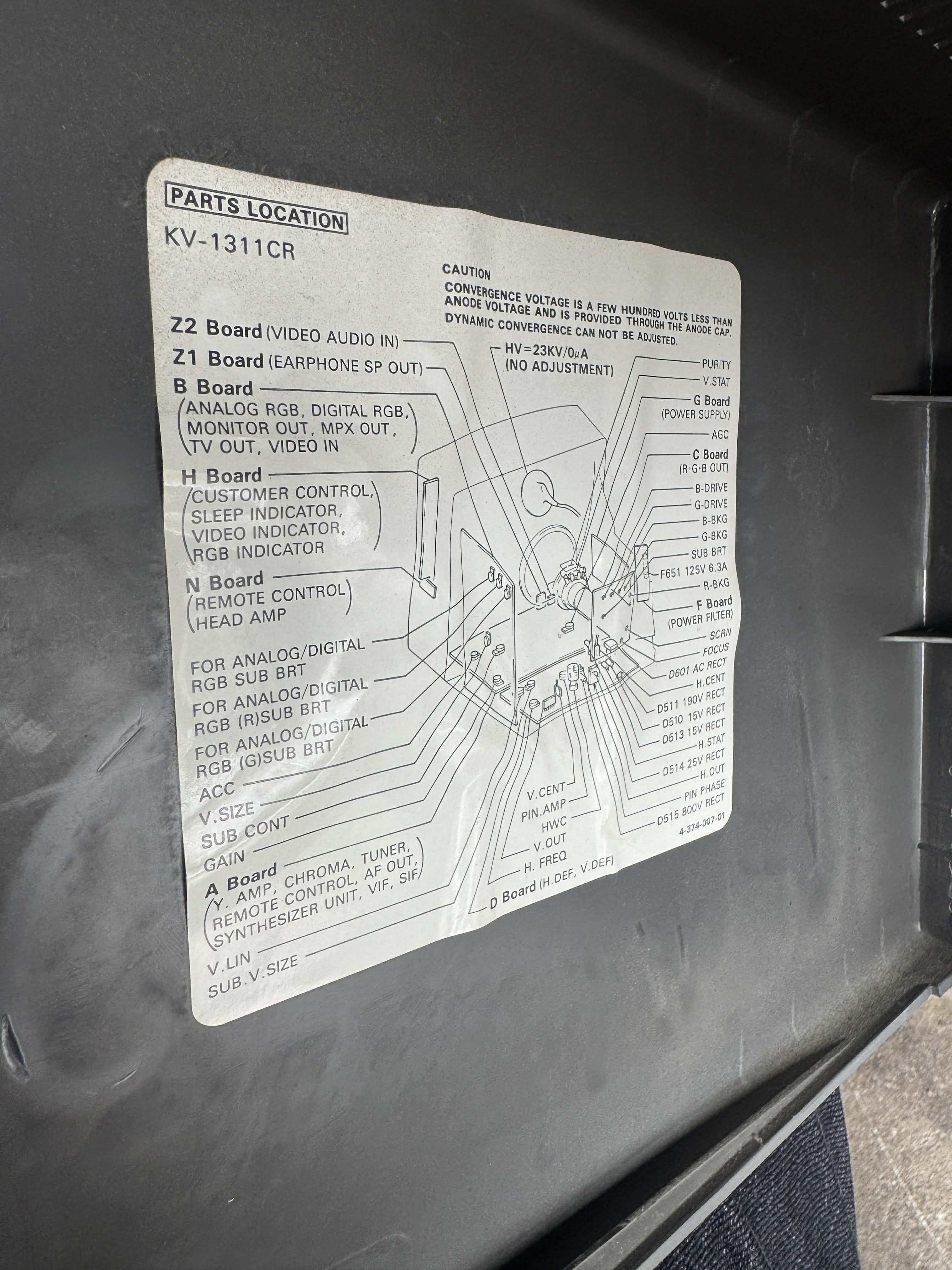

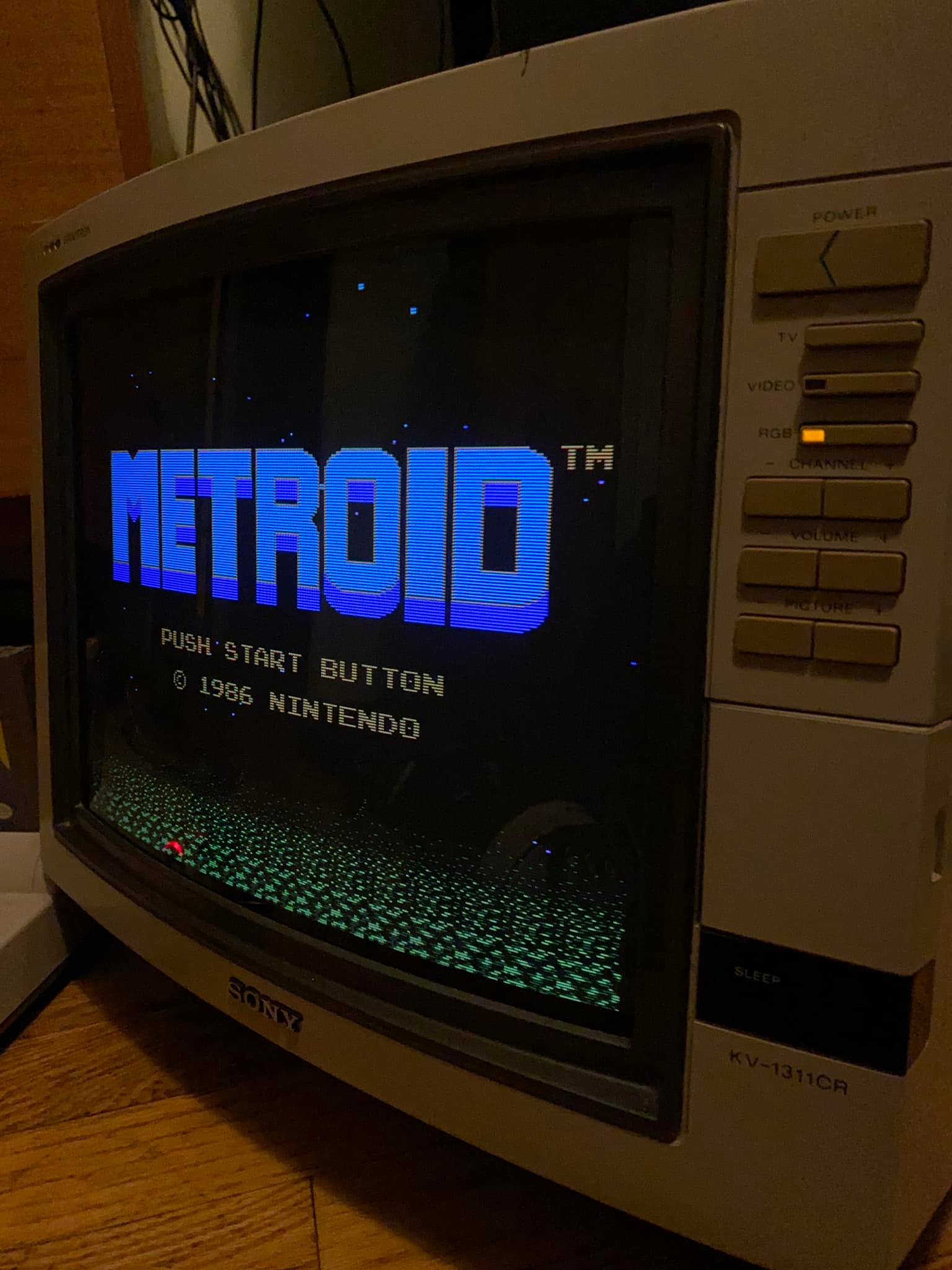

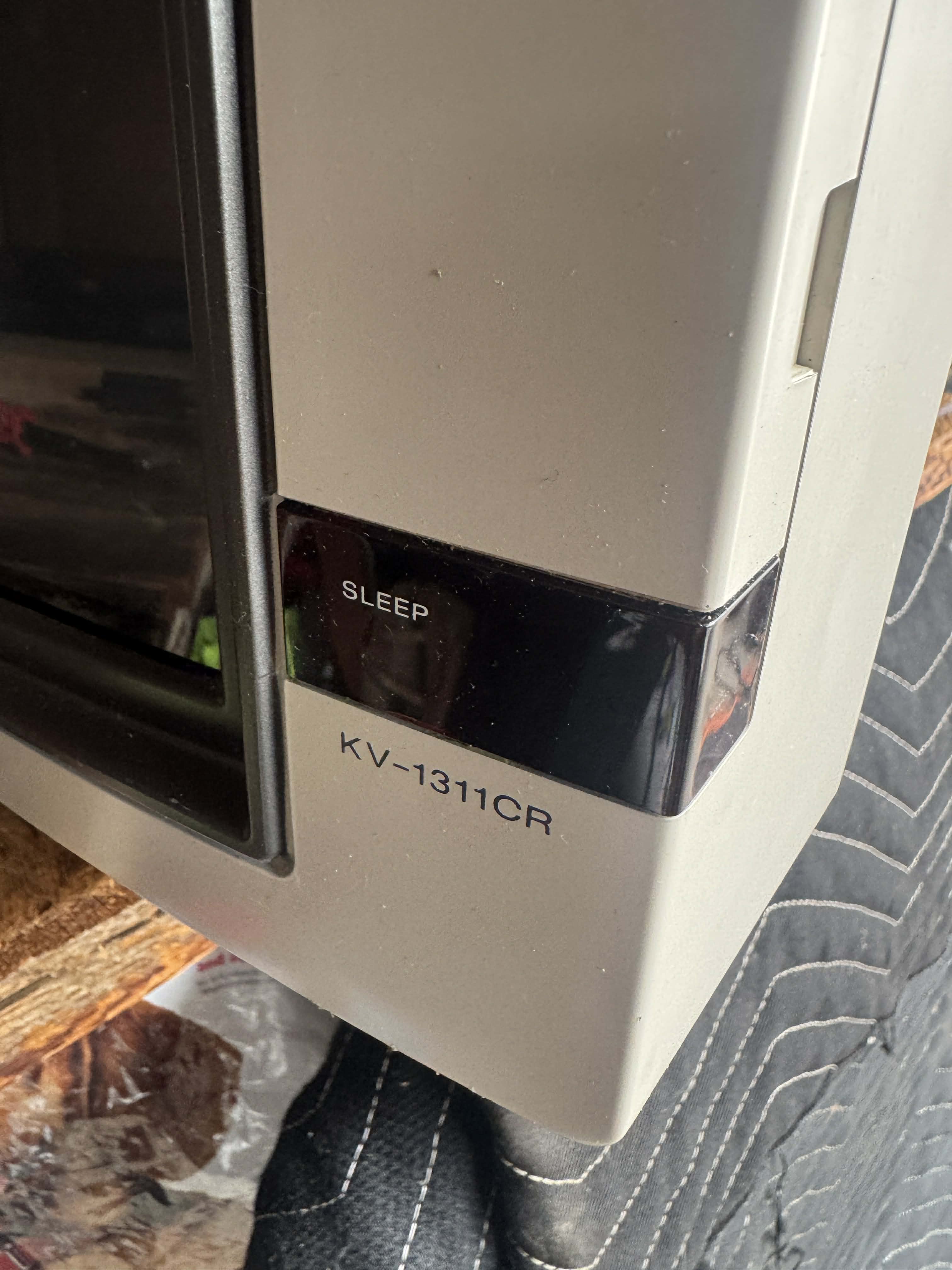

Gallery

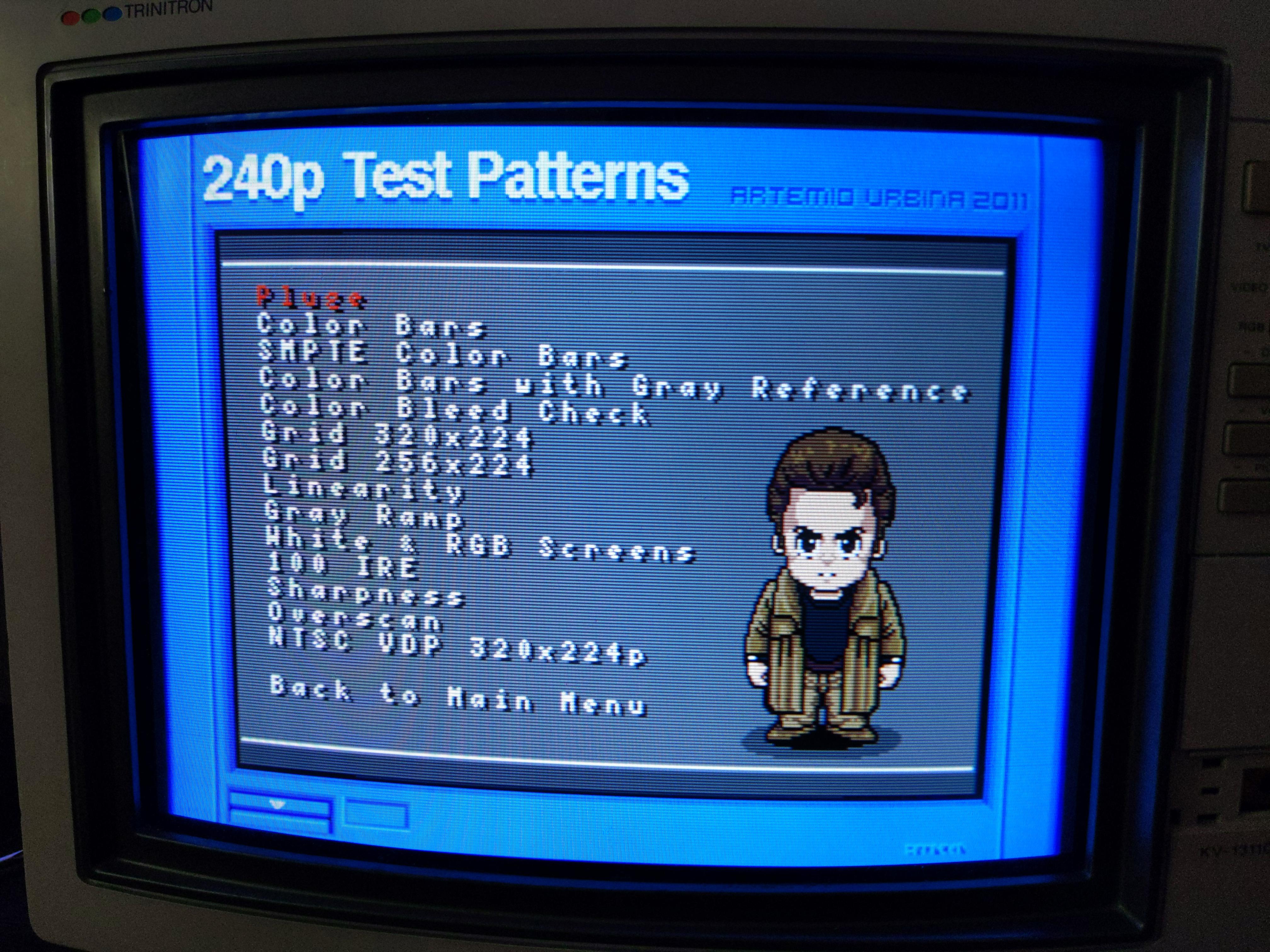

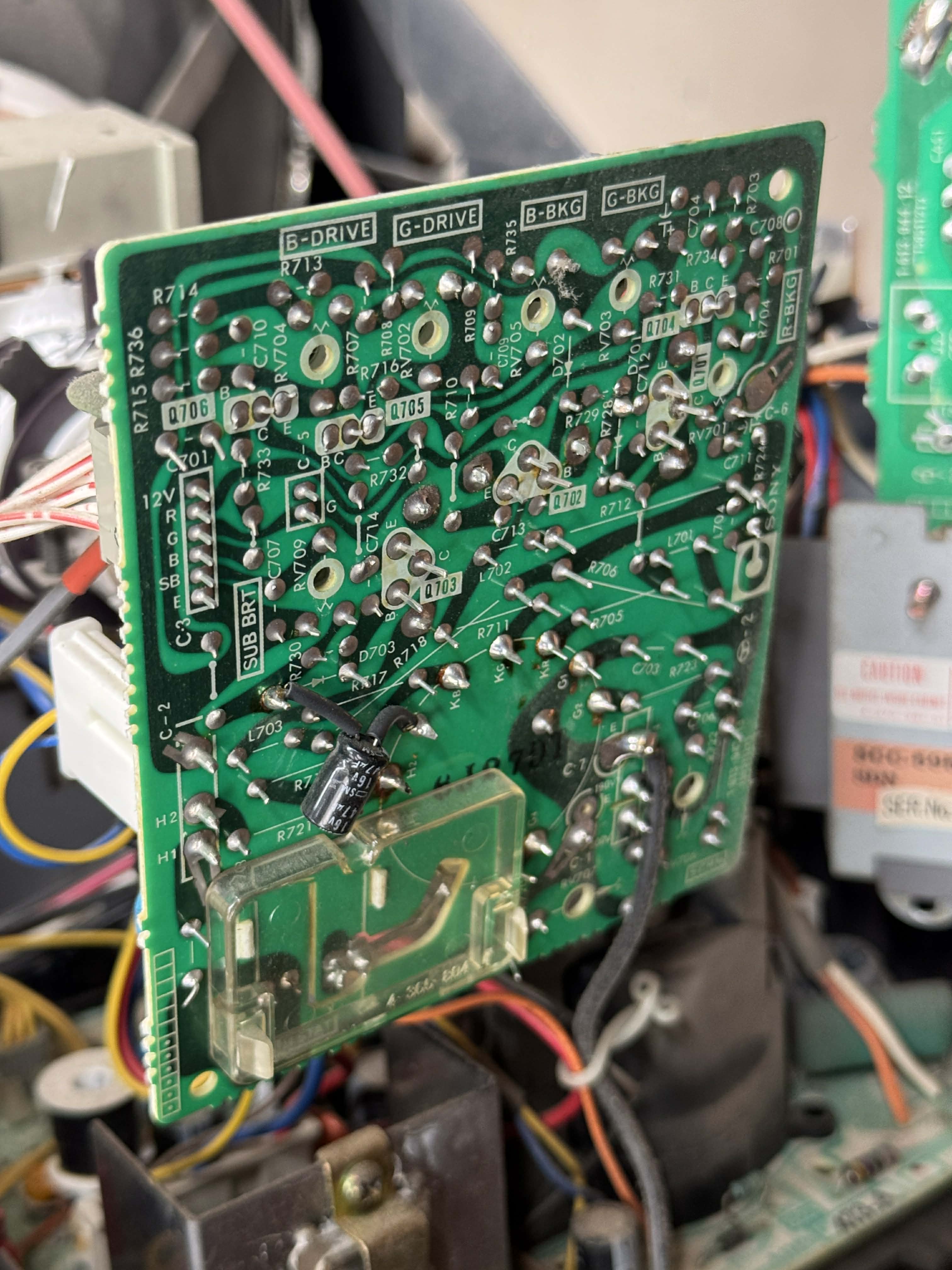

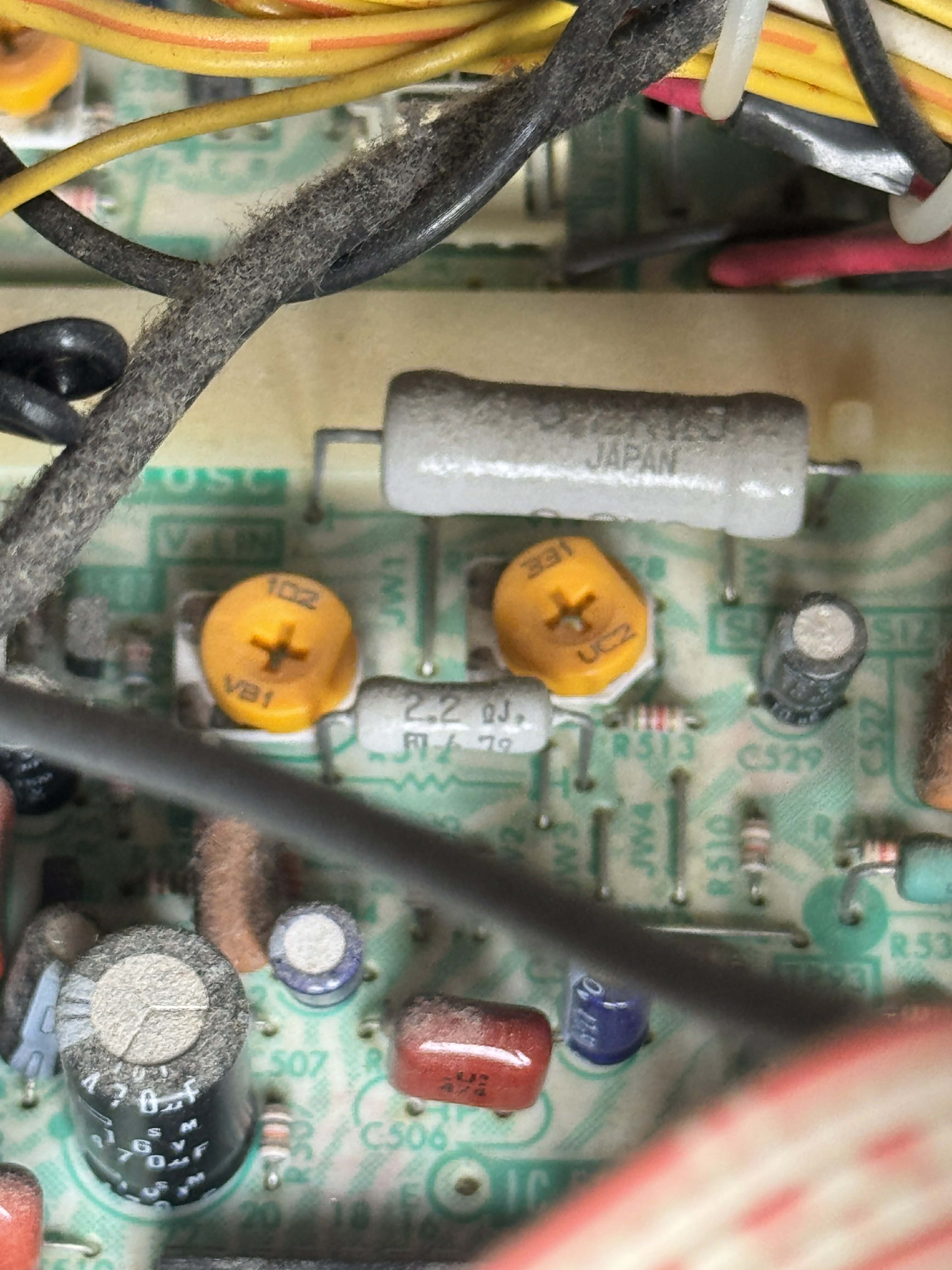

| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-1311CR |
| Series: | KV |
| Viewable Size: | 13" |
| Inputs: | Composite, RF, RGB, Digital RGB, EIAJ-8, 34-pin Multi Input |
| Sync: | CSYNC |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |

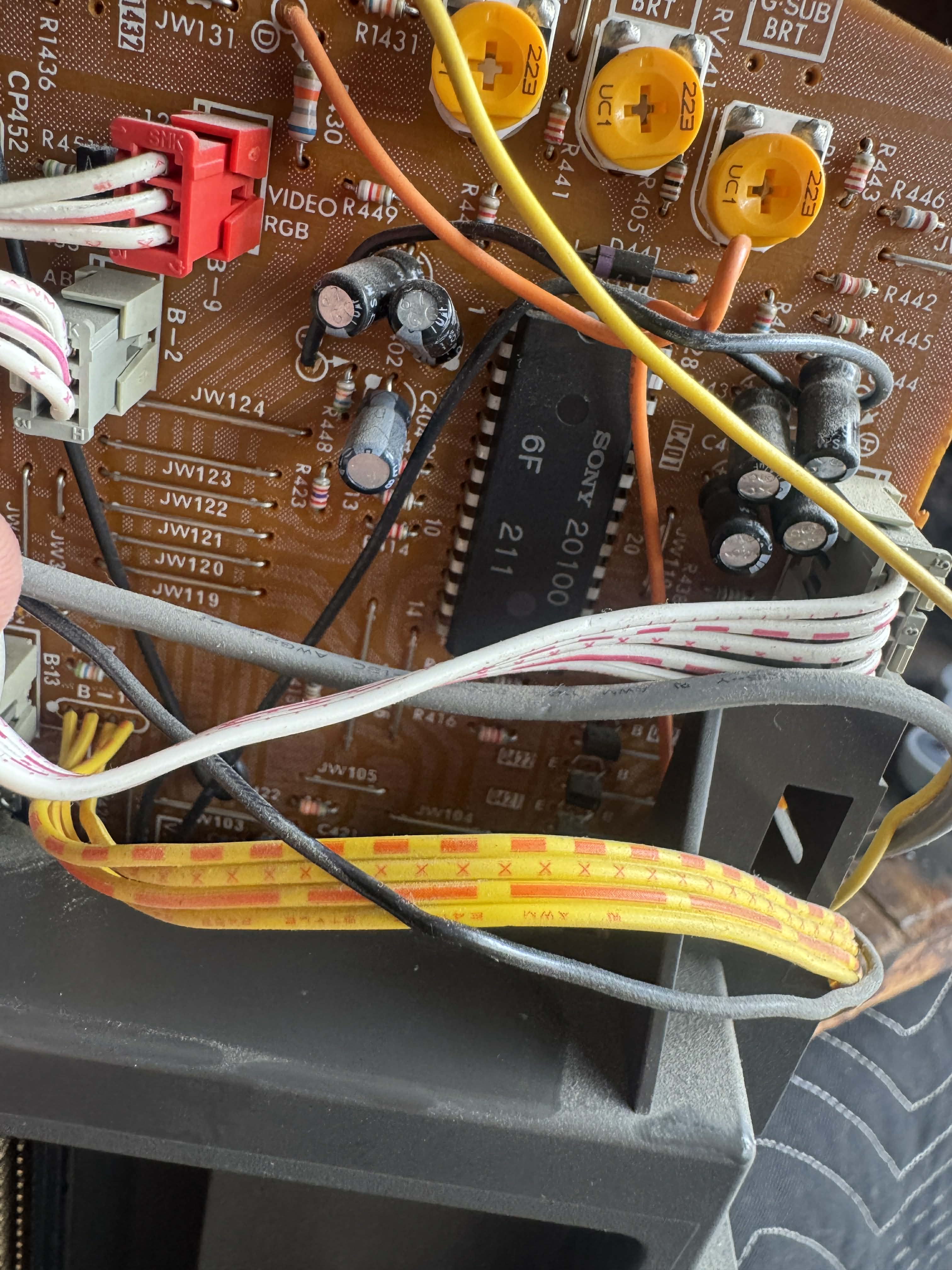

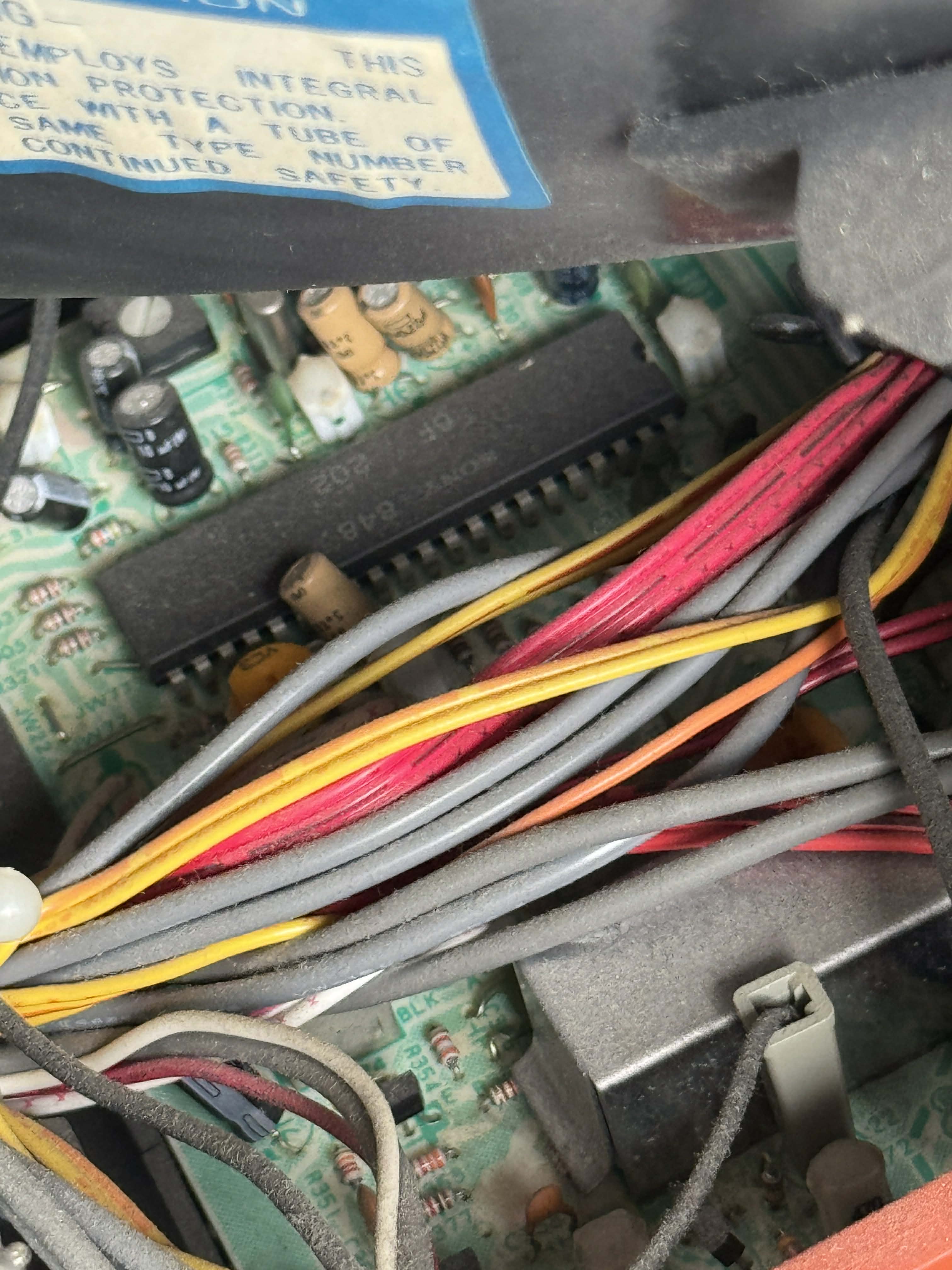

| Jungle IC: | Sony, CX-848, CX20100 |
| Flyback: | 1-439-311-11 |
| Focus Type: | Single |
| Tube: | Sony Trinitron , A34JHS10X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|

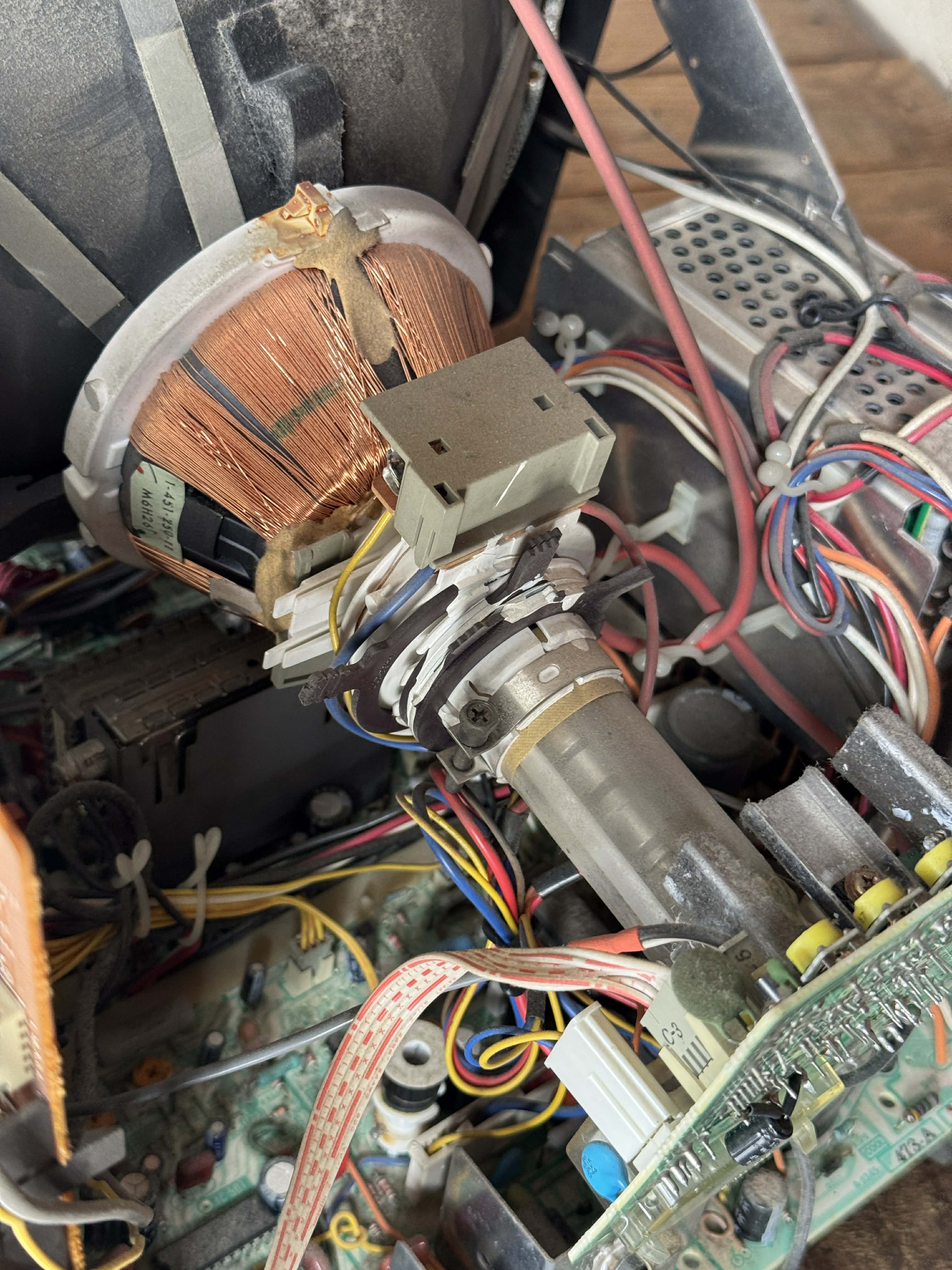

| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 1-451-250-11 |
| Yoke Horz. Inductance: | 1.9 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 28.2 mH (@ 100 Hz) |
| Speakers: | Mono, 1.5W, Earphone |

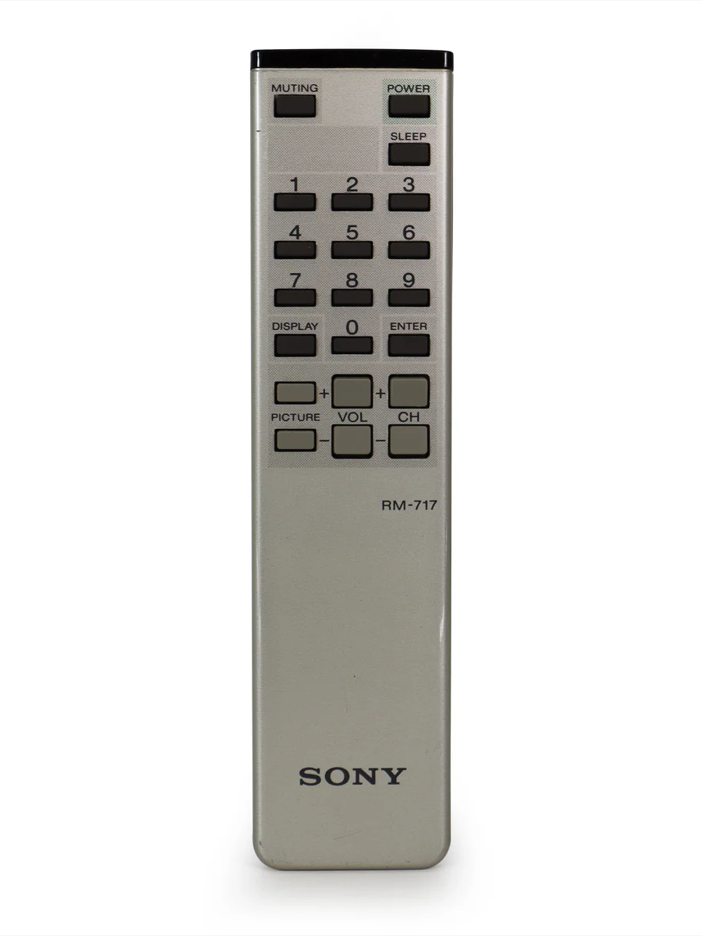

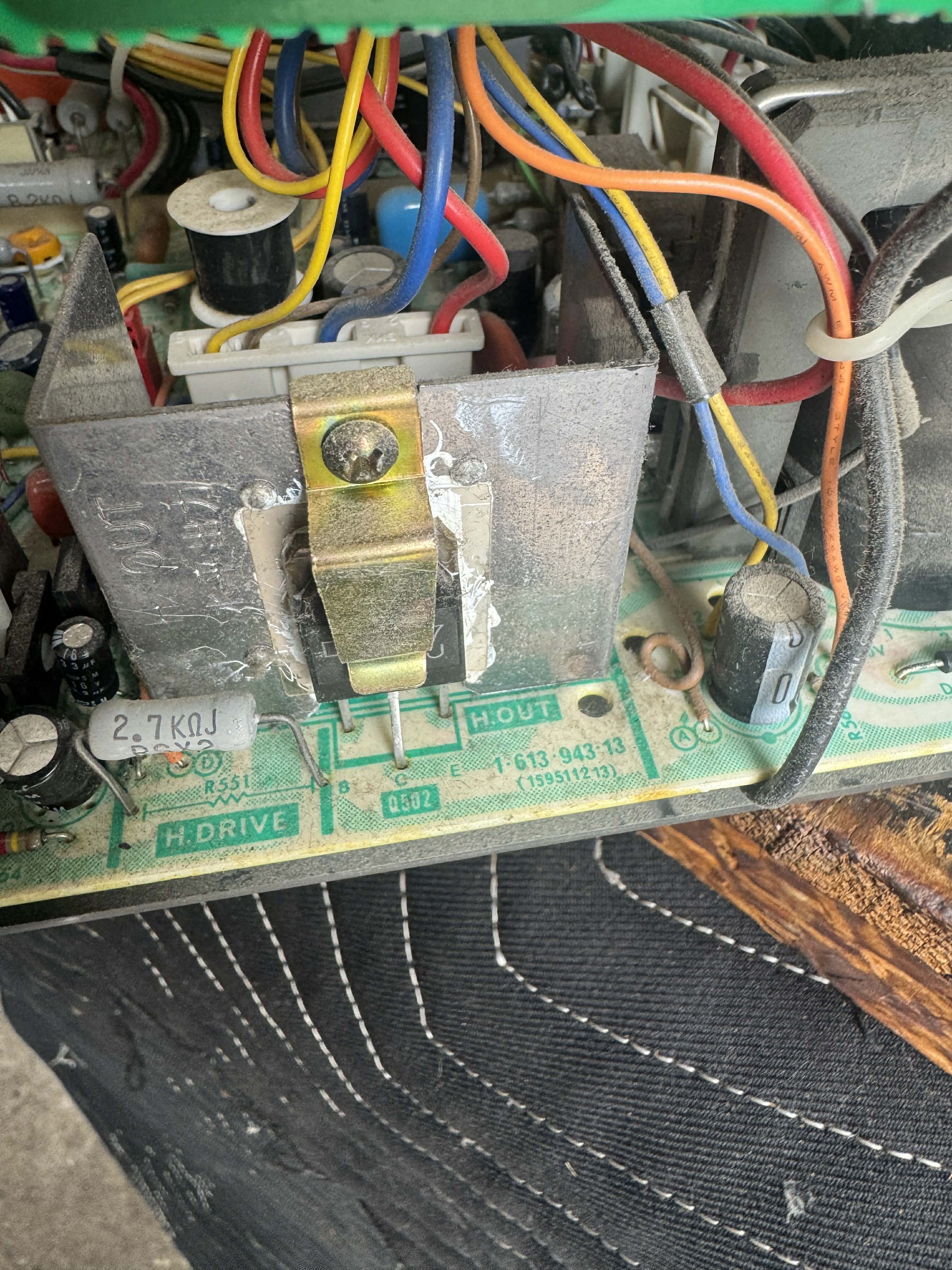

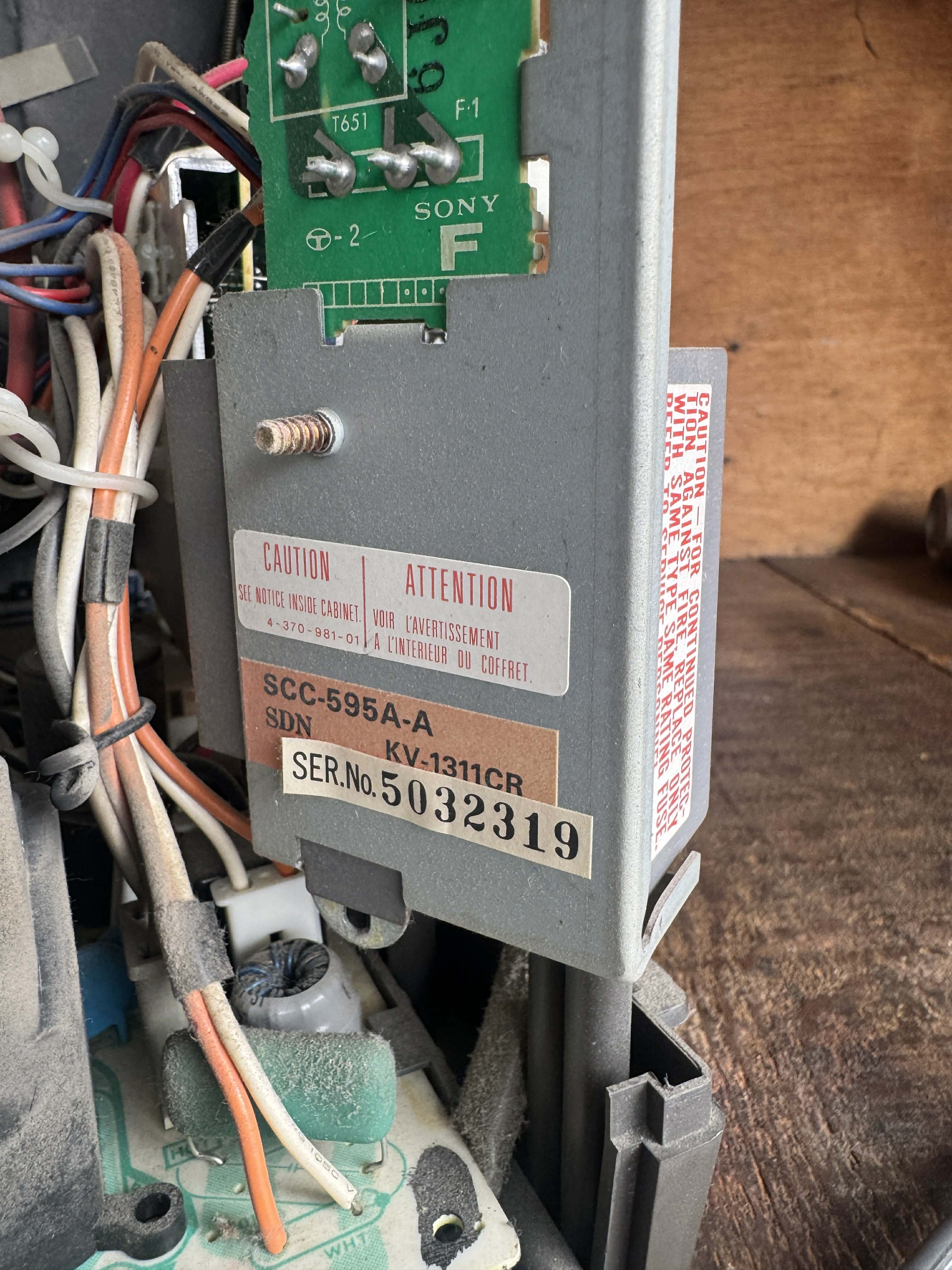

| Remote: | RM-717 |
| Chassis: | P2B, SCC-595A-A |
| Weight: | 28.25 lbs (12.8 kg) |
| Dimensions (W/H/D): |
385 x 342 x 434 mm
(15.1 x 13.4 x 17.1") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1985 |
| MSRP: | 649 USD |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
