Sony KV-13FS100
October 2, 2024, 12:54 pm
September 3, 2025, 8:26 pm
Summary

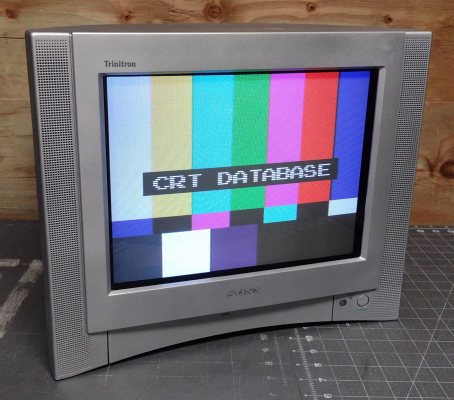

The last of Sony's 13" CRTs, the 13FS100 is a beautiful little TV and one of the few in its size class with component video input.
Literature
Notes
Like the other BA-6 chassis Trinitrons, this TV uses a one-chip design and cannot be modified to accept RGB. However, its component video quality is excellent.
Unlike the larger models, 20" and 13" Wega TVs typically have excellent geometry and linearity, even on side-scrolling 2D games. These TVs even have a full East/West correction circuit, allowing the user to fine tune horizontal and vertical geometry.
A white version, the KV-13FS110, was also produced.
The 13FS100 has the same case design as the larger size FV300 models. In Latin America, it was sold as the KV-14FV300.
This model can be modified for S-Video input by adding the missing connector and changing the value of "ID-1" from 7 to 23 in the service menu.
Gallery





Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | KV-13FS100 |
Series: | Wega |
Viewable Size: | 13" |
Inputs: | Composite, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | D2627 |
Vertical Output IC: | AN5522 |
Jungle: | M65582MF-100FP |
Comb Filtering: | 3-Line Digital |
Flyback: | 1-453-339-11, 8-598-852-10, NX-1912 |
Focus Type: | Single |
Tube: | Sony Trinitron , A34LRG70X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Aperture Grille
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | 8-451-401-41, 8-451-401-11 |
Yoke Horz. Inductance: | 2.82 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 15.334 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 3.93 ohm |
Yoke Vert. Resistance: | 10.31 ohm |
Speakers: | Stereo |
Remote: | RM-Y173 |
Chassis: | BA-6 |
Weight: | 26.4 lbs (12 kg) |
Dimensions (W/H/D): |
407 x 340 x 411 mm
(16 x 13.4 x 16.2") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2002 |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mods: | S-Video |
Degaussing: | Automatic on Power-on |
