Summary

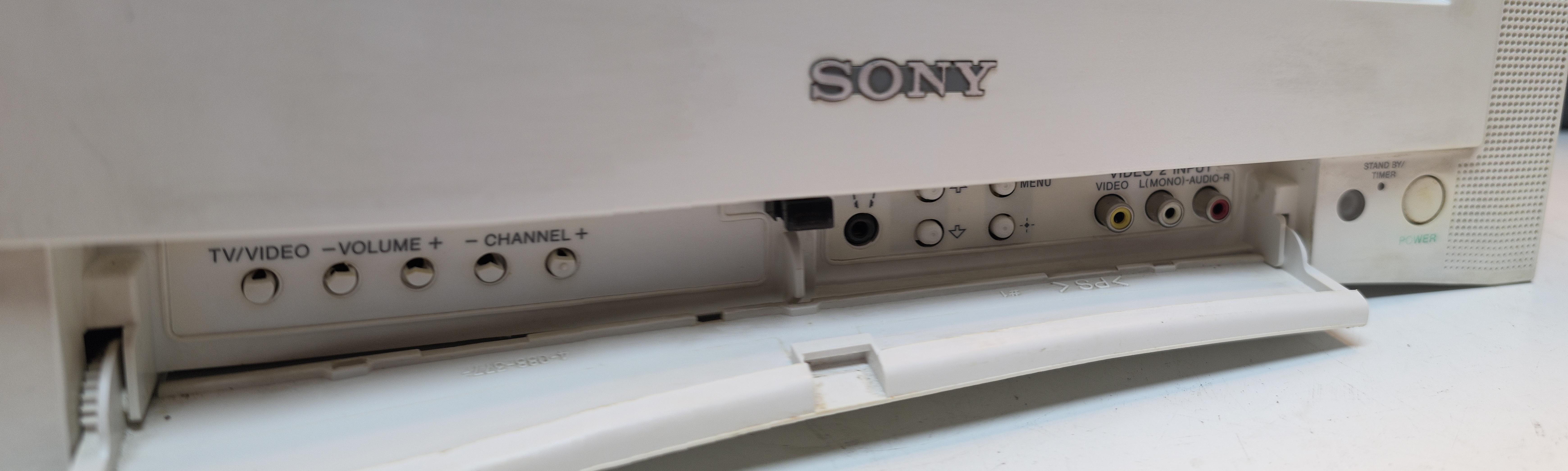

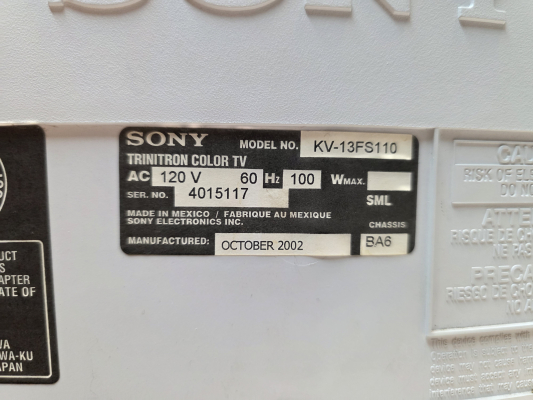

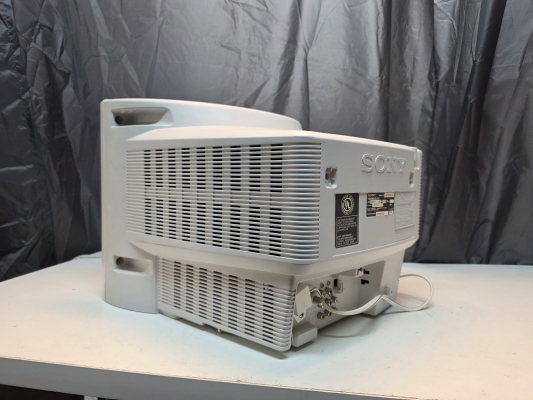

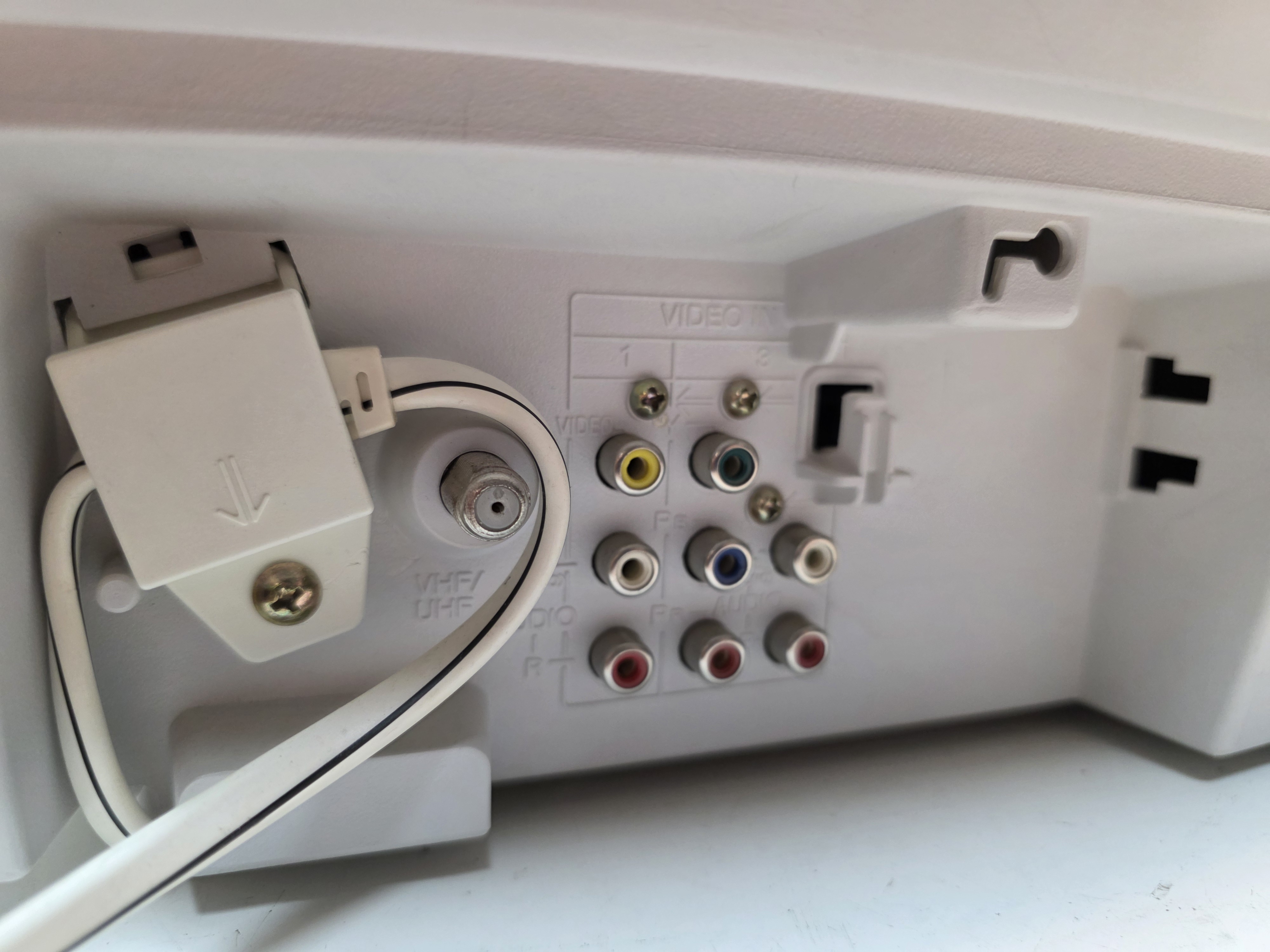

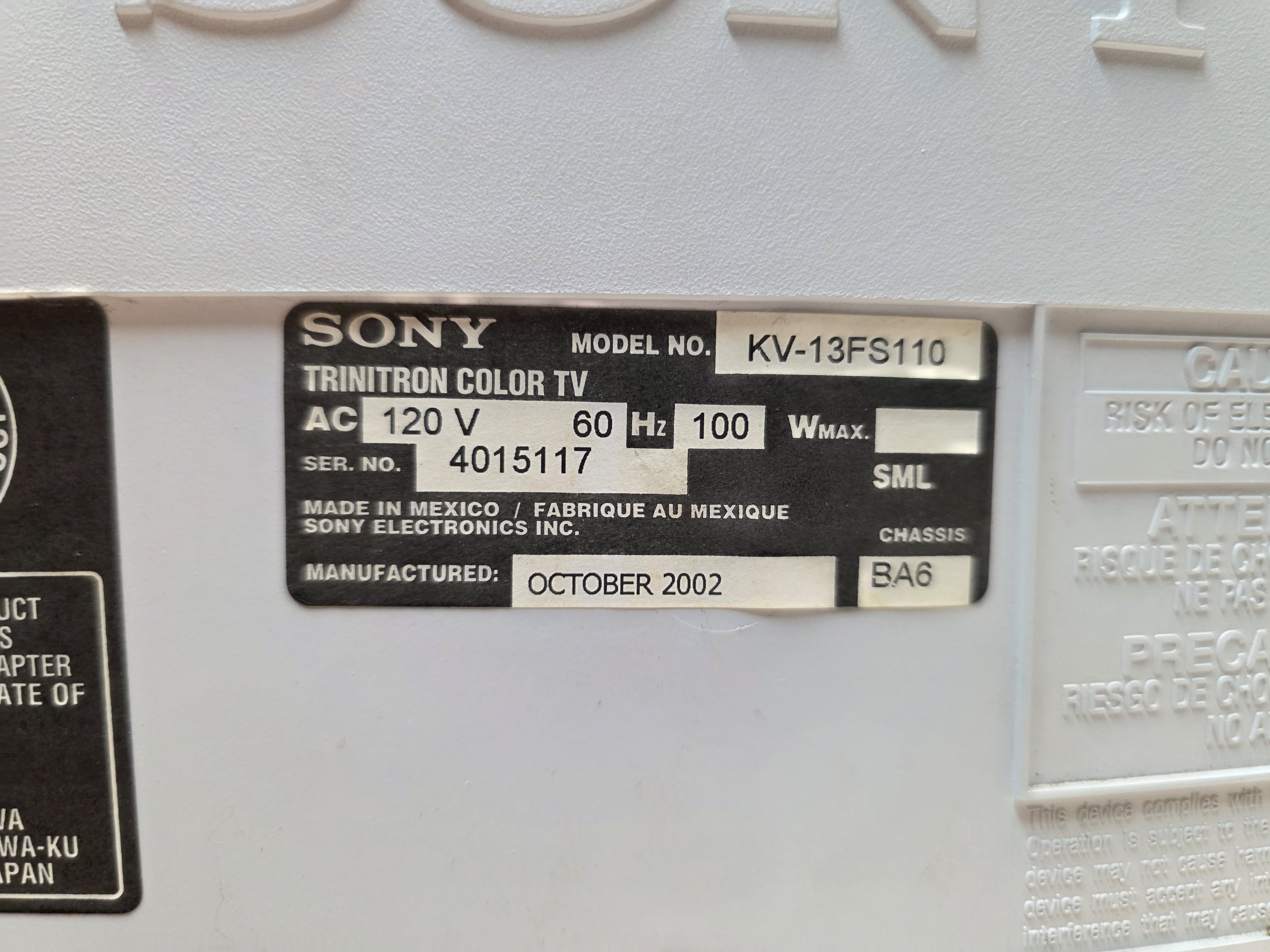

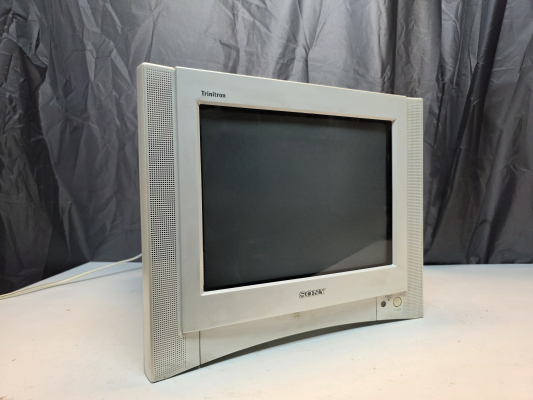

The last of Sony's 13" CRTs, the 13FS110 is a beautiful little TV and one of the few in its size class with component video input. It is the same as the KV-13FS100, but with a white case.

Literature

• User Manual
• Service Manual
• BA-6 Chassis Repair Training Manual

Notes

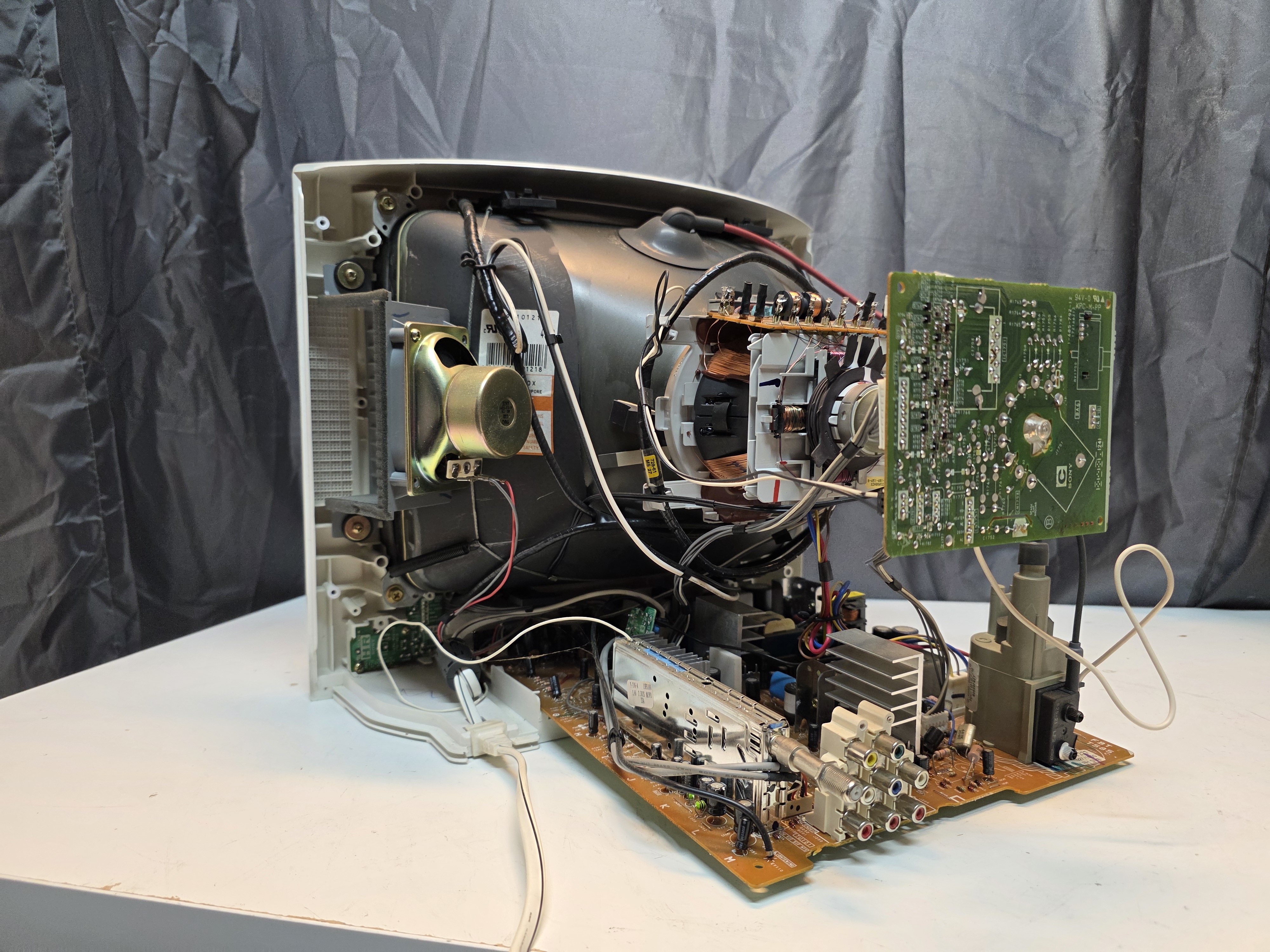

Like the other BA-6 chassis Trinitrons, this TV uses a one-chip design and cannot be modified to accept RGB. However, its component video quality is excellent.

Unlike the larger models, 20" and 13" Wega TVs typically have excellent geometry and linearity, even on side-scrolling 2D games. These TVs even have a full East/West correction circuit, allowing the user to fine tune horizontal and vertical geometry.
