Sony KV-20FS12
June 10, 2023, 8:36 pm
November 6, 2024, 8:47 pm
Summary
20" model from Sony's flat screen Wega line. Has RF and composite inputs
Literature
Notes
Unlike the 27" and larger BA-5 Trinitrons, this TV does not have native component inputs. However, its jungle chip is very versatile and can be modified for RGB and YPbPr component video. Please note that due to a different M board design and jungle chip, the RGB mod procedure for the 27" BA-5 Trinitrons doesn't apply.
Composite 240p Performance
by Eli Krause
For composite decoding this set uses a Toshiba TC90A49P, a 3-line digital comb filter. Depending on the console/revision, dot artifacting ranges from slight to severe, and blending effects may be broken. If the set has a component YPbPr input on, then using a good external notch filter to decode composite instead (such as the one in a RetroTink 2X, 5X, etc.) and sending that to the component input would blend all dithering patterns and remove nearly all dot artifacts. A recommended no lag HDMI to component converter is available here (select the bypass version).

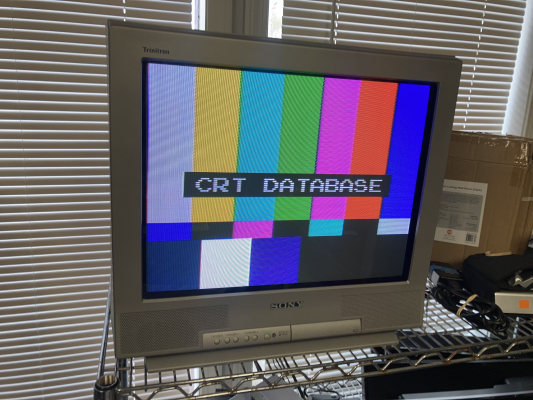

Gallery
Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | KV-20FS12 |
Series: | Wega |
Viewable Size: | 20" |
Inputs: | Composite, RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SD2624 |
Vertical Output IC: | TDA8172 |
Jungle: | CXA2131AS, CXA2131CS |
Comb Filtering: | 3-Line Digital |
Comb Filter IC: | Toshiba, TC90A49P |
Flyback: | 1-453-316-21, NX-1748//X4A4 |
Tube: | Sony Trinitron , A51LPT70X , A51LPT50X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Aperture Grille |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | 8-451-505-31 |
Yoke Horz. Inductance: | 1.8487 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 24.41 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 2.624 ohm |
Yoke Vert. Resistance: | 12.97 ohm |
Speakers: | Stereo, 3W x 2 |
Remote: | RM-Y173 |
Chassis: | BA-5 |
Weight: | 53 lbs (24 kg) |
Application: | Consumer |
Launched: | 2000 |
MSRP: | 399 USD |
Country of Manufacture: | Mexico |
Mods: | RGB via Mux, Component YPbPr |
Degaussing: | Automatic on Power-on |
