Summary

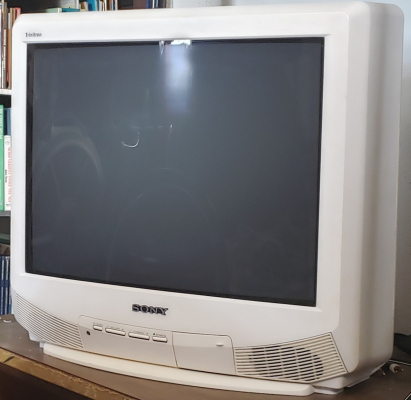

White version of the KV-20S10. The largest size Sony made in white was 20" and this was the first one. The RGB mod hosted on this site for the KV-13M10 can be applied to this model, or Sunthar's mod for the BA-2 chassis.
Literature
Notes
It is common for the buttons to yellow much faster than the rest of the white plastics. This can be remediated by removing the front button panel and putting it in a clear plastic container in sunlight for a few days, with a small amount of hydrogen peroxide poured in the bottom of the container to supply vapor. The faces of the buttons are not submerged as a no-contact method is effective here (vapobrite).
Gallery
Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | KV-20S11 |
Series: | KV |
Viewable Size: | 20" |
Inputs: | Composite, RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | D1877 |
Vertical Output IC: | LA7830 |
Jungle: | CXA1465AS |
Comb Filtering: | None |
Flyback: | 8-598-922-00 |
Tube: | Sony Trinitron , A51LDG50X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Aperture Grille |
Tint: | Dark |
Yoke Horz. Inductance: | 2.444 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 24.22 mH (@ 100 Hz) |
Speakers: | Stereo, 2W x 2 |
Remote: | RM-Y116, White |
Chassis: | BA-2 |
Weight: | 48 lbs (22 kg) |
Application: | Consumer |
Launched: | 1994 |
Country of Manufacture: | Mexico |
Mods: | RGB via Direct, S-Video |
Degaussing: | Automatic on Power-on |
