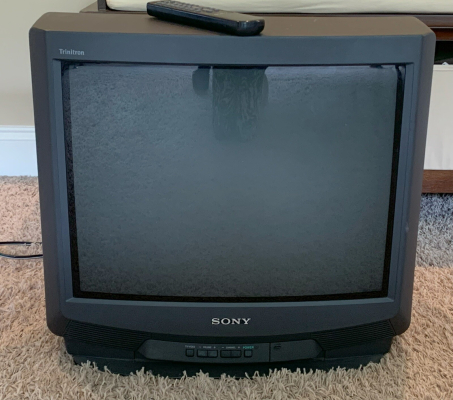

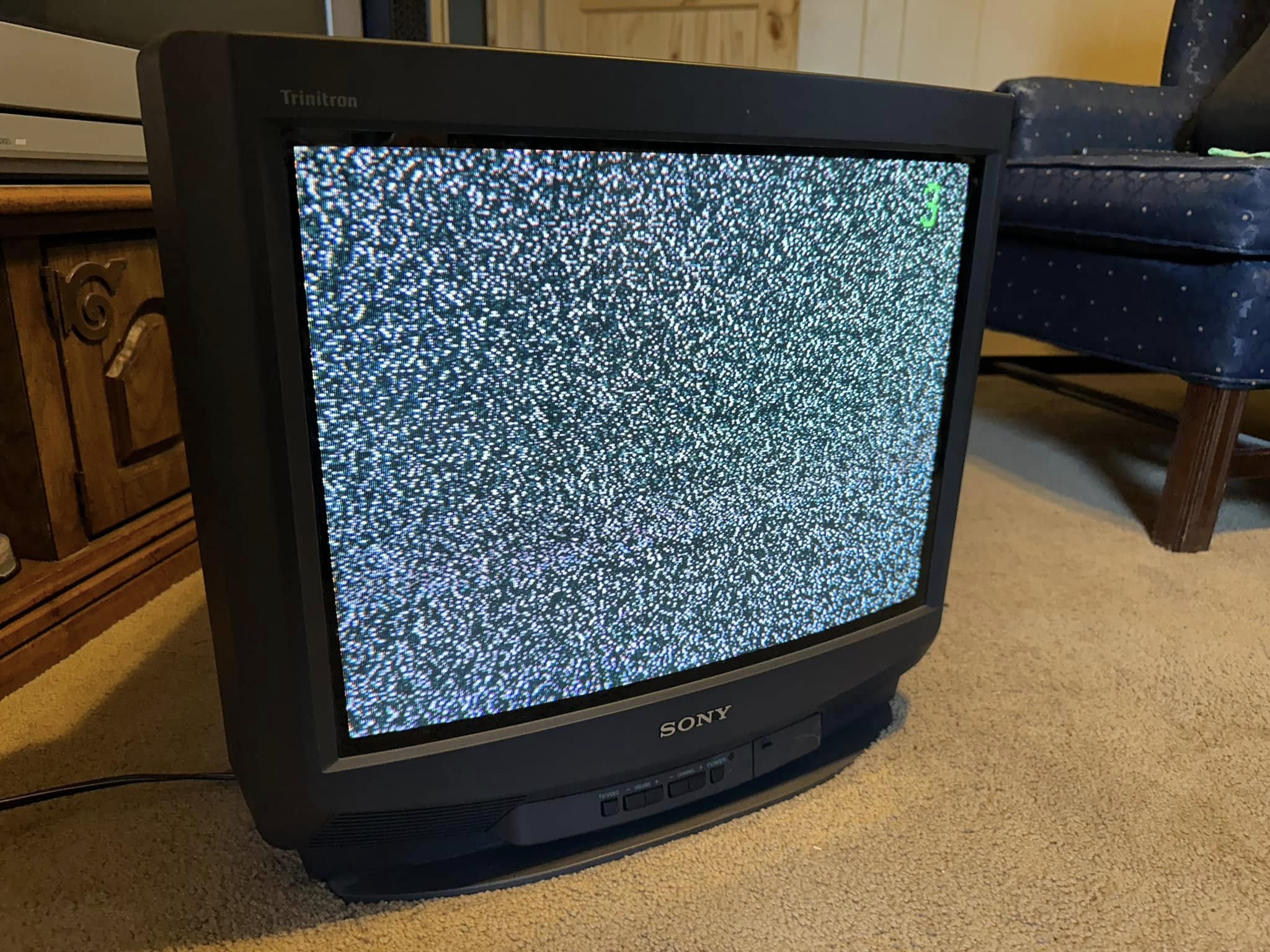

20" Trinitron that has RF and composite inputs with mono sound. Made in the USA in 1996.

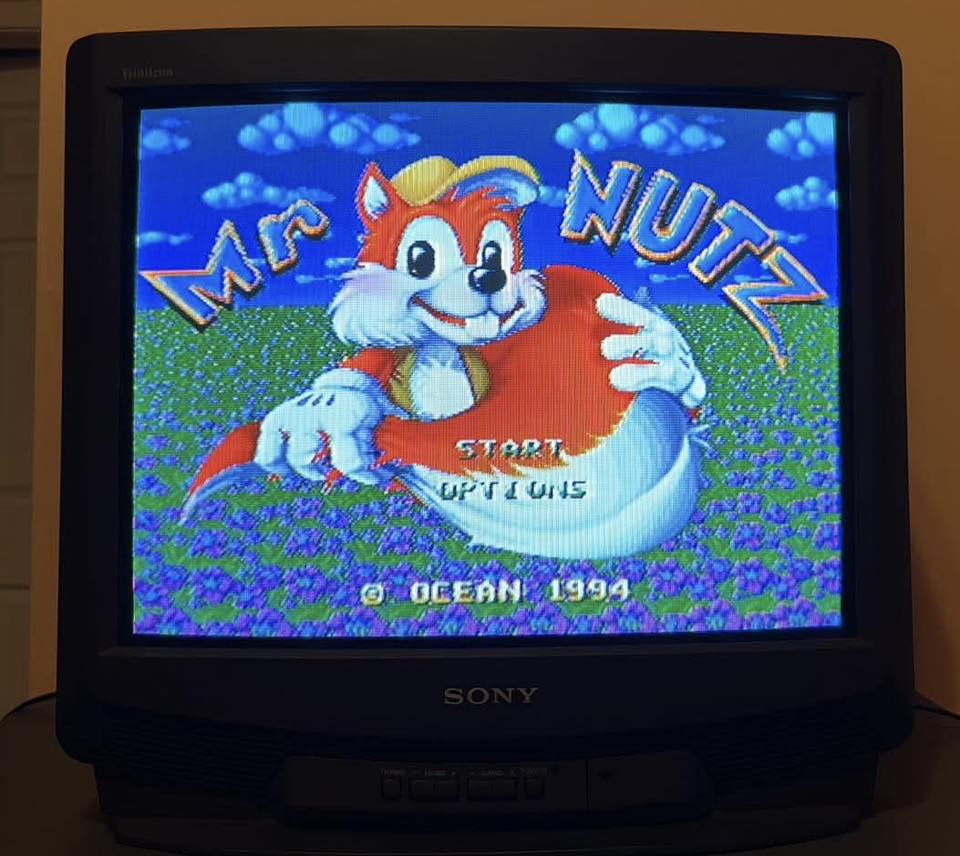

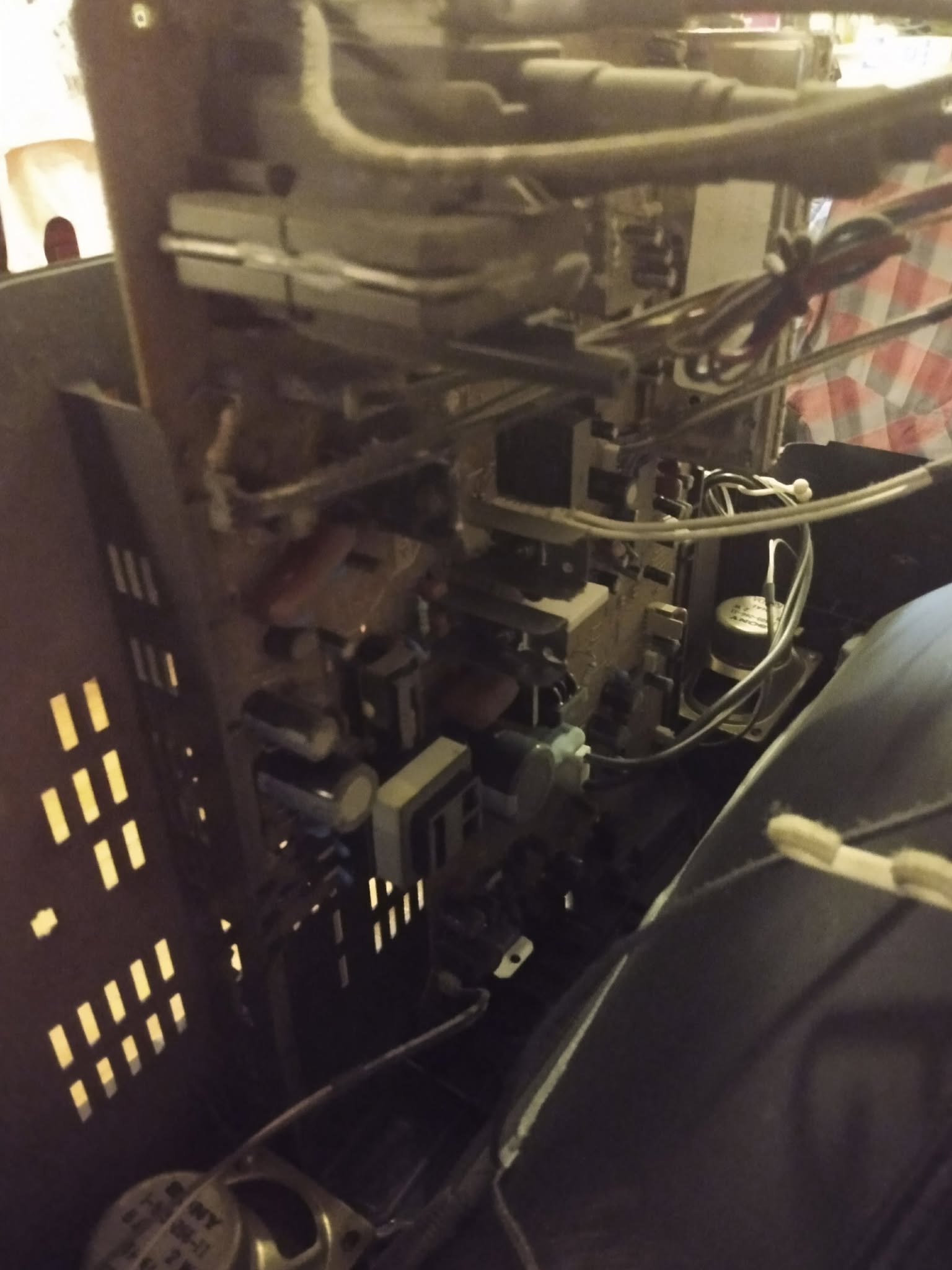

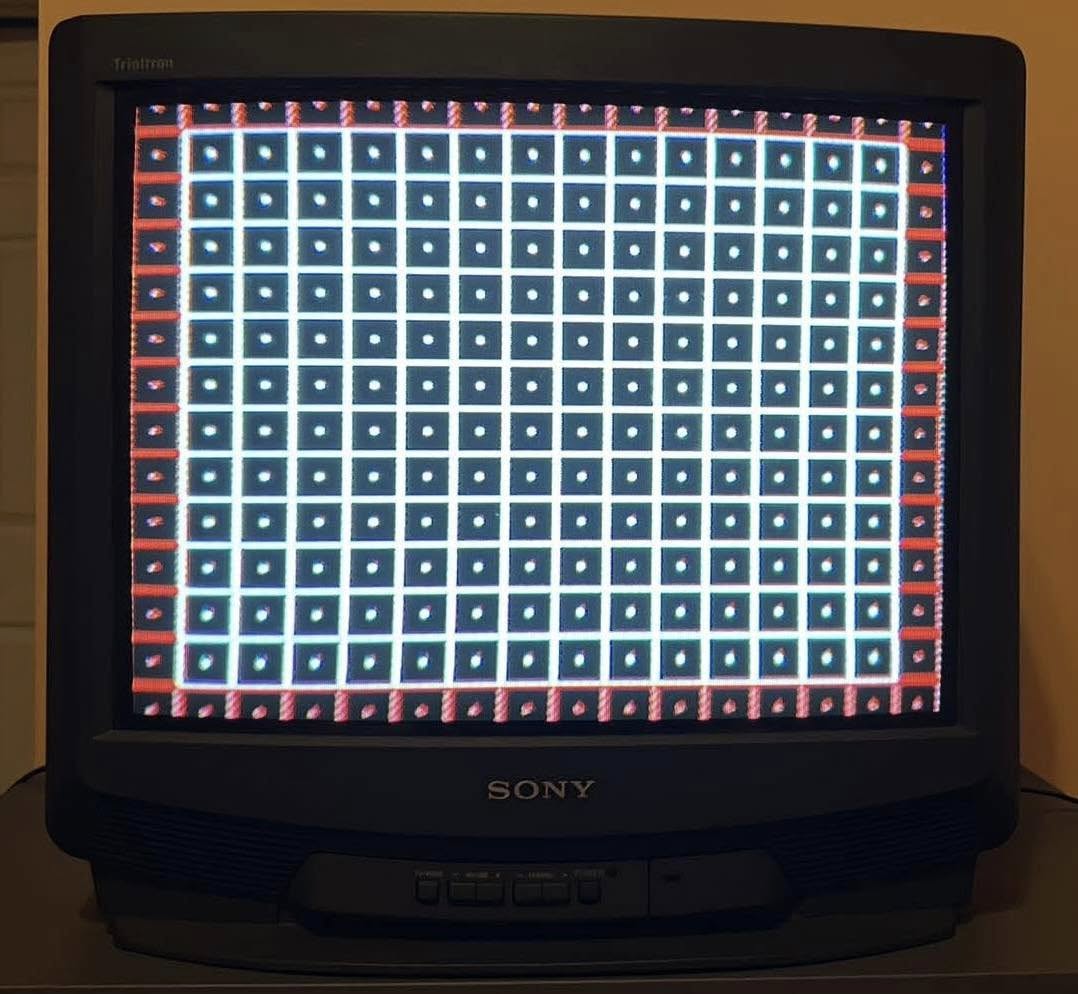

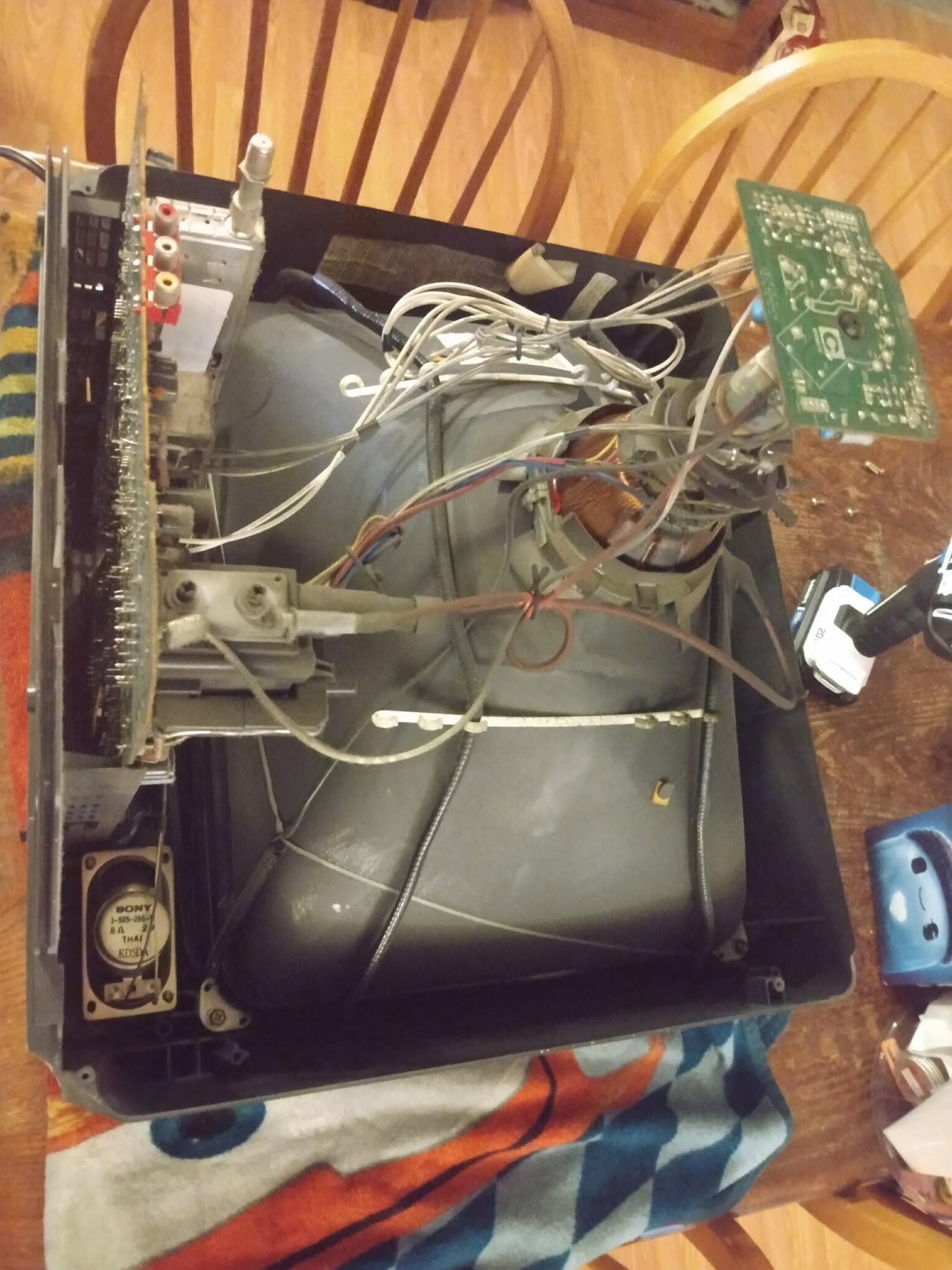

(Special thanks to John Chavez for the internal pics and VK for some of the gameplay pics!)
Manuals
Mods & Repair Guides
Notes
This TV has a BA-3 chassis and is not RGB-moddable, but can be s-video modded.

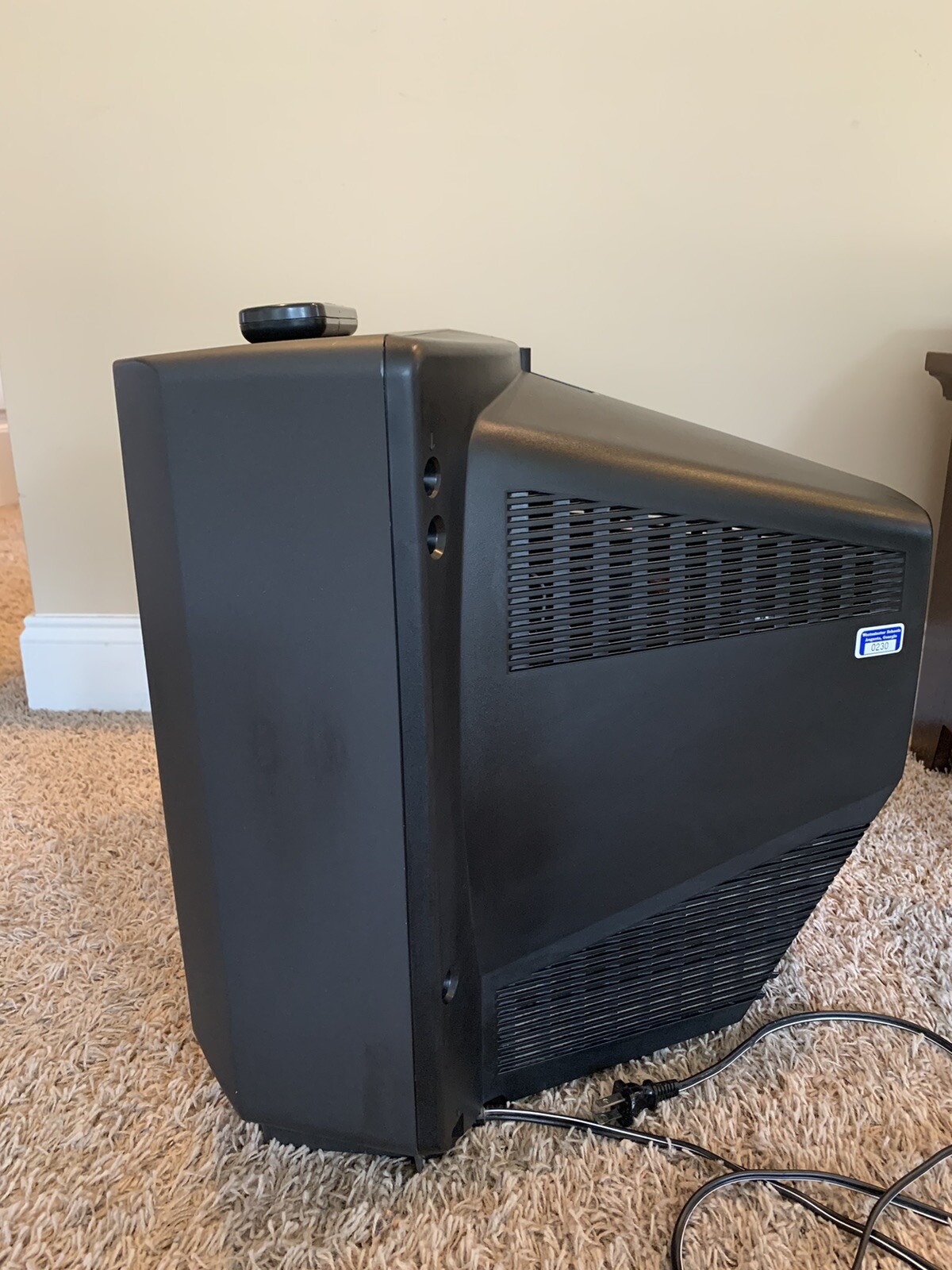

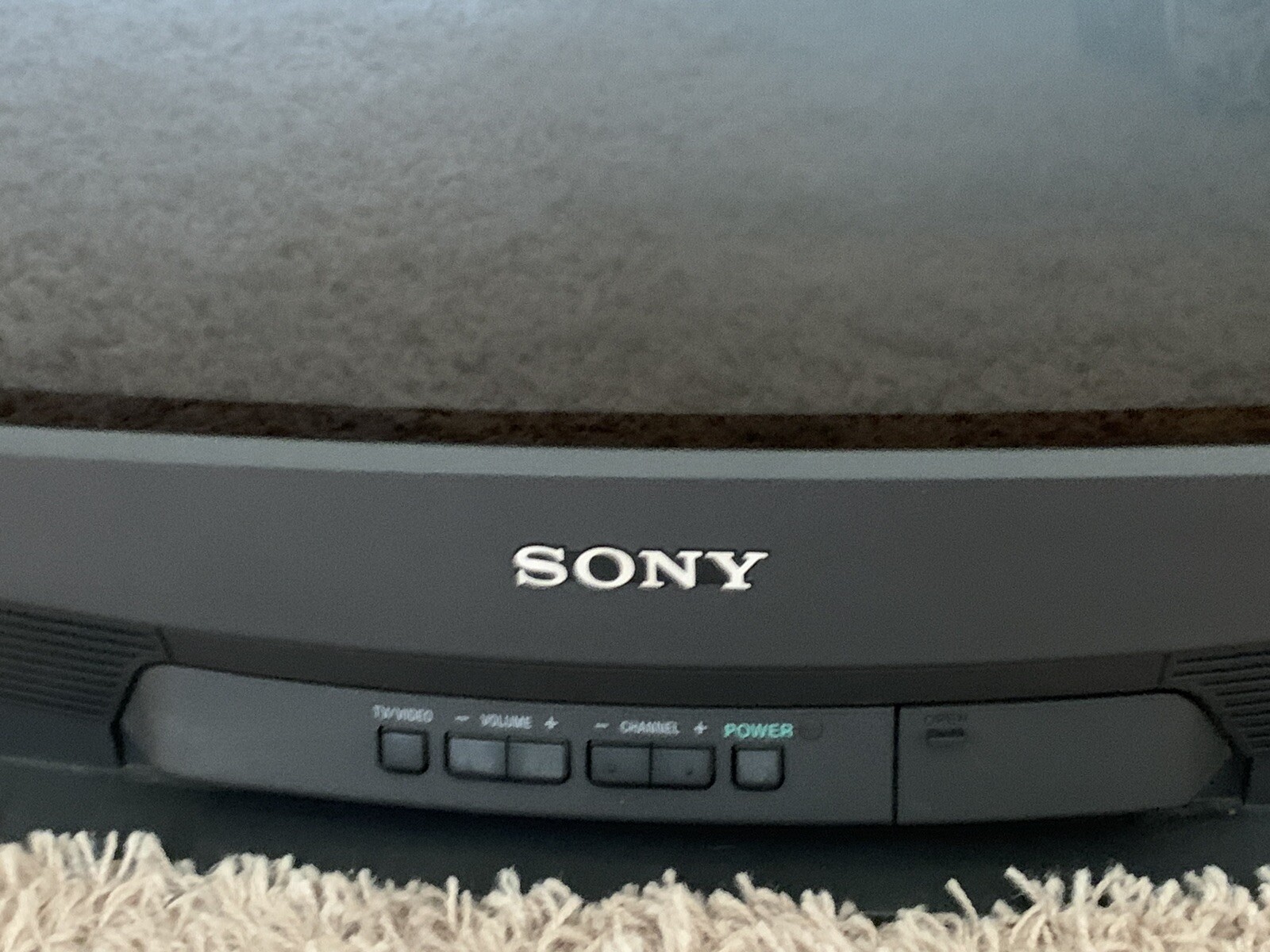

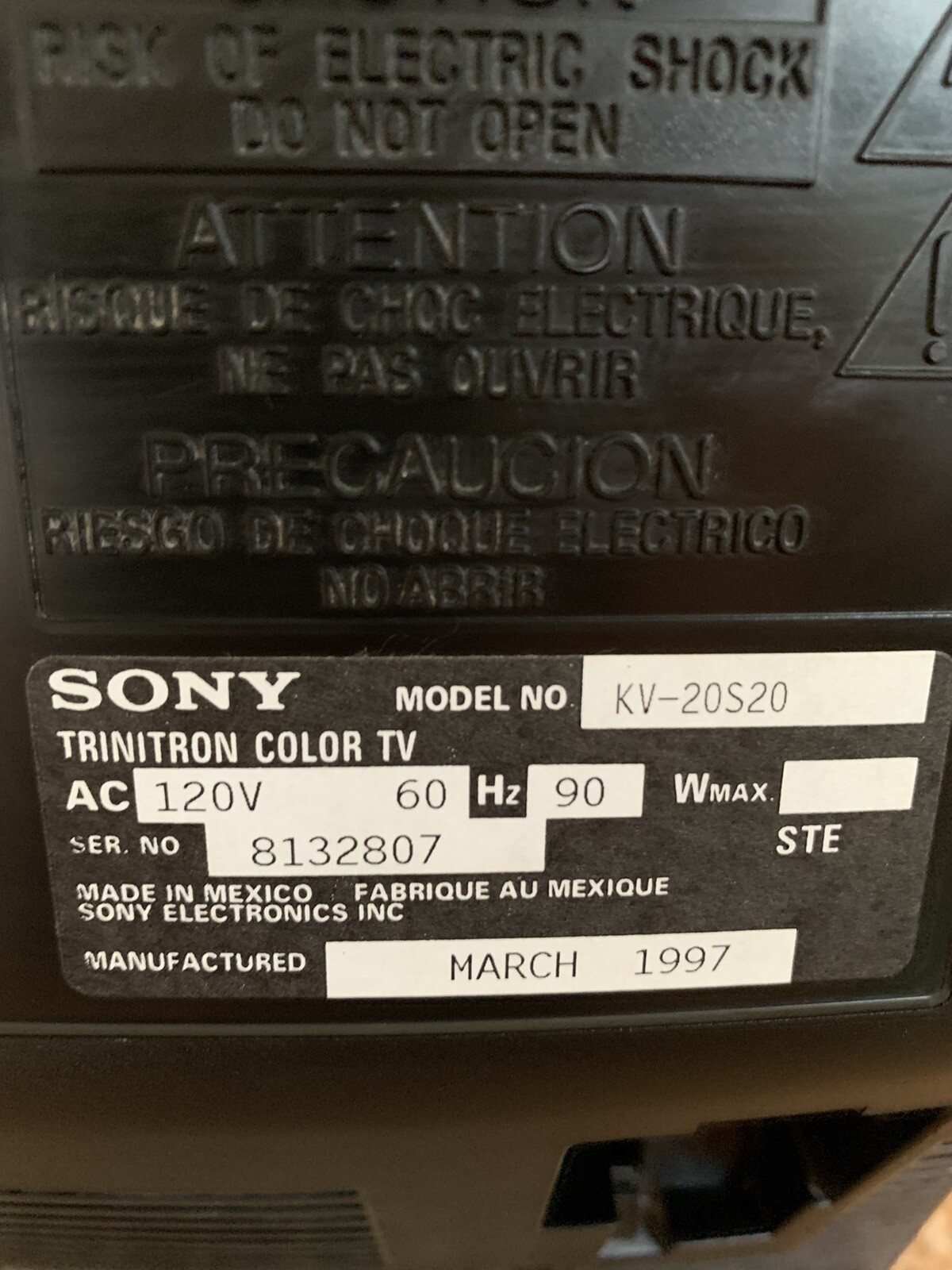

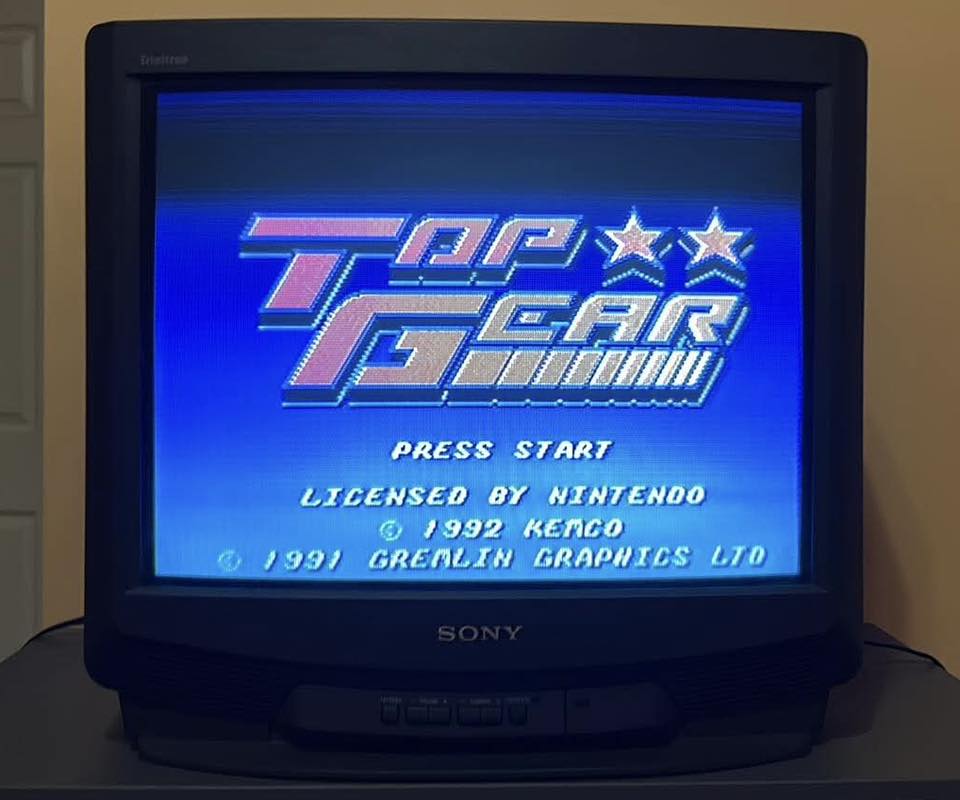

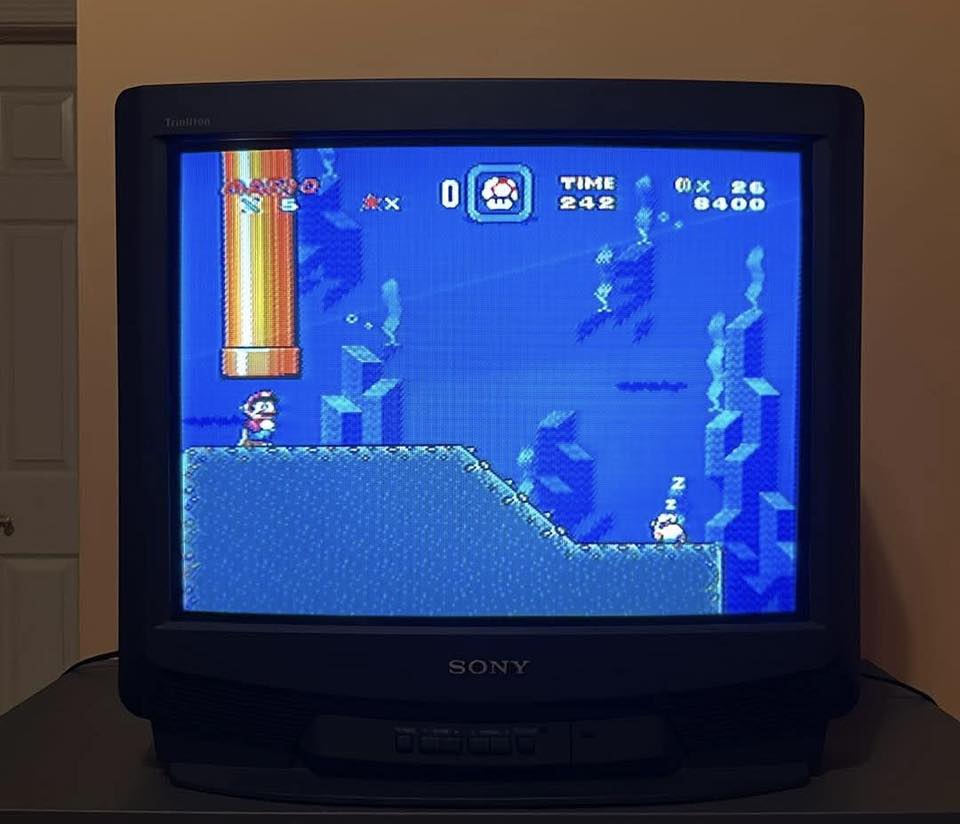

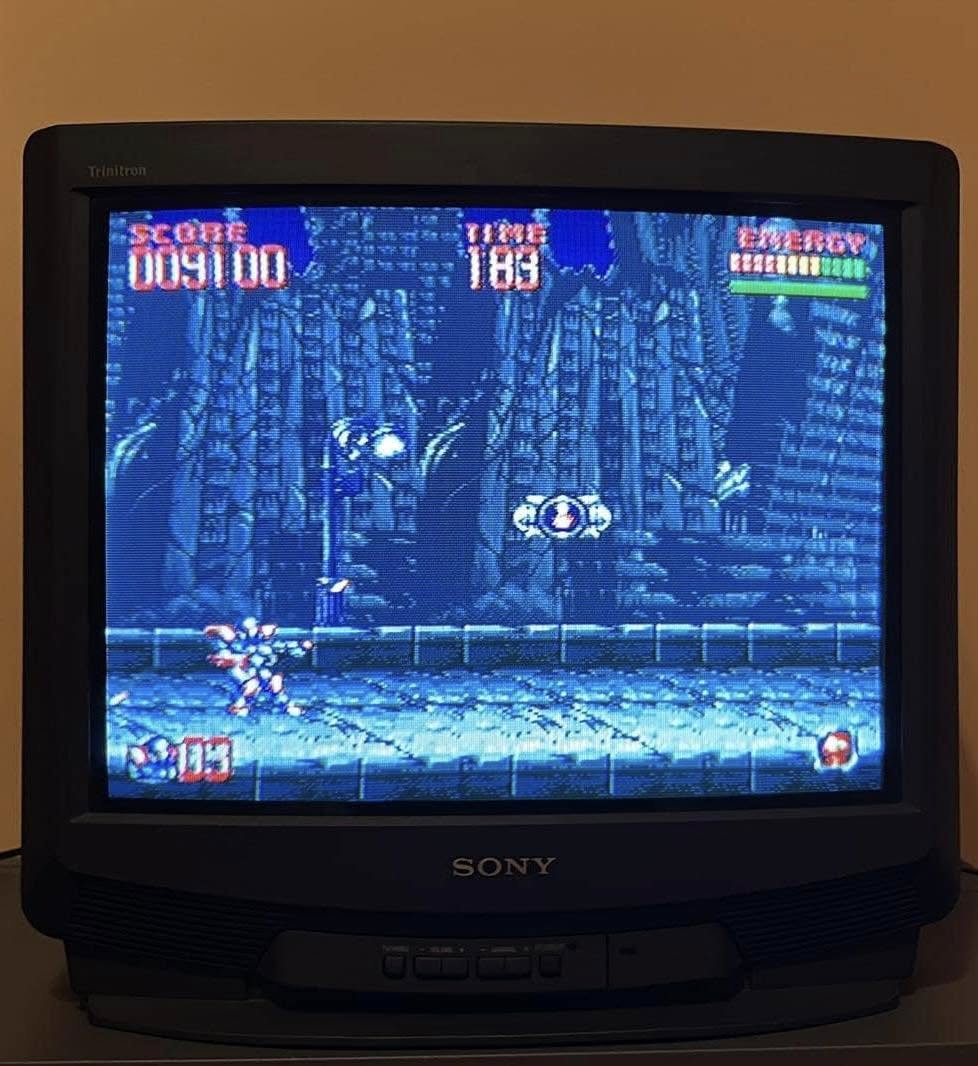

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-20S20 |
| Series: | KV |
| Viewable Size: | 20" |

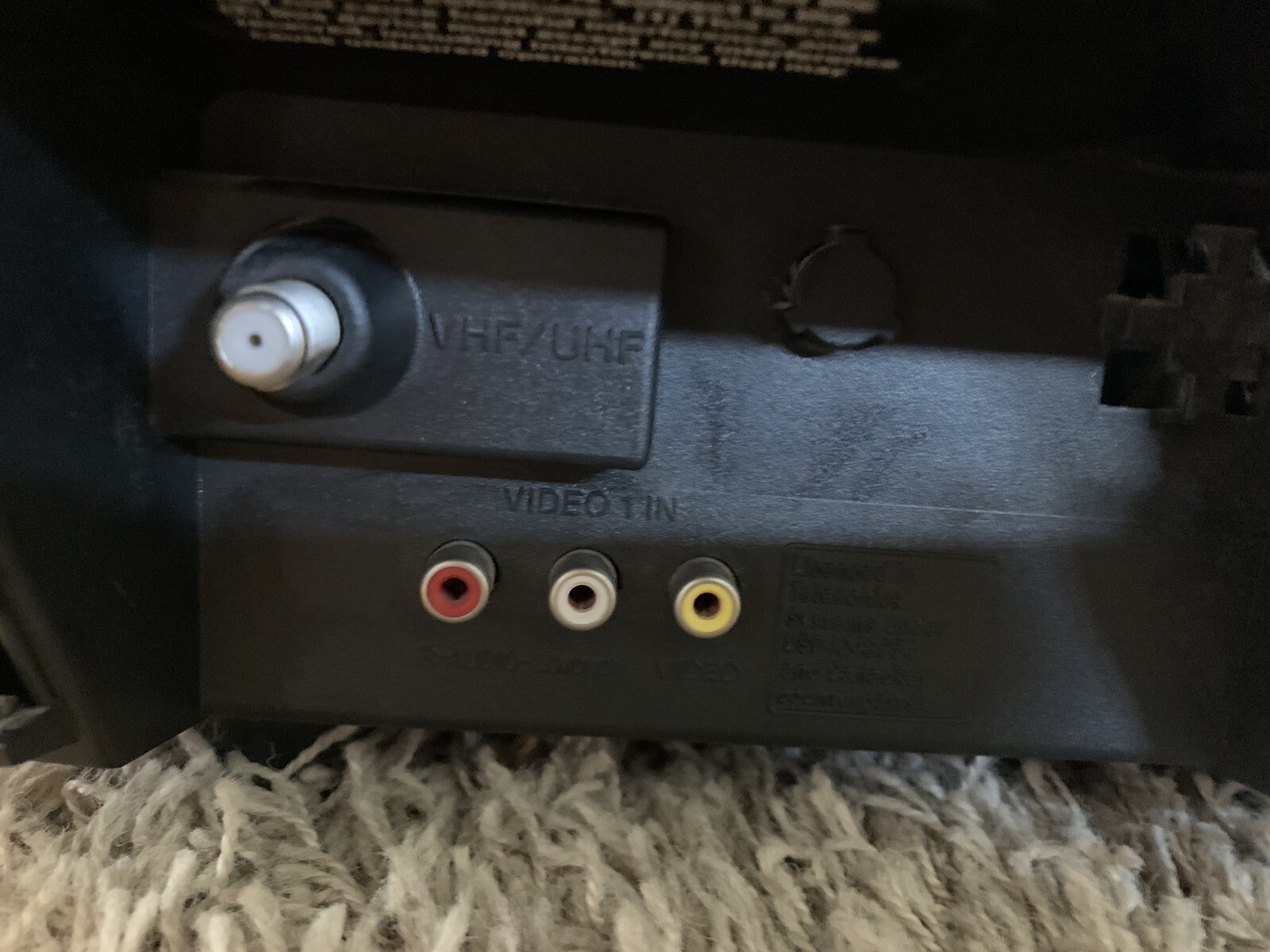

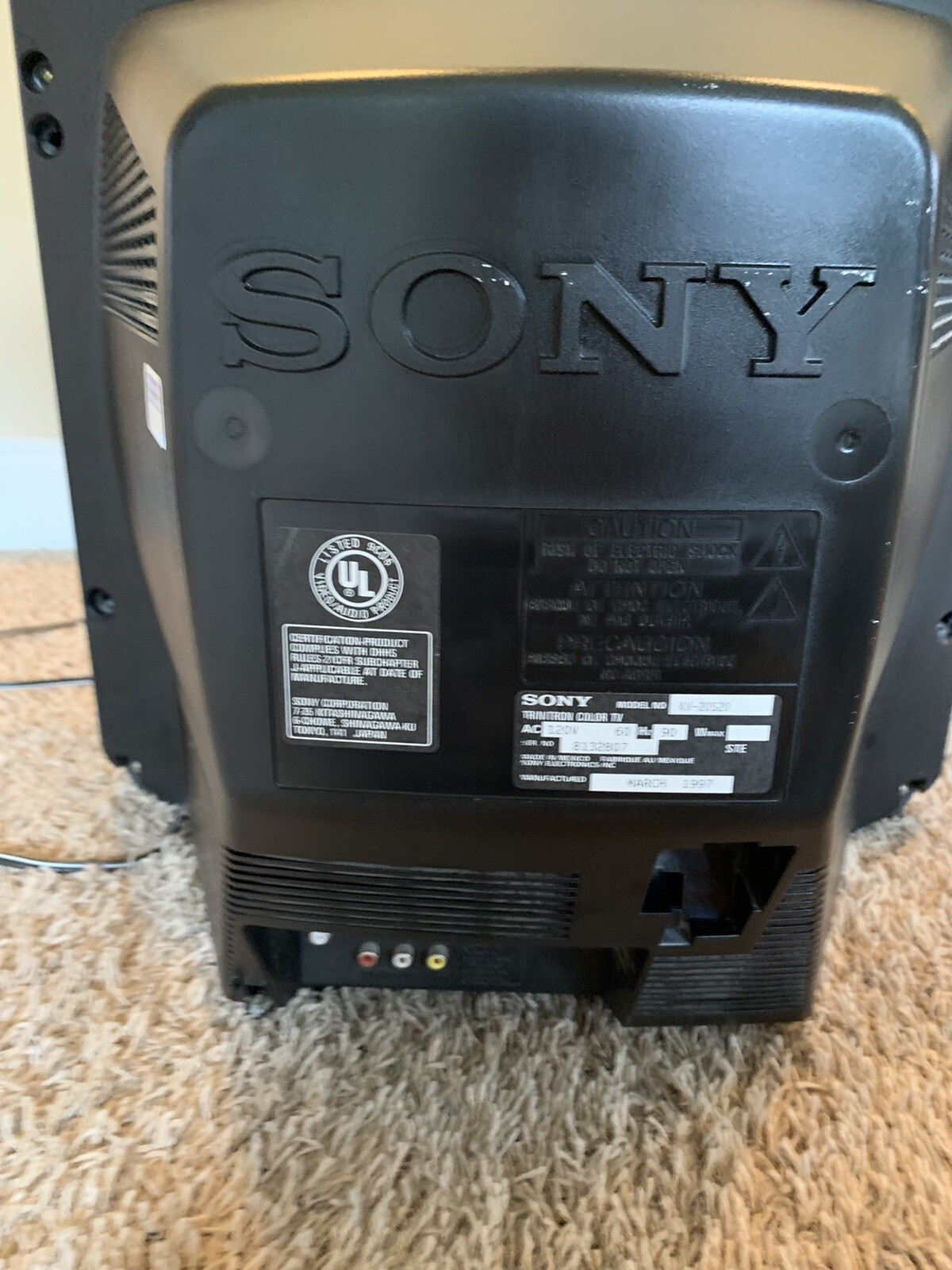

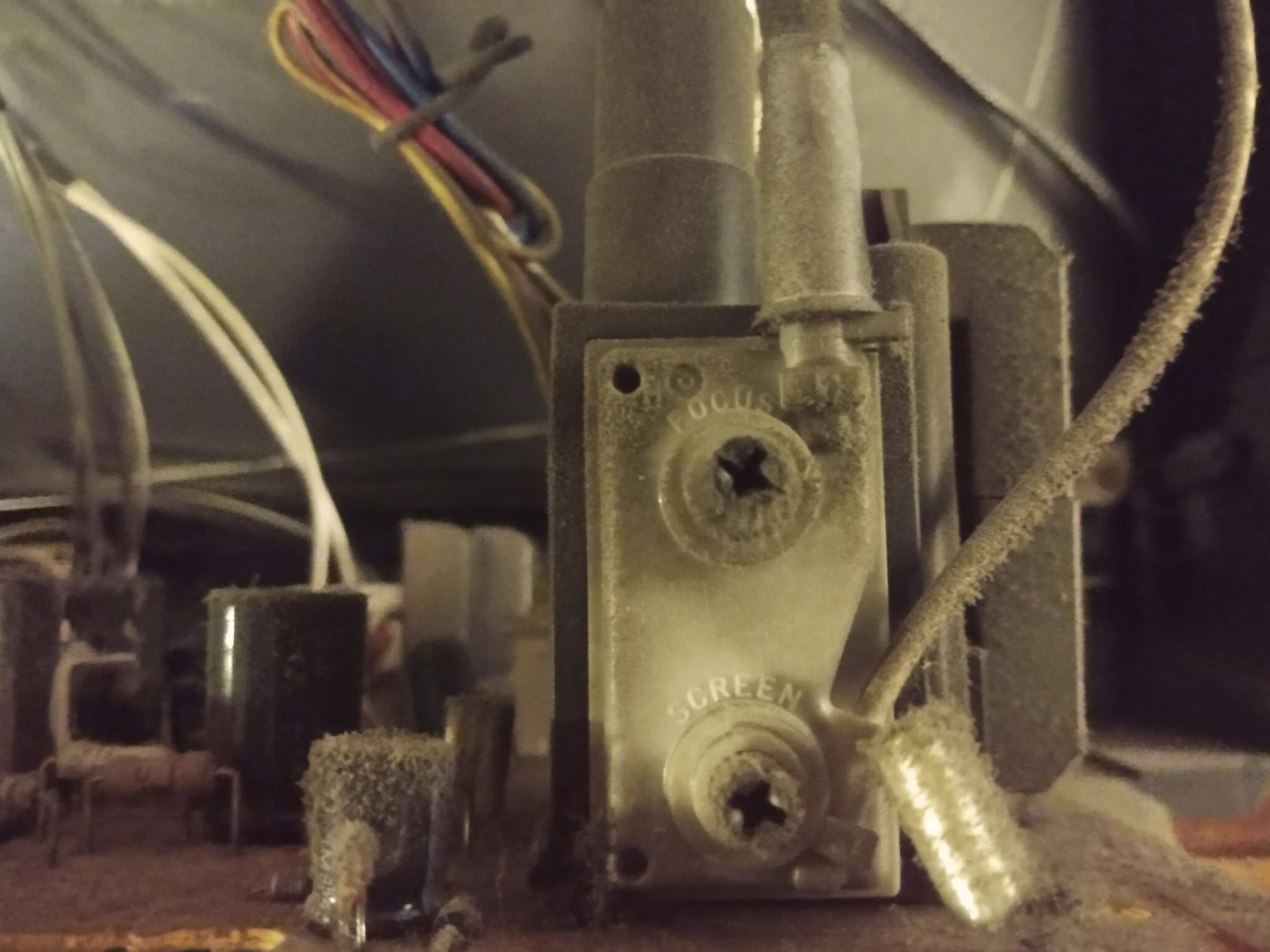

| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD1877S |
| Vertical Output IC: | Sanyo, LA7830 |
| Jungle IC: | Sony, CXA1870S |
| Comb Filtering: | Notch |
| Flyback: | 8-598-961-00 |
| Focus Type: | Single |

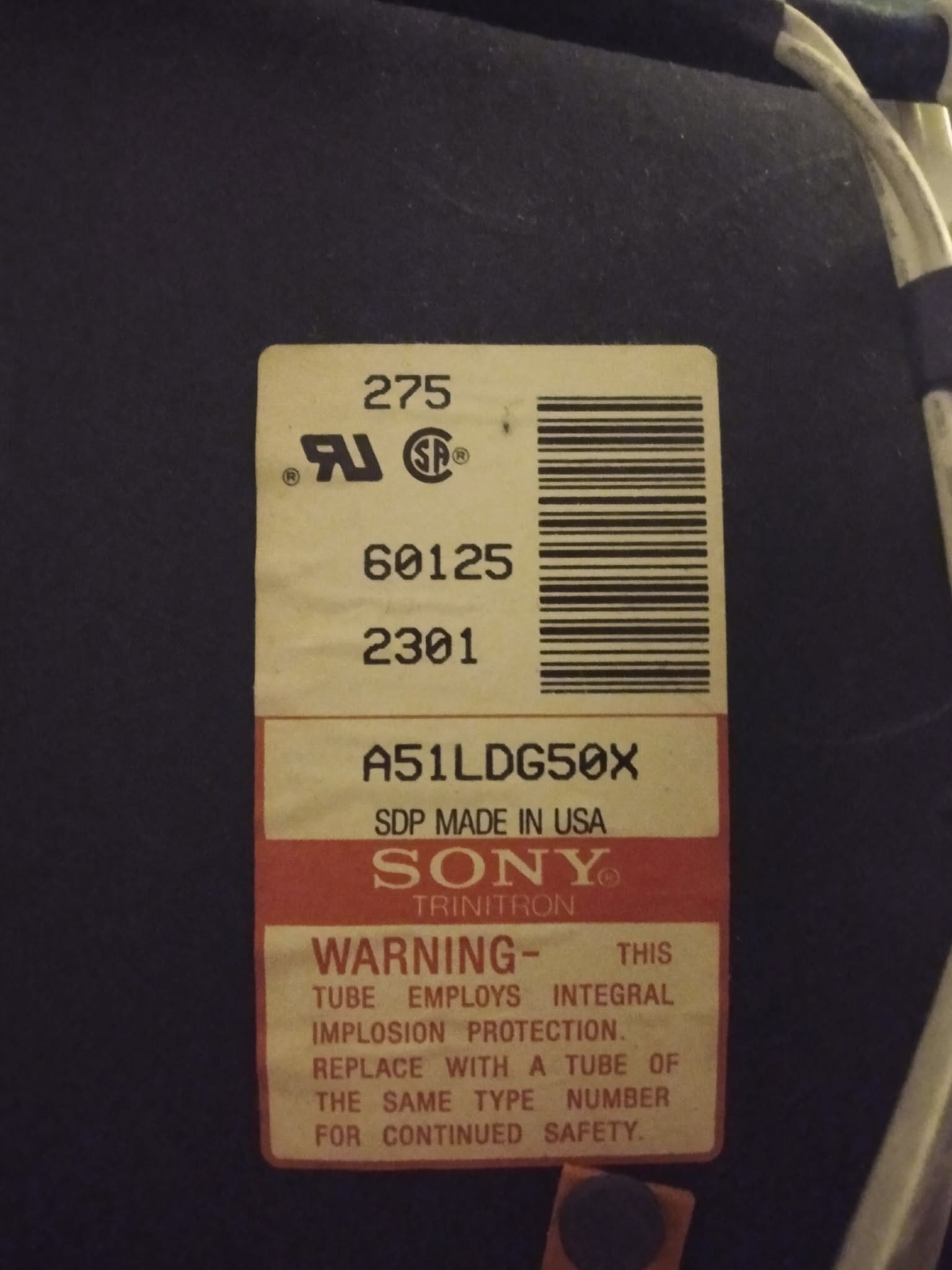

| Tube: | Sony Trinitron , A51LDG50X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|

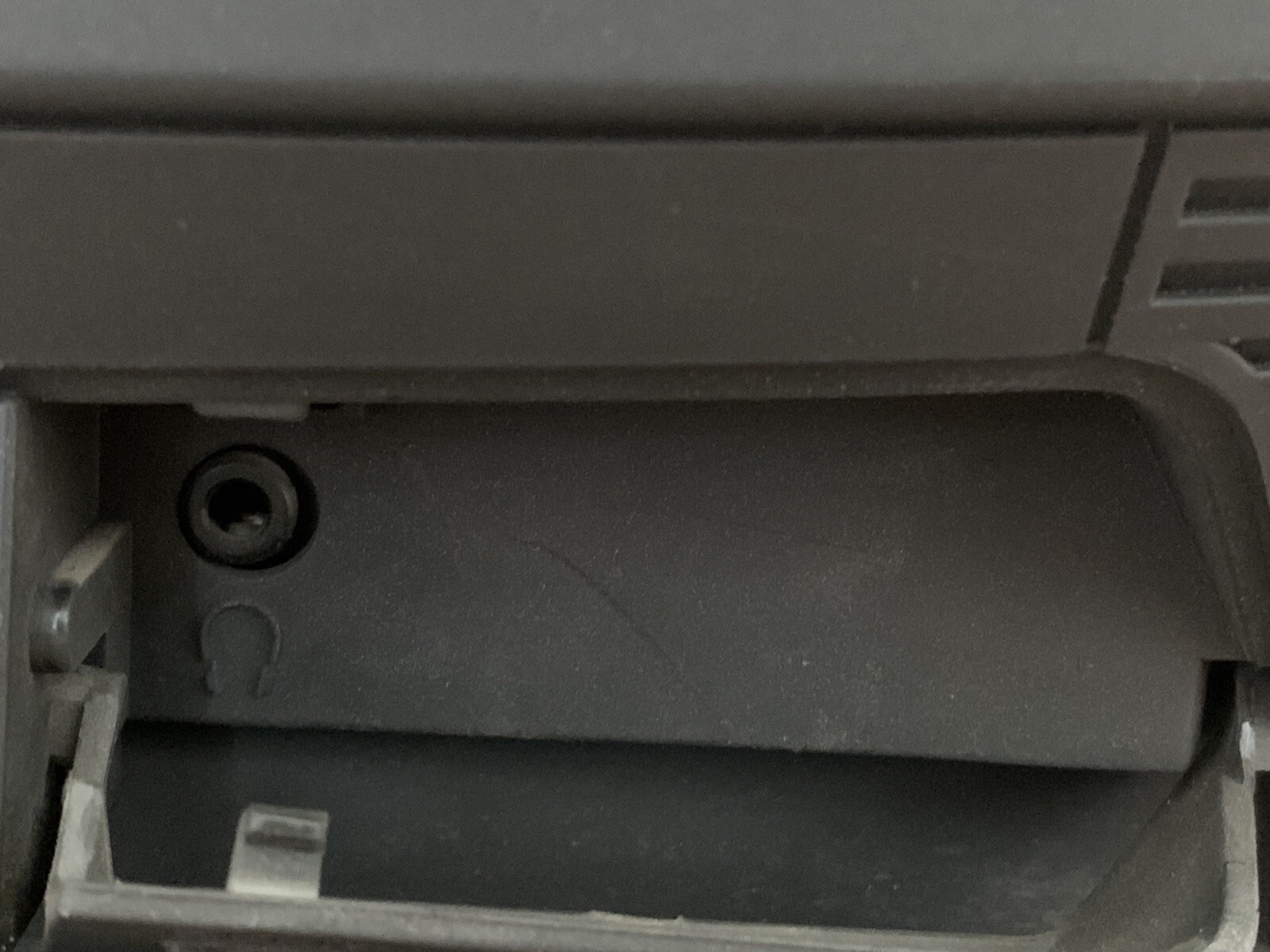

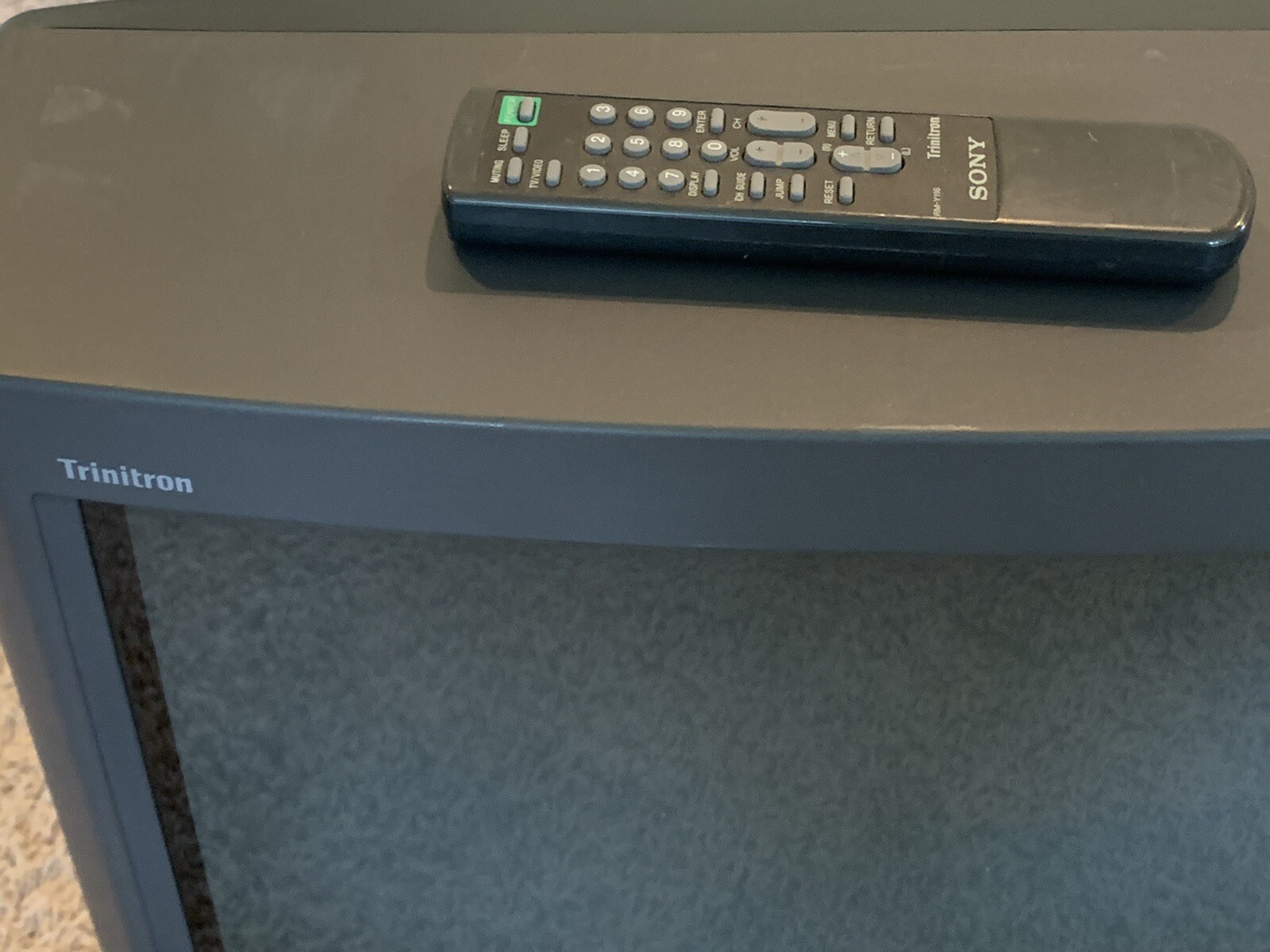

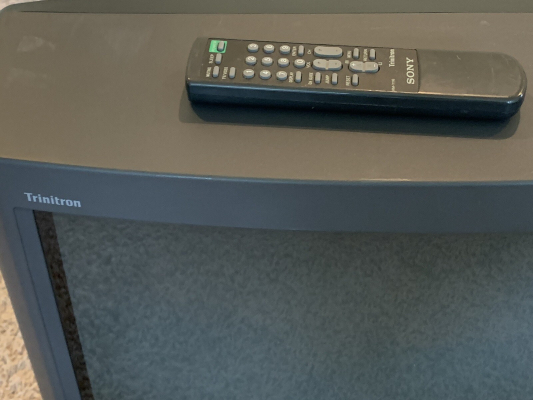

| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 8-451-440-11 |
| Speakers: | Stereo, 2W x 2, Headphone Jack |
| Remote: | RM-Y116 |
| Chassis: | BA-3 |
| Weight: | 46.8 lbs (21.2 kg) |
| Dimensions (W/H/D): |
522 x 477 x 471.7 mm
(20.5 x 18.7 x 18.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| MSRP: | 399 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
