Summary
20" curved Trinitron from the 1996 line-up. It is a step up from 20M20 with an additional front A/V input, stereo speakers, and audio line-out jacks.
Manuals

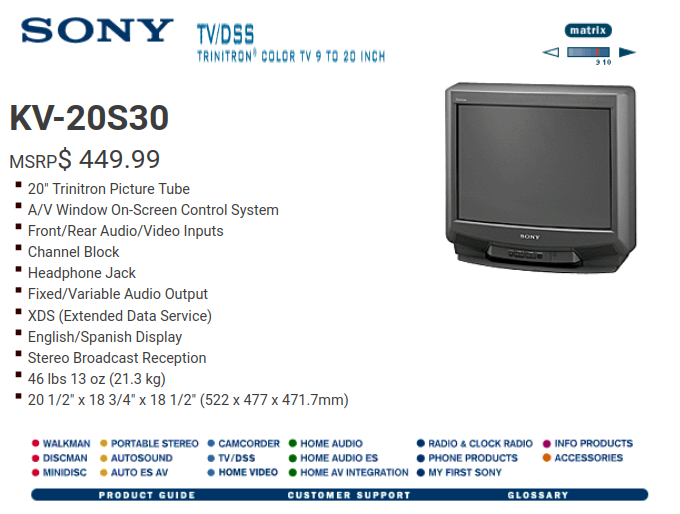

Media & Promo Materials
Mods & Repair Guides
Notes
This TV has a BA-3 chassis and is not RGB-moddable, but can be s-video modded. Unlike the following model (KV-20S40) this set features line-out audio jacks.

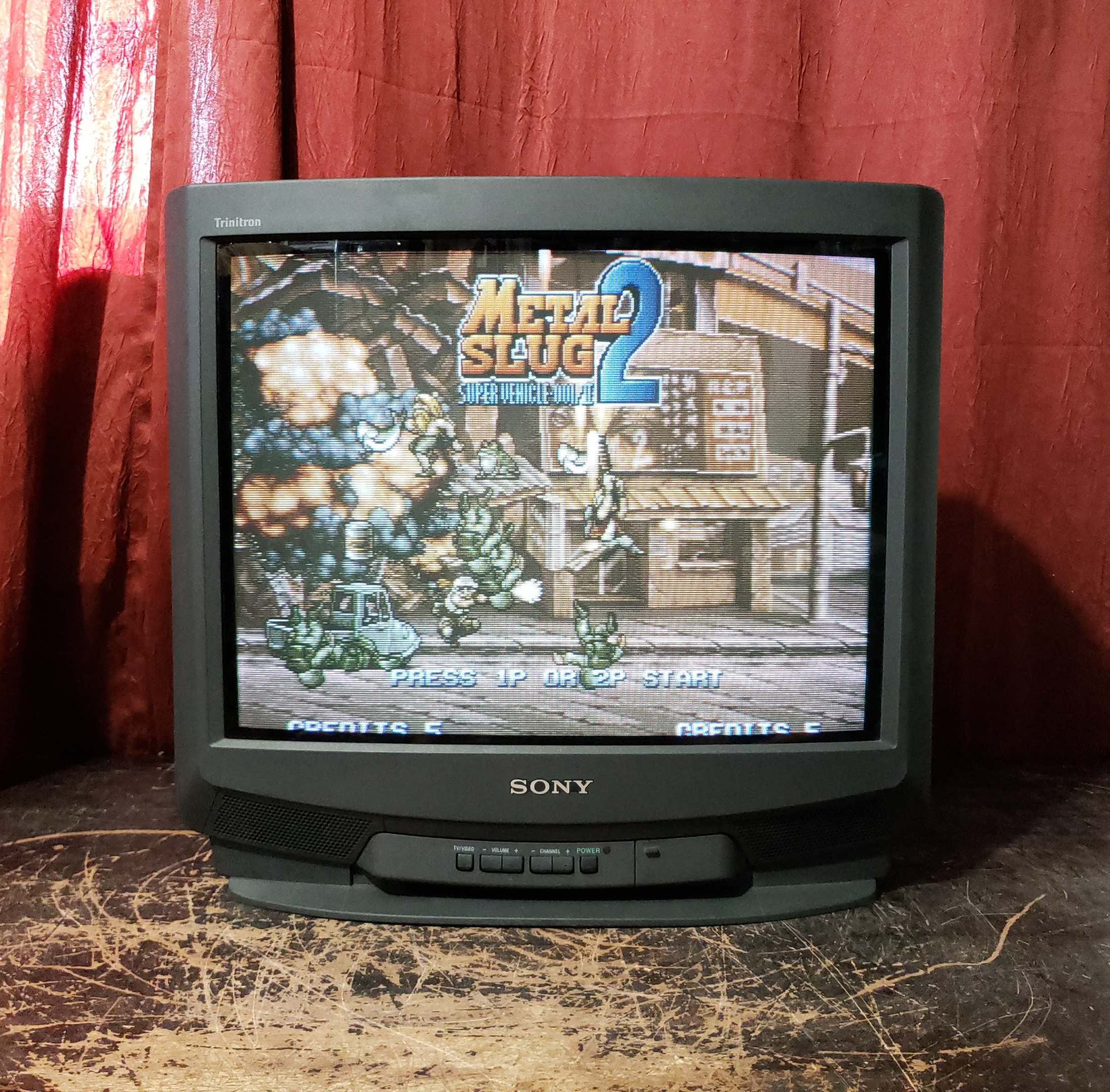

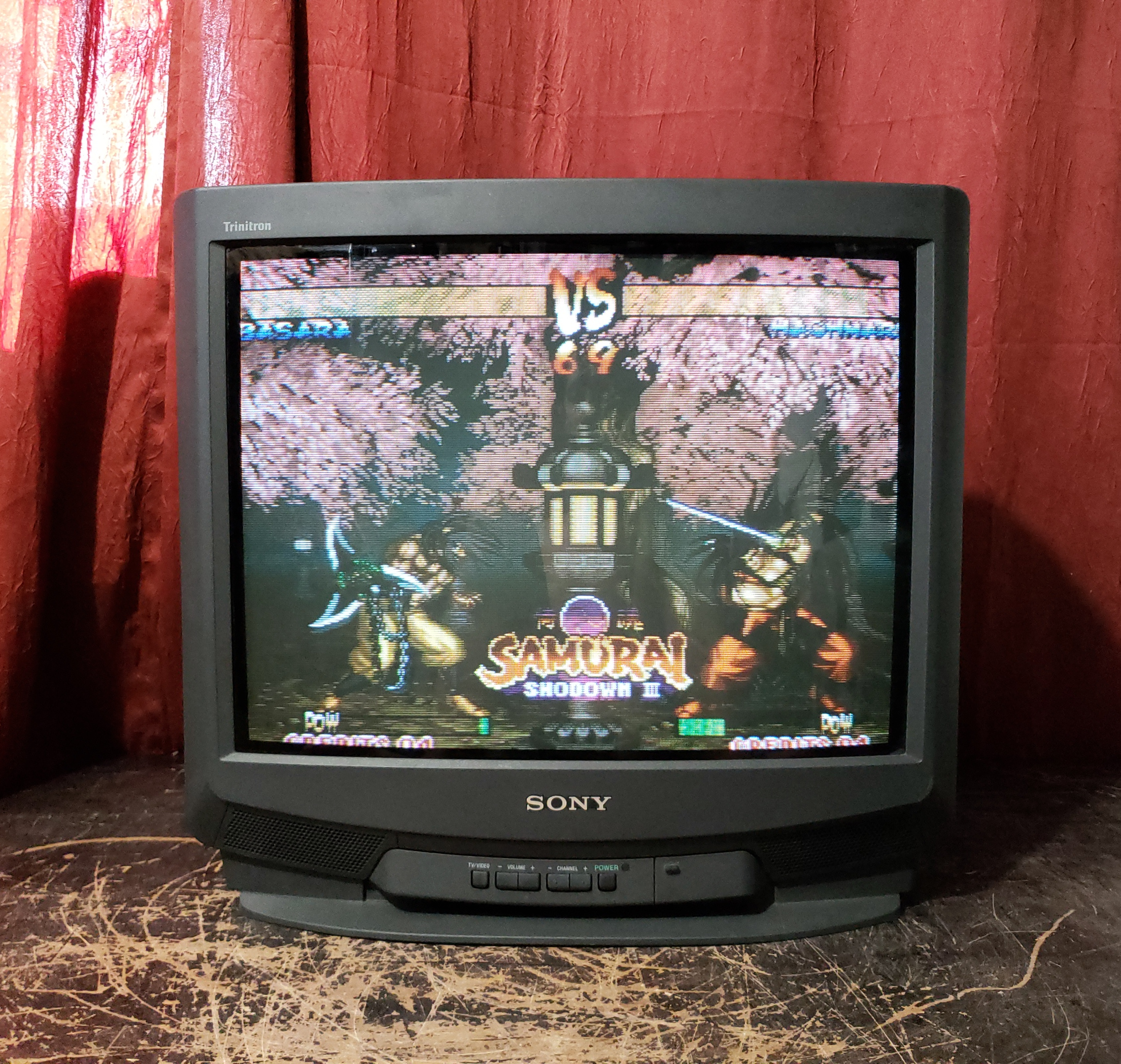

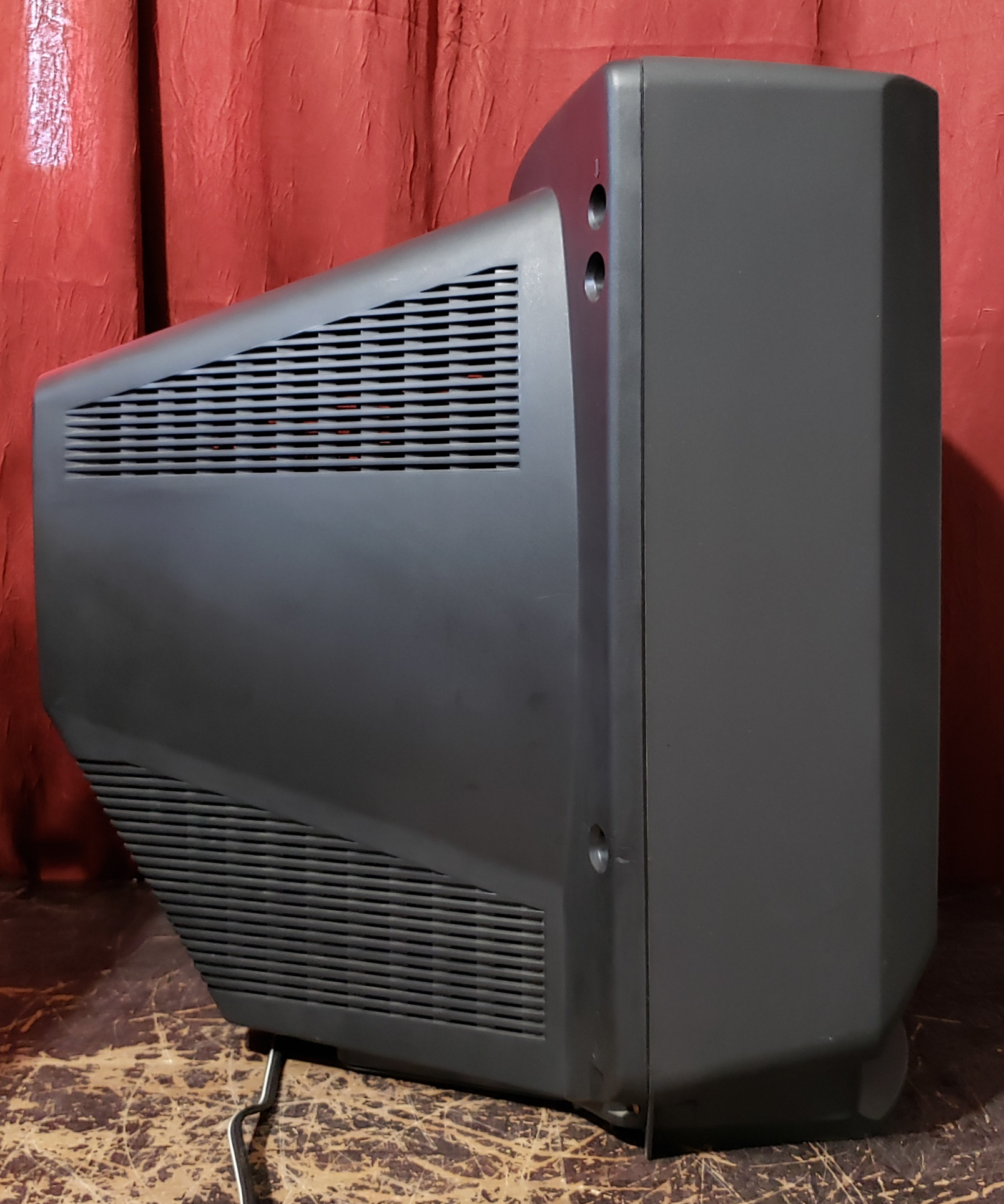

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-20S30 |
| Series: | KV |
| Viewable Size: | 20" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD1877S |
| Vertical Output IC: | LA7830 |
| Jungle IC: | CXA1870S |
| Comb Filtering: | Notch |

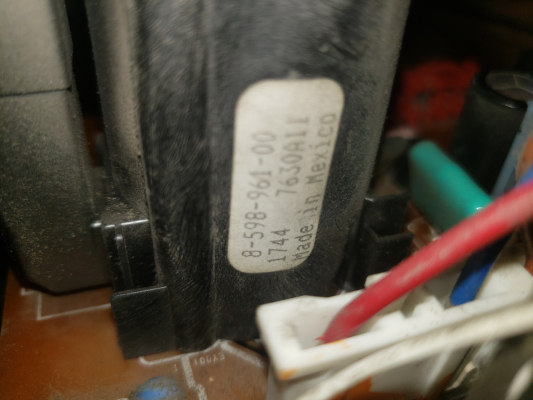

| Flyback: | 8-598-961-00 |
| Focus Type: | Single |
| Tube: | Sony Trinitron , A51LDG50X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |

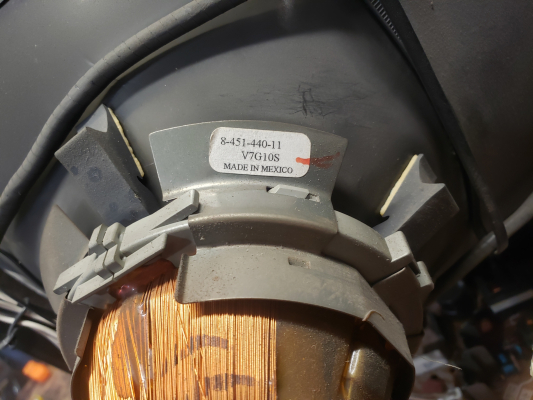

| Yoke: | 8-451-440-11 |
| Yoke Horz. Inductance: | 2.457 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 24.86 mH (@ 100 Hz) |
| Speakers: | Stereo |
| Remote: | RM-Y116 |
| Chassis: | BA-3 |
| Weight: | 46 lbs (20.9 kg) |
| Dimensions (W/H/D): |
522 x 477 x 472 mm
(20.5 x 18.7 x 18.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| MSRP: | 449 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission |
