Summary

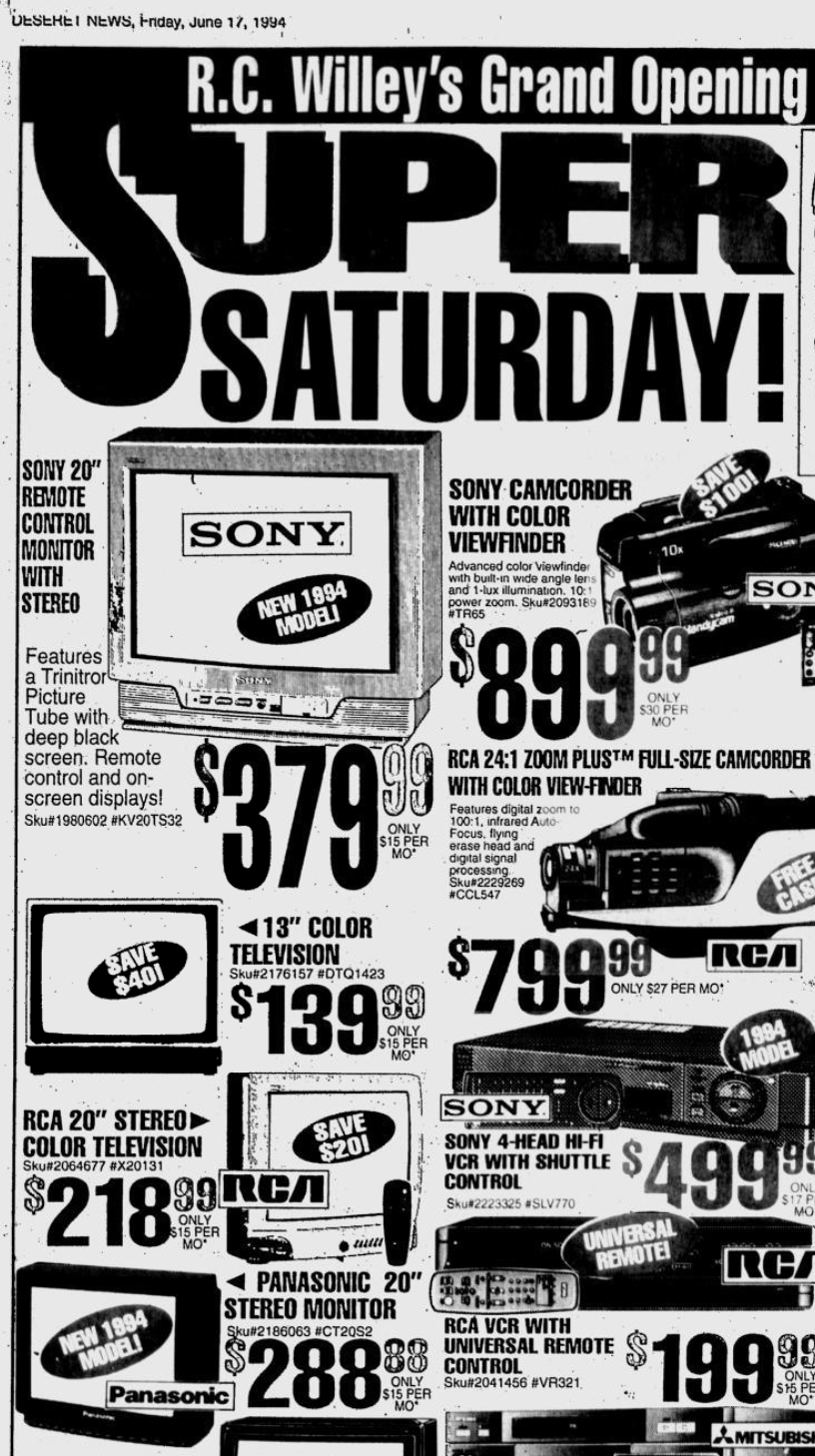

"Best Buy" 20" Color Stereo TV, S-Video and A/V inputs. Features Sony's Trinitron Microblack Picture Tube with deep black screen. Remote control and on-screen displays!
Manuals
Media & Promo Materials
Mods & Repair Guides
Notes
Features a cloth speaker grille. There is an option to enable the S-Video input in the Set Up sub-menu.
Trinitrons using the BA-1 and BA-2 chassis are capable of syncing to 50 Hz. To enable this, enter the service menu and set VSMO to 1. PAL video will still be in black and white if you use the composite inputs, but can be displayed in color via an RGB mod.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-20TS32 |
| Series: | KV |
| Viewable Size: | 20" |

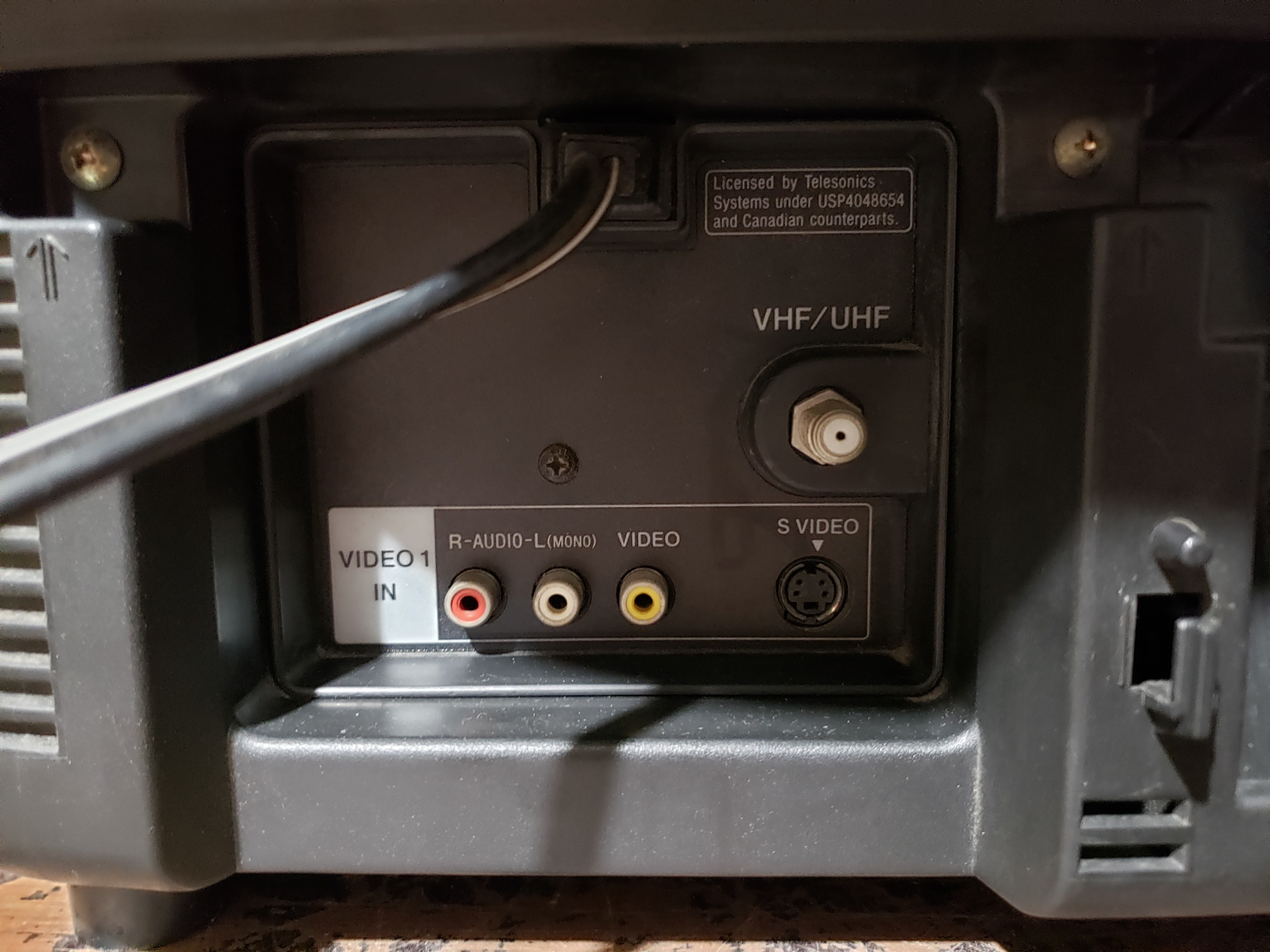

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD1878-CA |
| Vertical Output IC: | LA7830 |
| Jungle: | CXA1465AS |
| Comb Filtering: | None |
| Flyback: | NX1601PA, NX-1600A5 |
| Focus Type: | Single |
| Tube: | Sony Trinitron , Sony Microblack Trinitron , A51JUH51X |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Yoke: | Y21PXA2 |
| Speakers: | Stereo, 2W x 2 |
| Remote: | RM-Y116 |
| Chassis: | BA-1 |
| Weight: | 50.25 lbs (22.8 kg) |
| Dimensions (W/H/D): |
526 x 488 x 477.5 mm
(20.7 x 19.2 x 18.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1993 |
| MSRP: | 429 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mods: | RGB via CC |
| Degaussing: | Automatic on Power-on |
