Sony KV-2553MT

SegaSaturn94
March 4, 2026, 11:42 am
March 4, 2026, 5:17 pm

Summary

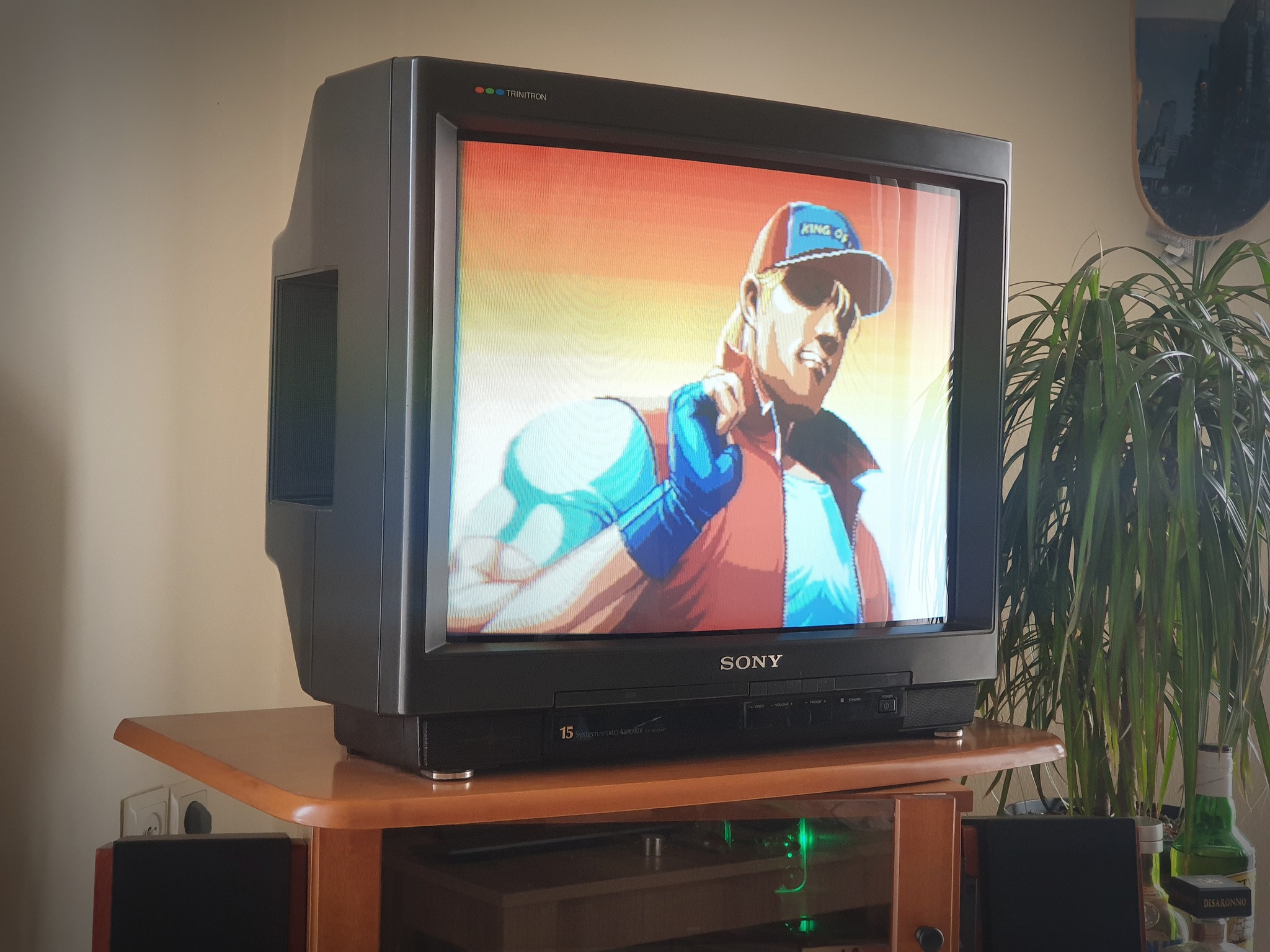

23" Trinitron by Sony, launched in 1990. Has RF composite, and s-video inputs with stereo sound. Supports NTSC, PAL and SECAM standards. Originally manufactured in Japan and sold internationally.

(Special thanks to John Chavez for some of the pics!)

Manuals

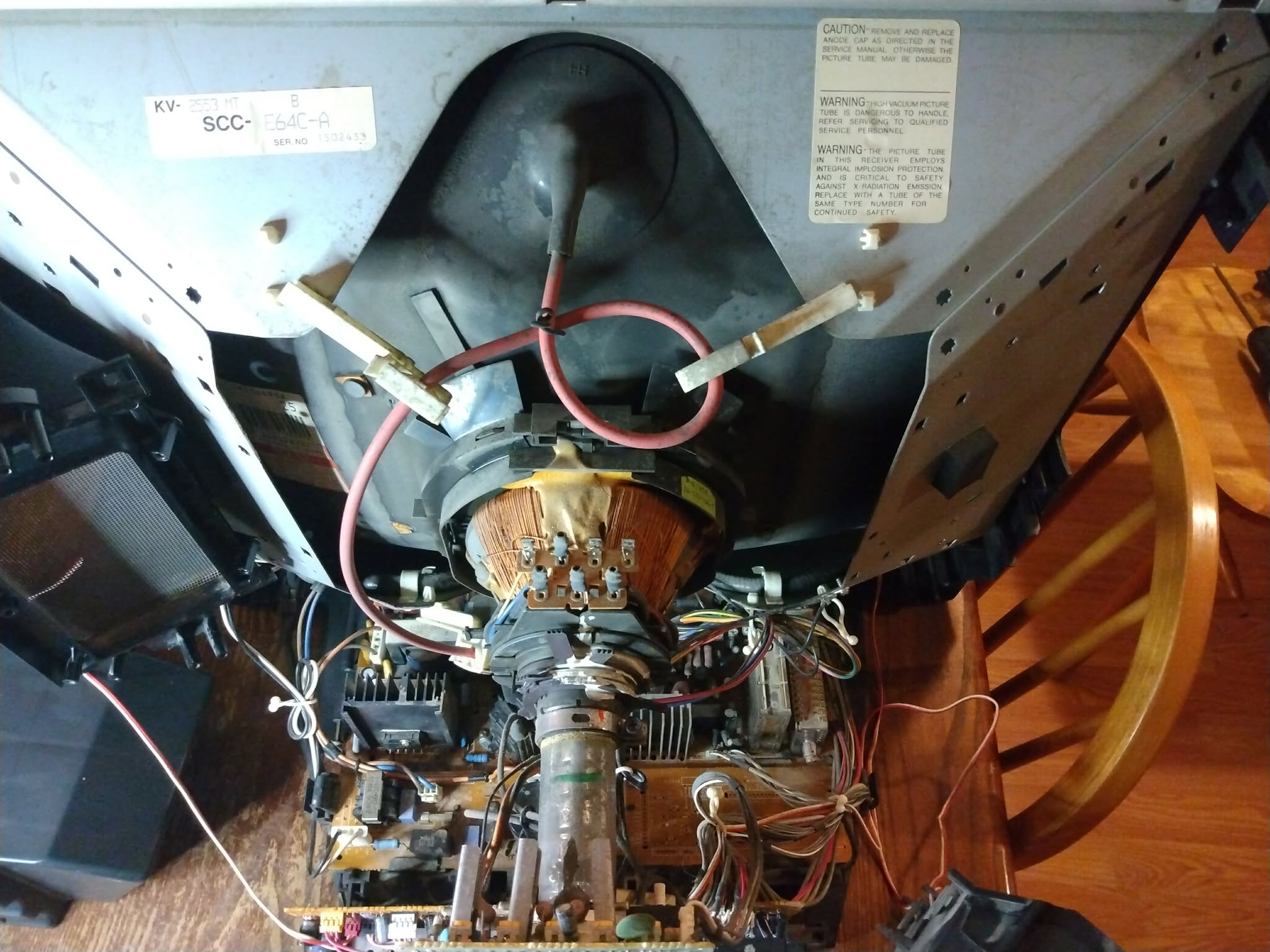

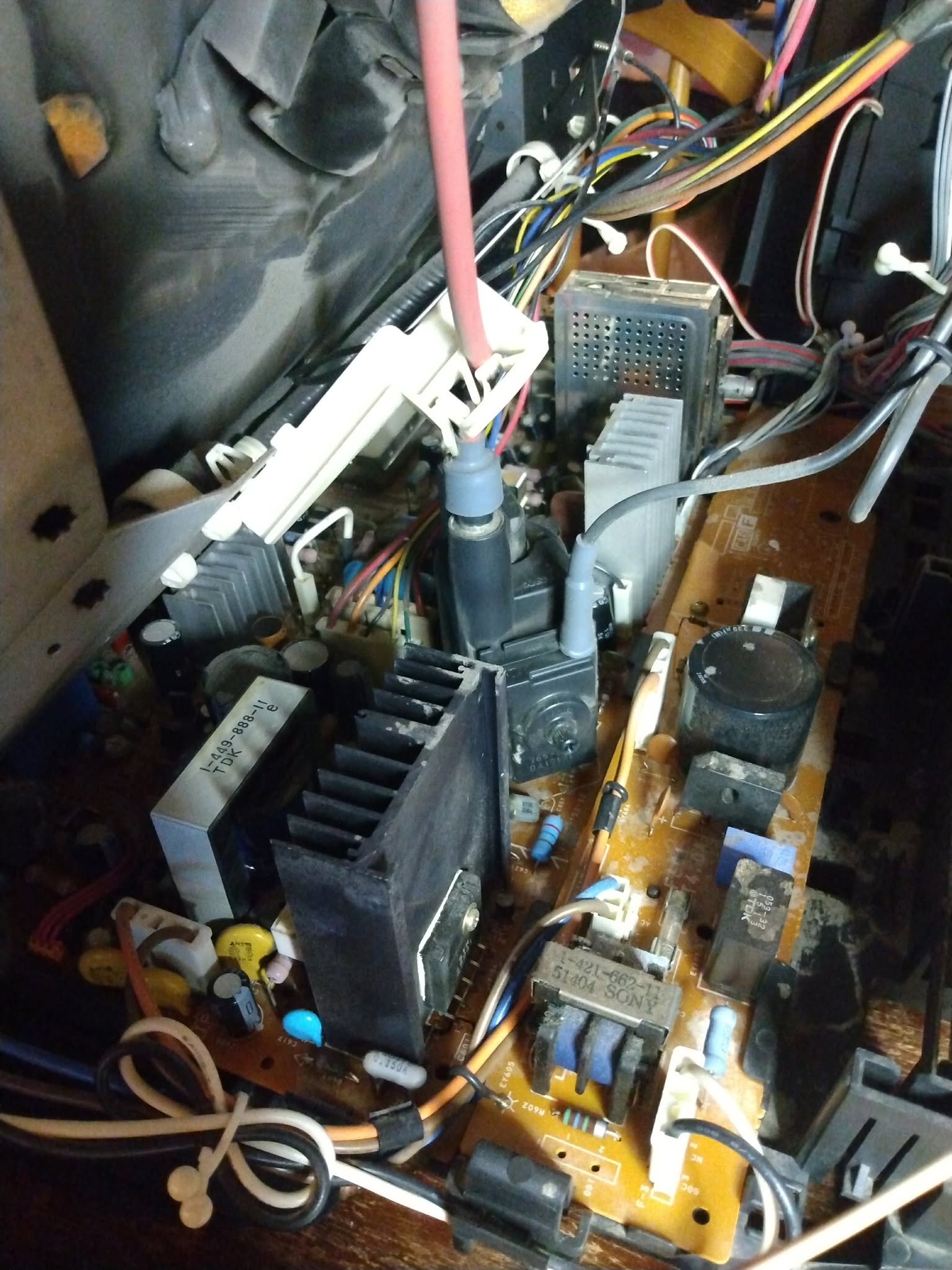

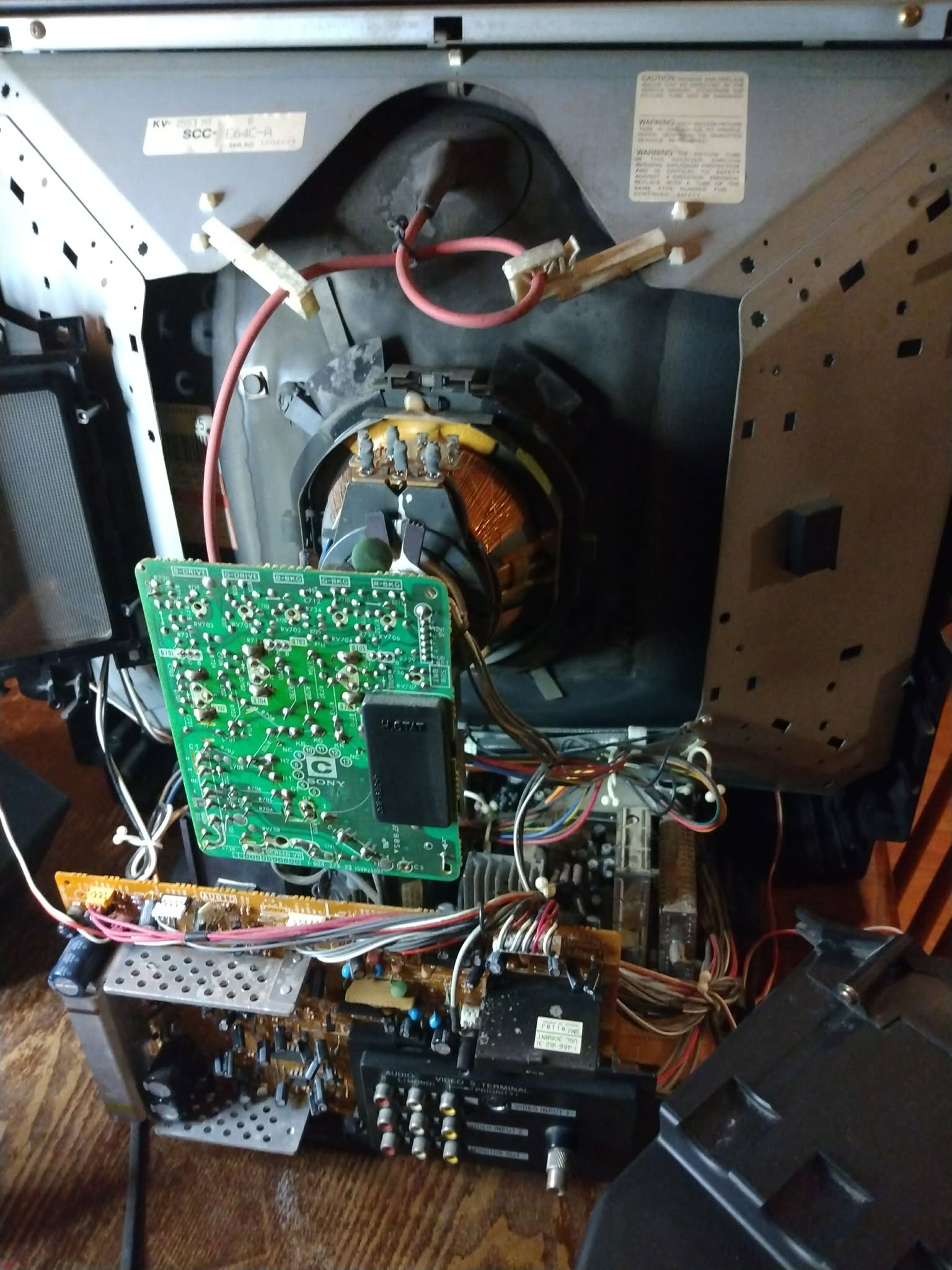

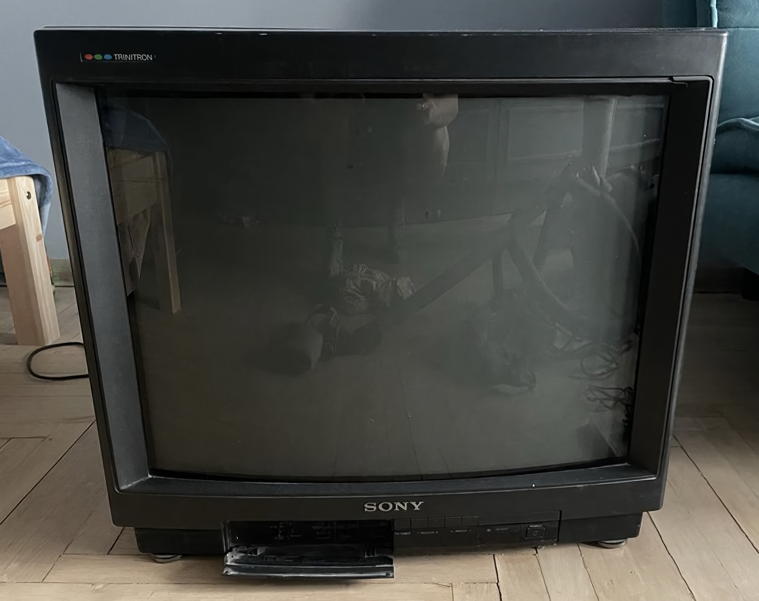

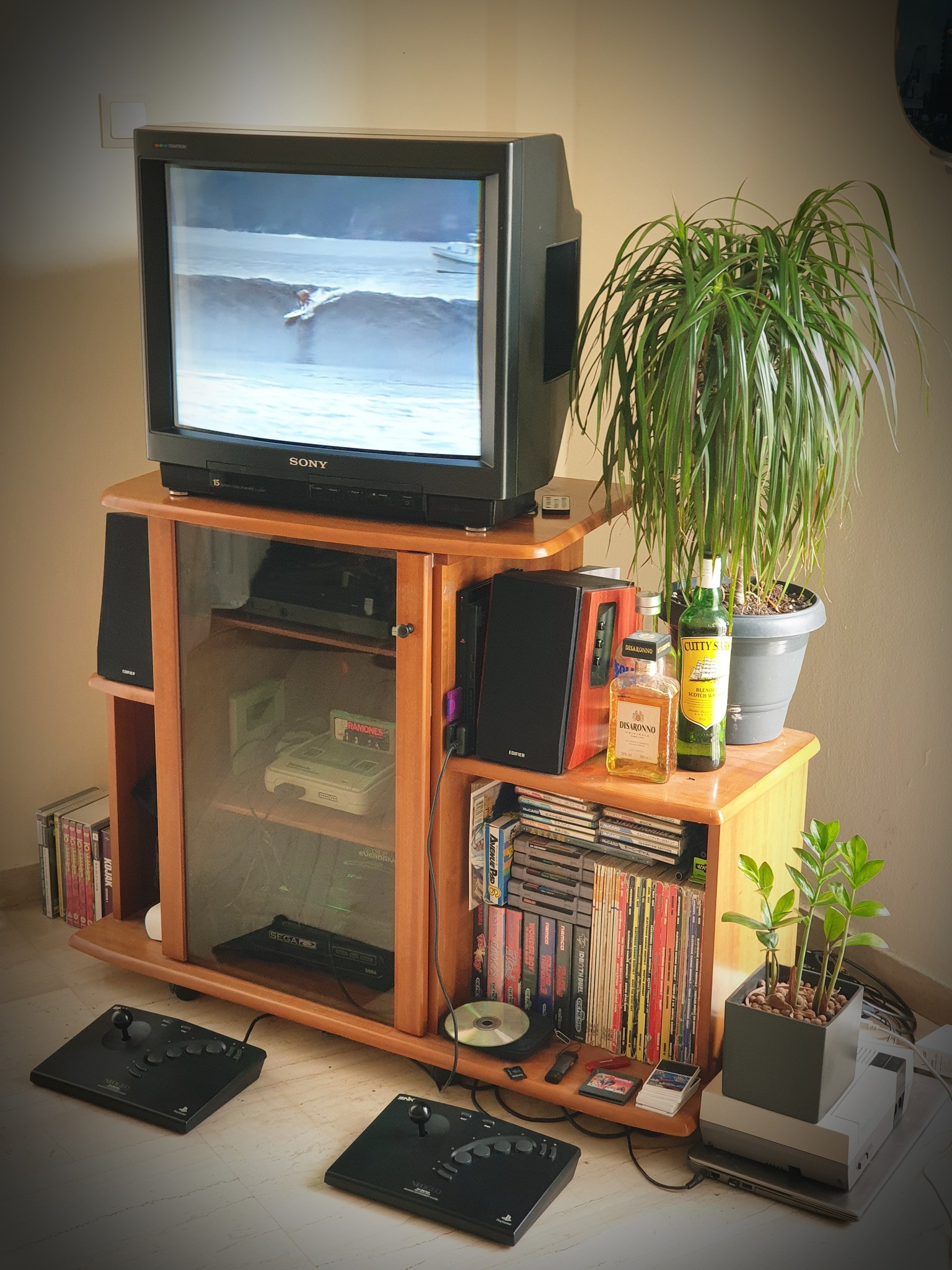

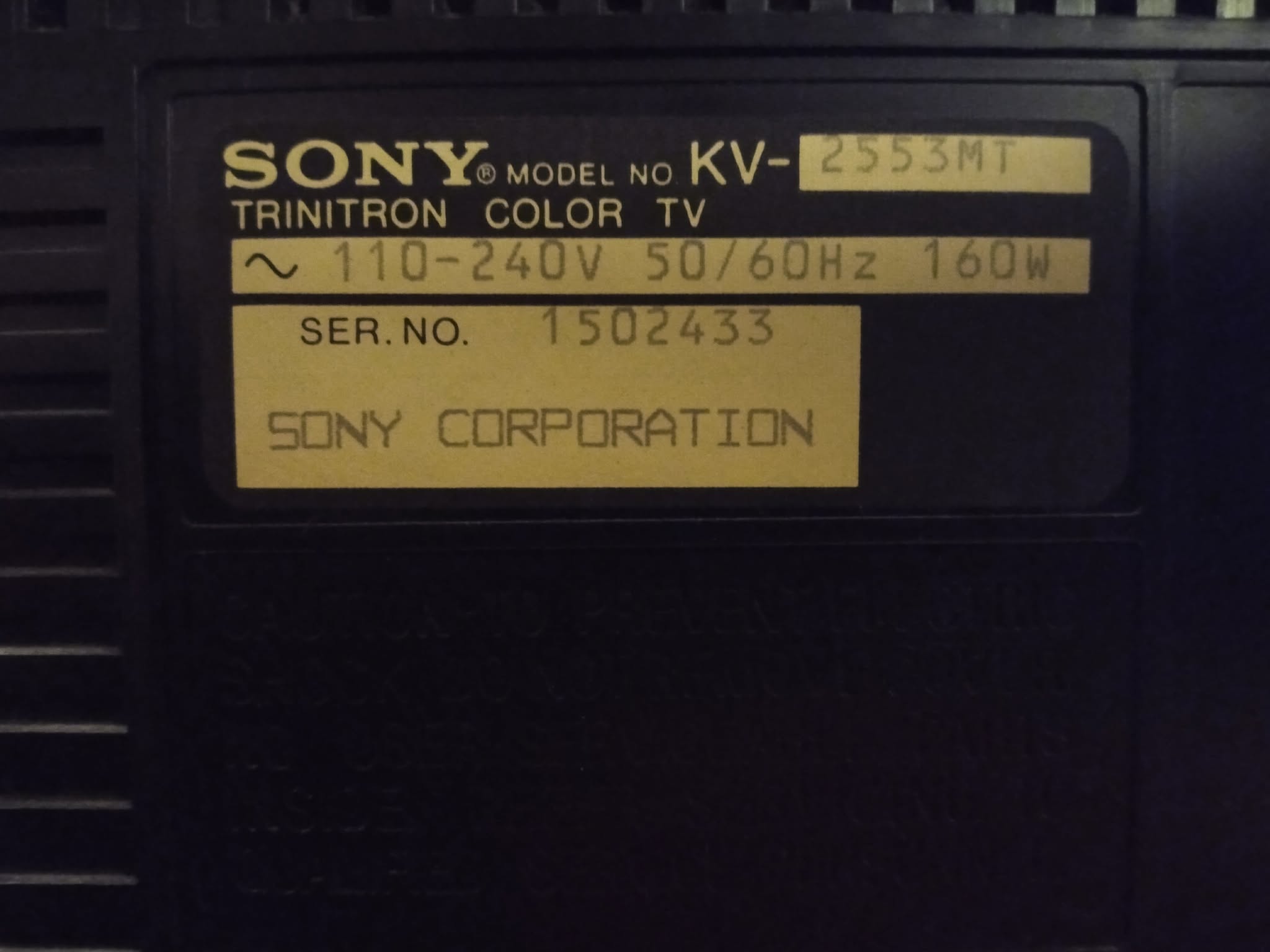

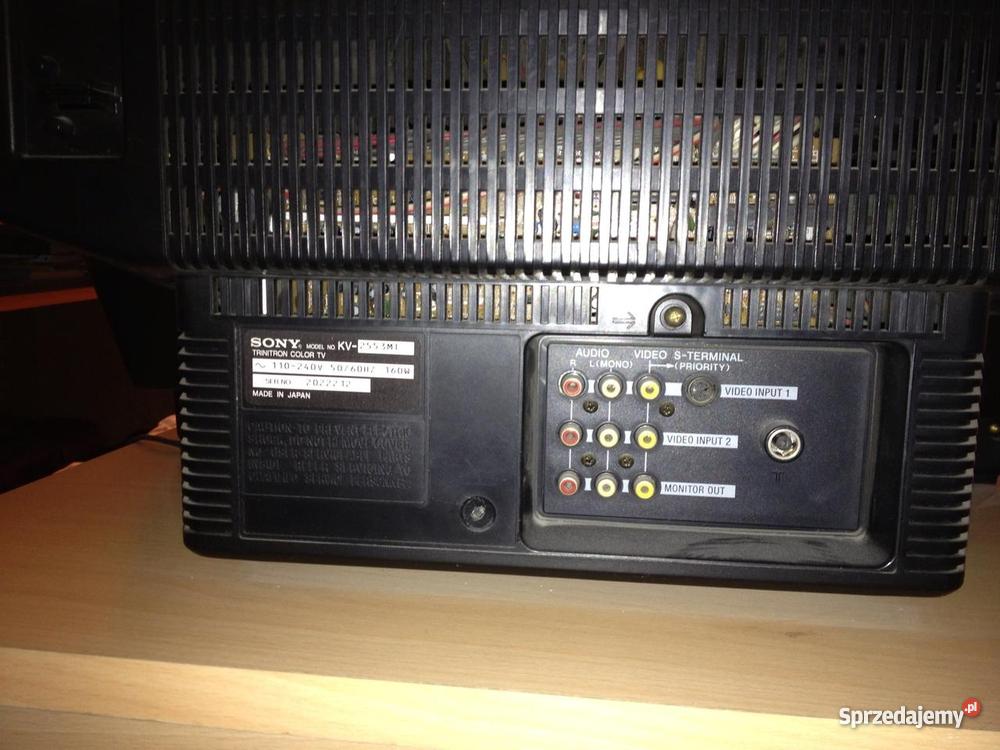

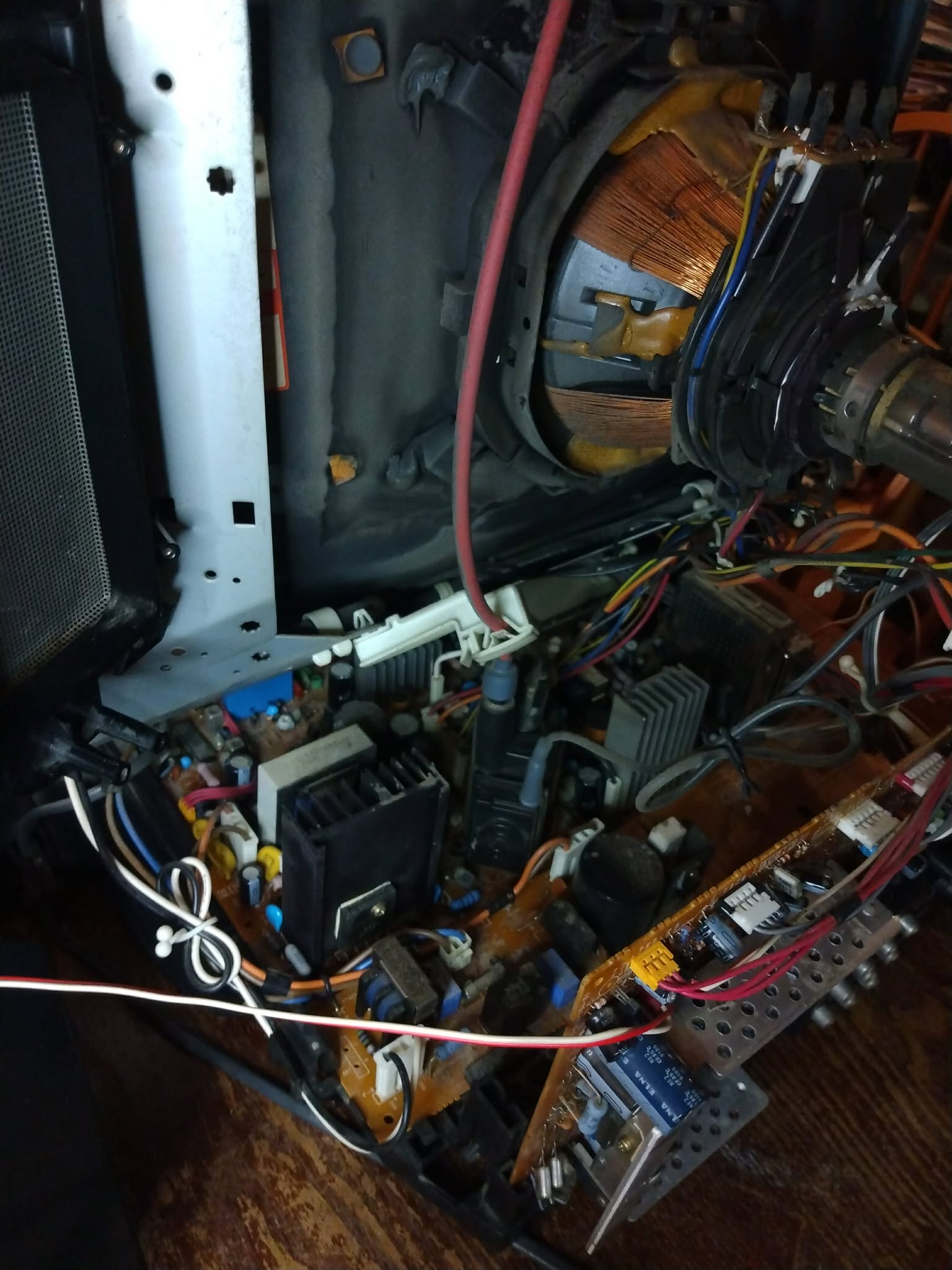

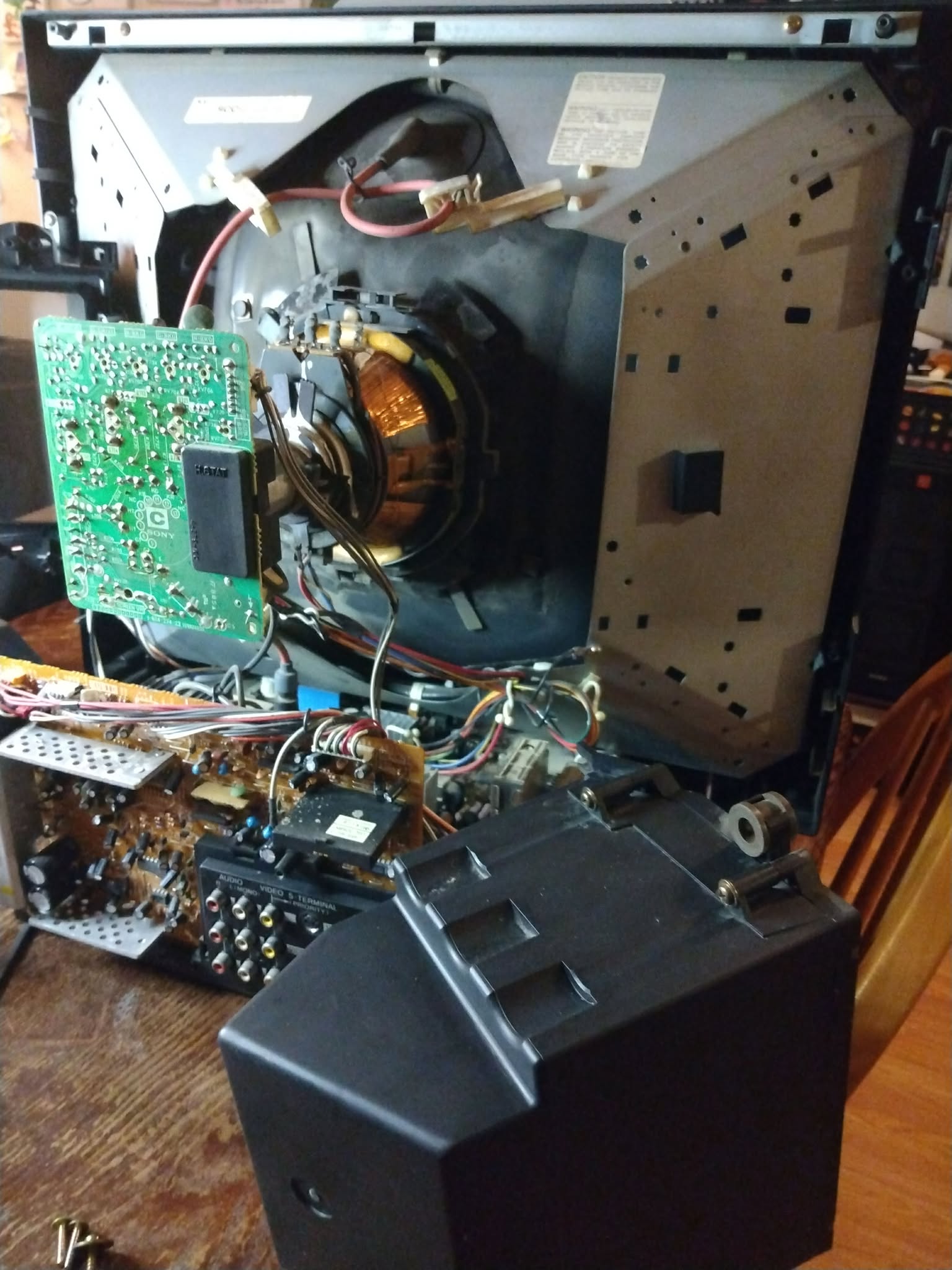

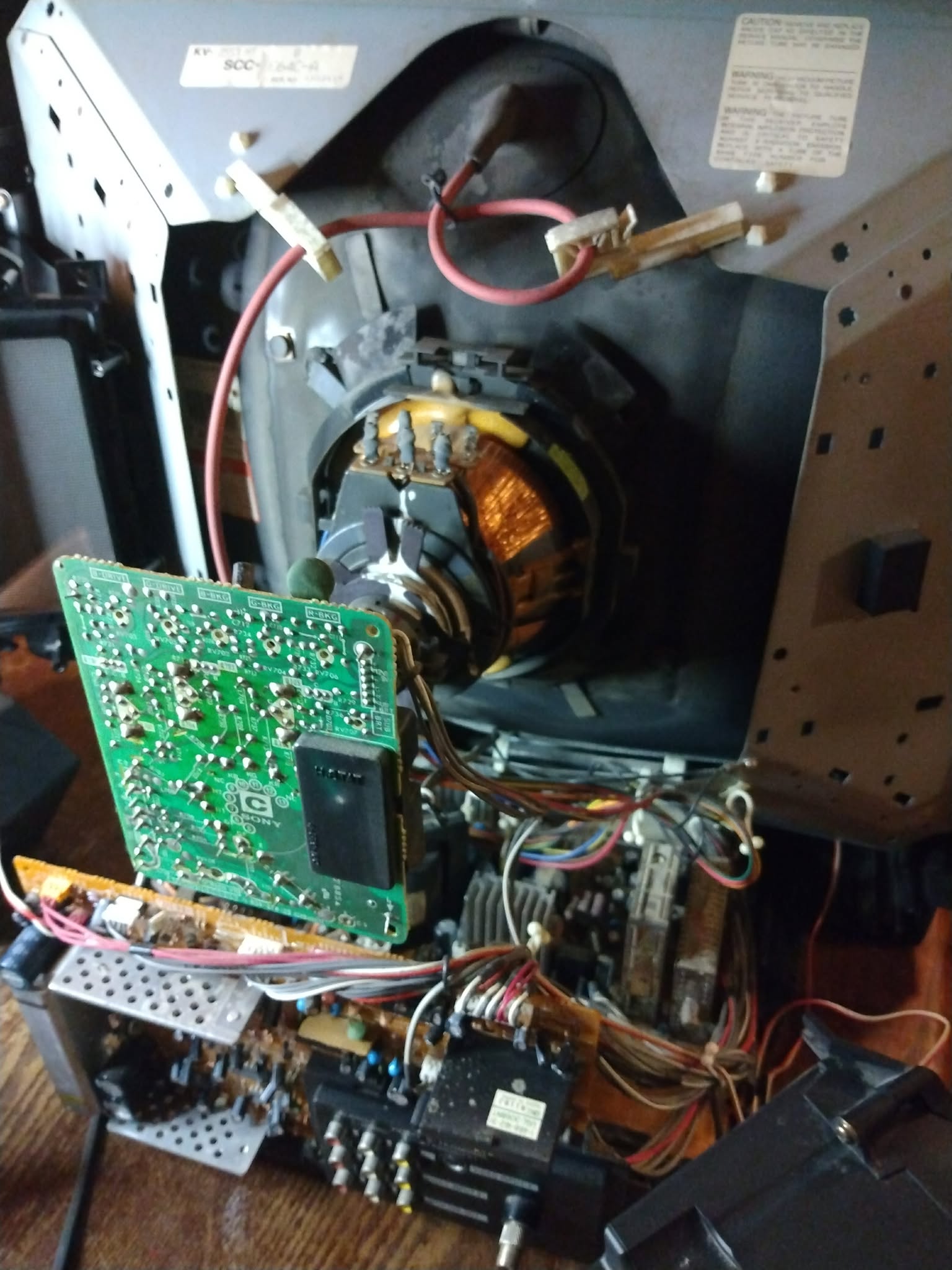

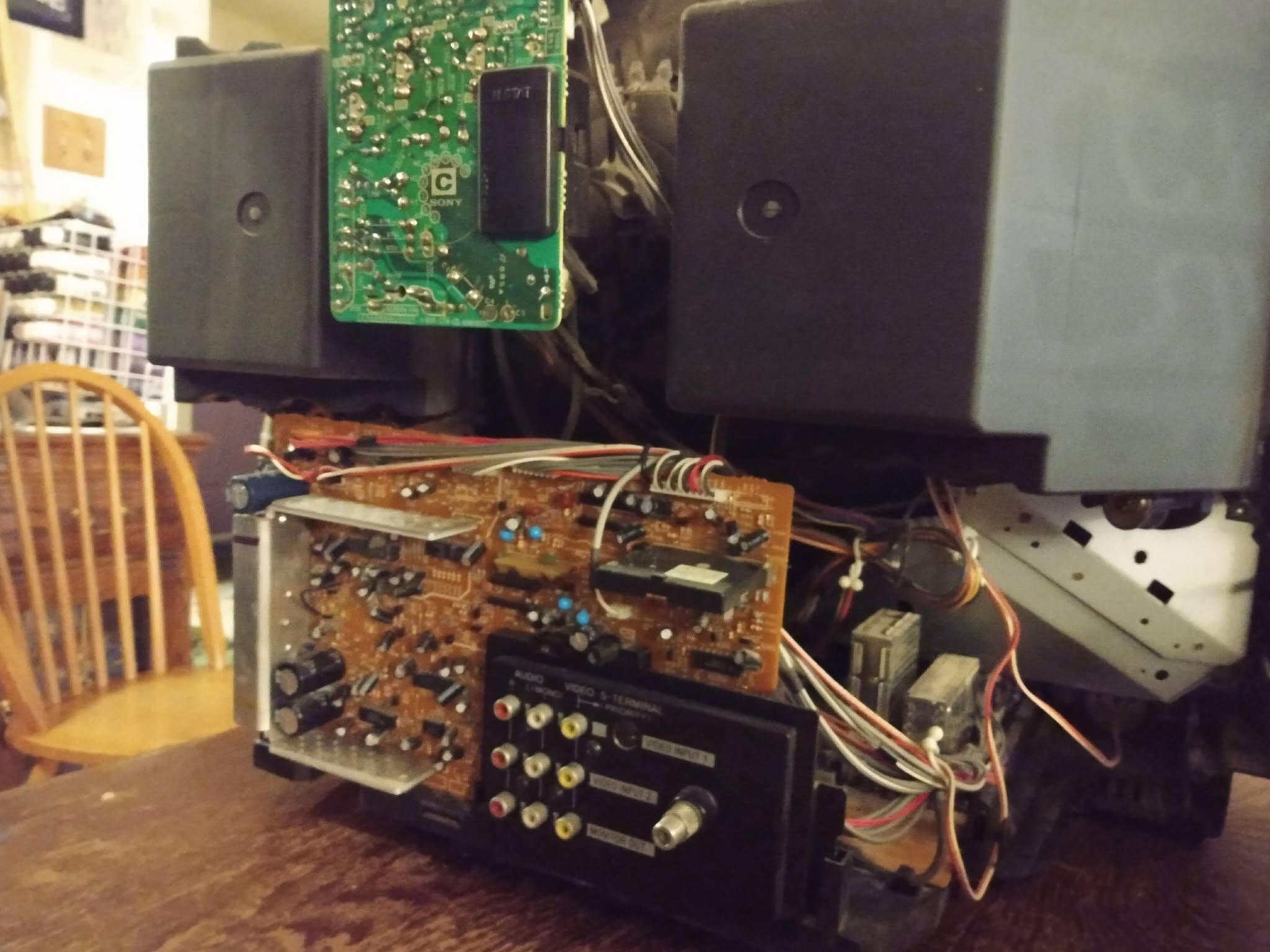

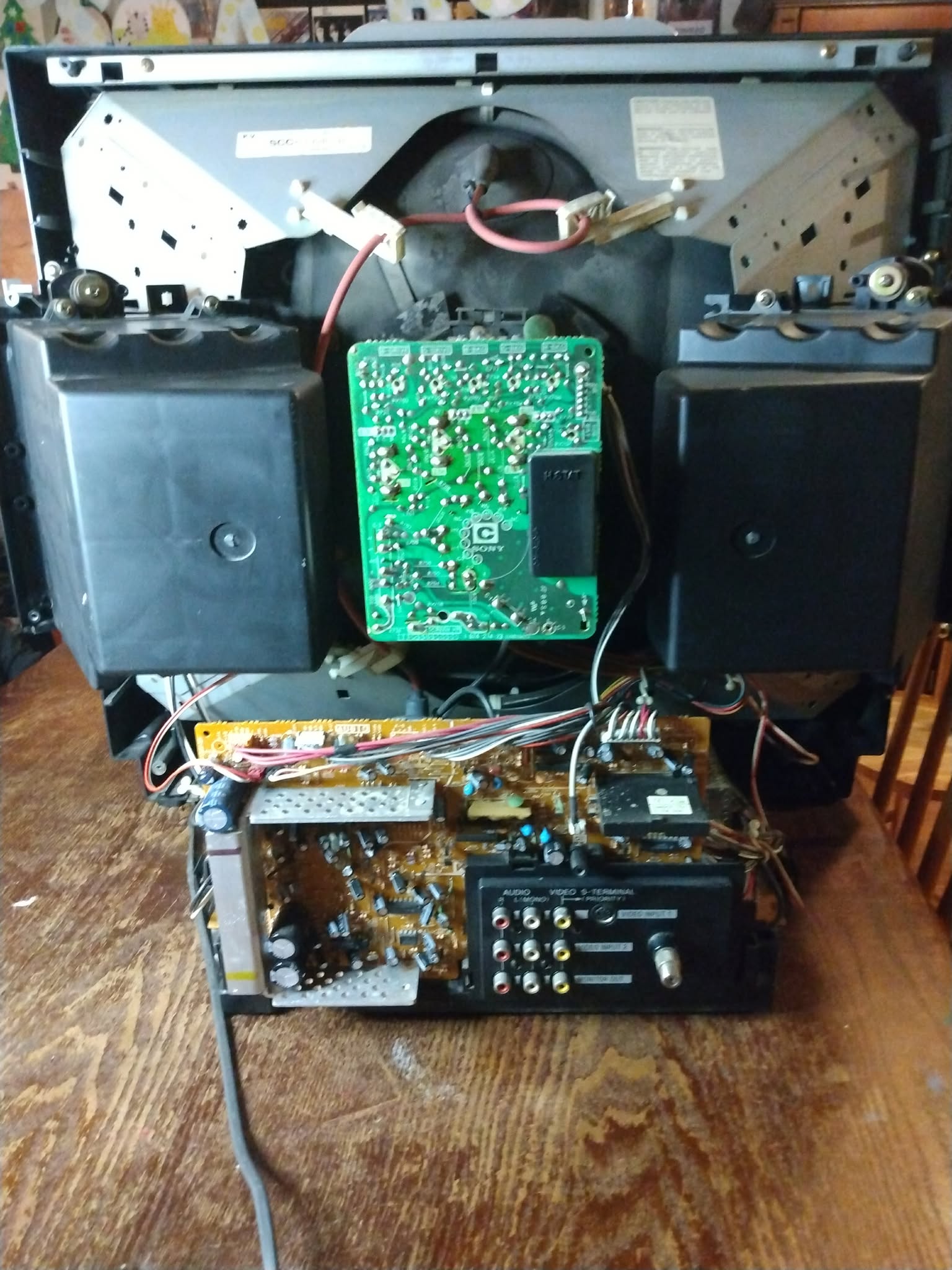

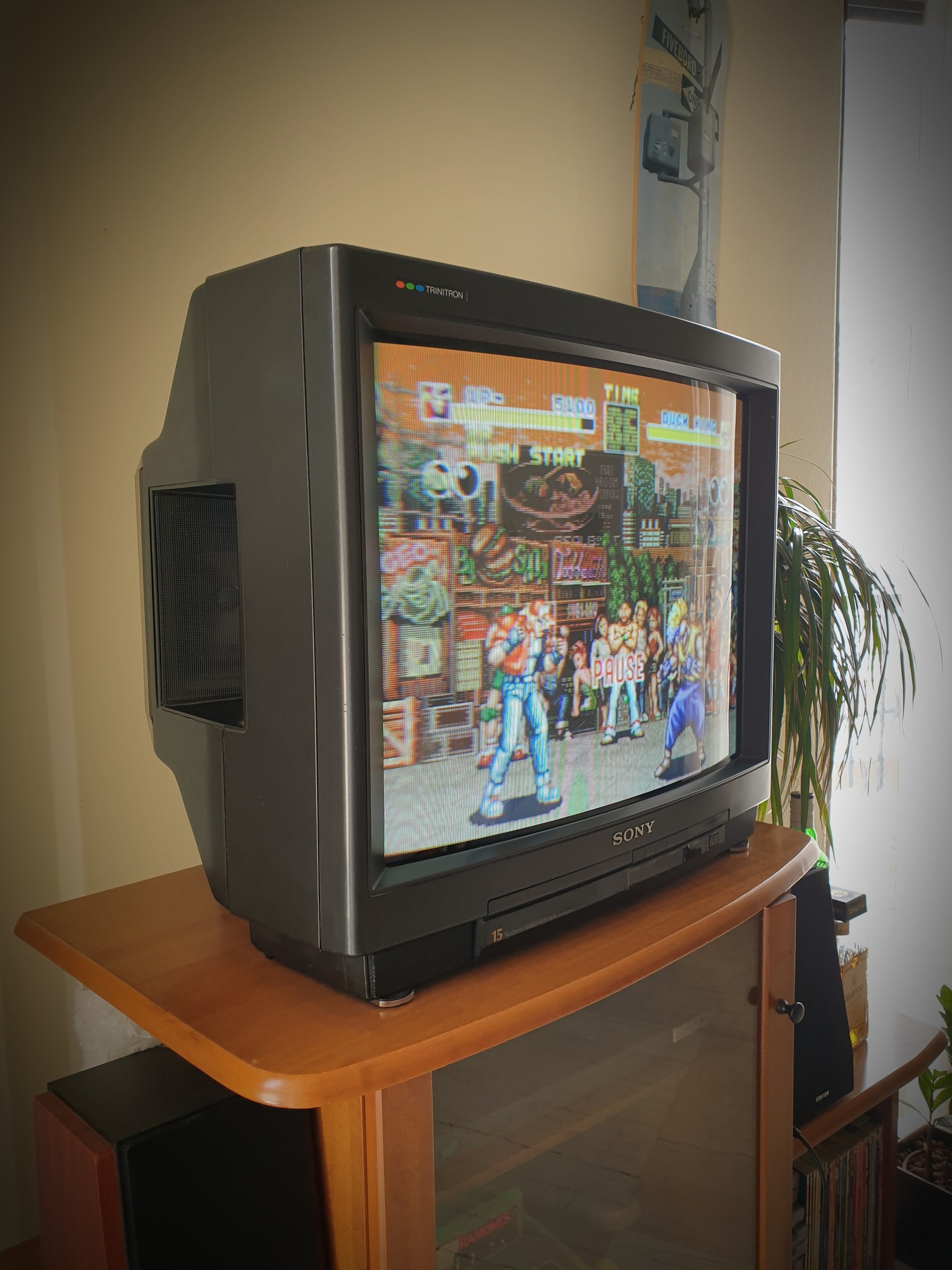

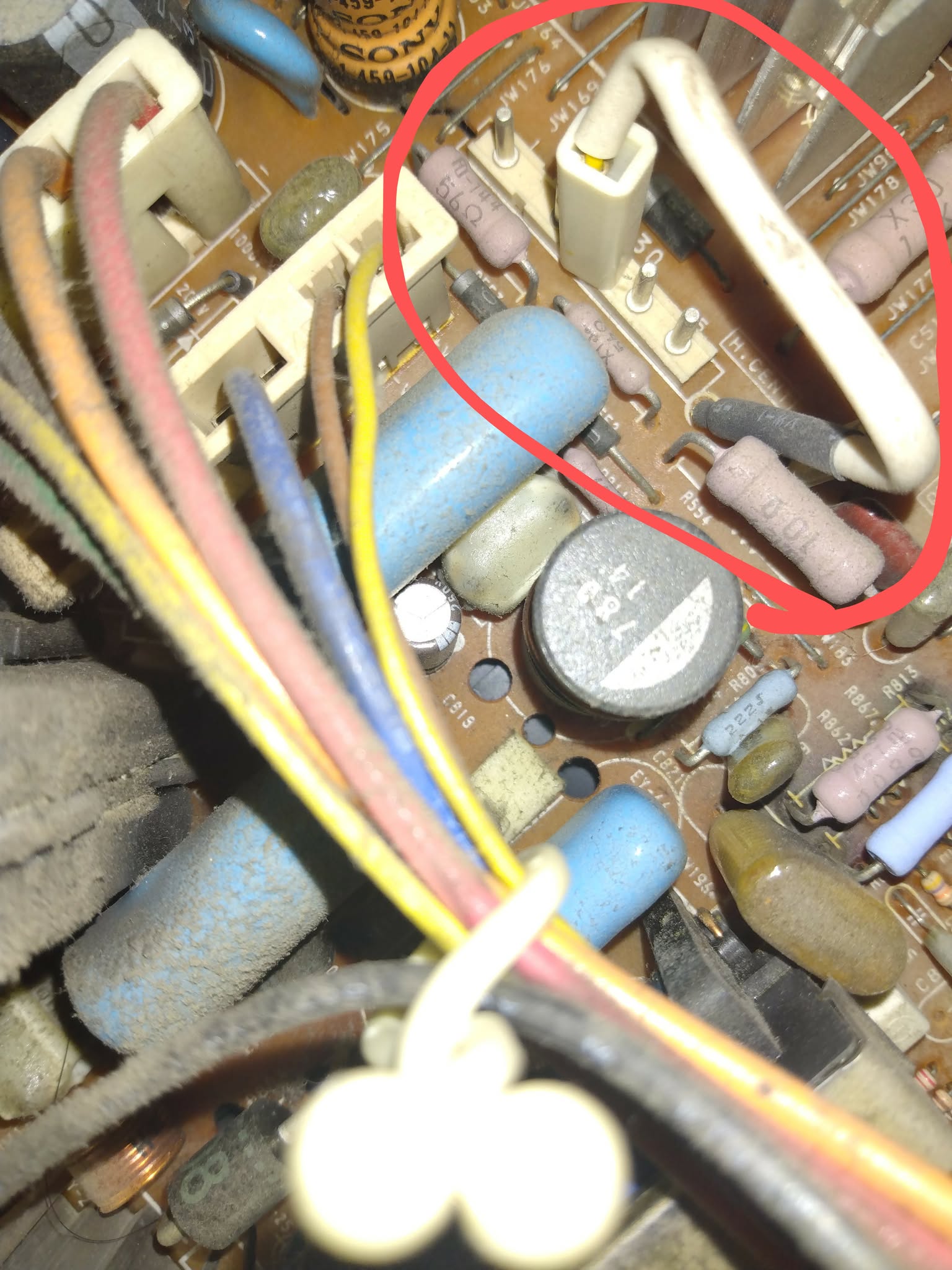

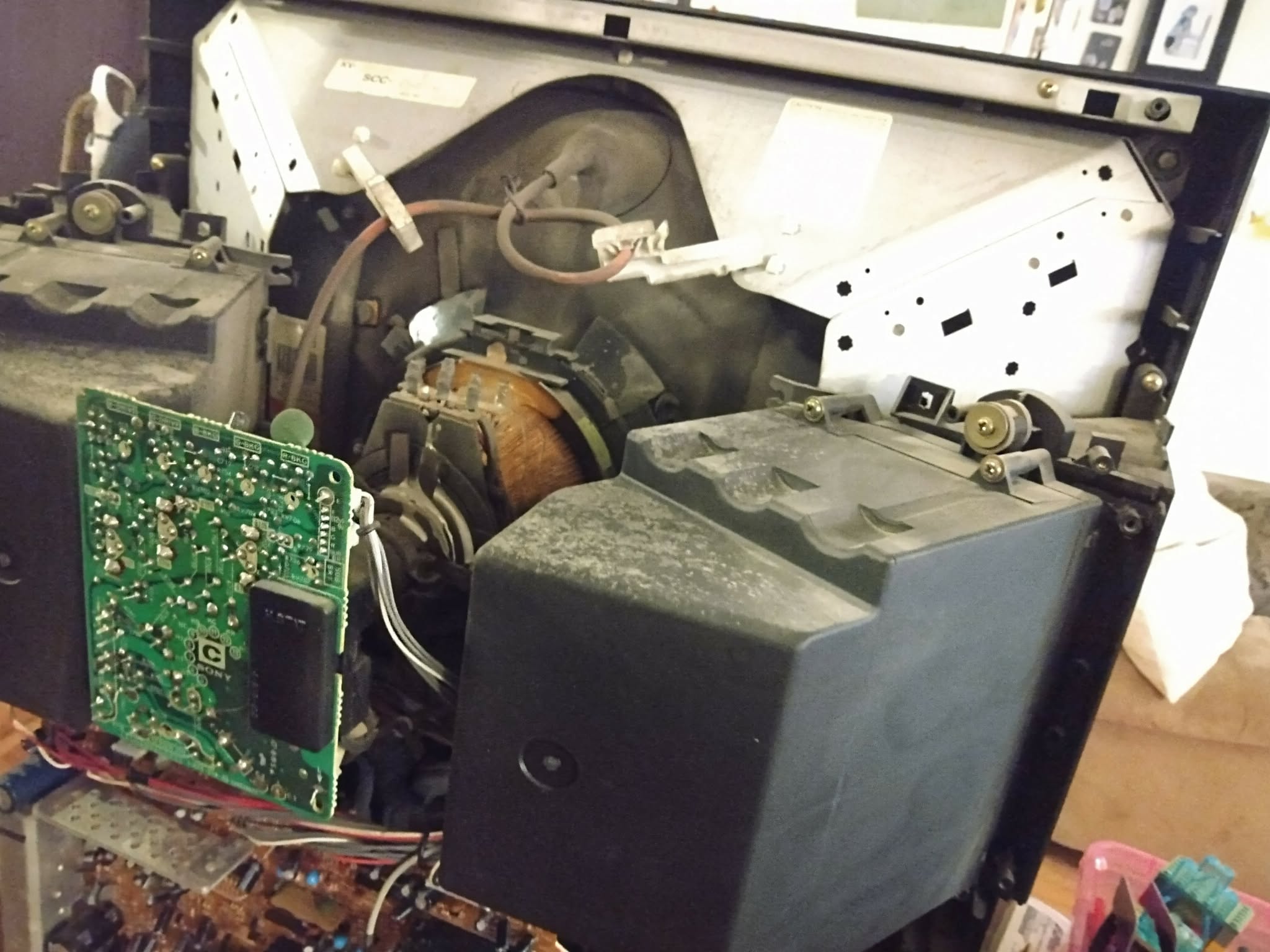

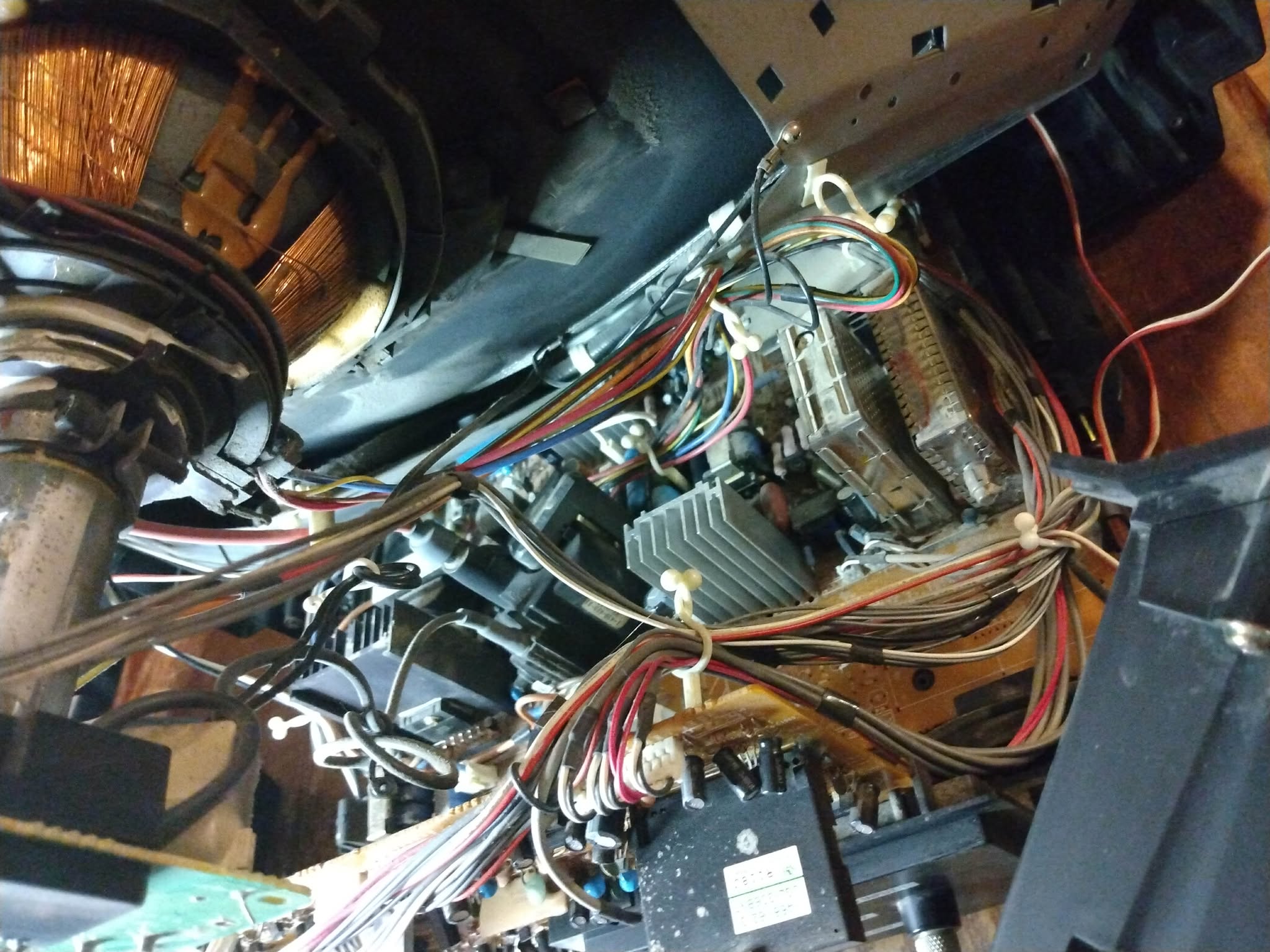

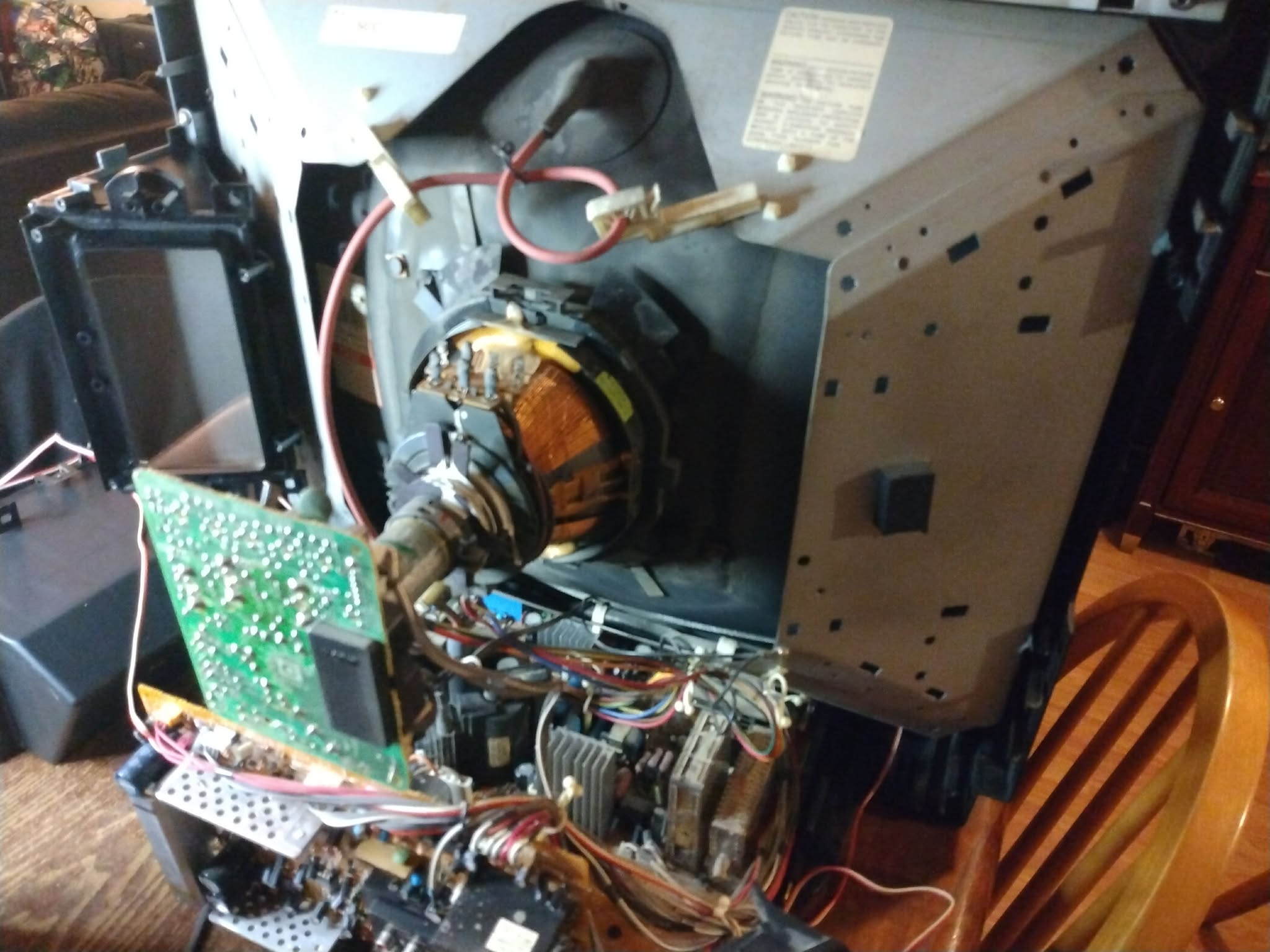

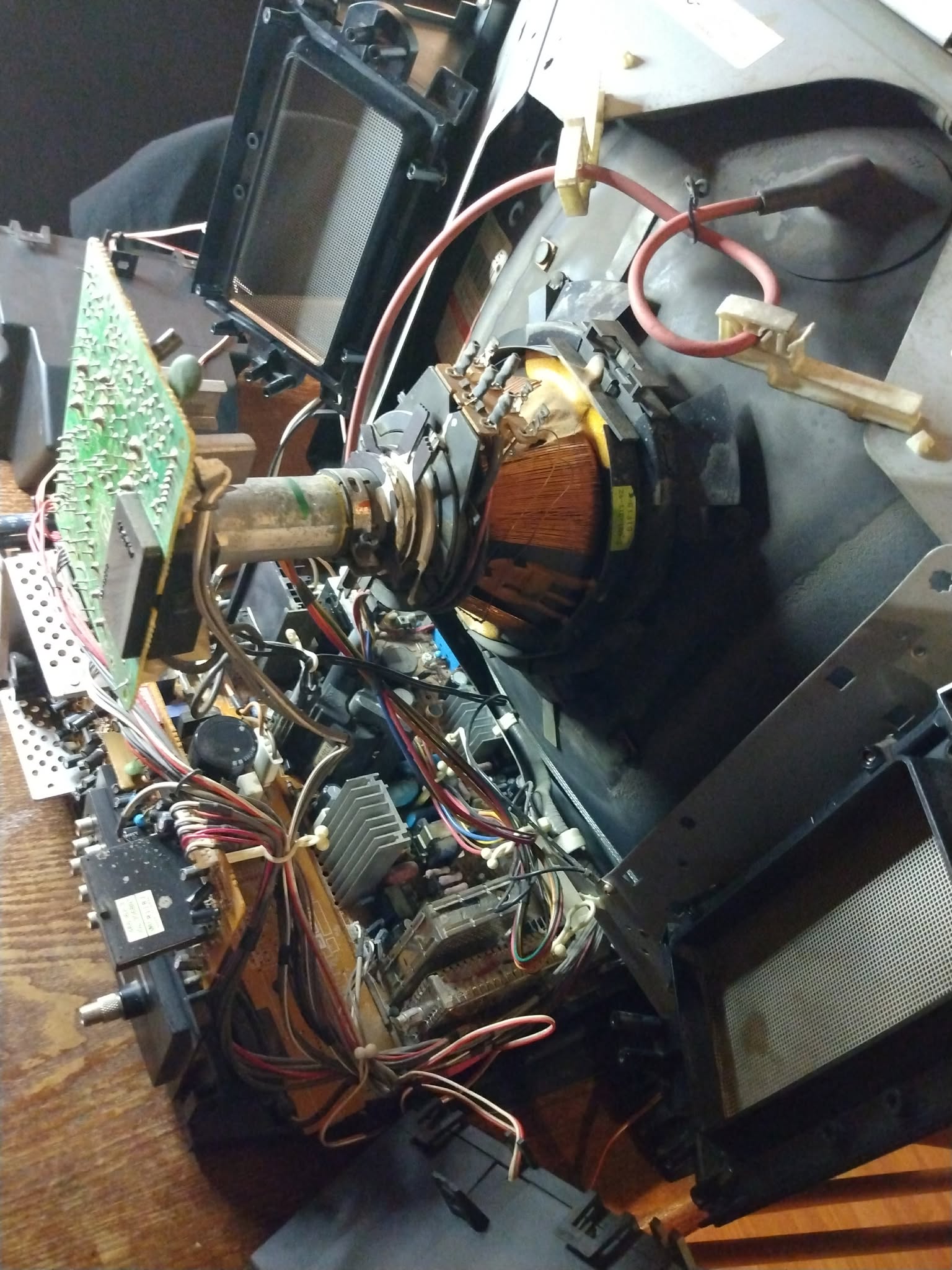

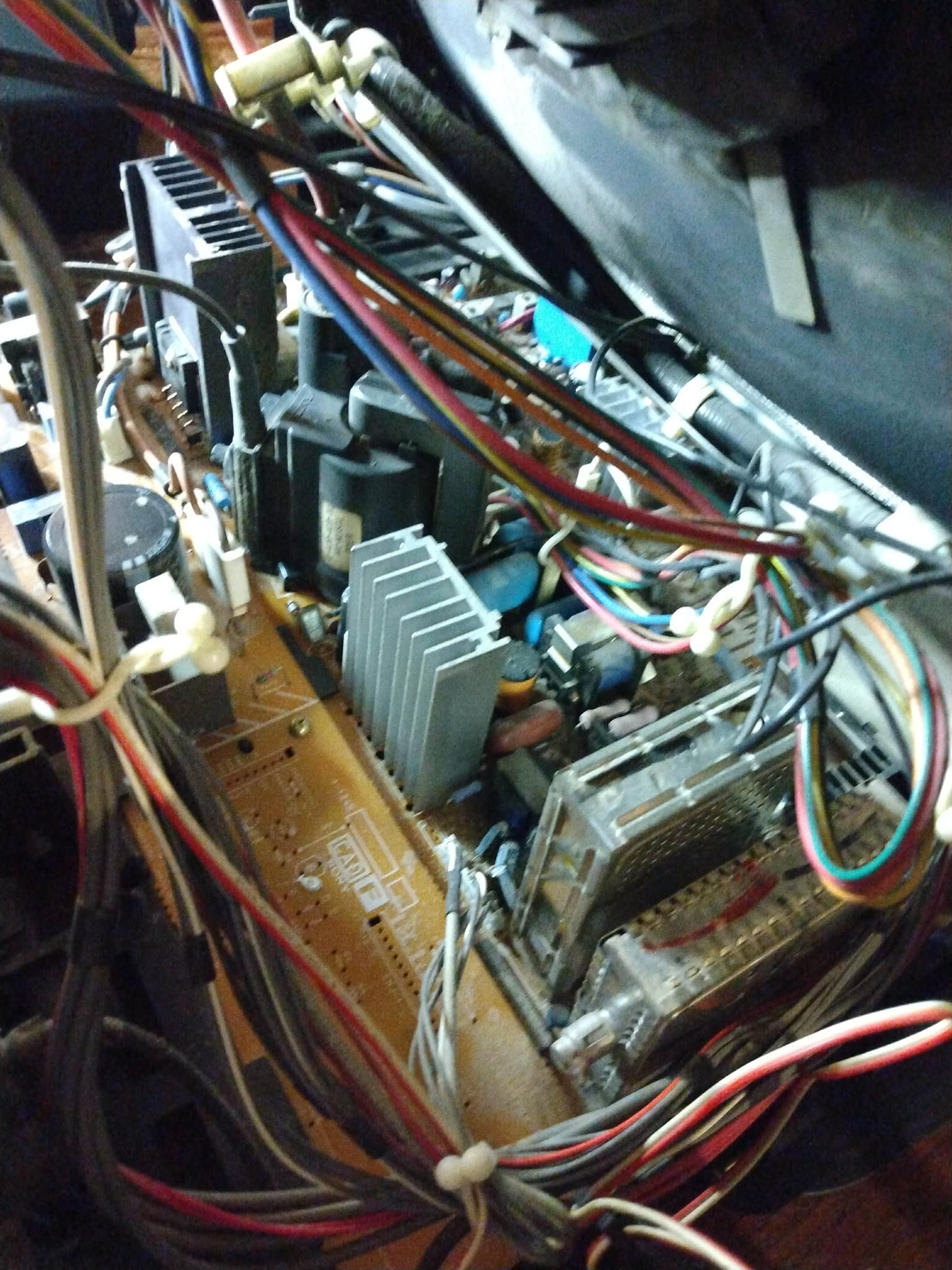

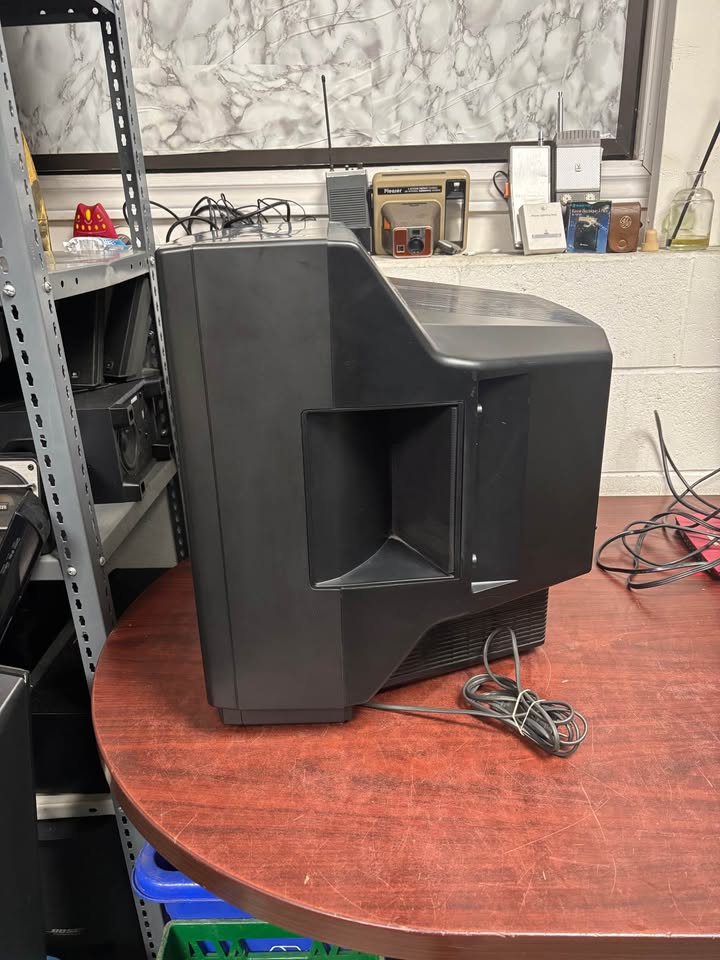

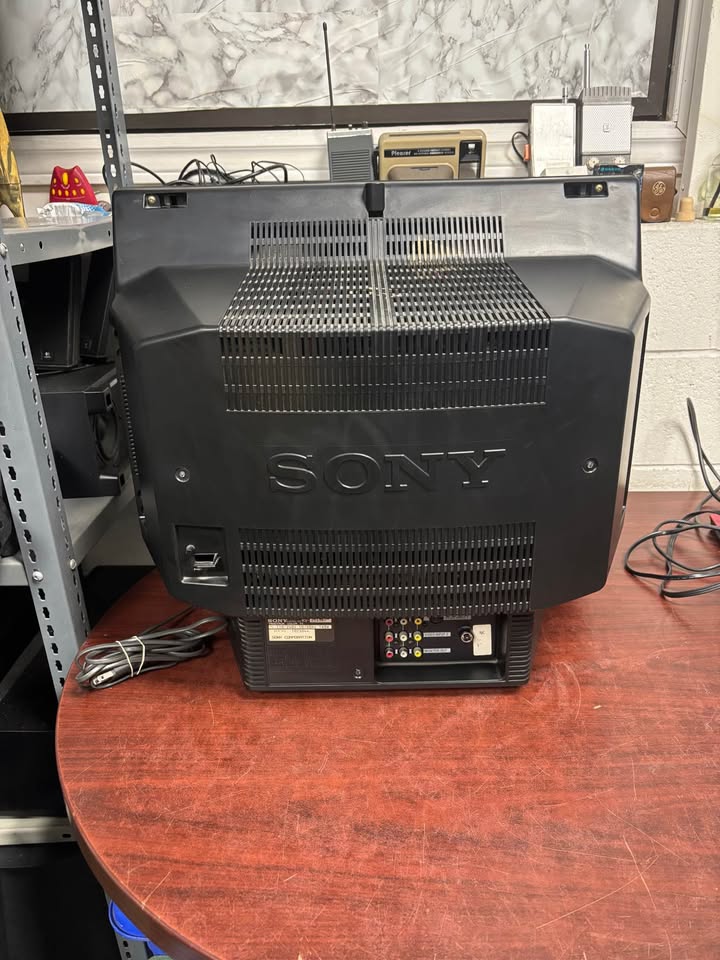

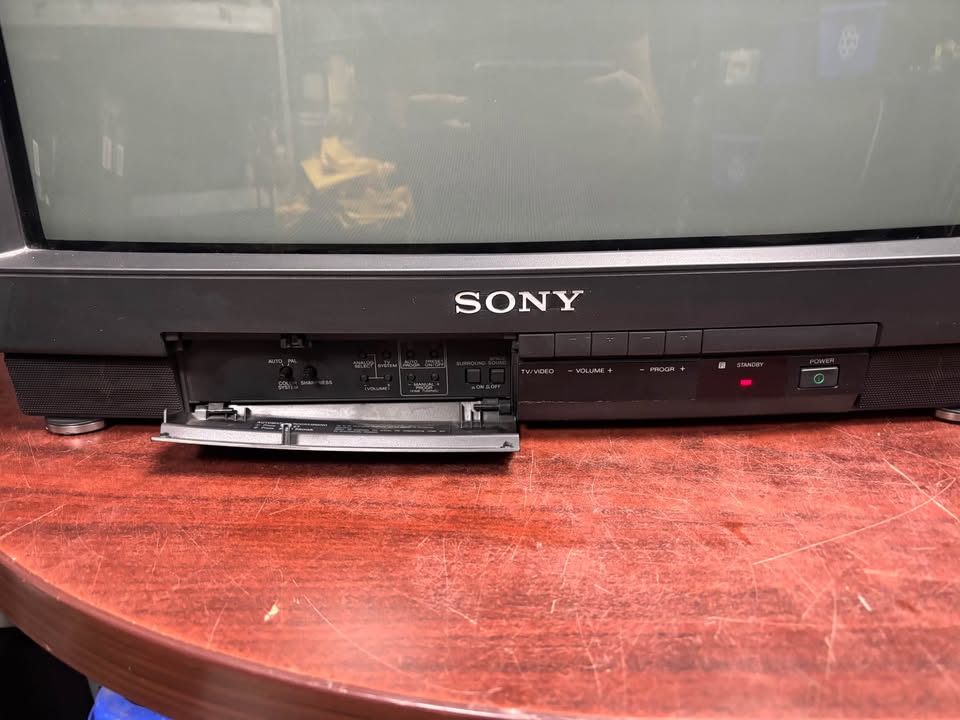

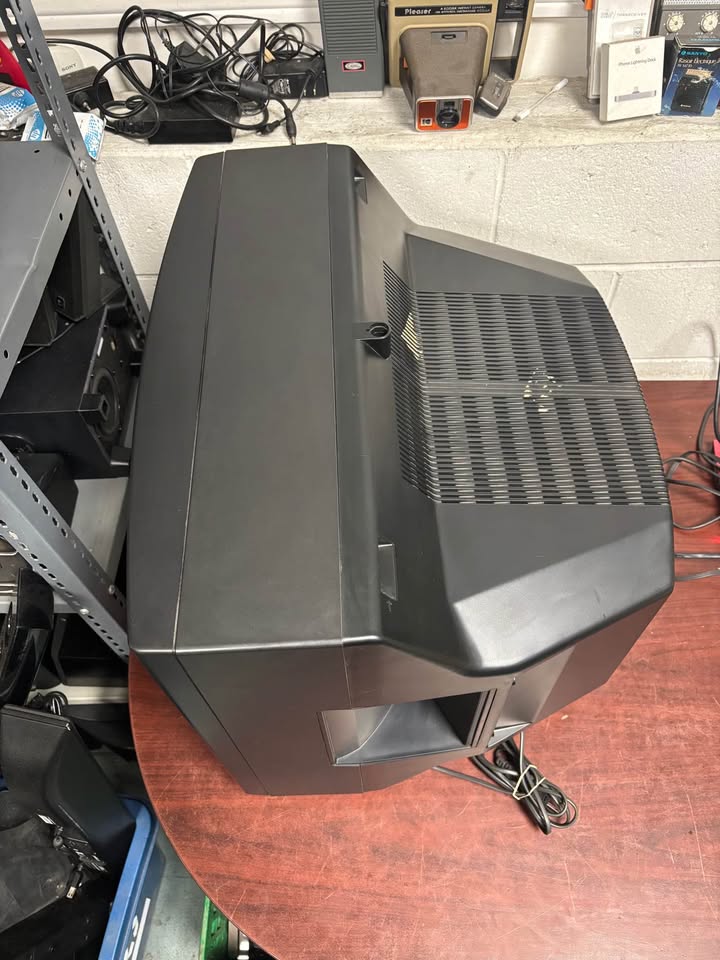

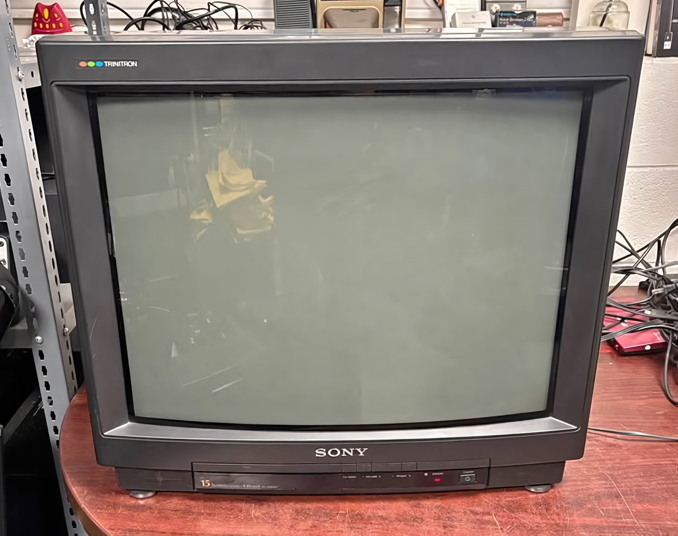

Gallery

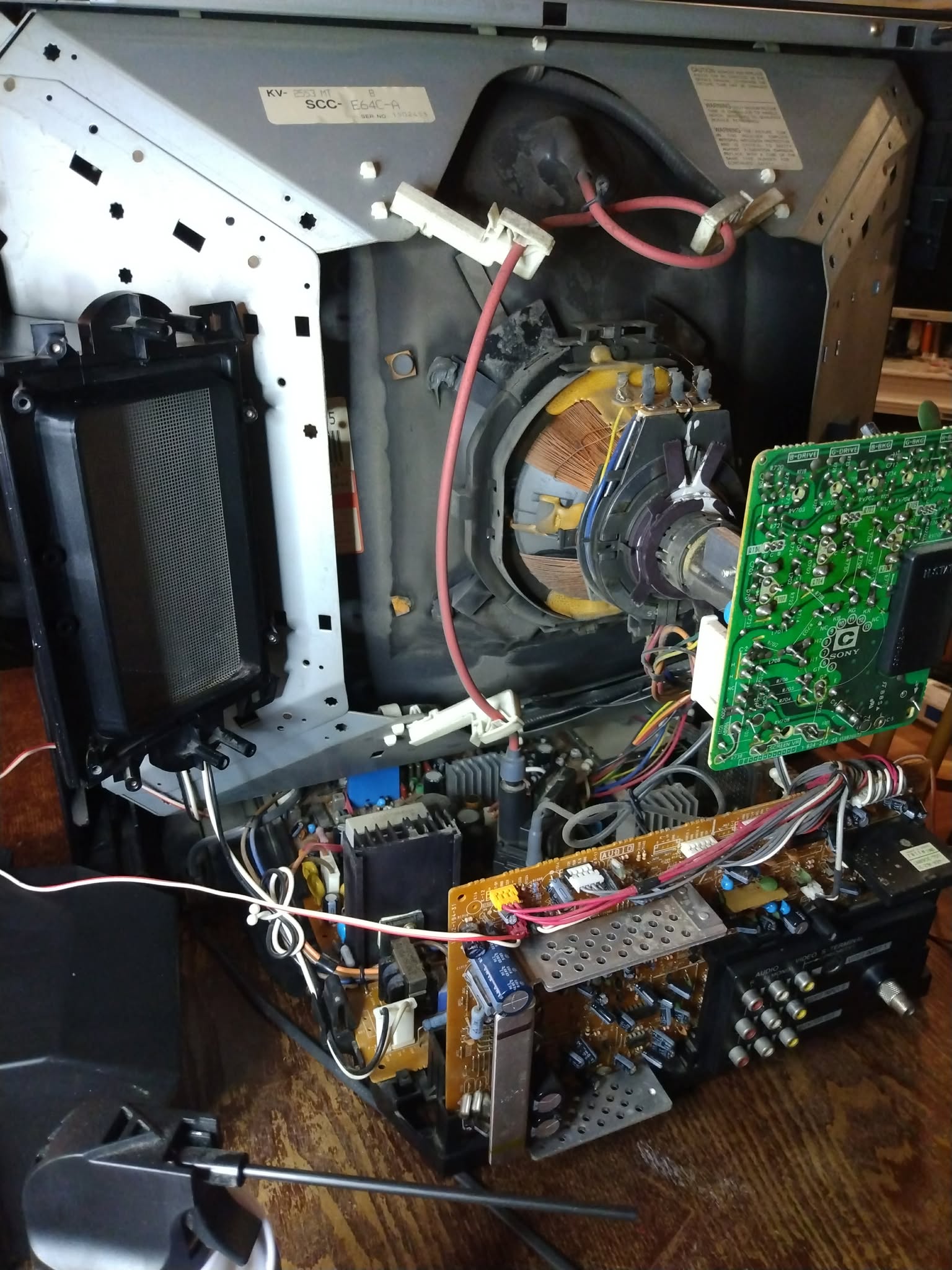

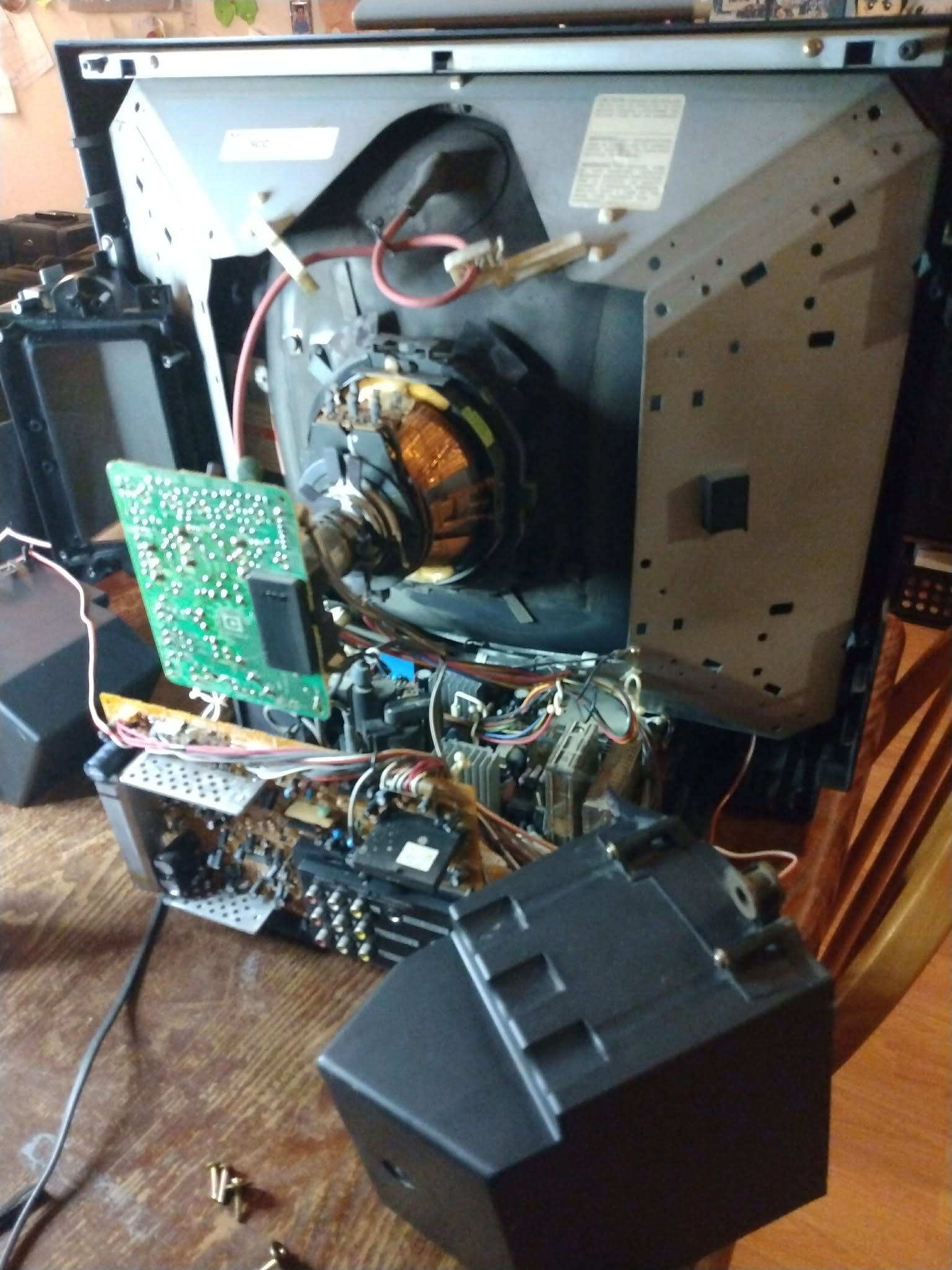

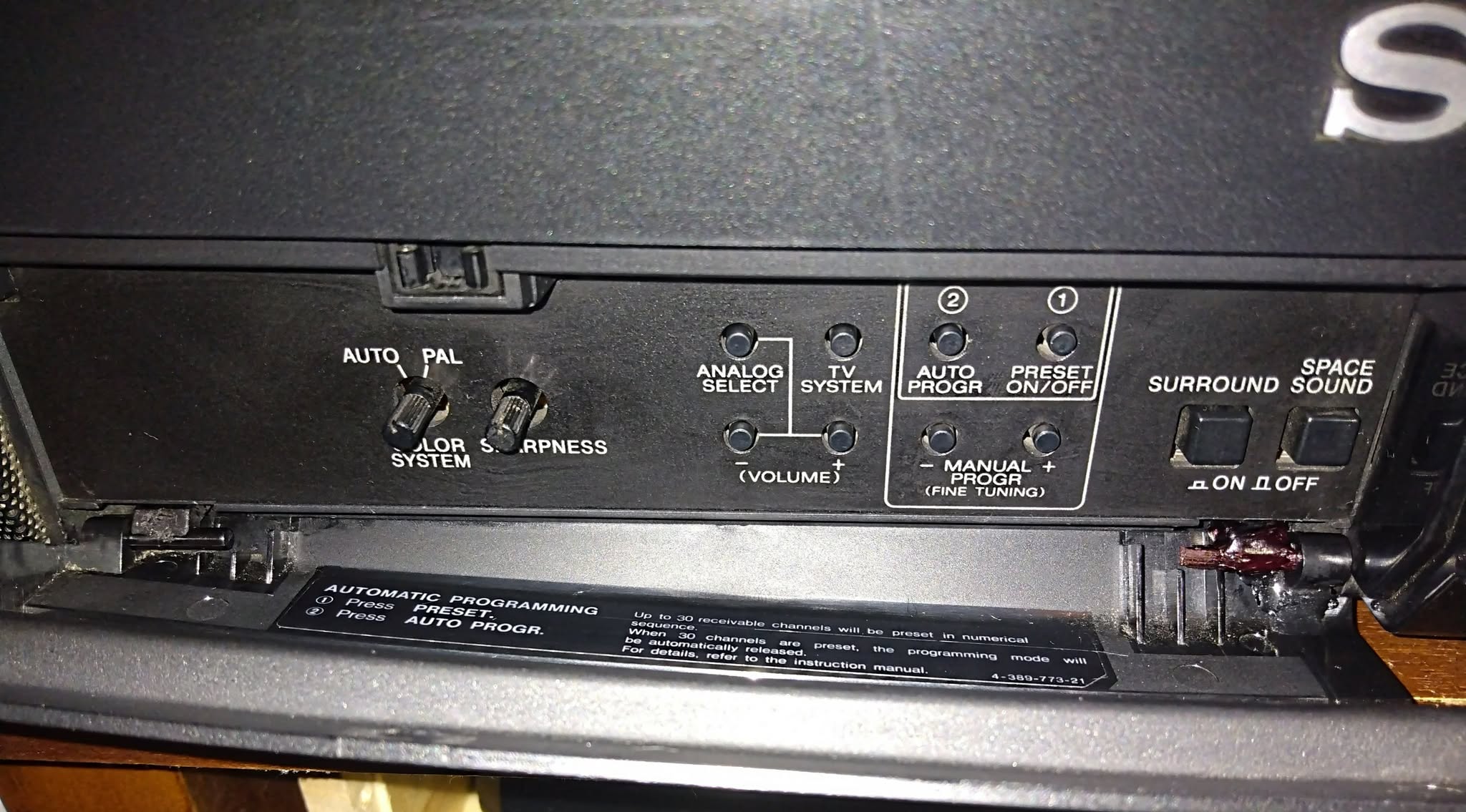

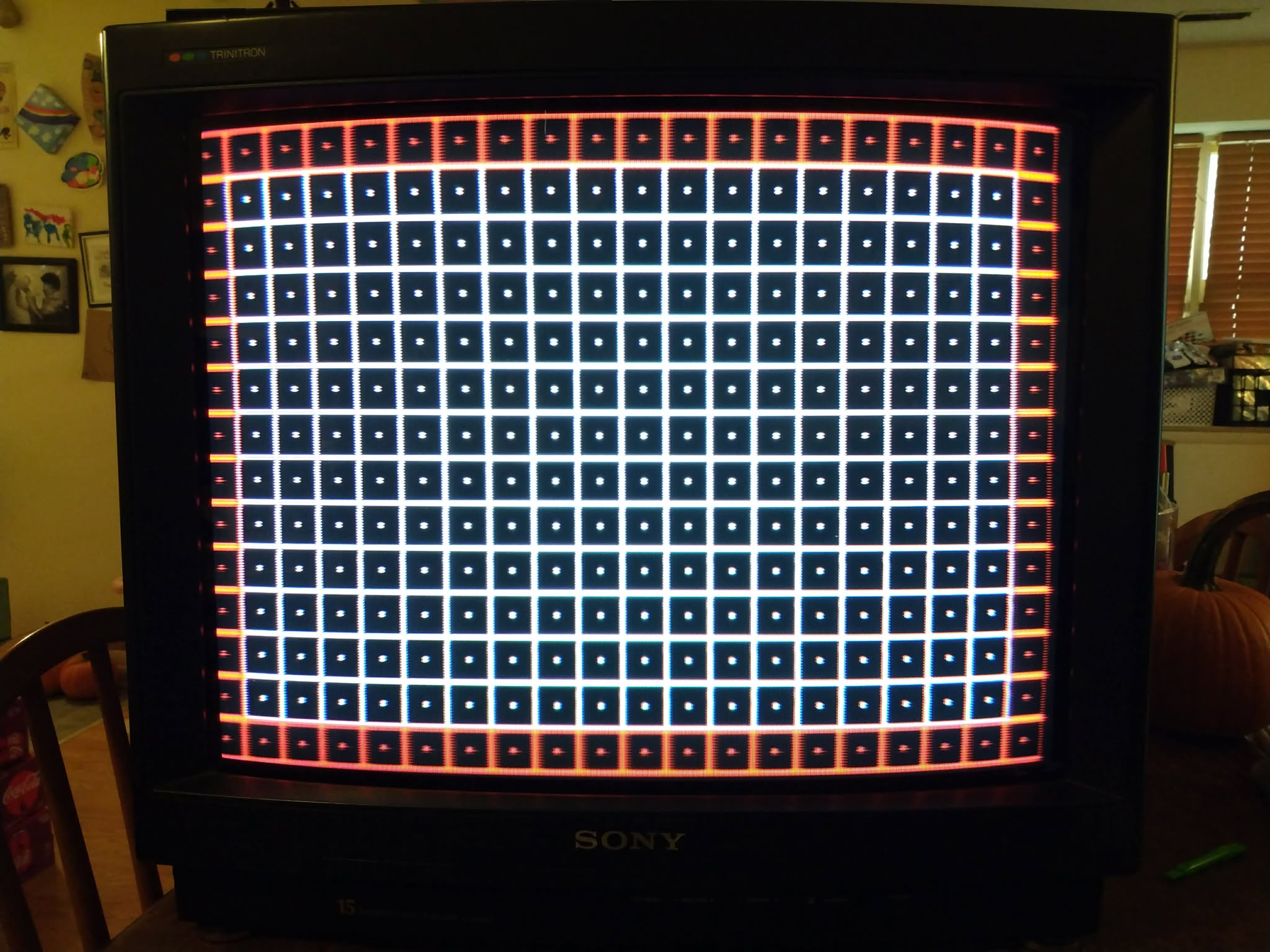

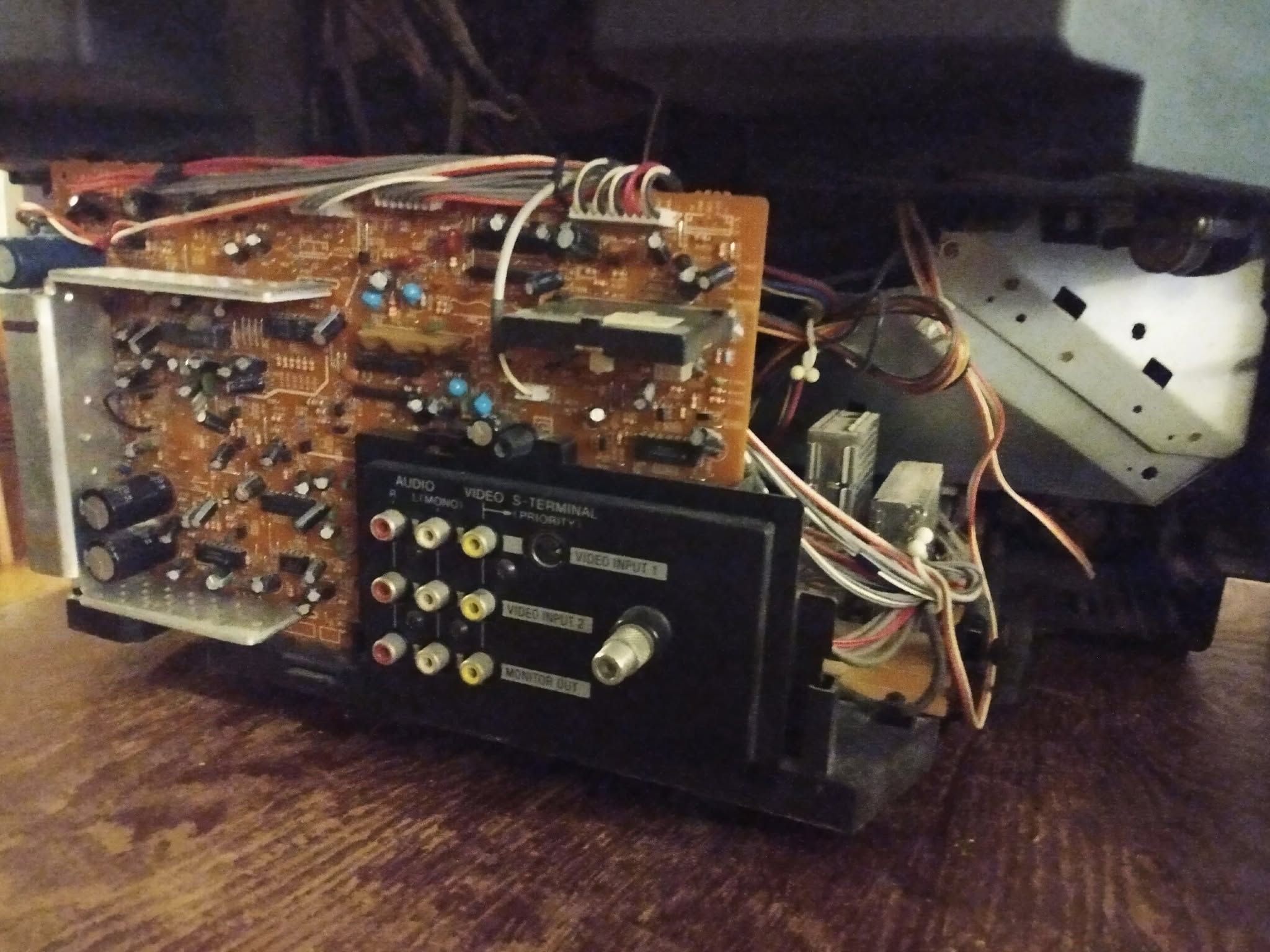

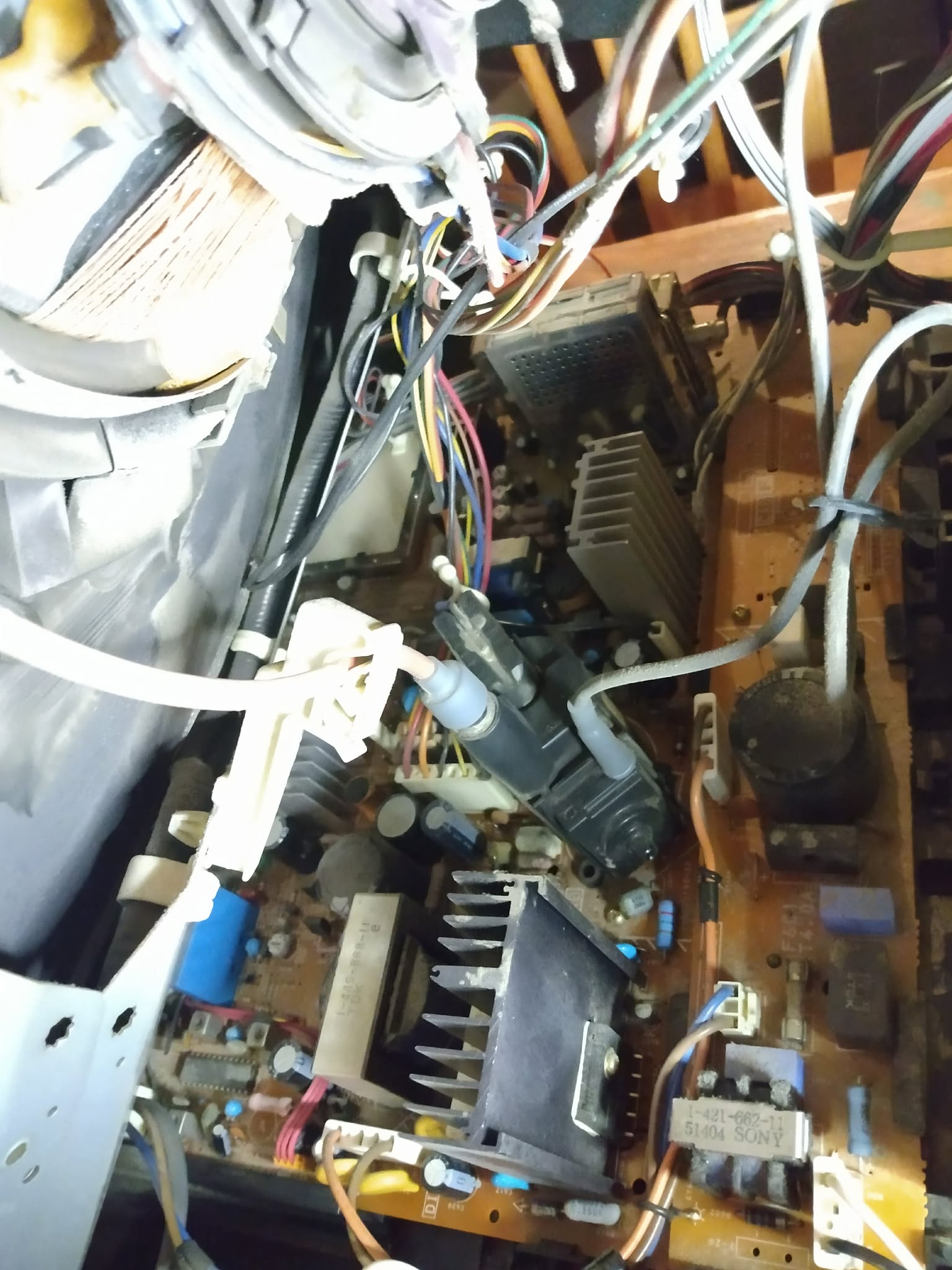

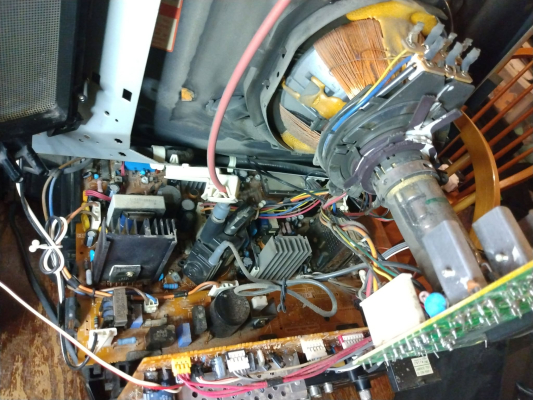

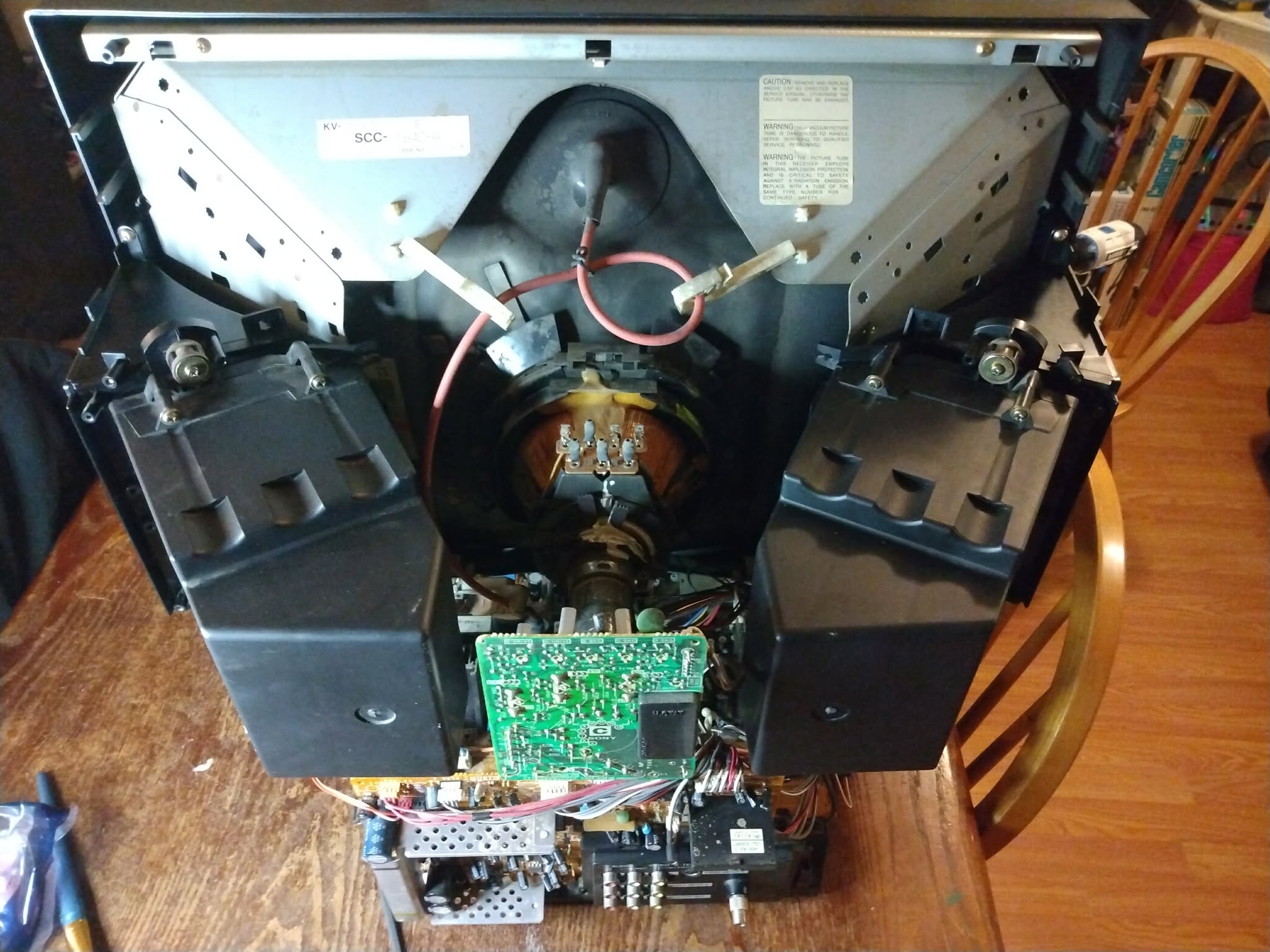

Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT Sony KV-2553MT
Specifications
Brand: Sony
Manufacturer: Sony
Model: KV-2553MT
Series: KV (International)
Viewable Size: 25"

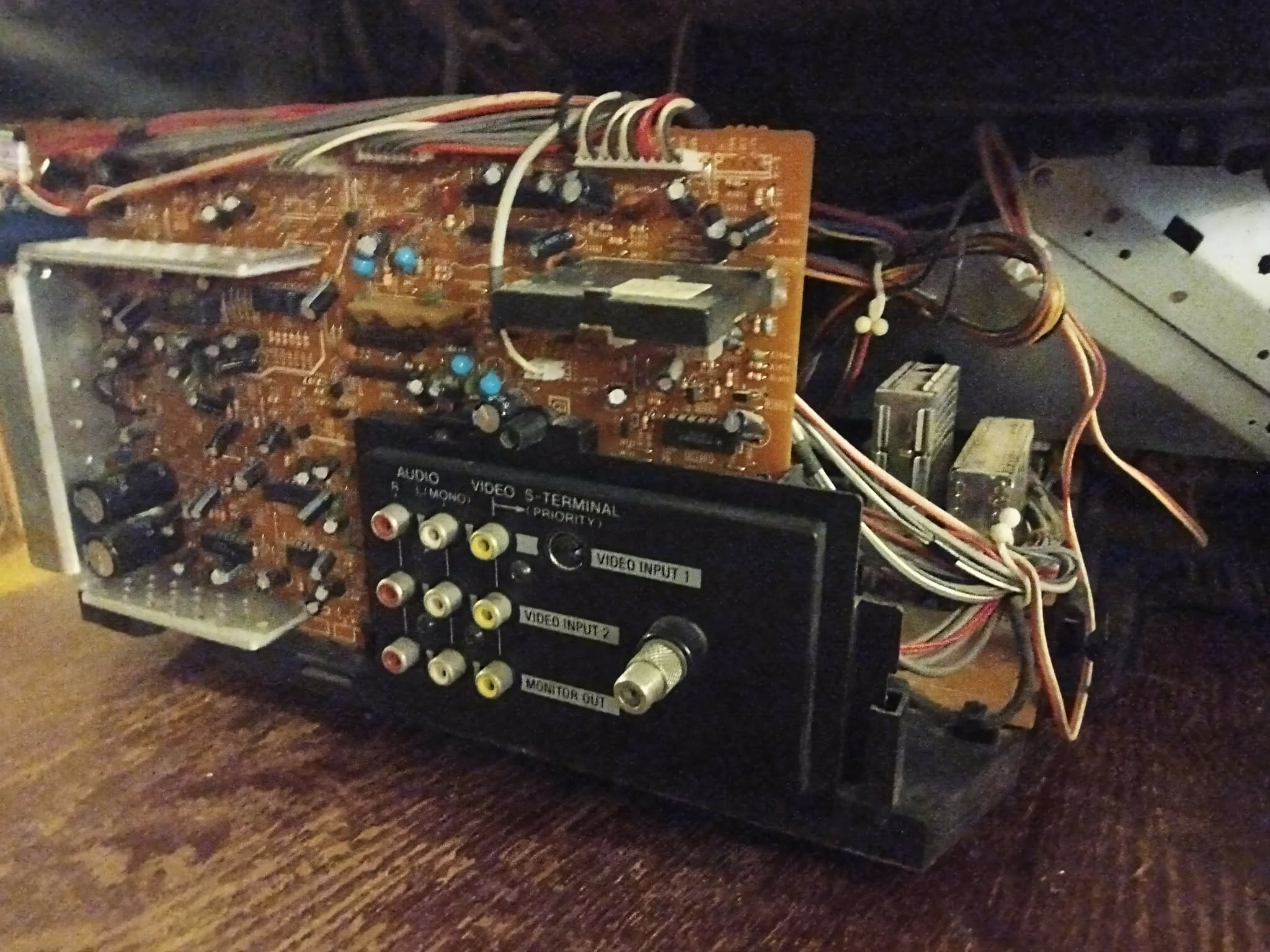

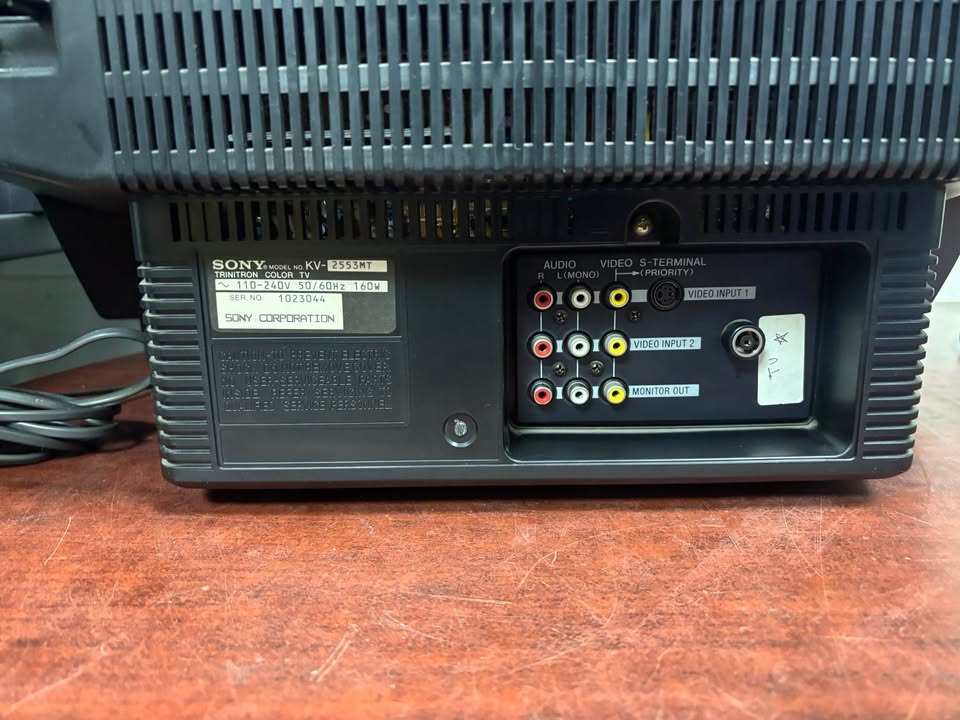

Input Signals: Composite, S-Video, RF
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC, PAL, NTSC4.43
Aspect: 4:3
Adjustments: Internal Potentiometers, OSD Customer Controls
Jungle IC: Sony, CXA1213S
Focus Type: Single
Tube: Sony Trinitron , A59JWB10X
Heater Voltage: 6.3v
Mask: Aperture Grille
Tint: Dark

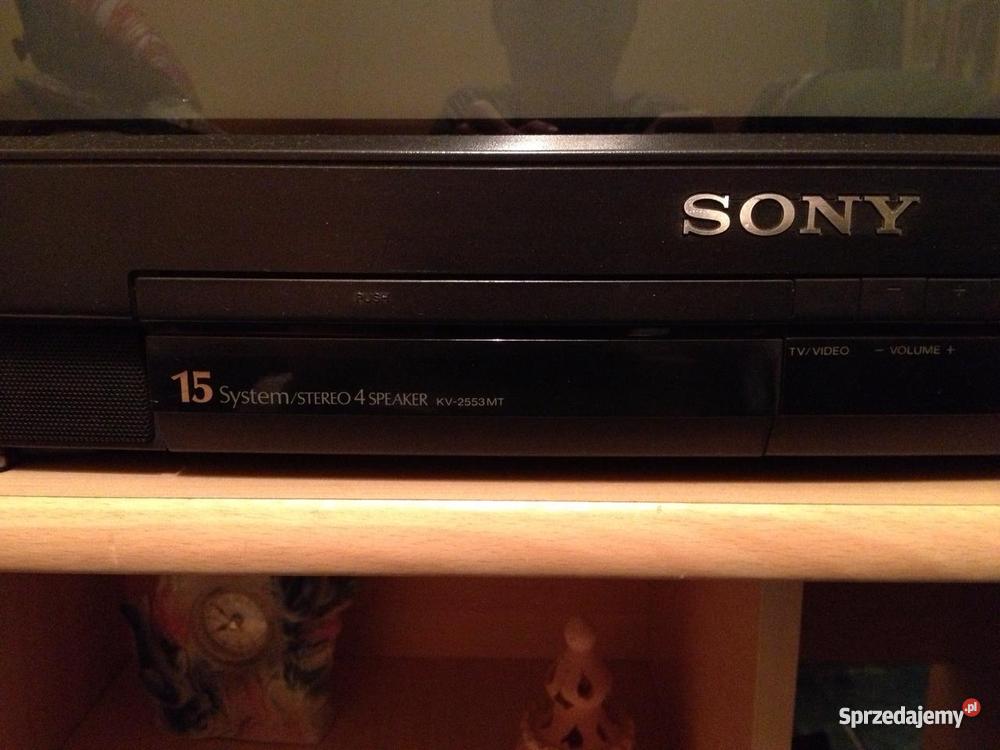

Speakers: Stereo
Remote: RM-687C
Chassis: SCC-D06L
Application: Consumer
Cabinet Material: Plastic
Launched: 1990
Market: North America
Power Standard: Universal
Mounting: Table Surface (Standard)
Degaussing: Automatic on Power-on
Tag: Needs Owners Manual, Needs Measurements
