Summary

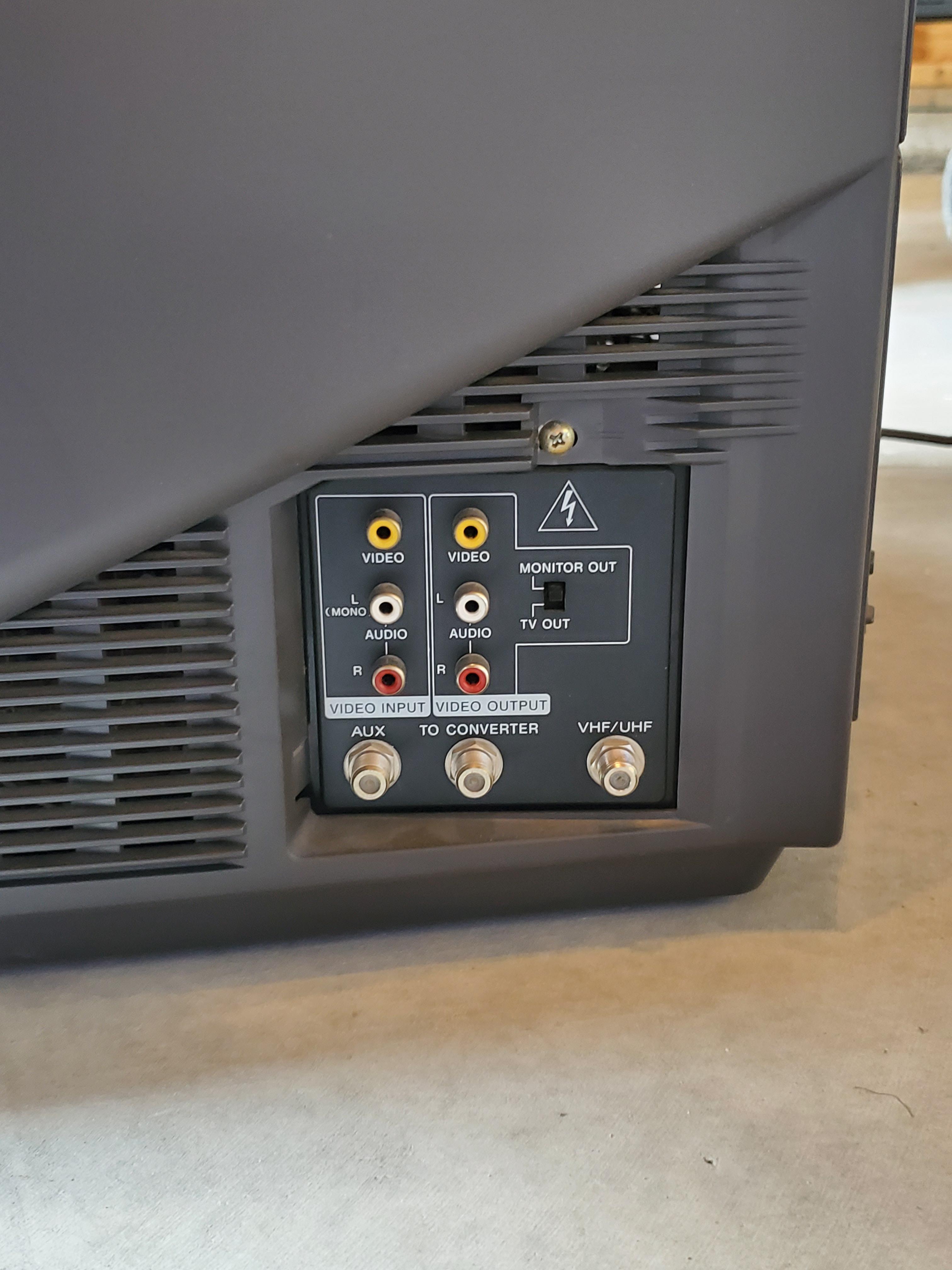

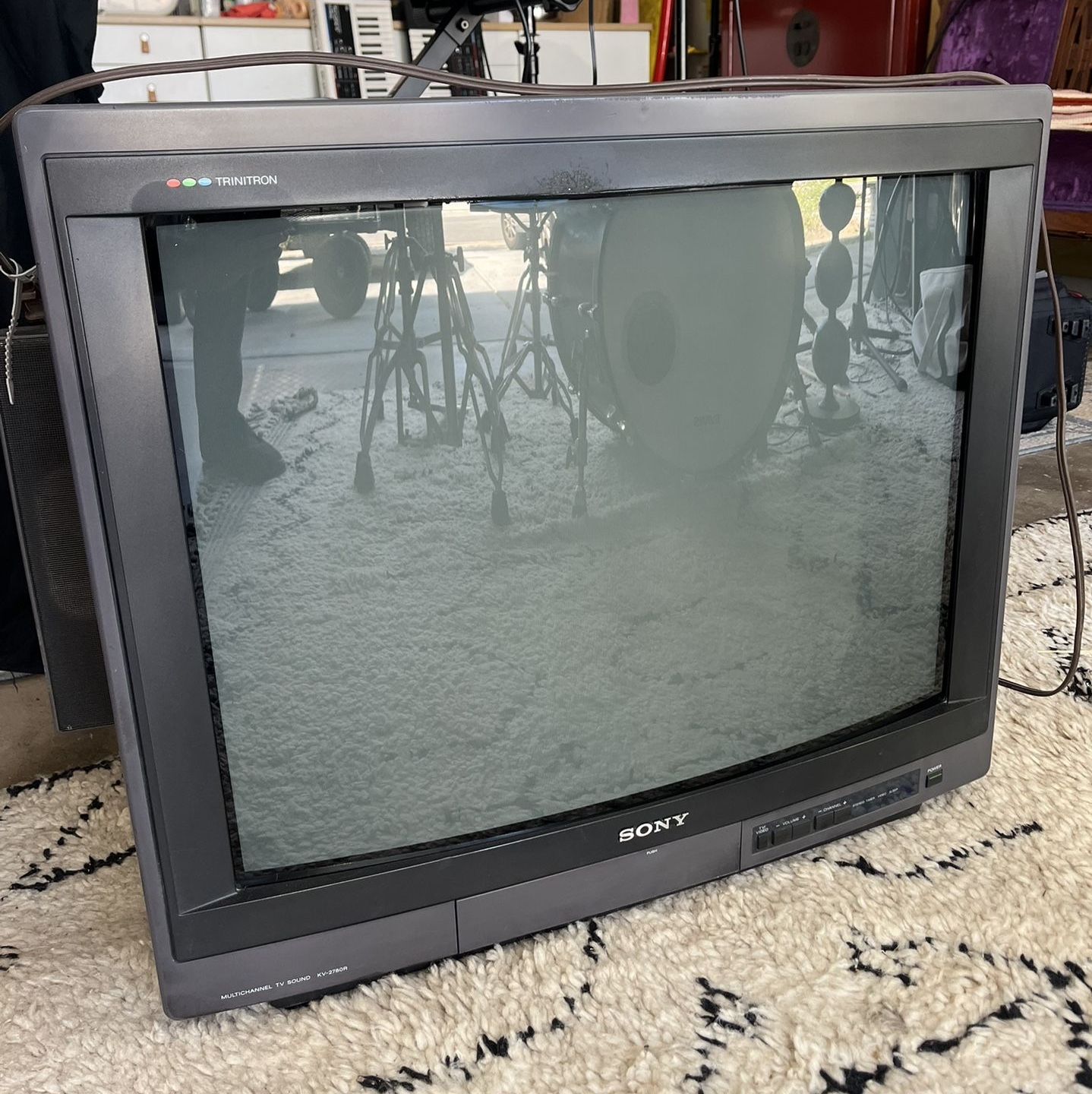

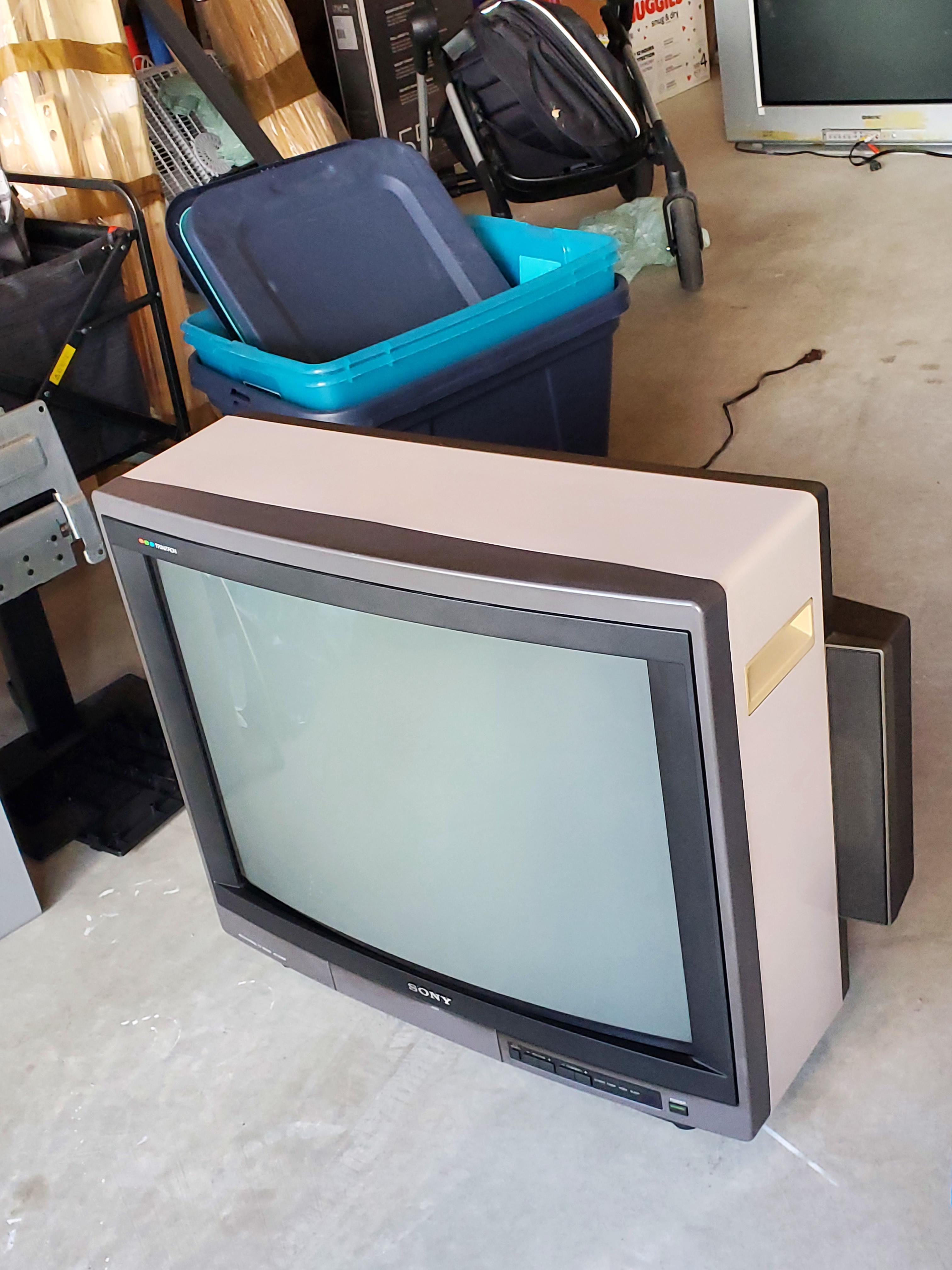

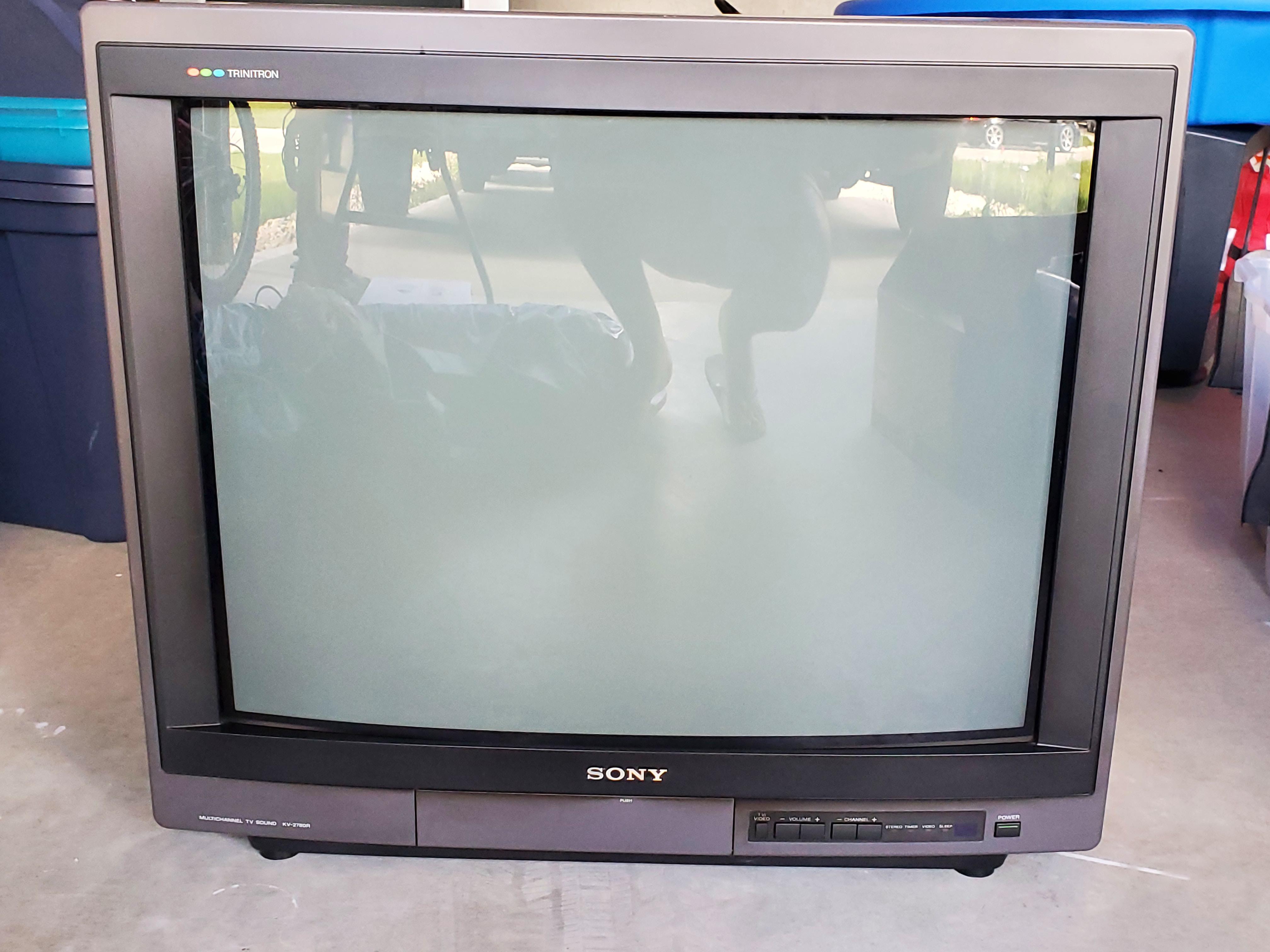

A premium late-80s Trinitron notable for its PVM-grey colorway, forward-facing stereo speakers, and "MONITOR OUT" video passthrough. Launched in 1987, made in the USA.
Manuals
- Owner's Manual
- Sony KV-2725R, KV-2726R, KV-2728R, KV-2729R (P3 Chassis) Sam's Photofact (Closest equivalent)
Notes

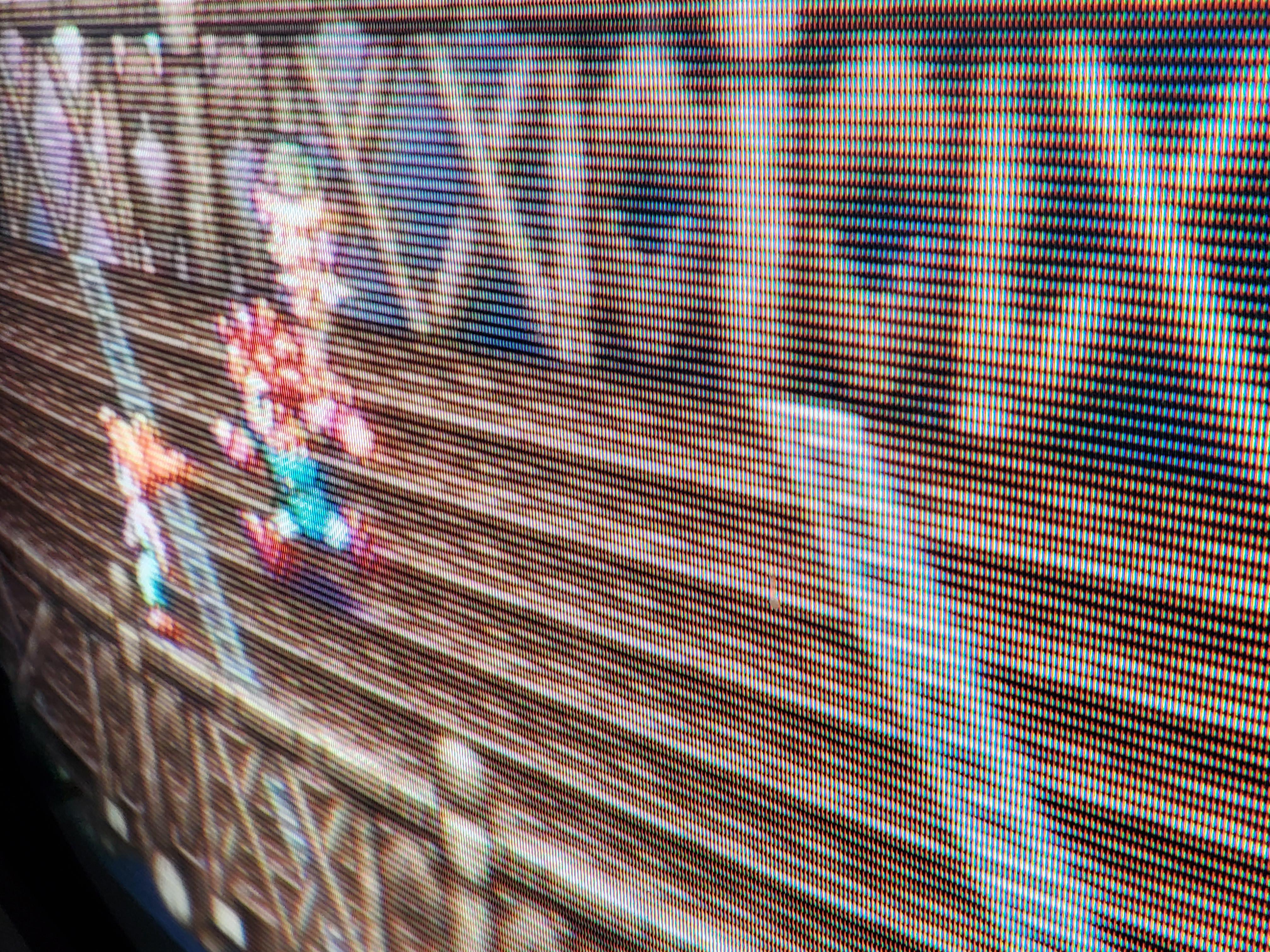

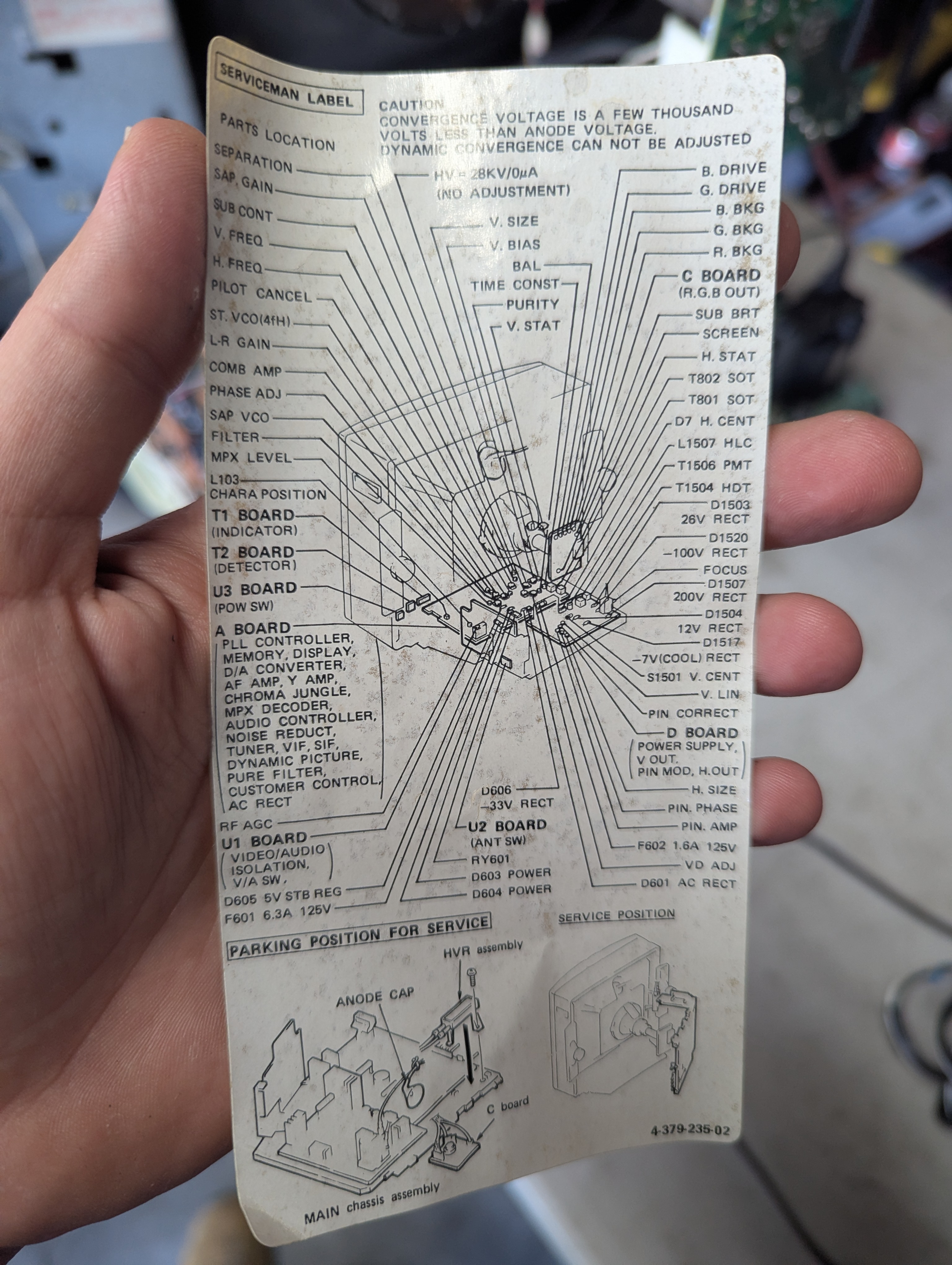

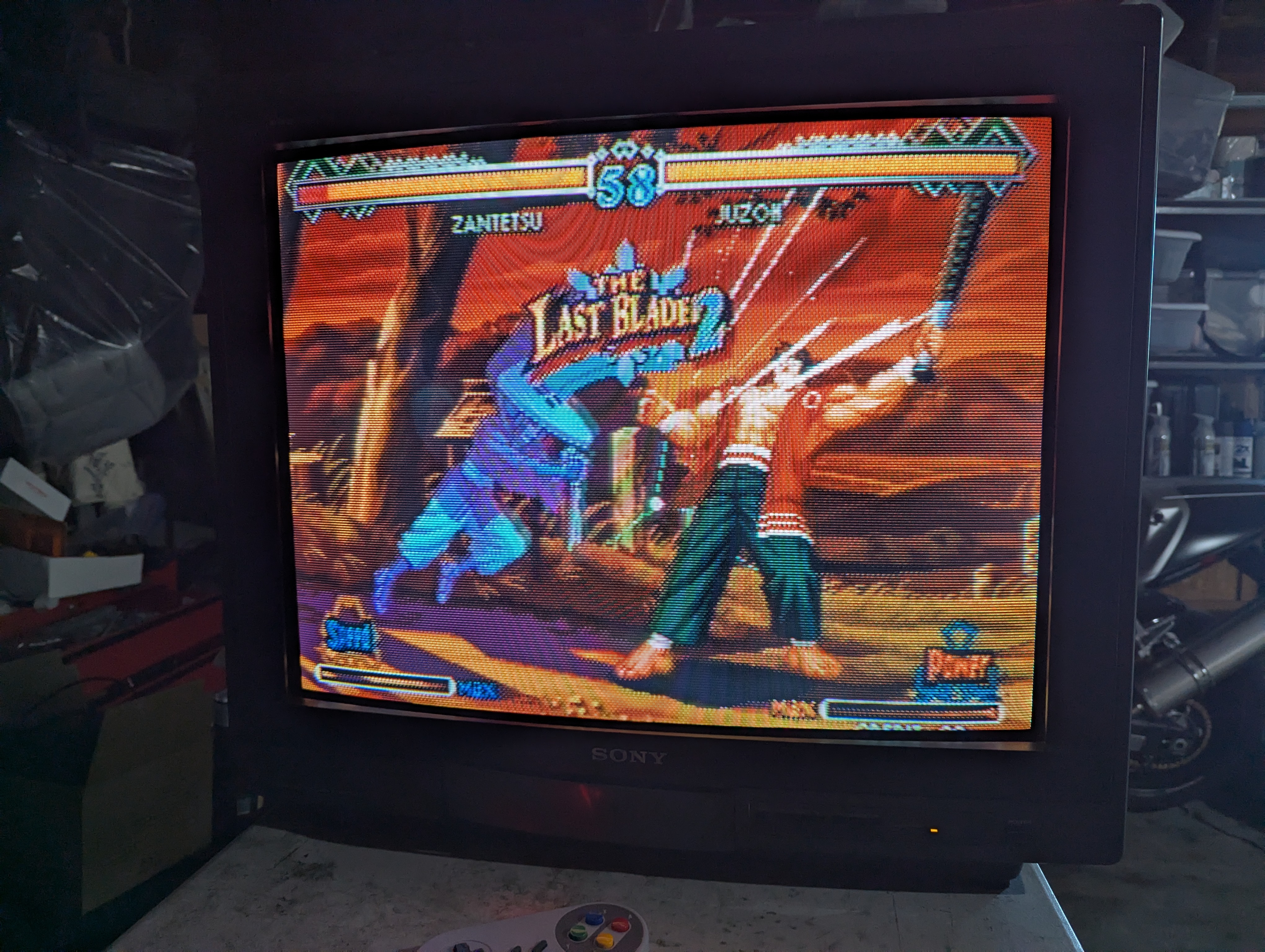

I'm not sure if it was just a problem with my unit, but this had one of the worst composite dot artifacting I've ever seen on a CRT. There is a pot for "COMB AMP" on the board that might help, but I could not safely access it. I've read this model can be modded for S-video, which would help it a lot.

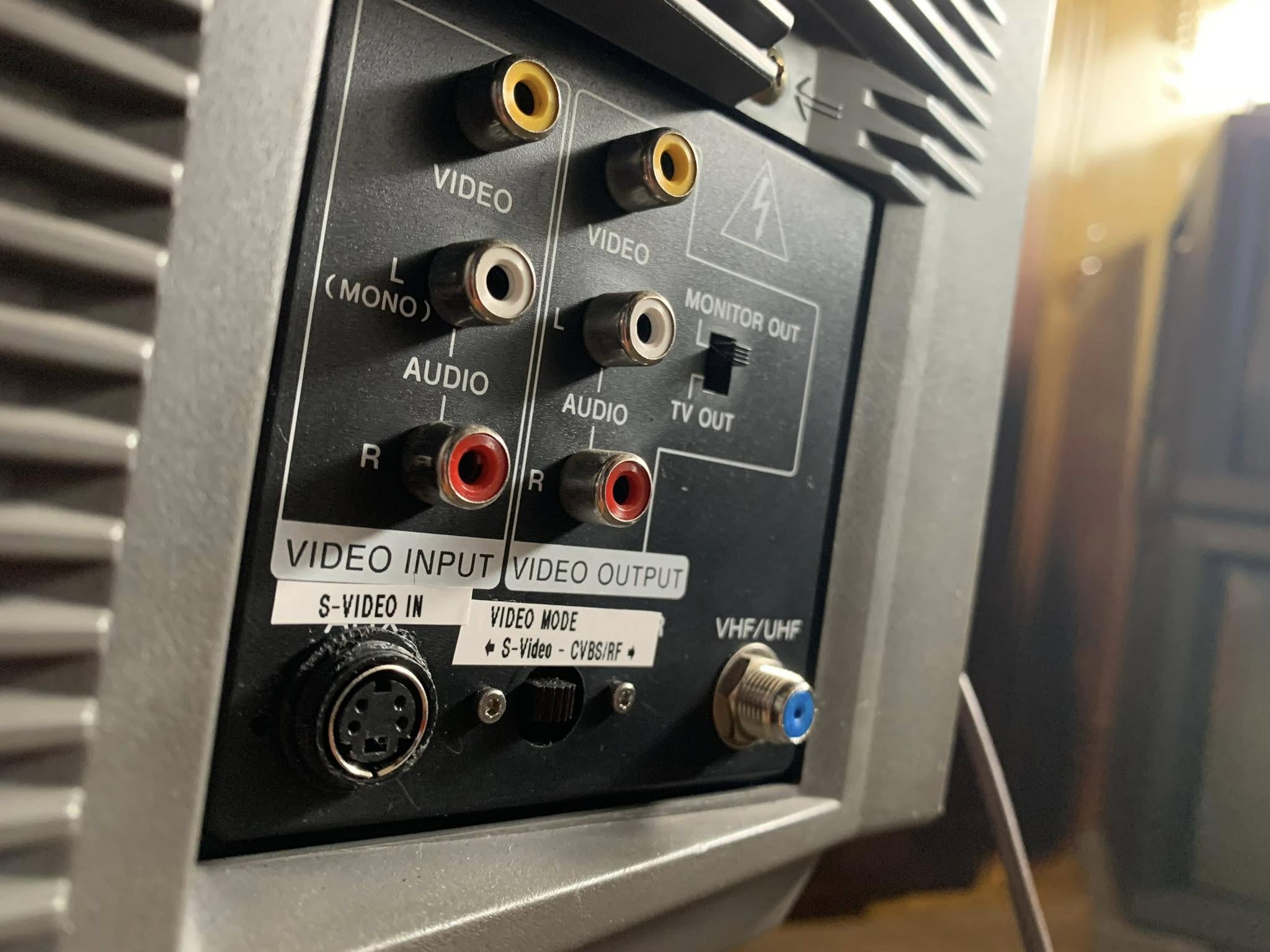

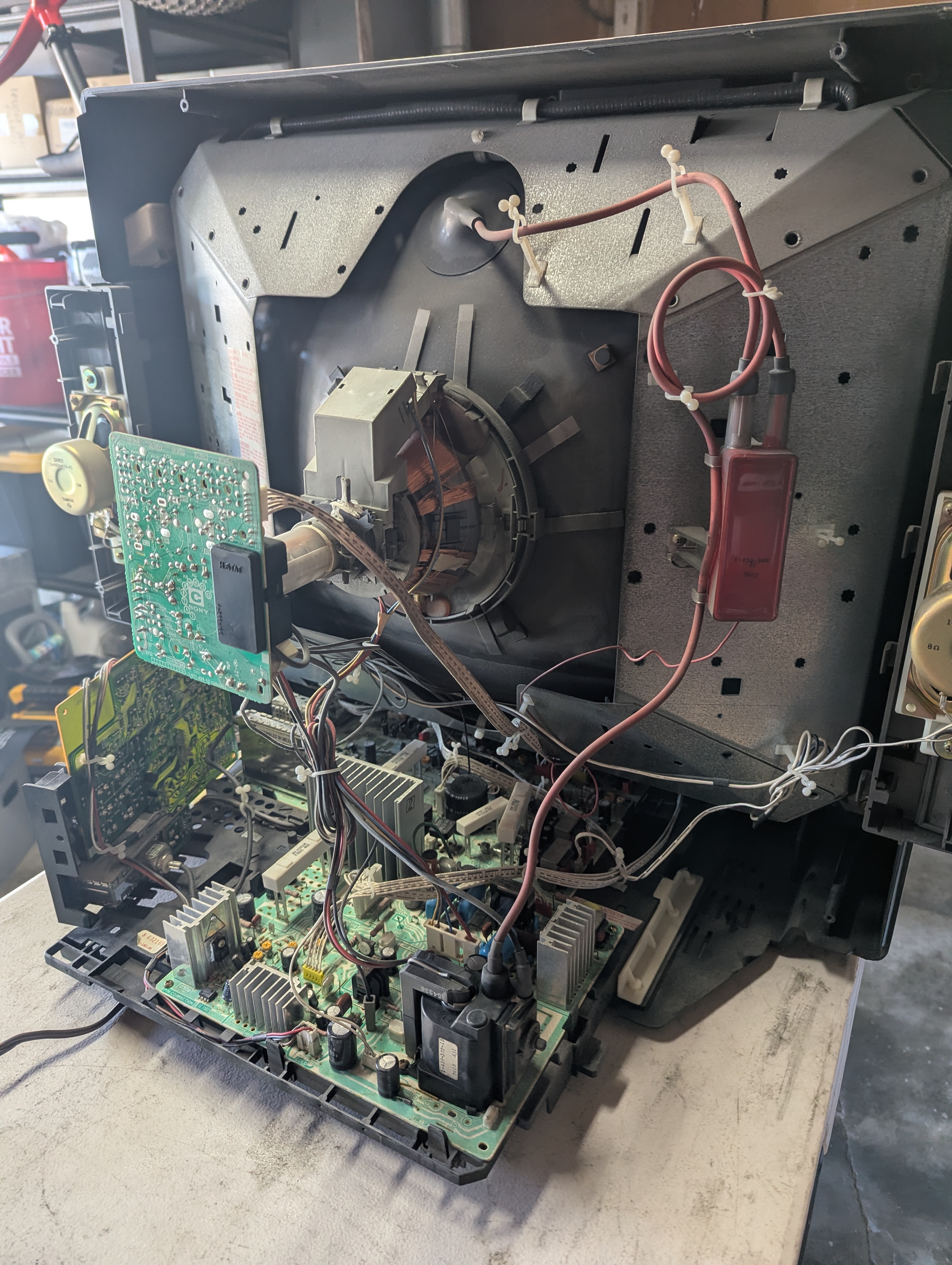

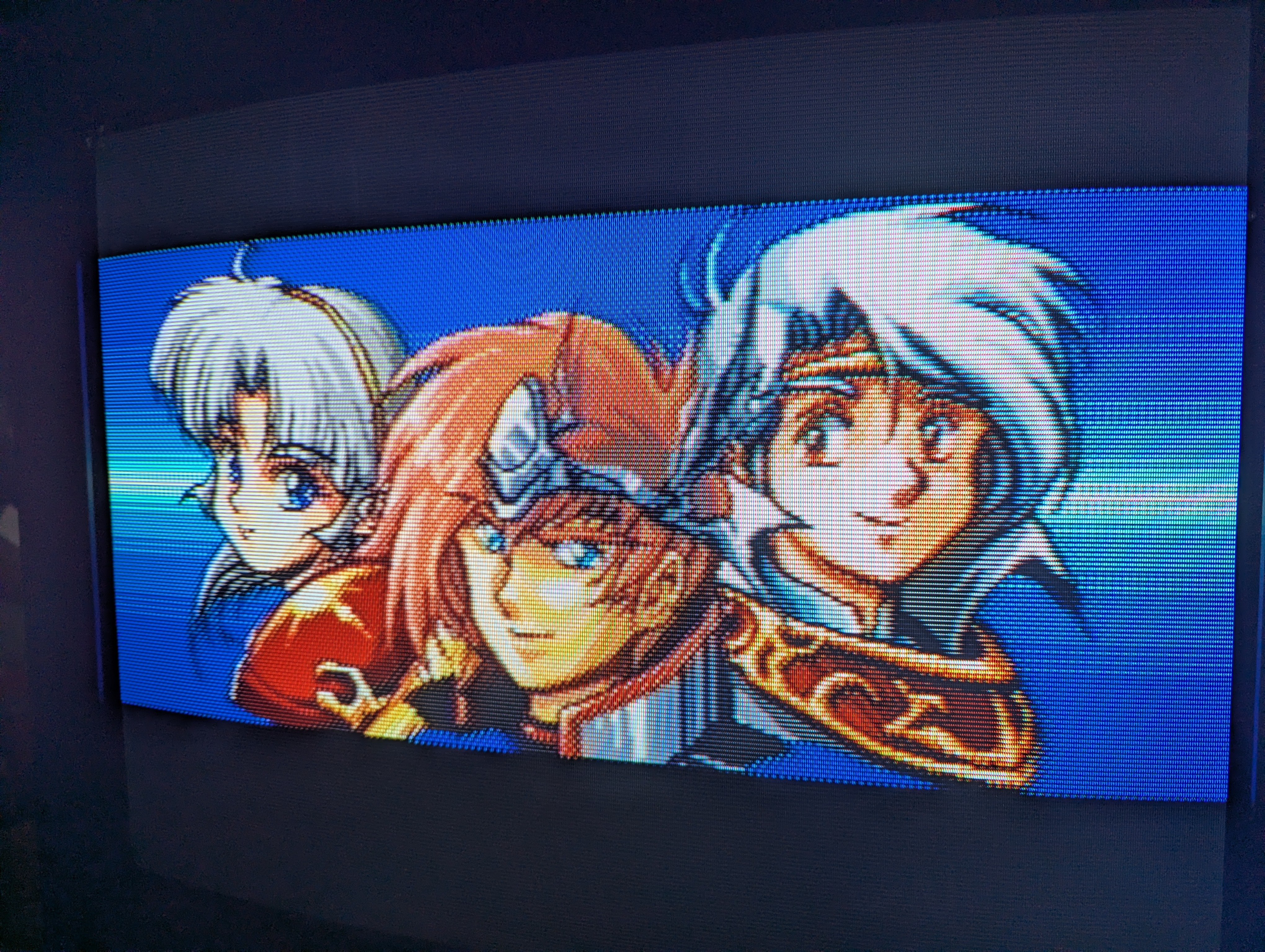

S-video Mod pics:
Mods & Repair Guides

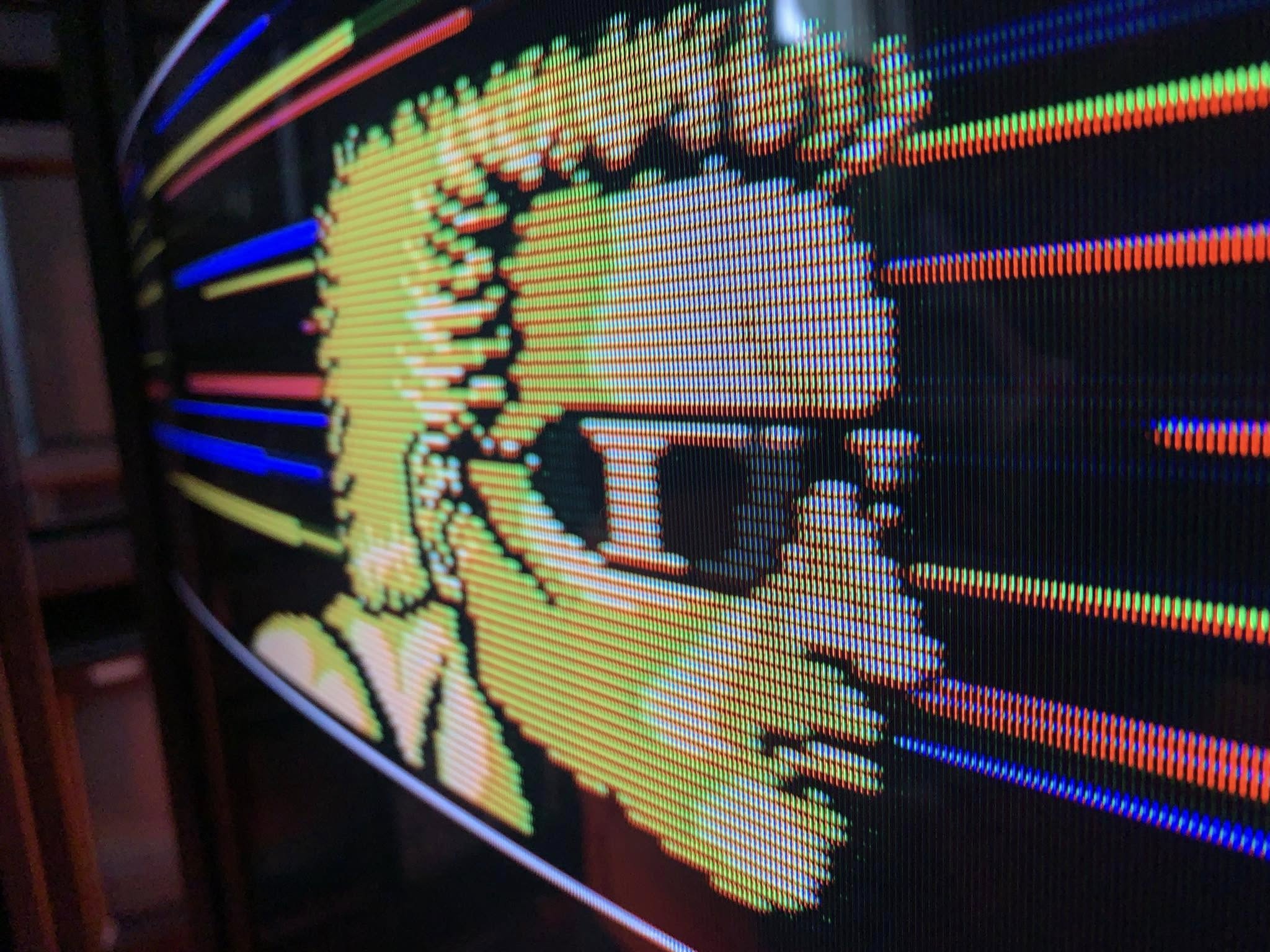

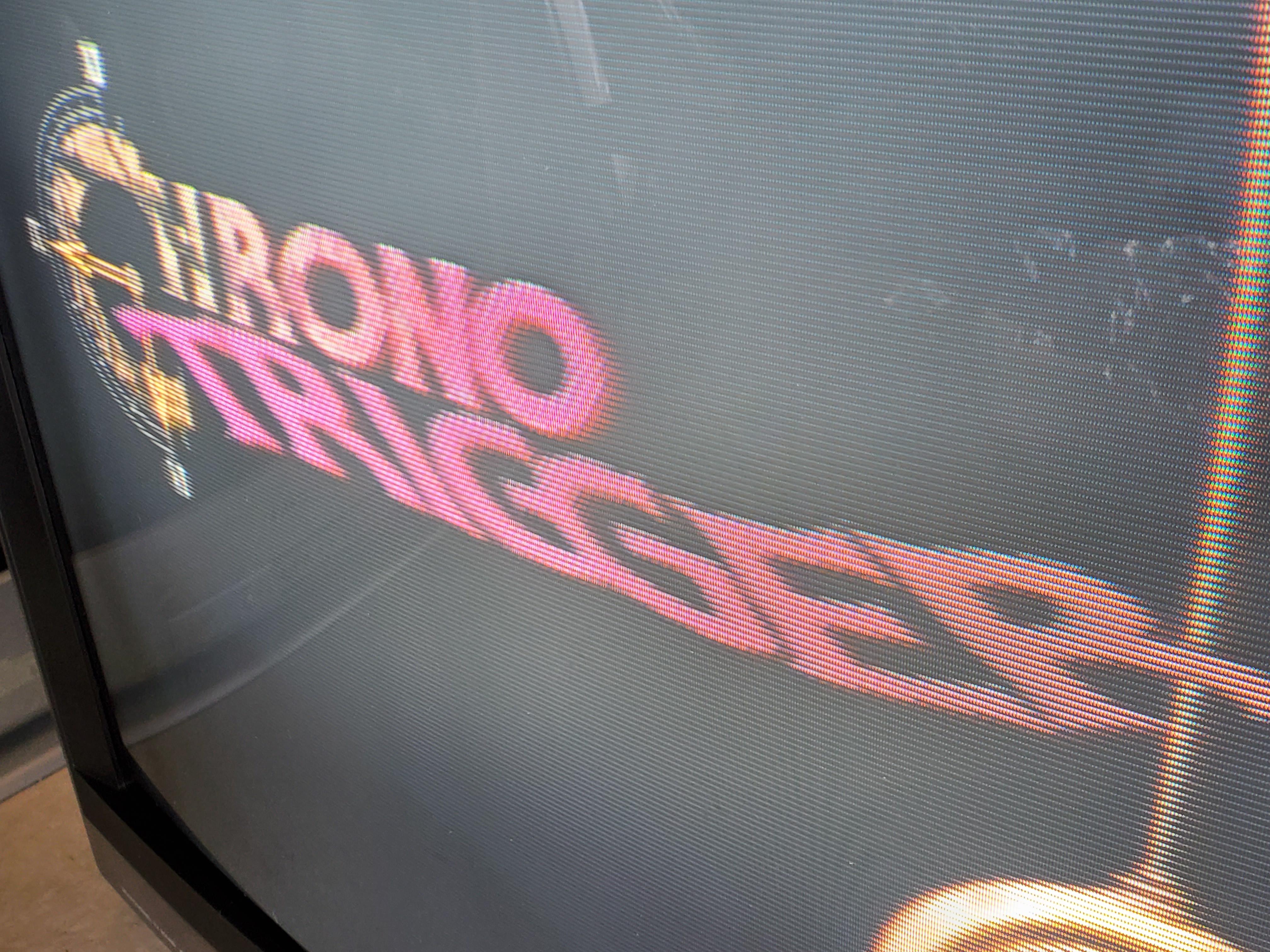

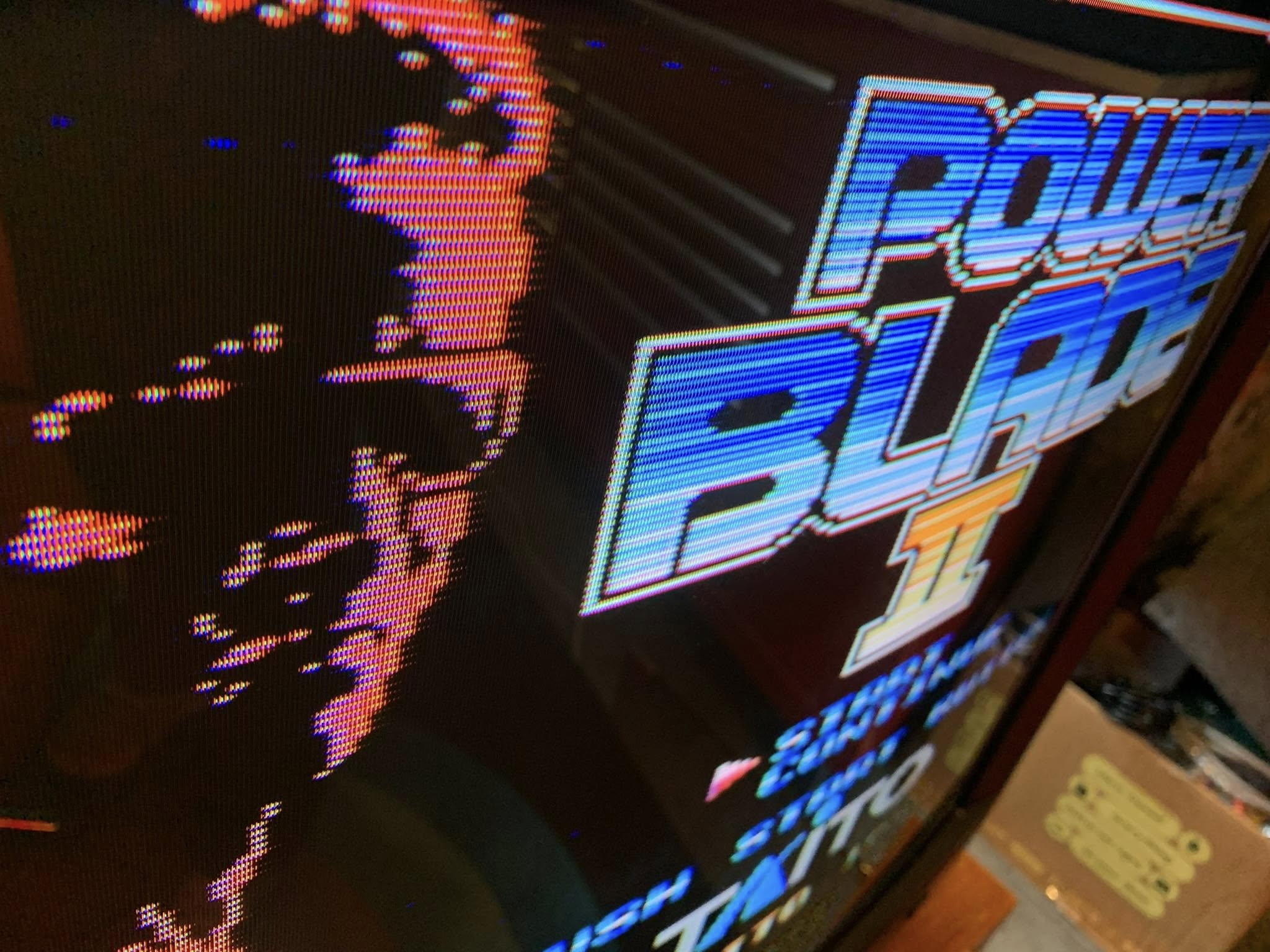

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |

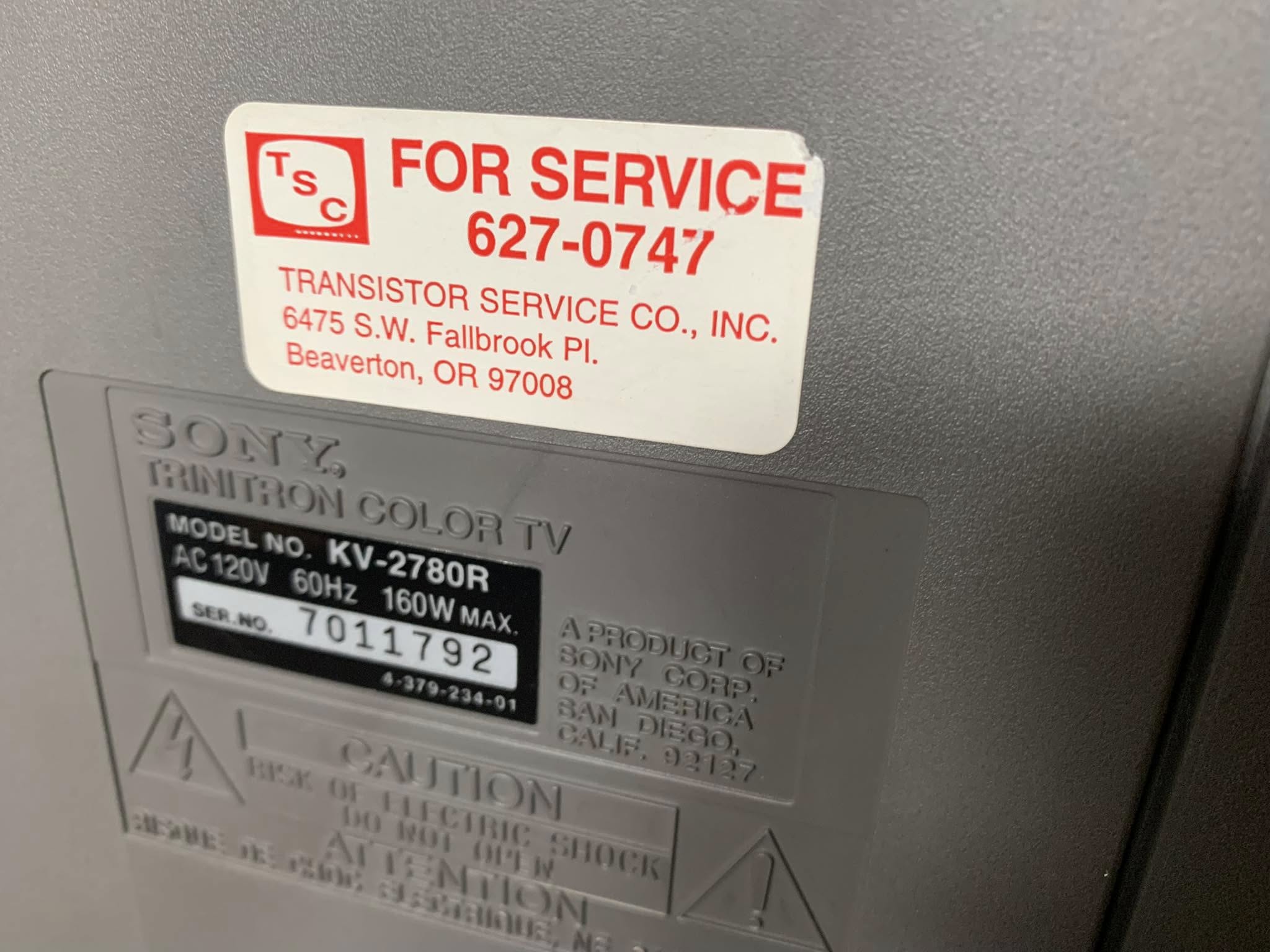

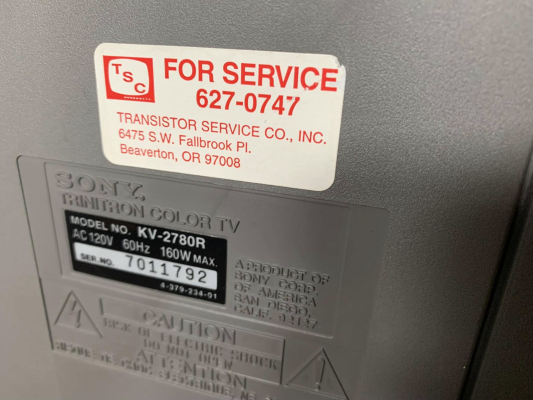

| Model: | KV-2780R |
| Series: | KV |
| Viewable Size: | 27" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

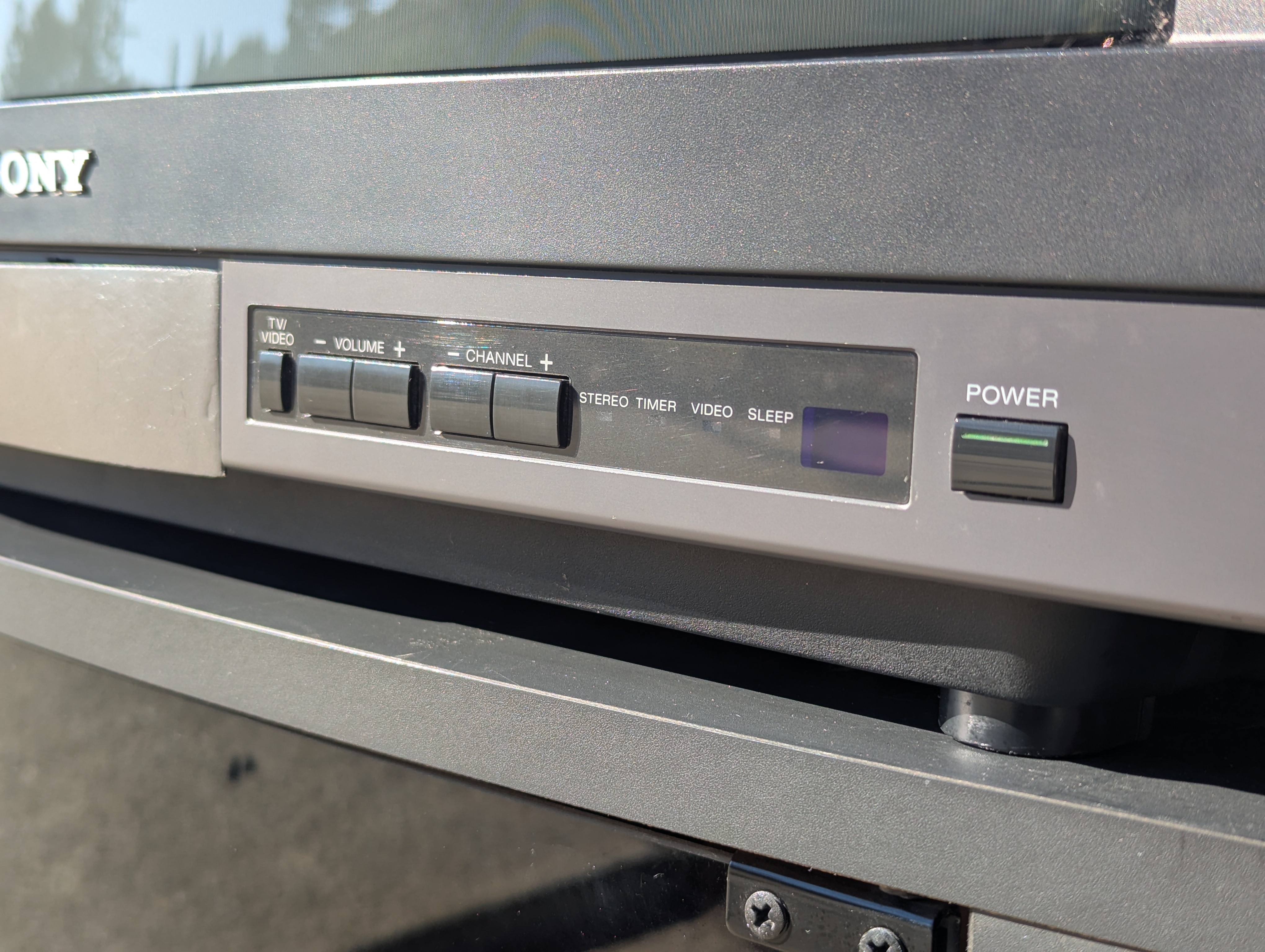

| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
| Jungle IC: | Sony, CX20193 |

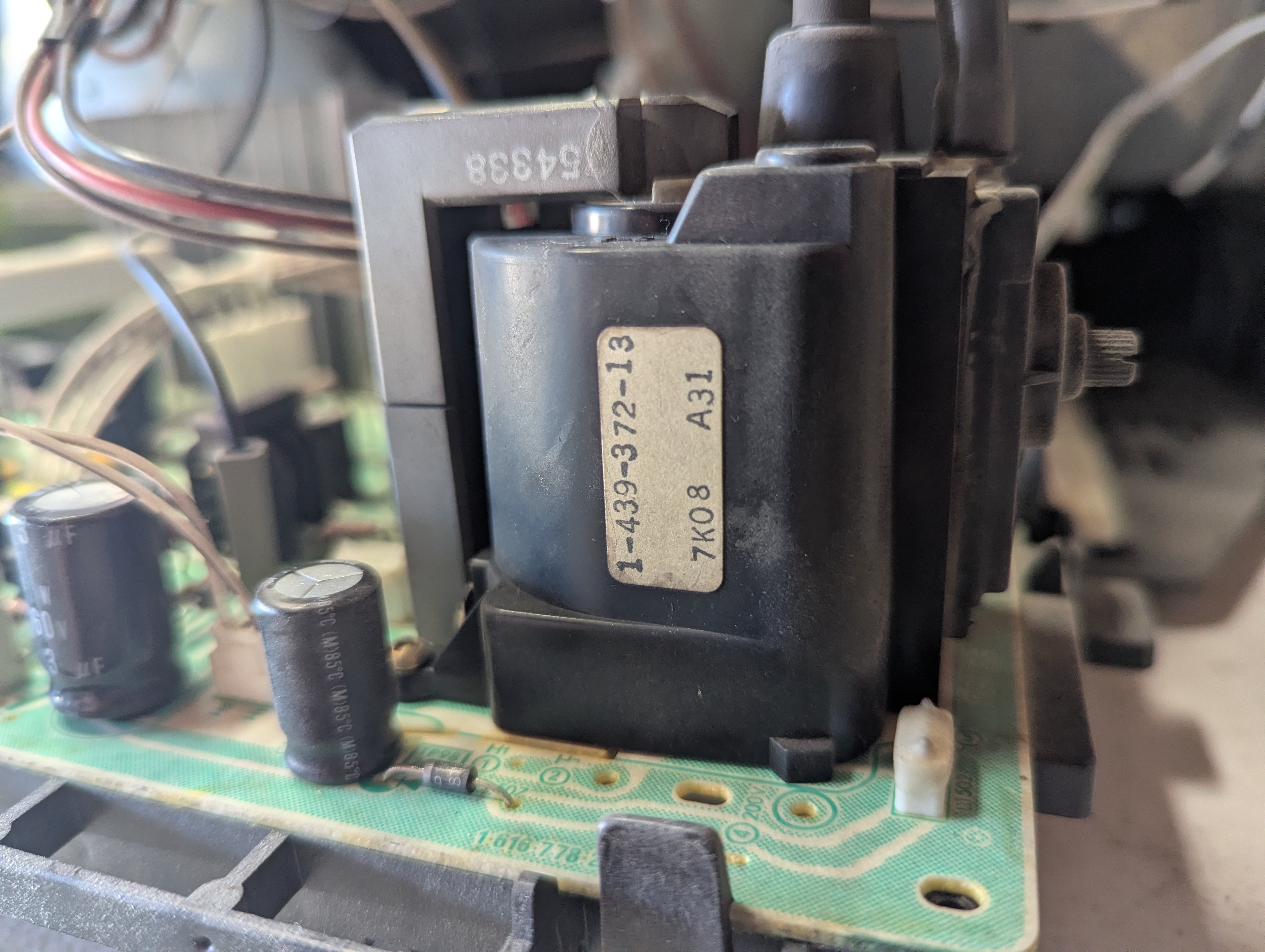

| Flyback: | 1-439-372-13 |
| Focus Type: | Single |

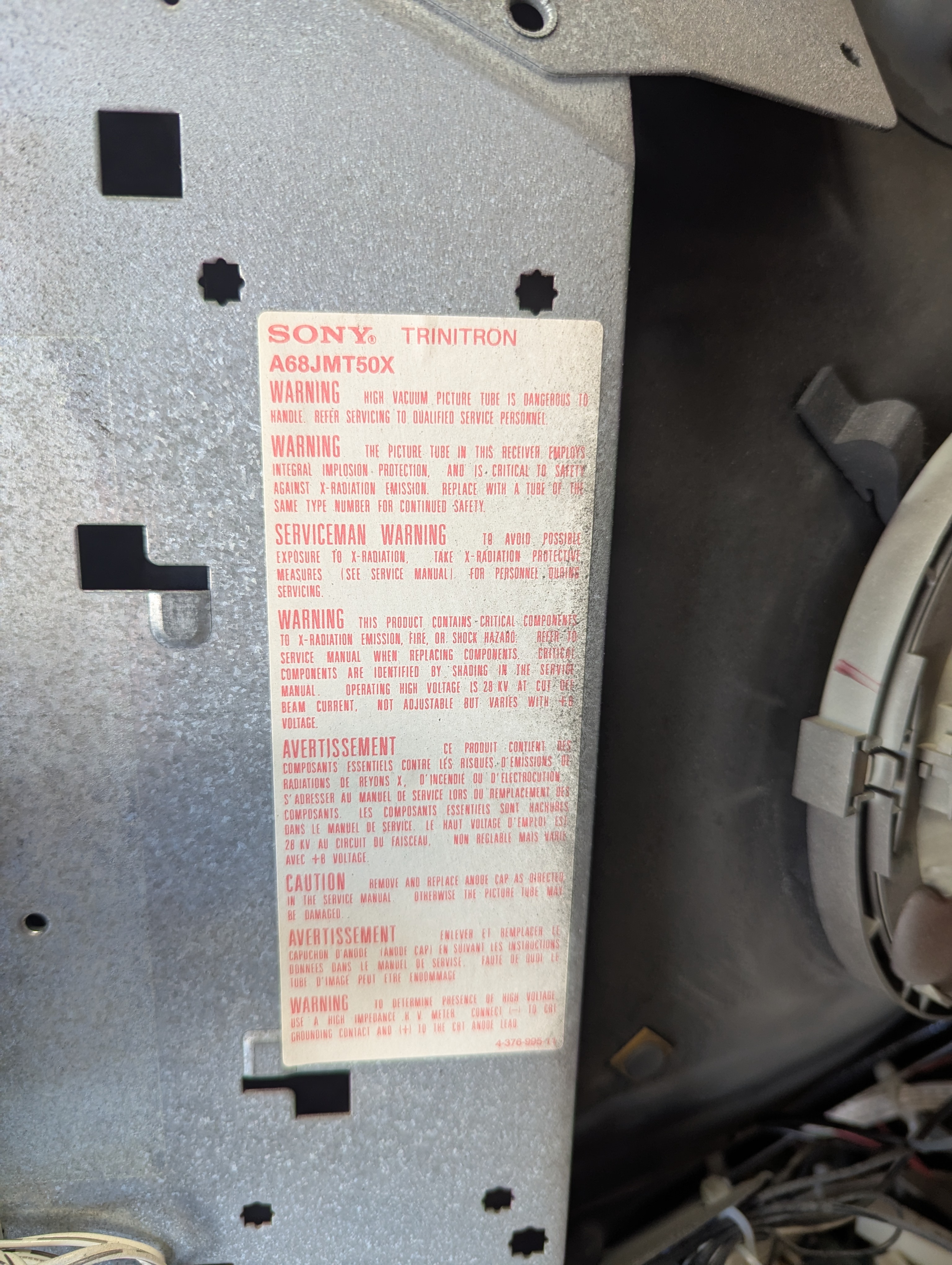

| Tube: | Sony Microblack Trinitron , A68JMT50X |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | 5W x 2 |

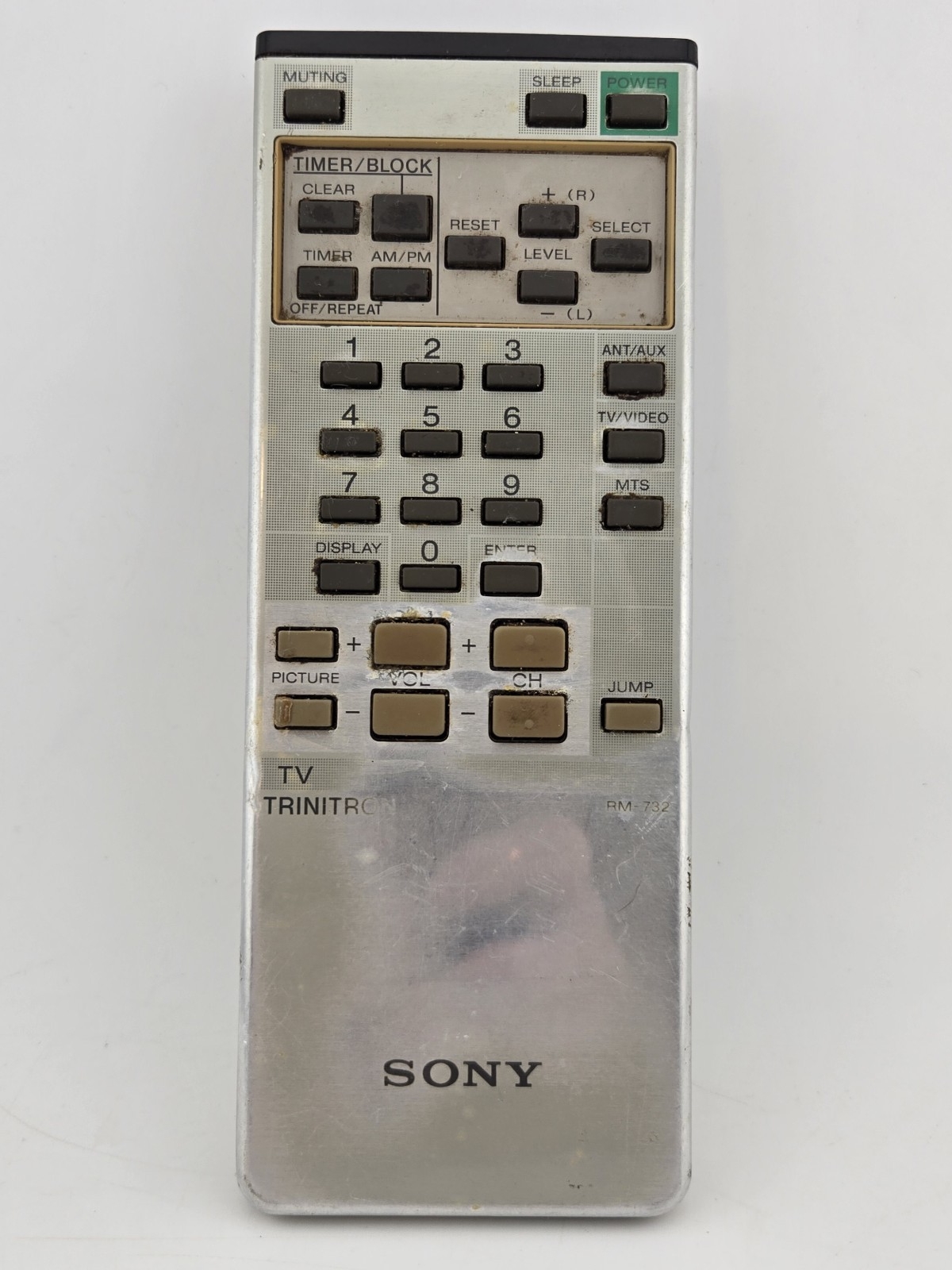

| Remote: | RM-732 |
| Chassis: | P3, SCC-648Z-A |
| Weight: | 109 lbs (49.4 kg) |
| Dimensions (W/H/D): |
762 x 578 x 495 mm
(29.9 x 22.7 x 19.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1987 |
| MSRP: | 1049 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Community Submission |
