Sony KV-27DS1
SegaSaturn94
October 27, 2024, 11:58 pm
November 27, 2024, 1:58 pm
October 27, 2024, 11:58 pm
November 27, 2024, 1:58 pm
Summary
Higher-end 27" Trinitron by Sony, released in 1987. Originally manufactured at Sony's San Diego facility.
Literature
(None at this time)
Notes
As with most 1980s TVs, this model has a hot chassis and should not be modified for composite or S-Video input unless precautions are taken to isolate the input signal with an opto-isolator or transformer as seen in the guide below:
Sony P3 Chassis S-Video Mod (Isolated)
This CRT is confirmed to be a hot chassis, possibly with very slow high voltage bleeding.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.

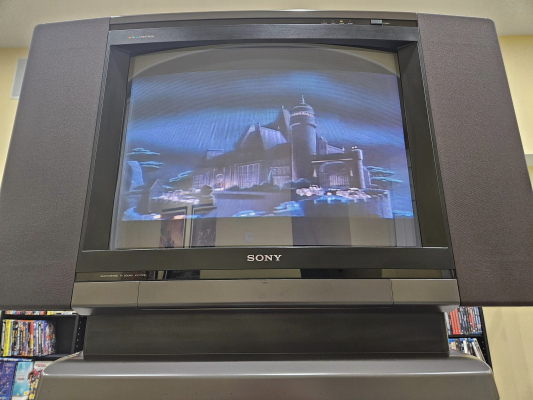

Gallery
Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | KV-27DS1 |
Series: | KV |
Viewable Size: | 27" |
Inputs: | Composite, RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, Front Mounted Buttons |
Tube: | Sony Trinitron |
Mask: | Aperture Grille |
Tint: | Dark |
Speakers: | Stereo |
Chassis: | P3 |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1987 |
MSRP: | 1100 USD |
Country of Manufacture: | USA |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
