Sony KV-27FS100L
Eli Krause, John S
October 2, 2024, 12:54 pm
October 28, 2025, 1:27 pm
October 2, 2024, 12:54 pm
October 28, 2025, 1:27 pm
Summary

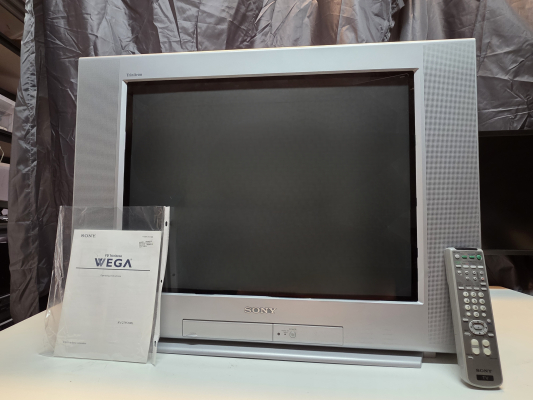

The first of Sony's 27" Trinitrons to use the BA-6 chassis. Design is, outwardly, the same as the previous KV-27FS100 and it uses the same tube. Internally, however, it is very different.
Manuals
Notes
- RGB-Moddable: No
- Adjusting the yoke on a flat CRT to fix bowing
- There is a 3d model for a replacement front door with some small changes.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |

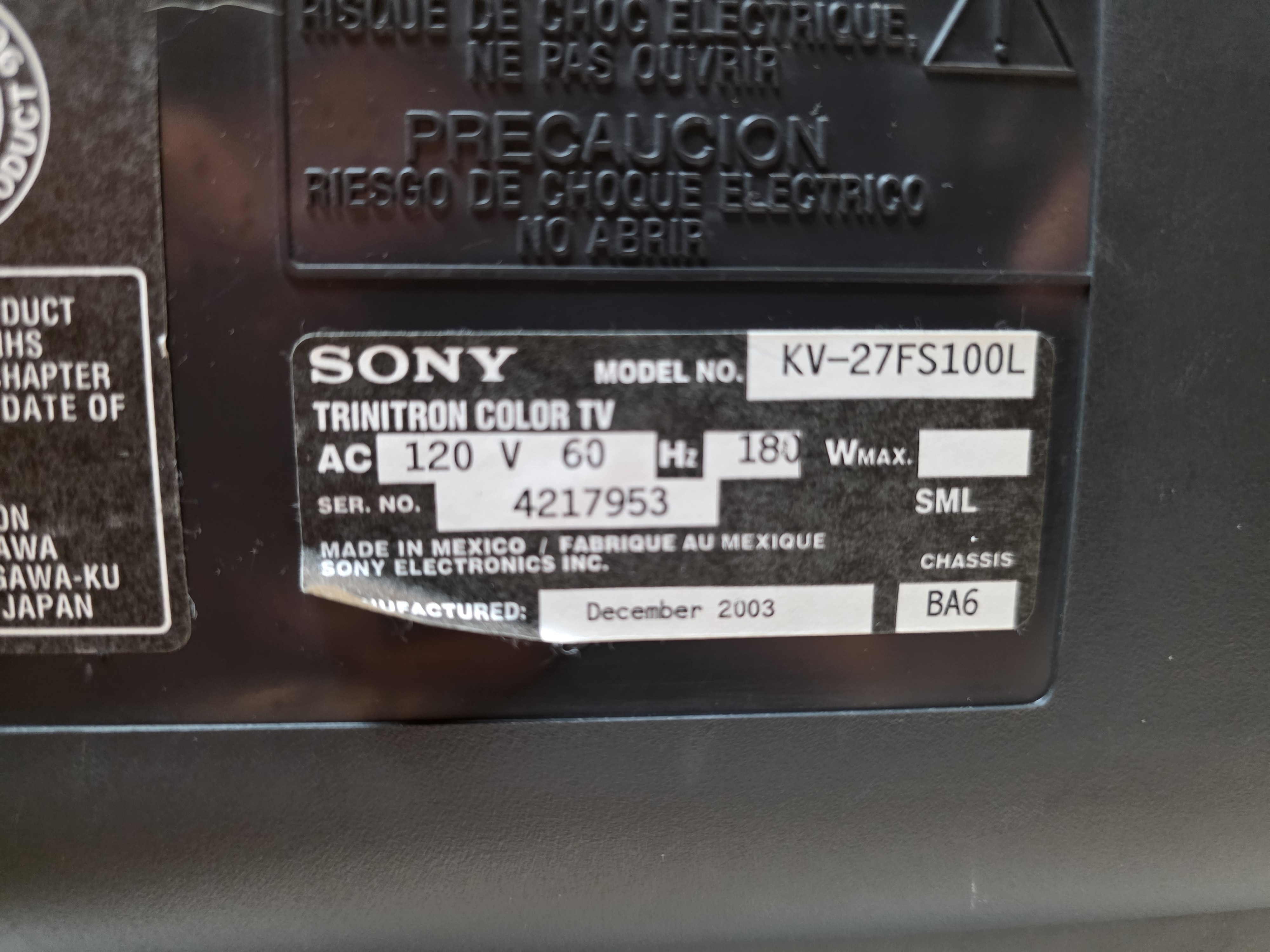

| Model: | KV-27FS100L |
| Series: | Wega |
| Viewable Size: | 27" |

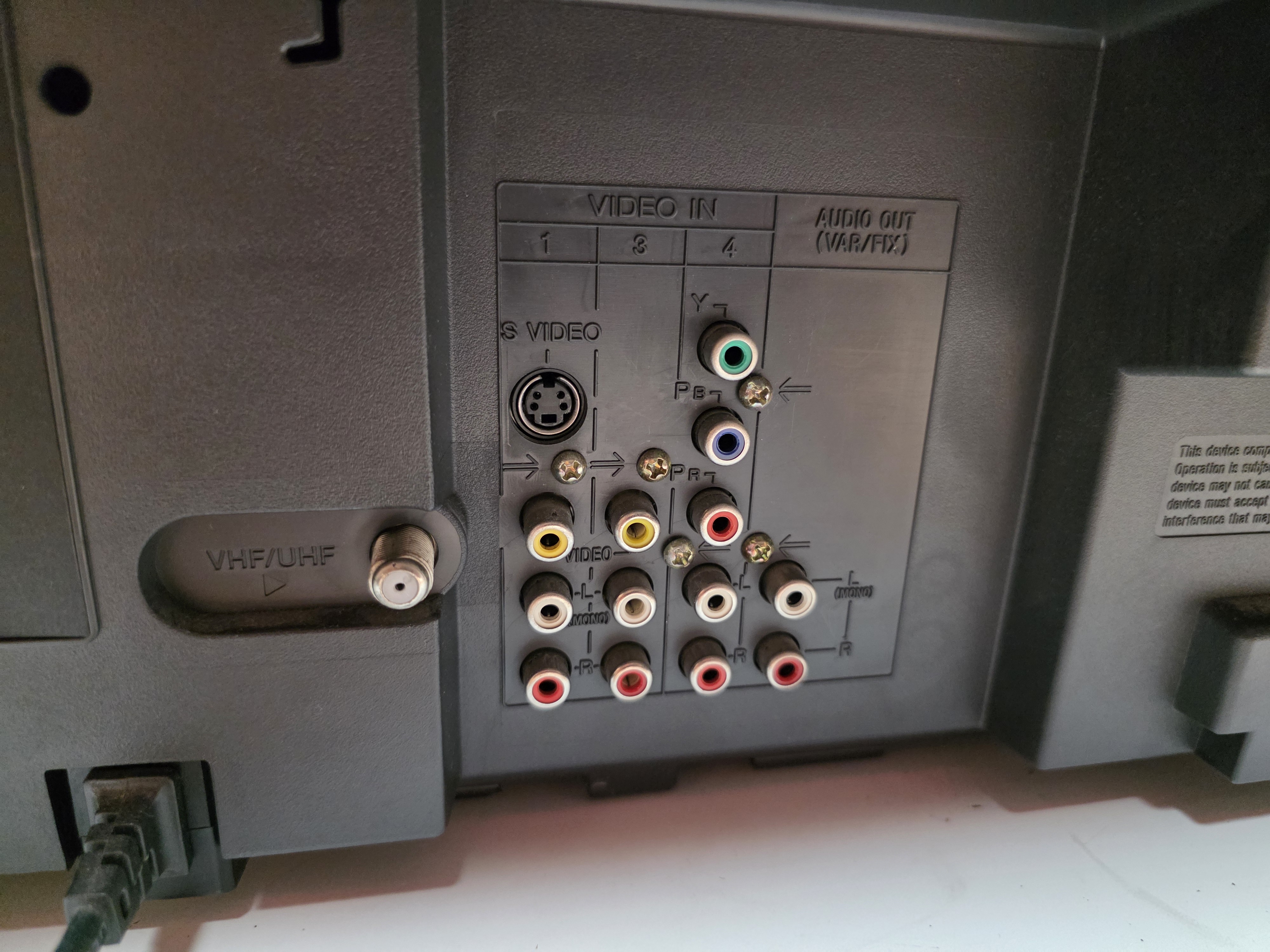

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Renesas, M65582A |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Renesas, M65582A |
| Focus Type: | Single |

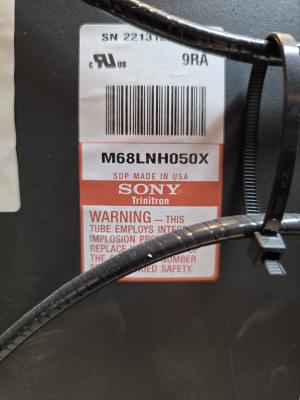

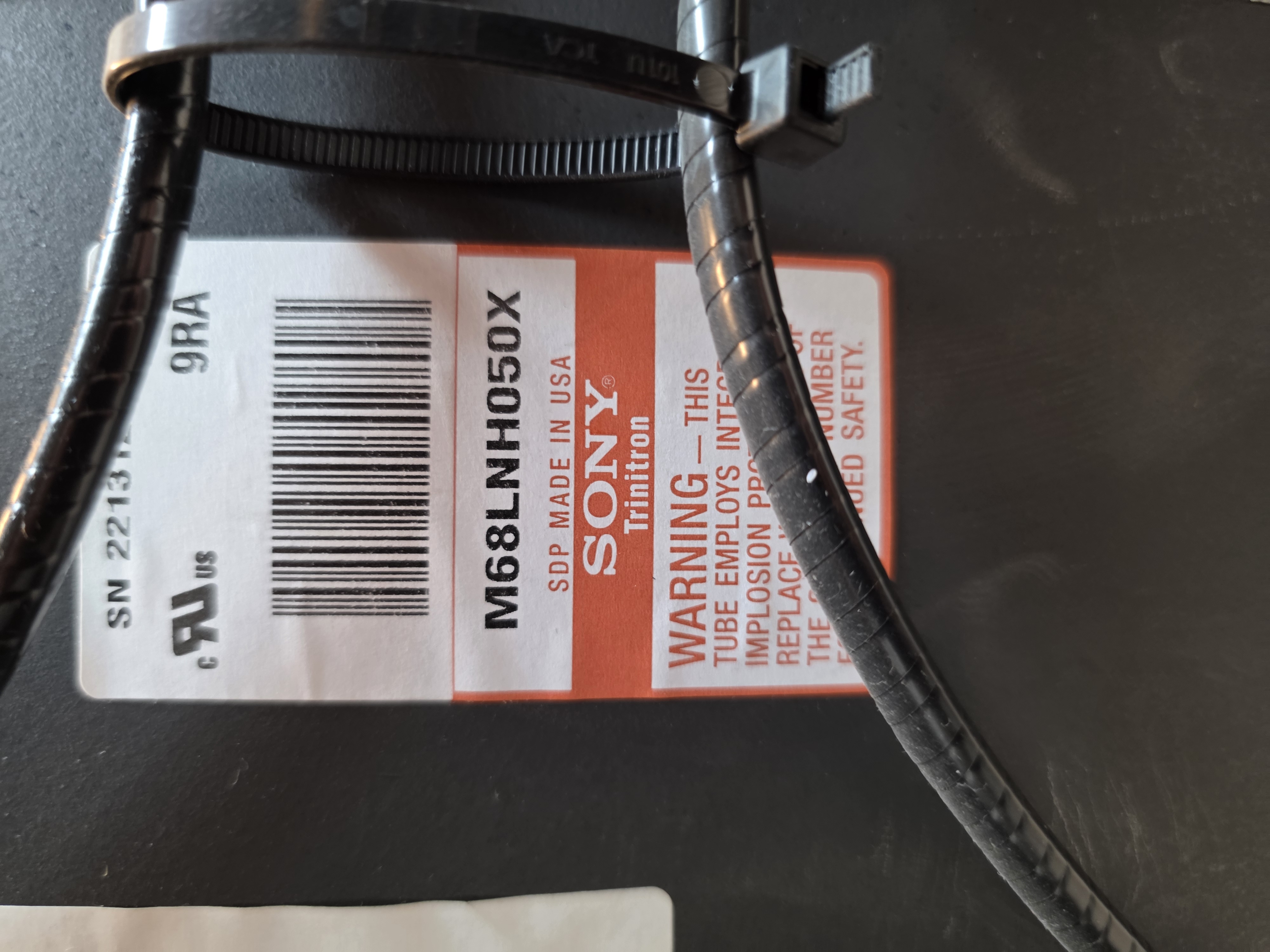

| Tube: | Sony Trinitron , M68LNH050X |
| Heater Voltage: | 6.3v |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |

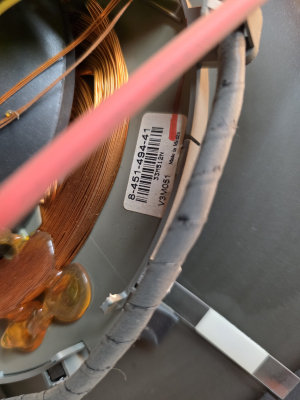

| Yoke: | 8-451-494-41 |
| Speakers: | Stereo, 10W x 2 |

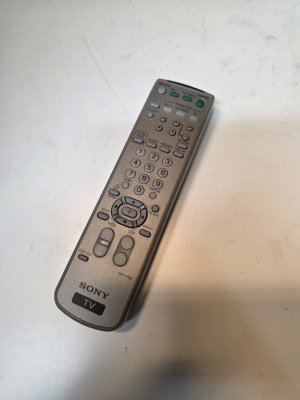

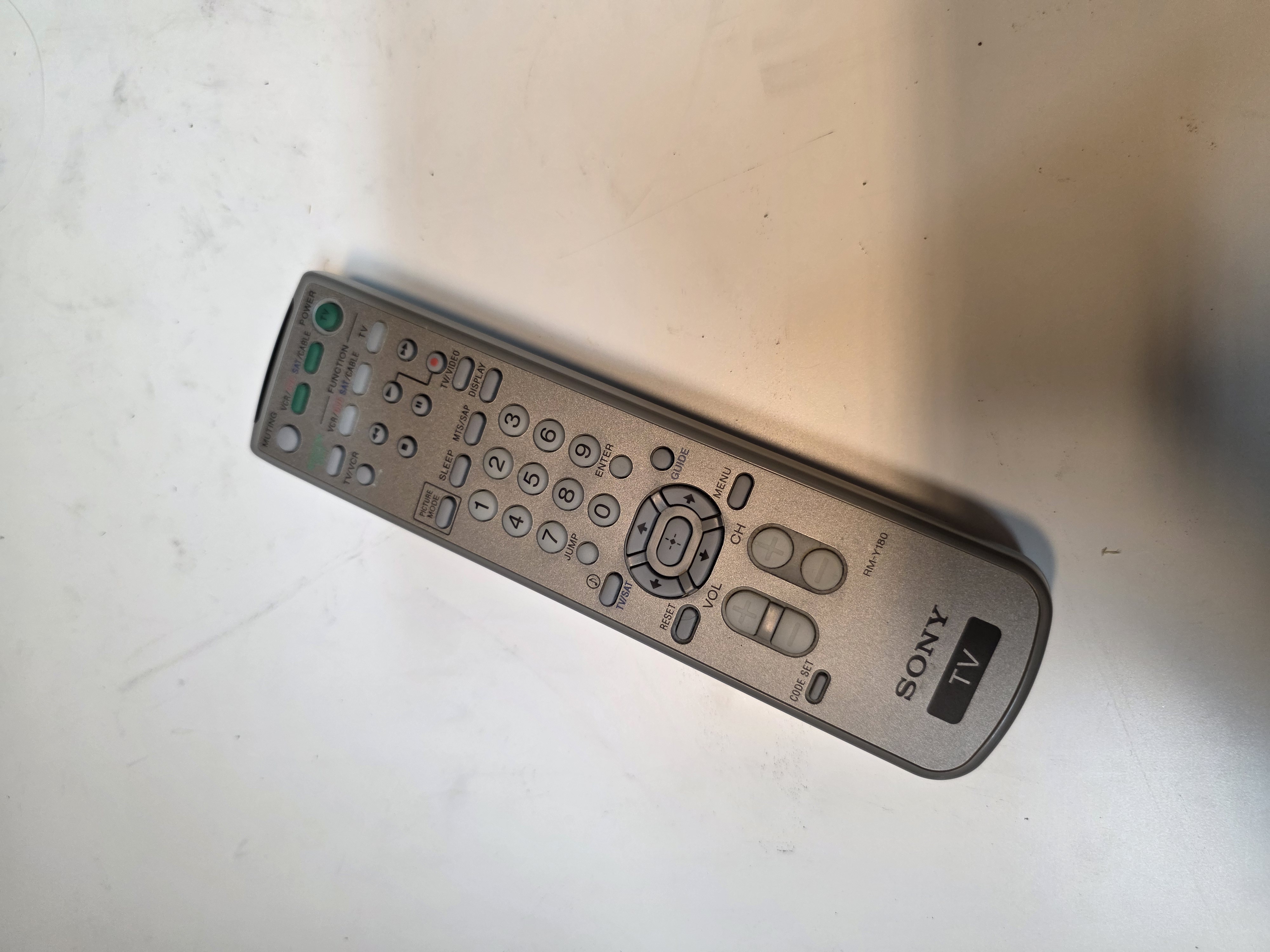

| Remote: | RM-Y180 |
| Chassis: | BA-6 |
| Weight: | 100 lbs (45.4 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | OEM Stand, SU-27F1 |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Measurements |
