Description
Mid range 27" Trinitron with dual component inputs. Very similar in style to the higher end KV27FV310 but this model lacks a front S-Video input, Composite video out and the high voltage regulator that the FV310 model is known for.
Manuals
Media & Promo Materials
Notes
- Adjusting the yoke on a flat CRT to fix bowing
- The BA-5D chassis can easily be modded for RGB through the OSD mux method.

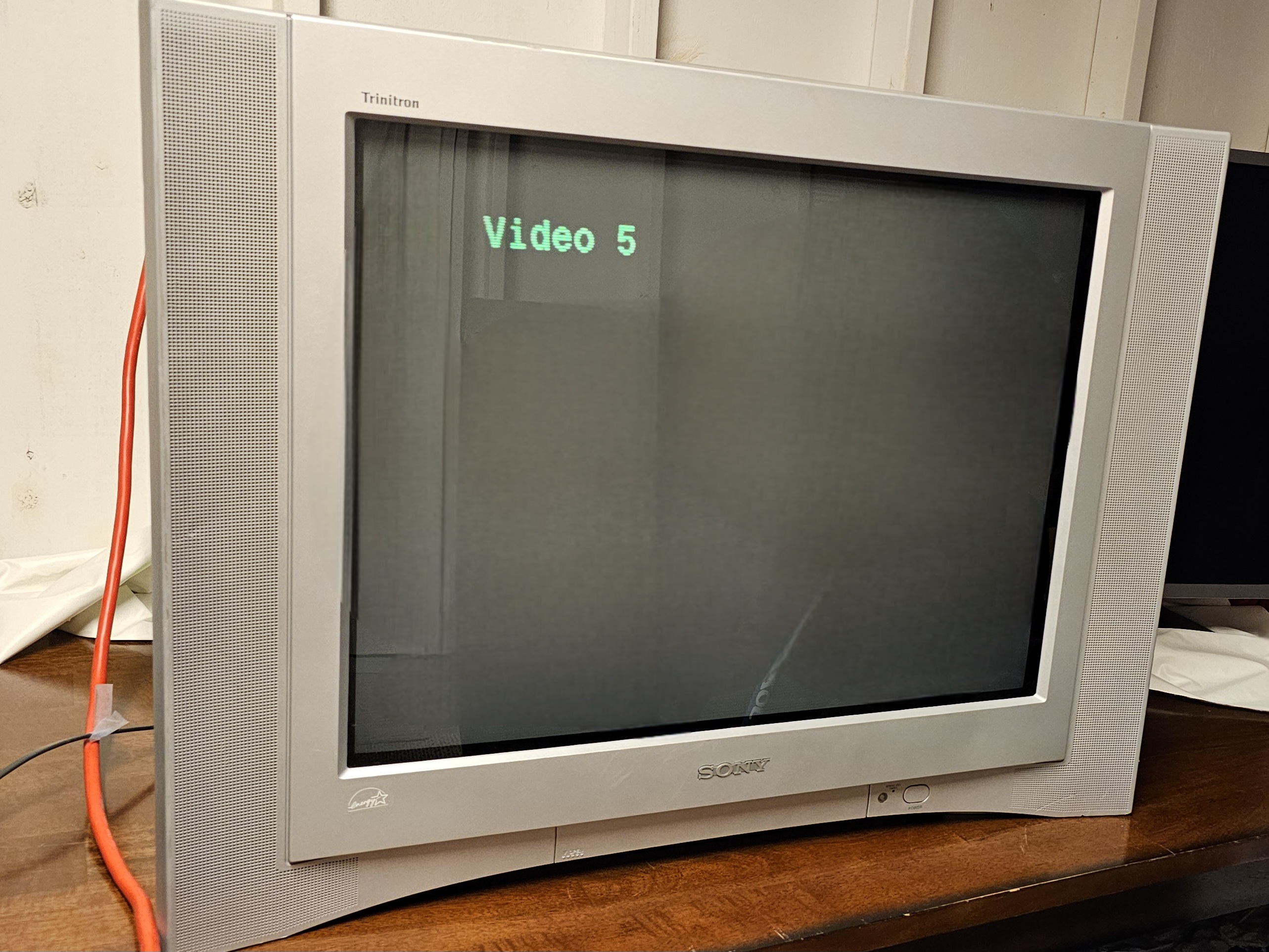

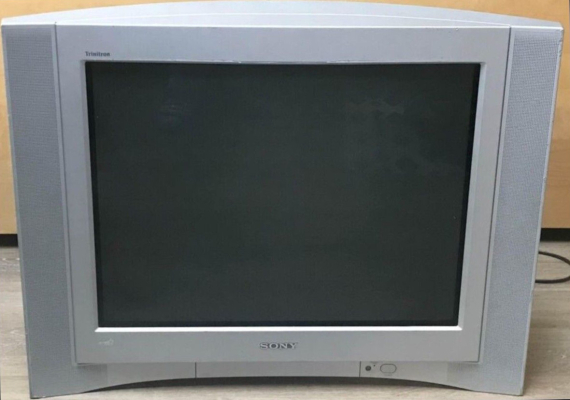

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV27FS210 |
| Series: | Wega |
| Viewable Size: | 27" |

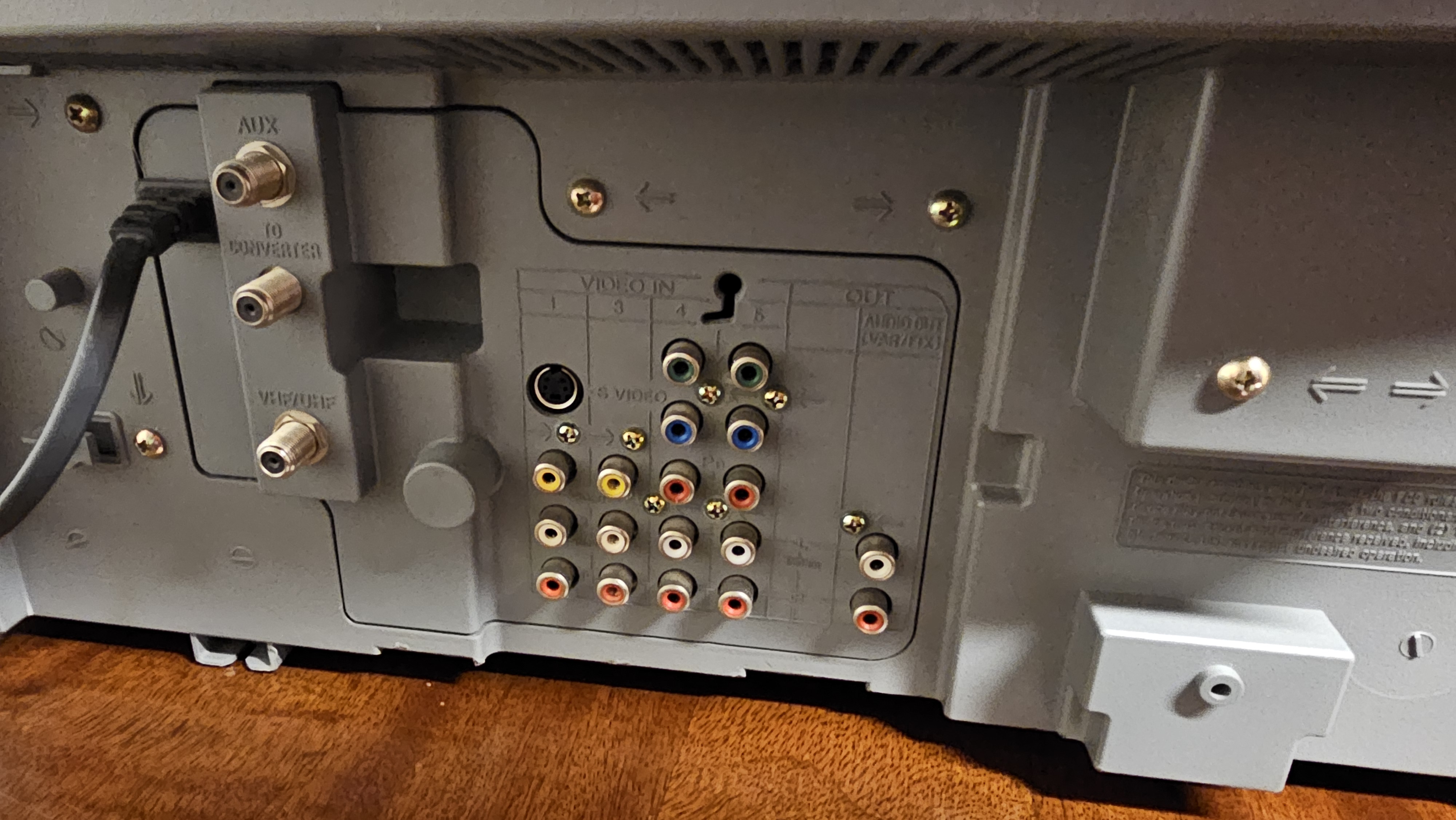

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Sony, CXA2154AS |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Toshiba, TC90A69N |
| Tube: | Sony FD Trinitron , M68LNH050X |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Speakers: | Stereo, 10W x 2 |
| Remote: | RM-Y181 |

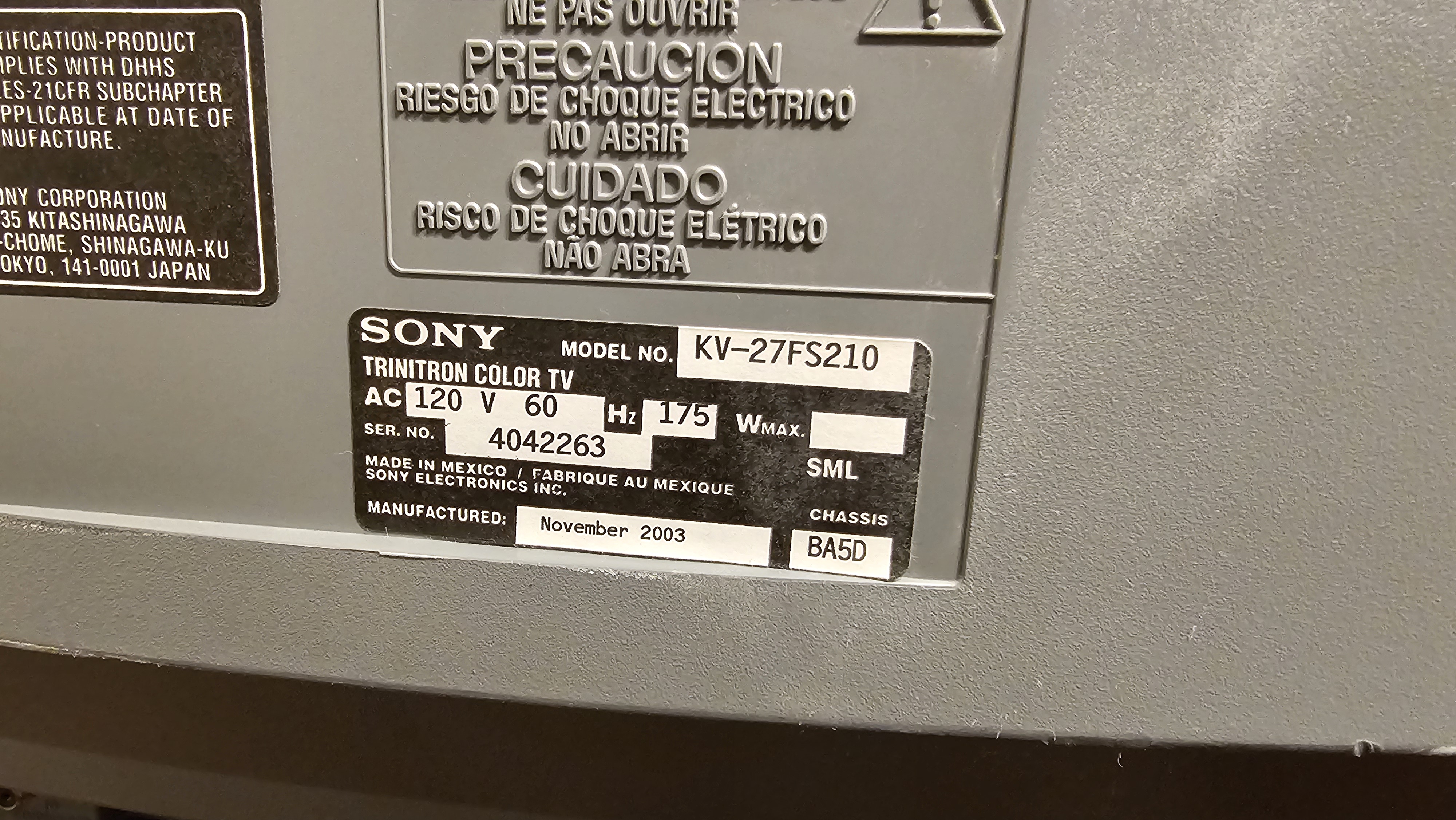

| Chassis: | BA-5D |
| Weight: | 103 lbs (46.7 kg) |
| Dimensions (W/H/D): |
784 x 601.5 x 520 mm
(30.8 x 23.6 x 20.4") |
| Application: | Consumer |
| Launched: | 2003 |
| MSRP: | 549 USD |
| Country of Manufacture: | Mexico |
| Mounting: | OEM Stand, SU-27F1 |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
