Summary

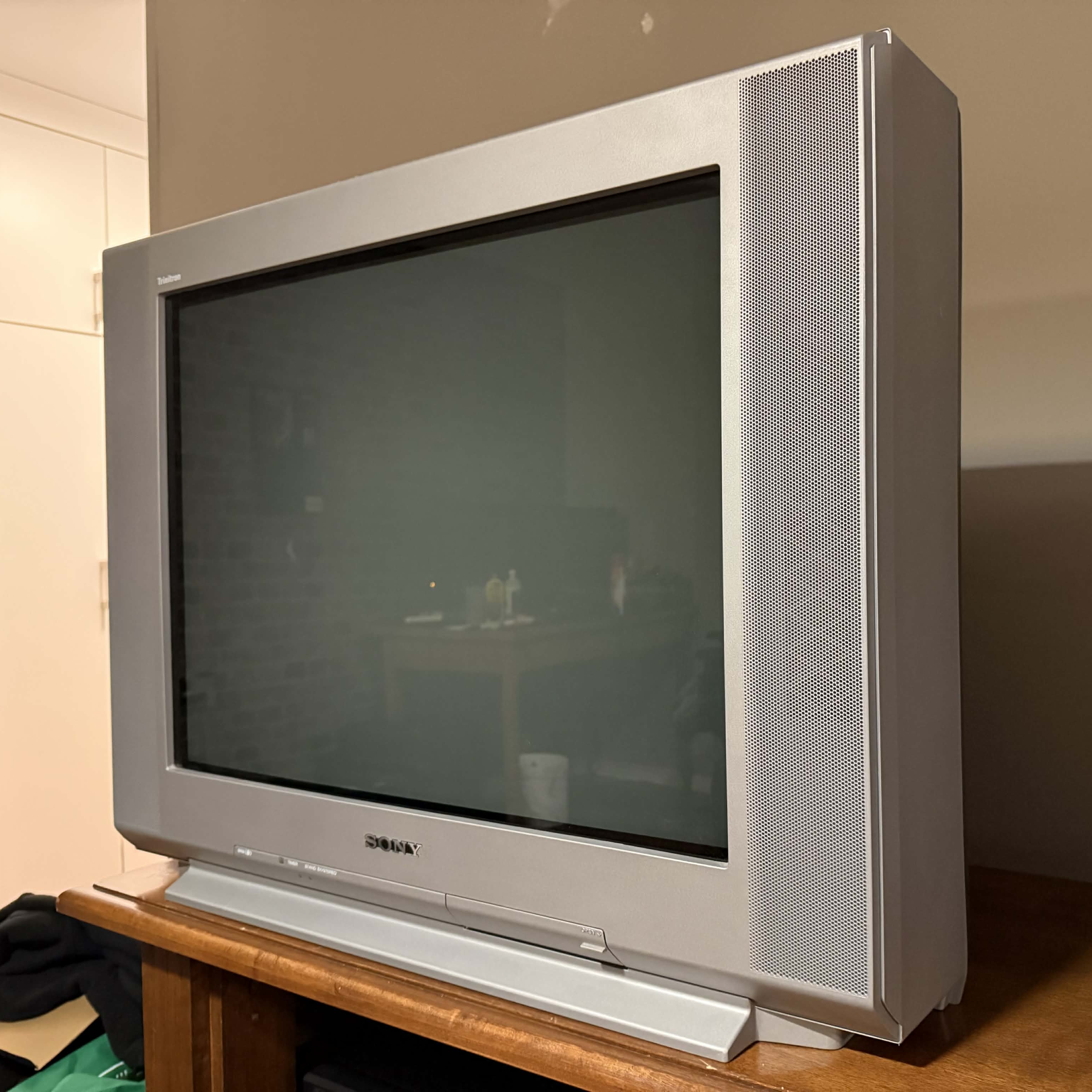

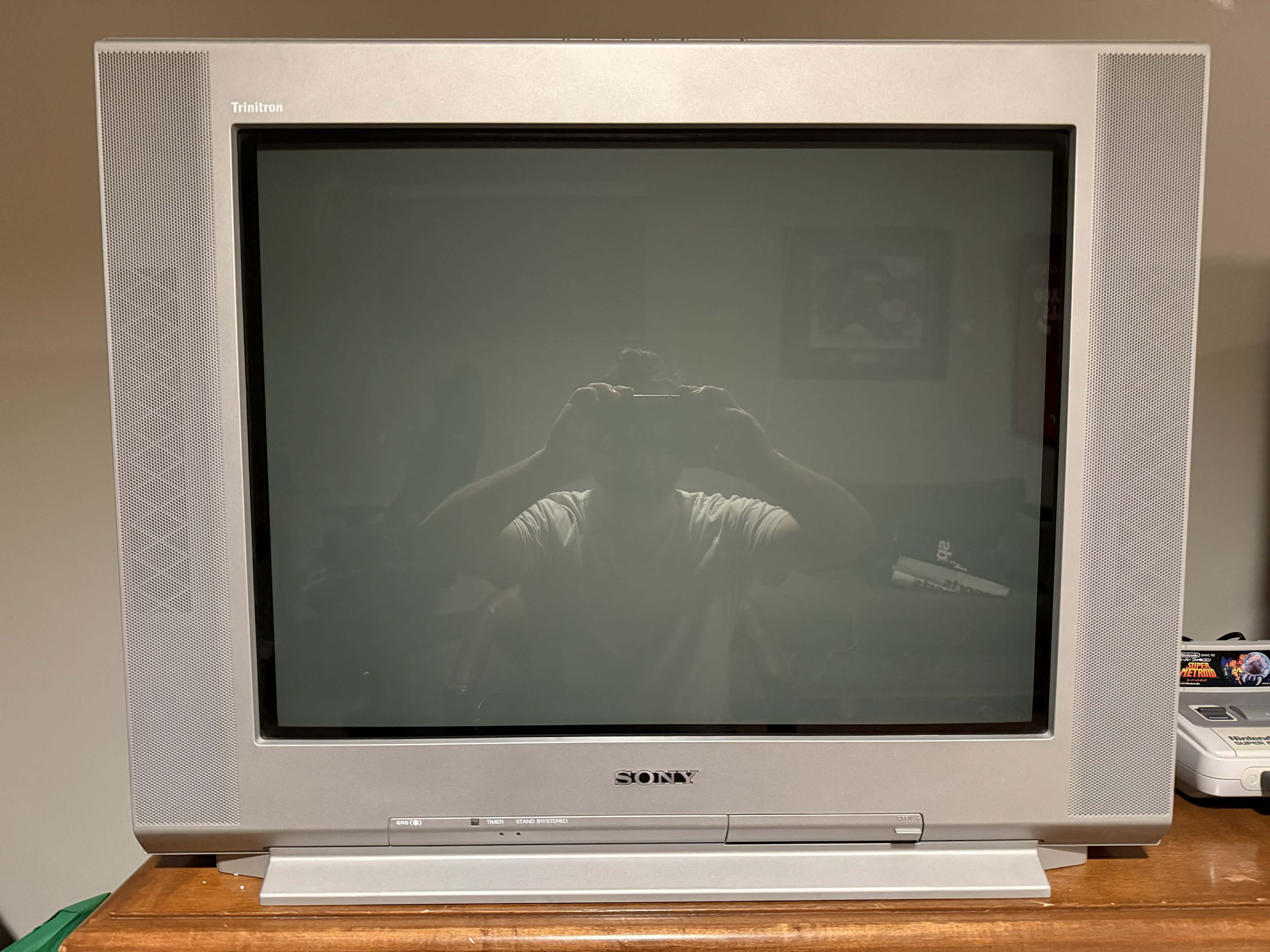

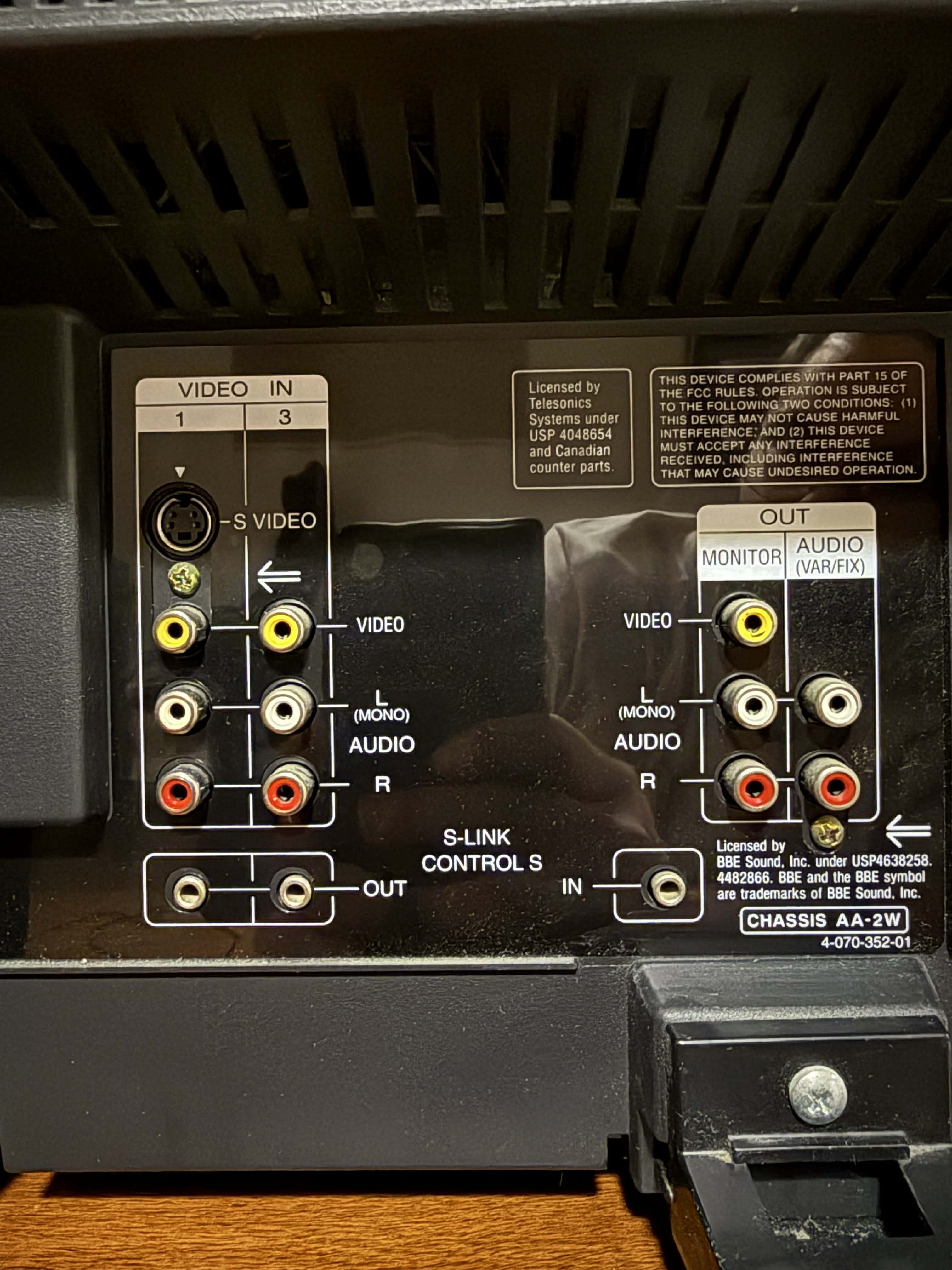

An early FD Trinitron by Sony, originally manufactured at their San Diego plant and released in 1999. Has RF, composite, and s-video inputs with stereo sound, but doesn't have component. (This is the only 27" FD Trinitron model released in North America that lacks a component input.)
(Special thanks to Alex Boiss for the pics!)
Manuals
Promo Materials
Notes
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-27FV15 |
| Series: | Wega |
| Viewable Size: | 27" |

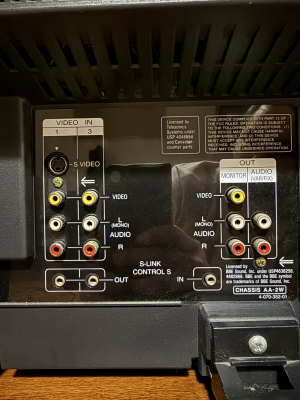

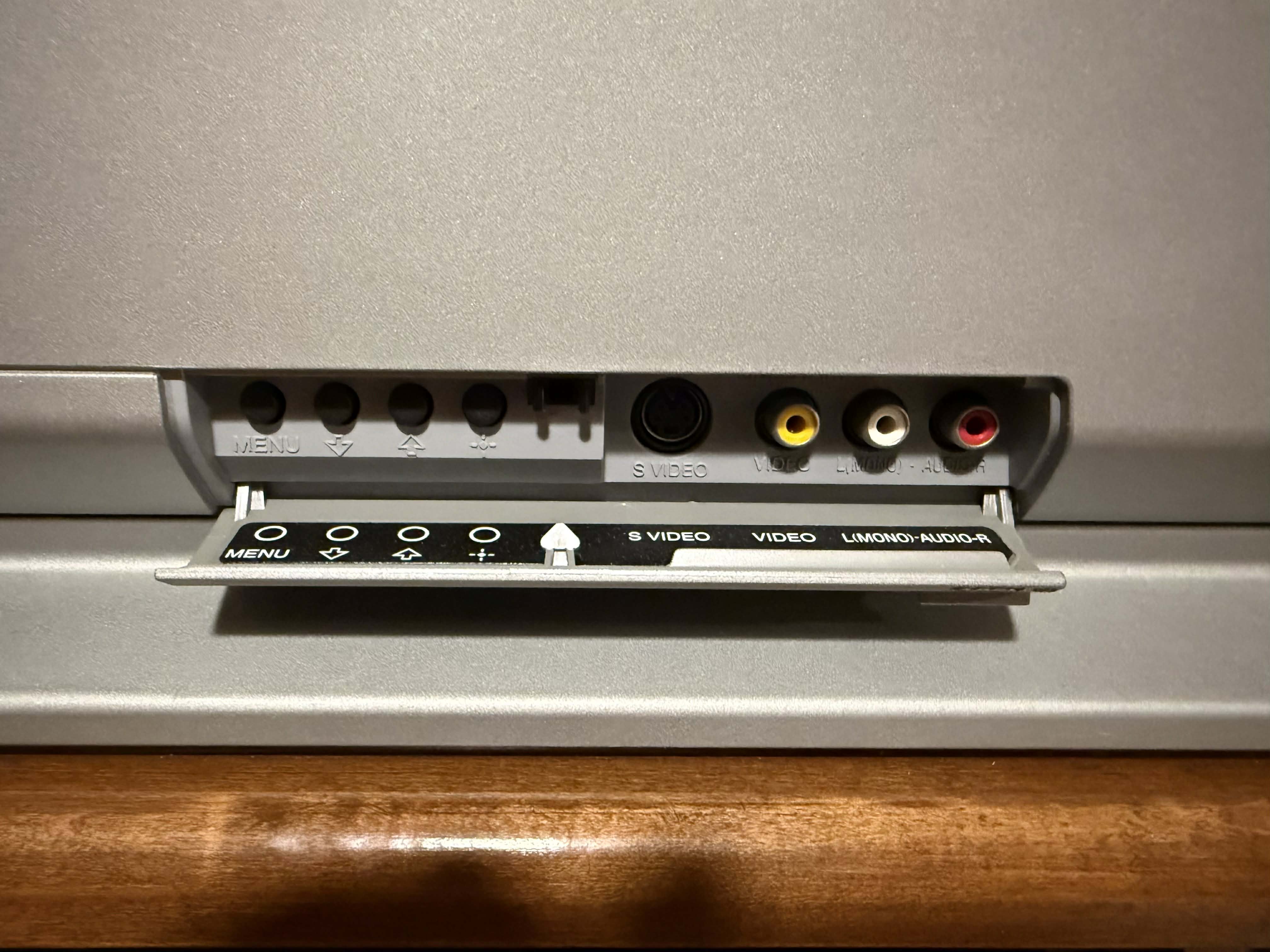

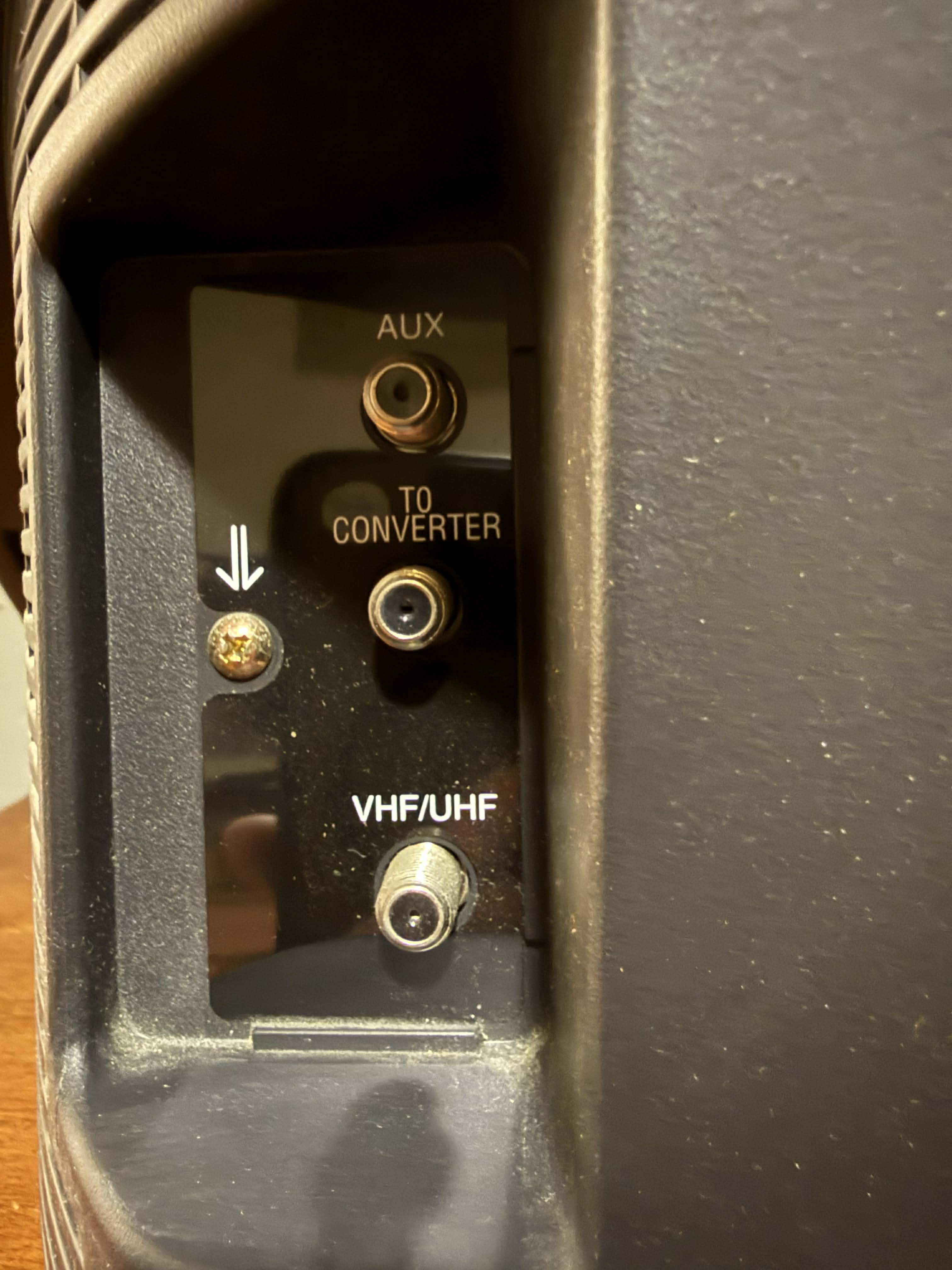

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Sony, CXA2131S |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Sony, CXD2064Q-T6 |
| Focus Type: | Single |

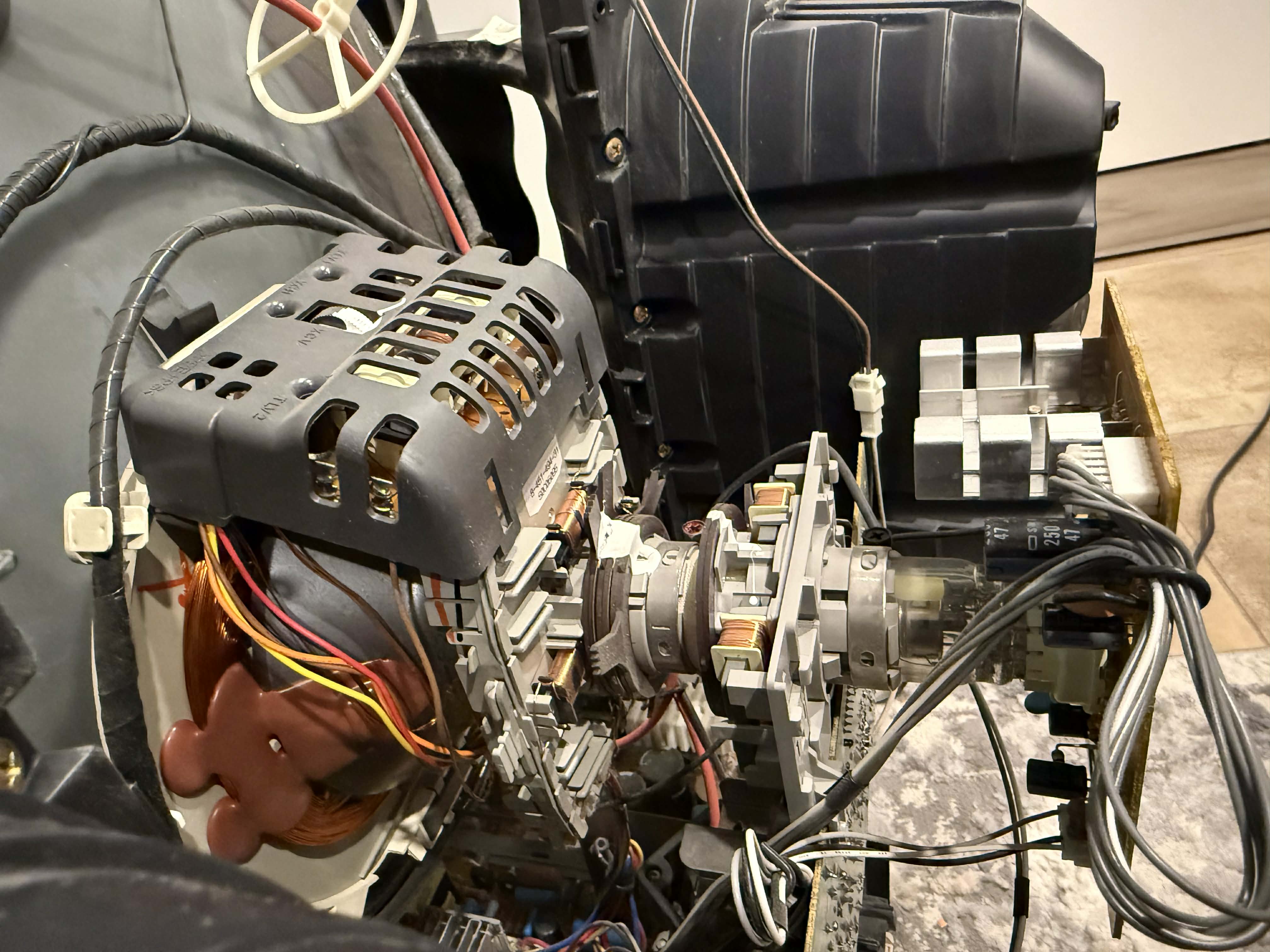

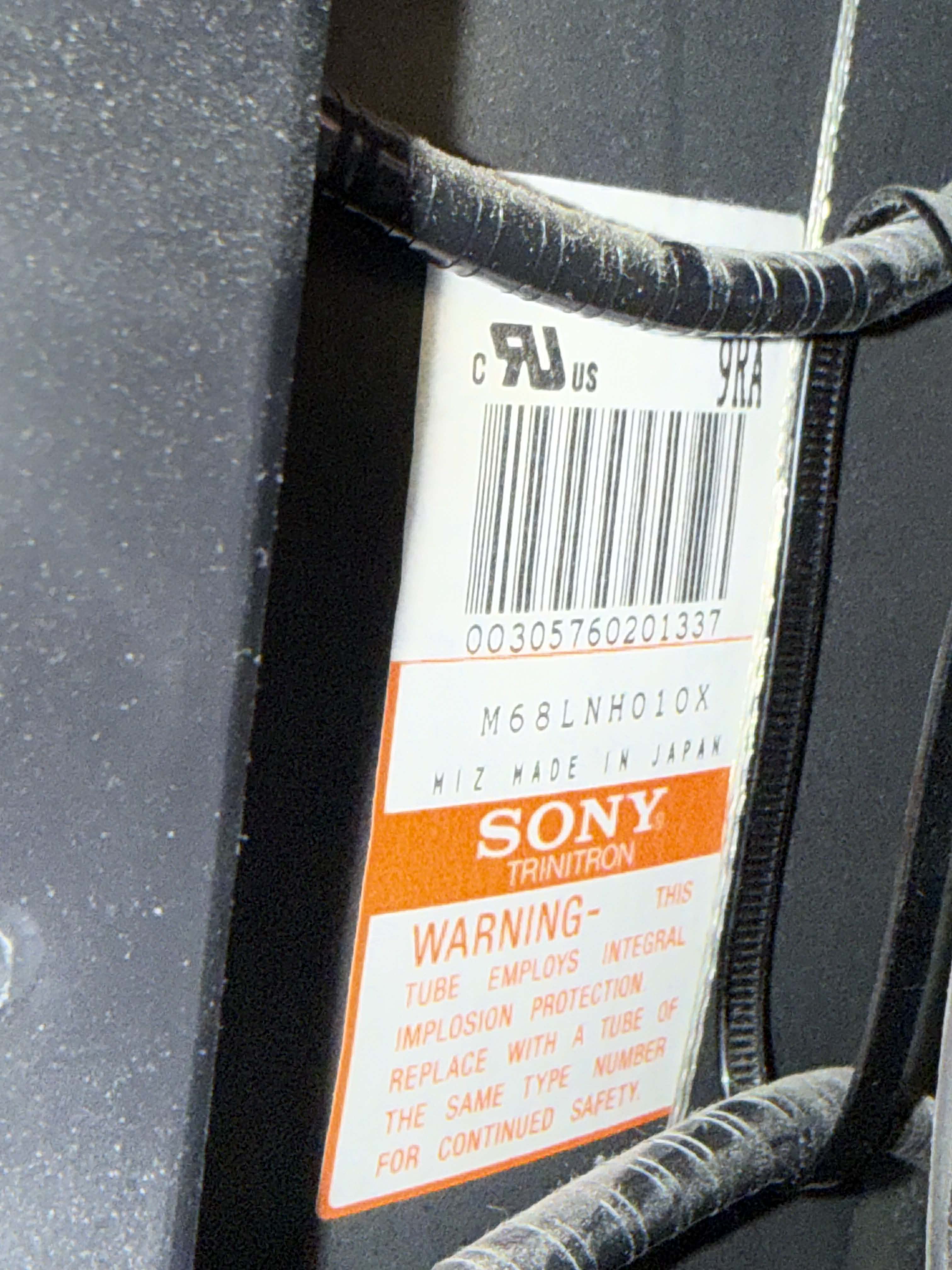

| Tube: | Sony FD Trinitron , M68LNH050X |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, Dual Driver, 15W x 2, Acoustic Chamber |

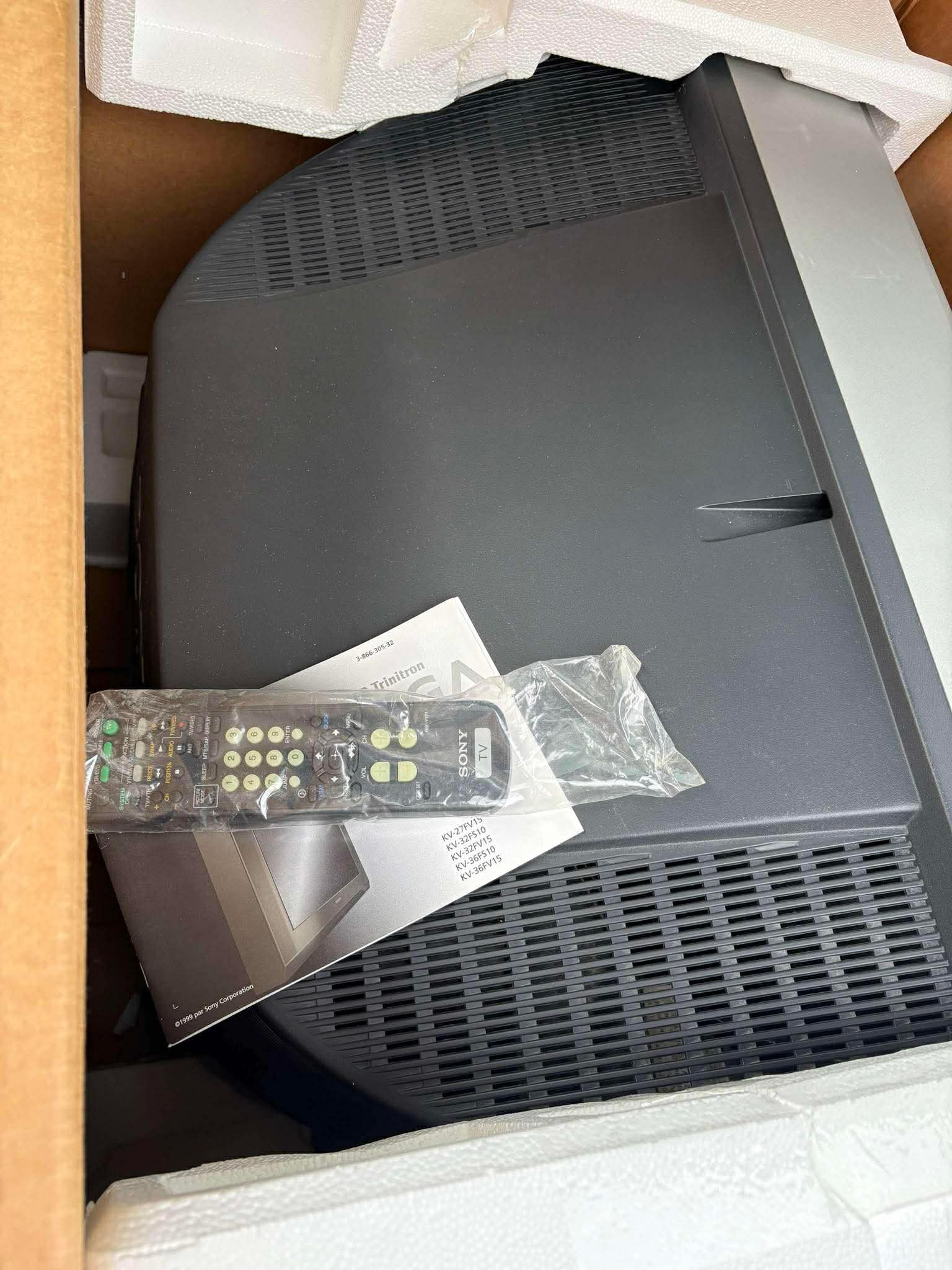

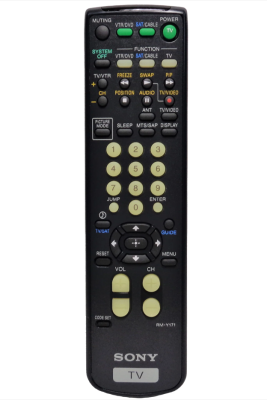

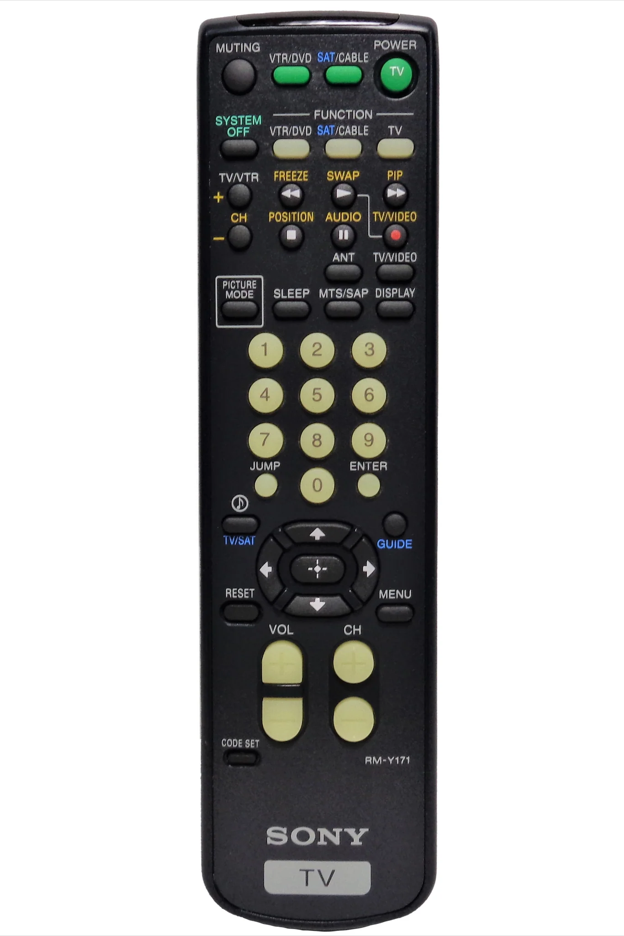

| Remote: | RM-Y171 |

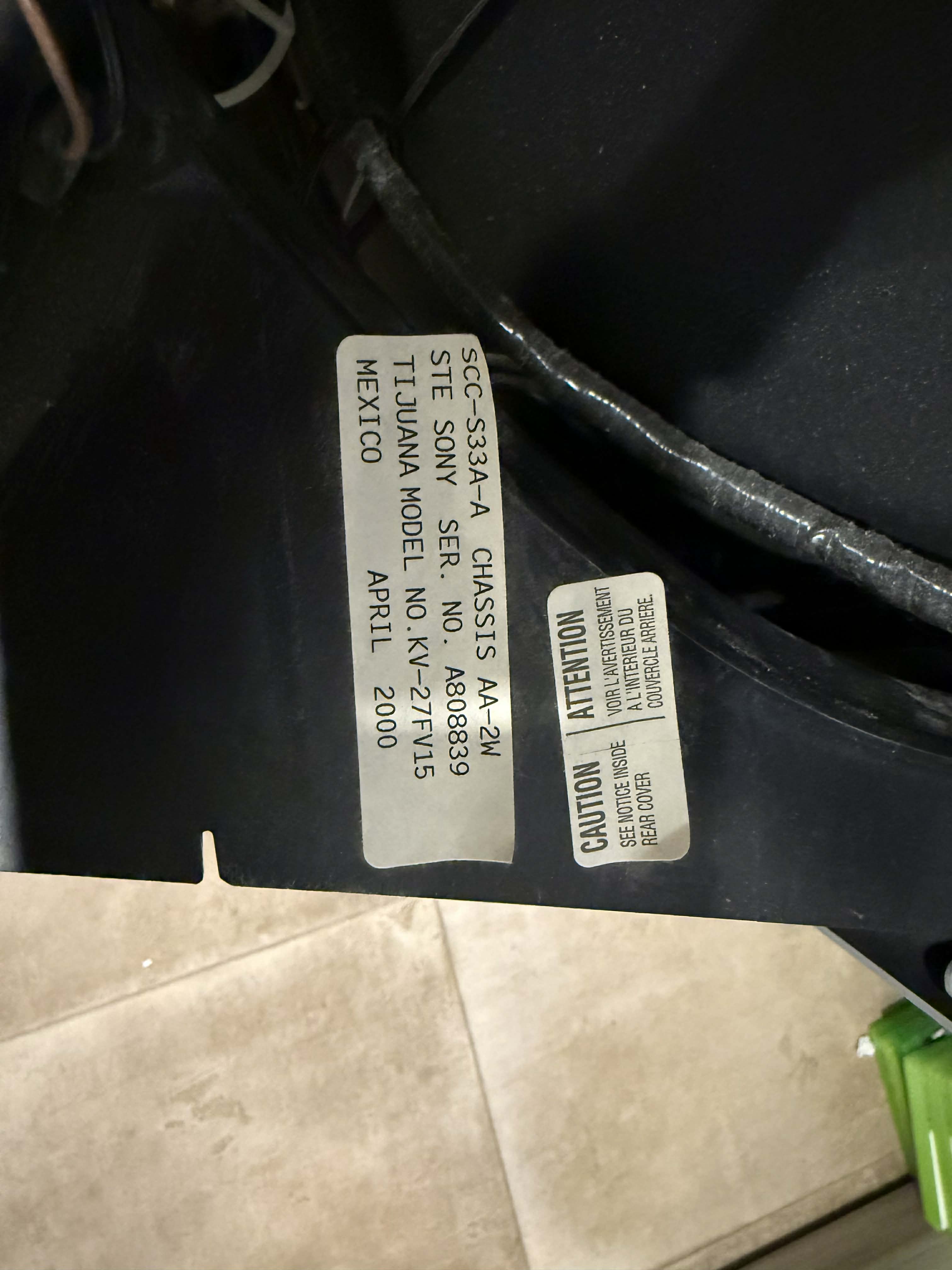

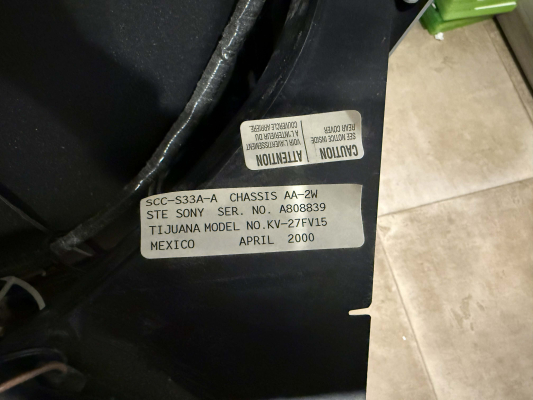

| Chassis: | AA-2W |
| Weight: | 110 lbs (49.9 kg) |
| Dimensions (W/H/D): |
762 x 604 x 499 mm
(29.9 x 23.7 x 19.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 949 USD |

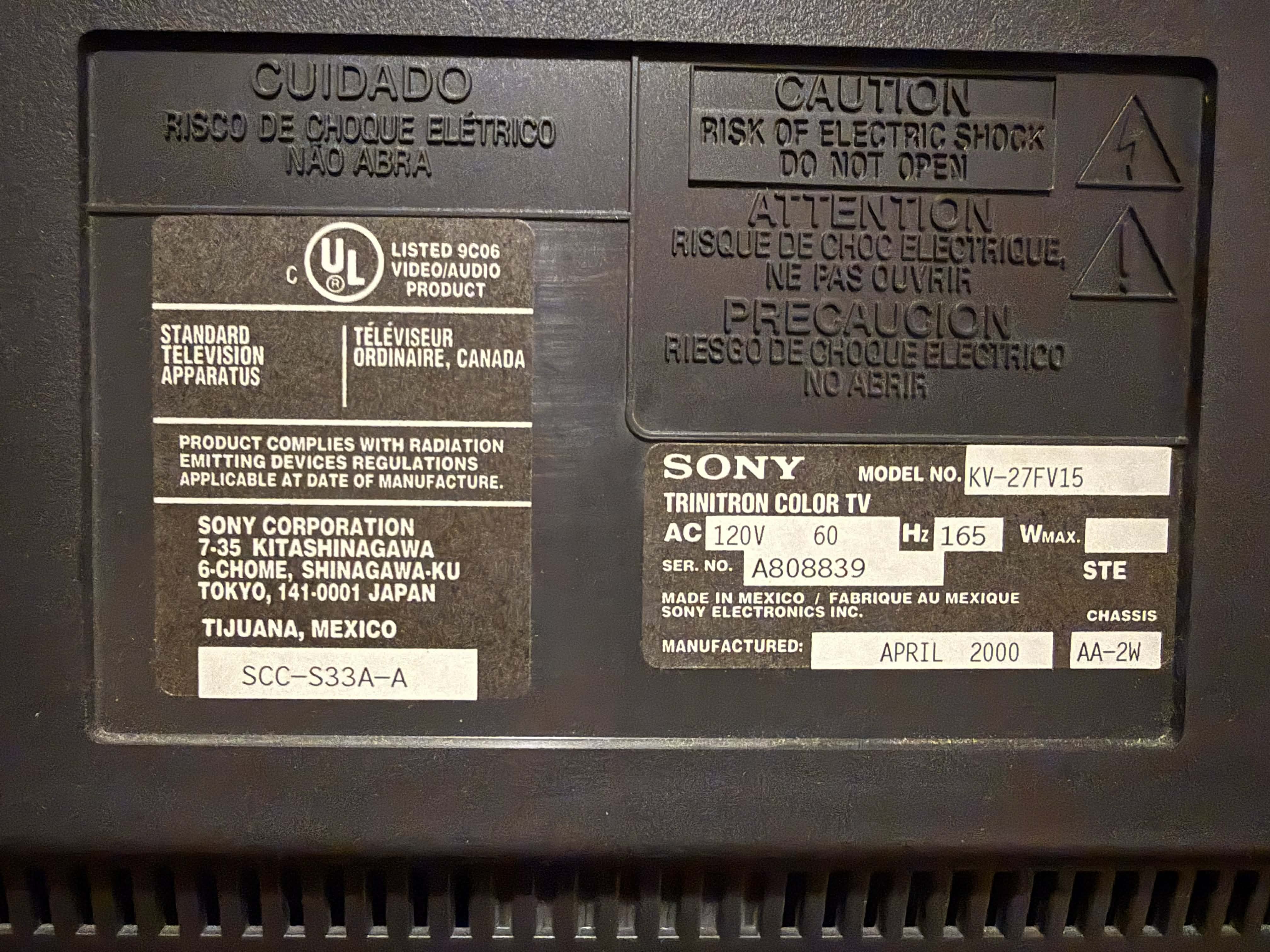

| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, SU-27FD2 |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
