Sony KV-9PT40
May 23, 2024, 11:37 pm
November 4, 2024, 9:40 am
Summary

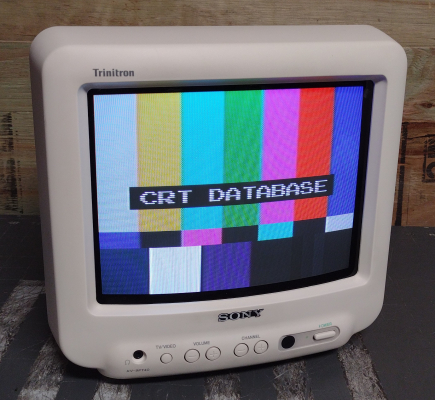

The white-plastic AC-powered KV-9PT40 (and its AC/DC-powered dark grey sibling the 9PT20) are both 9" viewable CRTs often referred to as "kitchen TVs" due to their compact size and ability to be mounted under cabinets if you have the optional hardware. They came in two colors: white (PT40) and dark grey (PT20). The white ones often experience plastic yellowing, and the grey ones seem prone to brittle plastic disease.
The 9PT20 and 9PT40, although looking nearly identical to the 9PT50/60, have some critical differences internally. The 20/40 models use an LA7672 jungle chip which CANNOT be RGB modded. Additionally the 50/60 model has a digital OSD and service menu for color and geometry adjustment, while the 20/40 model uses analog potentiometers. Finally, the 20/40 models have a better horizontal linearity circuit than the 50/60 models, and as a result have more consistent geometry.
The 20 model has DC power input, the 40 model does not.
Literature
Notes
All adjustments are made with internal or external potentiometers.
There is a horizontal width coil inside you can adjust.
This CRT does not have horizontal static convergence (H-STAT) adjustment. All convergence adjustment must be done traditionally with the rings and convergence strips. Corner convergence is typically not great on these.
Gallery
Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | KV-9PT40 |
Series: | KV |
Viewable Size: | 9" |
Inputs: | Composite, RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
Horz. Output Transistor: | 2SC3890 |
Vertical Output IC: | LA7837 |
Jungle: | LA7672 |
Comb Filtering: | None |
Flyback: | 9-908-816-01 |
Tube: | Sony Trinitron , A23LDU10X |
Heater Voltage: | 5v |
Deflection: | 90° |
Mask: | Aperture Grille |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | 8-451-450-11 |
Yoke Horz. Inductance: | 0.3911 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 28.61 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 16.98 ohm |
Yoke Vert. Resistance: | 16.98 ohm |
Speakers: | Mono, Headphone Jack |
Remote: | RM-793 |
Chassis: | SCC-H11B-A |
Weight: | 13 lbs (6 kg) |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1991 |
Country of Manufacture: | Japan |
Mounting: | Desk Stand, Carrying Handle, Under-Cabinet Mount |
Mods: | S-Video |
Degaussing: | Automatic on Power-on |
