Sony PVM-2030
Andy King
May 11, 2024, 11:00 pm
May 11, 2024, 11:00 pm
Summary
Literature
- User Manual
- Service Manual - This is the 2130QM service manual but it is a close enough match to work with for the 2030.
- Sales Brochure
Notes
- Some monitors may be lacking the s-video input
Common Repairs
- Power supply caps are almost guaranteed to be out of spec by now and should be replaced - there are only about 5. Power supply board is a common failure point
- HV Protection is another common failure point. Here is a helpful diagram I made after fixing this issue recently (right click and open in new tab for full resolution):

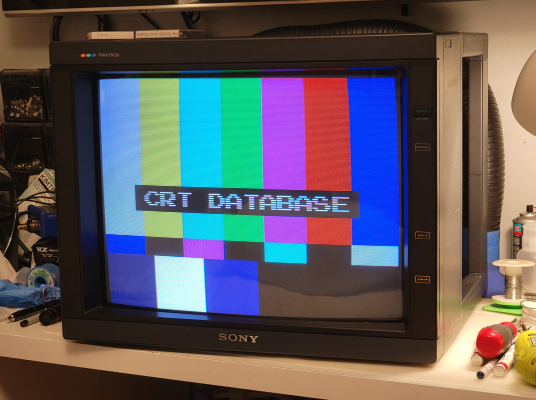

Gallery
Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | 2030 |
Series: | PVM |
Viewable Size: | 20" |
Inputs: | Composite, S-Video, RGB |
Sync: | CSYNC, Sync on Green, Sync over Composite, Sync on Luma |
Resolutions: | 240p, 480i |
Linecount: | 560 TVL |
Horizontal Max: | 15 kHz |
Formats: | NTSC, PAL |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |
Tube: | Sony Trinitron , A51JKQ10X |
Heater Voltage: | 6.3v |
Deflection: | 100 deg. |
Mask: | Aperture Grille |
Pitch: | .55mm |
Removable Glare Film: | No |
Speakers: | Amplifier, SS-X6A, APM-5XA |
Weight: | 116 lbs (53 kg) |
Application: | Professional |
Country of Manufacture: | Japan |
Mounting: | Stackable |
Degaussing: | Automatic on Power-on, Manual |
