Summary
Entry level Sony PVM intended for use in CCTV or other non-broadcast applications.
Literature
Notes
The tube is only one number off from the 20M2U's M49KGH11X tube - they may be interchangeable. The lower TVL on this model is likely design related (lower bandwidth, cheaper amplifiers, budget chassis design), not due to the tube itself.

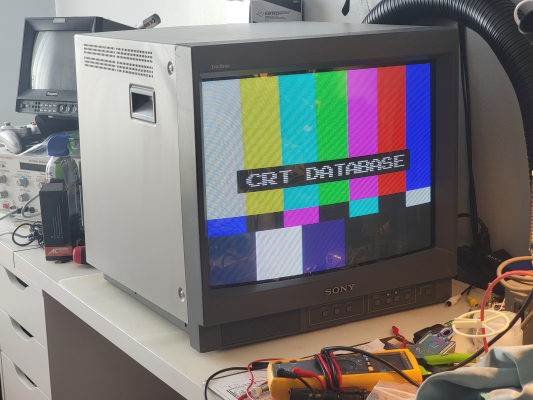

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | 20N6U |
| Series: | PVM N-Series |
| Viewable Size: | 19" |
| Inputs: | Composite, S-Video, RGB |
| Sync: | CSYNC, Sync on Green, Sync over Composite, Sync on Luma |
| Resolutions: | 240p, 480i |
| Linecount: | 500 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL, NTSC4.43, SECAM |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Tube: | M49KGH11X , M49KGH10X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Mono |
| Chassis: | SIIA |
| Weight: | 61 lbs (28 kg) |
| Application: | Professional |
| Cabinet Material: | Metal |
| MSRP: | 1260 USD |
| Mounting: | Rackable |
| Degaussing: | Automatic on Power-on |
