Summary

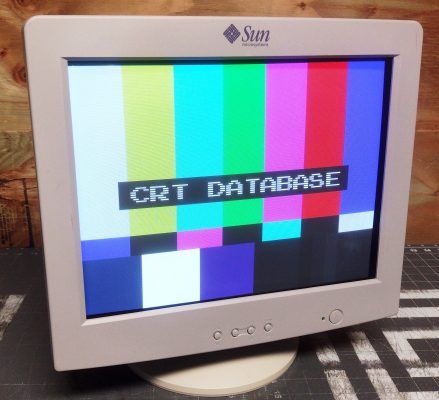

17" flat CRT computer monitor, manufactured by Samsung and sold under the Sun brand. It is relatively high spec for its size, and is capable of an 85 kHz max horizontal scan rate.
Literature
Notes
This monitor uses the same tube and chassis as the Dell M782, and should be very similar internally.
Gallery
| Specifications | |
|---|---|
| Brand: | Sun Microsystems |
| Manufacturer: | Samsung |
| Model: | PN17JO |
| Series: | Color Monitor |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Resolutions: | VGA, SVGA, XGA, SXGA, UXGA |
| Horizontal Max: | 30 kHz, 86 kHz |
| Vertical Max: | 48 Hz, 162 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Software Calibration |
| Vertical Output IC: | KA2142 |
| Flyback: | FQB-17A001, BH26-00026A |
| Tube: | Samsung , M41QCJ761X172 |
| Deflection: | 90 deg. |
| Mask: | Shadow |
| Pitch: | .25mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | None |
| Chassis: | DP85 |
| Weight: | 41.2 lbs (19 kg) |
| Application: | Computer Monitor |
| Launched: | 2002 |
| Country of Manufacture: | Malaysia |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
