Summary
DVD combo manufactured by Funai.
Manuals
- User Manual for similar model
- Service Manual for similar model
Mods & Repair Guides
- S-Video Mod for similar model
Notes

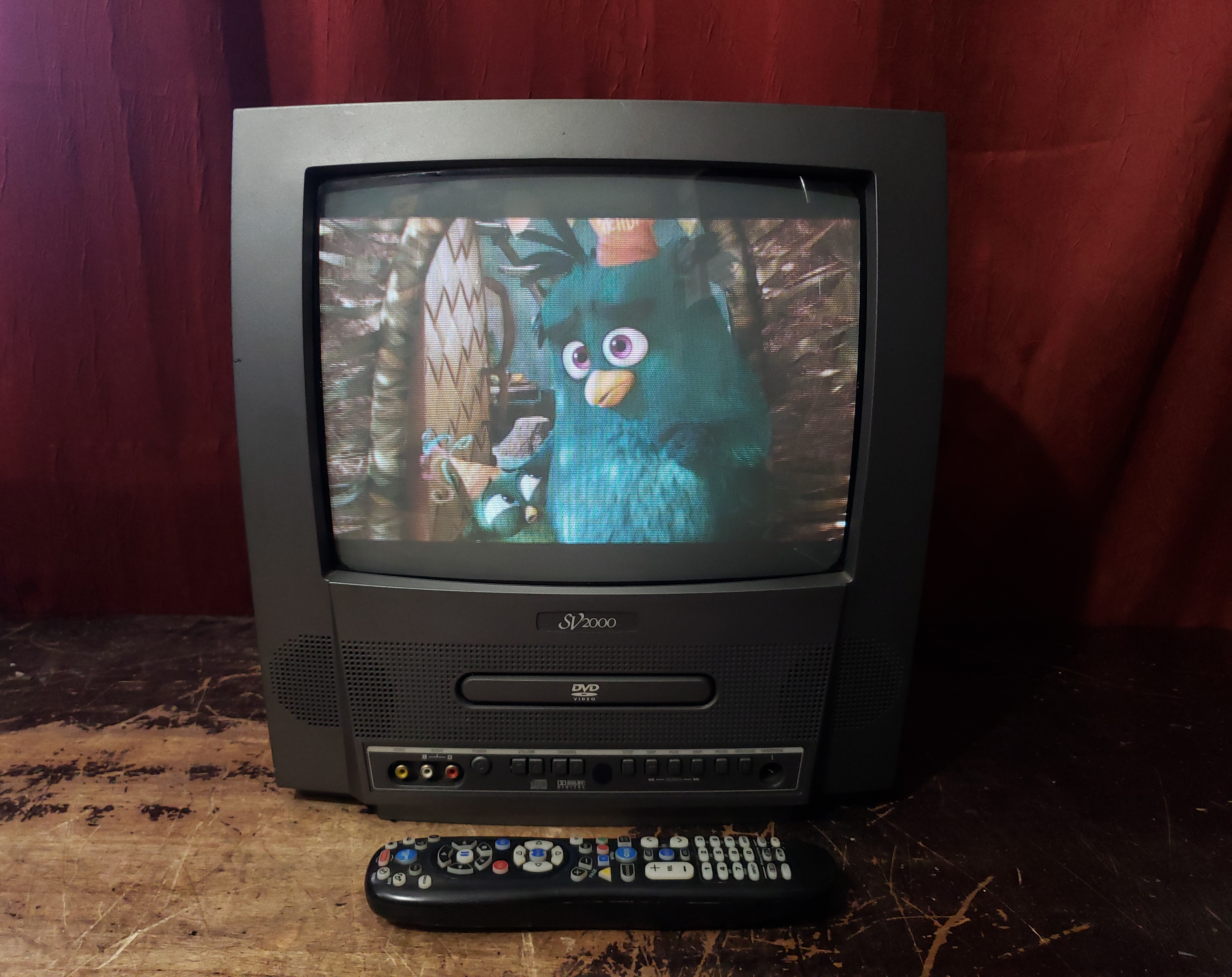

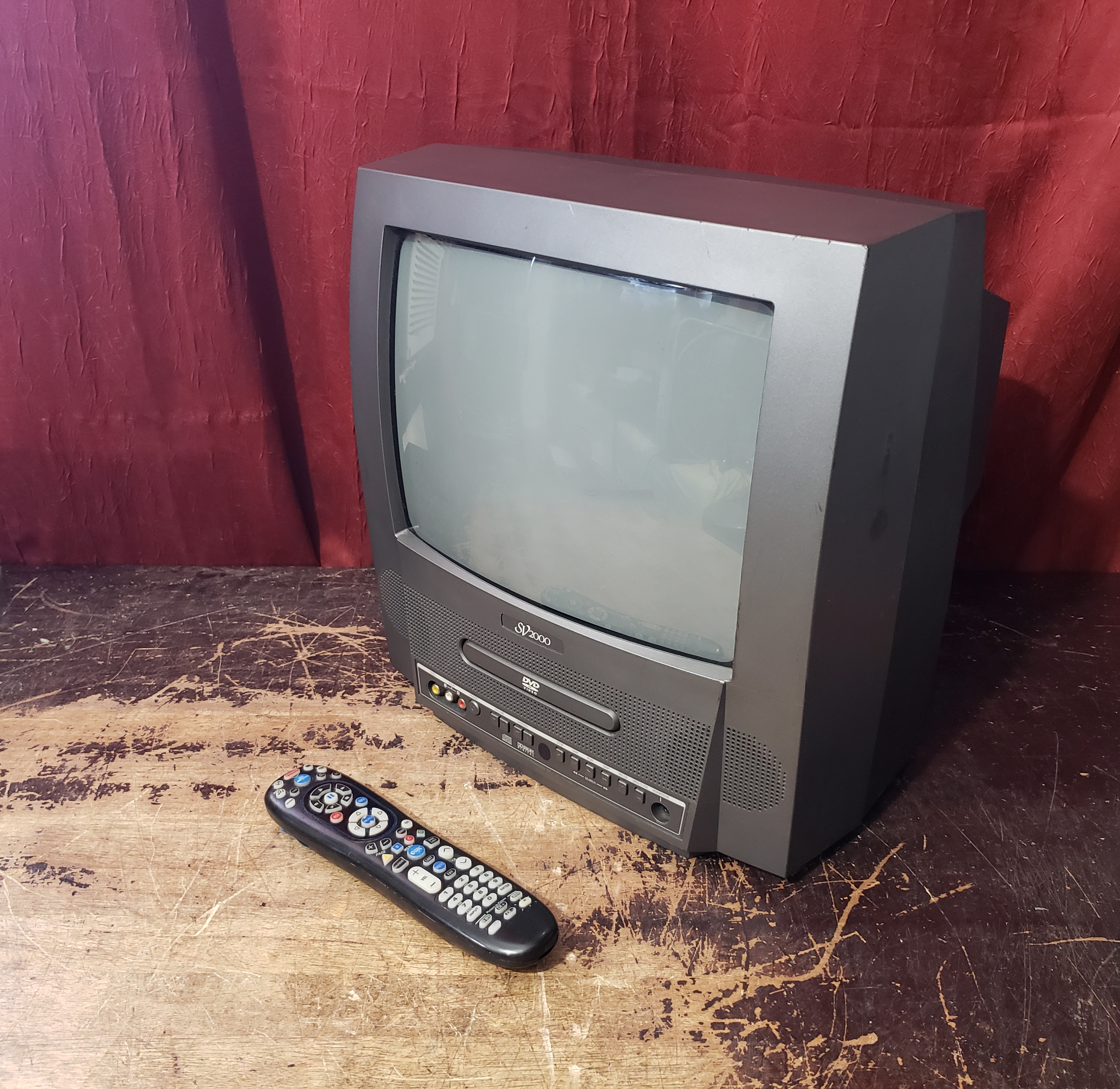

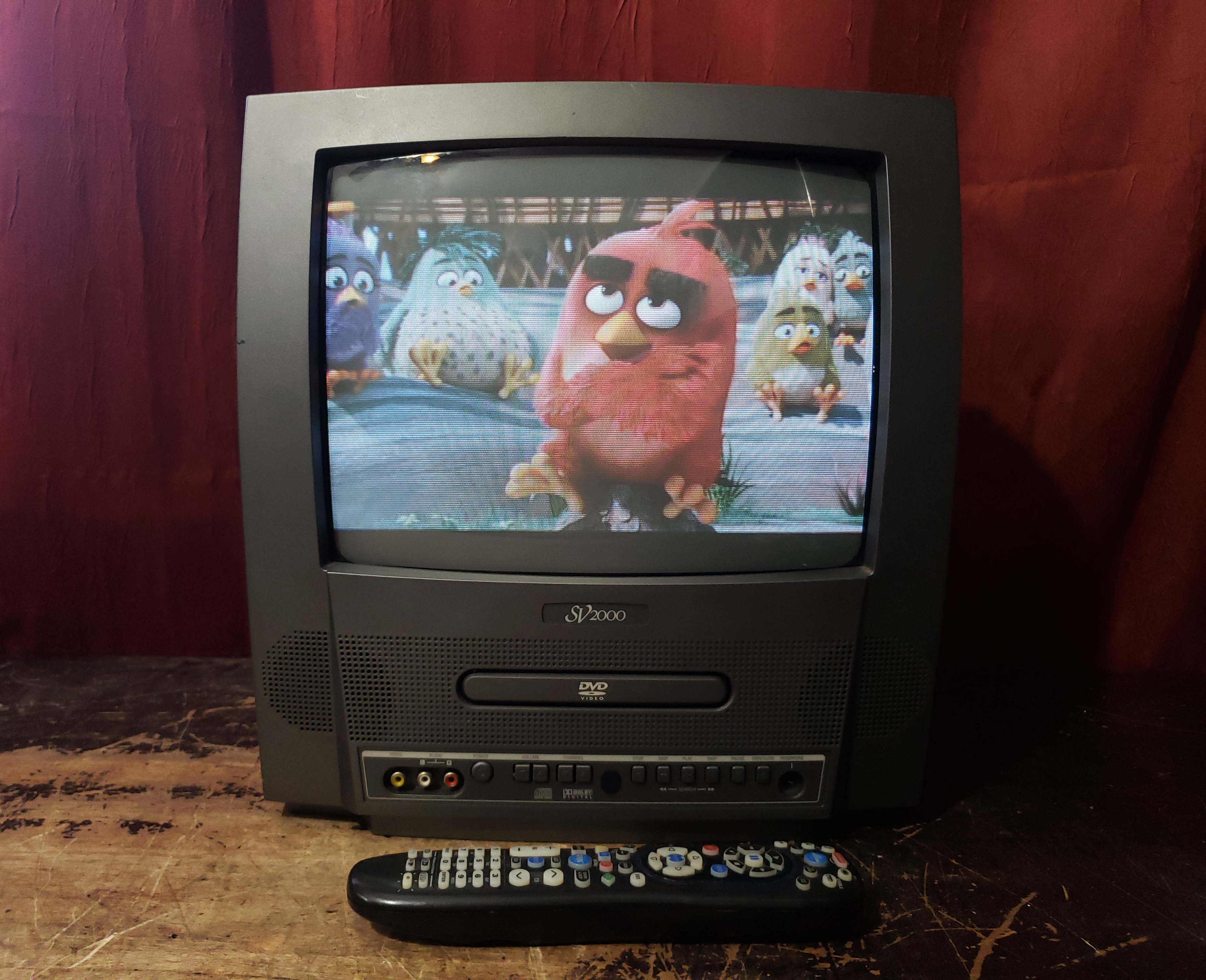

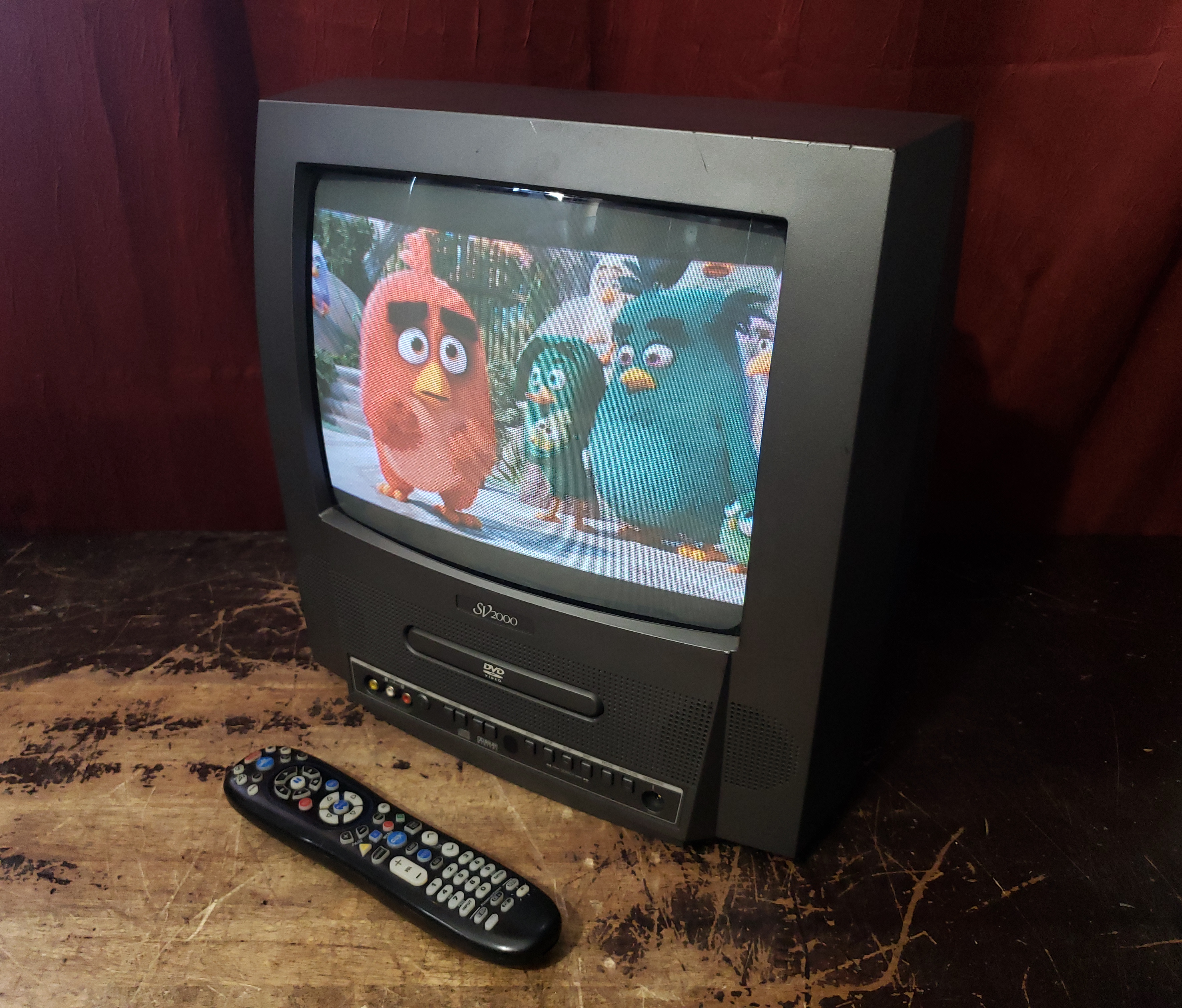

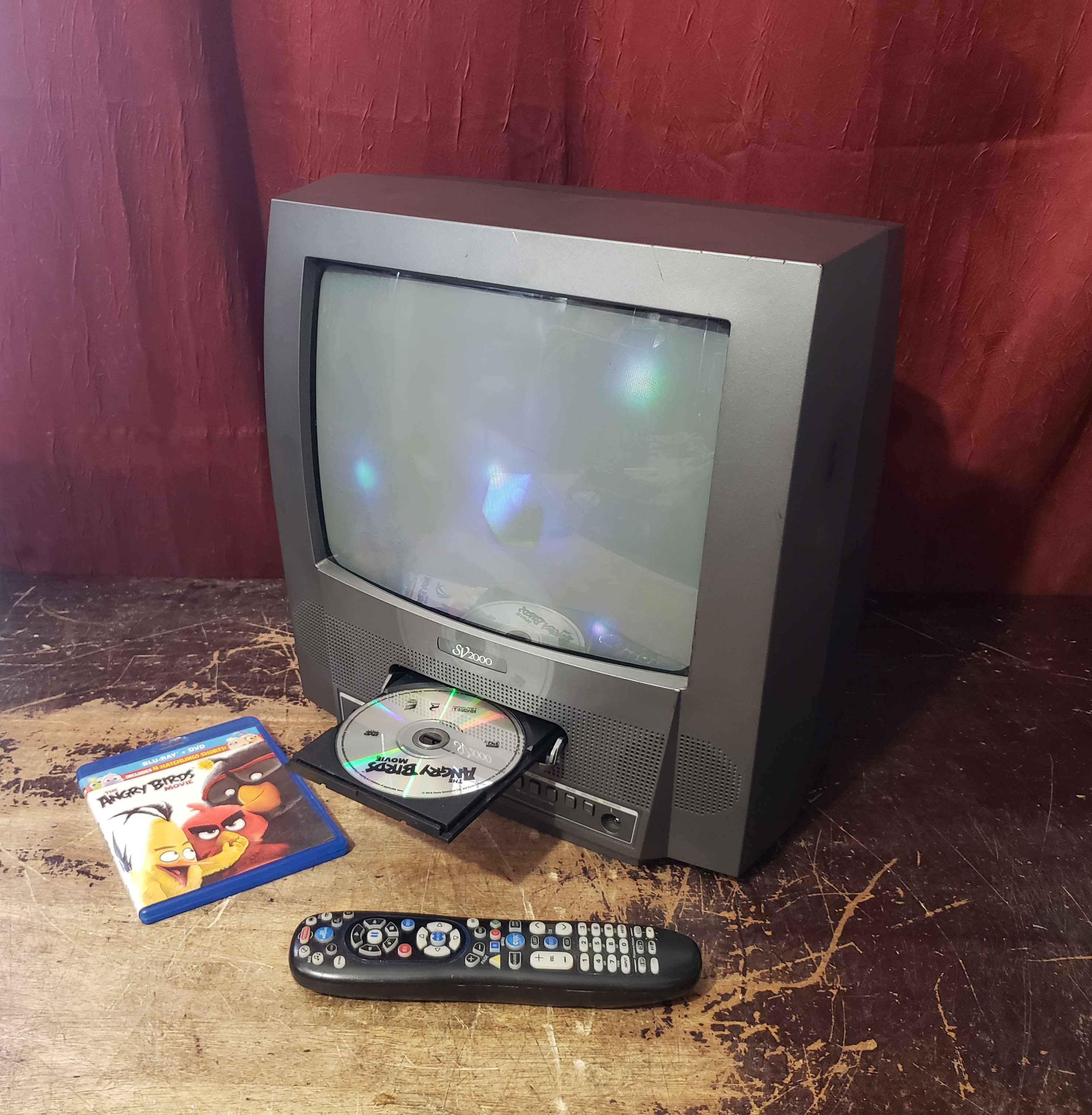

A remote with a dedicated "Picture" button is needed to adjust the picture settings. The universal remote in the photos is a Cox URC-8820-CISCO using program code 1944; it controls most functions but not picture settings.
The internal DVD player is connected to the jungle chip via Y/C (S-Video).

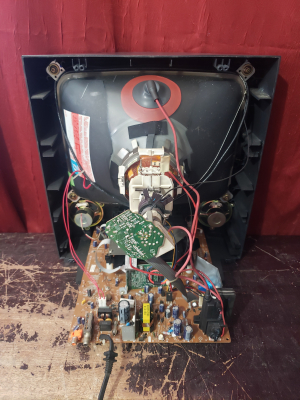

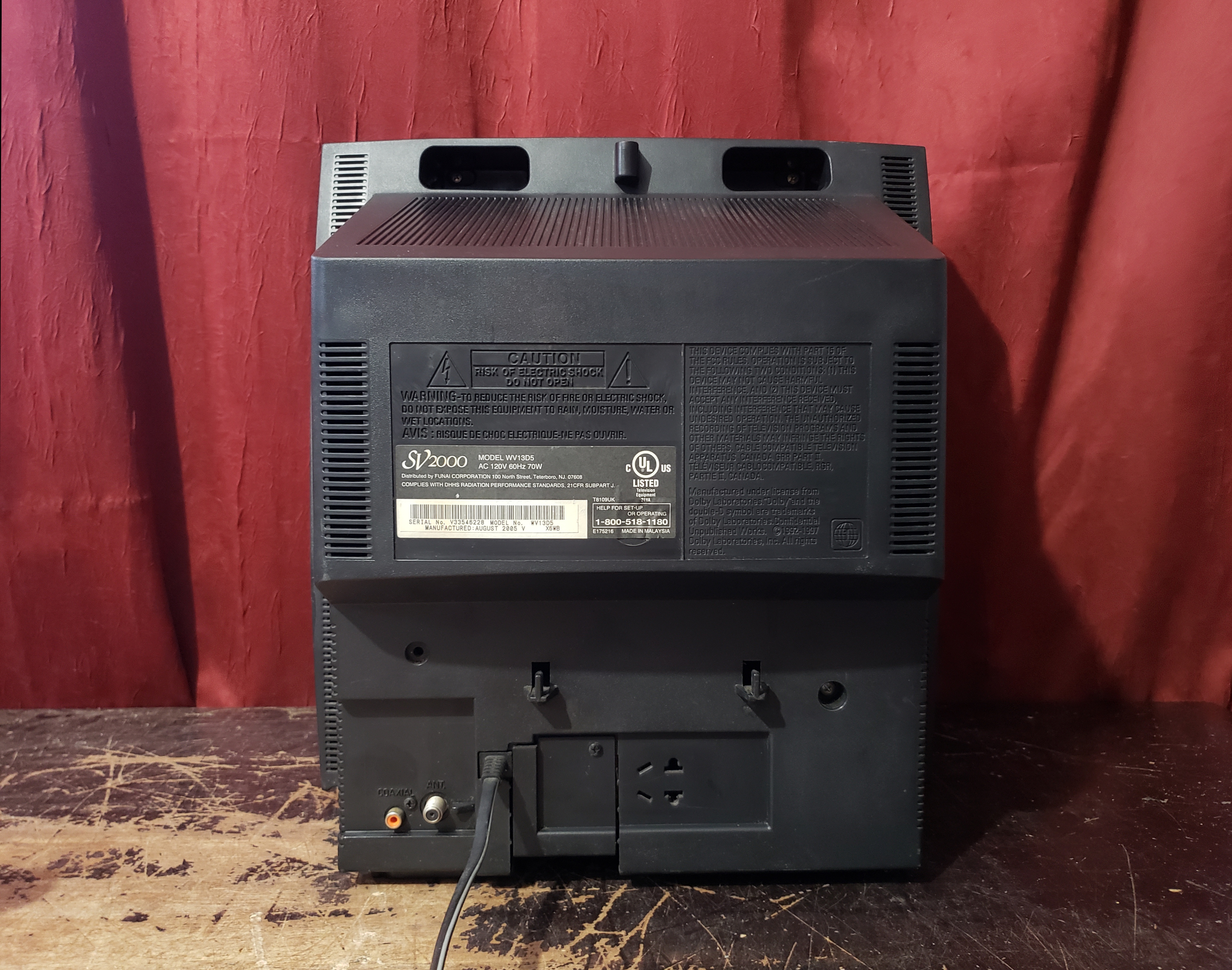

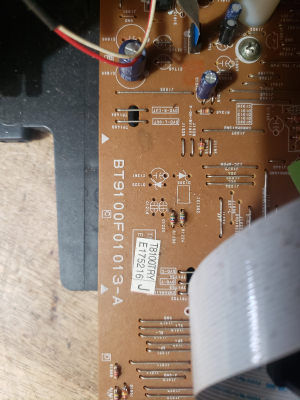

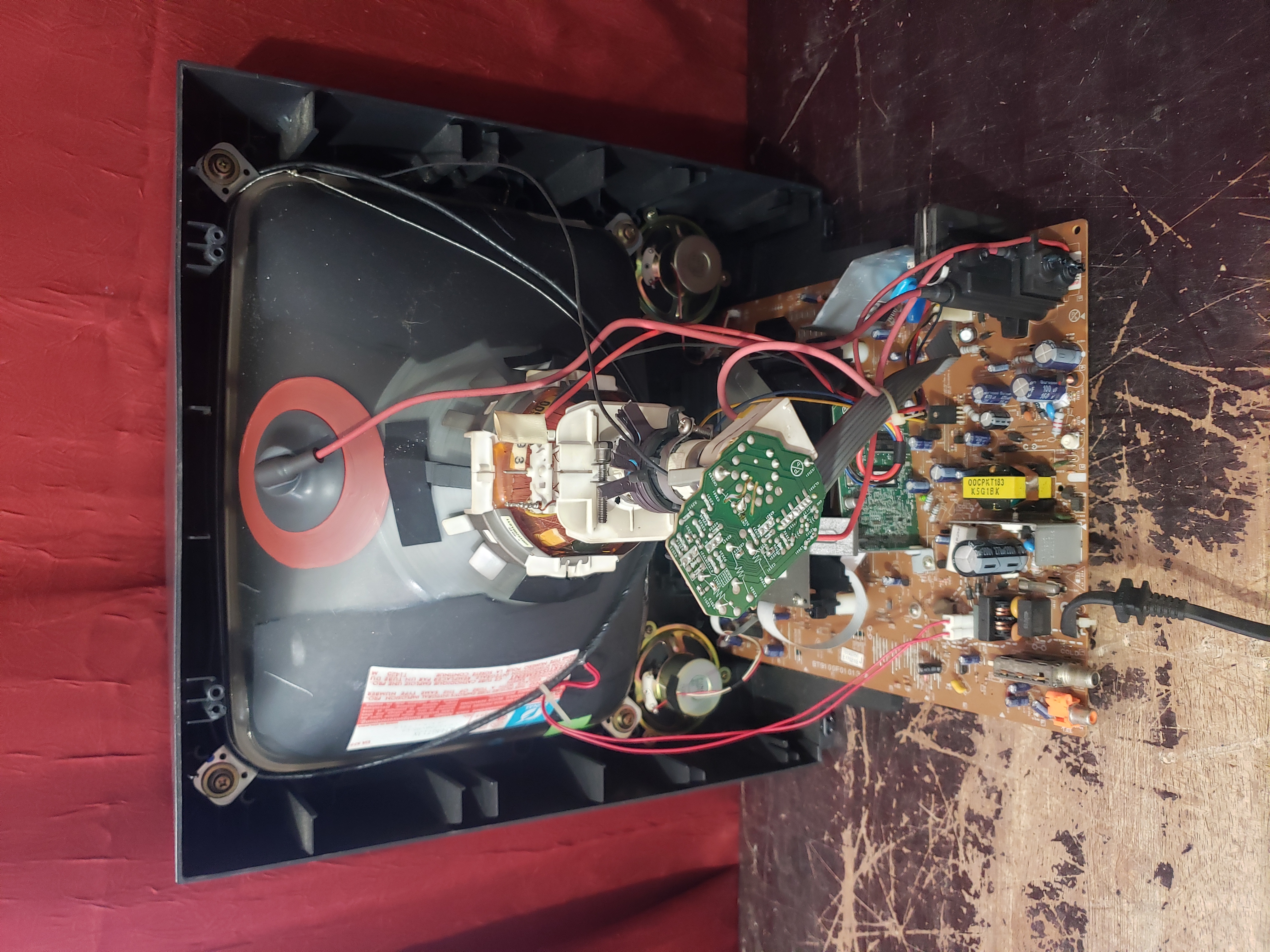

Gallery
| Specifications | |
|---|---|
| Brand: | SV2000 |
| Manufacturer: | Funai |
| Model: | WV13D5 |
| Series: | TV/DVD Combo |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | Notch |

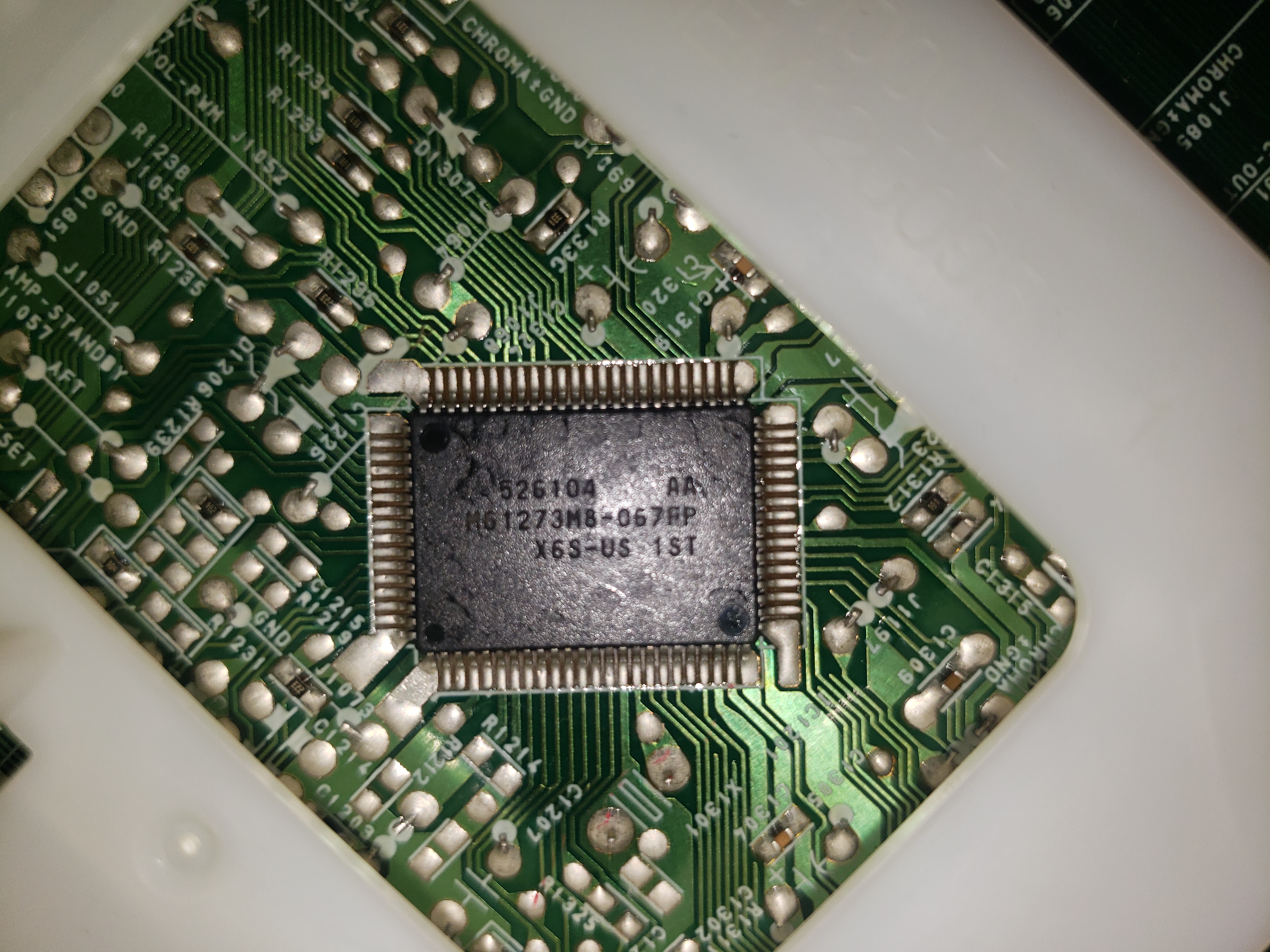

| Jungle IC: | M61273M8-067FP |

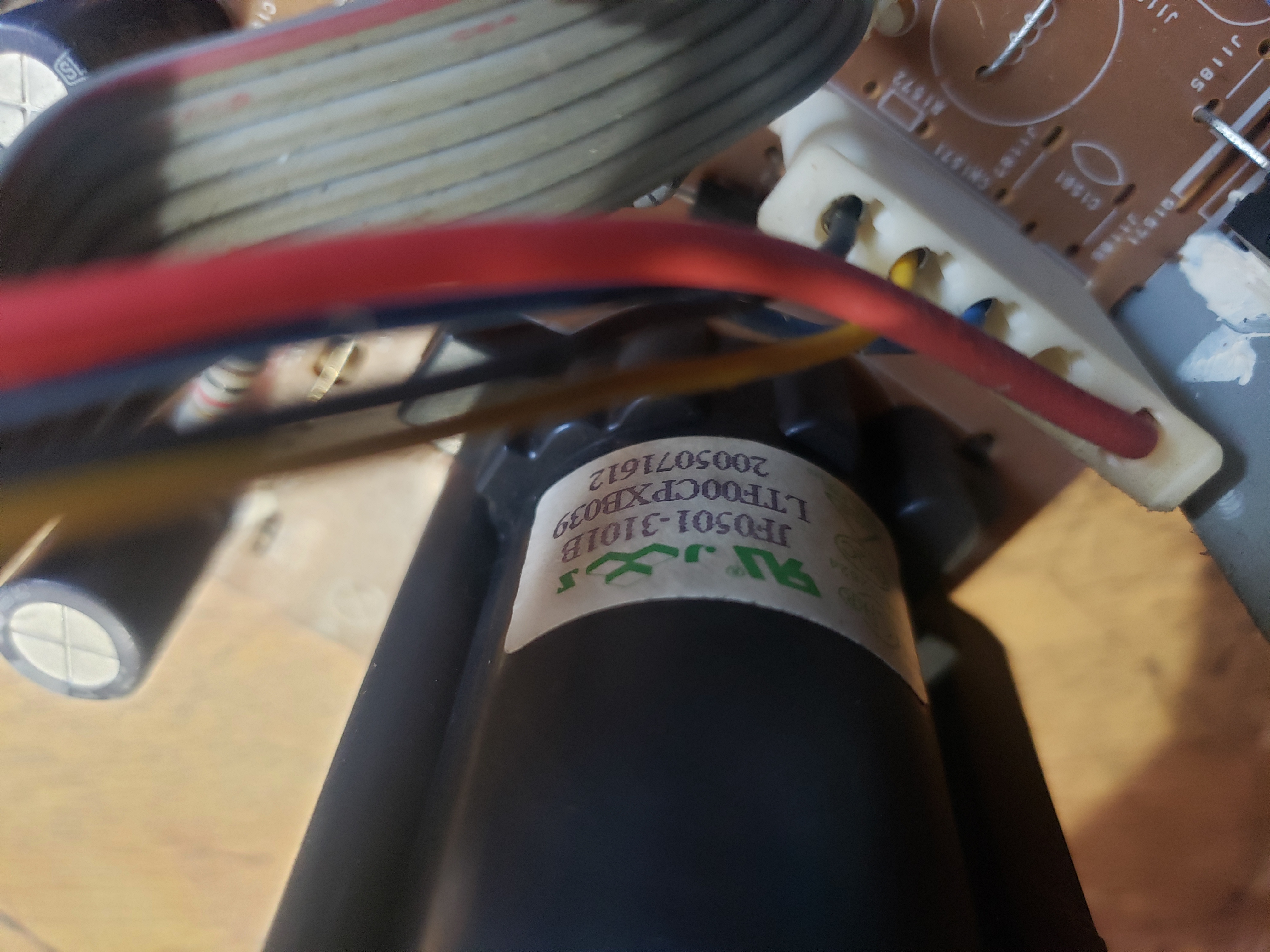

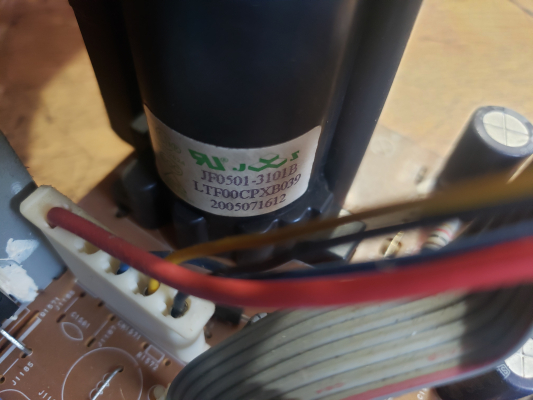

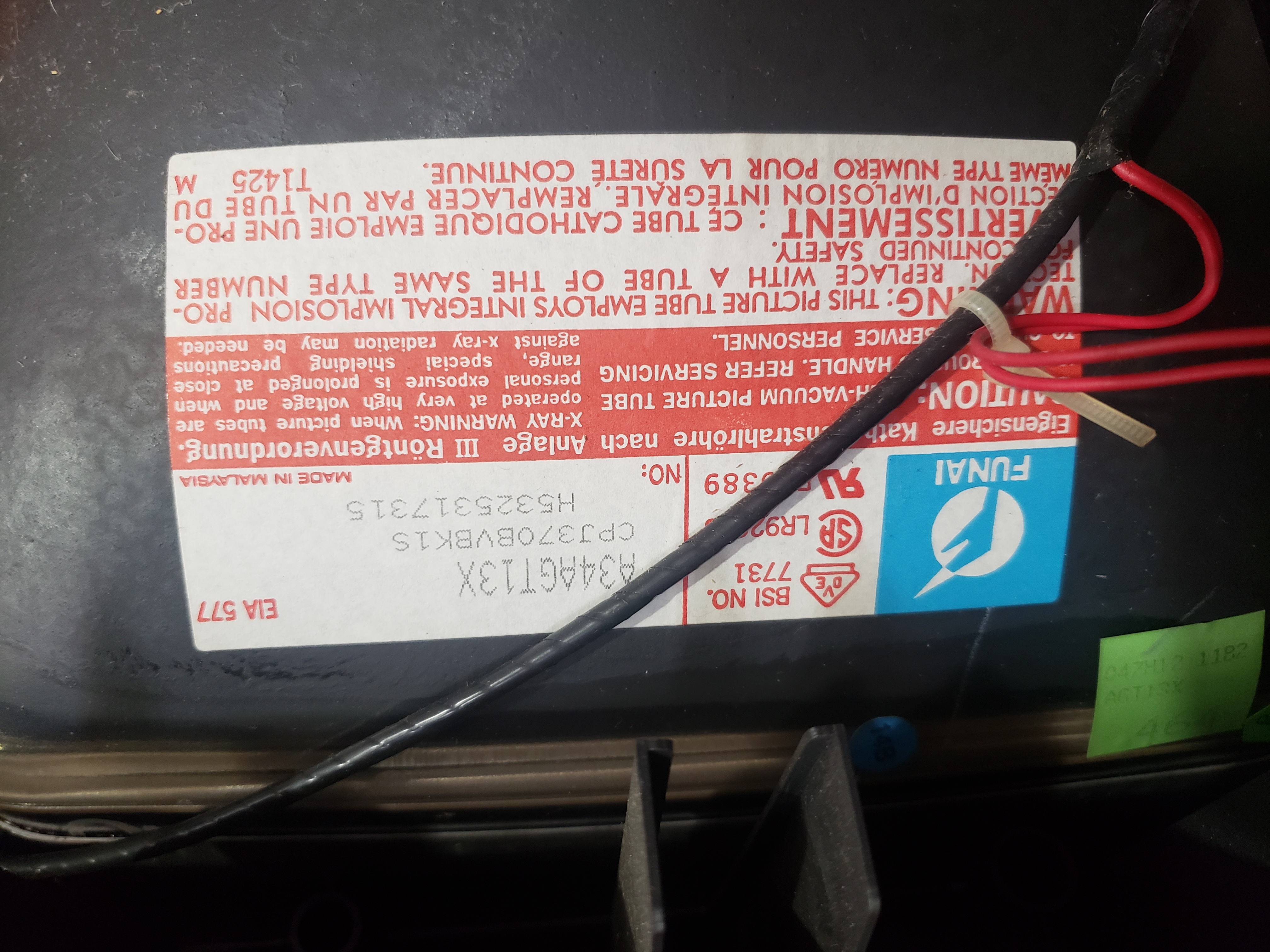

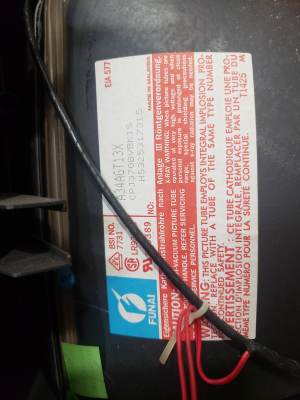

| Flyback: | JF0501-3101B |
| Tube: | A34AGT13X , Chunghwa |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|

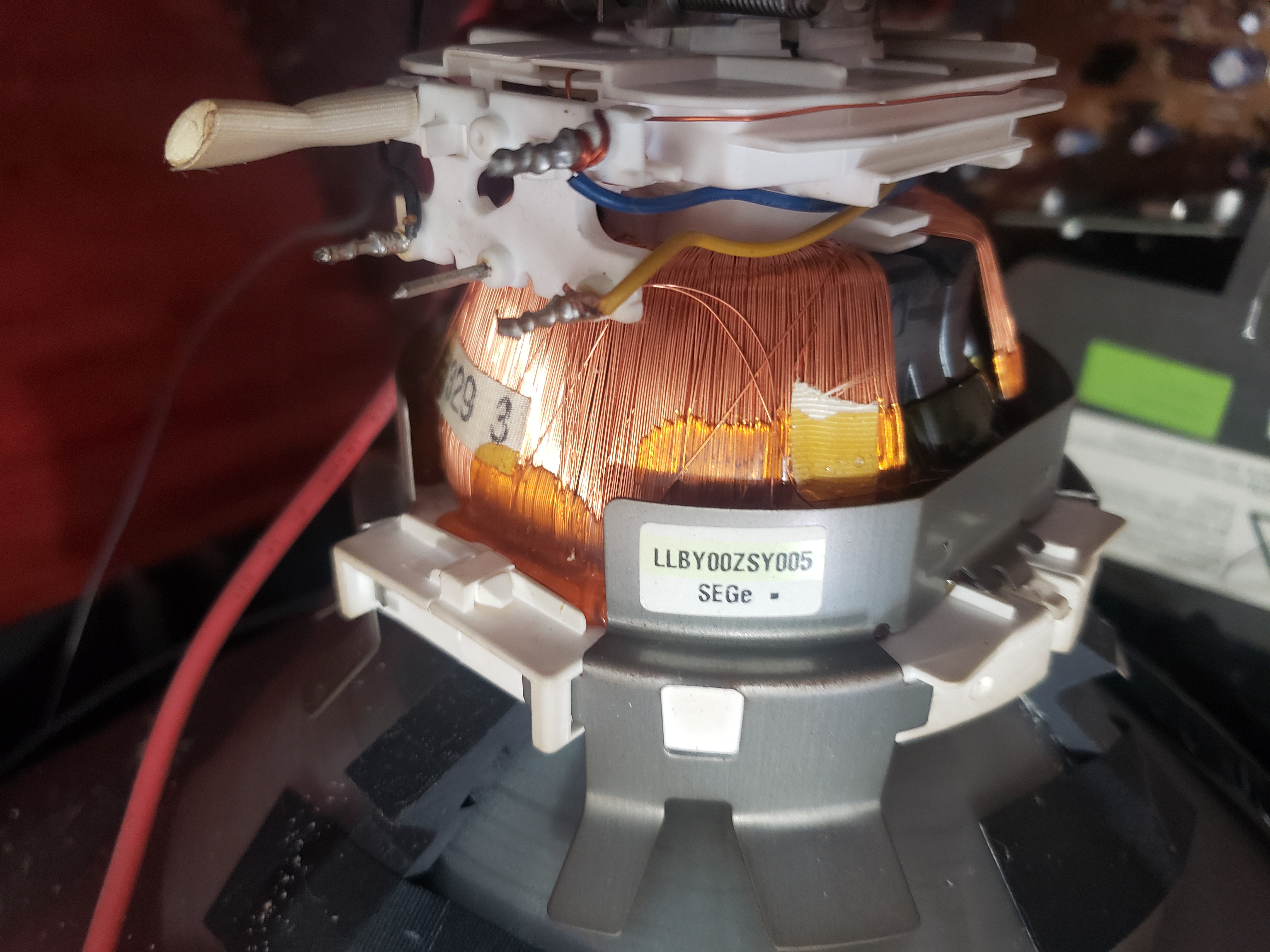

| Yoke: | LLBY00ZSY005 |
| Yoke Horz. Inductance: | 2.751 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 31.92 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.369 ohm |
| Yoke Vert. Resistance: | 16.90 ohm |
| Speakers: | Stereo, 1W x 2 |

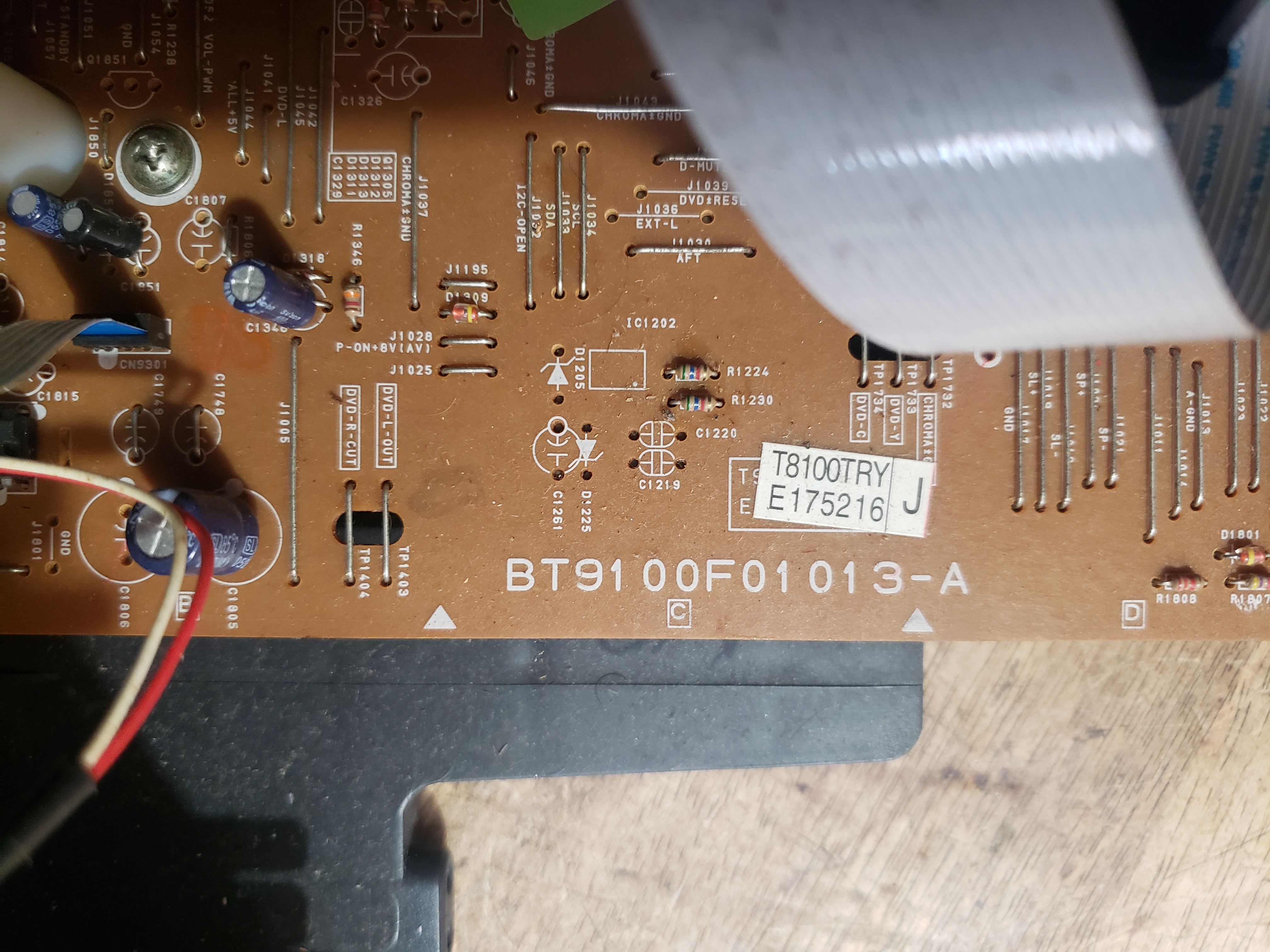

| Chassis: | T8100UA |
| Application: | Consumer |
| Launched: | 2005 |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Measurements, Needs Service Manual, Needs Owners Manual, Needs IC Info |
