Sylvania 6509DD
SegaSaturn94
December 3, 2025, 12:32 pm
December 3, 2025, 5:52 pm
December 3, 2025, 12:32 pm
December 3, 2025, 5:52 pm
Summary

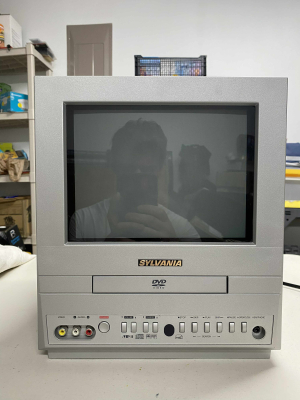

9" DVD combo TV made by Funai and sold under the Sylvania brand. Has RF and composite inputs with stereo sound. Requires a compatible remote with a "Picture" button in order to access picture settings (Emerson, Sylvania, Symphonic, Magnavox).
(Special thanks to Kyle Mazabob for the pics!)
Manuals
Media & Promo Materials
Mods & Repair Guides
Notes
The internal DVD player is connected to the jungle chip via Y/C (S-Video). Accessing the service menu requires sacrificing a remote to lift and jump pins on a very small surface mount IC inside; doing so is not beginner-friendly. The unified Renesas jungle chip does not support RGB mods.

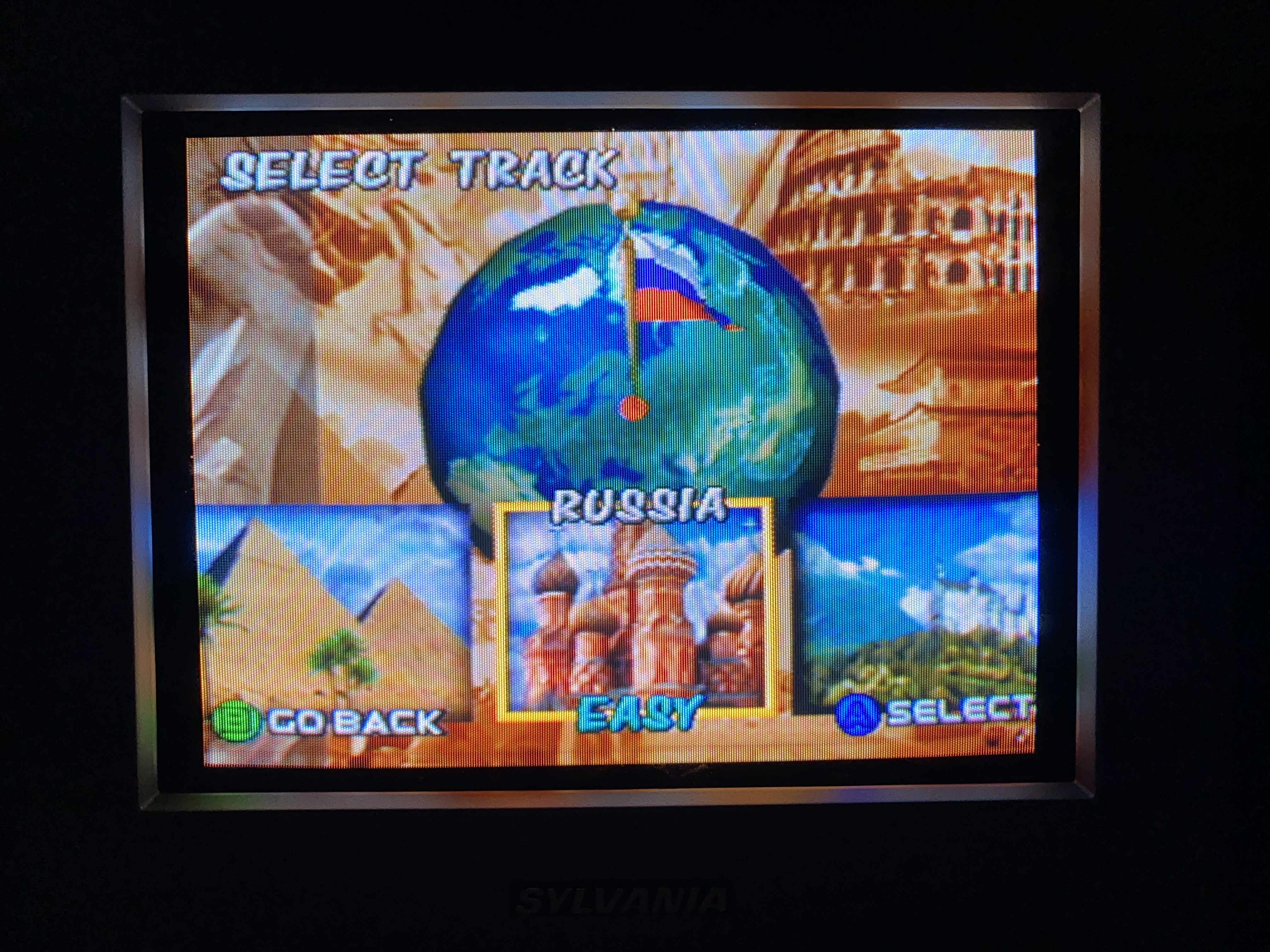

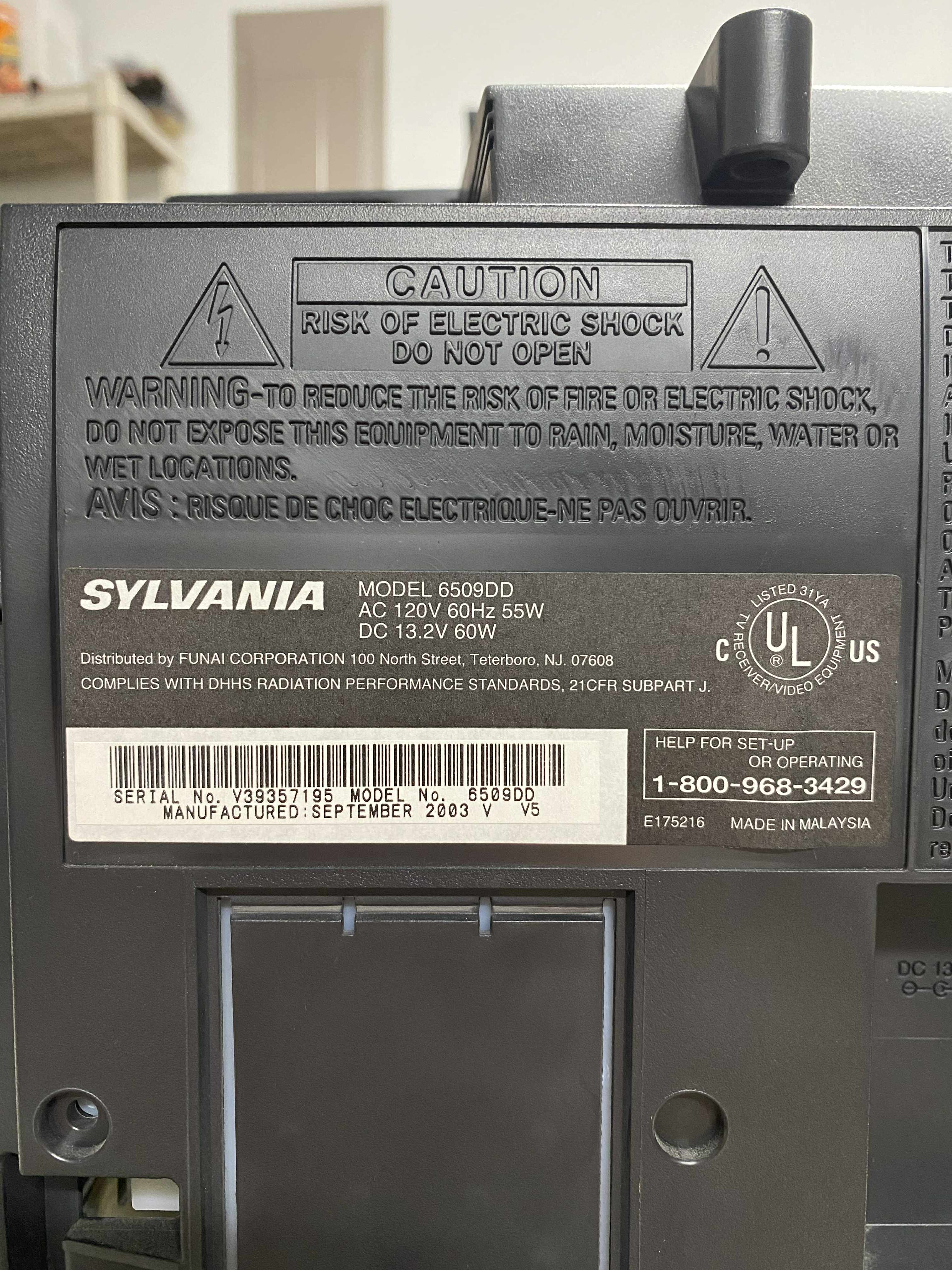

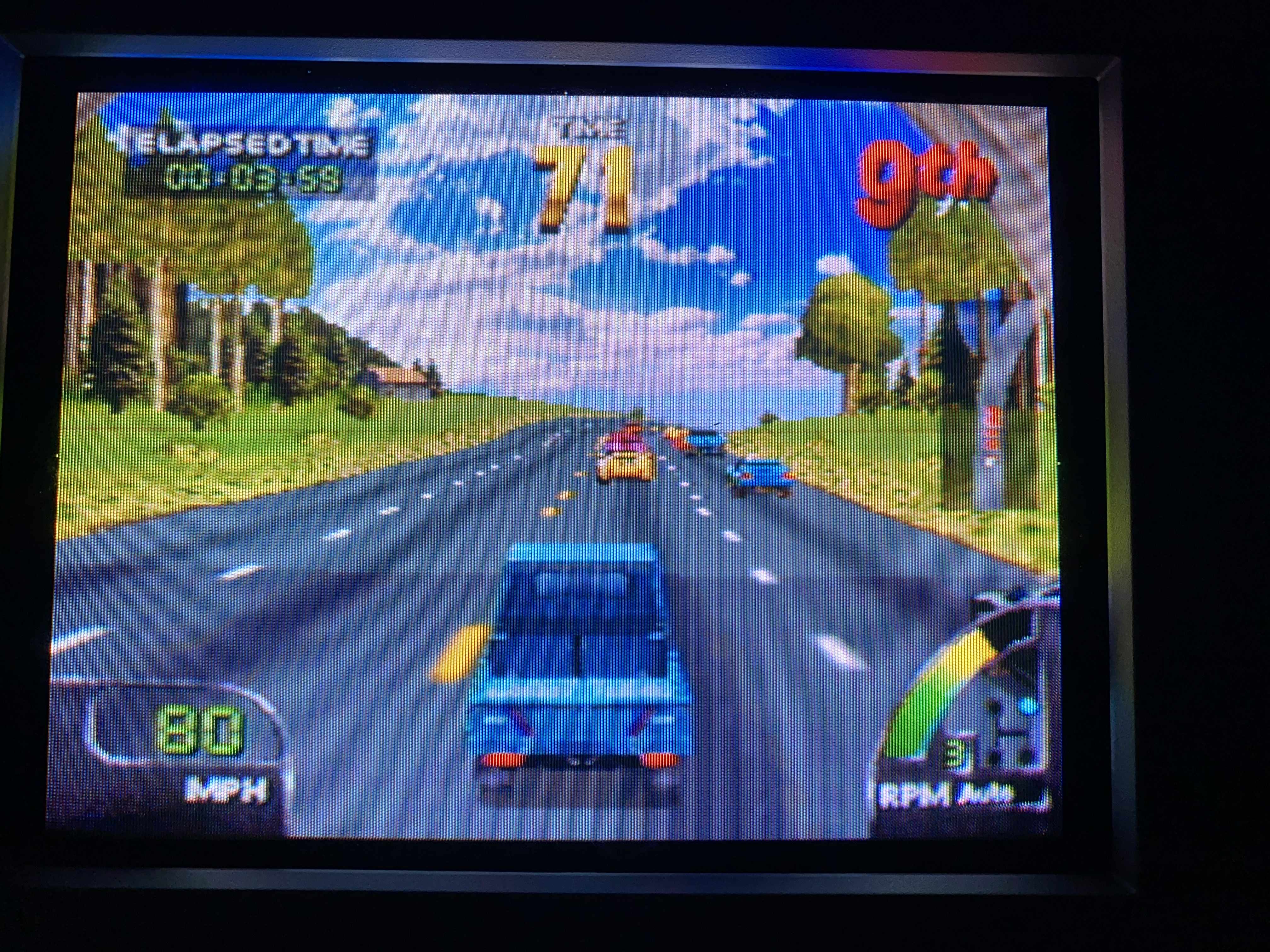

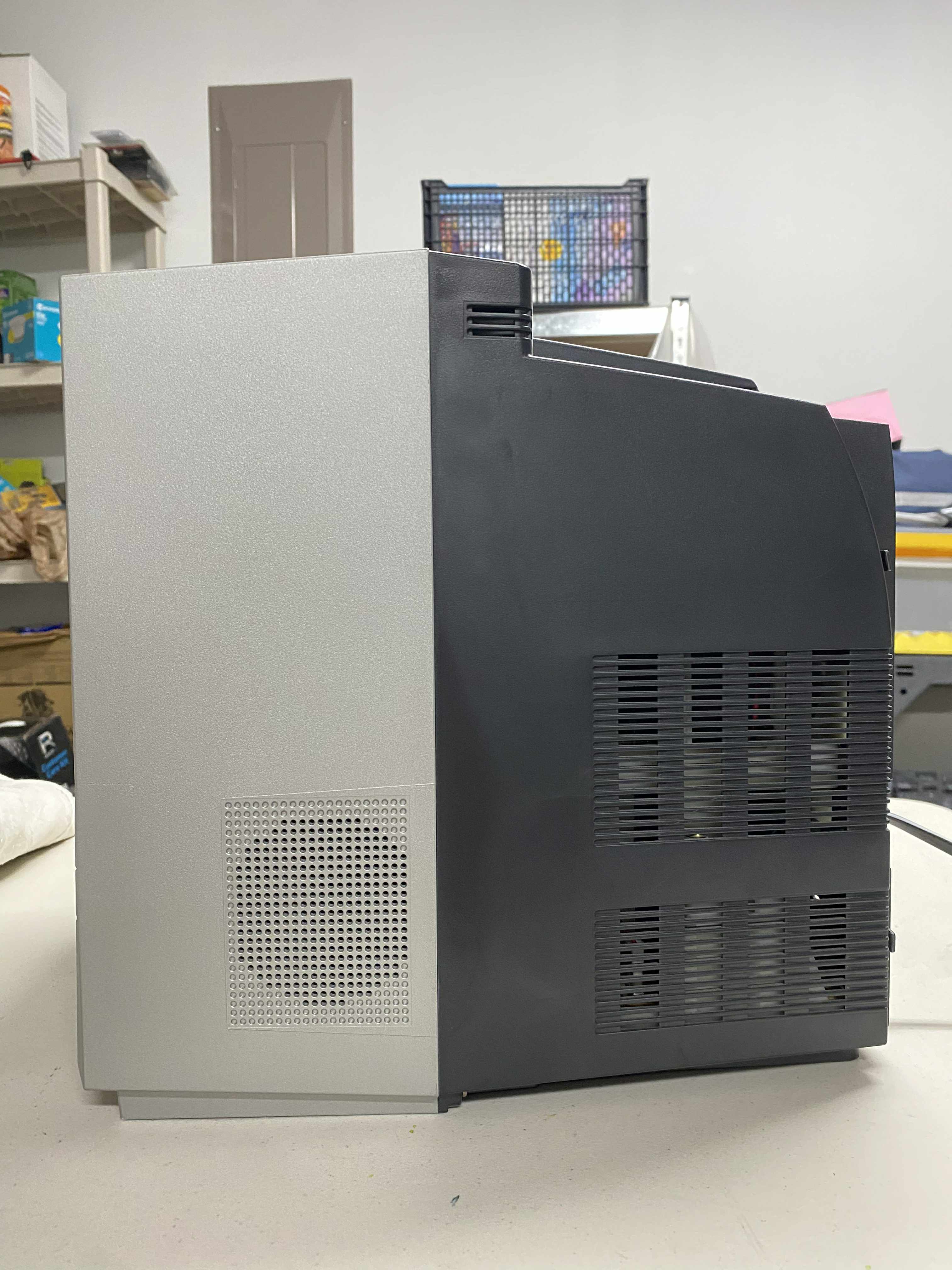

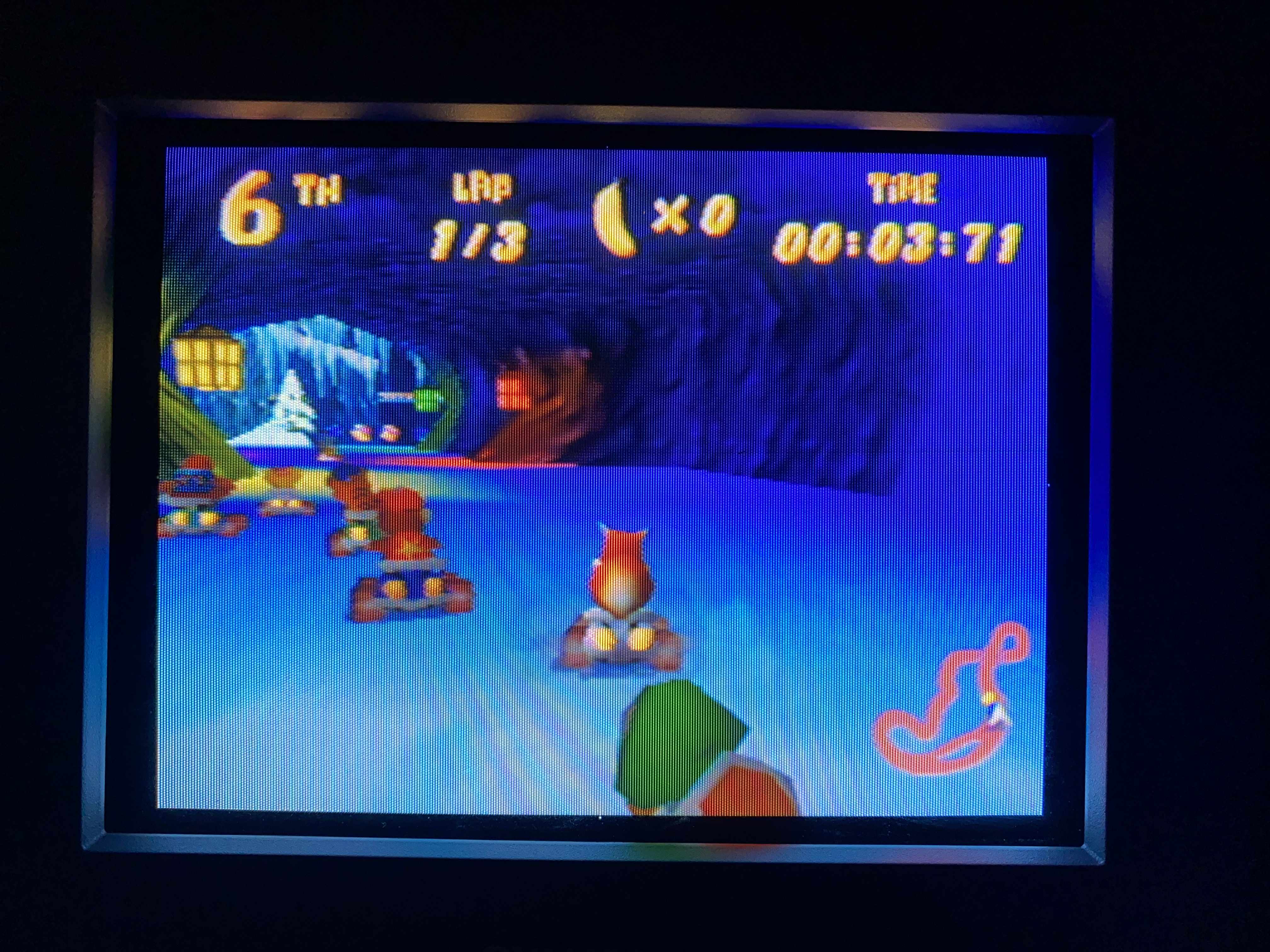

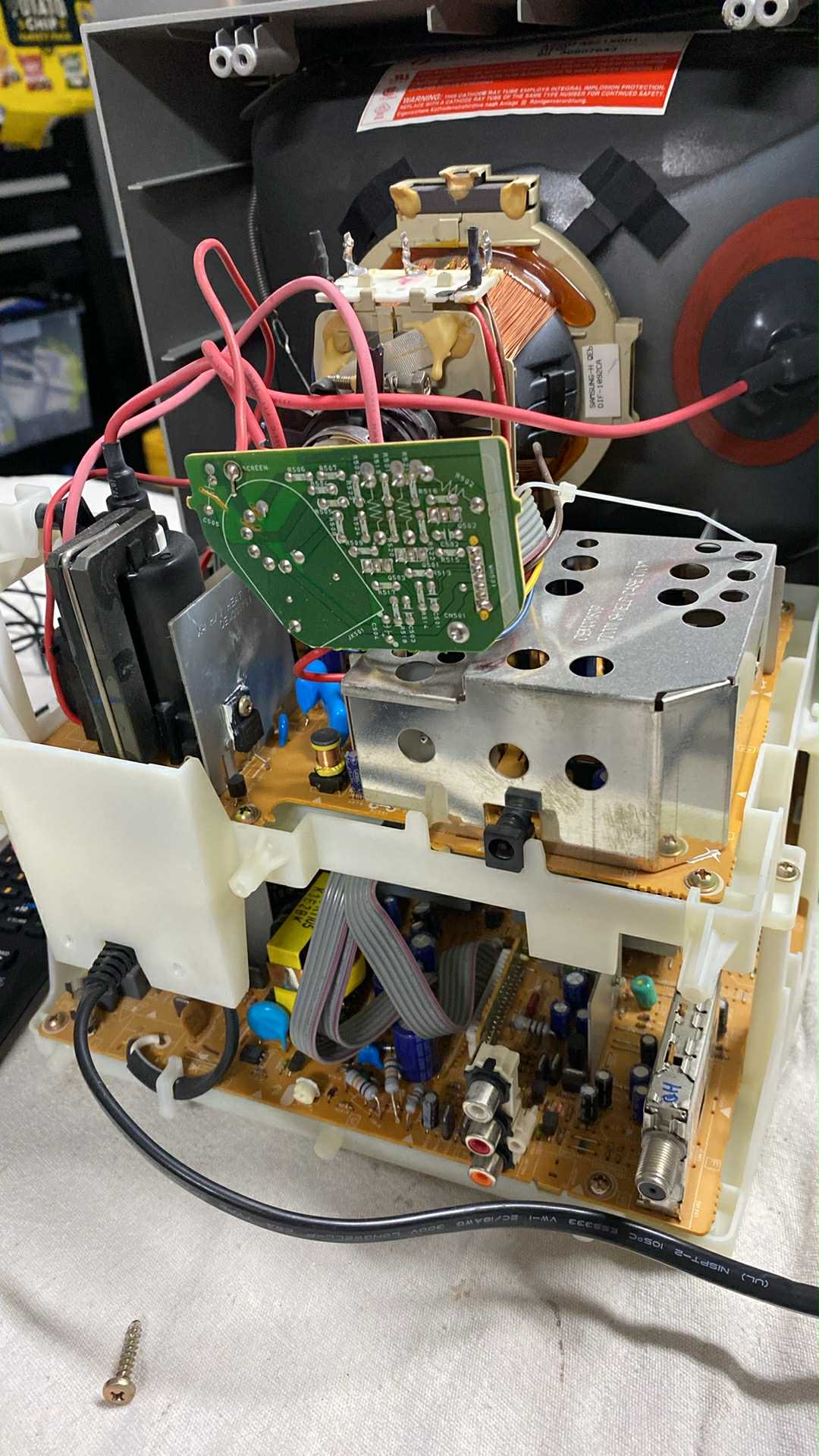

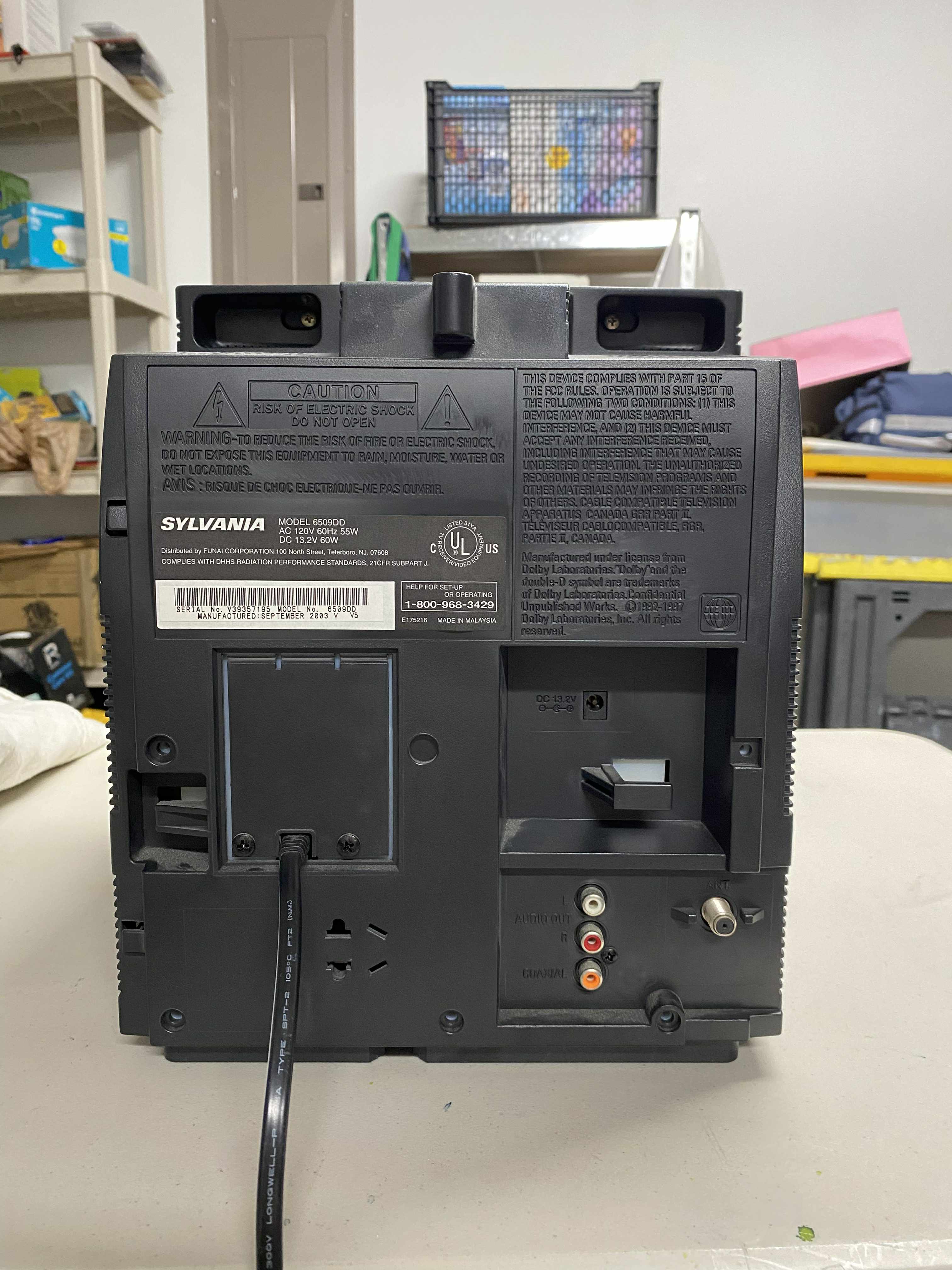

Gallery

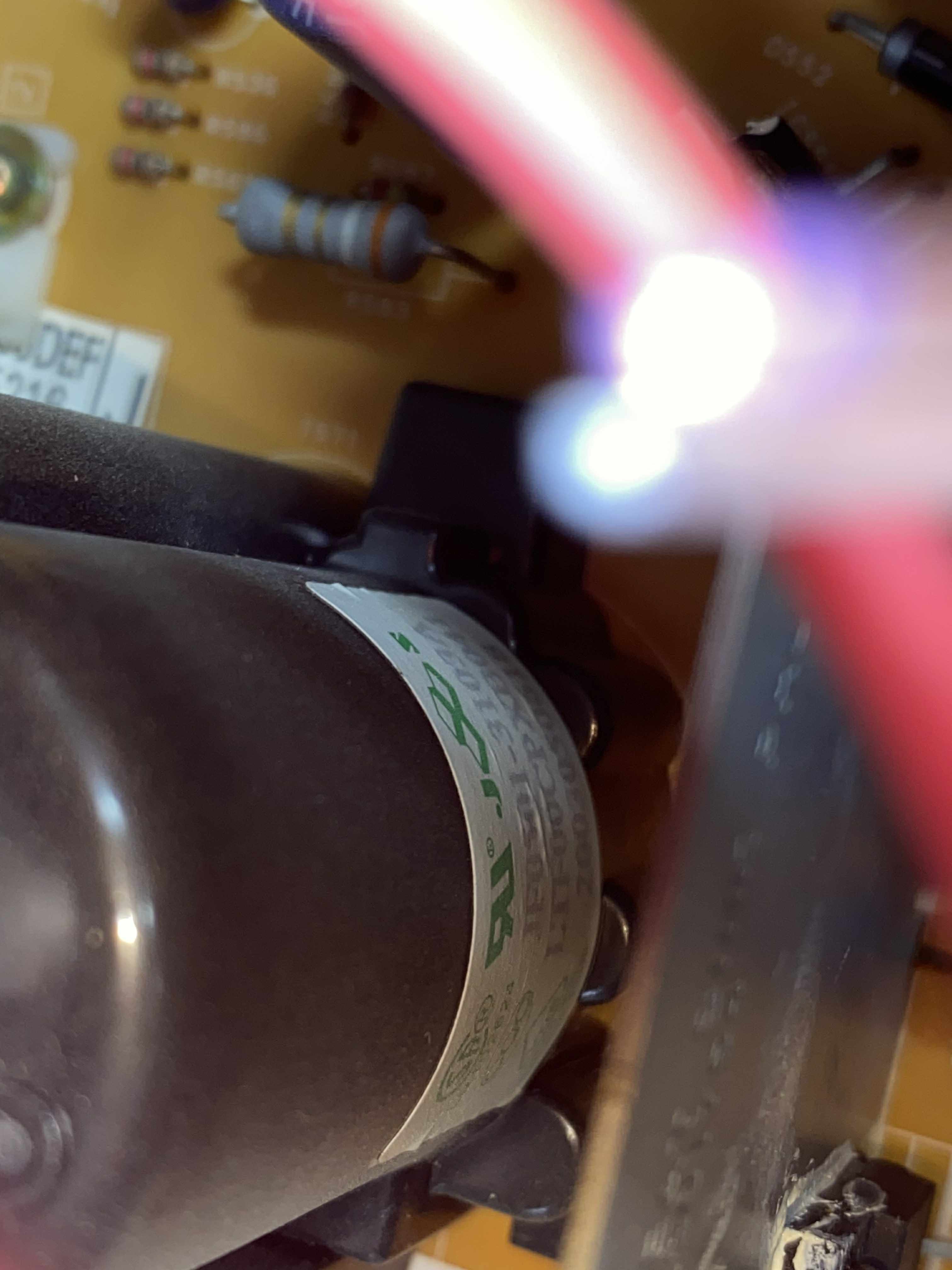

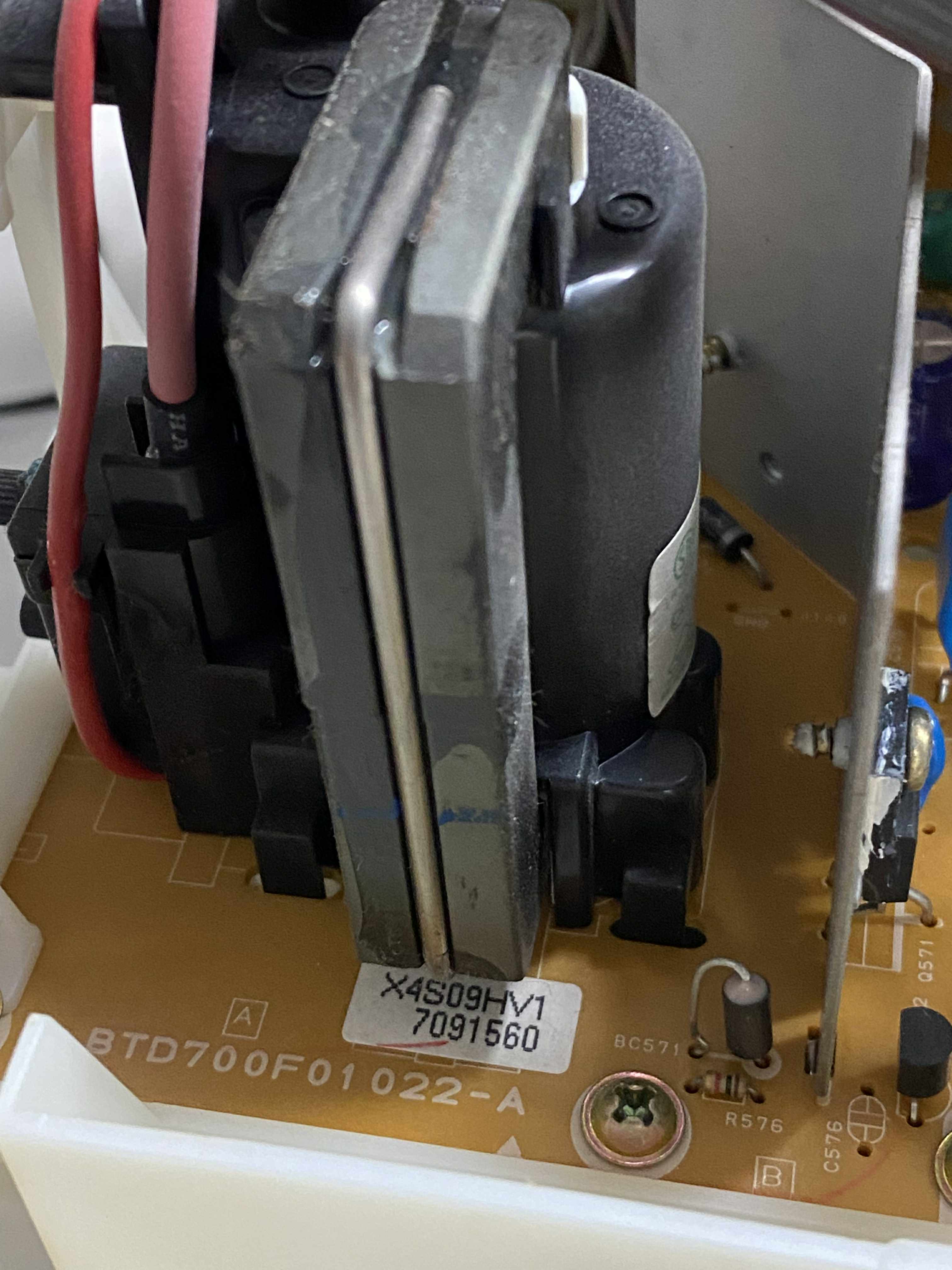

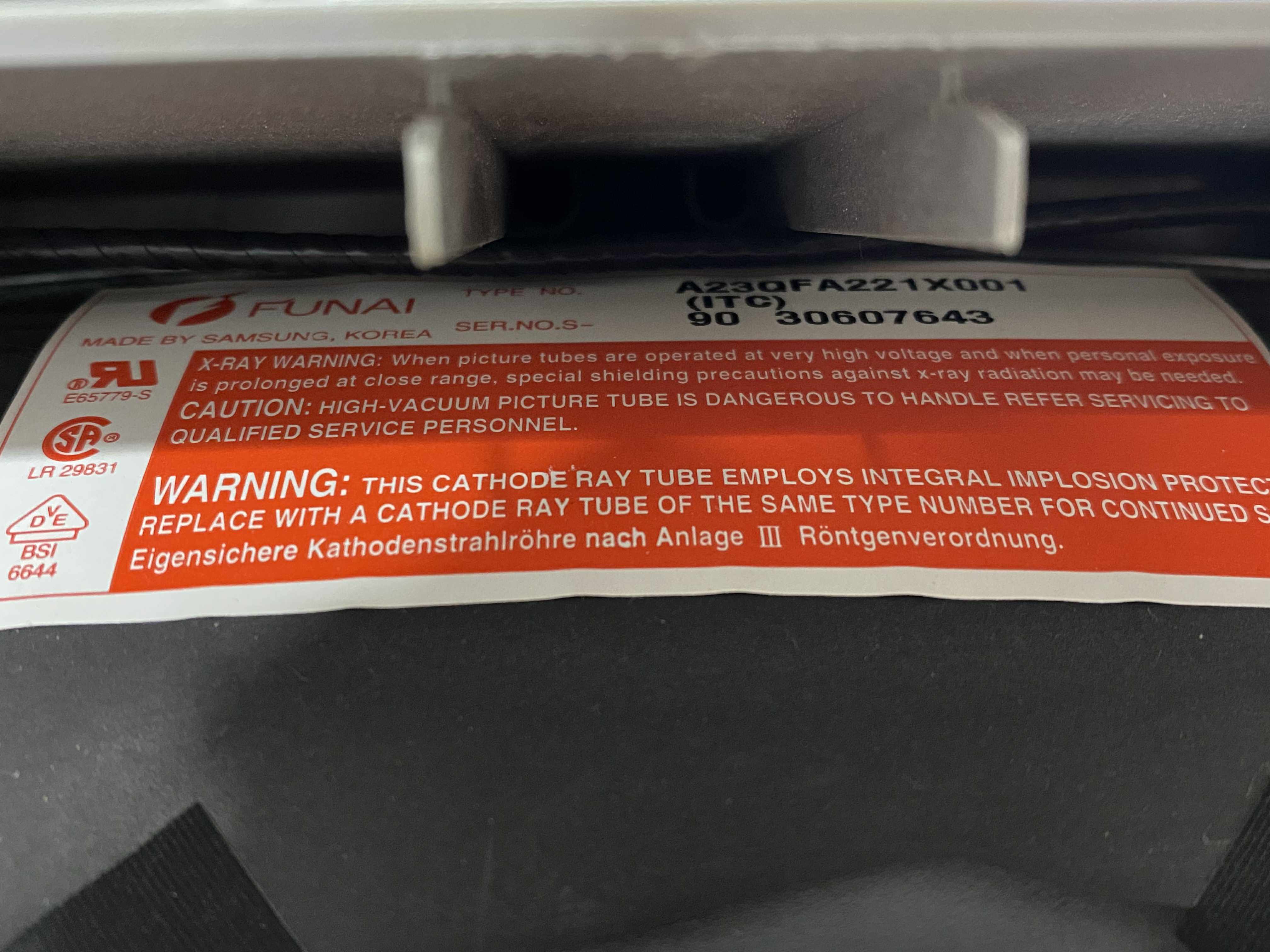

| Specifications | |
|---|---|
| Brand: | Sylvania |
| Manufacturer: | Funai |
| Model: | 6509DD |
| Series: | TV/DVD Combo |
| Viewable Size: | 9" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | AN5522, LA78040A |
| Jungle IC: | Renesas, M61271M8-053FP |
| Comb Filter IC: | Renesas, M61271M8-053FP |
| Flyback: | BSC23-2610S, JF0501-3103A |
| Focus Type: | Single |
| Tube: | Samsung , A23QFA221X001 , A23QFA221X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.5 mm |
| Tint: | Light |
| Removable Glare Film: | No |

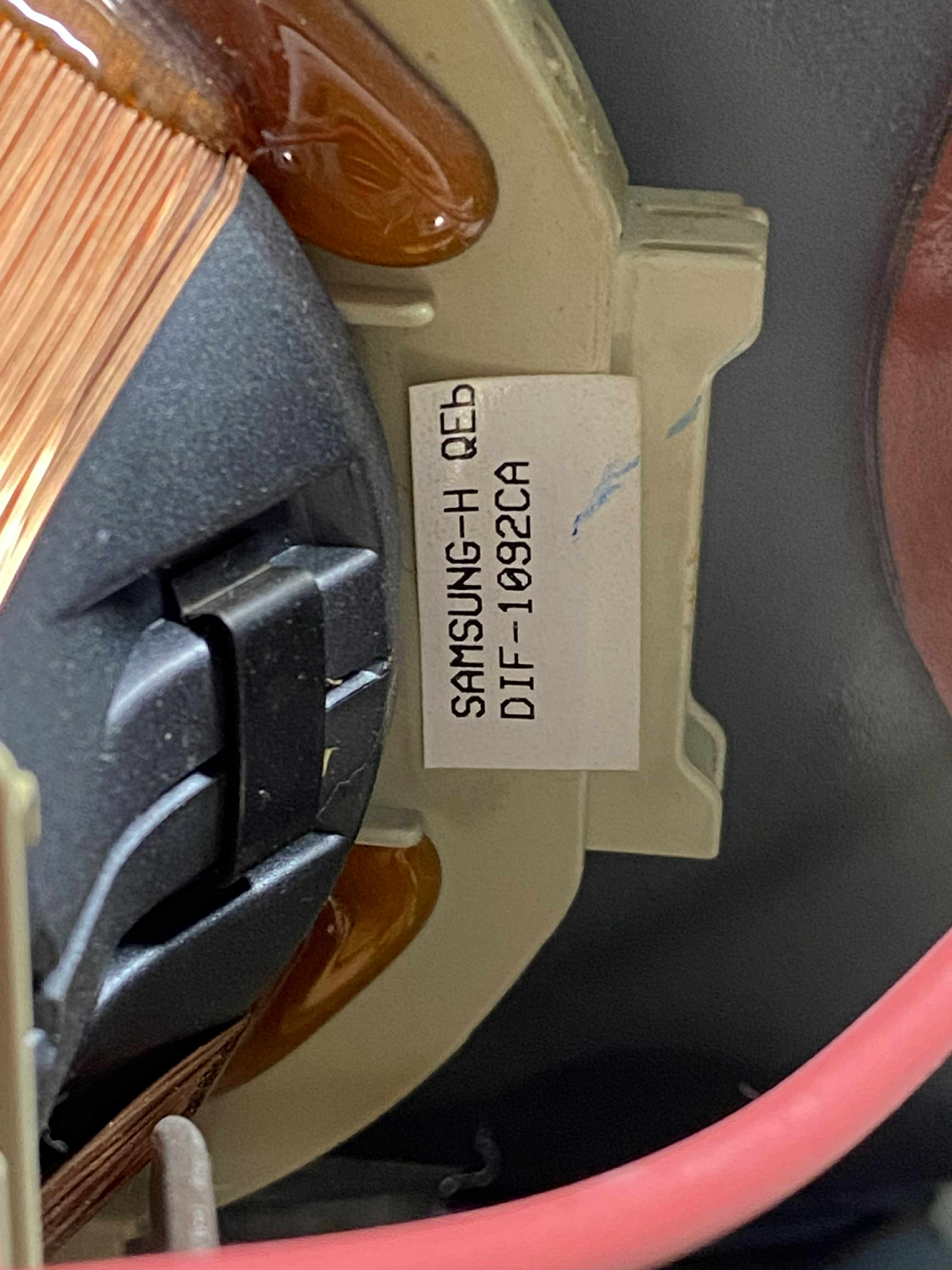

| Yoke: | DIF-1092CA |
| Speakers: | Stereo |
| Remote: | NE207UD, NE200UD |
| Chassis: | TD001UB |
| Weight: | 17.6 lbs (8 kg) |
| Dimensions (W/H/D): |
276 x 311 x 320 mm
(10.8 x 12.2 x 12.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| MSRP: | 229 USD |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
