Summary
TV/DVD combo which requires a compatible remote with a "Picture" button in order to access picture settings.
Manuals
Mods& Repair Guides
- S-Video Mod for the 6513DF may apply to this model as well which uses a slightly different revision of the same base model jungle chip.
Notes
Manufactured by Funai, this TV is the same as the Magnavox MSD513E and the Emerson EWC13D4.

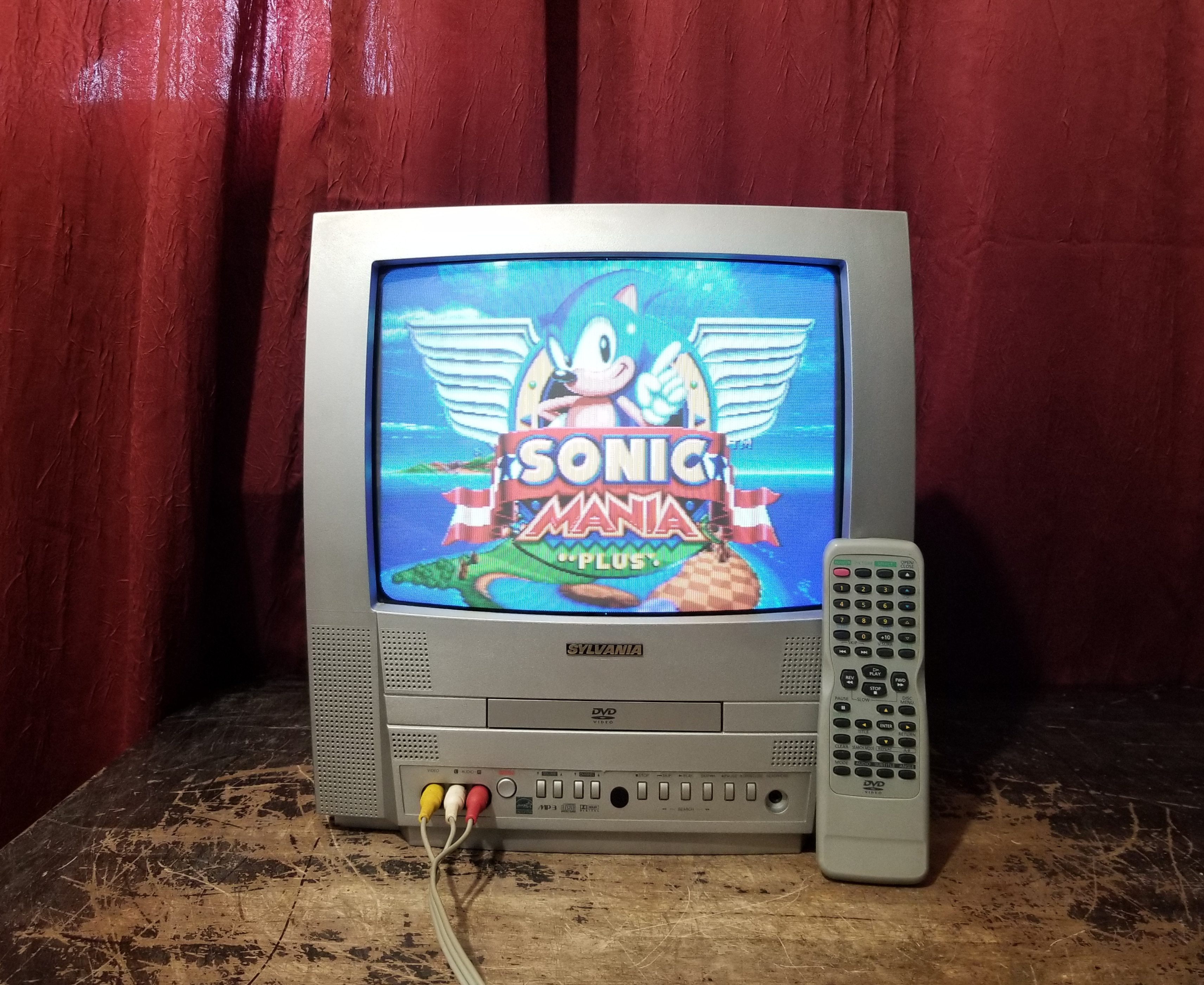

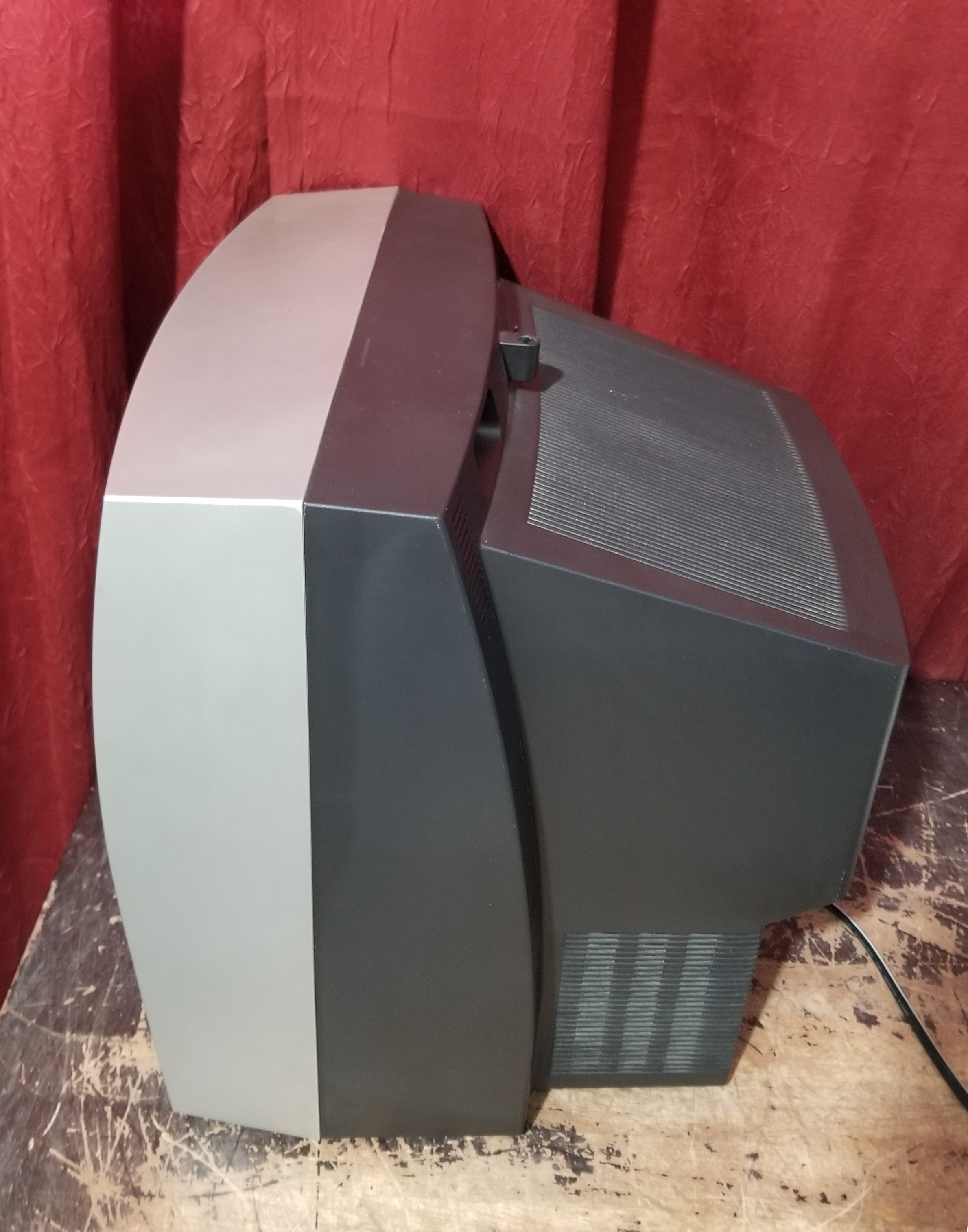

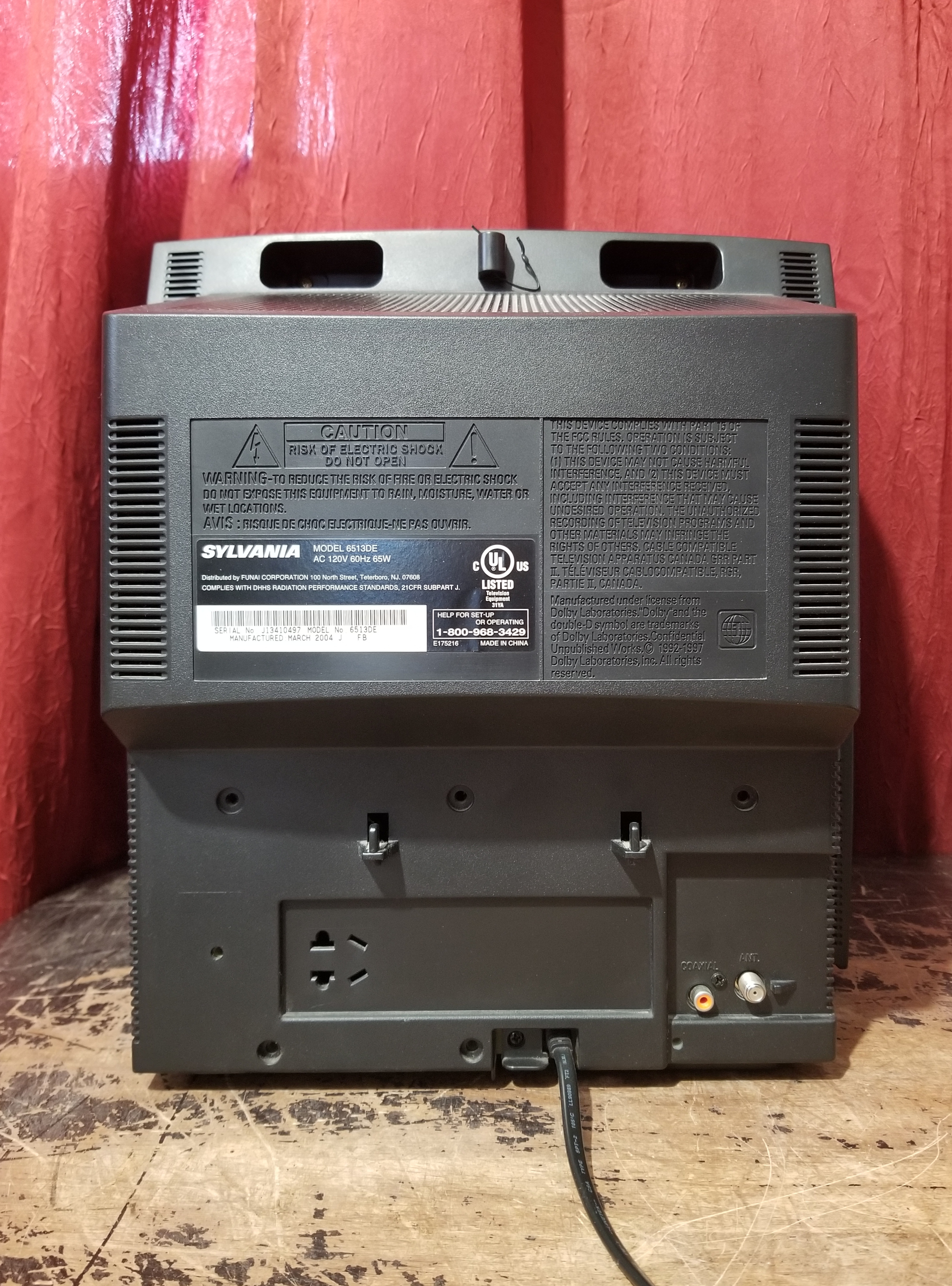

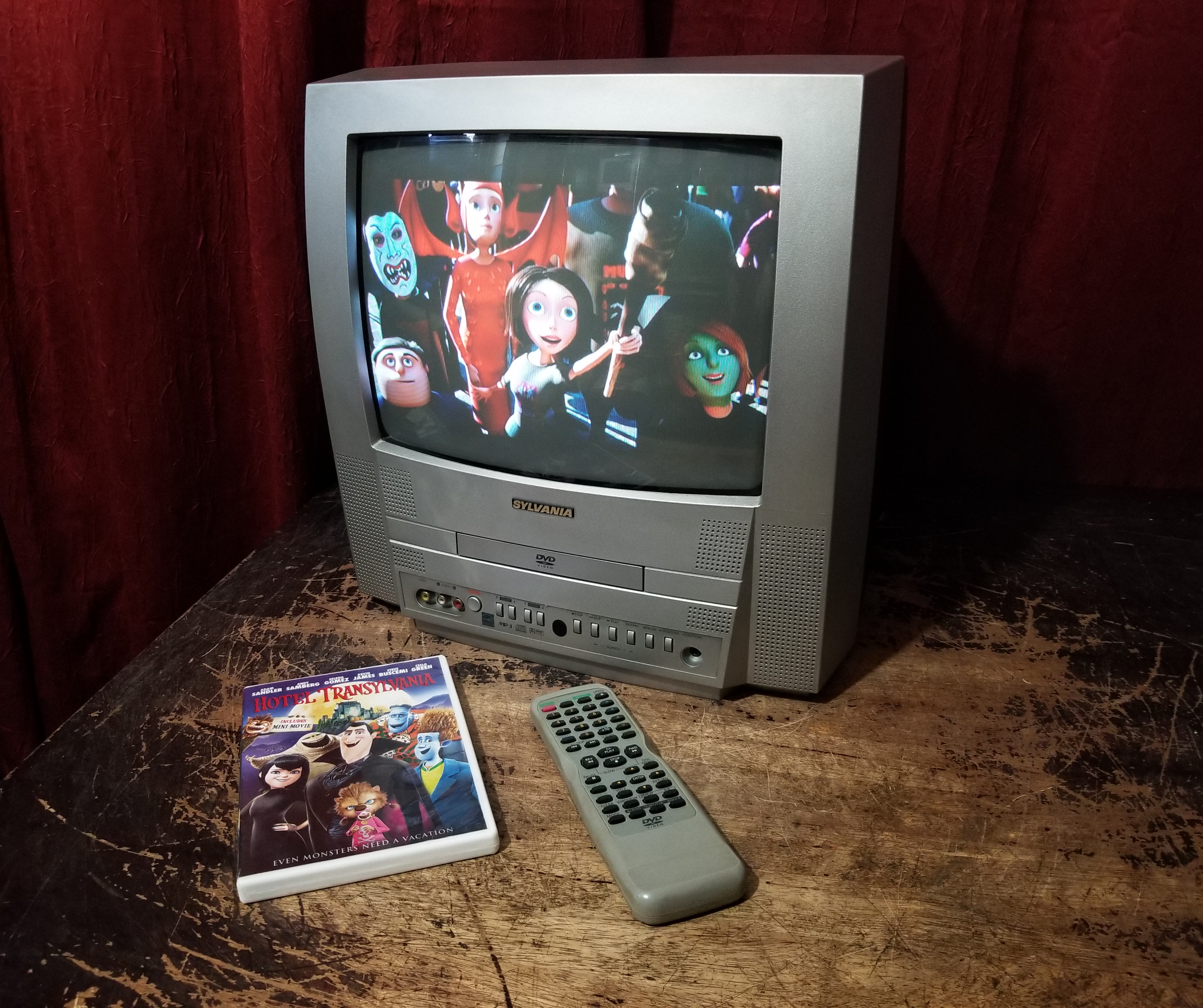

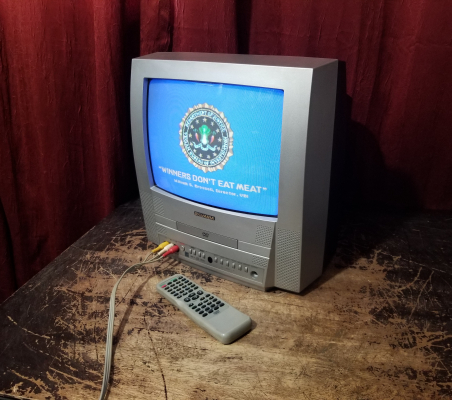

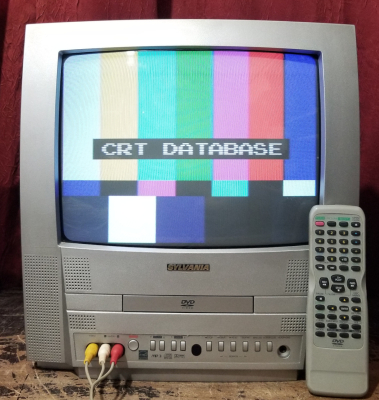

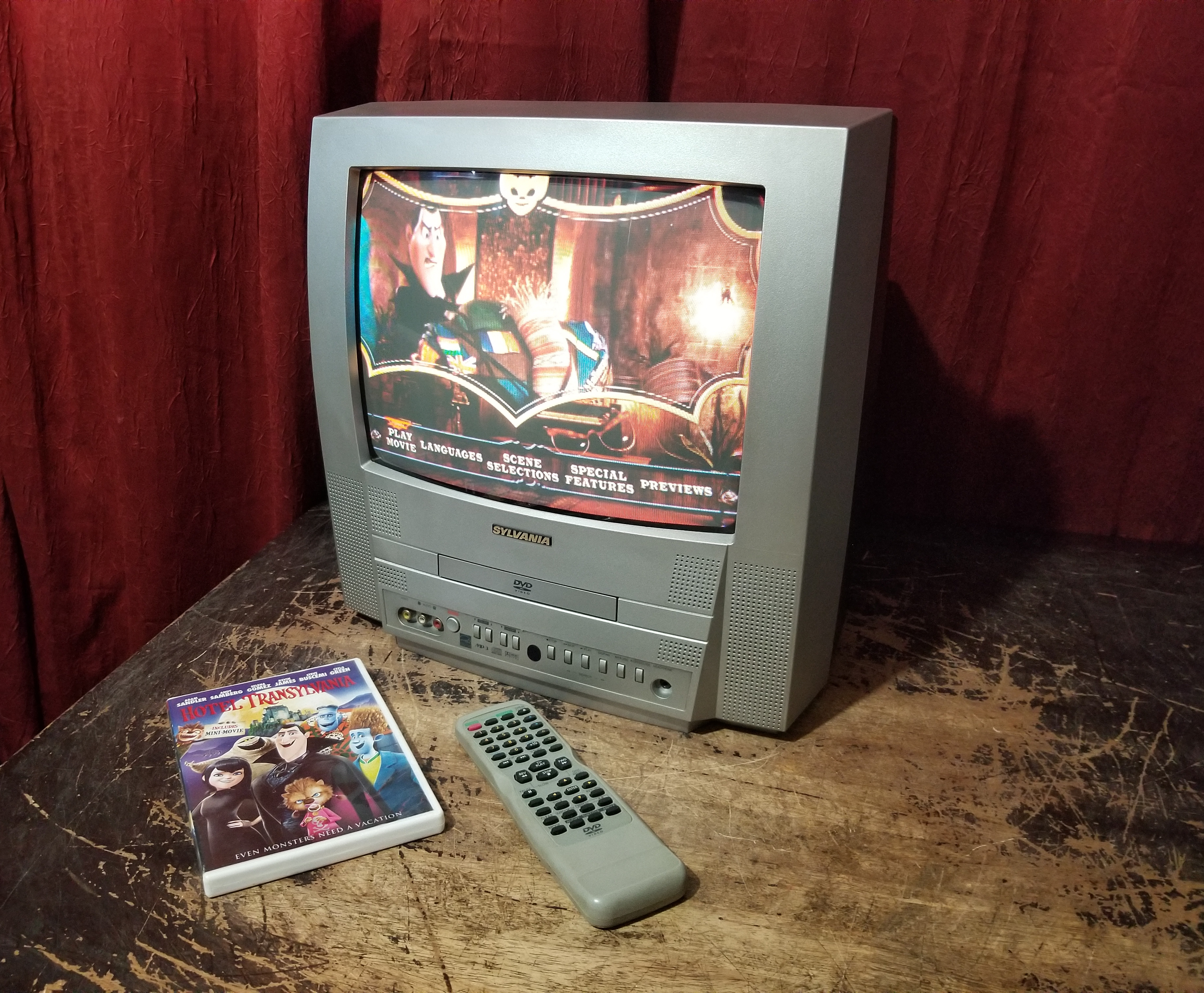

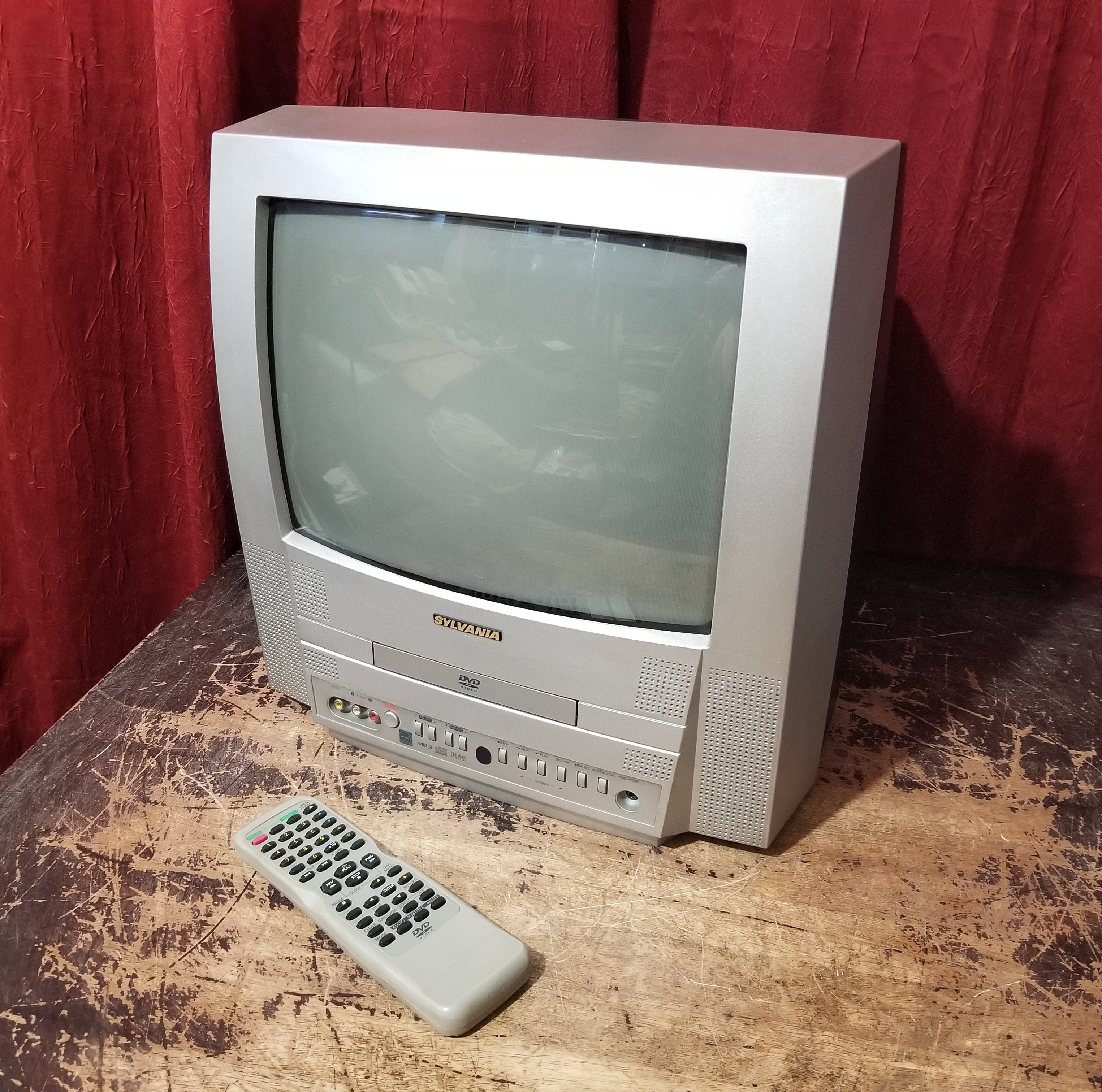

Gallery
| Specifications | |
|---|---|
| Brand: | Sylvania |
| Manufacturer: | Funai |
| Model: | 6513DE |
| Series: | TV/DVD Combo |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | TT2138LS-YB11 |
| Vertical Output IC: | LA78040A |
| Jungle IC: | M61273M8-062FP |
| Comb Filtering: | None |
| Flyback: | JF0501-3101B |
| Tube: | A34AGT13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Yoke: | LLBY00ZSY005, KDY3GDA82X, LLBY00ZMS011 |
| Speakers: | Stereo, 1W x 2 |
| Remote: | NE220UD |
| Chassis: | T8001 |
| Weight: | 21.6 lbs (9.8 kg) |
| Dimensions (W/H/D): |
386 x 402 x 376 mm
(15.2 x 15.8 x 14.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info |
