Summary

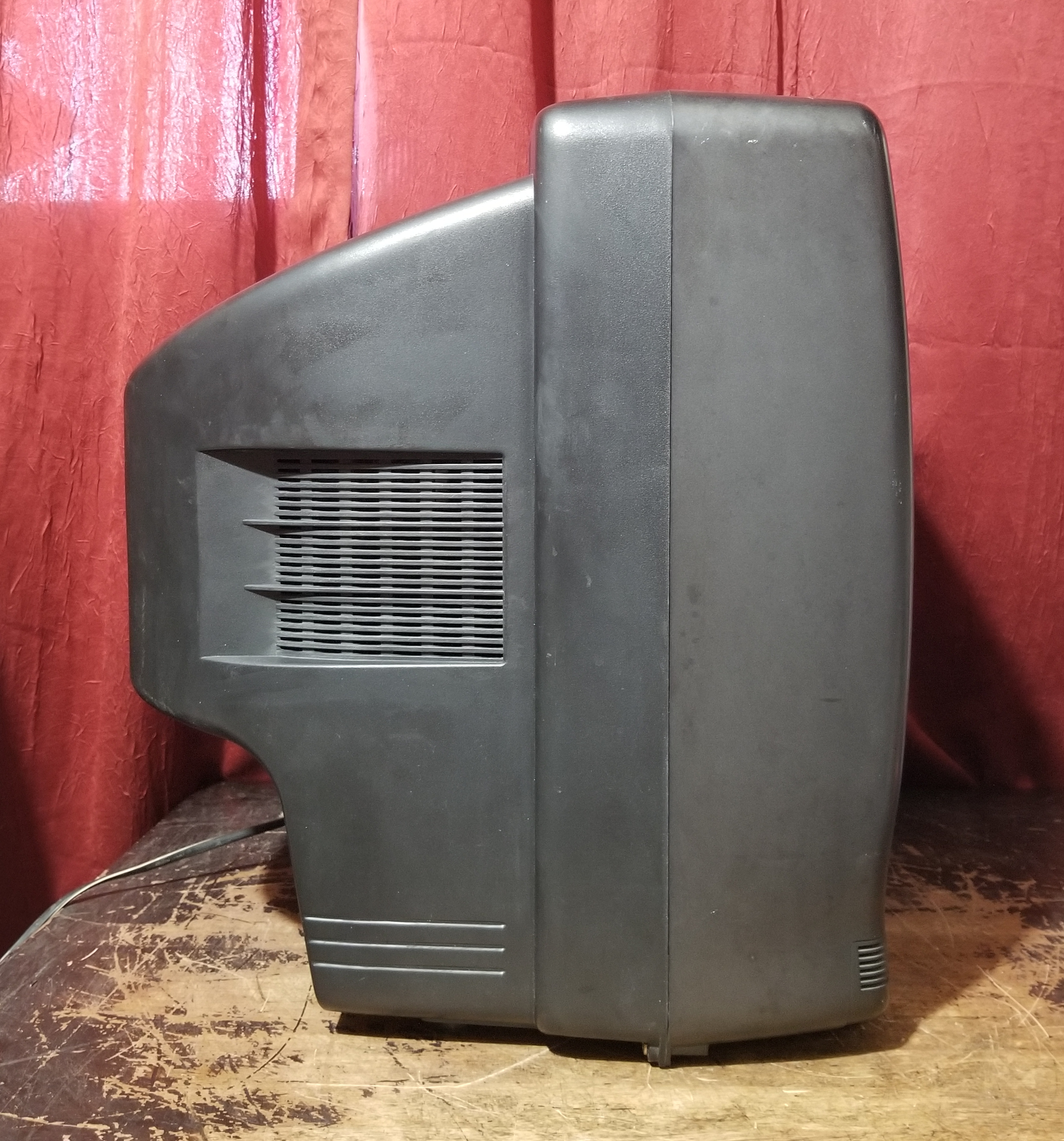

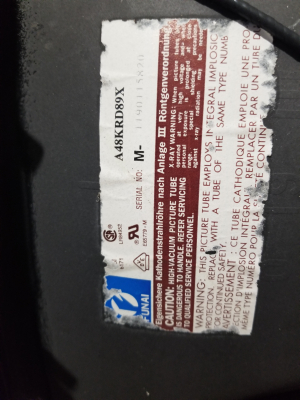

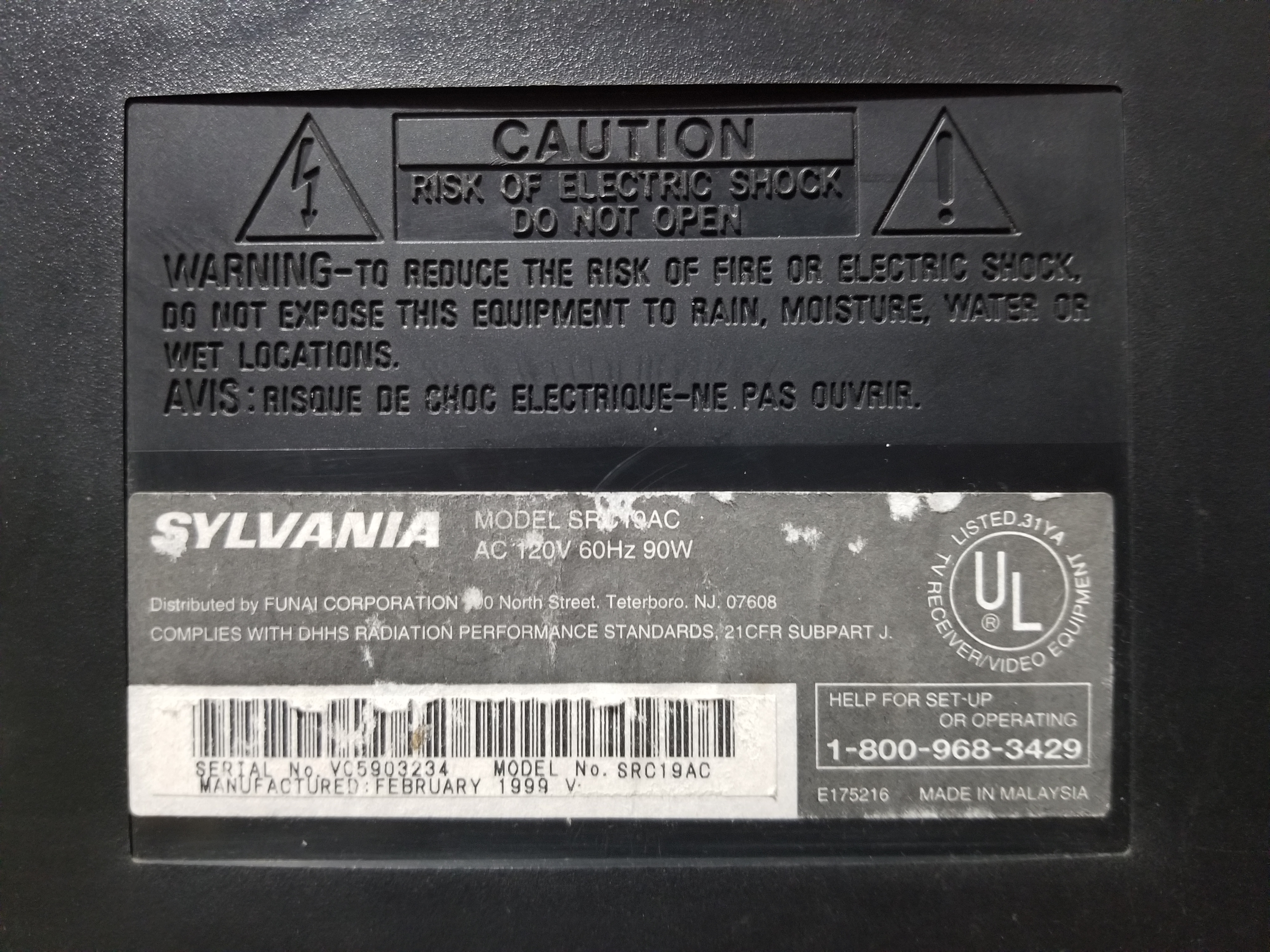

19" VHS combo CRT by Funai sold at Sears.

Manuals

• Owner's Manual
• Service Manual for the same chassis under a different brand. The high voltage/deflection boards are identical (BT5000F01021-A); the main circuit board in this service manual is a slightly later revision (BT5000F01012 vs. BT5000F01011).

Repair Notes

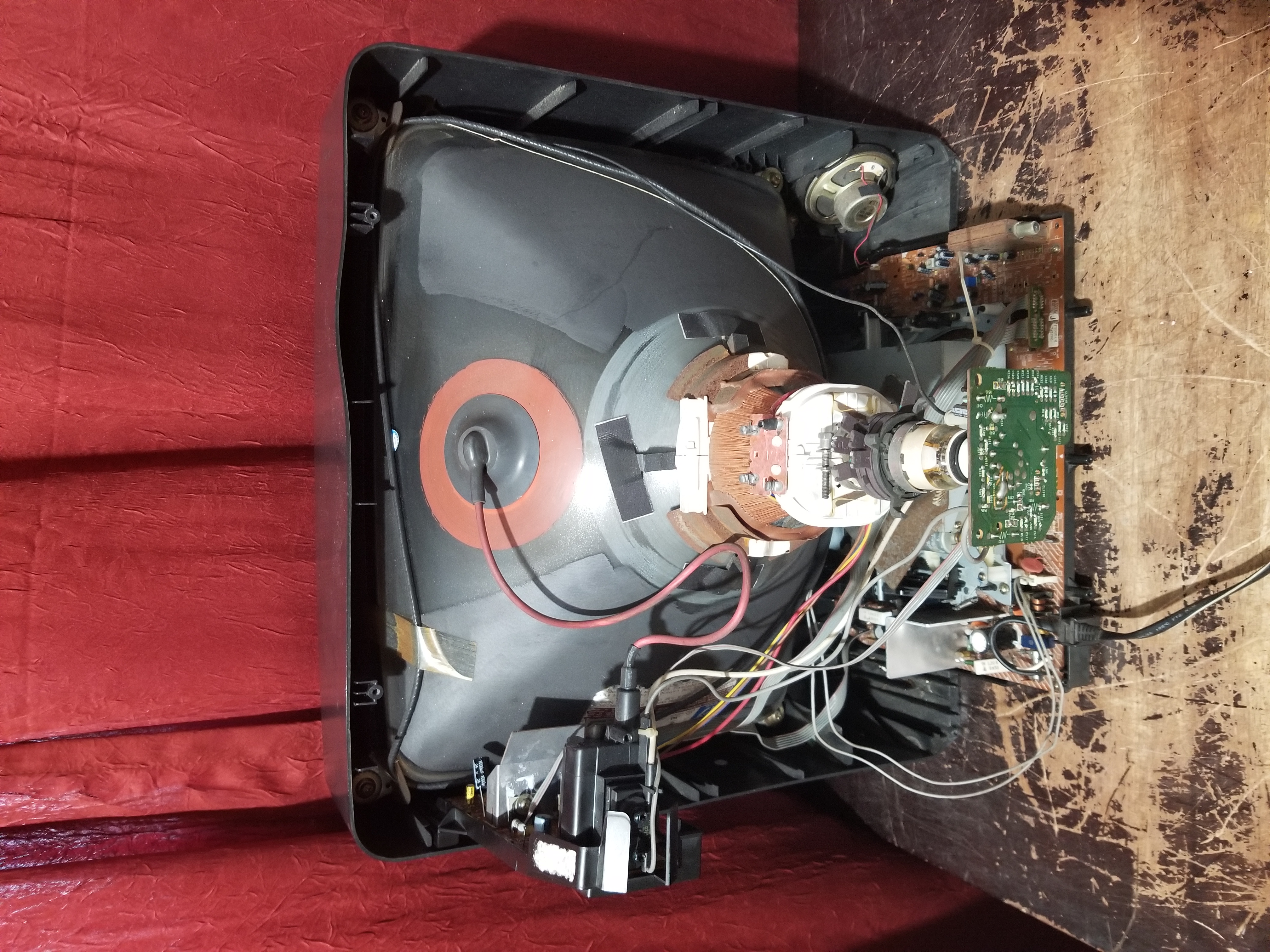

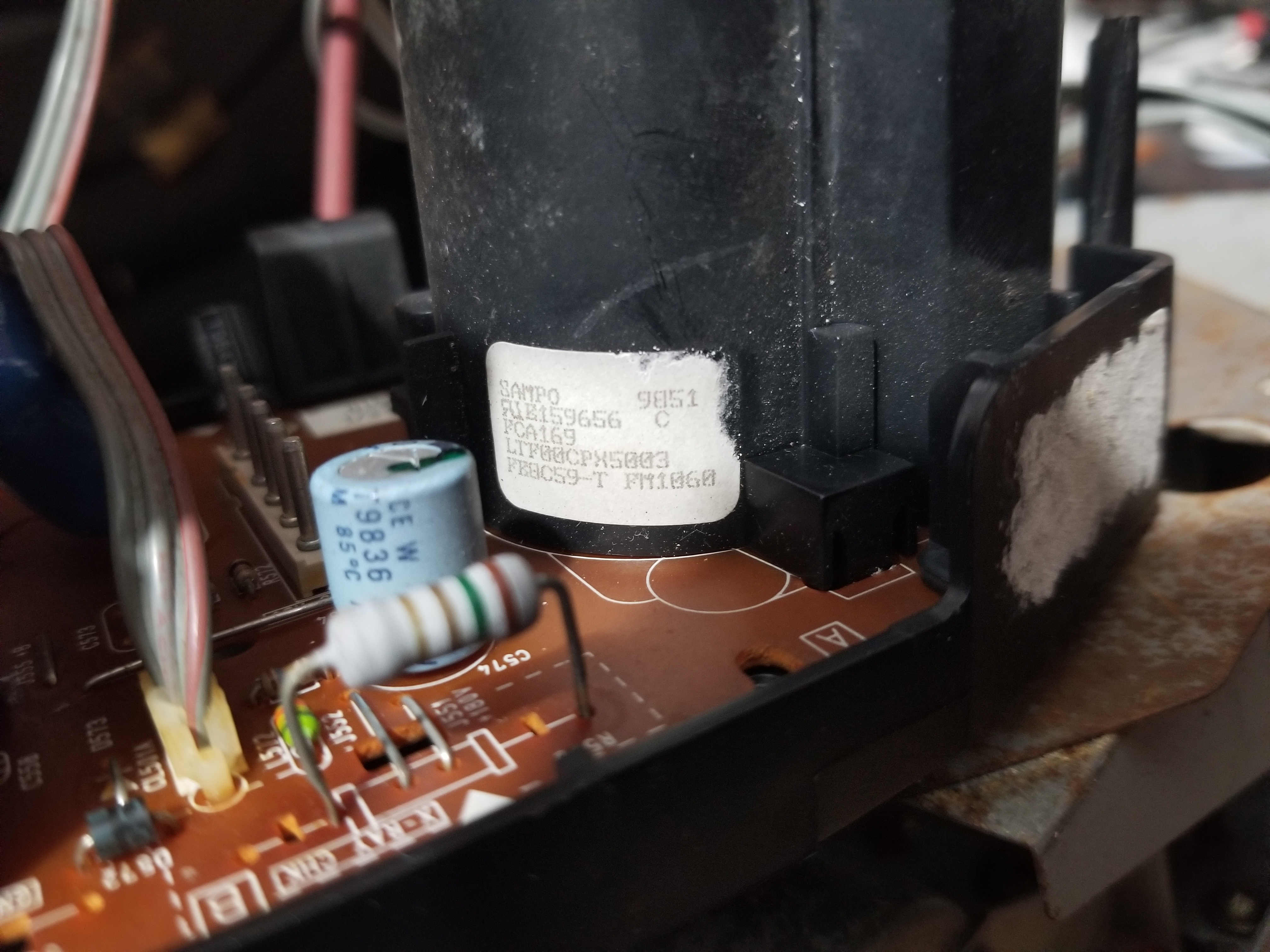

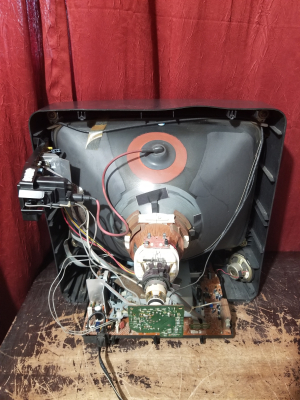

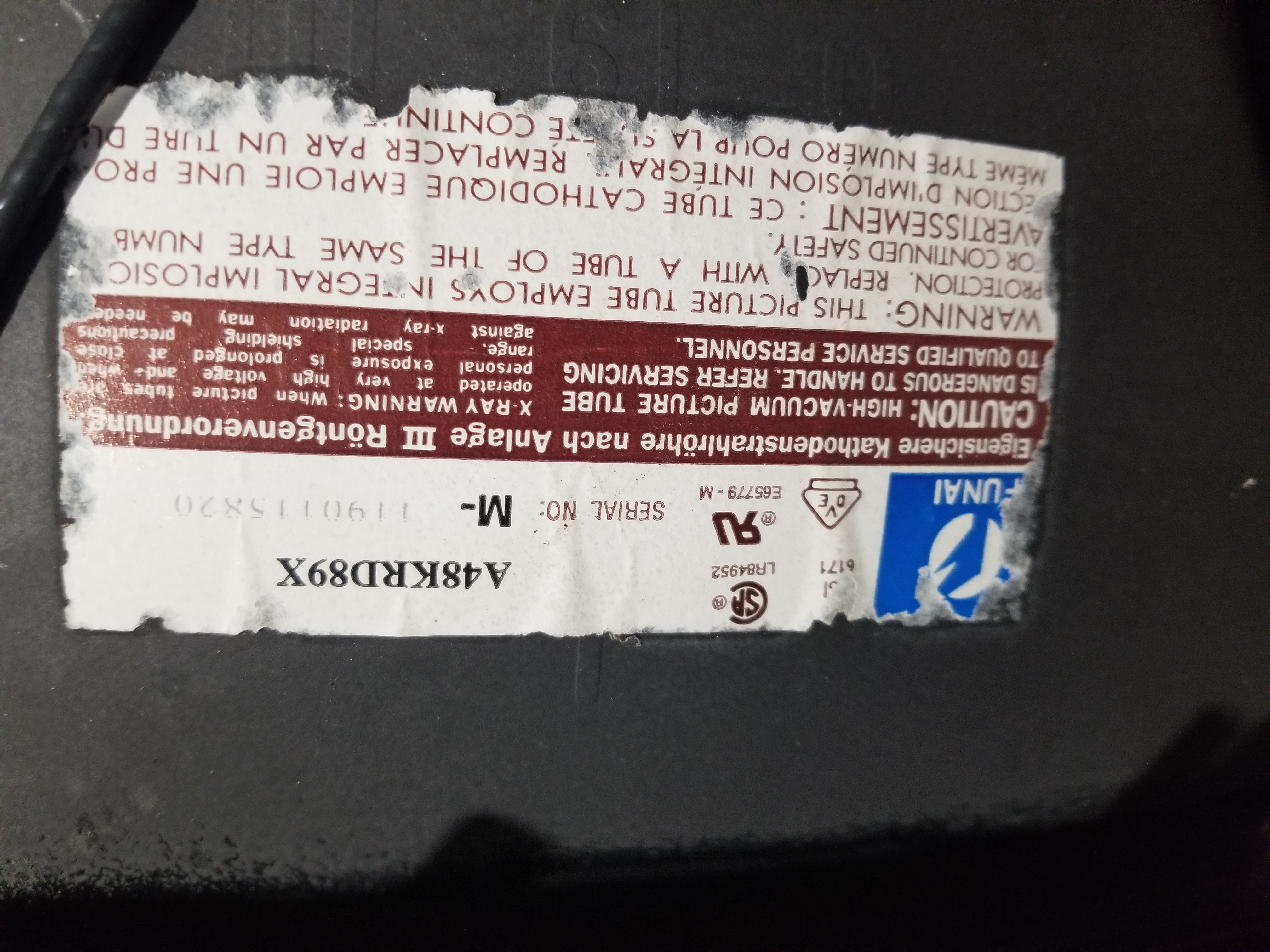

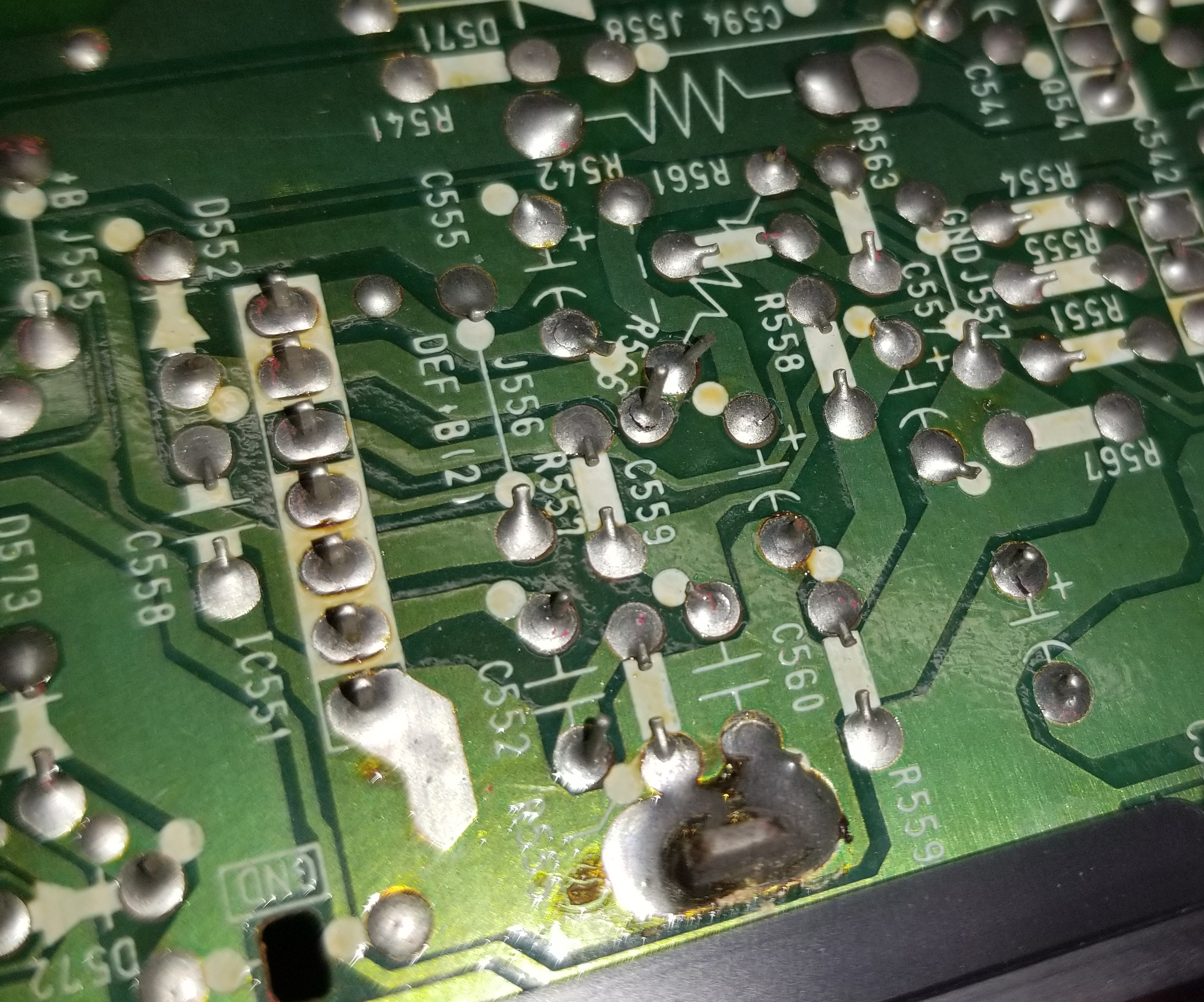

• One unit had either partial or total vertical collapse due to cold solder joints in the vertical section on the high voltage/deflection board.
• Upon first starting up, the picture would periodically quickly bounce a couple of scanlines up and then back down for a split-second. Issue would go away within a couple minutes of use. This occurred both before and after a full recap of the electrolytics on the HV/deflection board. Based on scoping the vert pins, the waveform on pin 6 appeared to be varying when it shouldn't, but the cause of the temporary jumpiness was not conclusively determined.
