| Specifications | |
|---|---|

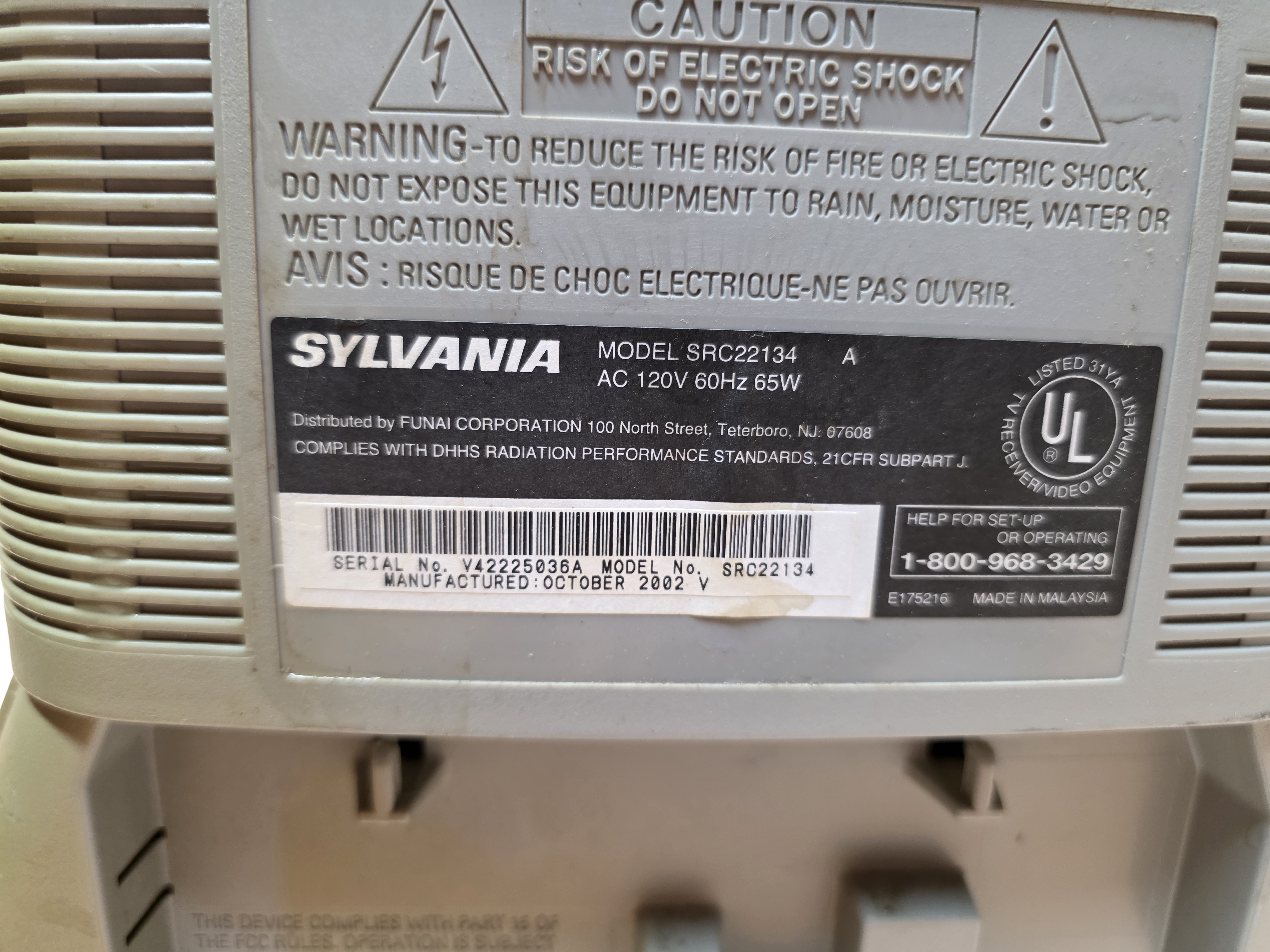

| Brand: | Sylvania |
| Manufacturer: | Funai |
| Model: | SRC22134 |
| Series: | TV/VCR Combo |
| Viewable Size: | 13" |

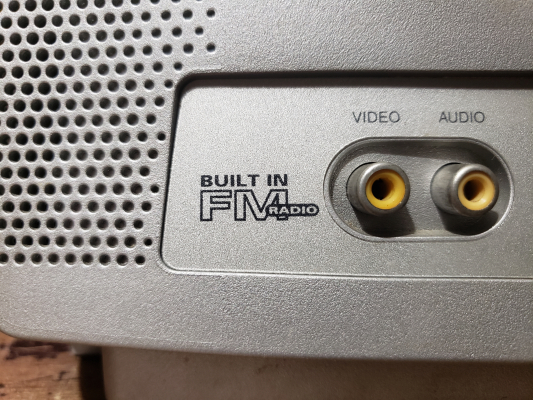

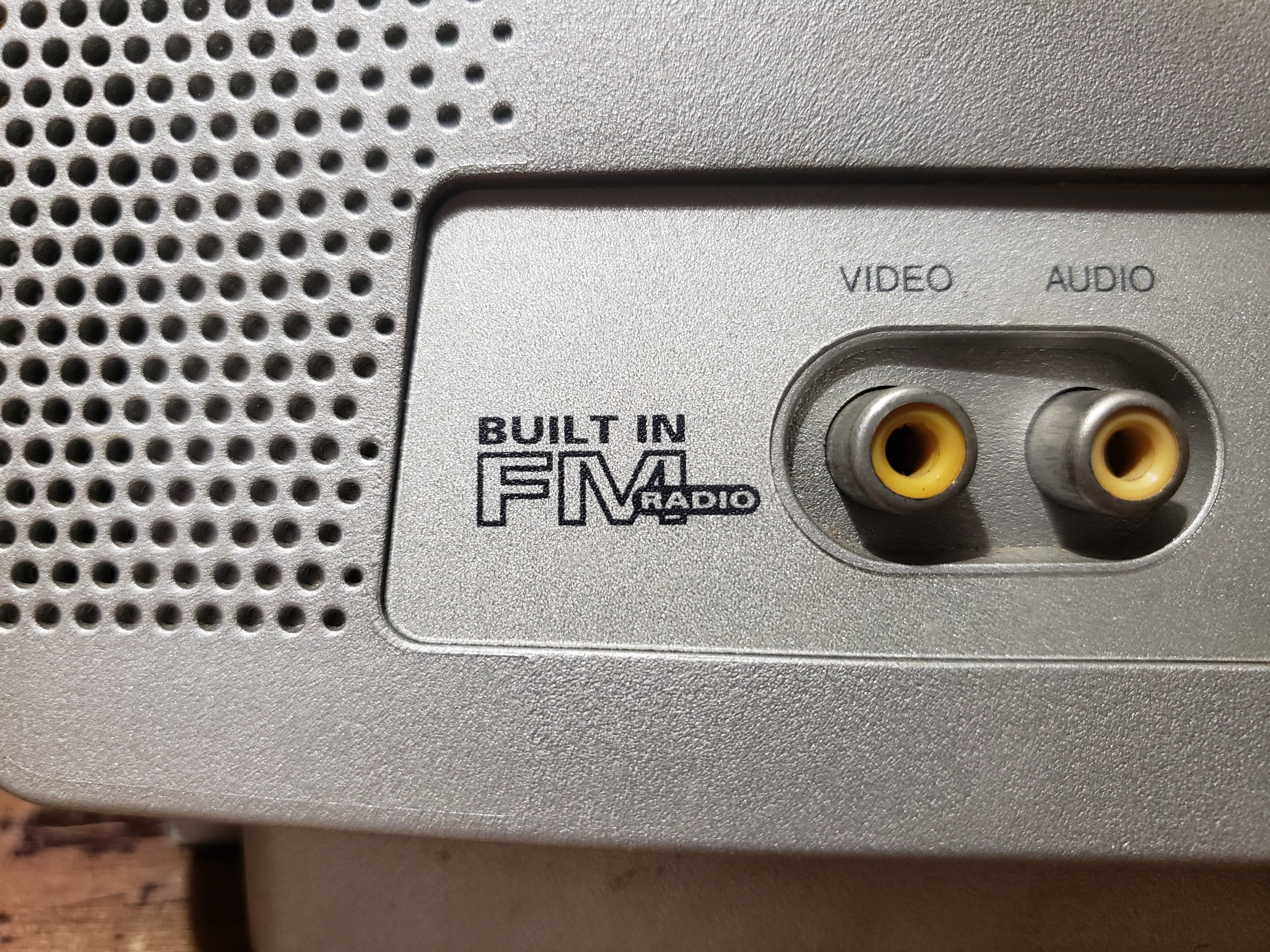

| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

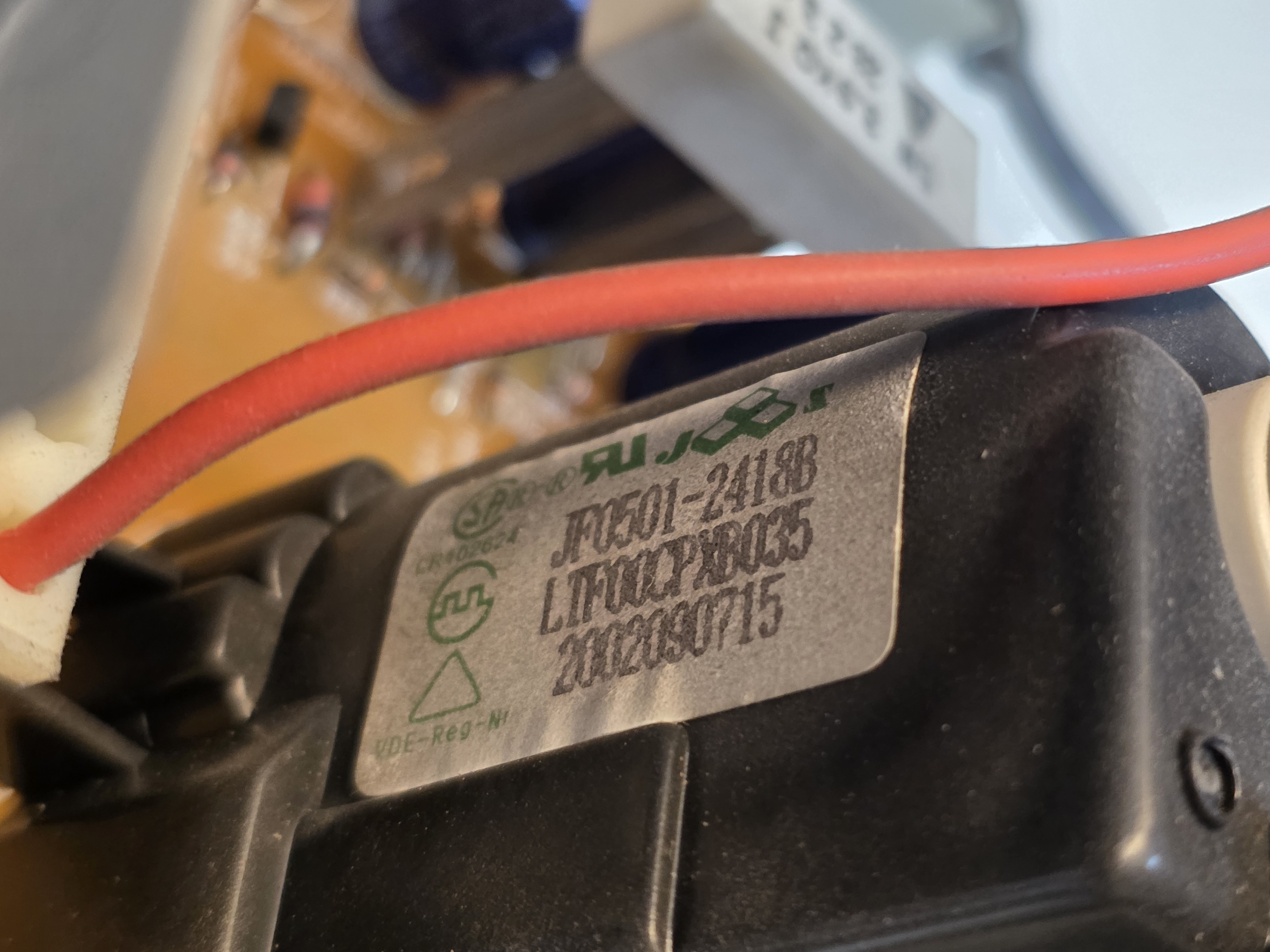

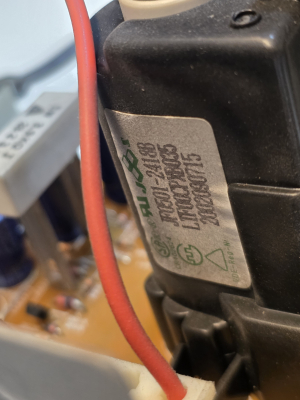

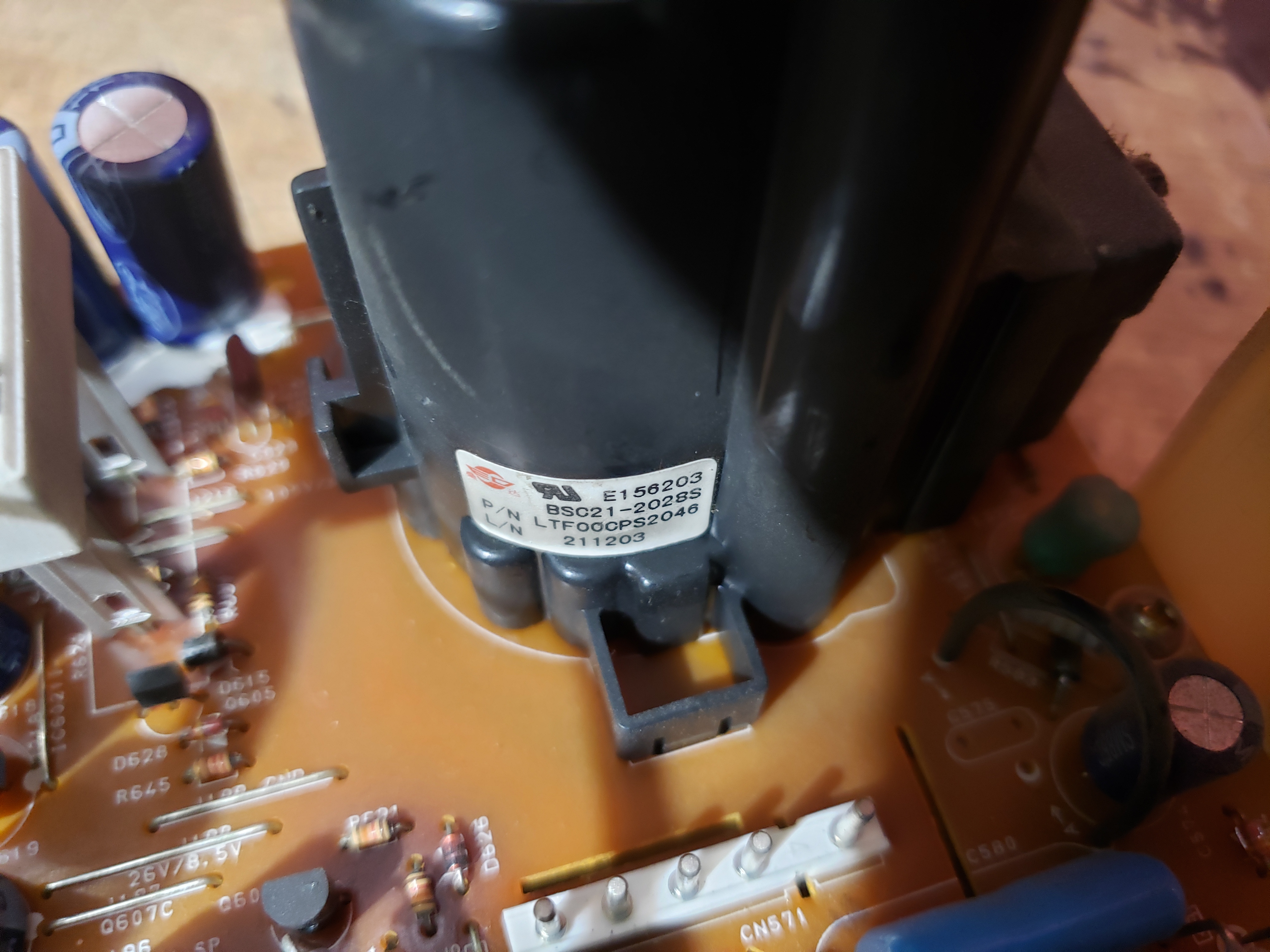

| Flyback: | LTF00CPXB035, LTF00CPS2046, BSC21-2028S |
| Focus Type: | Single |

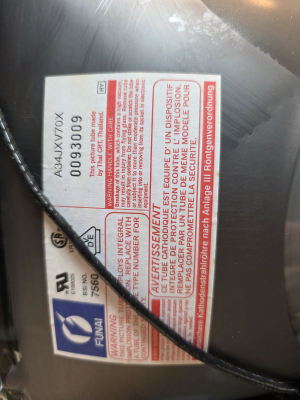

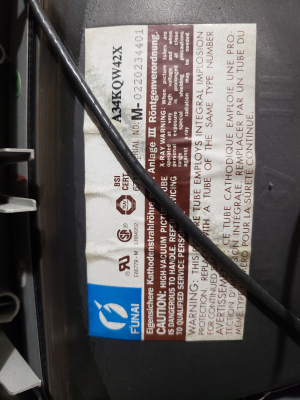

| Tube: | Thai CRT Co. , A34JXV70X , A34KQW42X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

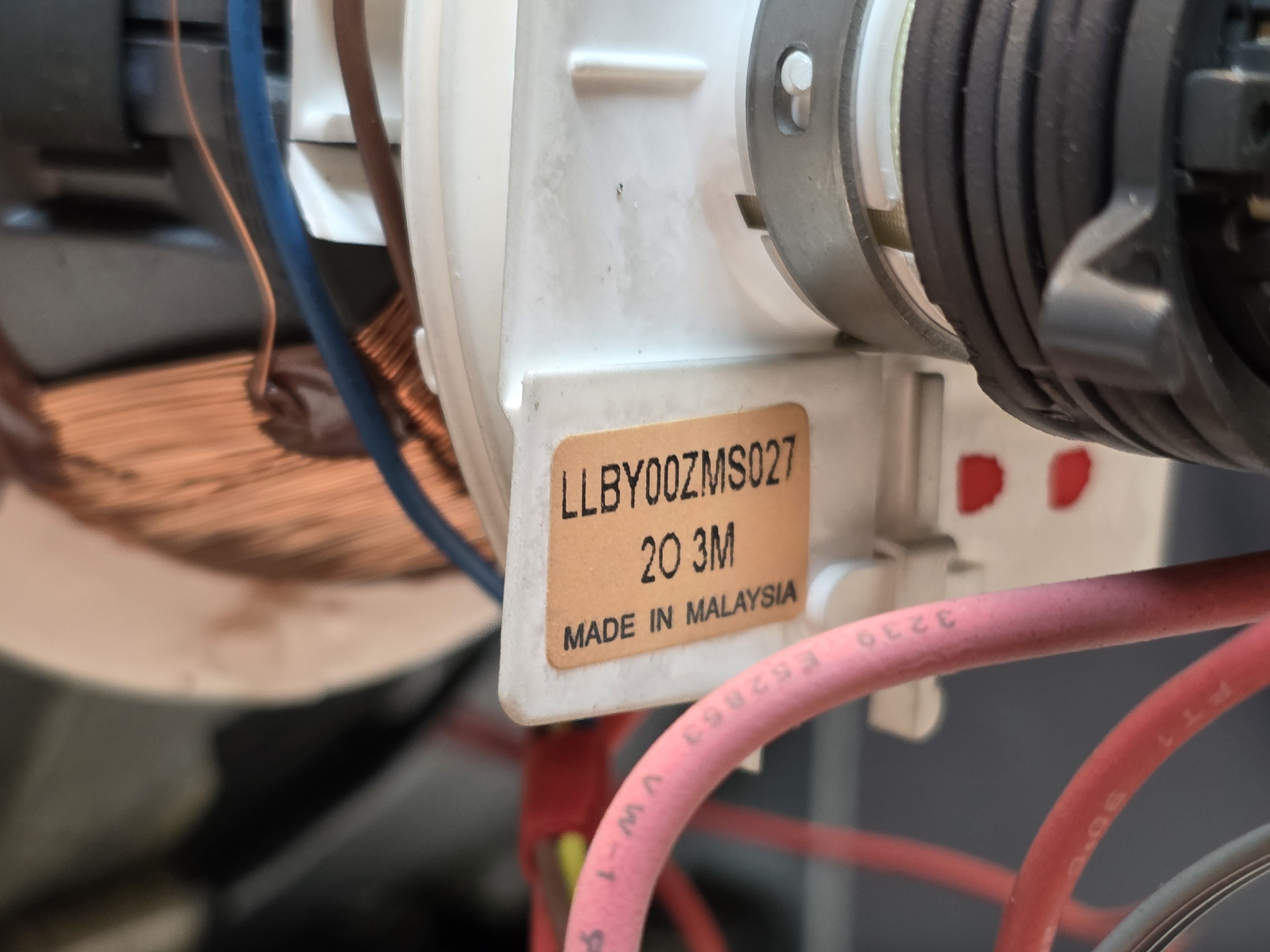

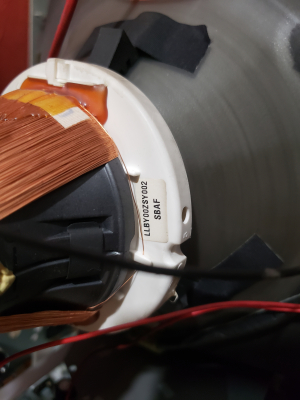

| Yoke: | LLBY00ZMS027, LLBY00ZSY002 |
| Yoke Horz. Inductance: | 2.743 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 31.40 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.52 ohm |
| Yoke Vert. Resistance: | 18.25 ohm |
| Speakers: | Mono |
| Remote: | NE109UD |
| Weight: | 23.1 lbs (10.5 kg) |
| Dimensions (W/H/D): |
367 x 389 x 377 mm
(14.4 x 15.3 x 14.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
