Summary
Manufactured by Funai. Requires a compatible remote with a "Picture" button in order to access picture settings (Emerson, Sylvania, Symphonic, Magnavox). The S-Video mod produces a very clean image. Its tube has a stripe pitch equal to that of a number of 9" PVMs.
Manuals
Mods & Repair Guides
Notes
The internal DVD player is connected to the jungle chip via Y/C (S-Video). Accessing the service menu requires sacrificing a remote to lift and jump pins on a very small surface mount IC inside; doing so is not beginner-friendly. The unified Renesas jungle chip does not support RGB mods. All photos were taken connected via S-Video.

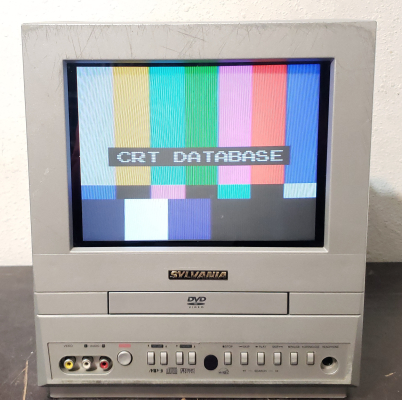

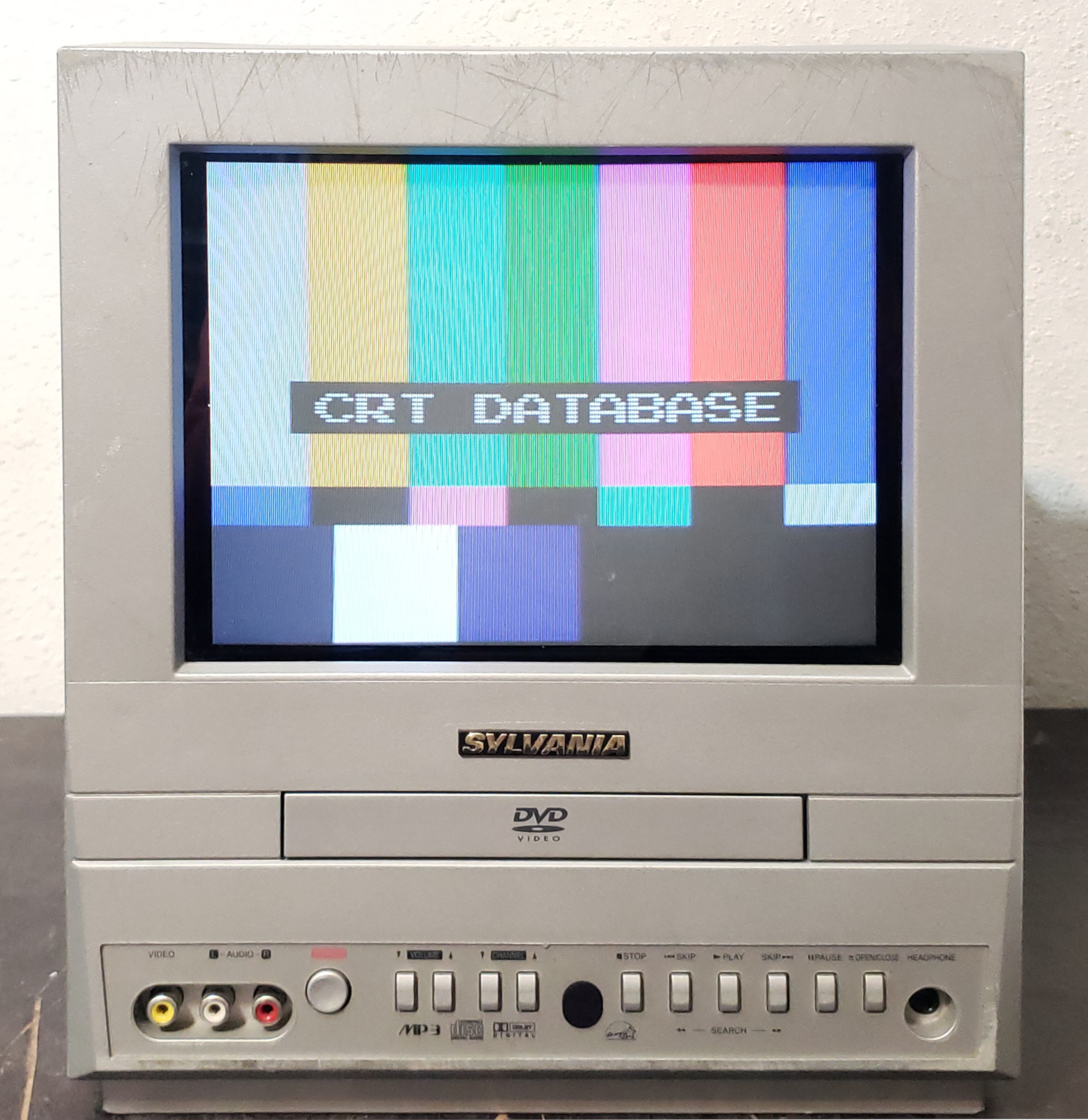

Gallery
| Specifications | |
|---|---|
| Brand: | Sylvania |
| Manufacturer: | Funai |
| Model: | SSC509D |
| Series: | TV/DVD Combo |
| Viewable Size: | 9" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Renesas, M61271M8-053FP |
| Comb Filter IC: | Renesas, M61271M8-053FP |
| Tube: | Samsung , A23QFA221X001 , A23QFA221X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.5 mm |
| Tint: | Light |
| Yoke Horz. Resistance: | 8.9 ohm |
| Yoke Vert. Resistance: | 14.6 ohm, 14.60 ohm |
| Speakers: | Stereo, 1W x 2 |
| Remote: | NE218UD |
| Chassis: | TD001UB |
| Weight: | 17.6 lbs (8 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Malaysia |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
