Summary
This model is made by Funai and is the same as the Sylvania 6513DF. Requires a compatible remote with a "Picture" button in order to access picture settings.
Literature
Notes
Similar to the Magnavox MSD513E, Symphonic RSMSD513E, Emerson EWC13D4, & Sylvania 6513DE. As such, since a remote with a "Picture" button is needed to adjust the picture settings, a replacement from any of the similar models listed on this page will work. The service menu cannot be accessed without making a service remote, which involves lifting and bodging pins on a very small surface mount IC in the remote.
Repair Notes
Unresponsive buttons caused by microswitch oxidation can be fixed with contact cleaner spray, or by removing the top of the switch and cleaning the contact points with IPA.

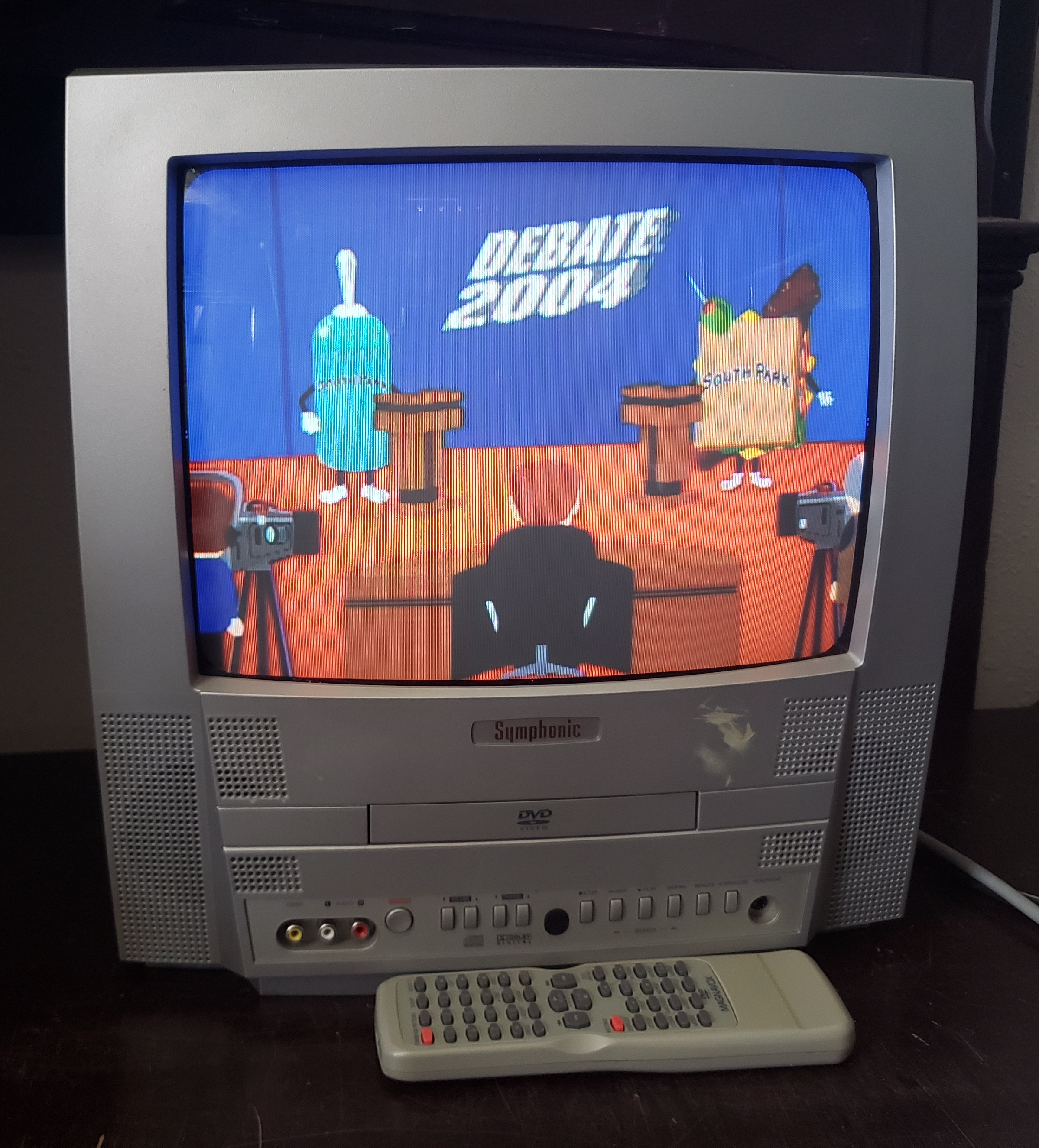

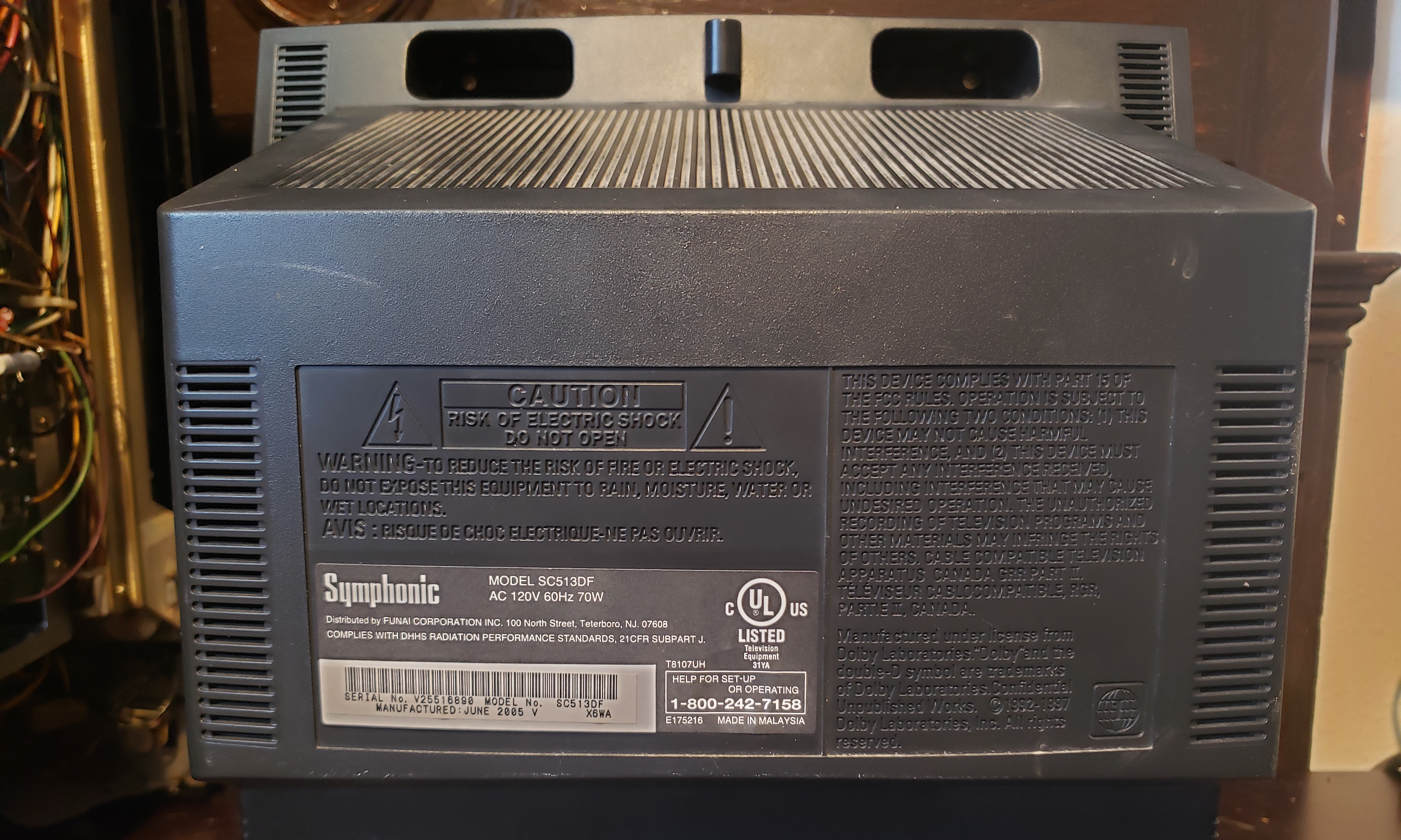

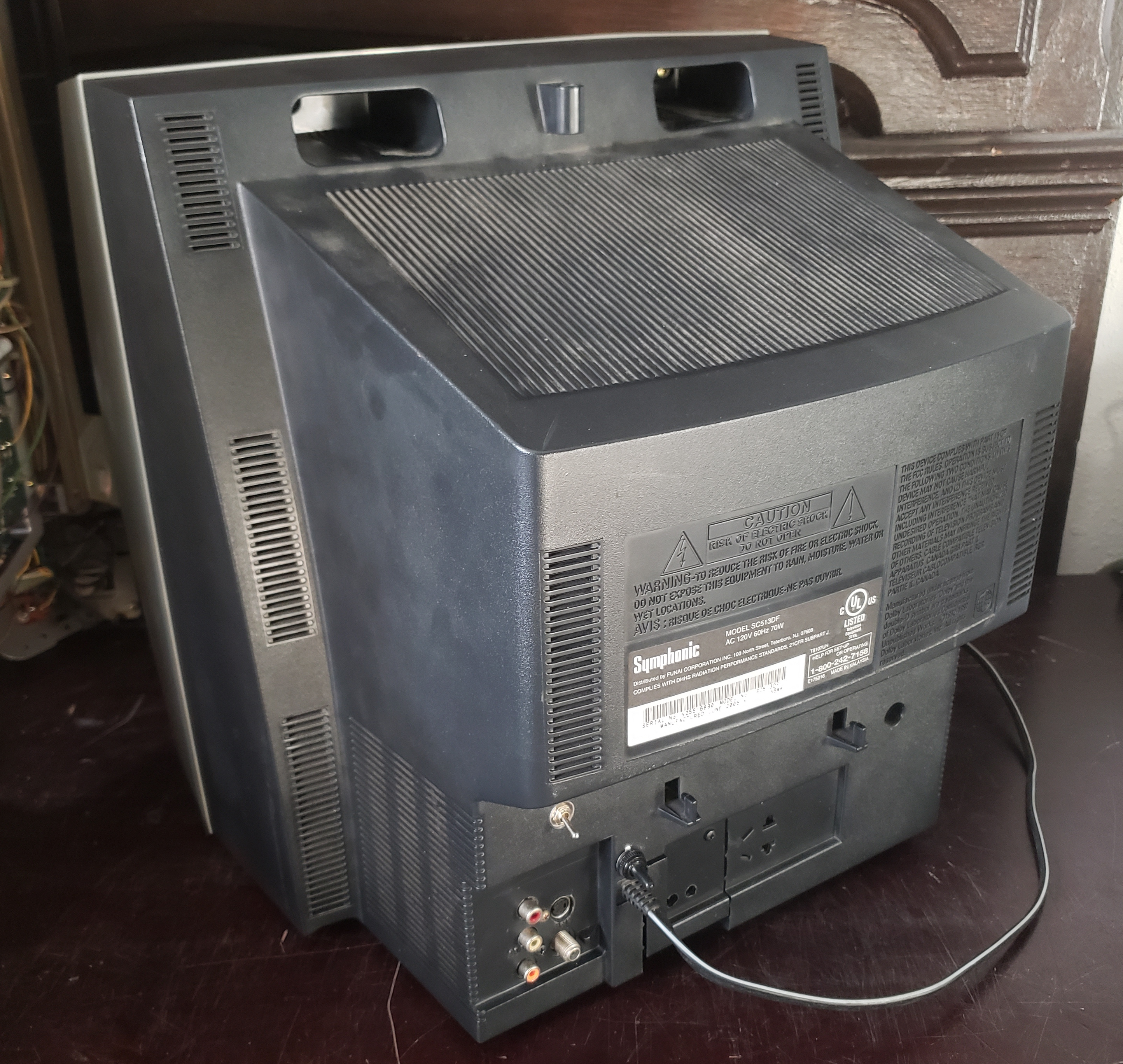

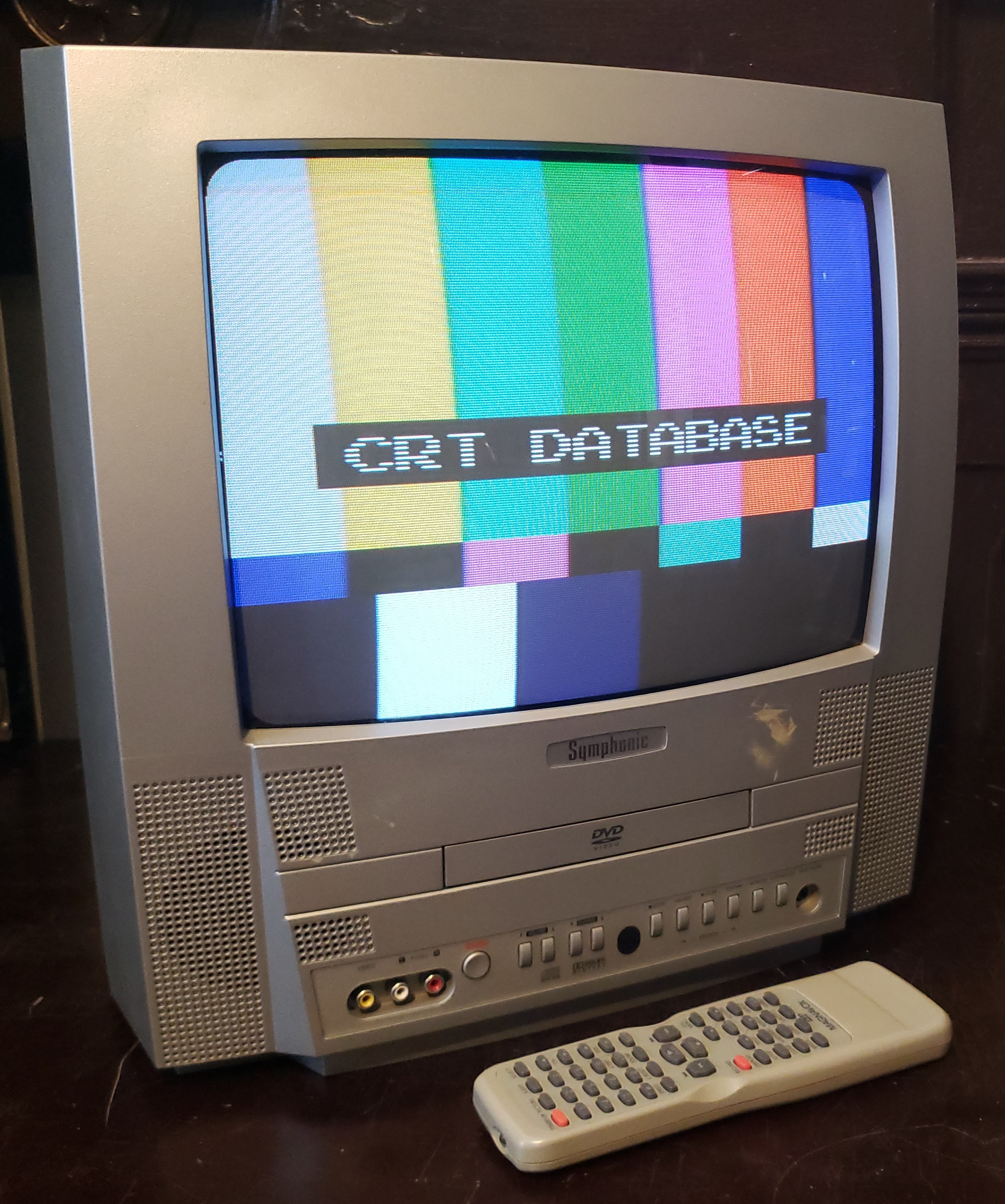

Gallery
| Specifications | |
|---|---|
| Brand: | Symphonic |
| Manufacturer: | Funai |
| Model: | 6513DF |
| Series: | TV/DVD Combo |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | TT2138LS-YB11 |
| Vertical Output IC: | LA78040A |
| Jungle: | M61273M8-067FP |
| Flyback: | JF0501-3101B |
| Tube: | A34AGT13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Light |
| Yoke: | LLBY00ZSY002 |
| Yoke Horz. Resistance: | 4.2 ohm |
| Yoke Vert. Resistance: | 17.1 ohm |
| Speakers: | Stereo, 1W x 2 |
| Remote: | NE207UD |
| Weight: | 21.6 lbs (9.8 kg) |
| Dimensions (W/H/D): |
386 x 402 x 376 mm
(15.2 x 15.8 x 14.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| MSRP: | 129 USD |
| Country of Manufacture: | Malaysia |
| Mounting: | Carrying Handle |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
