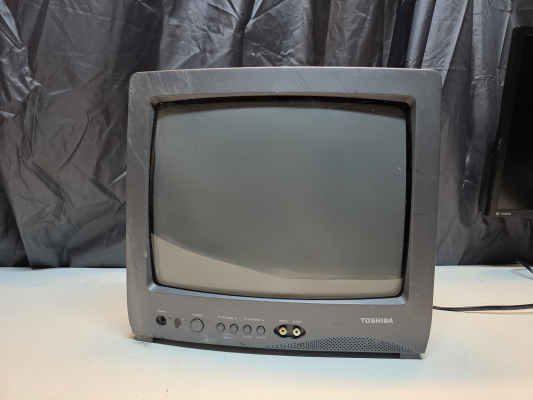

Summary 13" consumer tv manufactured by Orion and sold by Toshiba. It has a single front mounted composite input.
Literature
Notes
This particular model can be RGB modded. Later versions of this TV use a 1-chip chassis that does not have RGB inputs.
The 19A21 uses the same chassis design as this TV and can be modified in the same way.

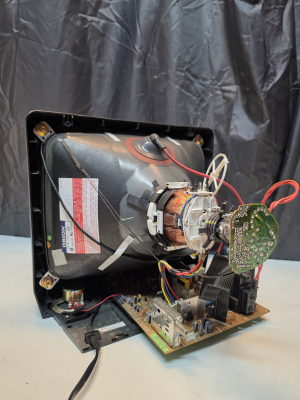

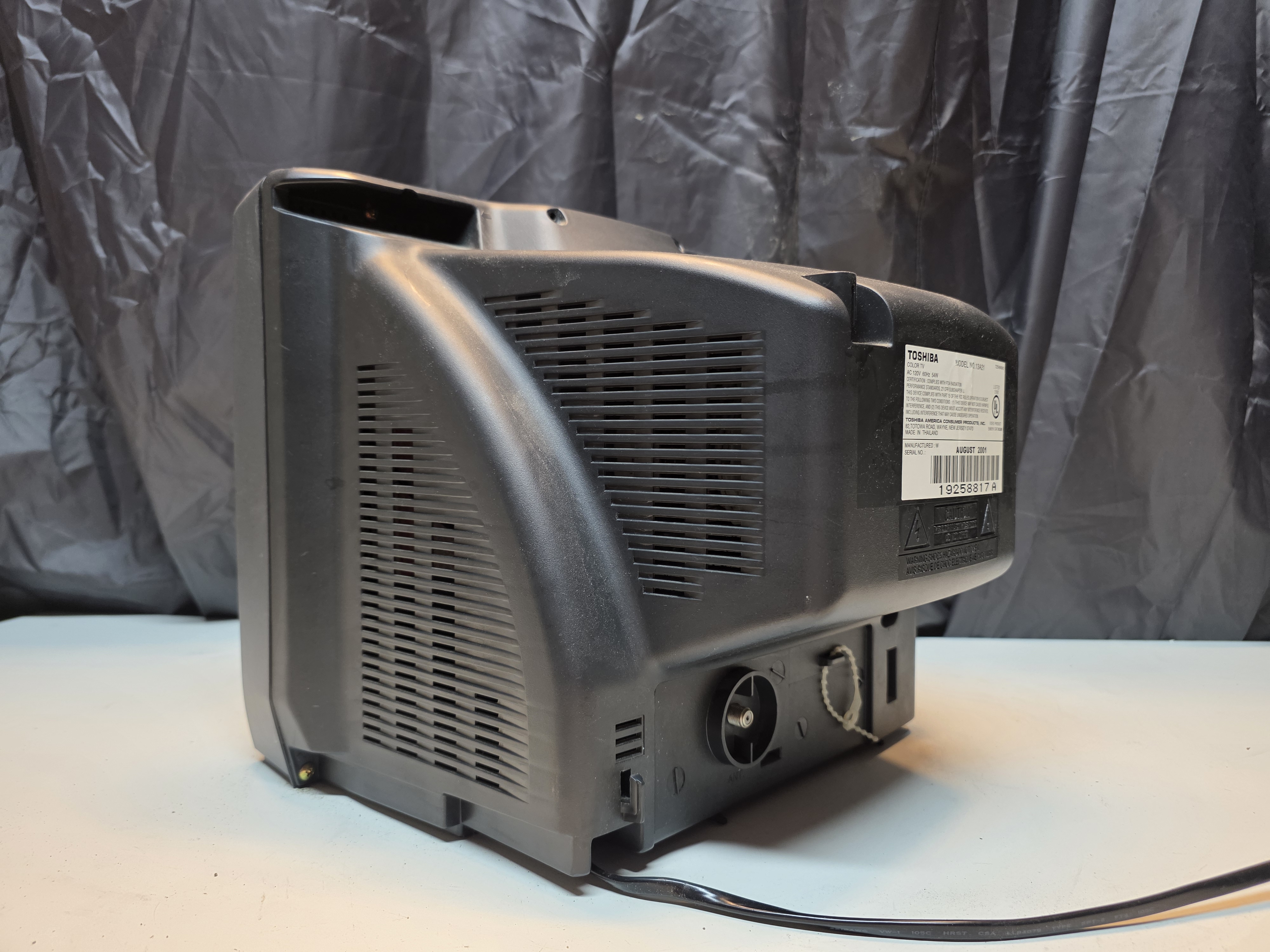

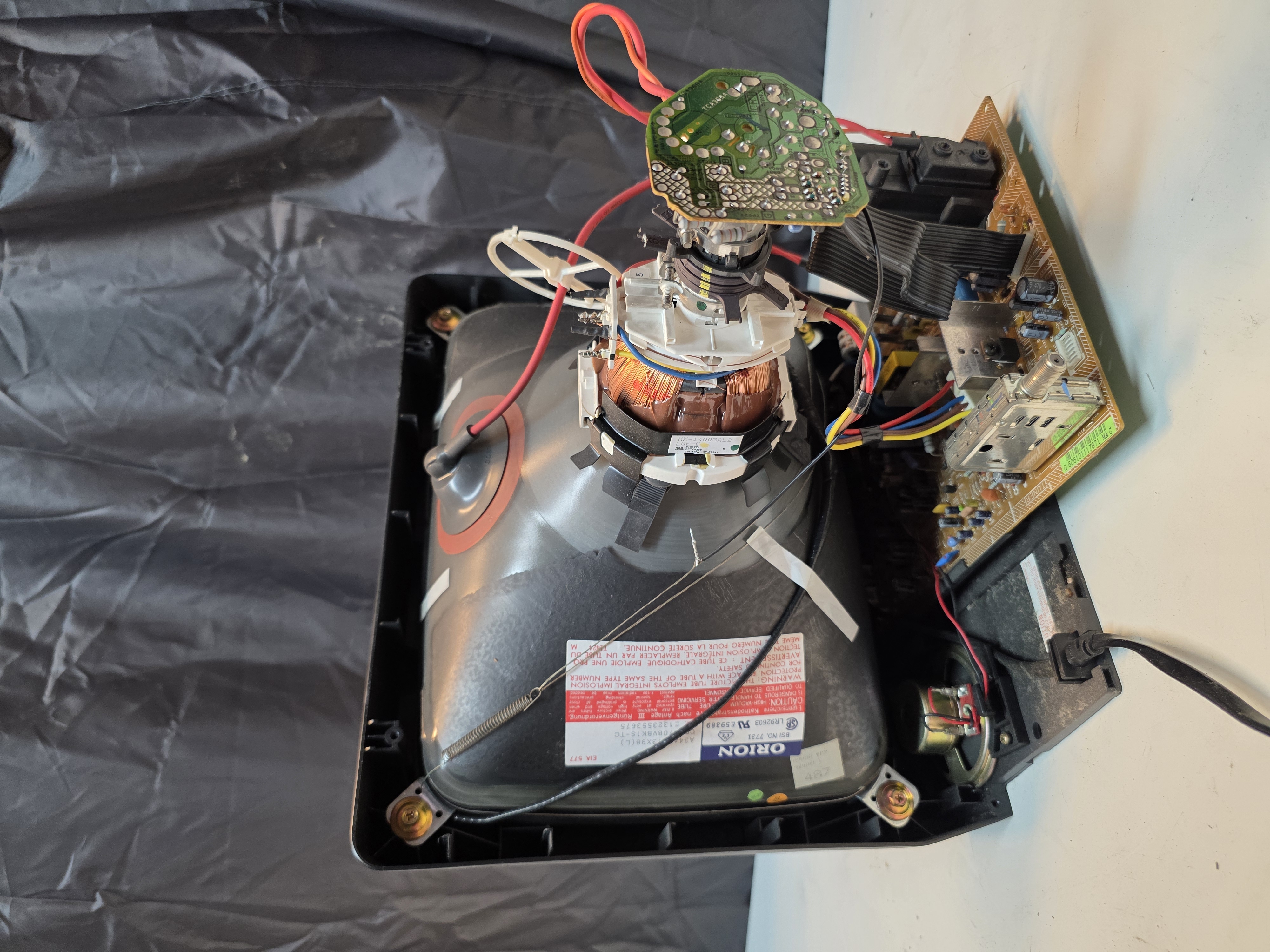

Gallery




			                    | Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | 13A21 |
| Series: | A |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

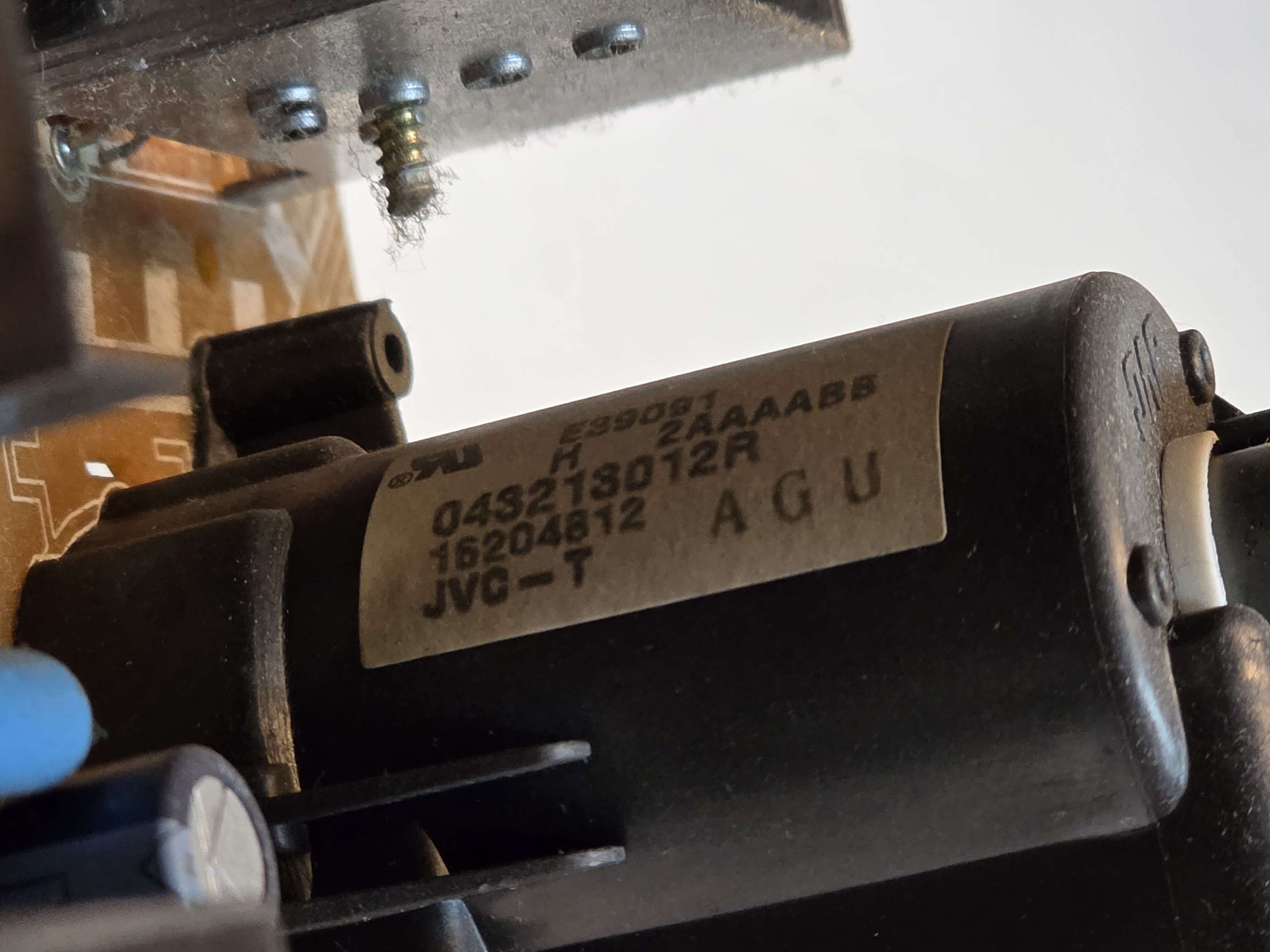

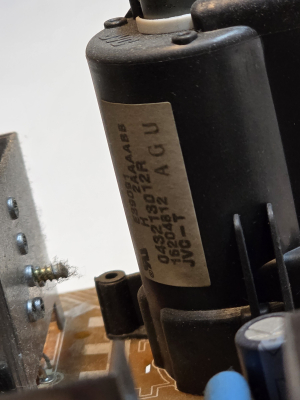

| Flyback: | 043213012R |
| Focus Type: | Single |

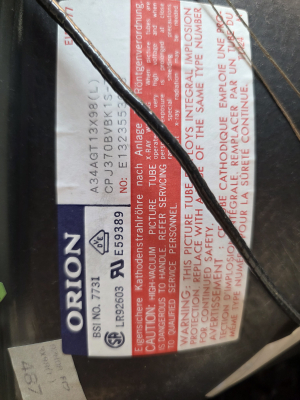

| Tube: | Orion , A34AGT13X98 |
| Mask: |
                                                    Slot




                         |

| Tint: | Dark |

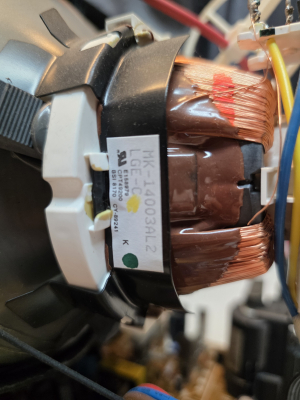

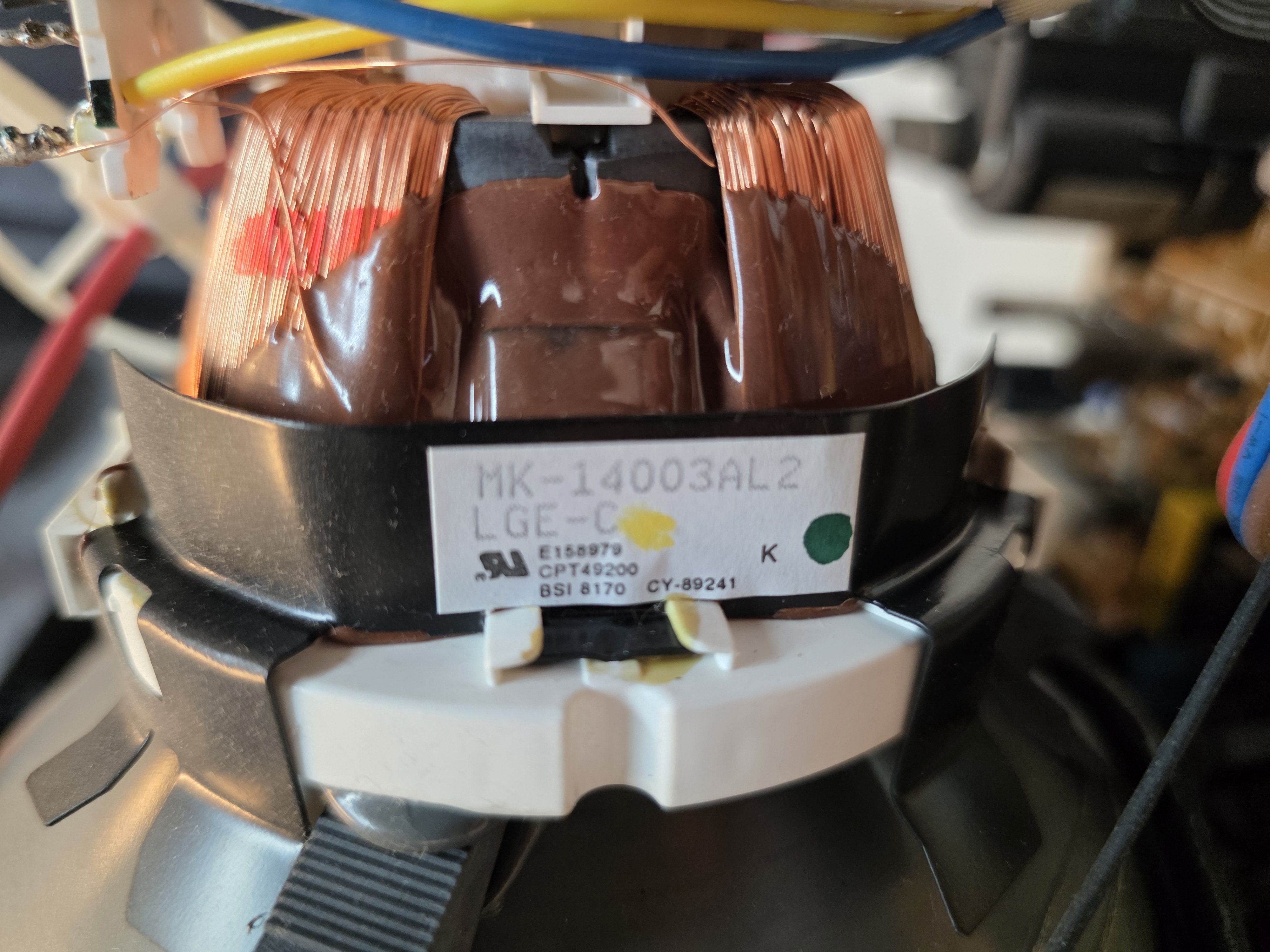

| Yoke: | MK-14003AL2 |
| Speakers: | Mono, 1W |
| Weight: | 20.9 lbs (9.5 kg) |
| Dimensions (W/H/D): |

                            362 x 320.5 x 360  mm
                             (14.2 x 12.6 x 14.1")  |

| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Pictures |
