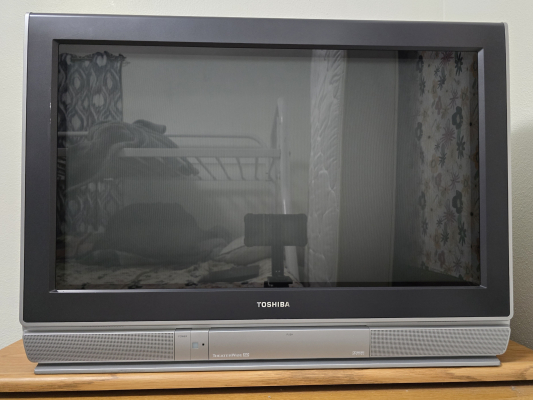

26" flat widescreen standard-definition CRT by Toshiba, one of the few of its kind released in North America. Has RF, composite, s-video and component input with analog and digital stereo sound. Features an ATSC tuner. Originally manufactured by Orion in Thailand.
(Special thanks to Levi Visger for the pics!)
Manuals
Promo Materials
Notes

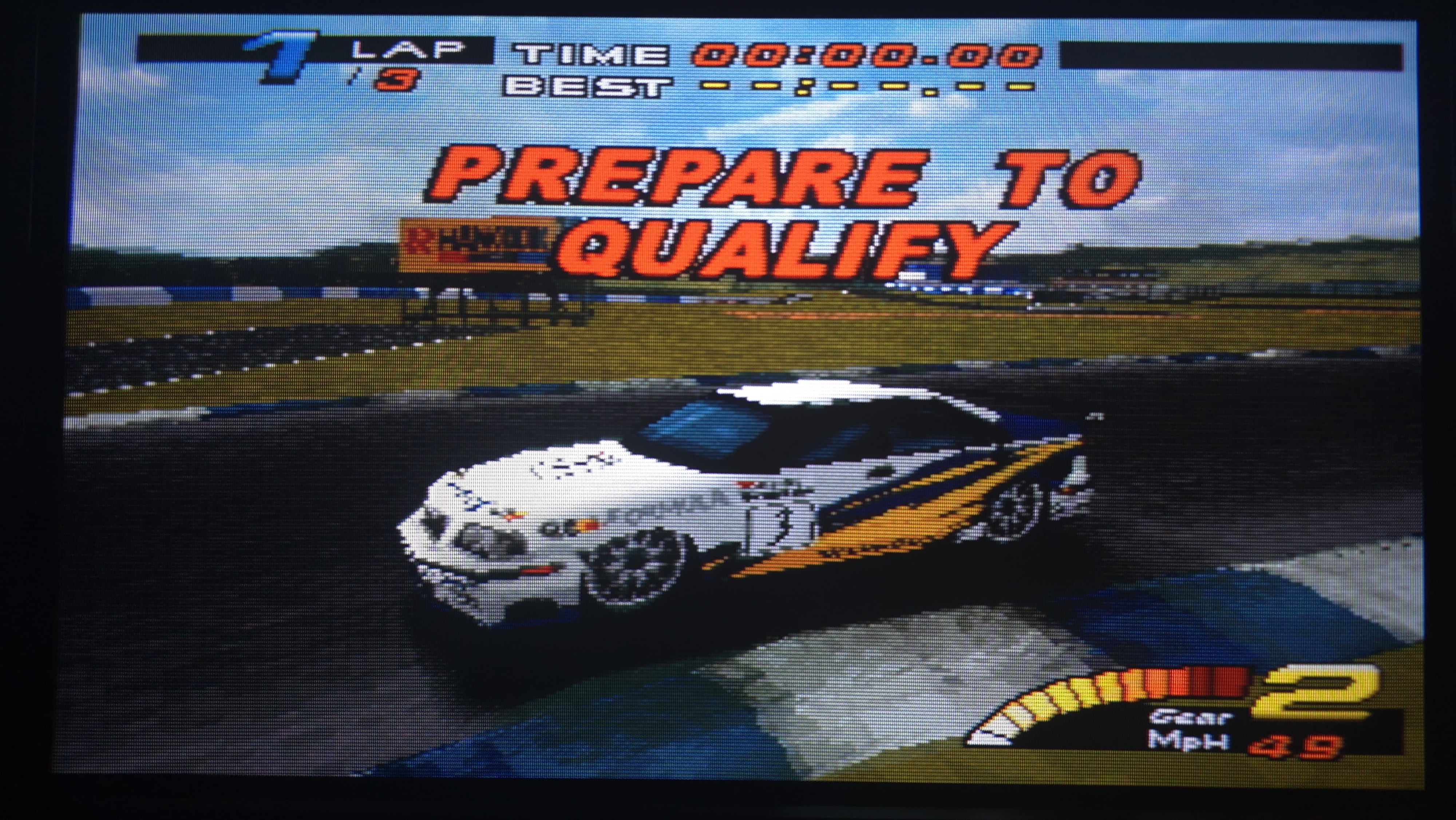

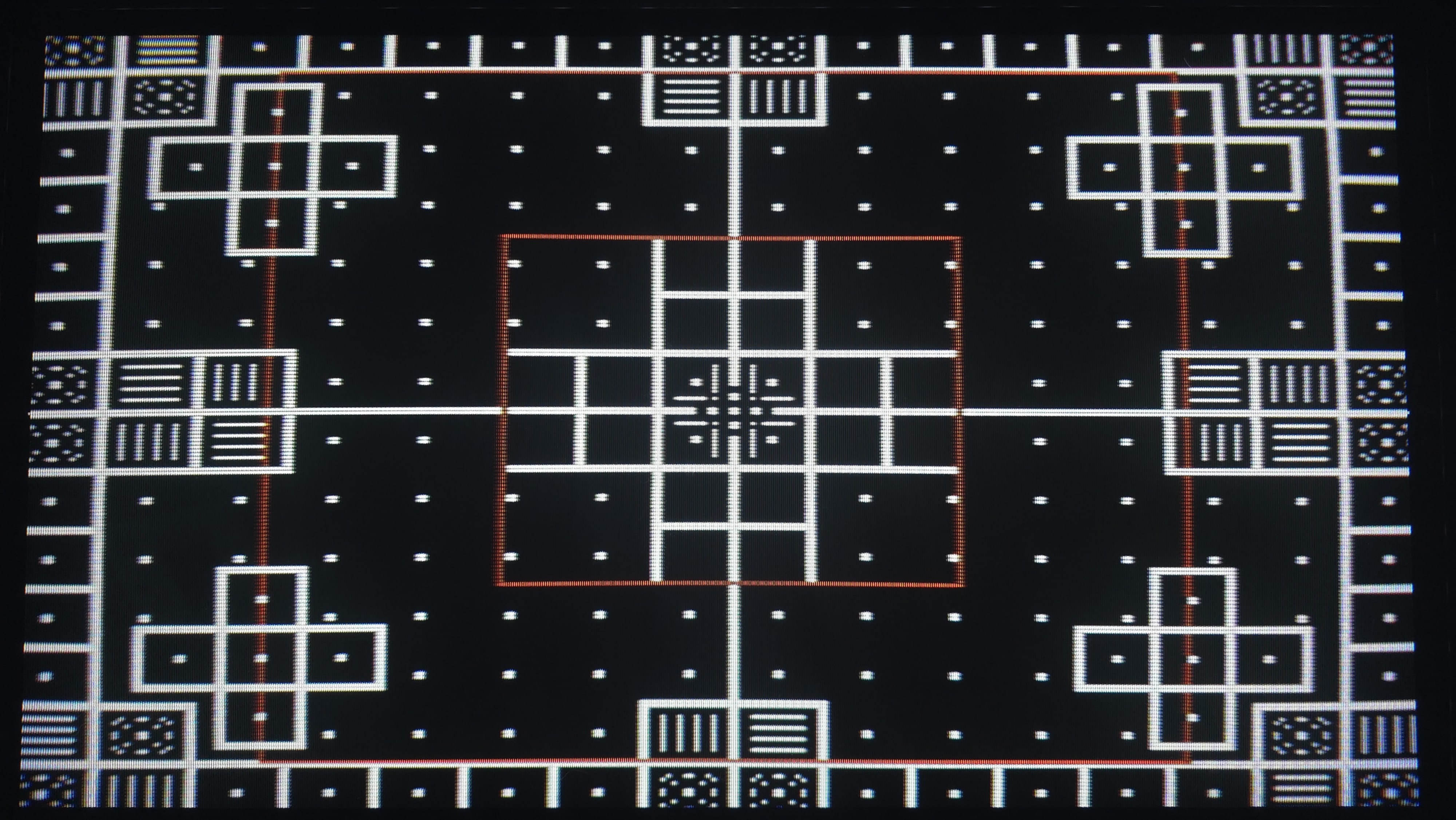

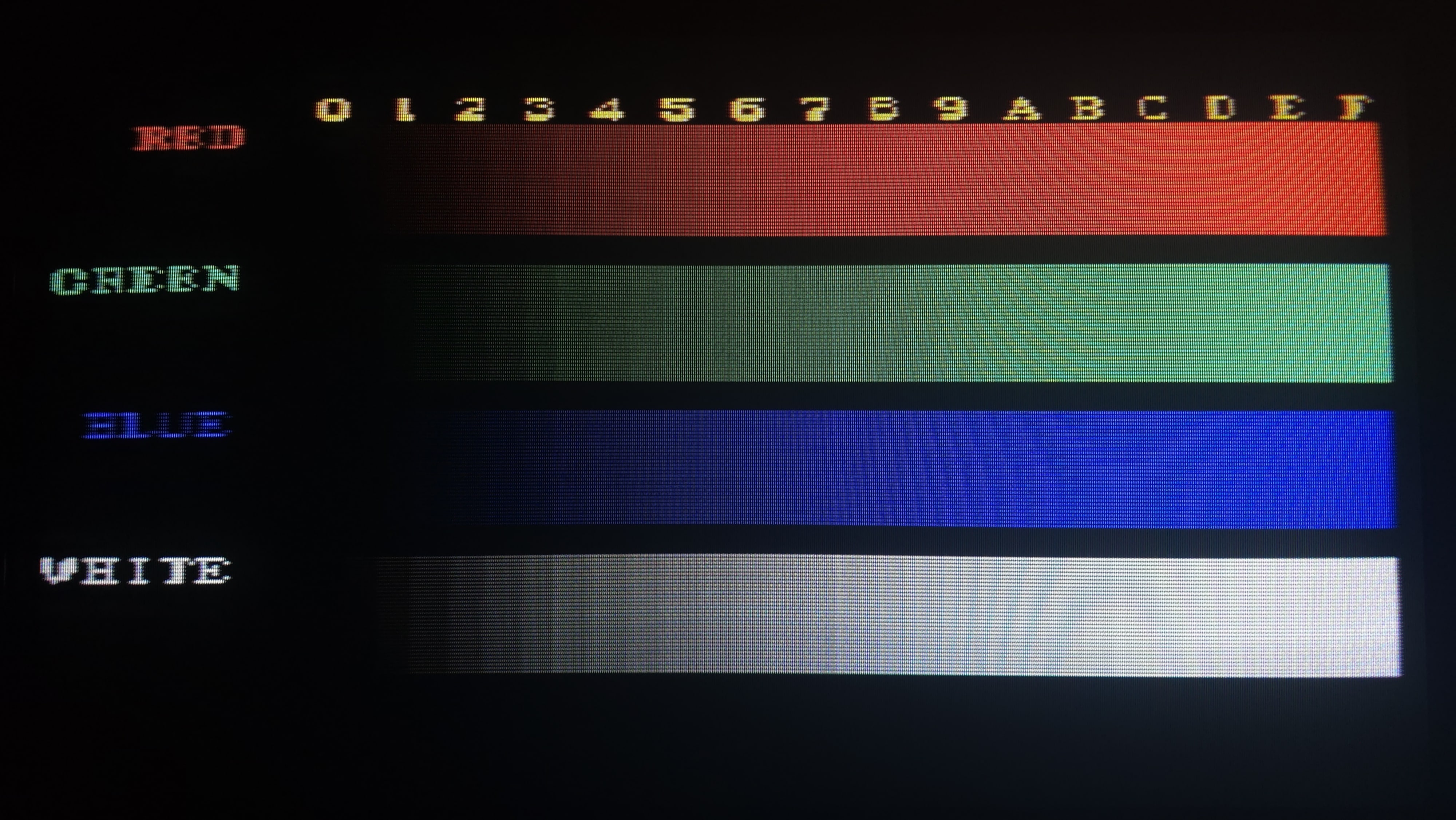

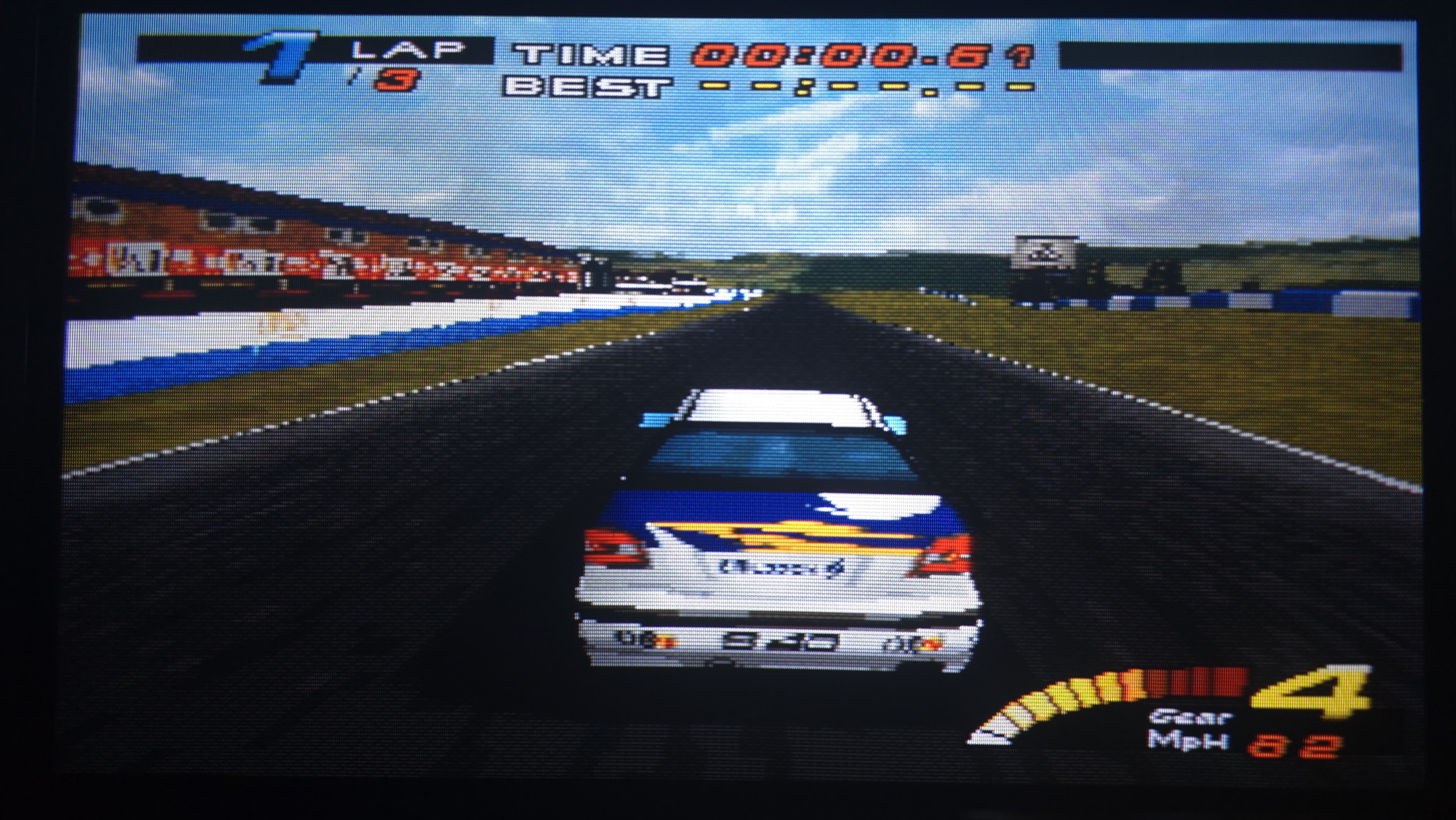

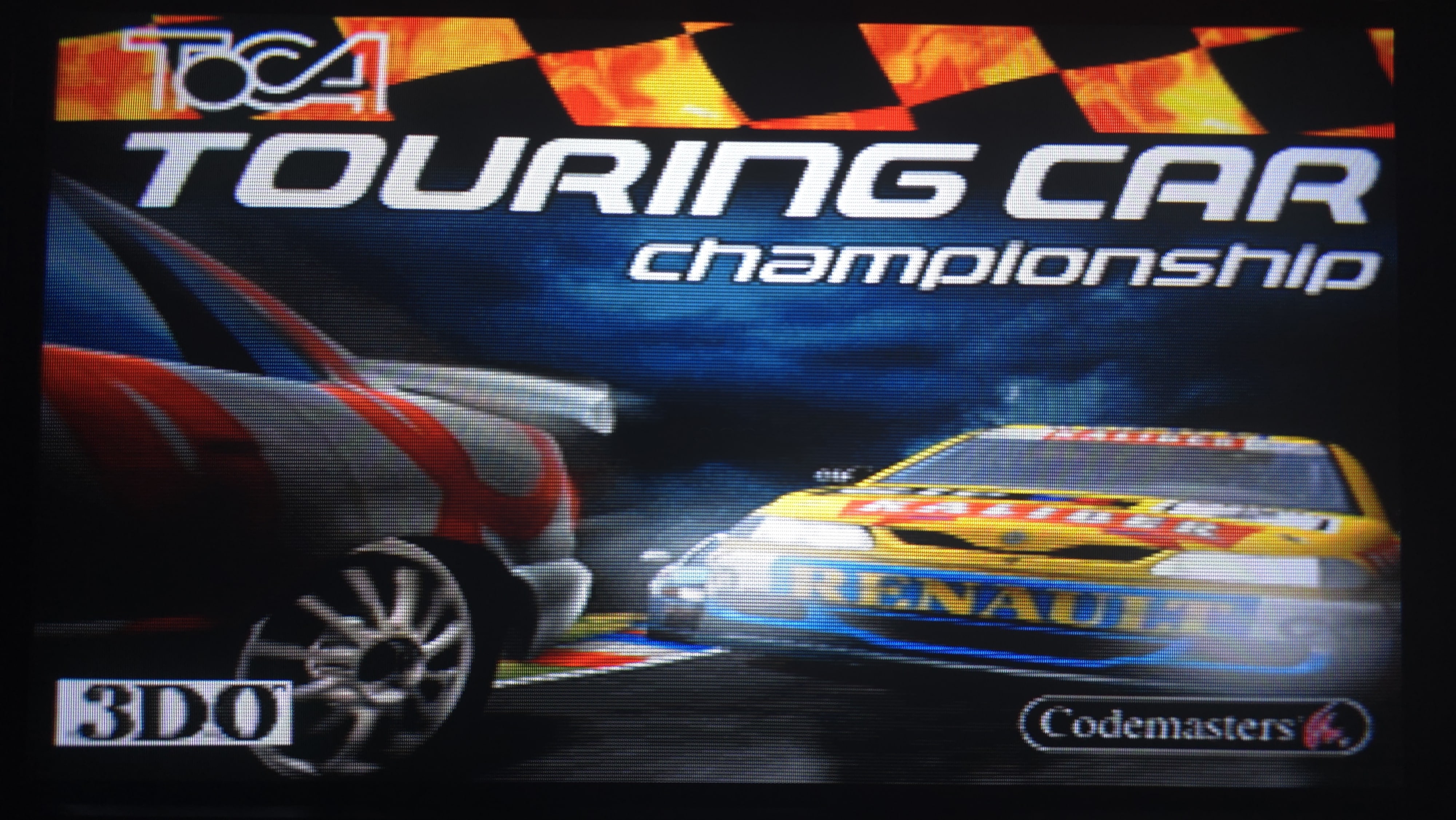

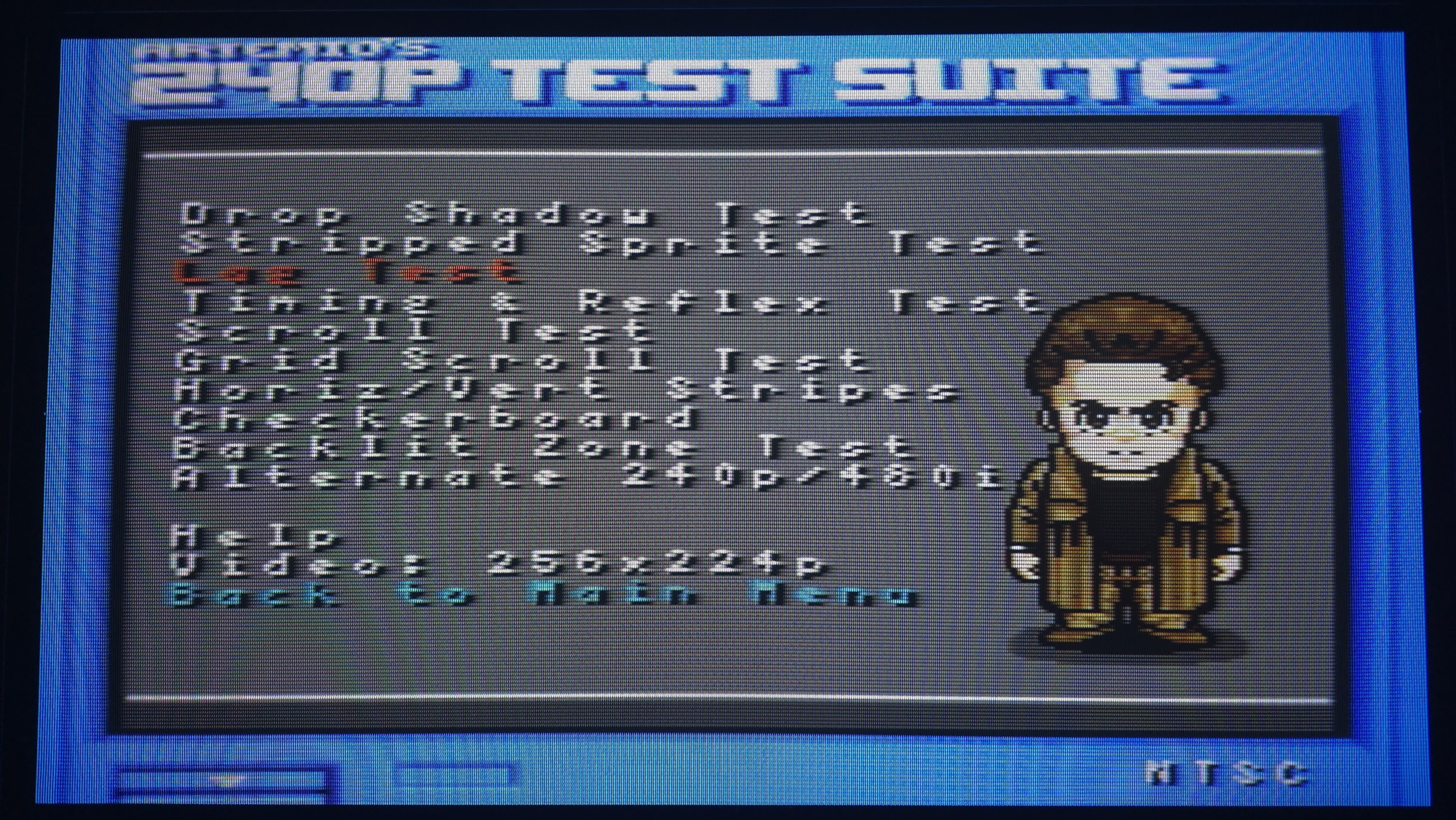

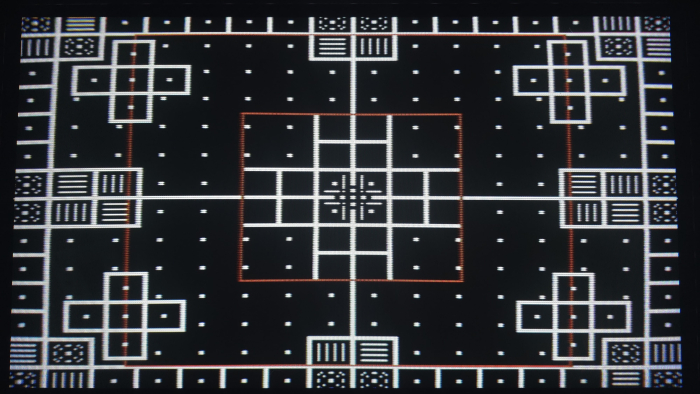

The processing of the Sanyo jungle chip isn't perfect, as there is minor color bleed over component. But overall, it is a decent performer. (240p Test Suite pics were over s-video, and PS1 gameplay pics were via component.)

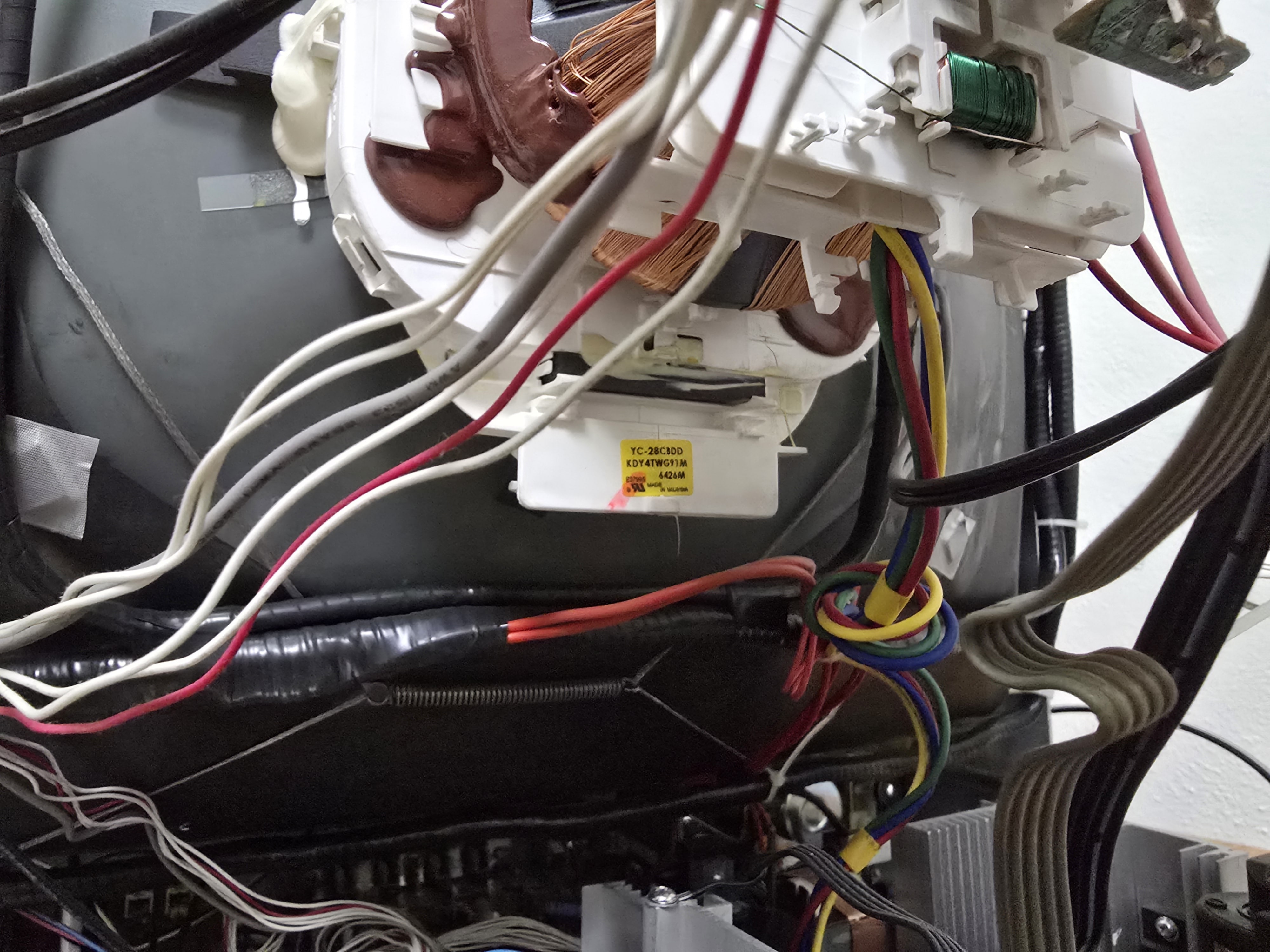

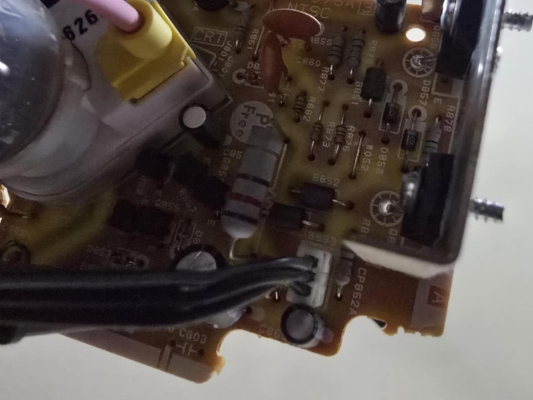

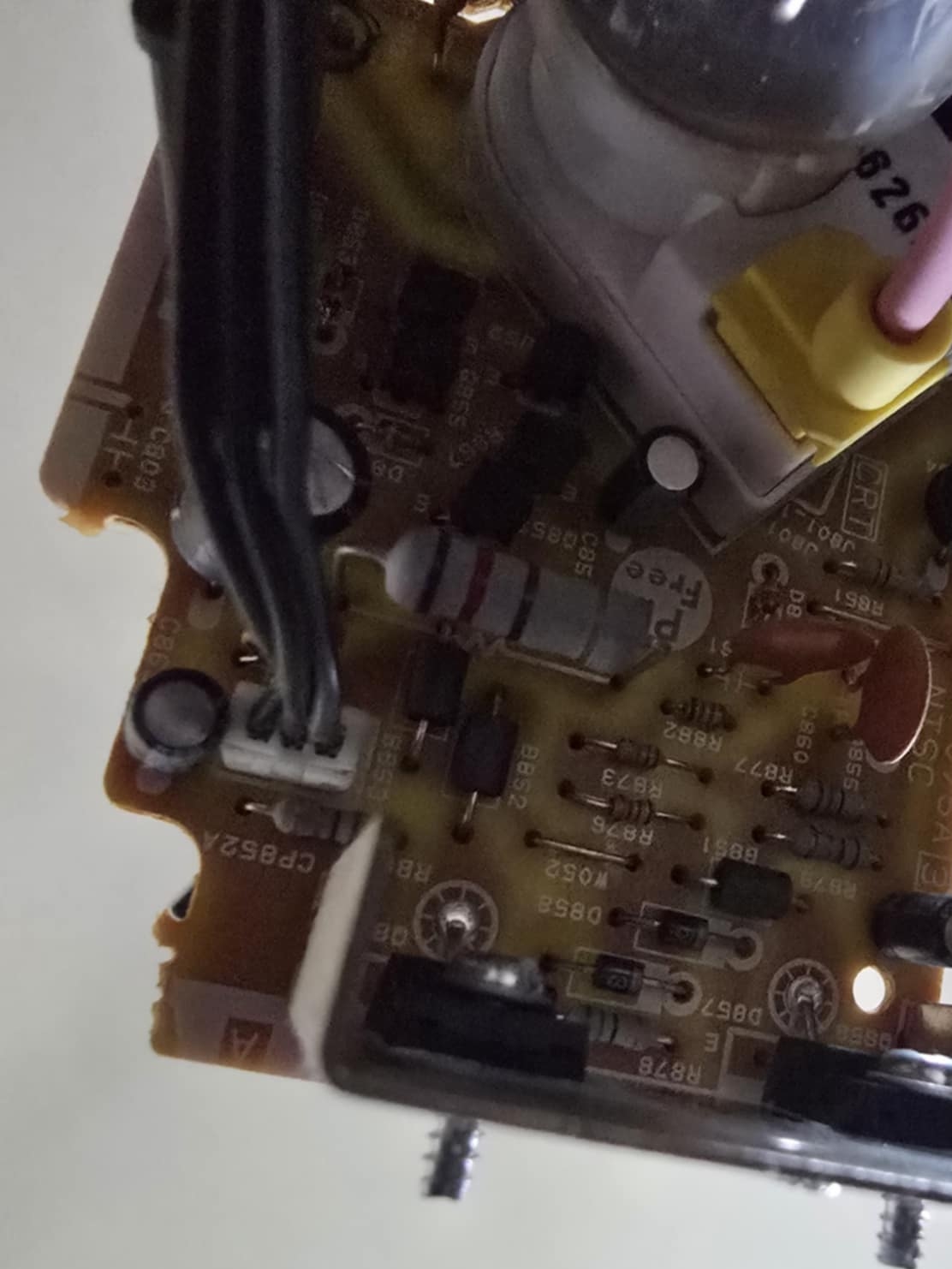

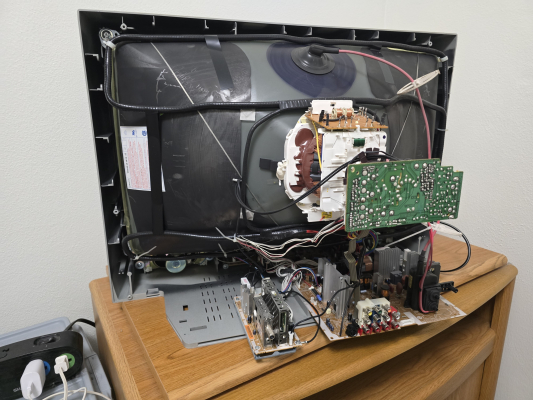

This model has velocity modulation. To disable it, unplug the jumper connecting the board near the yoke to the neckboard:

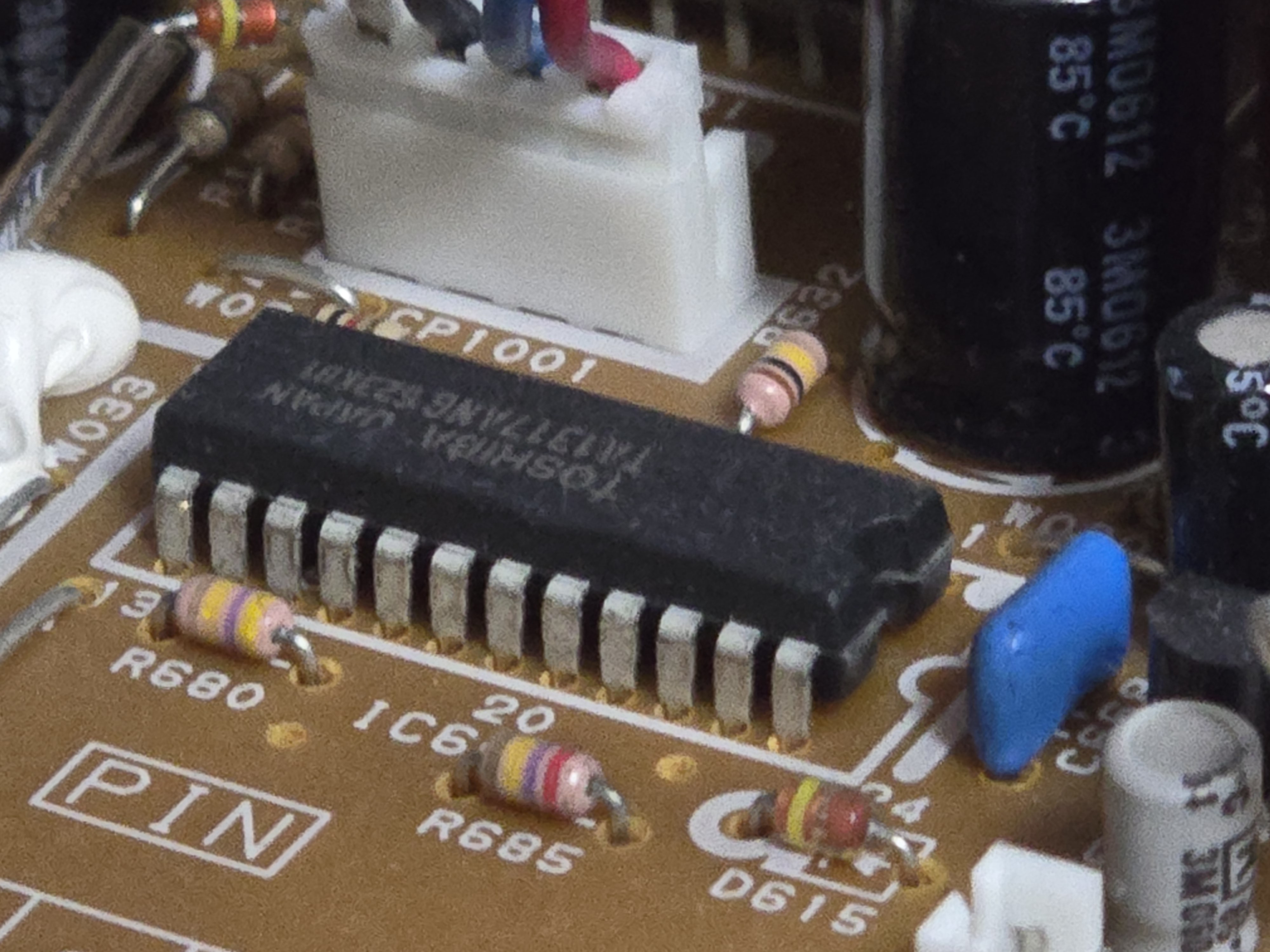

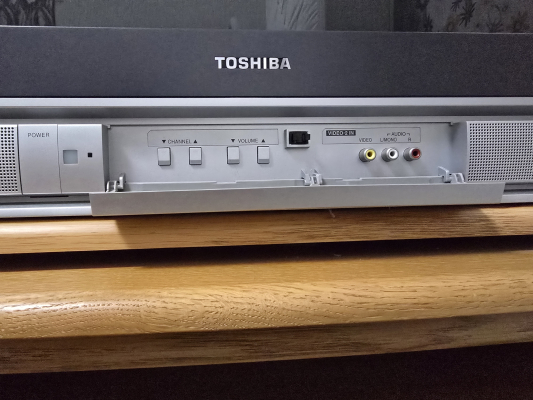

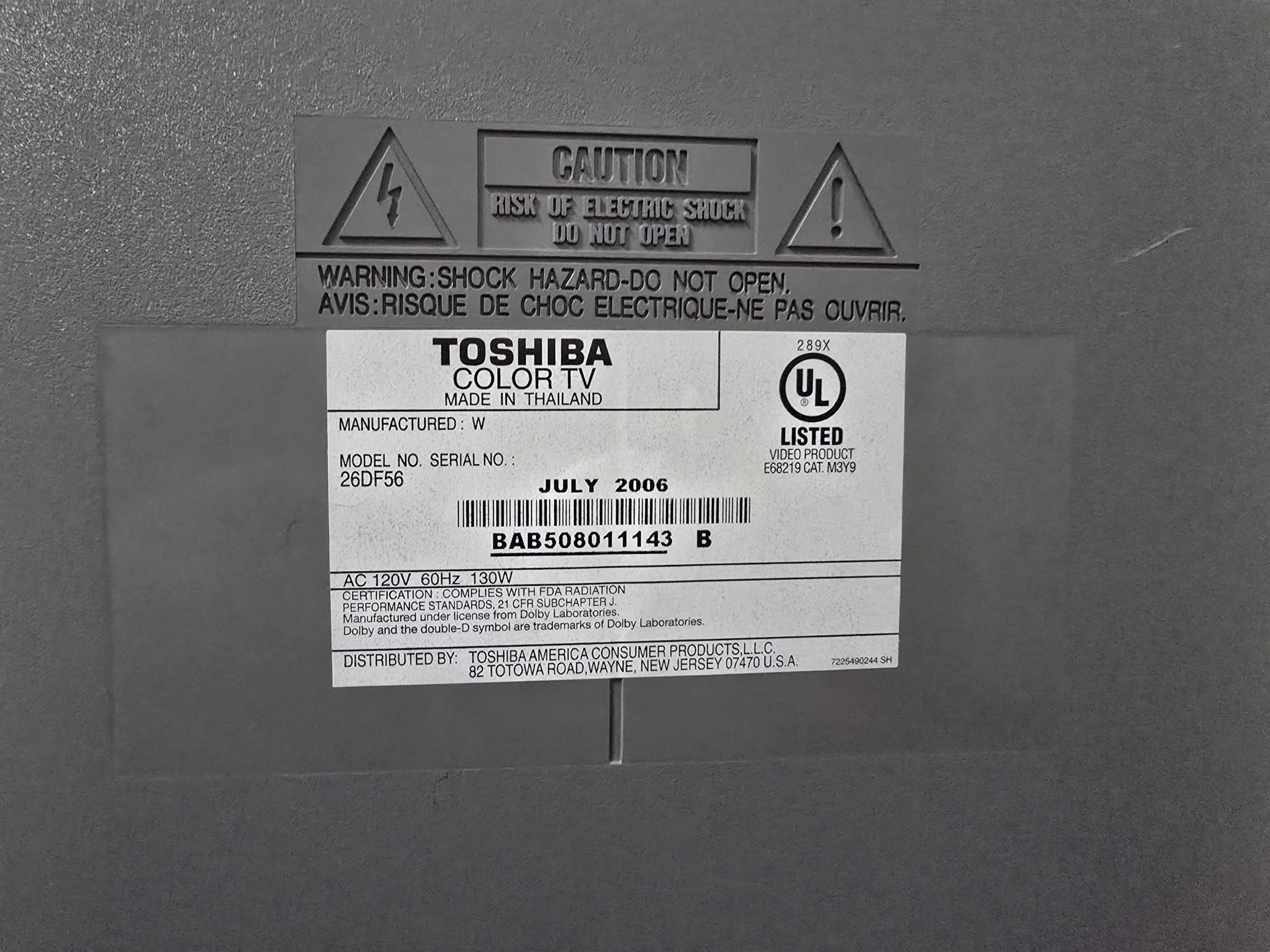

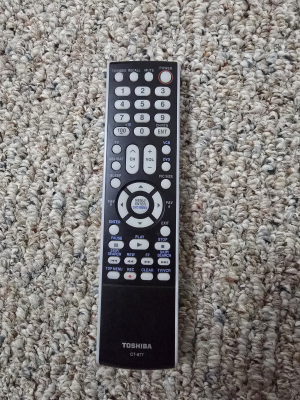

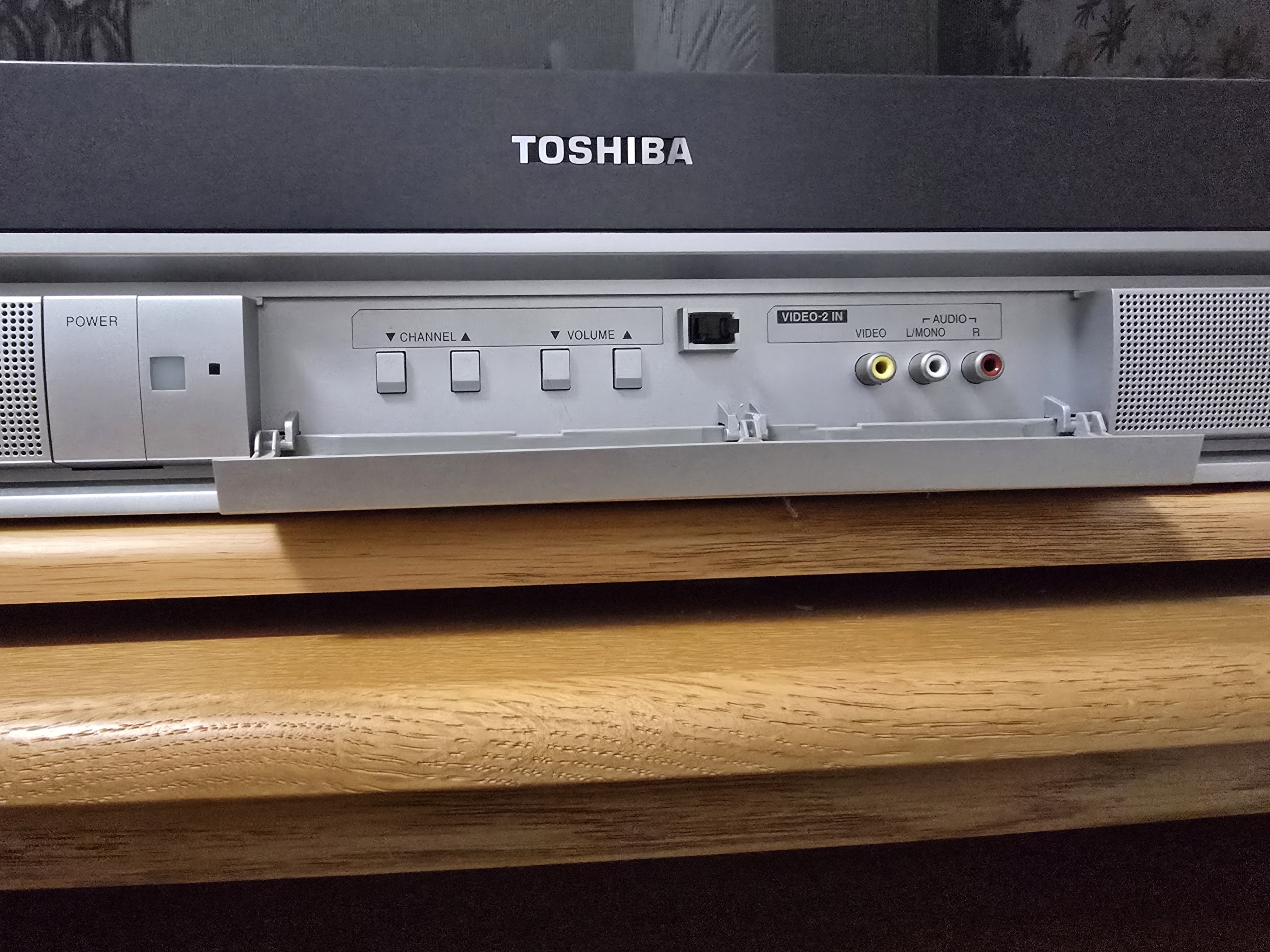

Gallery

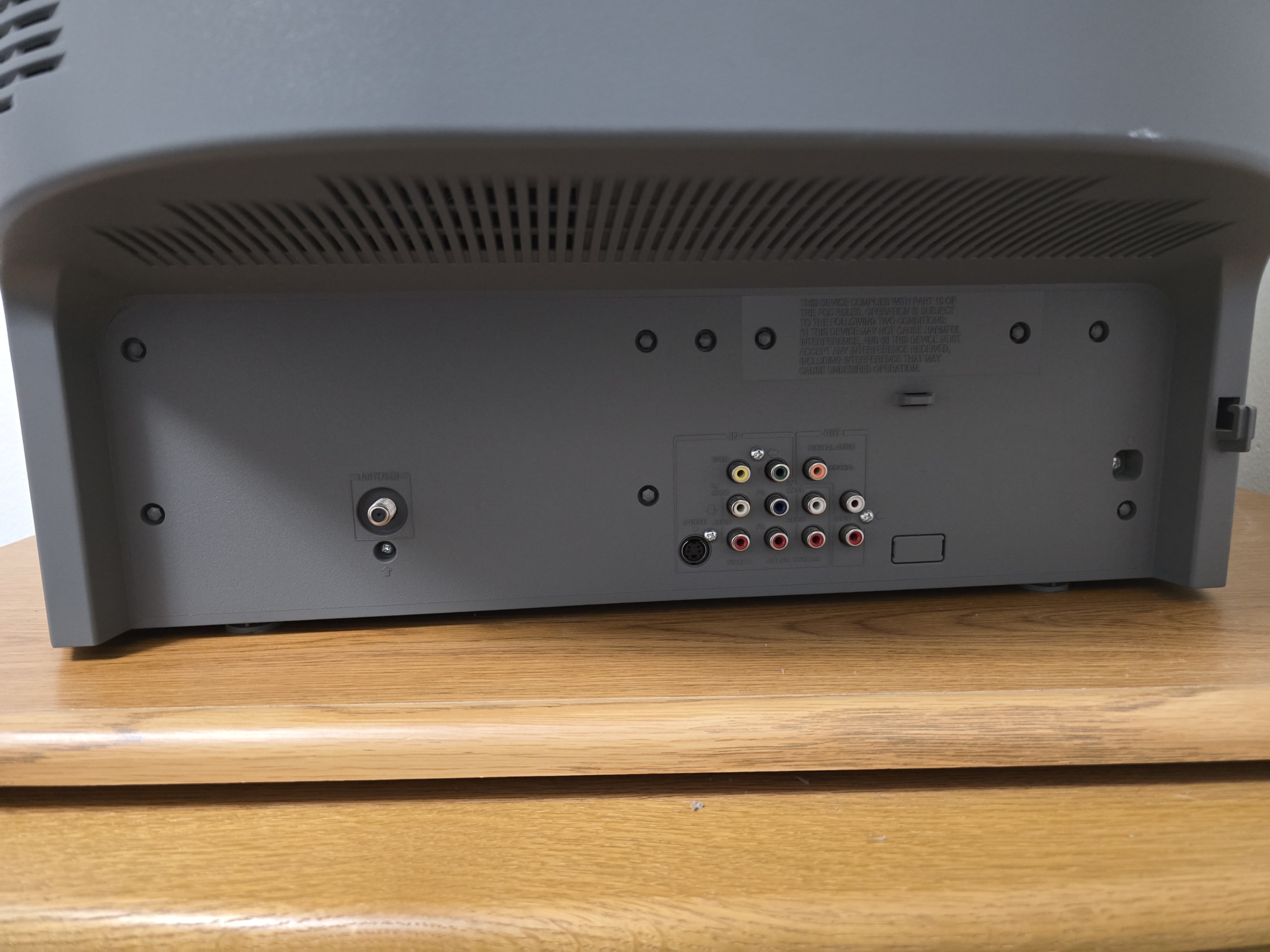

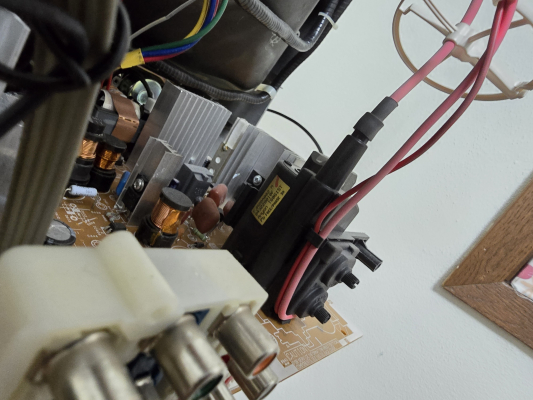

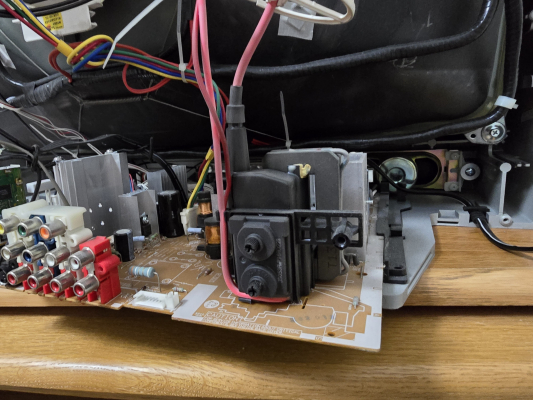

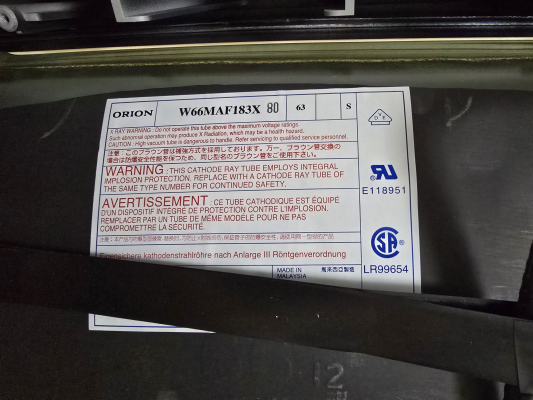

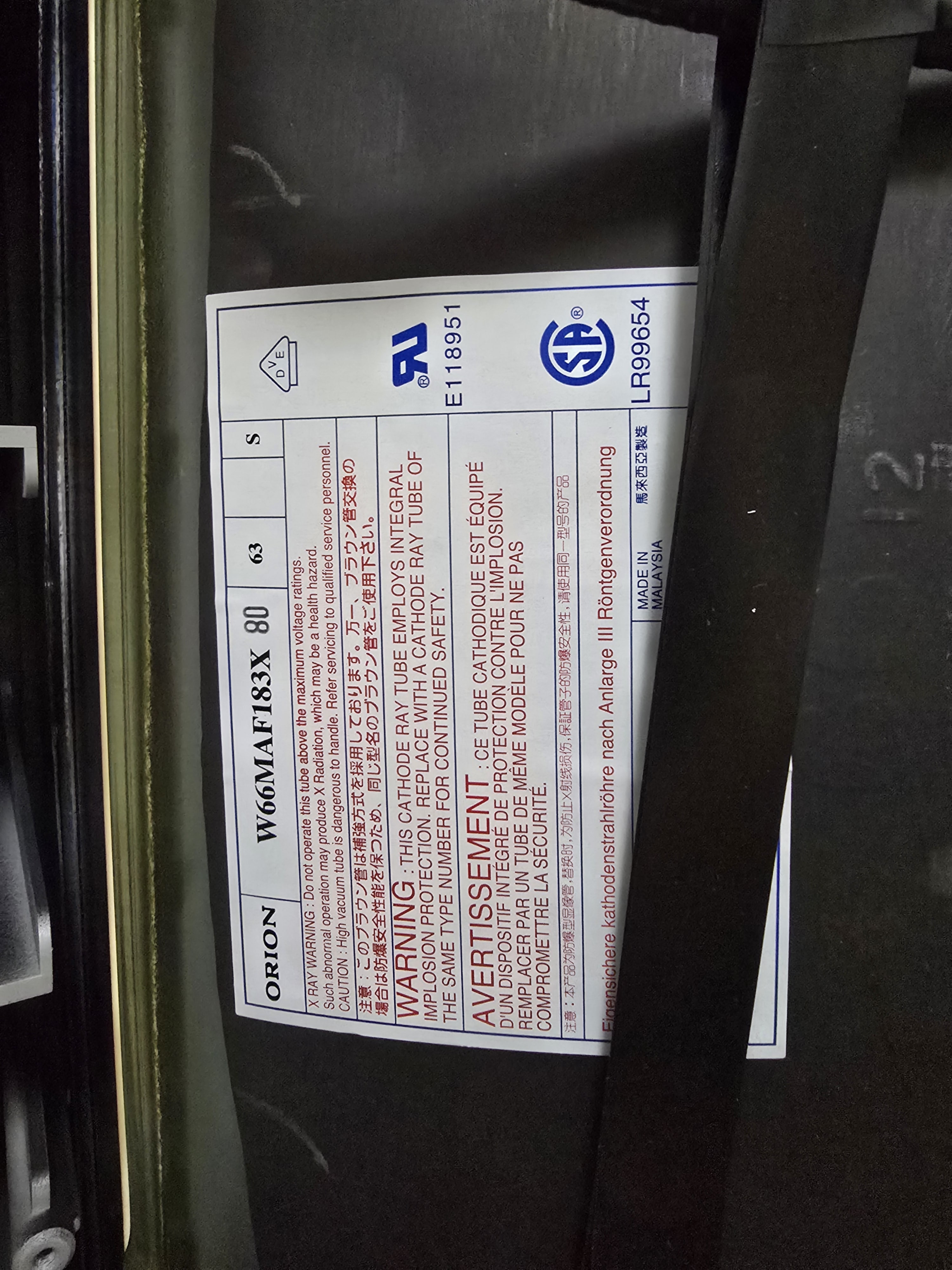

| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | 26DF56 |
| Series: | DF |
| Viewable Size: | 26" |
| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA78041 |
| Jungle IC: | Sanyo, LA76327M, LA76327M-A |
| Comb Filter IC: | Sanyo, LA76605M-TLM |
| Flyback: | FJM28A002 |
| Focus Type: | Single |
| Tube: | Matsushita-Toshiba , W66MAF183X , W66MAF183X80 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|

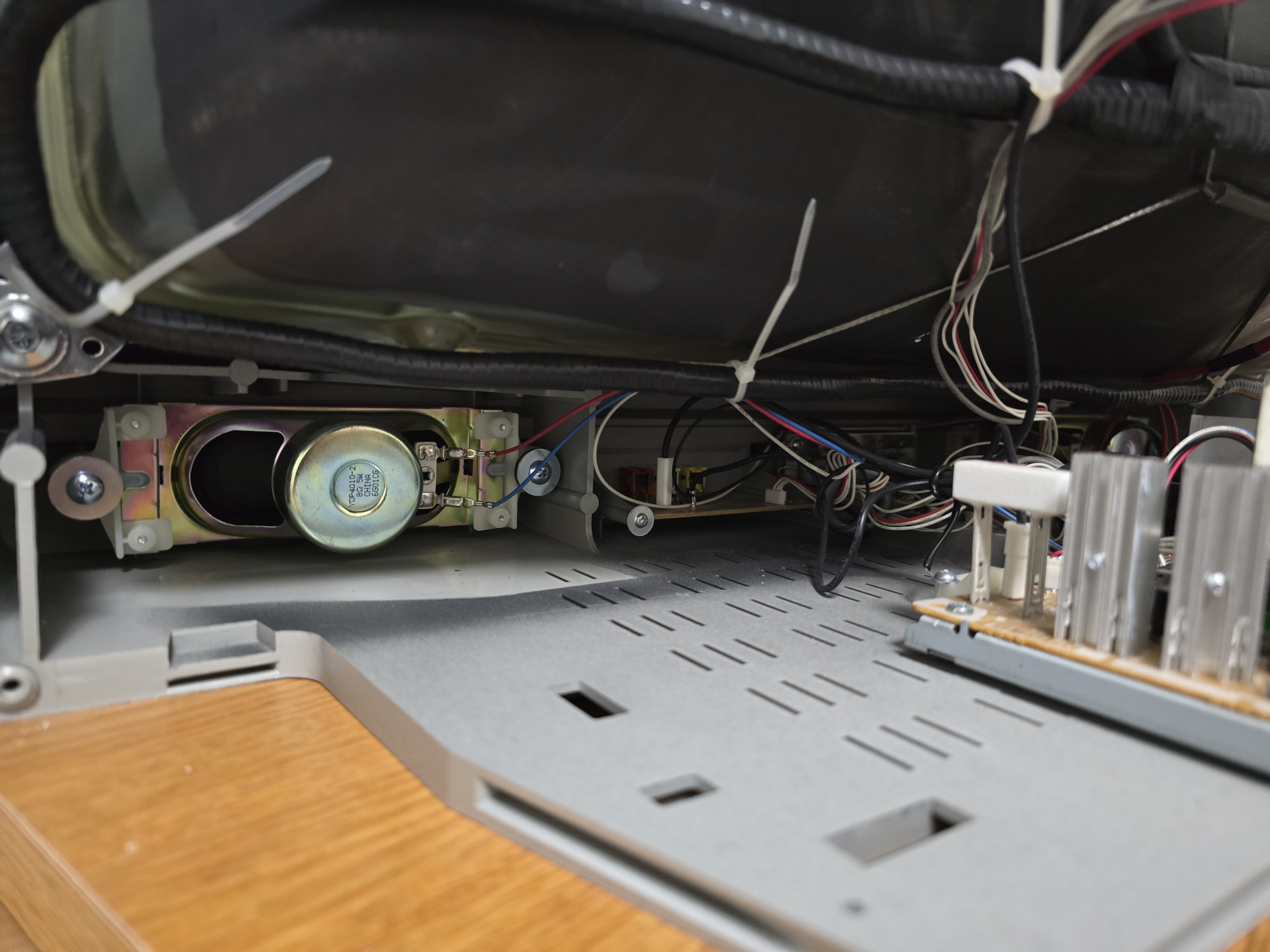

| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | YC-28C8DD, KDY4TWG91M |
| Speakers: | Stereo, Headphone Jack, 5W x 2 |
| Chassis: | M3Y9 |
| Weight: | 78.3 lbs (35.5 kg) |
| Dimensions (W/H/D): |
840 x 627 x 620 mm
(33 x 24.6 x 24.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
