Summary

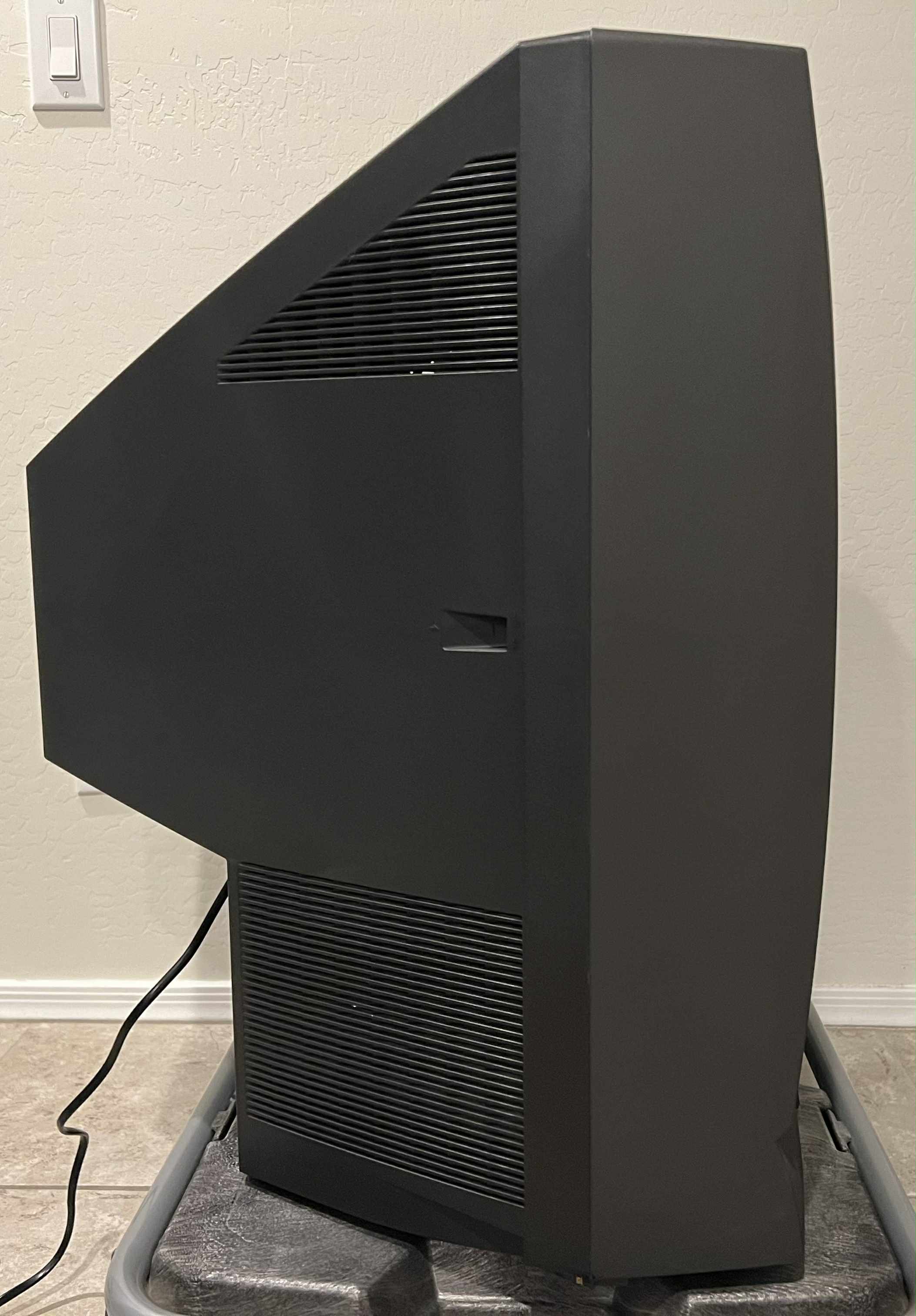

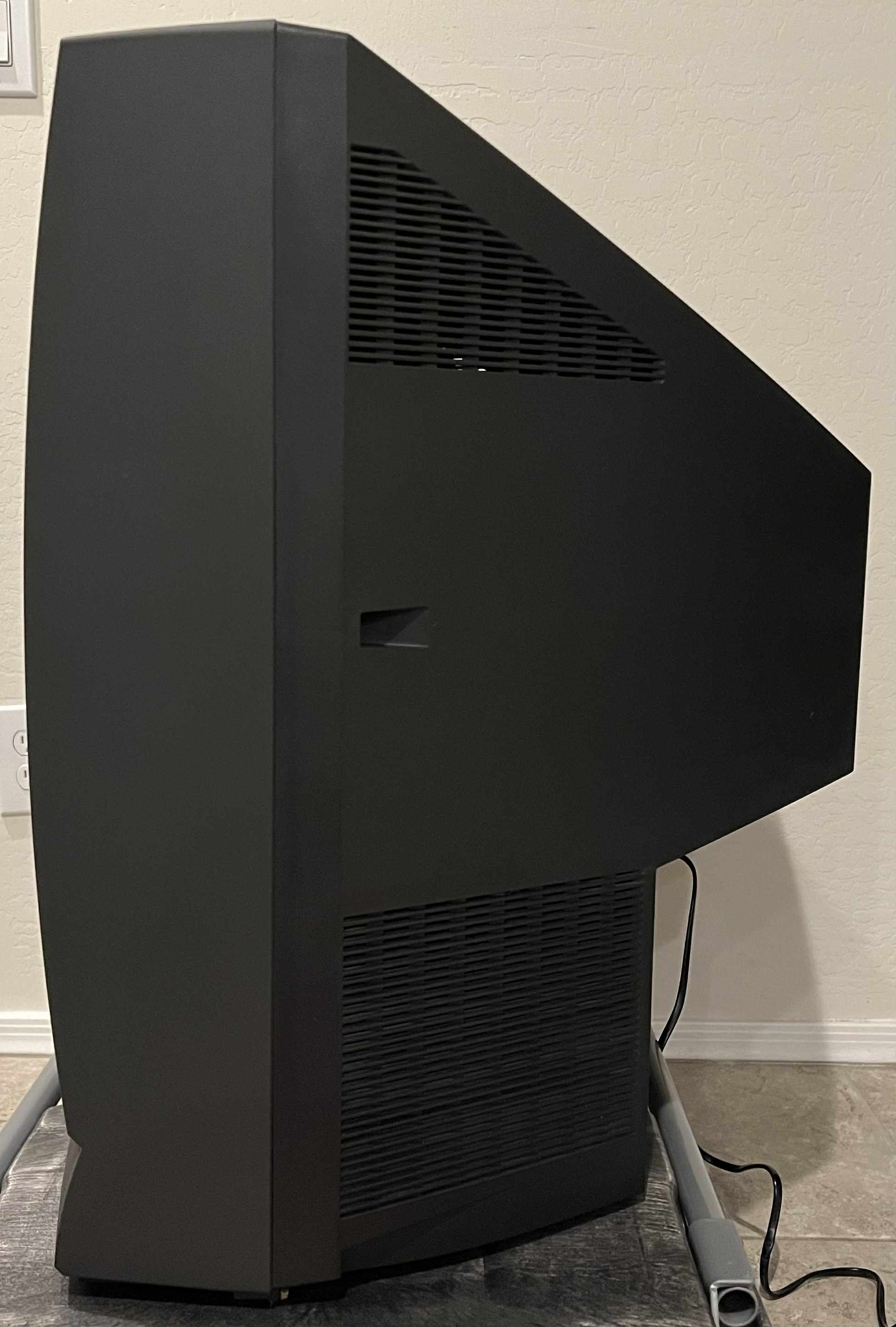

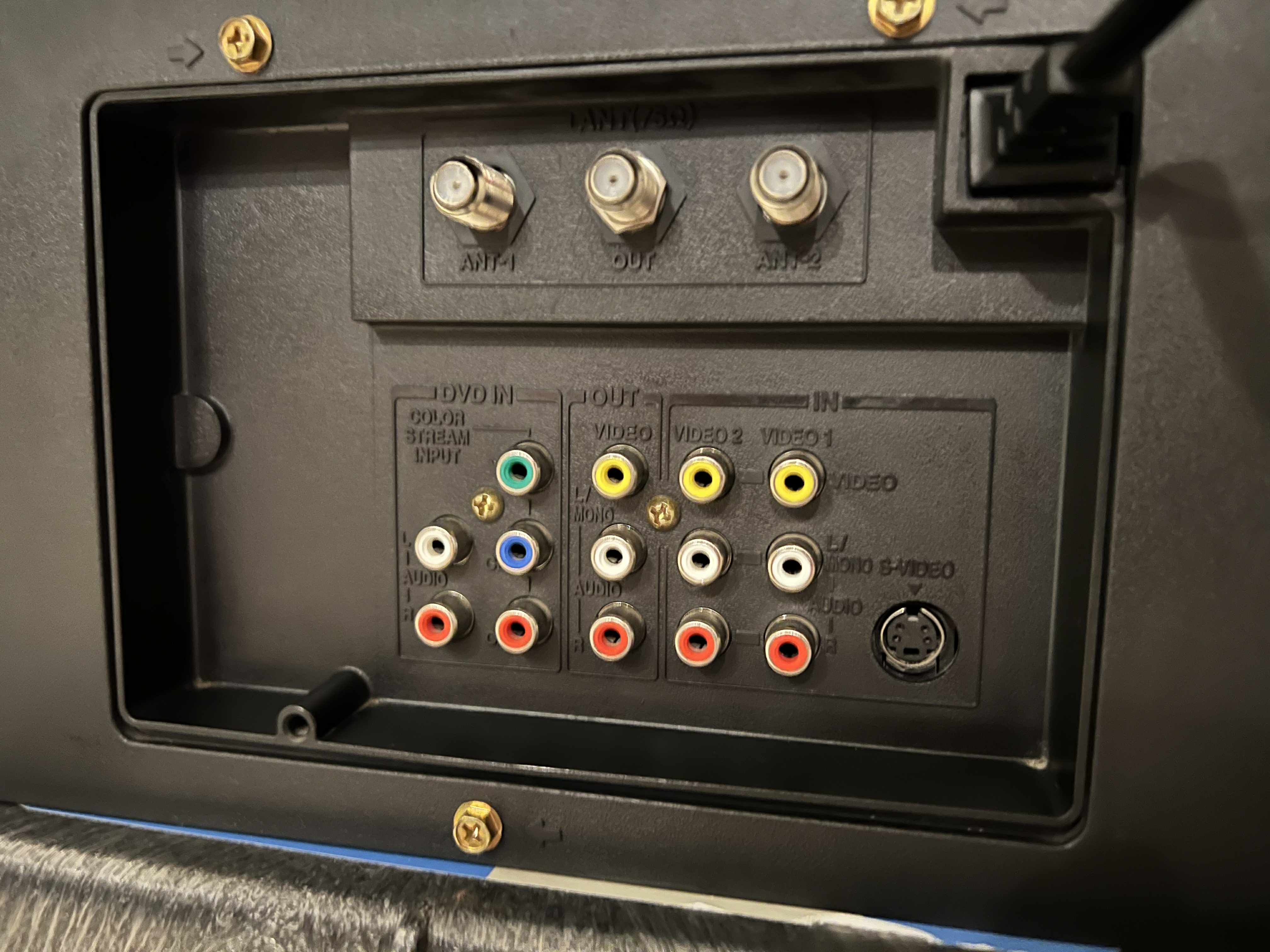

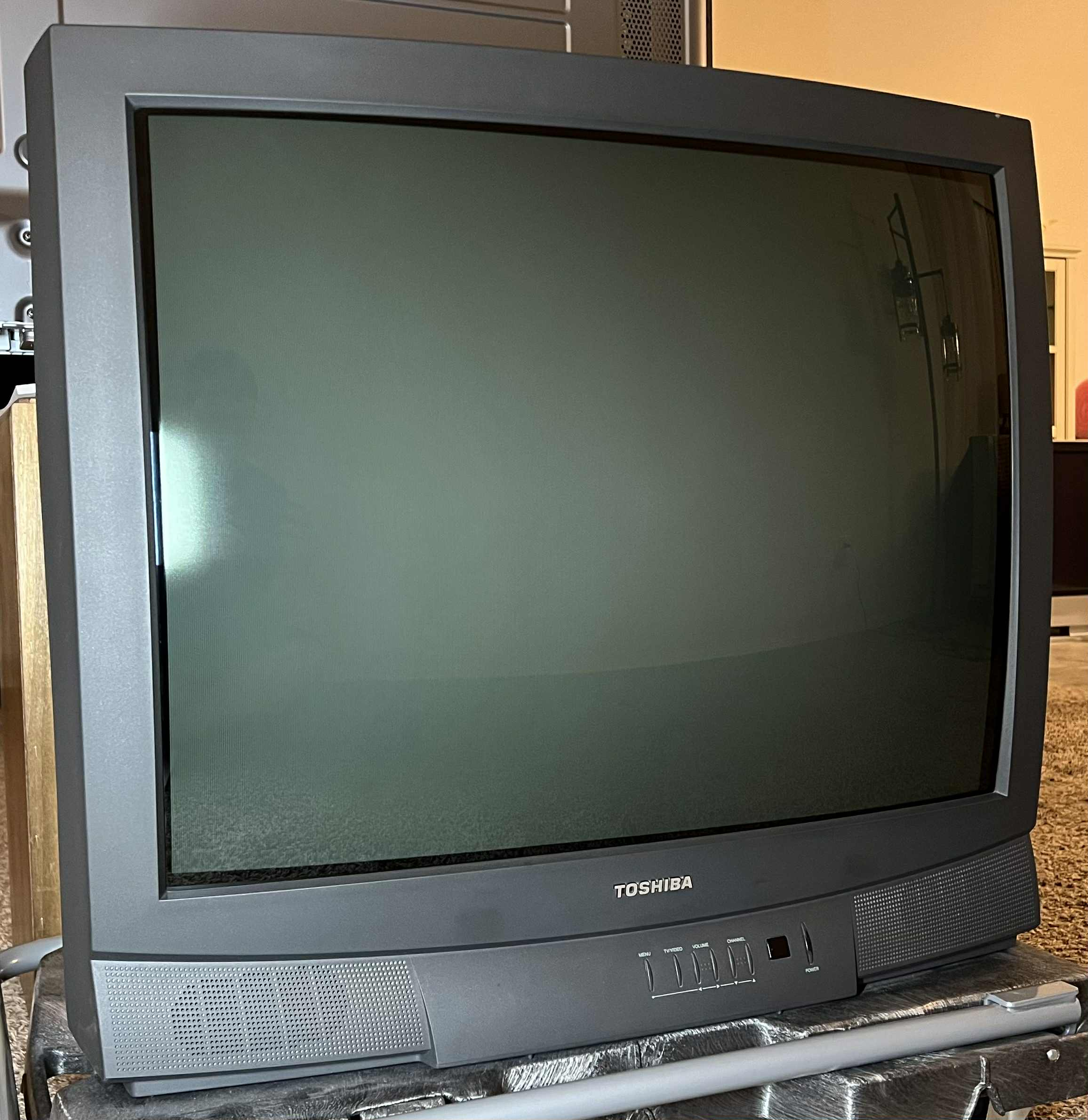

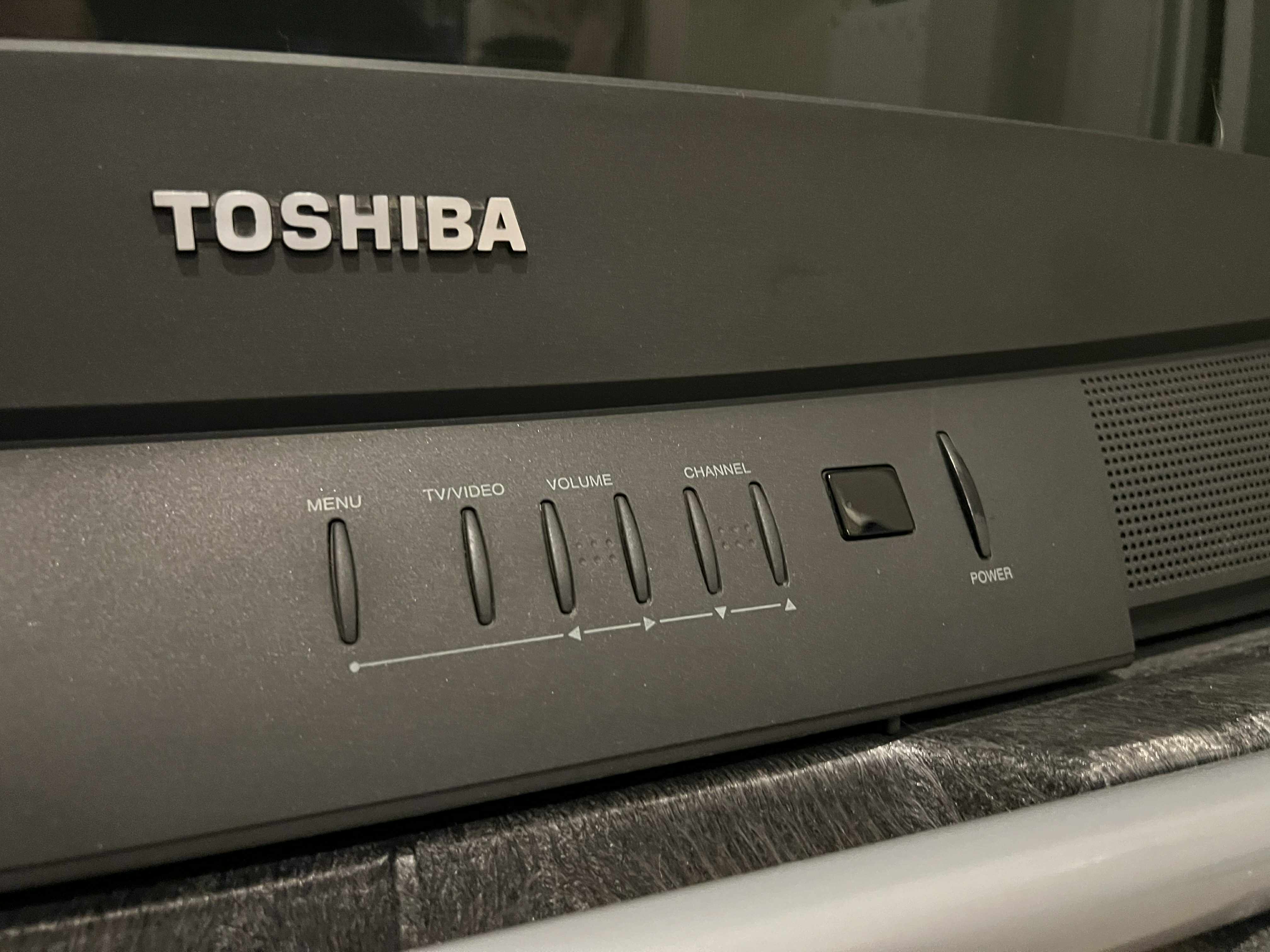

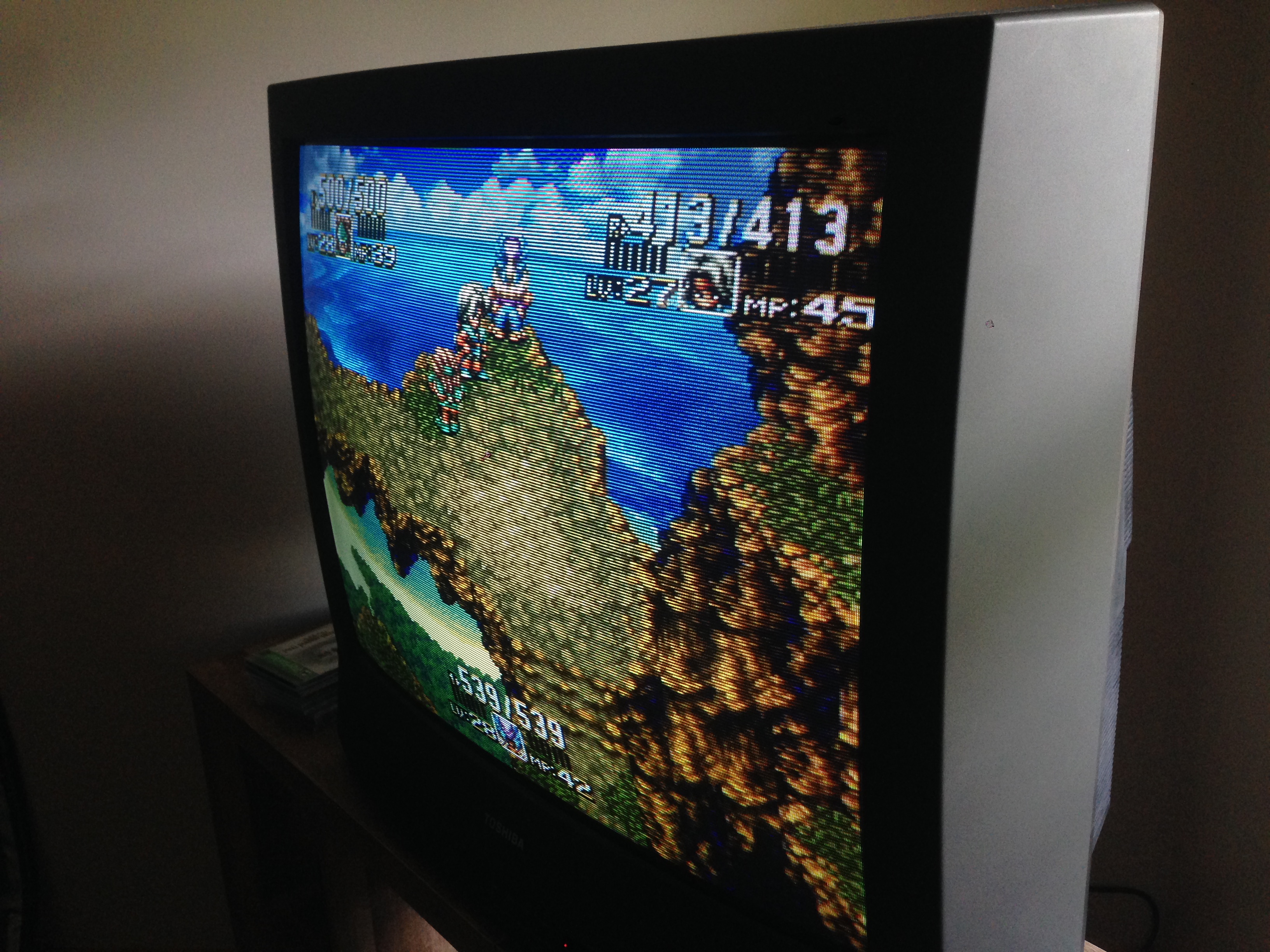

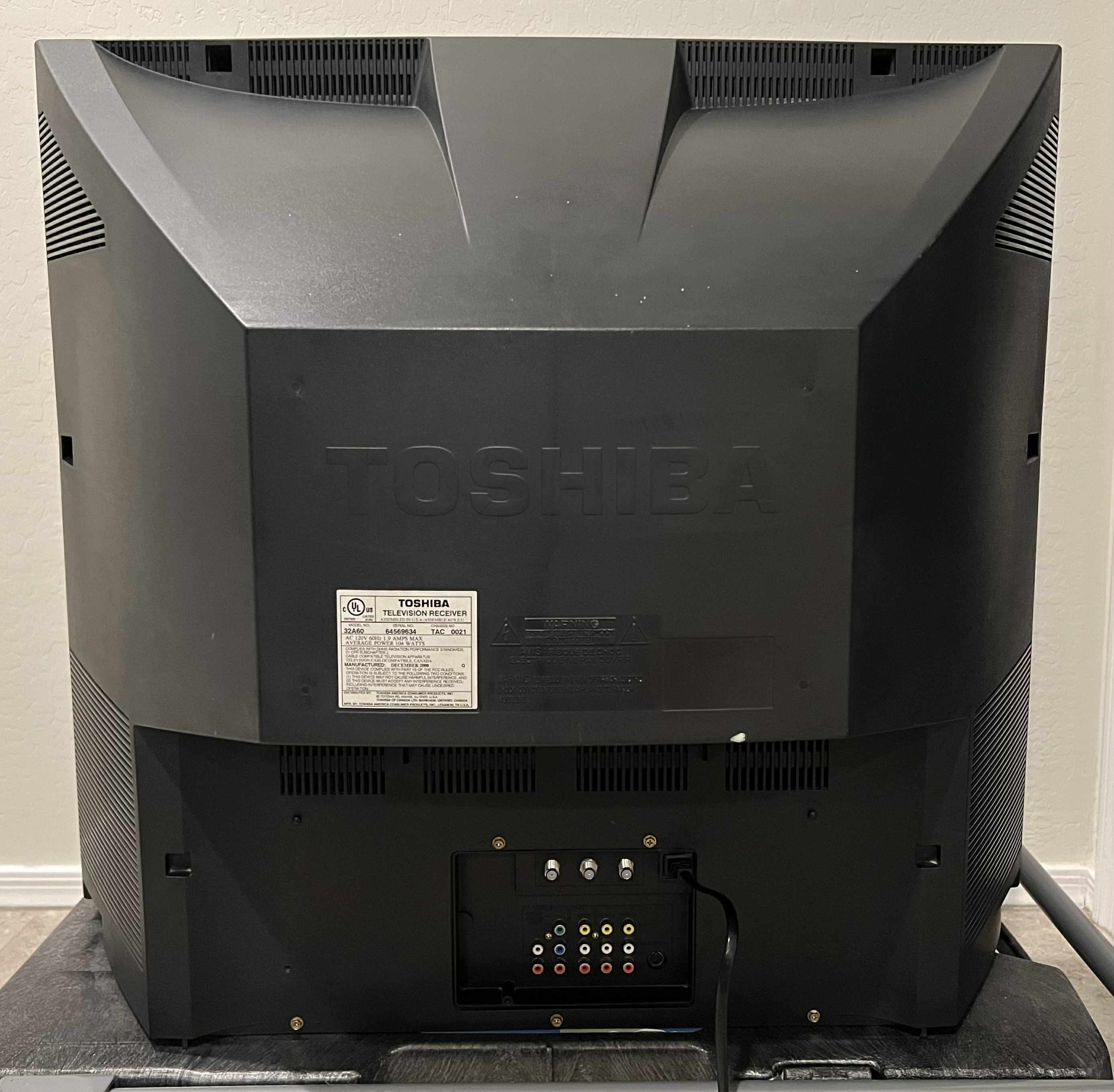

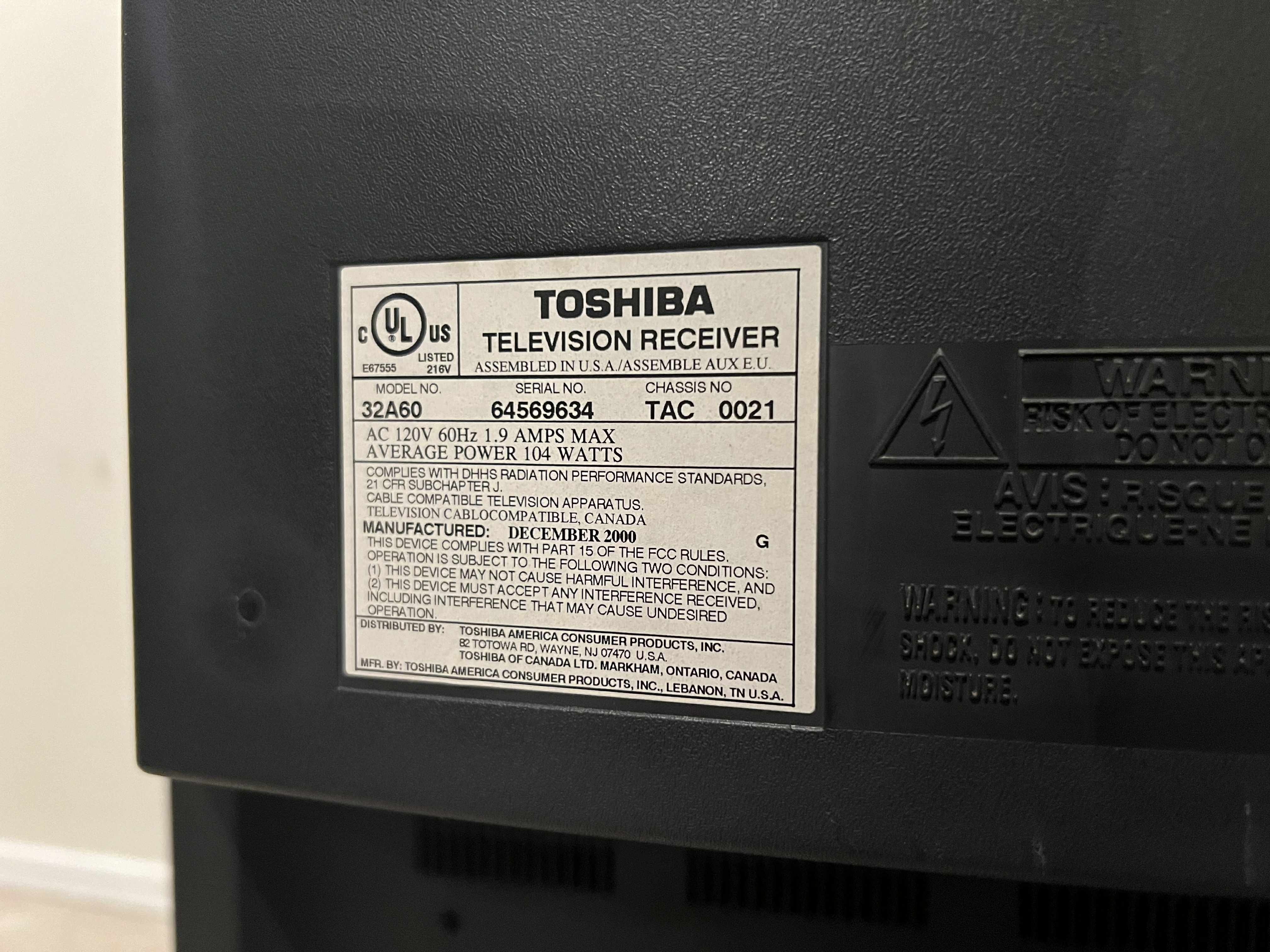

32" CRT by Toshiba, made in the USA in 2000. Has a full set of inputs: RF, composite, s-video and ColorStream (component.)

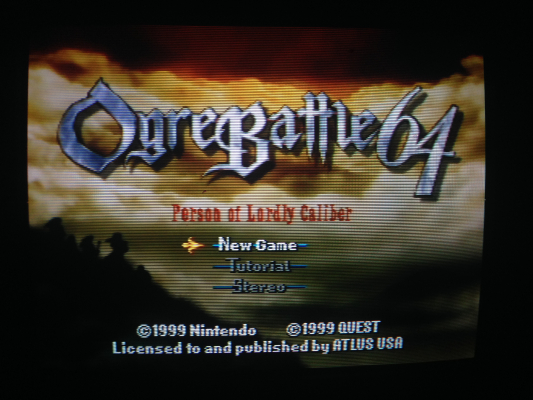

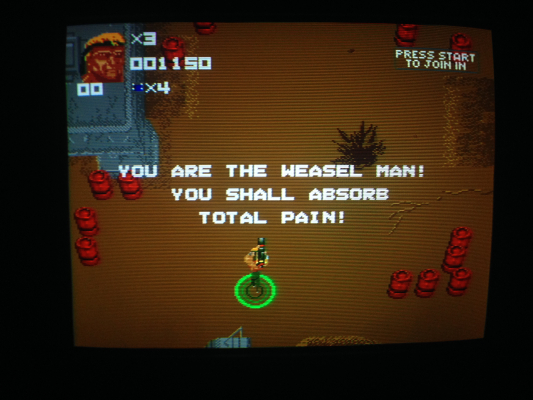

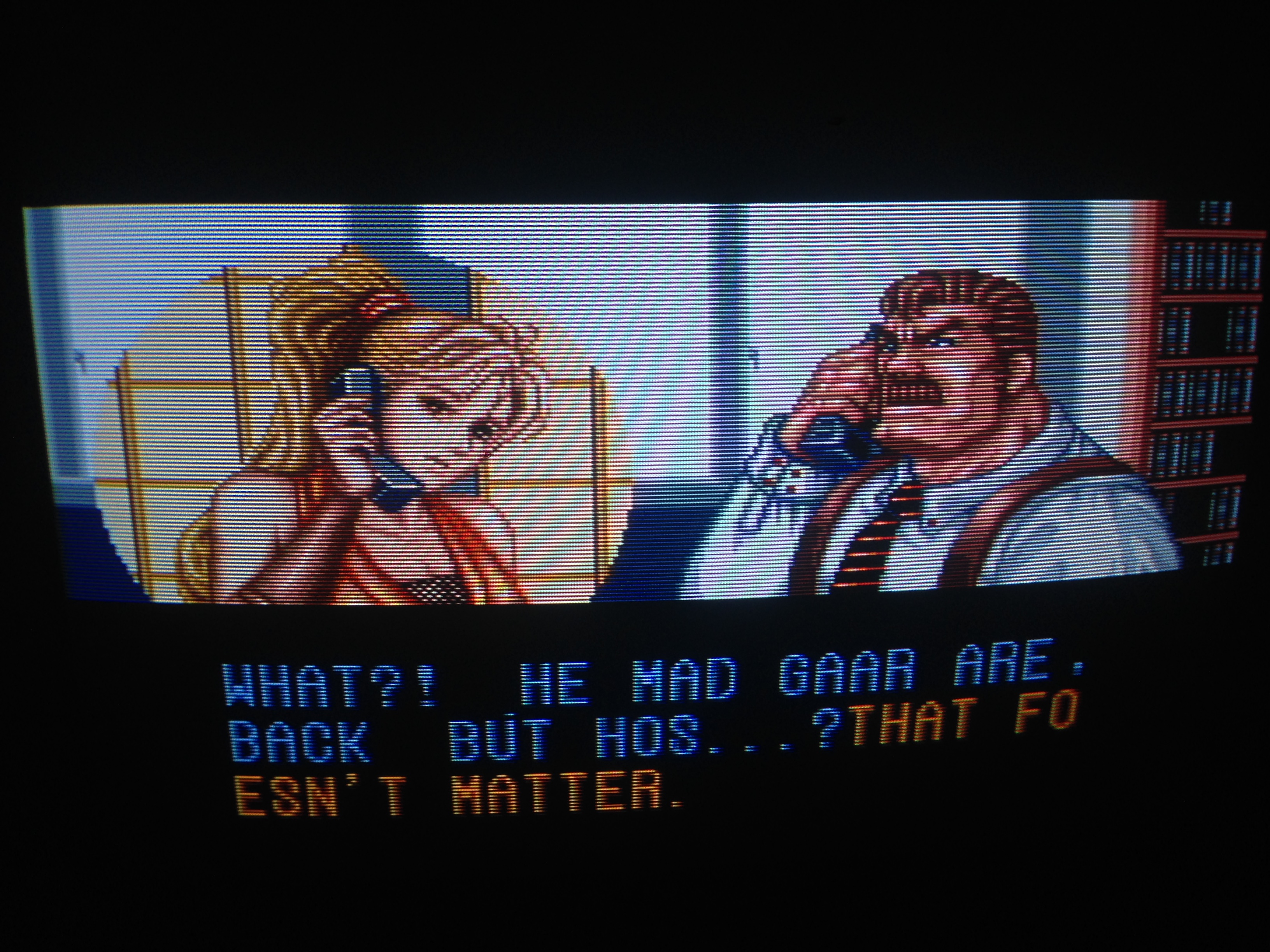

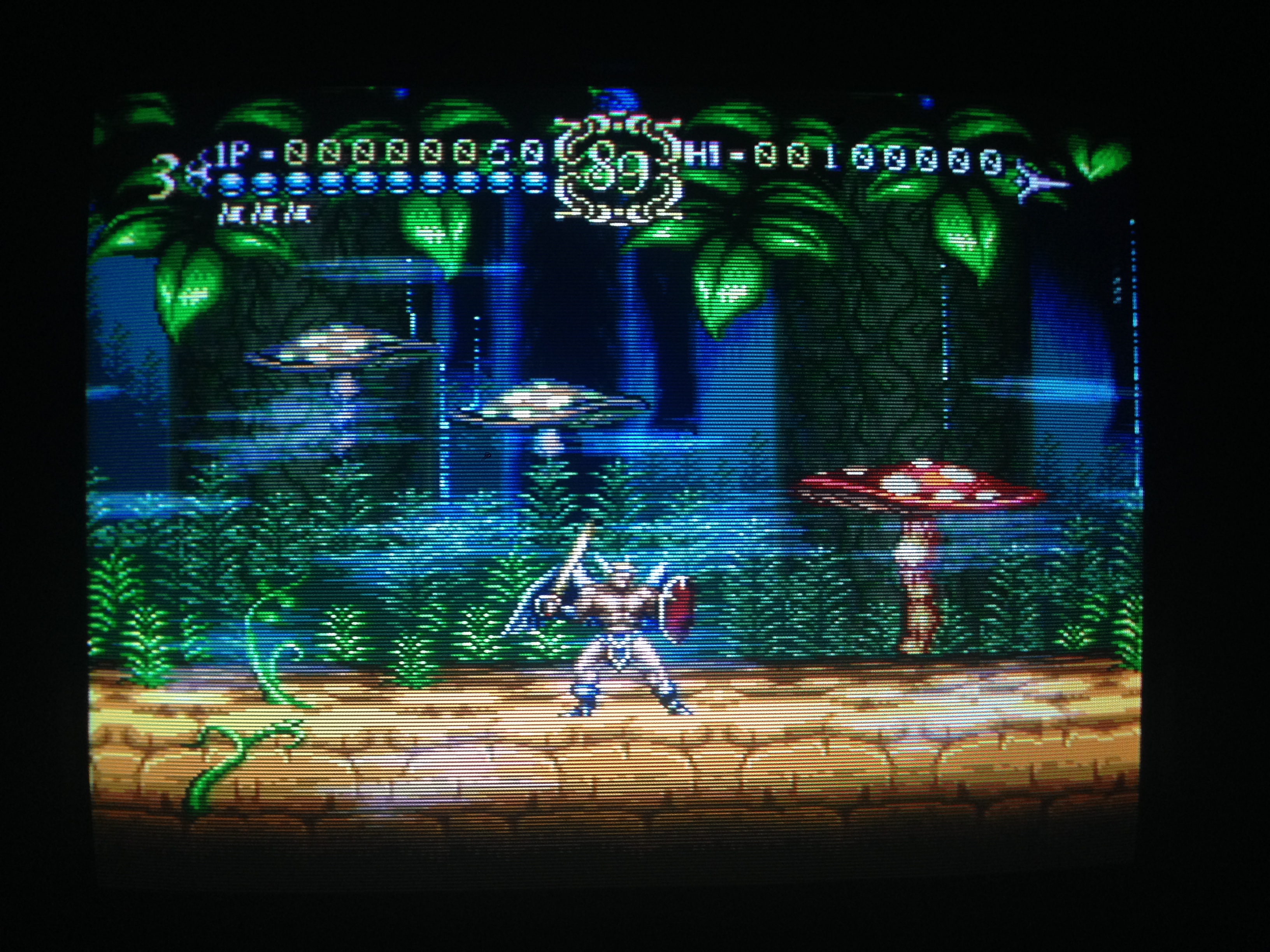

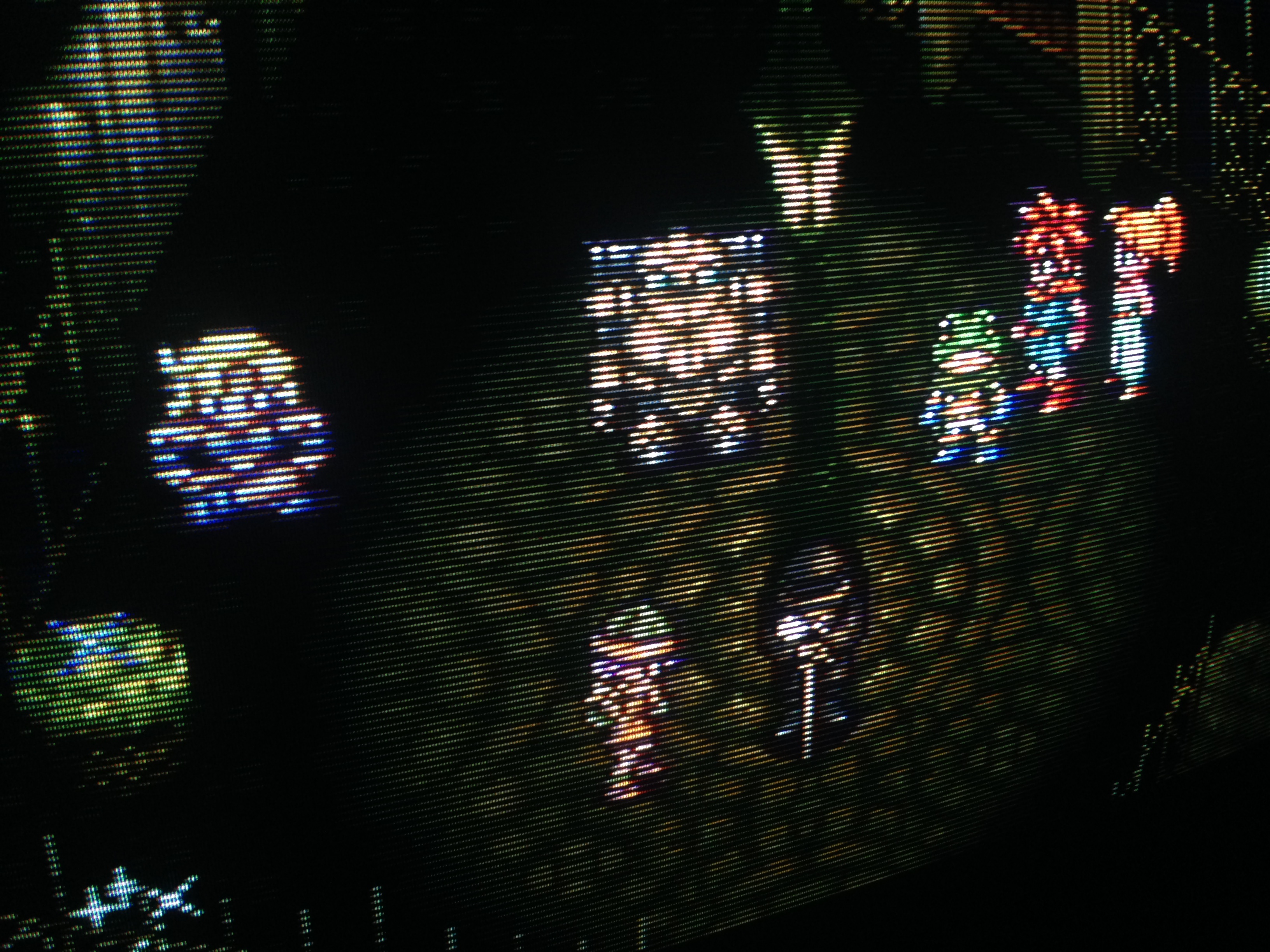

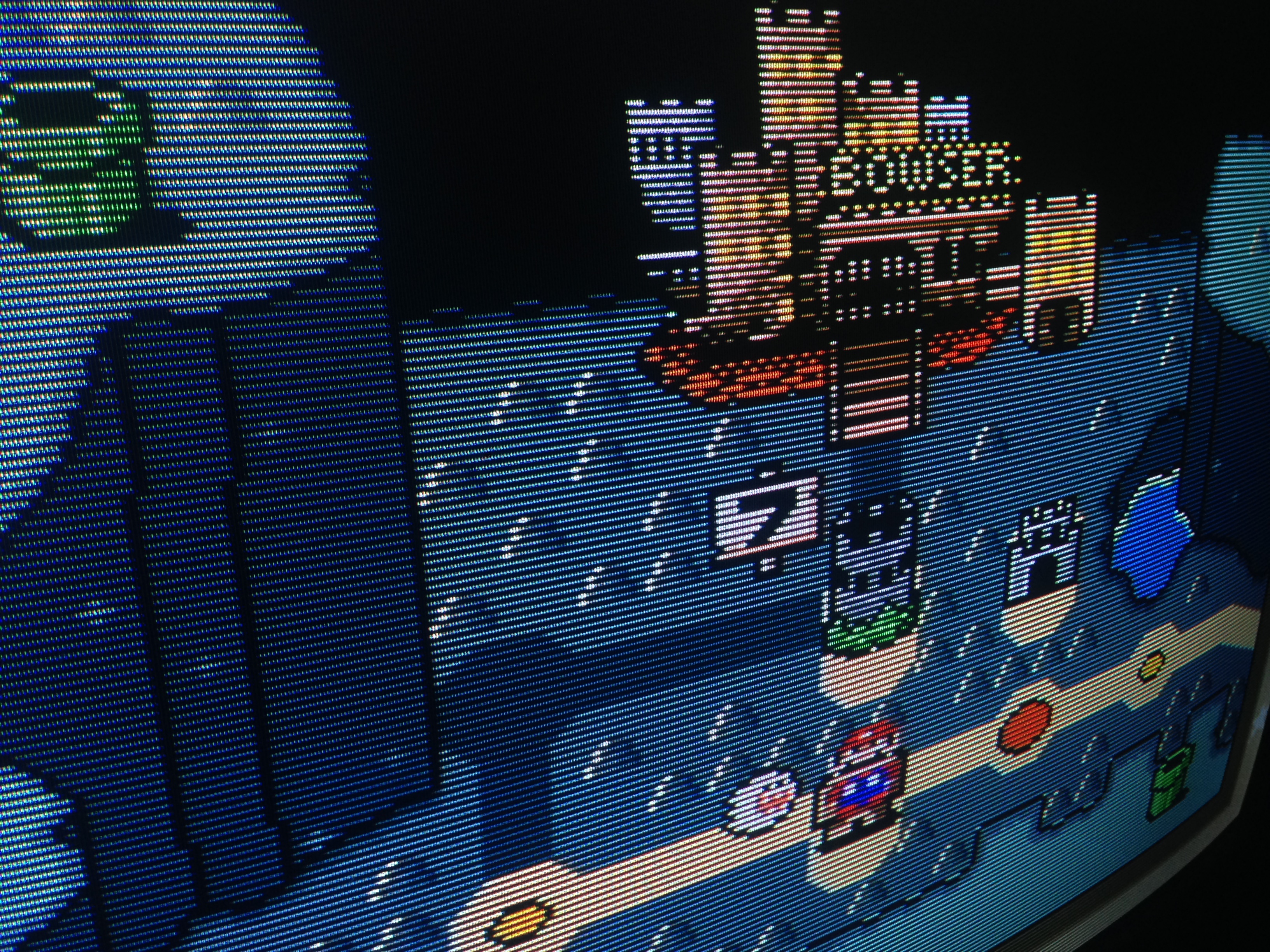

(Special thanks to Tim R. for some of the pics!)

Manuals

• Owner's Manual
• Service Manual

Composite 240p Performance

by Eli Krause

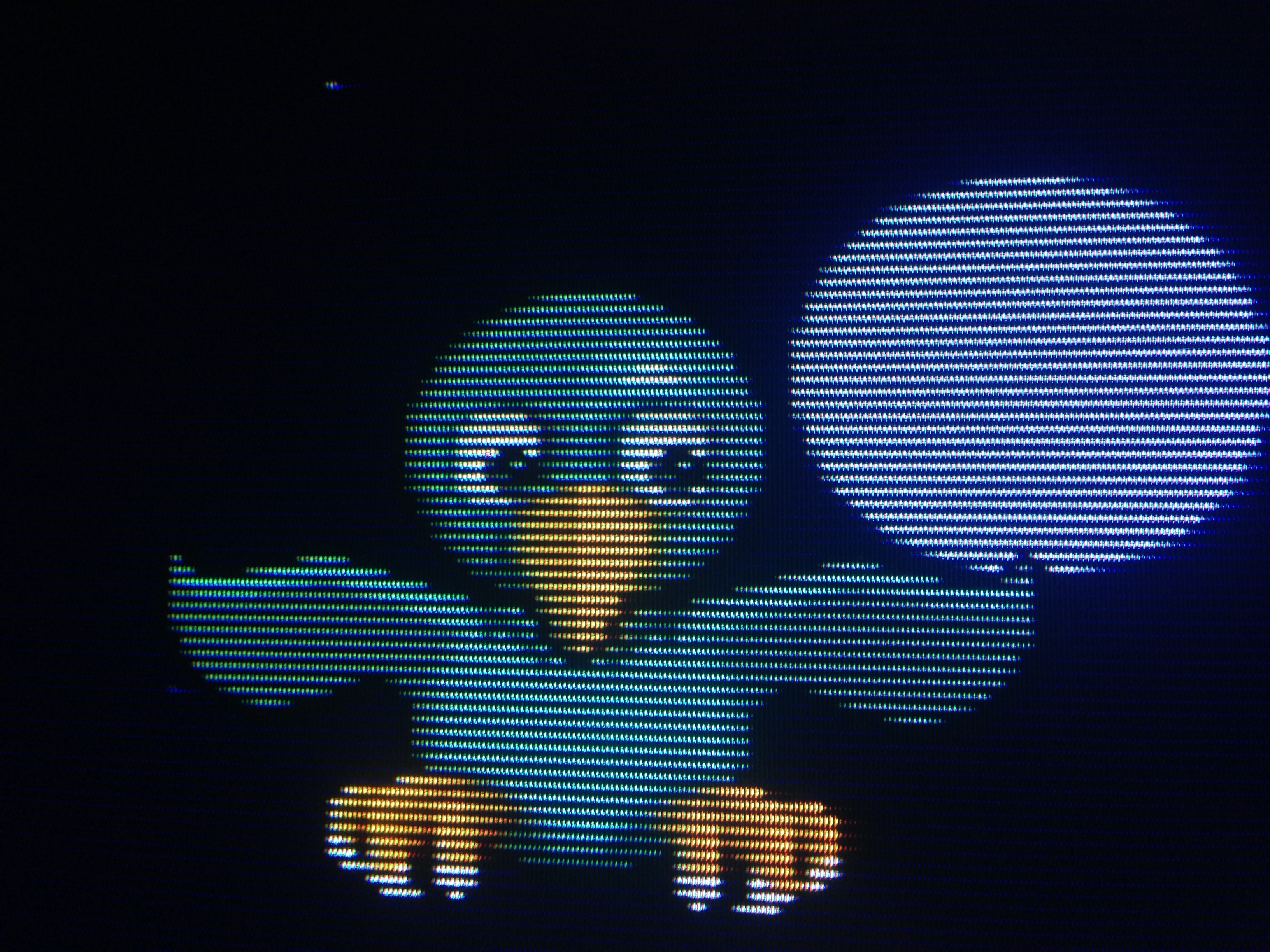

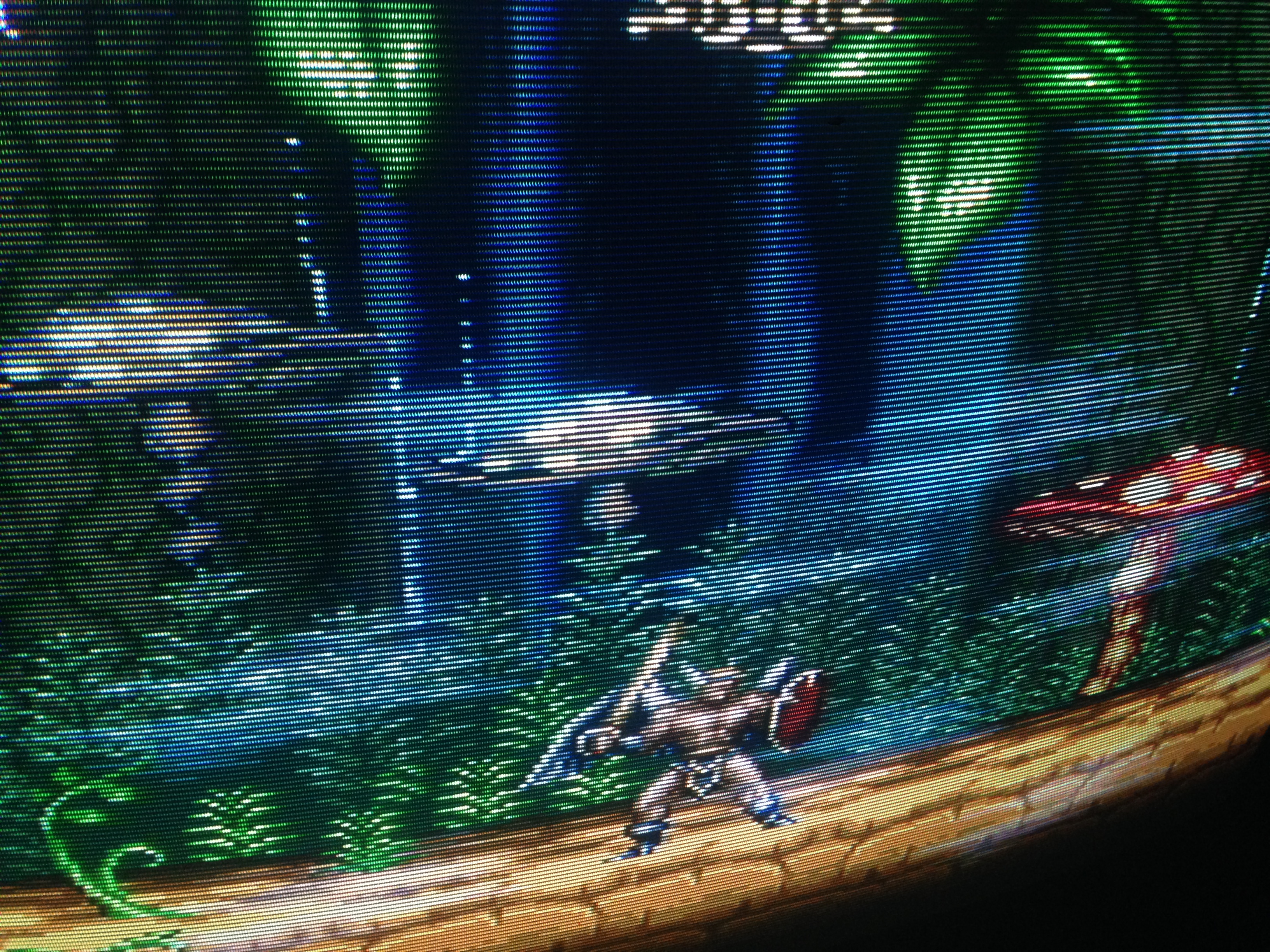

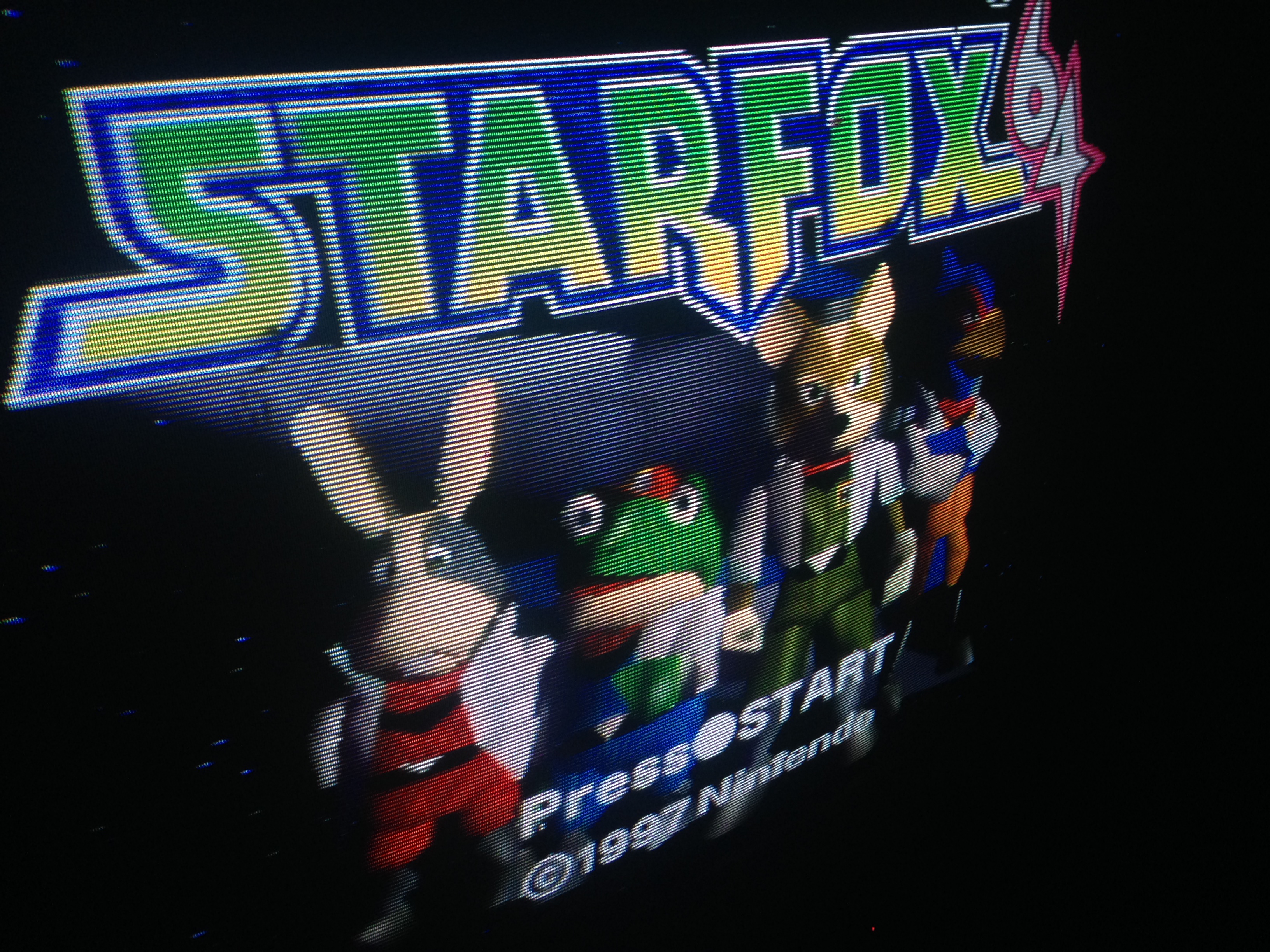

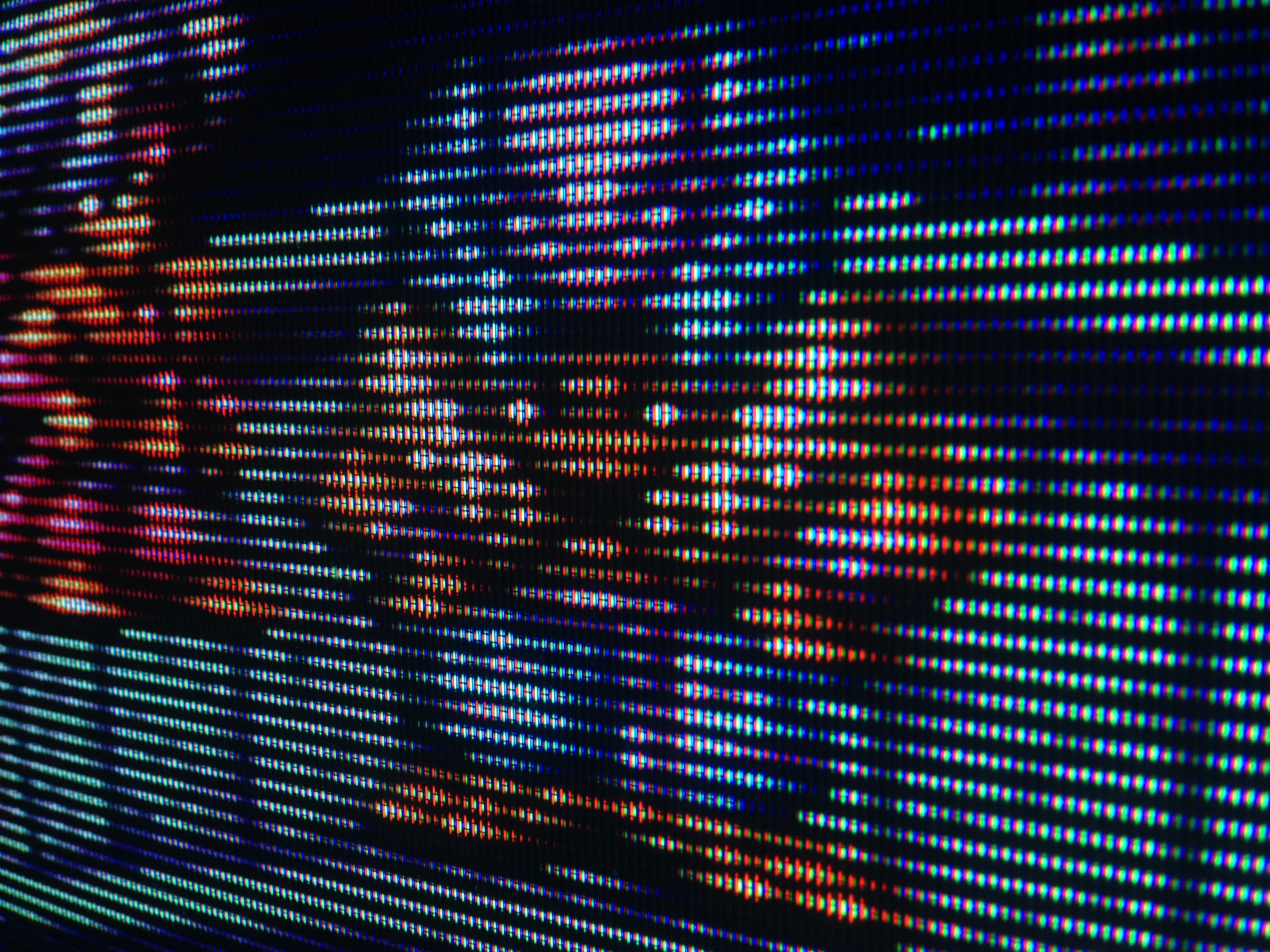

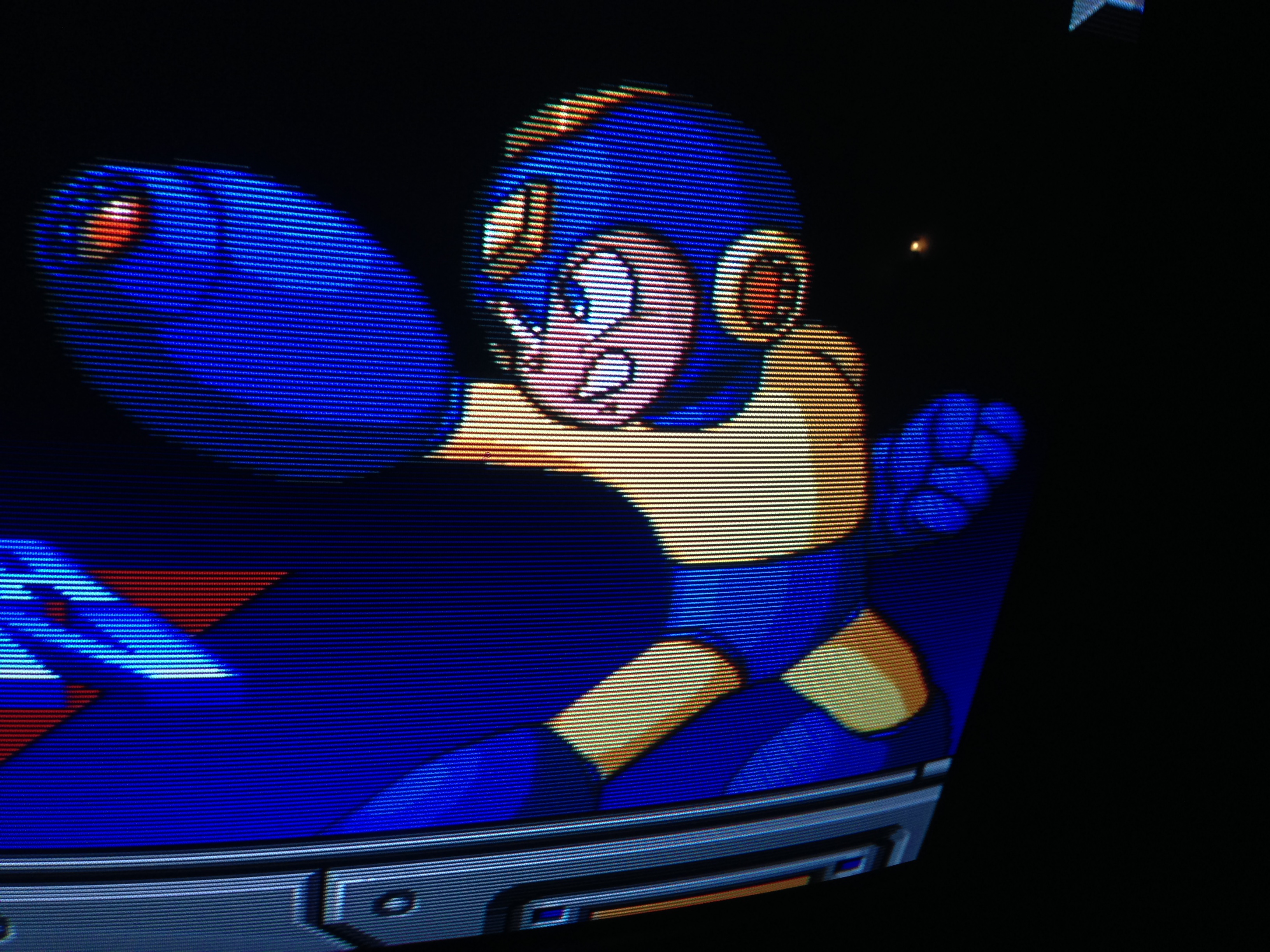

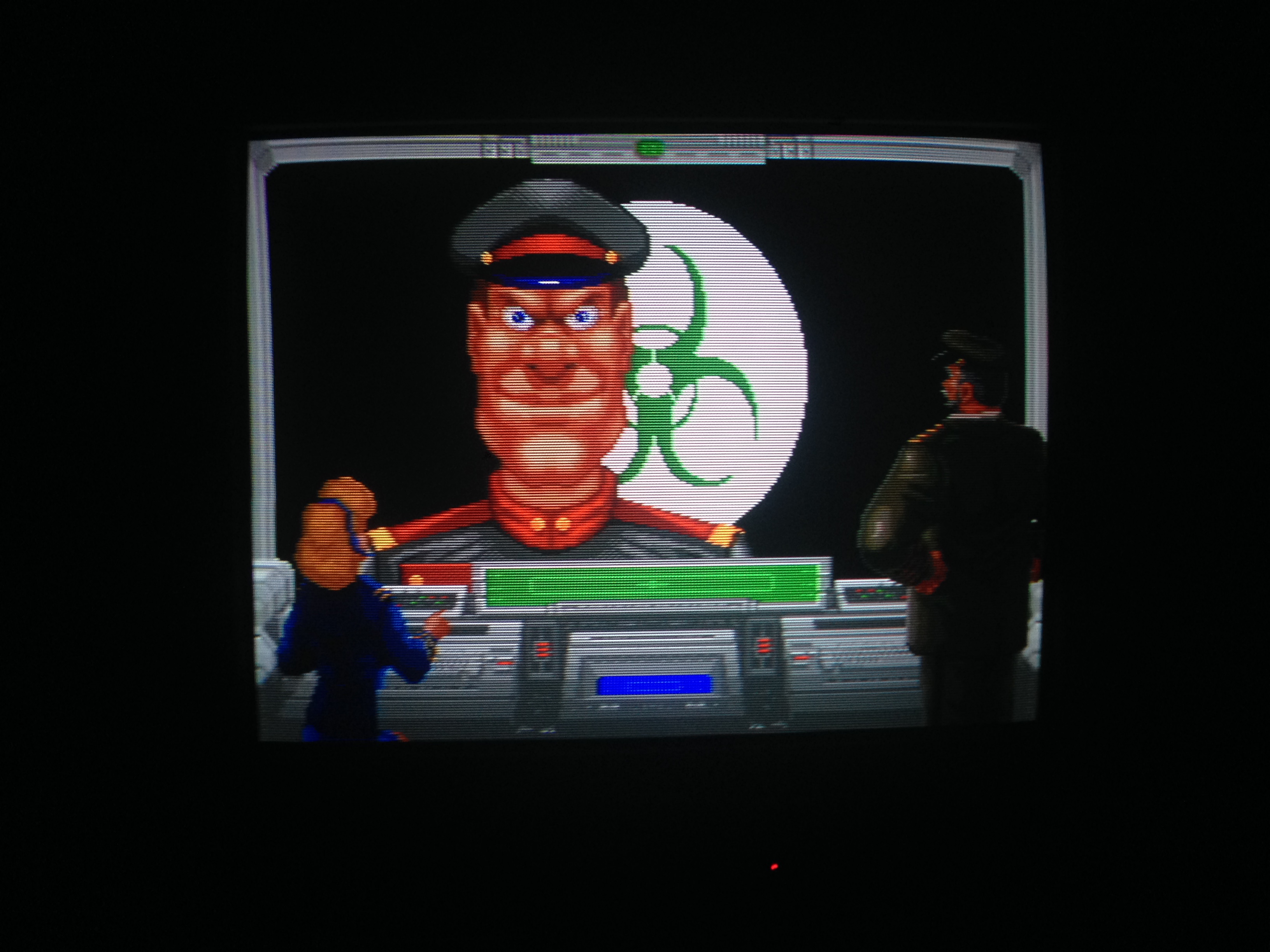

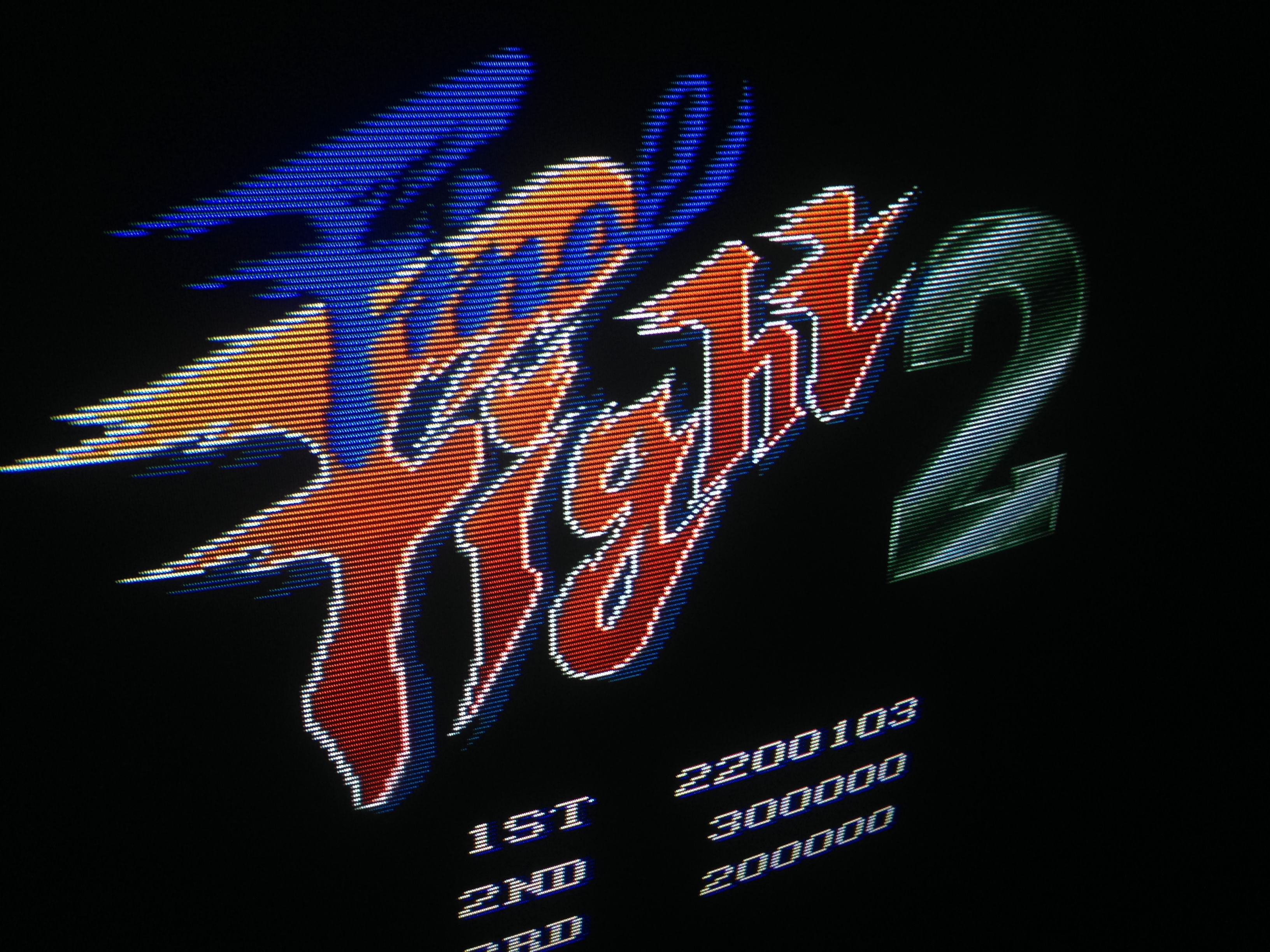

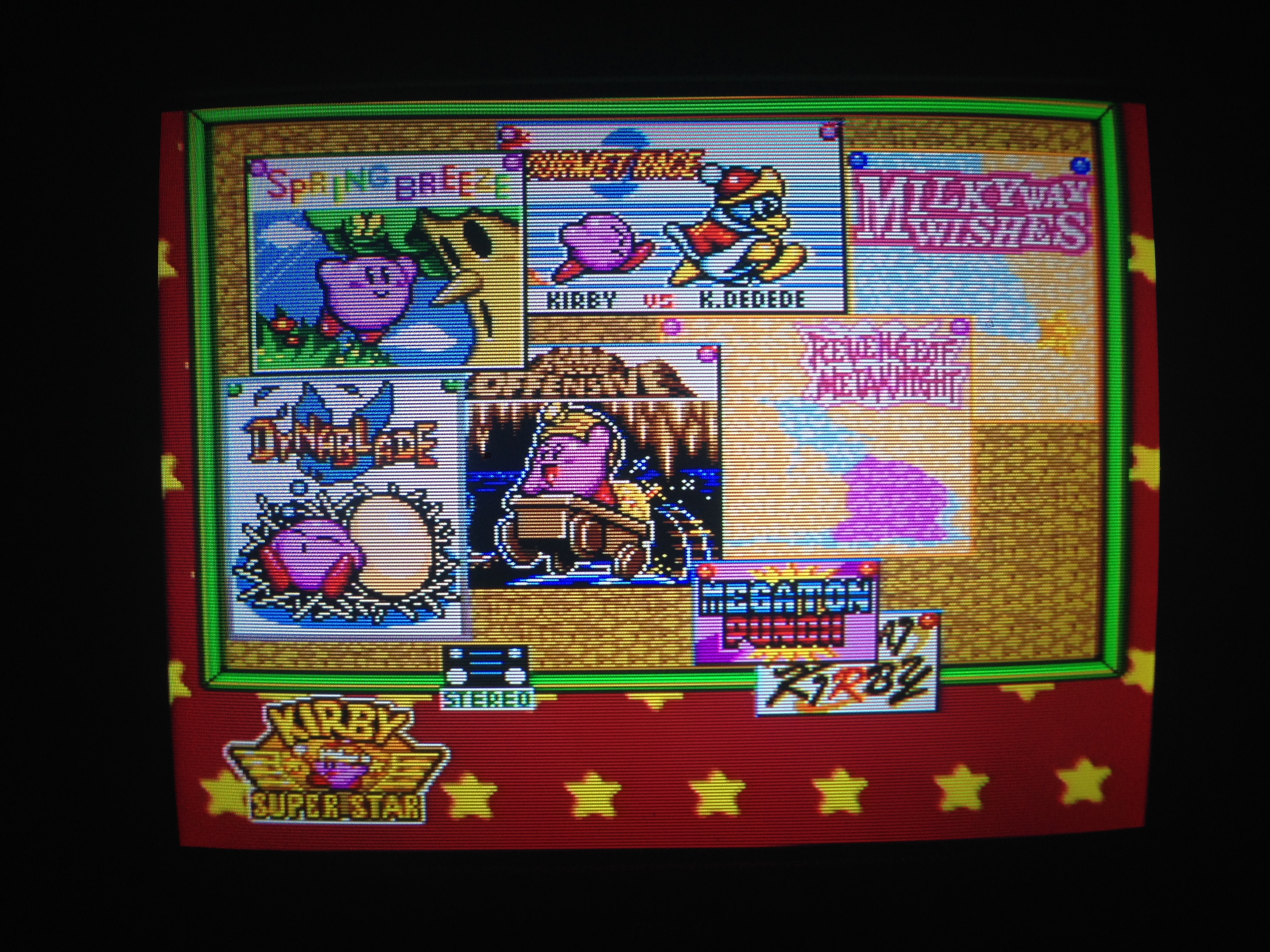

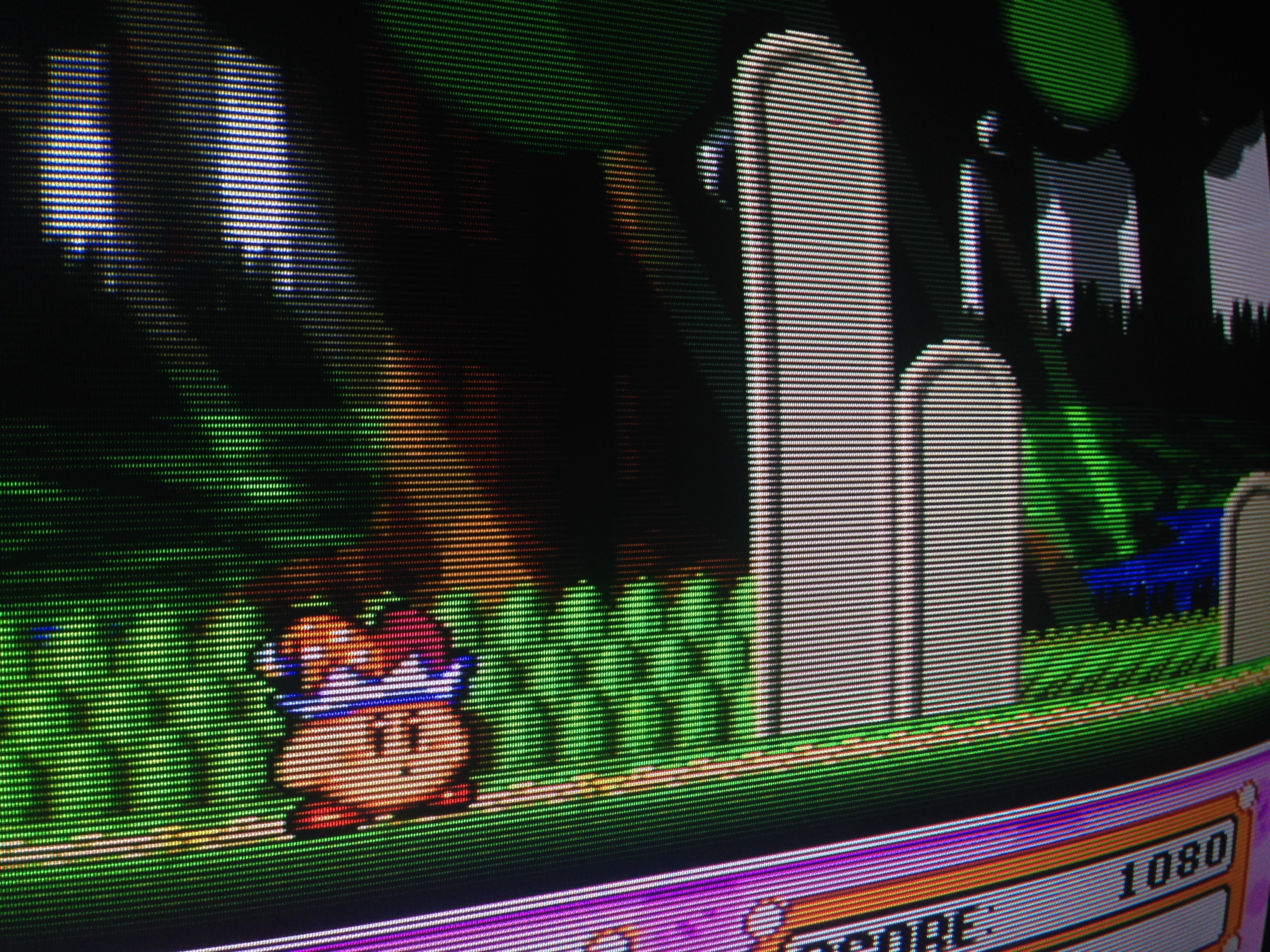

For composite decoding this set uses a Toshiba TC90A49P, a 3-line digital comb filter. Depending on the console/revision, dot artifacting ranges from slight to severe, and blending effects may be broken. If the set has an s-video or component YPbPr input, then using a good external notch filter to decode composite instead and sending that to the set would blend all dithering patterns and remove nearly all dot artifacts (full guide here).
