Toshiba CF36G55
August 21, 2025, 11:07 pm
September 19, 2025, 1:54 pm
Summary
Toshiba engineered the CF36G55 for excitement, pure and simple. There is an ultra-bright 36-Inch FST Black Picture Tube, dark-tinted, and enhanced with advanced circuitry to deliver amazing sharpness, detail, and color purity. You also have a 10 watt audio system behind it, to create the depth and resonance you need to bring thrilling action movies and sporting events to life.
Manuals
Media & Promo Materials
Notes
As mentioned on p.33 of the owner's manual, do not connect S-Video and composite at the same time as they share the same signal lines.

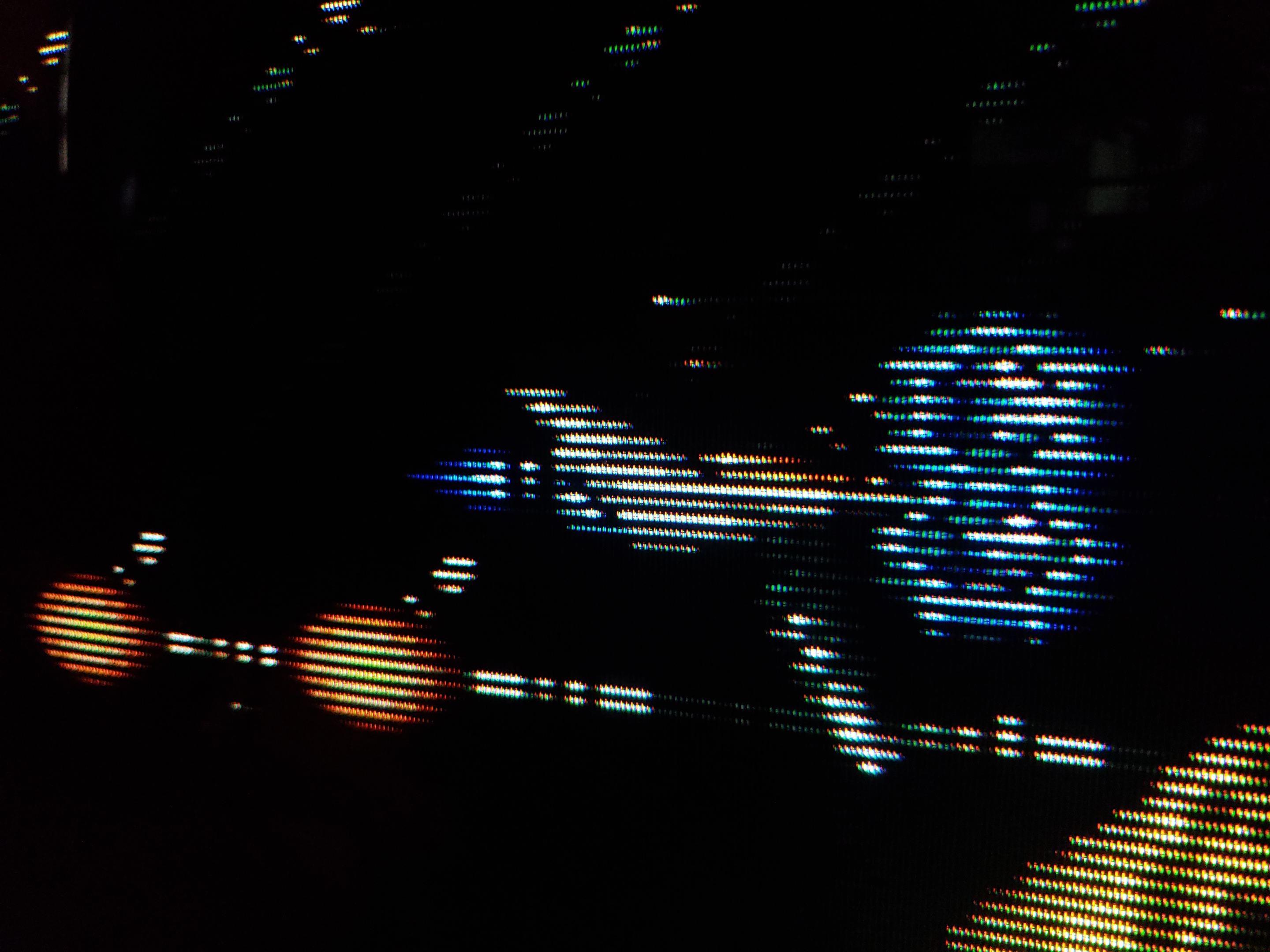

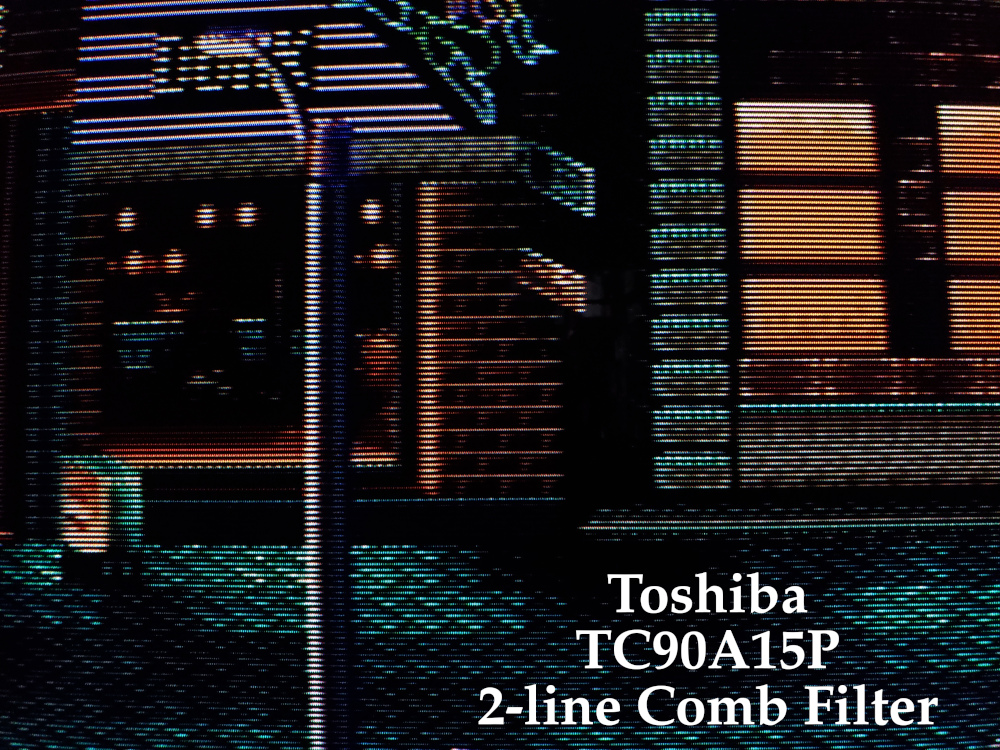

Having a 2-line comb filter, performance with composite 240p is poor, resulting in excessive hanging dots (see pic of comb results in gallery). An external notch filter can be used to decode composite and send it to the S-Video input, bypassing the set's comb & avoiding all the hanging dots. A guide for doing so is here.
The jungle chip has two sets of analog RGB inputs, one for the OSD and the another which is unused. To RGB mod, lift the second set of RGB pins and their associated blanking pin, and wire according to the jungle's datasheet.

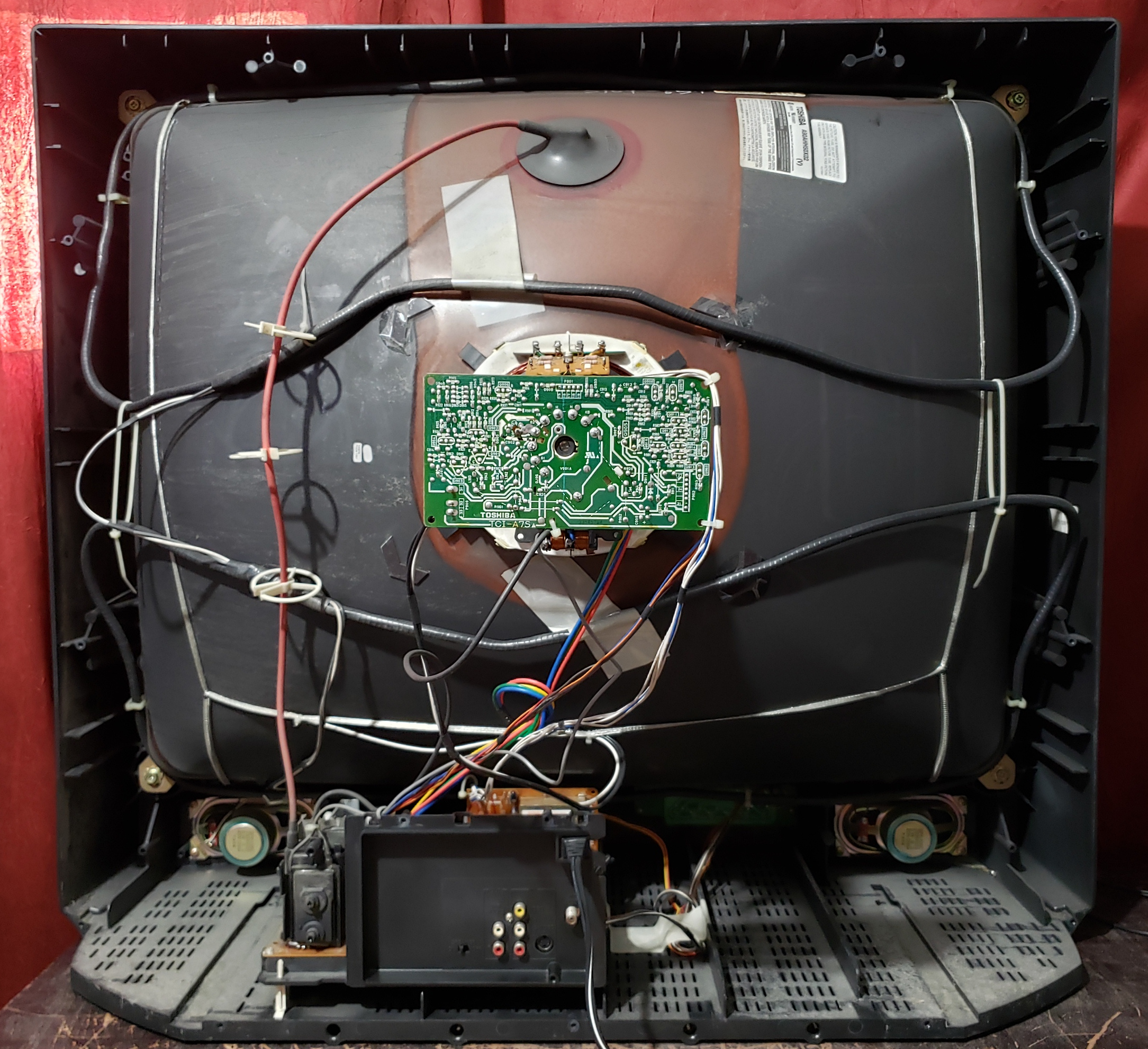

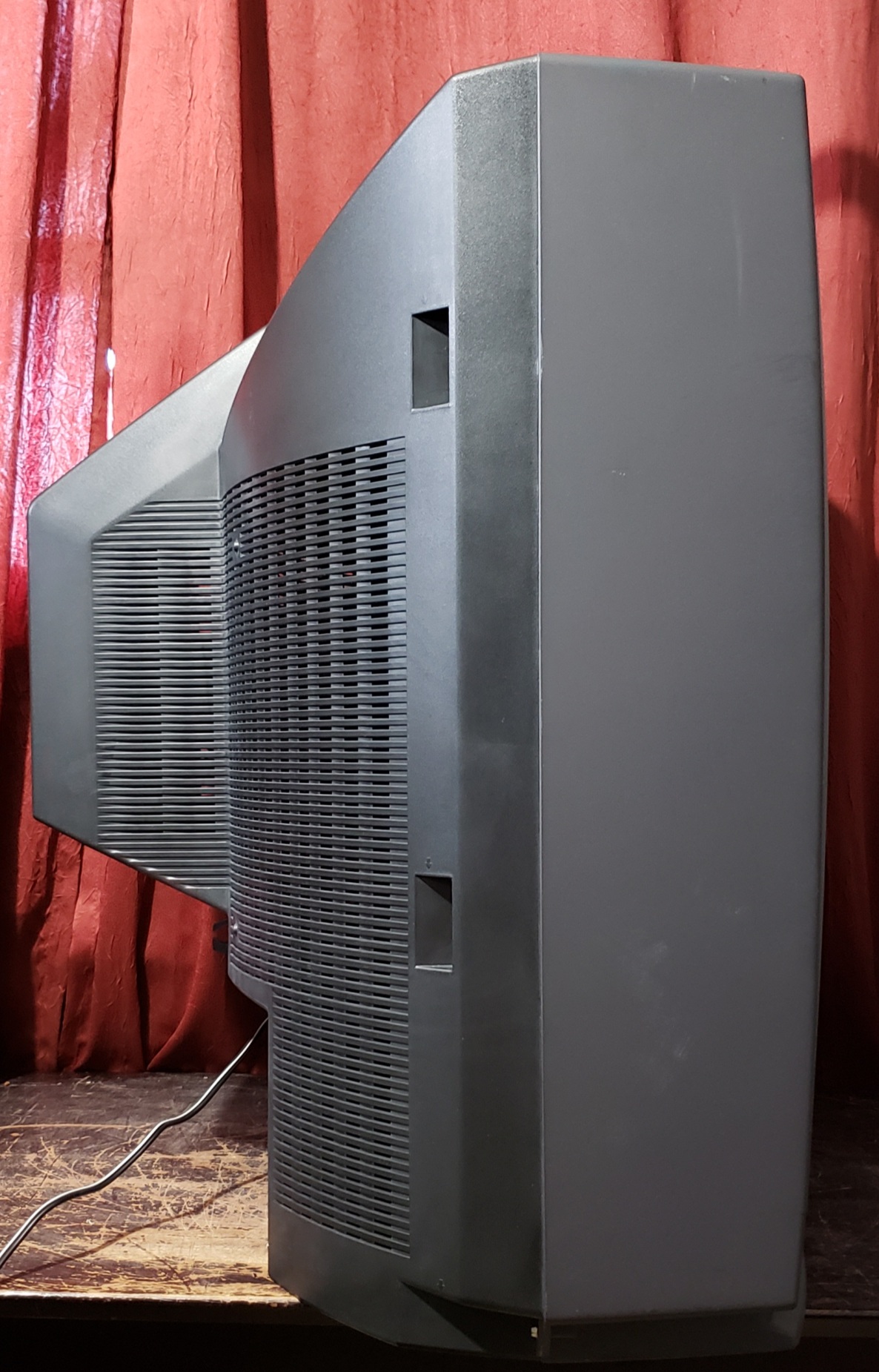

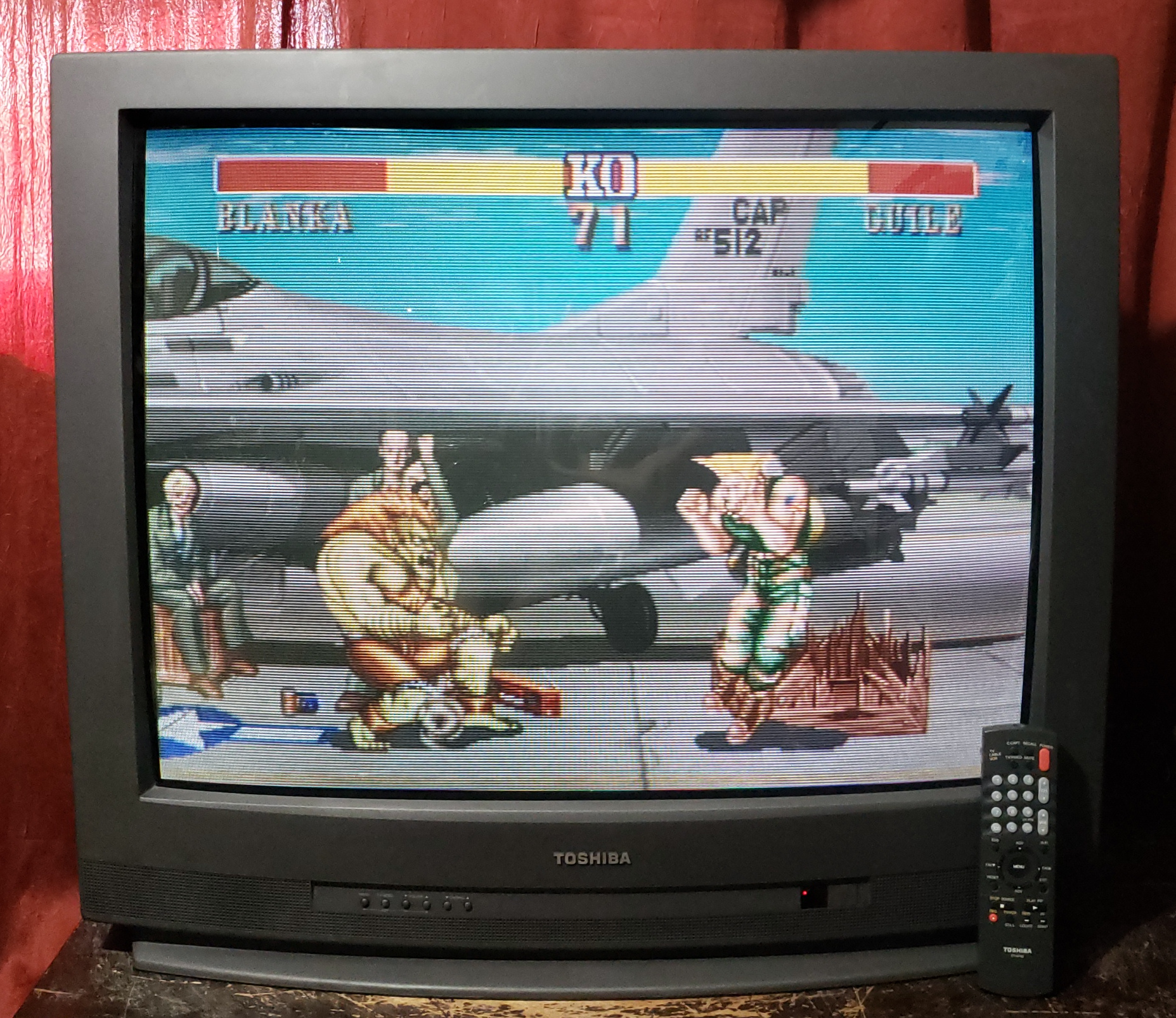

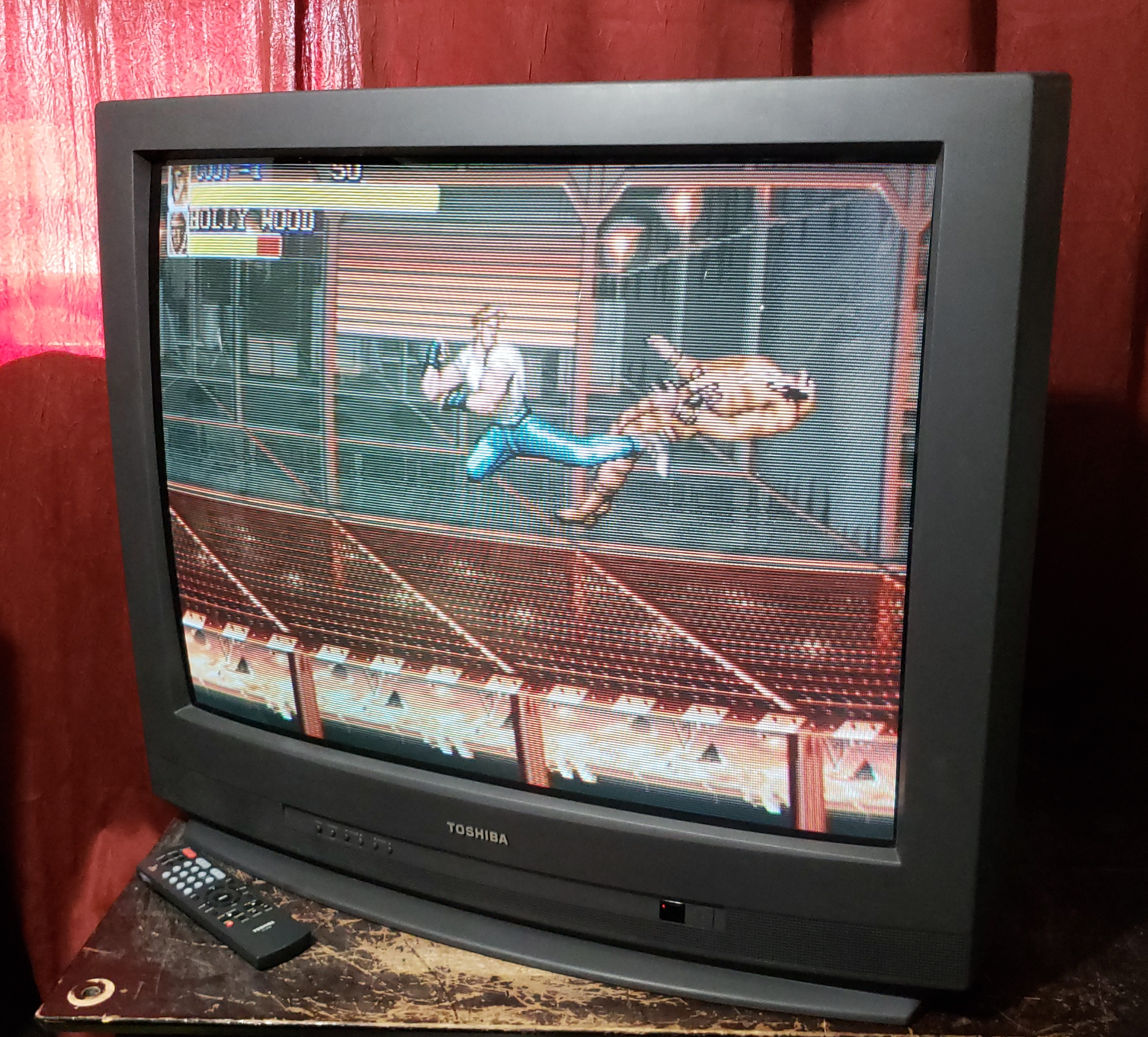

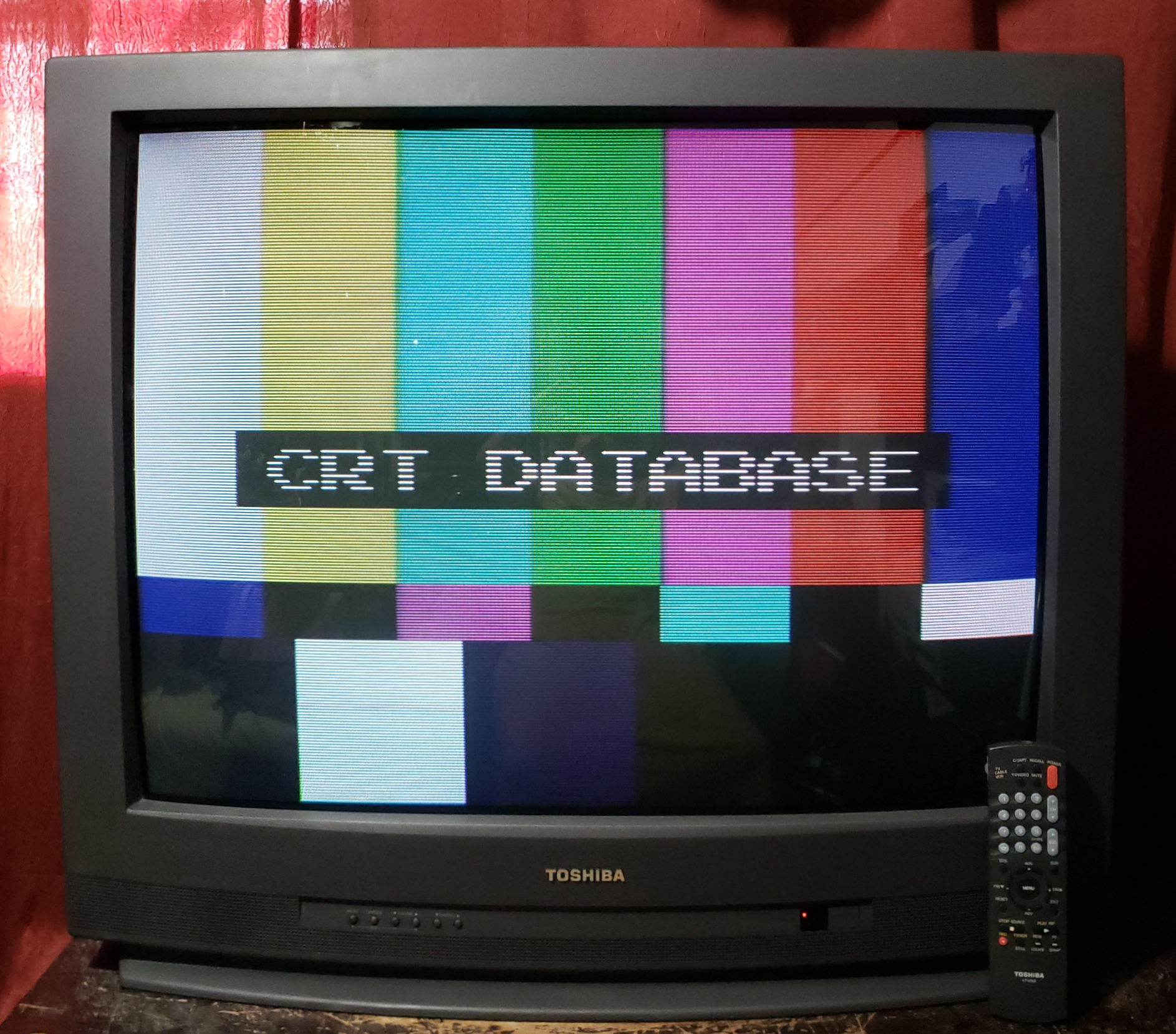

Gallery
















Specifications | |
---|---|
Brand: | Toshiba |
Manufacturer: | Toshiba |
Model: | CF36G55 |
Series: | CF |
Viewable Size: | 36" |
Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SD2253FA |
Vertical Output IC: | TA8427K |
Jungle: | Toshiba, TA1252AN |
Comb Filtering: | 2-Line Digital |
Comb Filter IC: | TC90A15P |

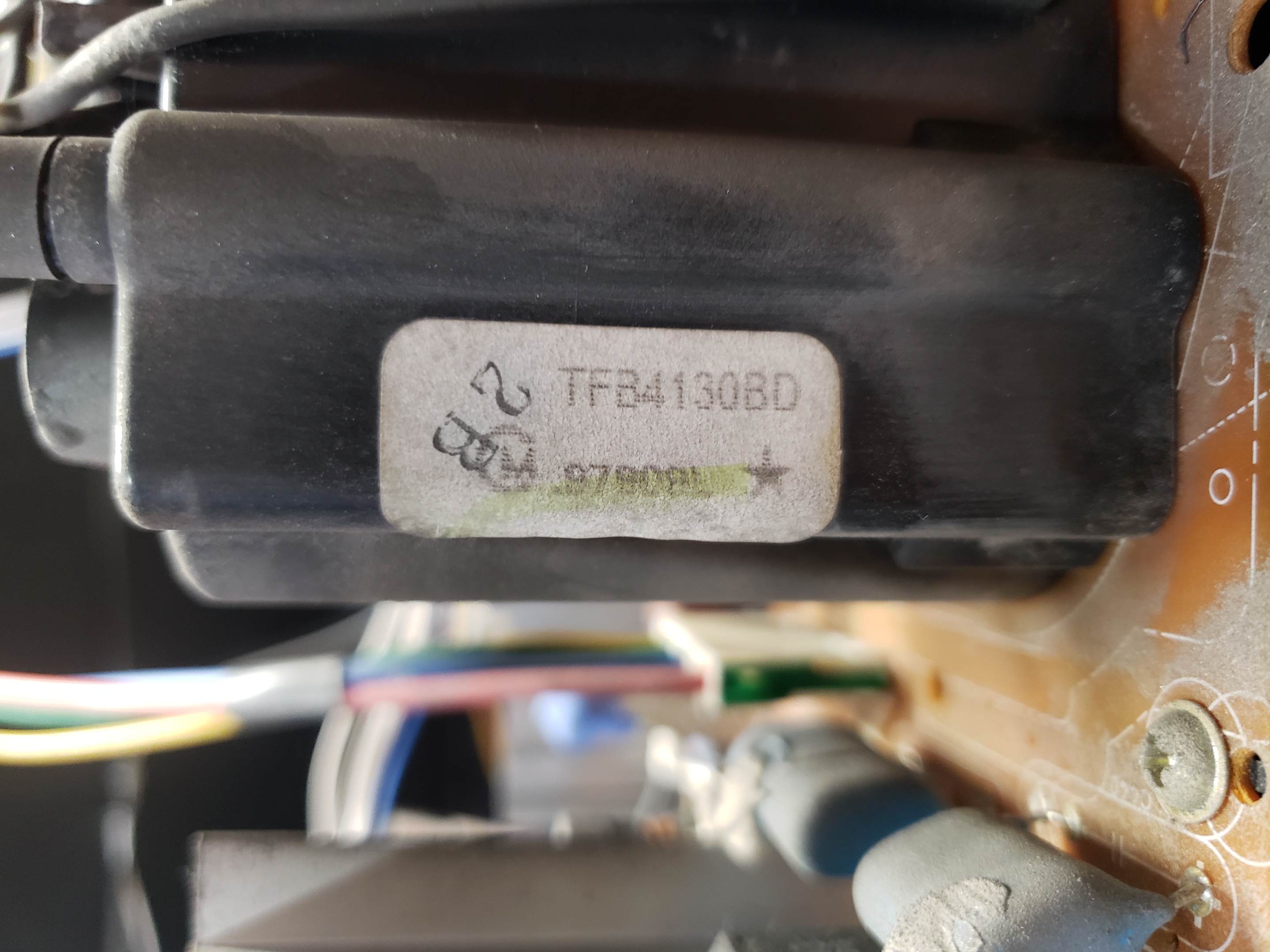

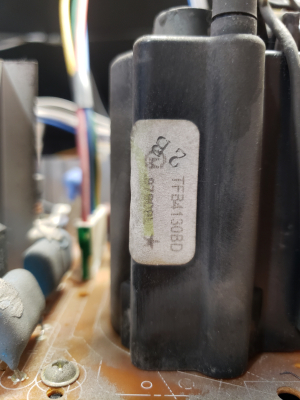

Flyback: | TFB4130BD |
Focus Type: | Single |

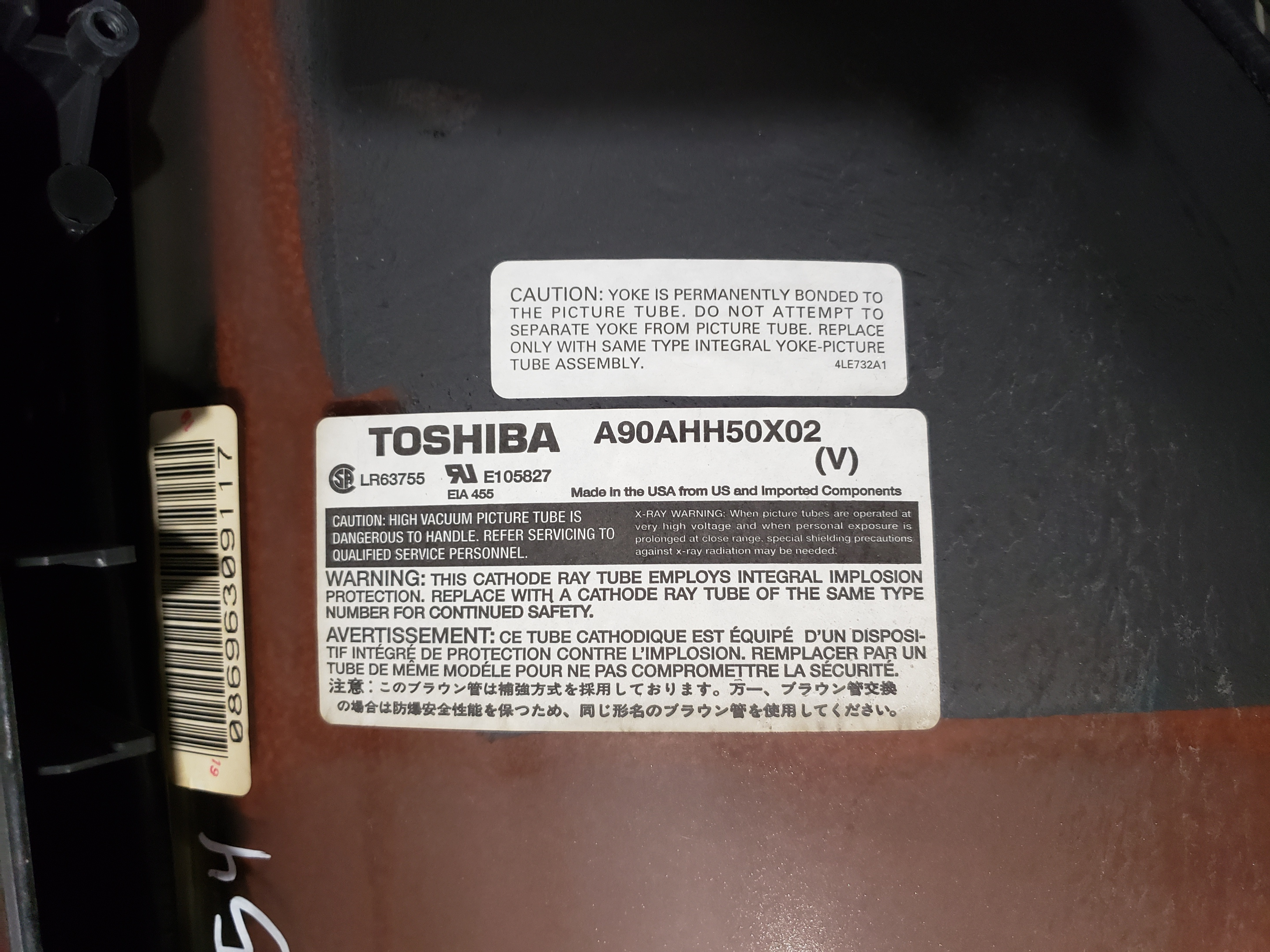

Tube: | Toshiba , A90AHH50X , A90AHH50X02 , A90AHH50X02V |
Heater Voltage: | 6.3v |
Deflection: | 110° |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |

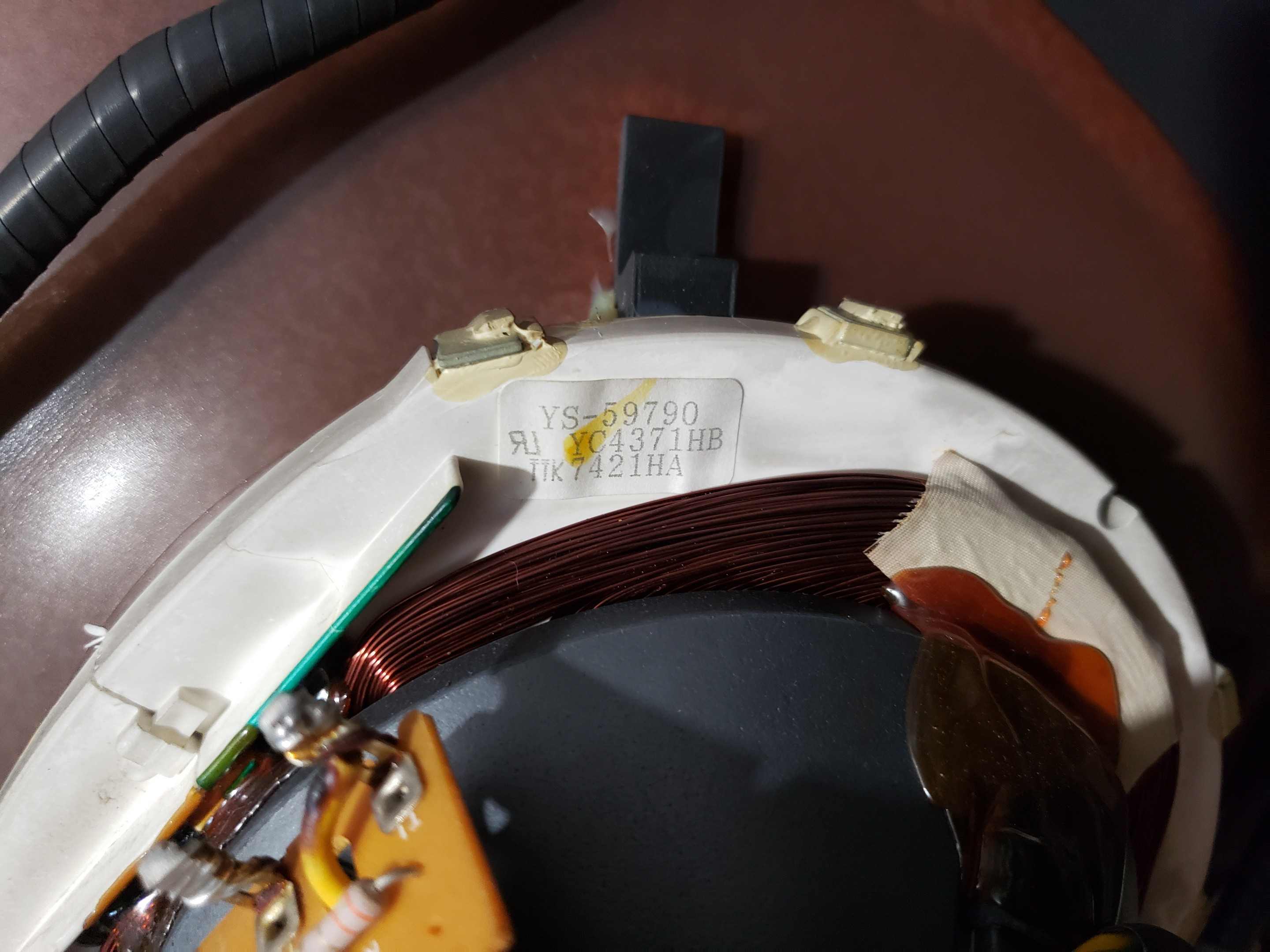

Yoke: | YS-59790 |
Yoke Horz. Inductance: | 1.307 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 11.76 mH (@ 100 Hz) |
Speakers: | Stereo, 5W x 2 |
Remote: | CT-9854, CT-9792 |
Chassis: | N7ES, TAC9716 |
Weight: | 157 lbs (71.2 kg) |
Dimensions (W/H/D): |
886 x 781 x 612 mm
(34.8 x 30.7 x 24.1") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1997 |
MSRP: | 1199 USD |
Country of Manufacture: | USA |
Market: | North America |
Power Standard: | 120v |
Mounting: | OEM Stand, ST-3512 |
Mods: | RGB via Direct, RGB via Mux |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual |
