Toshiba MV13M2

Matt Ross
March 1, 2024, 4:28 pm

Summary

13" TV/VCR combo, made by Orion and sold by Toshiba.

Literature

Service Manual

Notes

Unlike many Orion TVs, the AV input can be selected with the channel buttons. However, a remote is still required to access the user menu.

Gallery

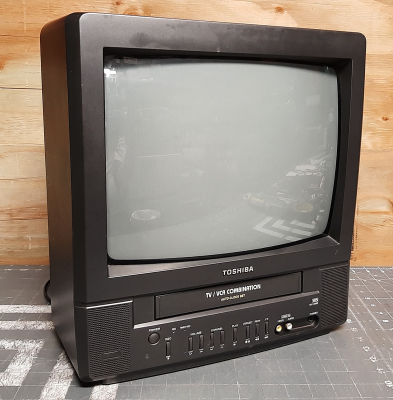

Toshiba MV13M2 Toshiba MV13M2 Toshiba MV13M2 Toshiba MV13M2
Specifications
Brand: Toshiba
Manufacturer: Toshiba
Model: MV13M2
Series: MV
Viewable Size: 13"
Inputs: Composite, RF
Resolutions: 240p, 480i
Horizontal Max: 15 kHz
Vertical Max: 60 Hz
Formats: NTSC
Aspect: 4:3
Adjustments: OSD Customer Controls, OSD Service Menu
Horz. Output Transistor: 2SD2627LS
Vertical Output IC: AN5522
Jungle: M61206FP
Flyback: FQI-14B001
Tube: Orion , A34JXV70X53 , A34JQQ09X80
Deflection: 90 deg.
Mask: Slot
Tint: Dark
Yoke: N3504F
Yoke Horz. Inductance: 4.315 mH
Yoke Vert. Inductance: 38.21 mH
Yoke Horz. Resistance: 6.3 ohms
Yoke Vert. Resistance: 18.2 ohms
Speakers: Mono
Weight: 24.3 lbs (11 kg)
Application: Consumer
Launched: 2002
Country of Manufacture: Thailand
Degaussing: Automatic on Power-on
