Toshiba MW24FN1
March 5, 2025, 6:27 pm
October 2, 2025, 10:26 pm
Summary

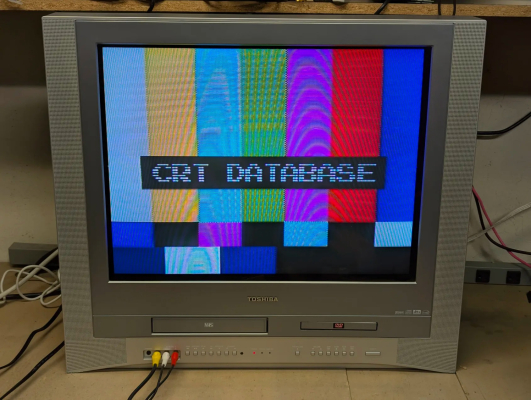

24" TV/VCR/DVD combo, made by Orion and sold by Toshiba. Includes two stereo AV inputs, and one set of outputs.
Manuals
Composite 240p Performance
by Eli Krause
For composite decoding this set uses a Toshiba TC90A45FG, a dynamic 2-line digital comb filter introduced in 1997. Depending on the console/revision, dot artifacting ranges from moderate to severe, blending effects may be broken, and edge artifacts are mostly moderate to severe. An example of the many dot artifacts are highlighted in the second picture below in red. If the set has a higher bandwidth input such as s-video or component, then using an external notch filter to decode composite instead and sending that to the set would remove nearly all dot artifacts, blend all dithering patterns, and reduce edge artifacts (guide to using an external notch here).
Gallery



Specifications | |
---|---|
Brand: | Toshiba |
Manufacturer: | Orion |
Model: | MW24FN1 |
Series: | MW |
Viewable Size: | 24" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SD2638 |
Vertical Output IC: | LA78041 |
Jungle IC: | LA76324M |
Comb Filtering: | 2-Line Digital |
Comb Filter IC: | TC90A45FG |
Flyback: | FSU24A001 |
Tube: | A60LVY196X11 , A60LVY196X |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | E59373 |
Yoke Horz. Inductance: | 1.6 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 9.2 mH (@ 100 Hz) |
Speakers: | Stereo, Headphone Jack |
Remote: | AD301950 |
Weight: | 79.4 lbs (36 kg) |
Dimensions (W/H/D): |
655 x 580 x 473 mm
(25.7 x 22.8 x 18.6") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2003 |
Country of Manufacture: | Thailand |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
