Summary
Basic RF-only 19" consumer TV, sold under the White-Westinghouse brand which, at the time, was a store brand for K-Mart. It was originally manufactured by Daewoo.
Literature
No documentation is available online at this time.
Notes
This TV uses a 19" viewable tube with a CR-23 socket, which makes it a potential replacement for 19" arcade monitors.
As with most RF-only TVs, this model has a hot chassis and should not be modified for additional inputs.
This CRT is confirmed to be a hot chassis.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Gallery
| Specifications | |
|---|---|
| Brand: | White-Westinghouse |
| Manufacturer: | Daewoo |
| Model: | WTV-11901 |
| Series: | WTV |
| Viewable Size: | 19" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2499 |
| Vertical Output IC: | LA7837 |
| Jungle: | LA7674 |
| Flyback: | FSA28014M |
| Focus Type: | Single |

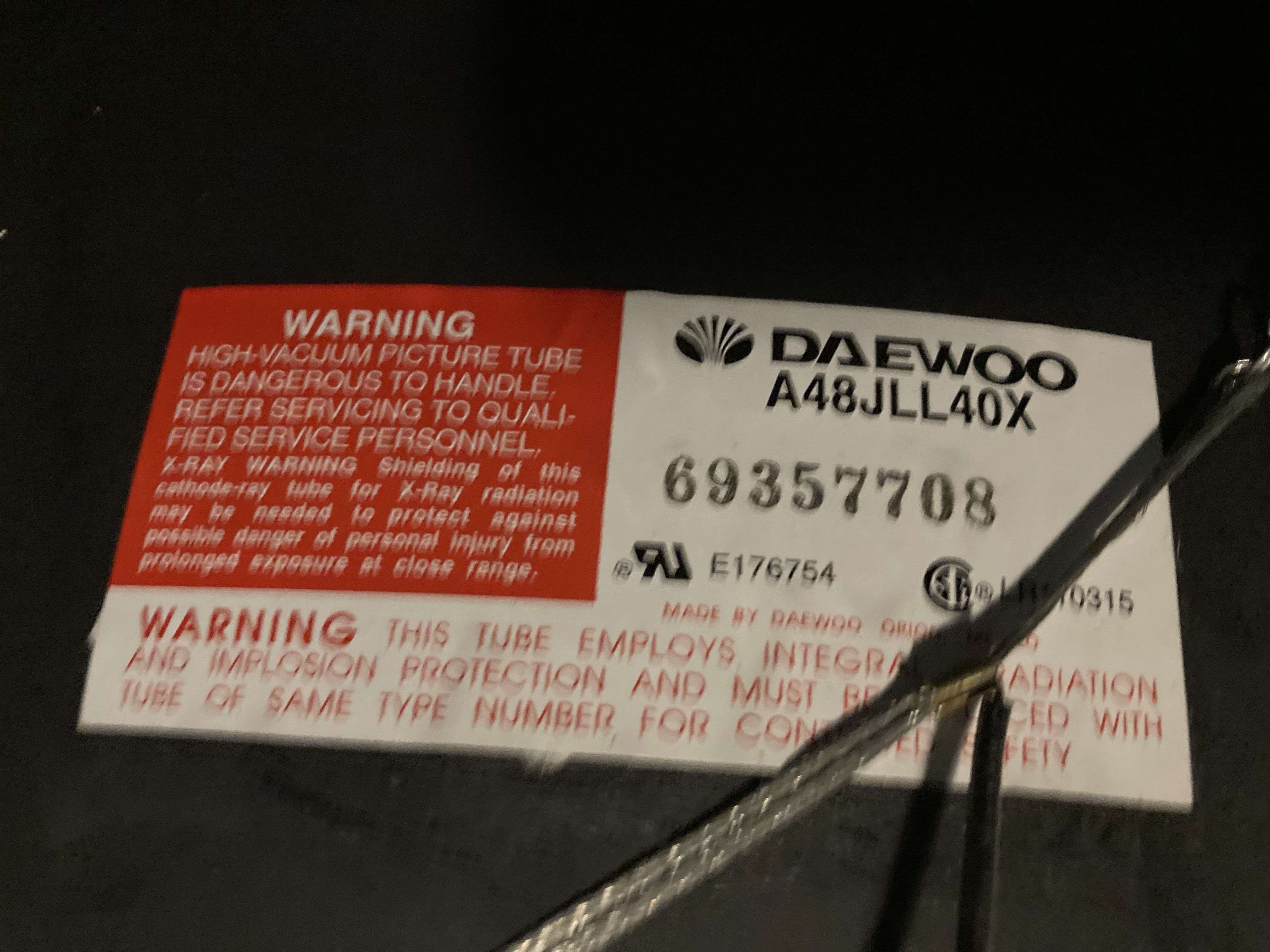

| Tube: | A48KRD89X , A48JLL40X , Daewoo-Orion , Samsung |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | DSE1992ZA |
| Yoke Horz. Inductance: | 2.173 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 28.58 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.421 ohm |
| Yoke Vert. Resistance: | 14.6 ohm, 14.60 ohm |
| Speakers: | Mono |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1997 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
