Summary
Basic set with RF only.
Manuals
- Owner's Manual for similar model
- Service Manual
Notes
There are mounting points for composite, but adding it would entail adding more components than usual for isolation from the hot chassis.

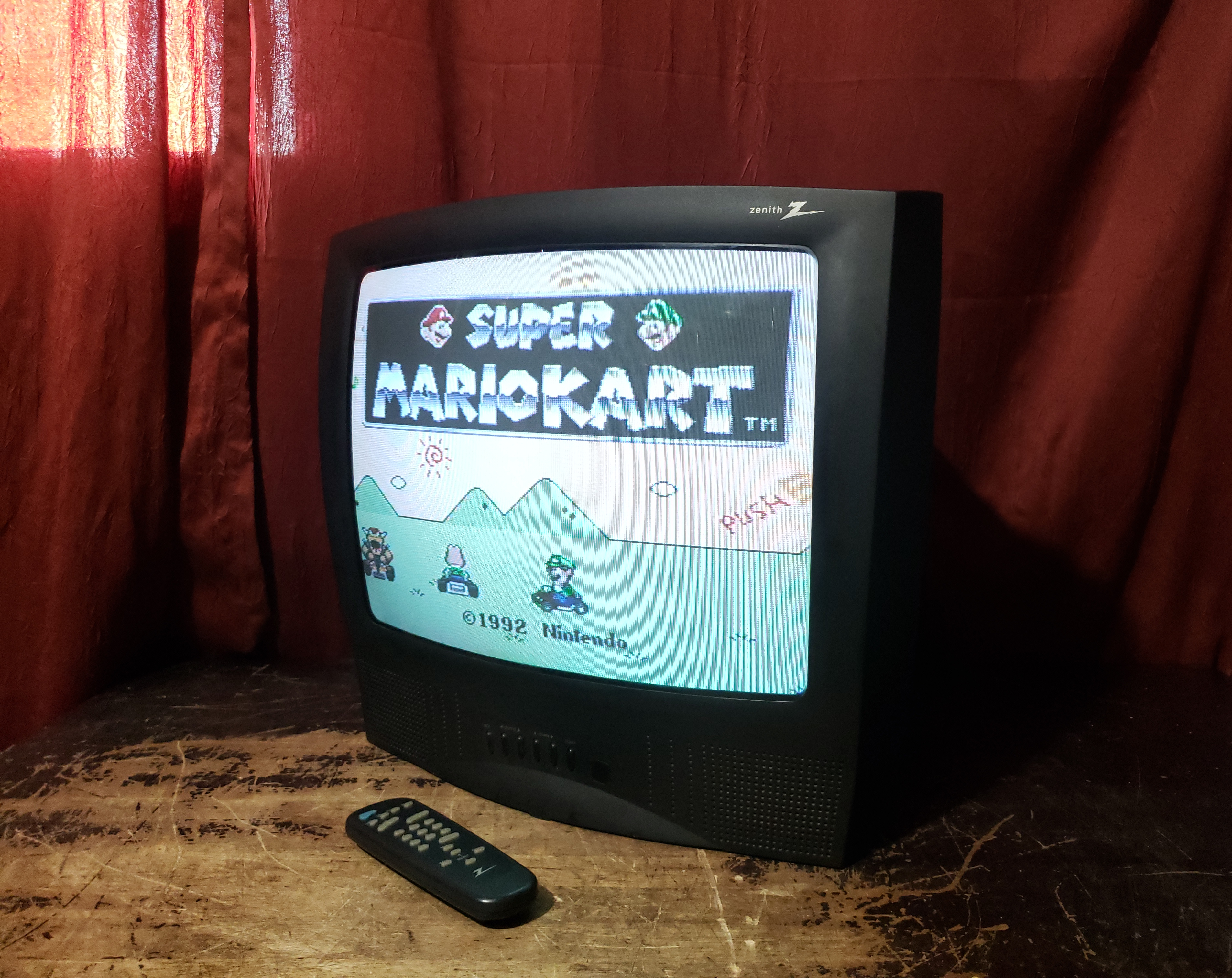

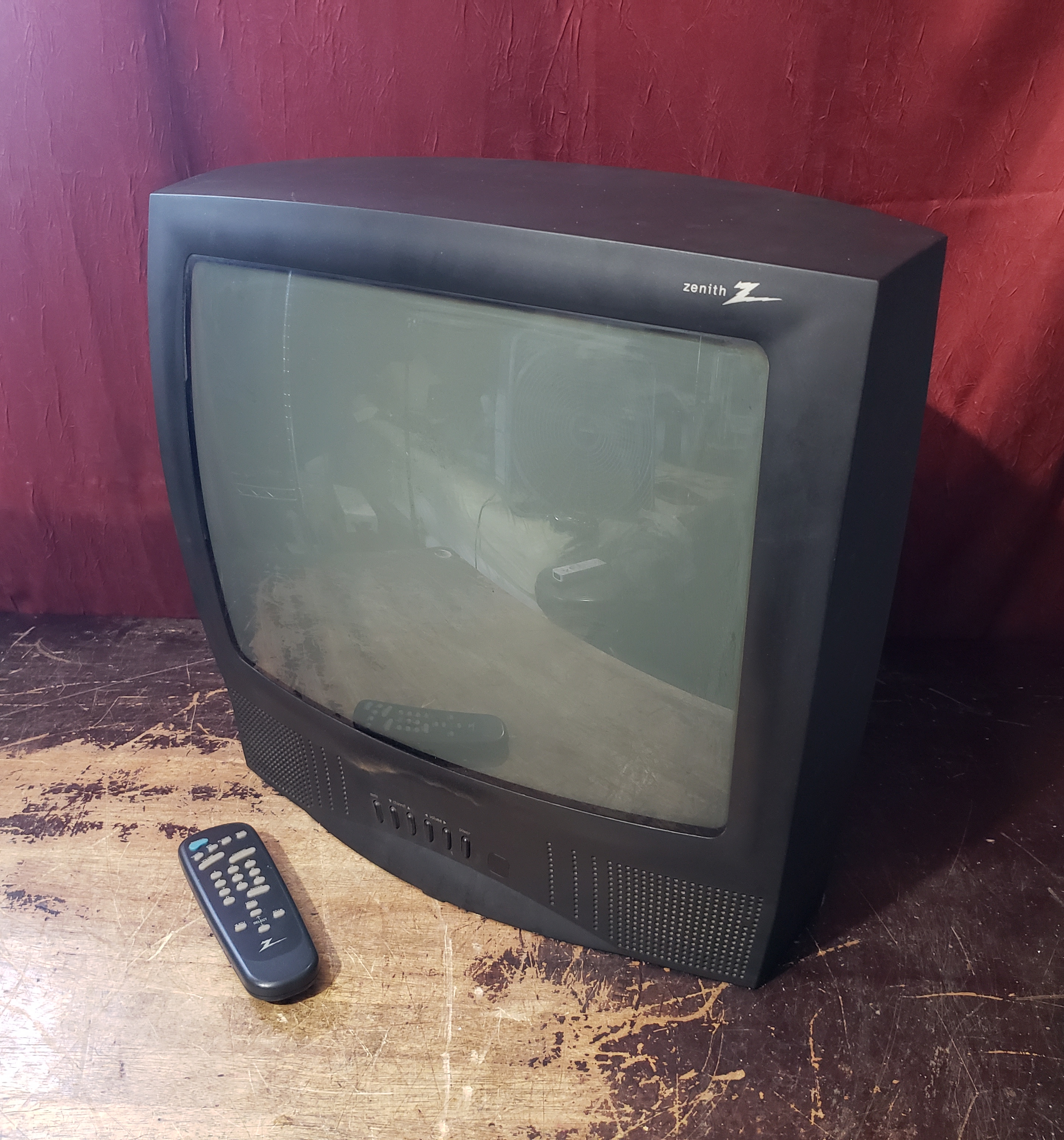

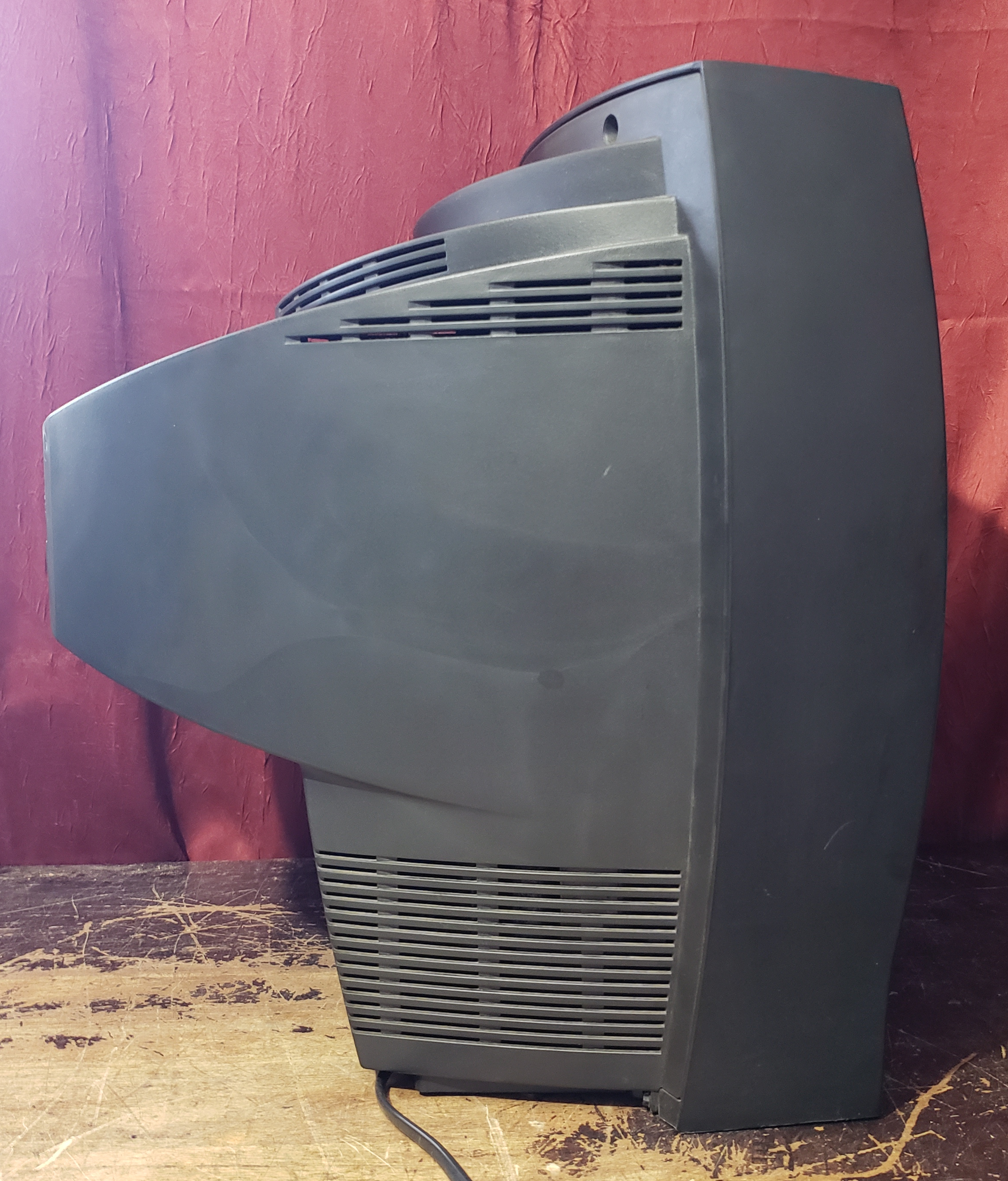

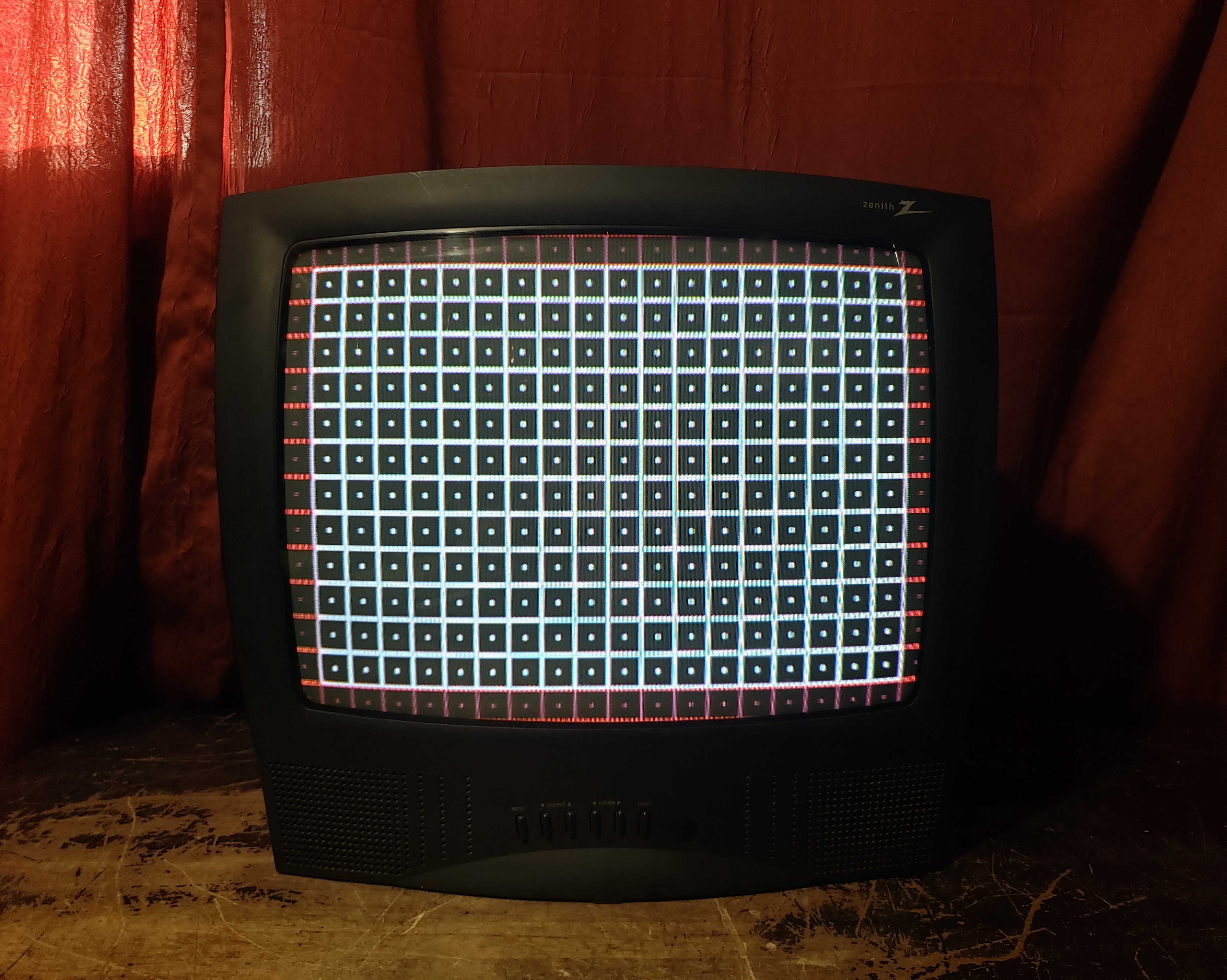

Gallery

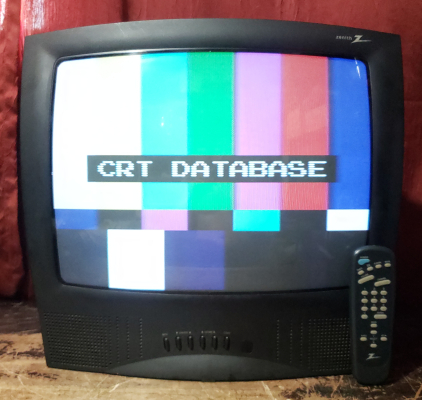

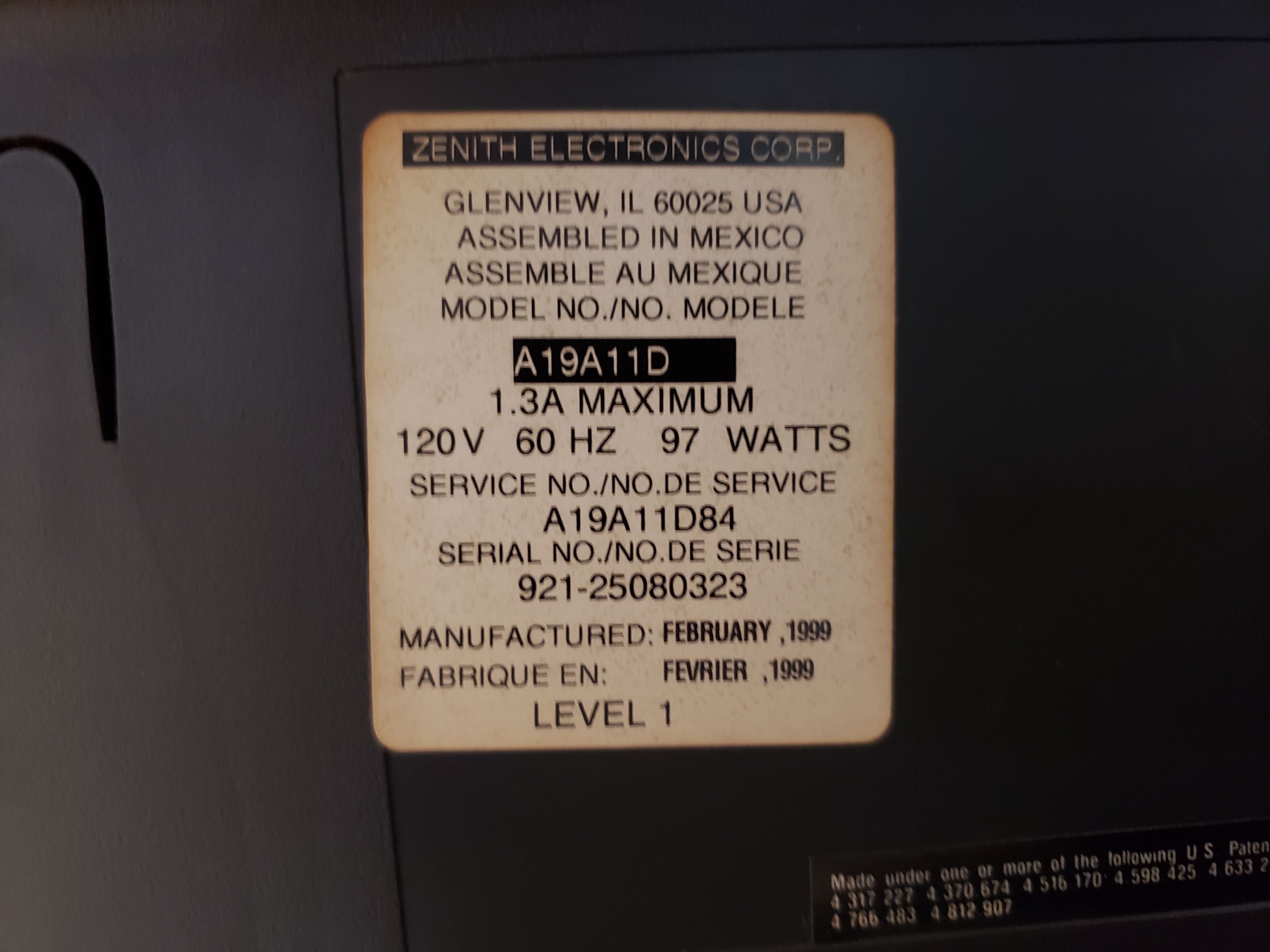

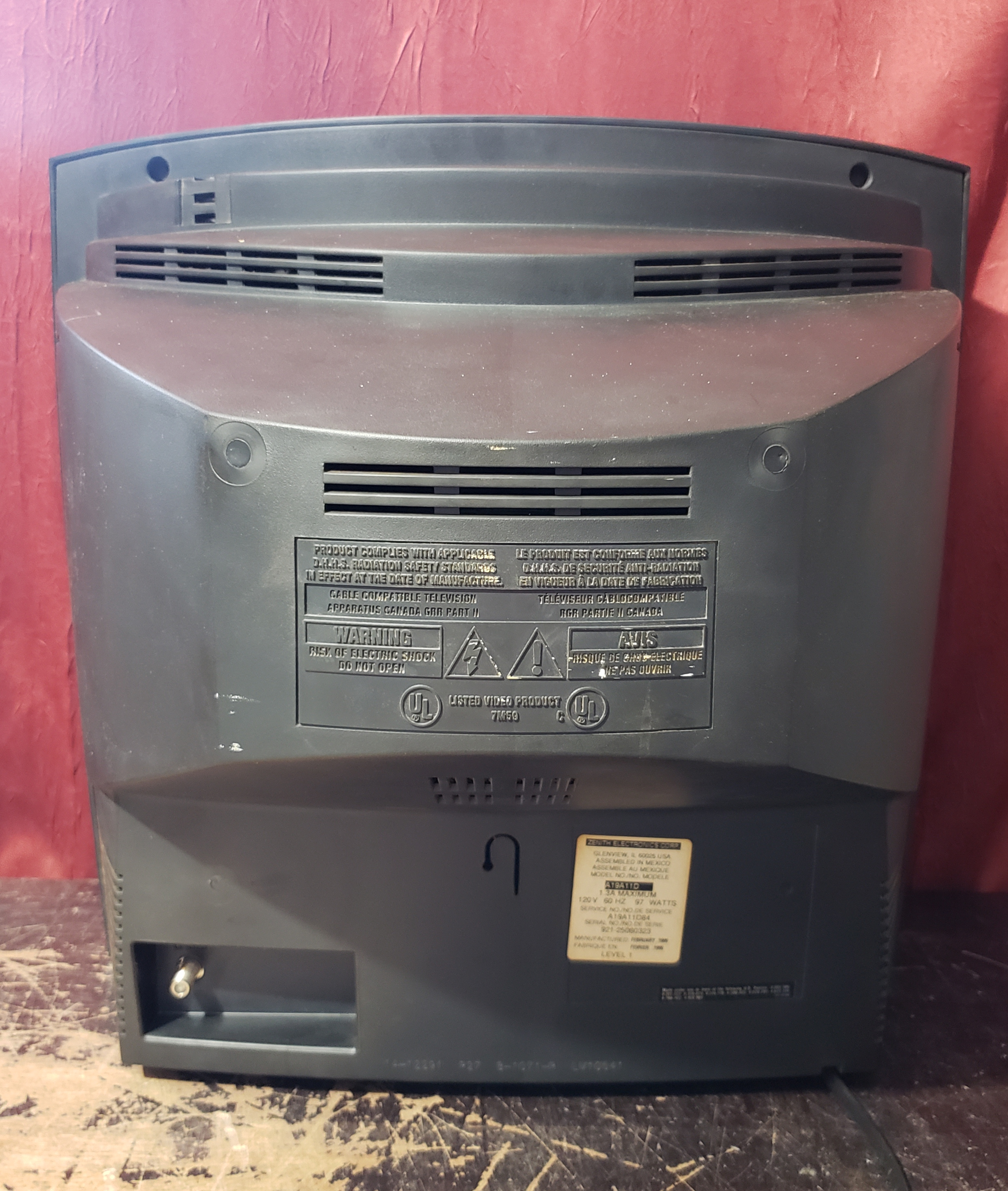

| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | Zenith |
| Model: | A19A11D |
| Series: | Home Basics |
| Viewable Size: | 19" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Linecount: | 270 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | Notch |

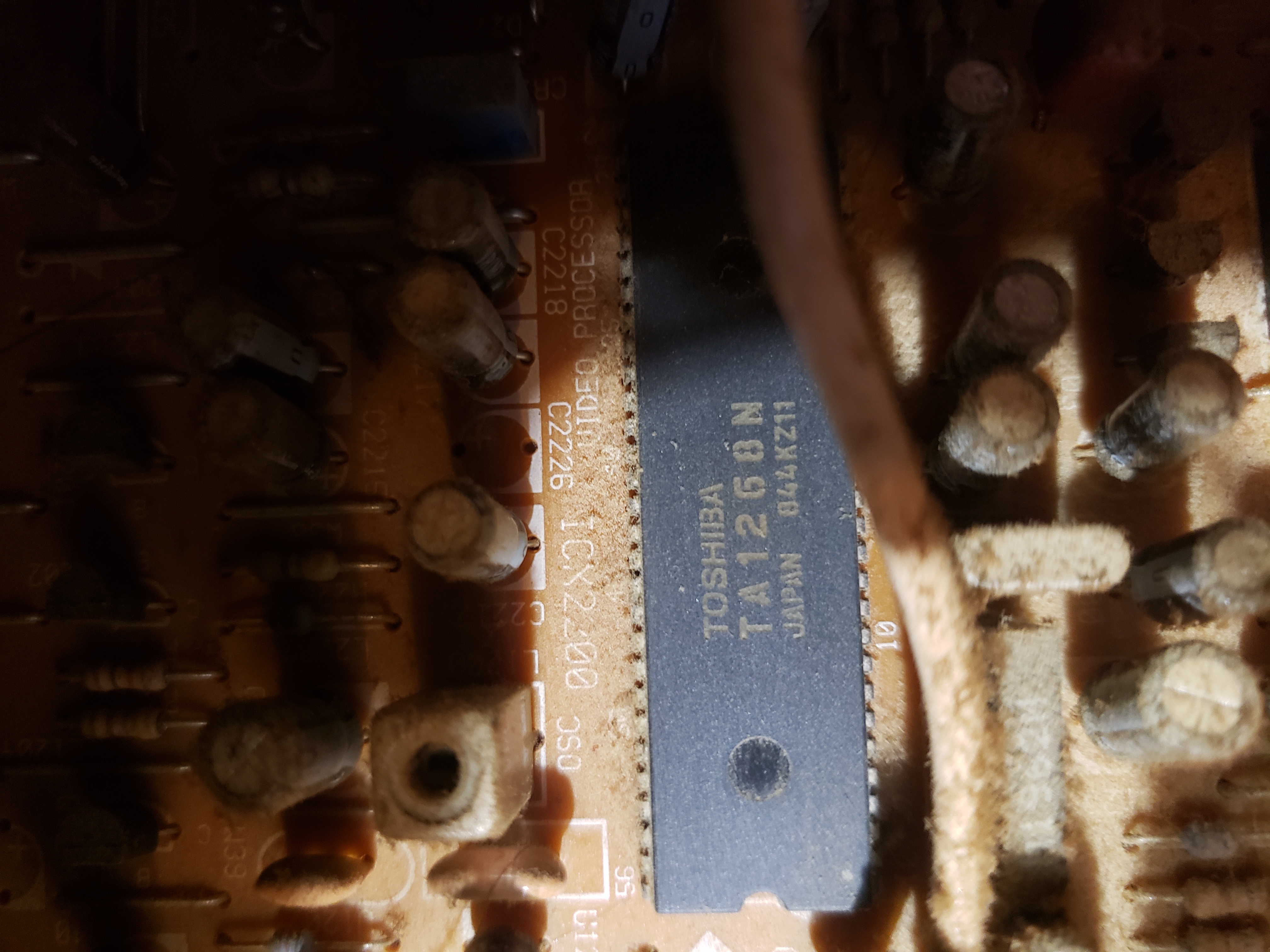

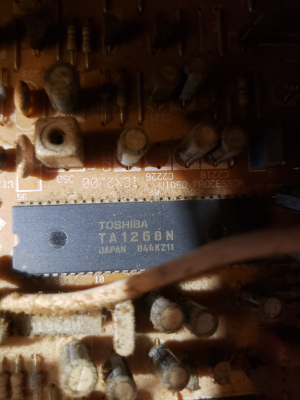

| Jungle IC: | Toshiba, TA1268N |

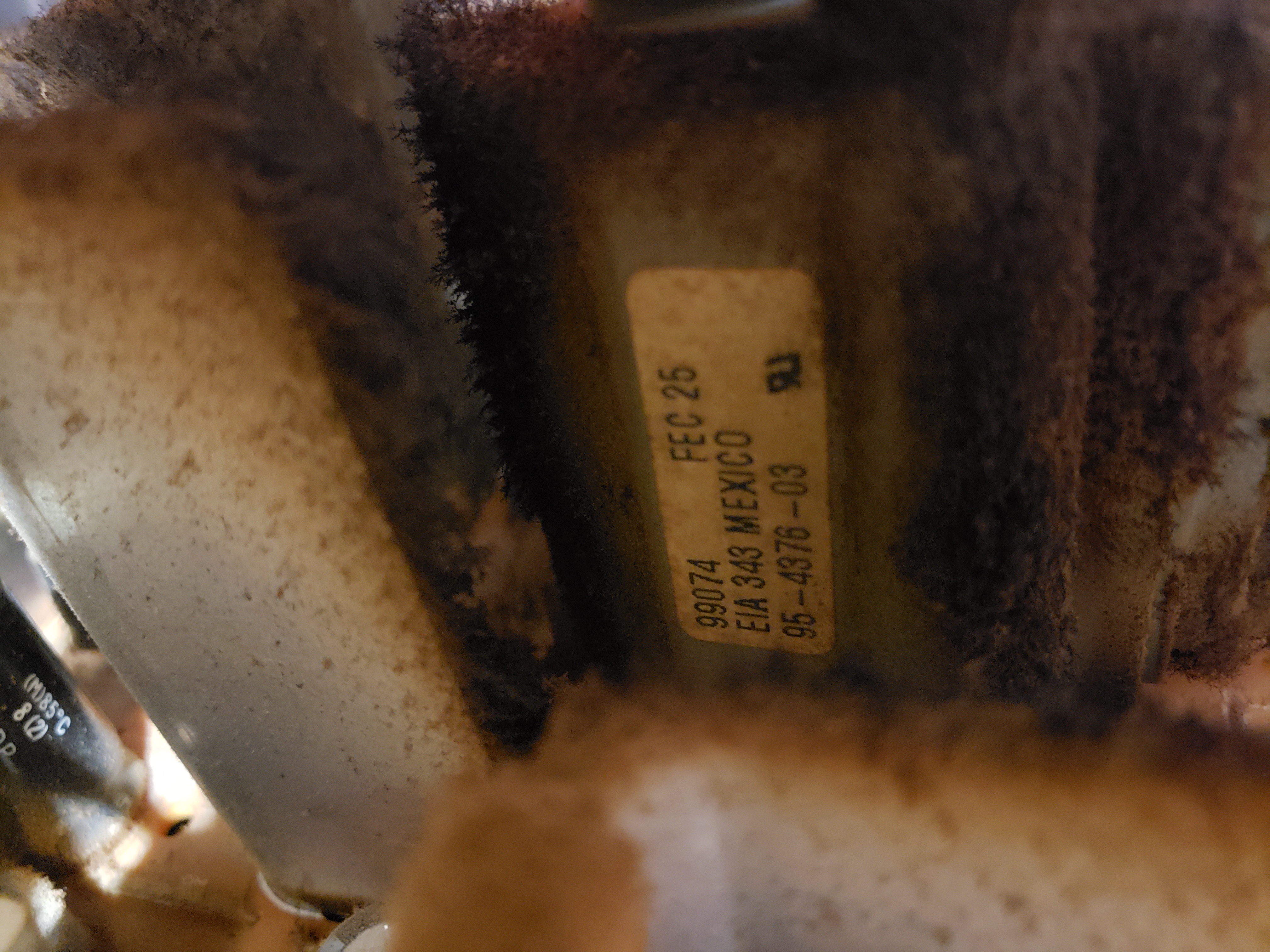

| Flyback: | 95-4376-03 |
| Focus Type: | Single |

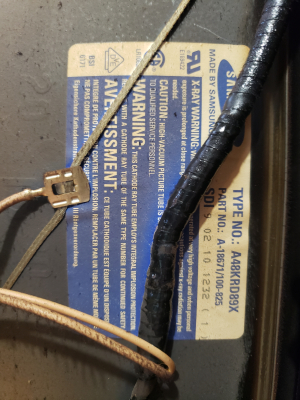

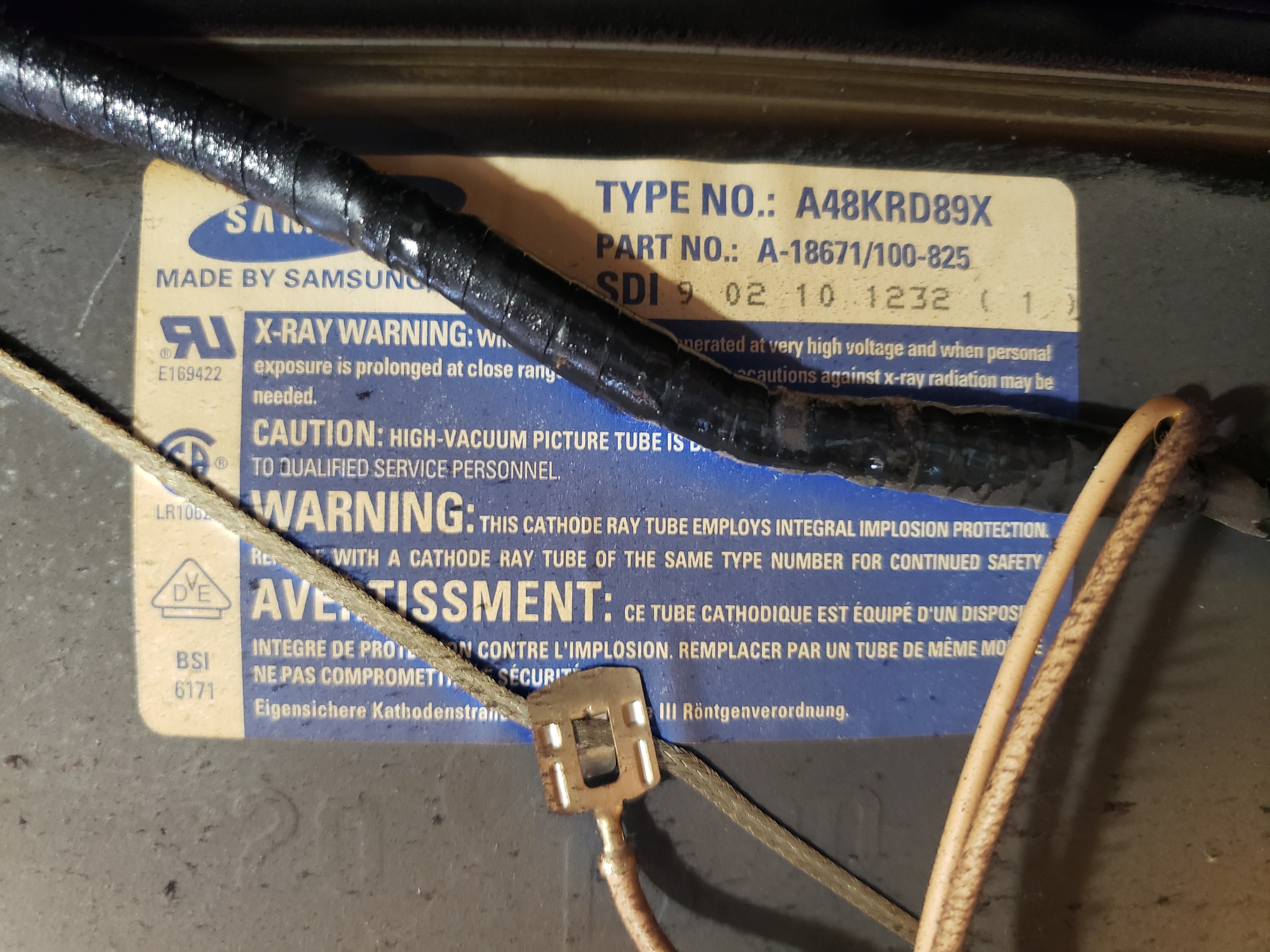

| Tube: | Samsung , A48KRD89X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

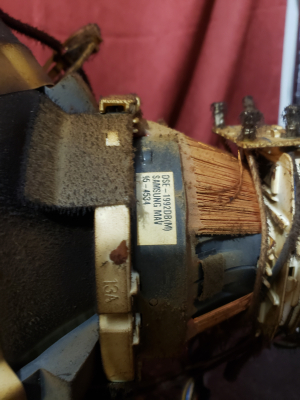

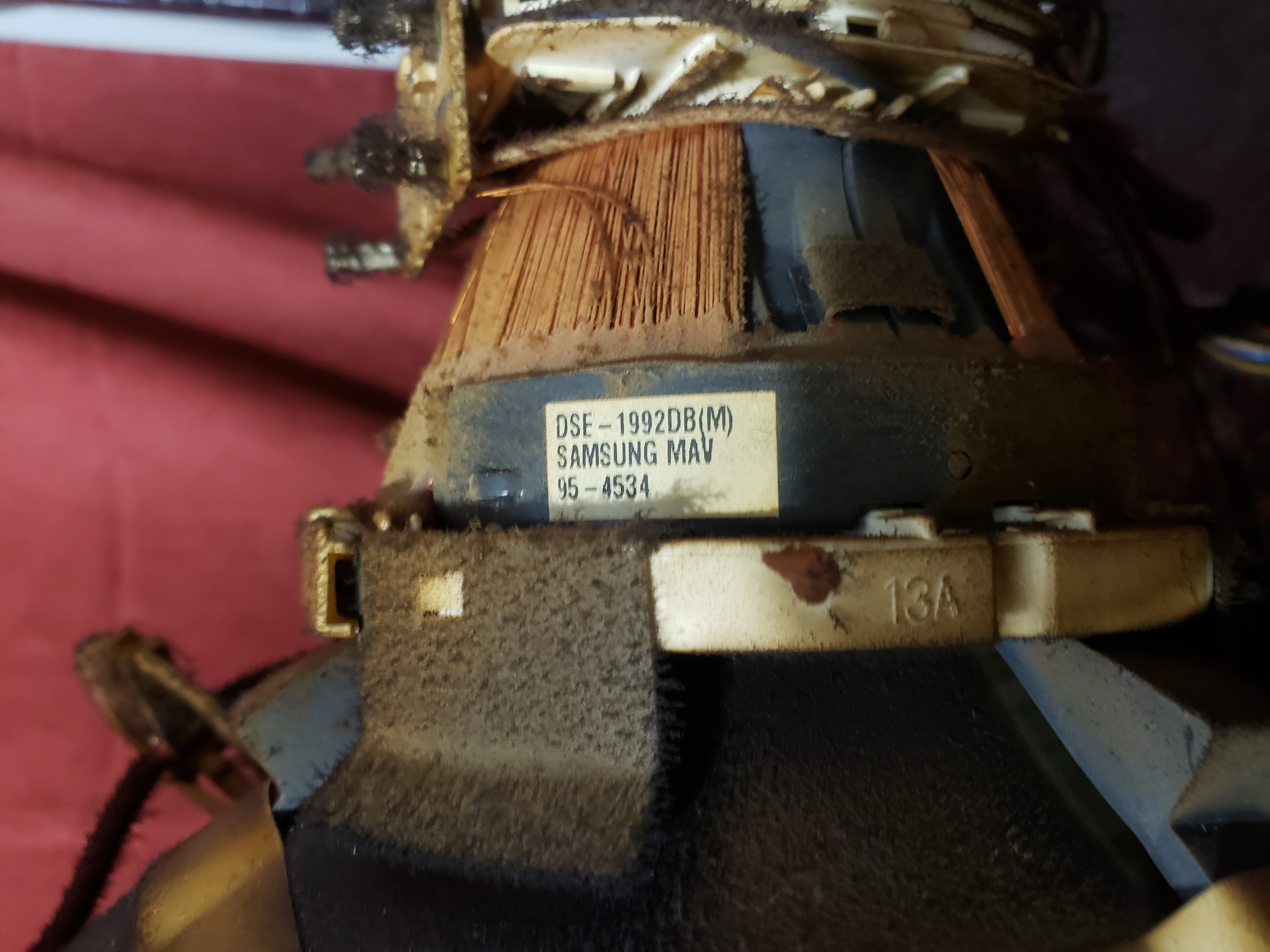

| Yoke: | 95-4534, DSE-1992DB(M) |
| Yoke Horz. Inductance: | 1.287 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 19.37 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.867 ohm |
| Yoke Vert. Resistance: | 8.271 ohm |
| Speakers: | Stereo |

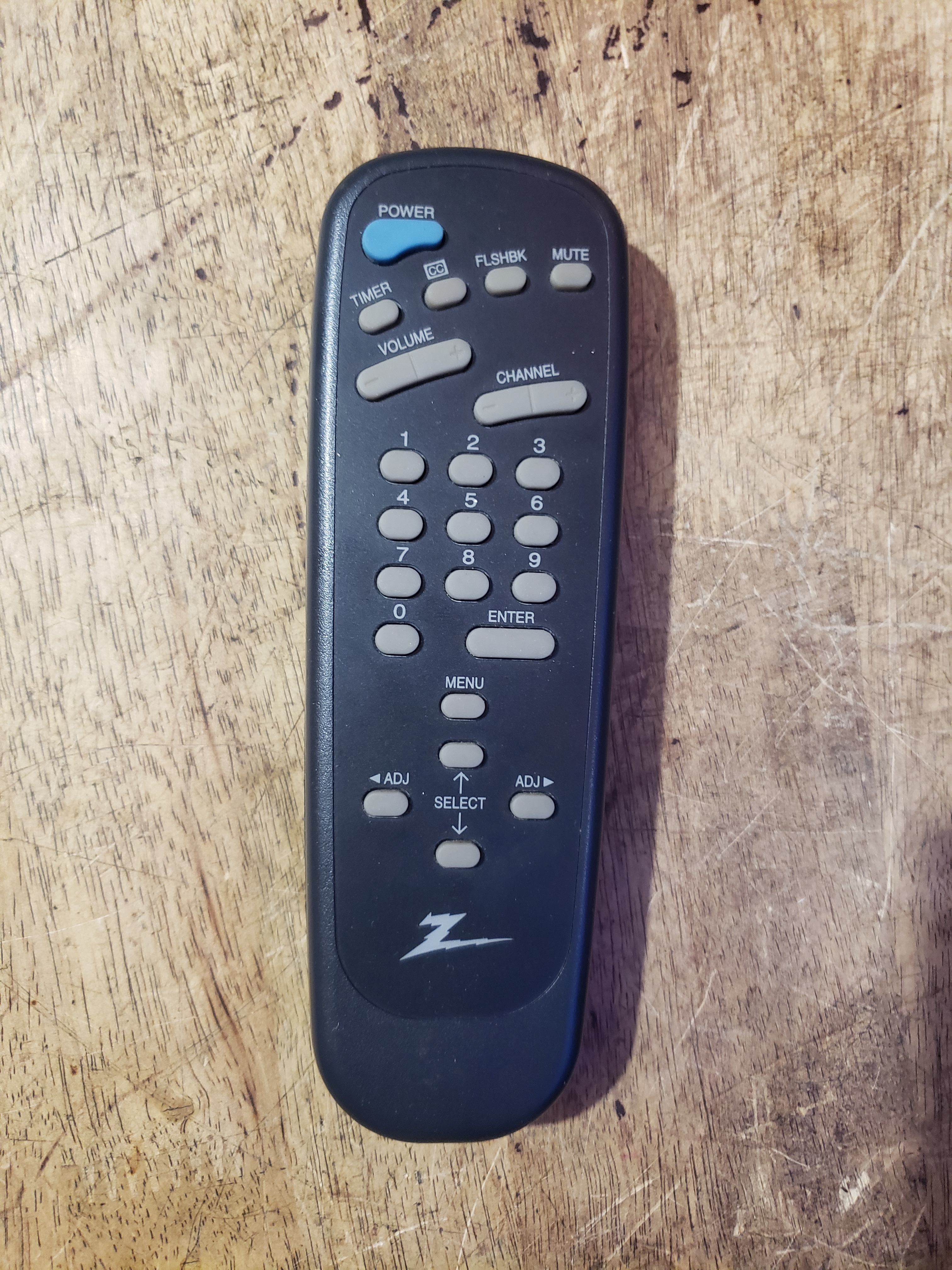

| Remote: | SC3492 |

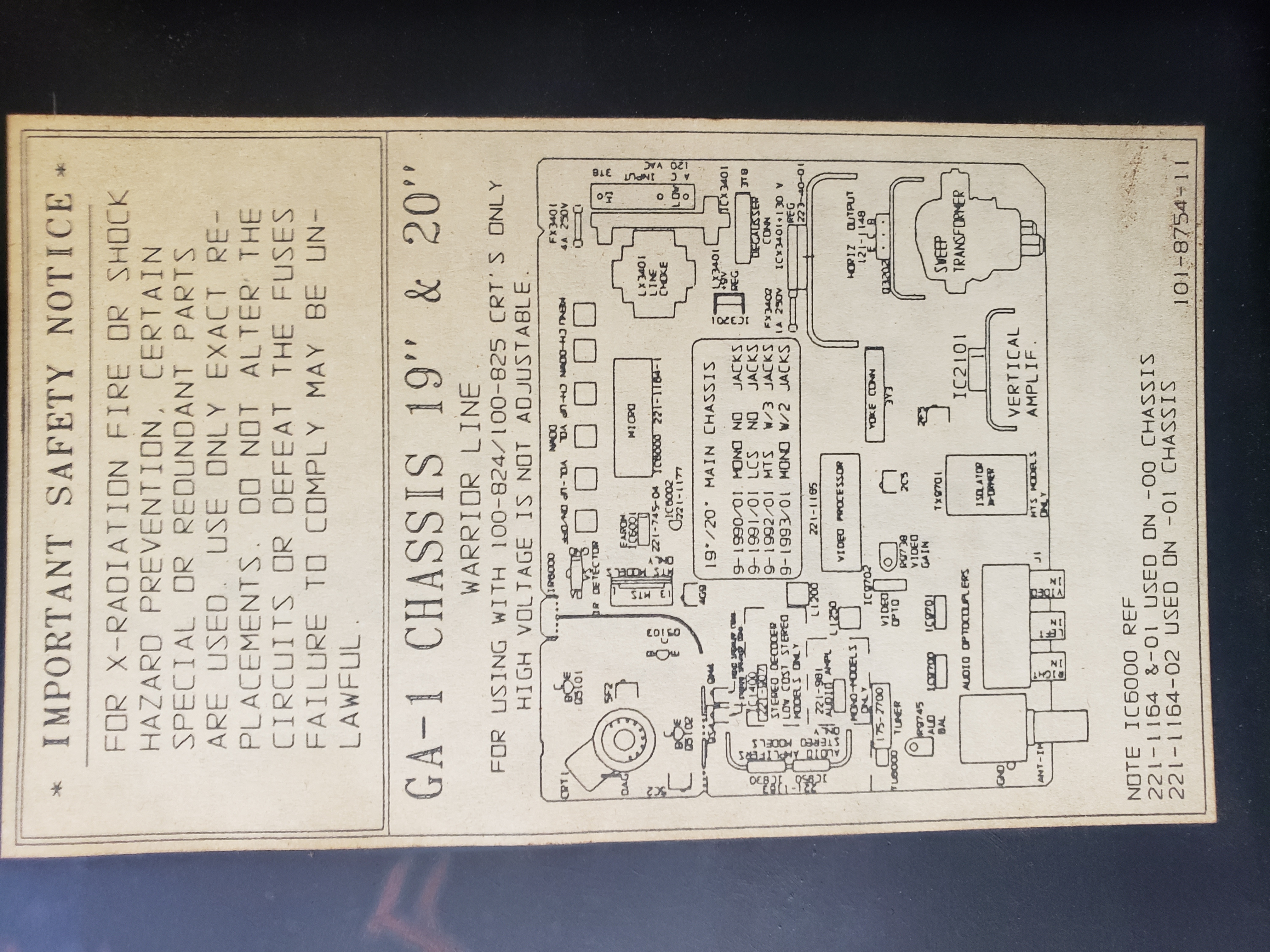

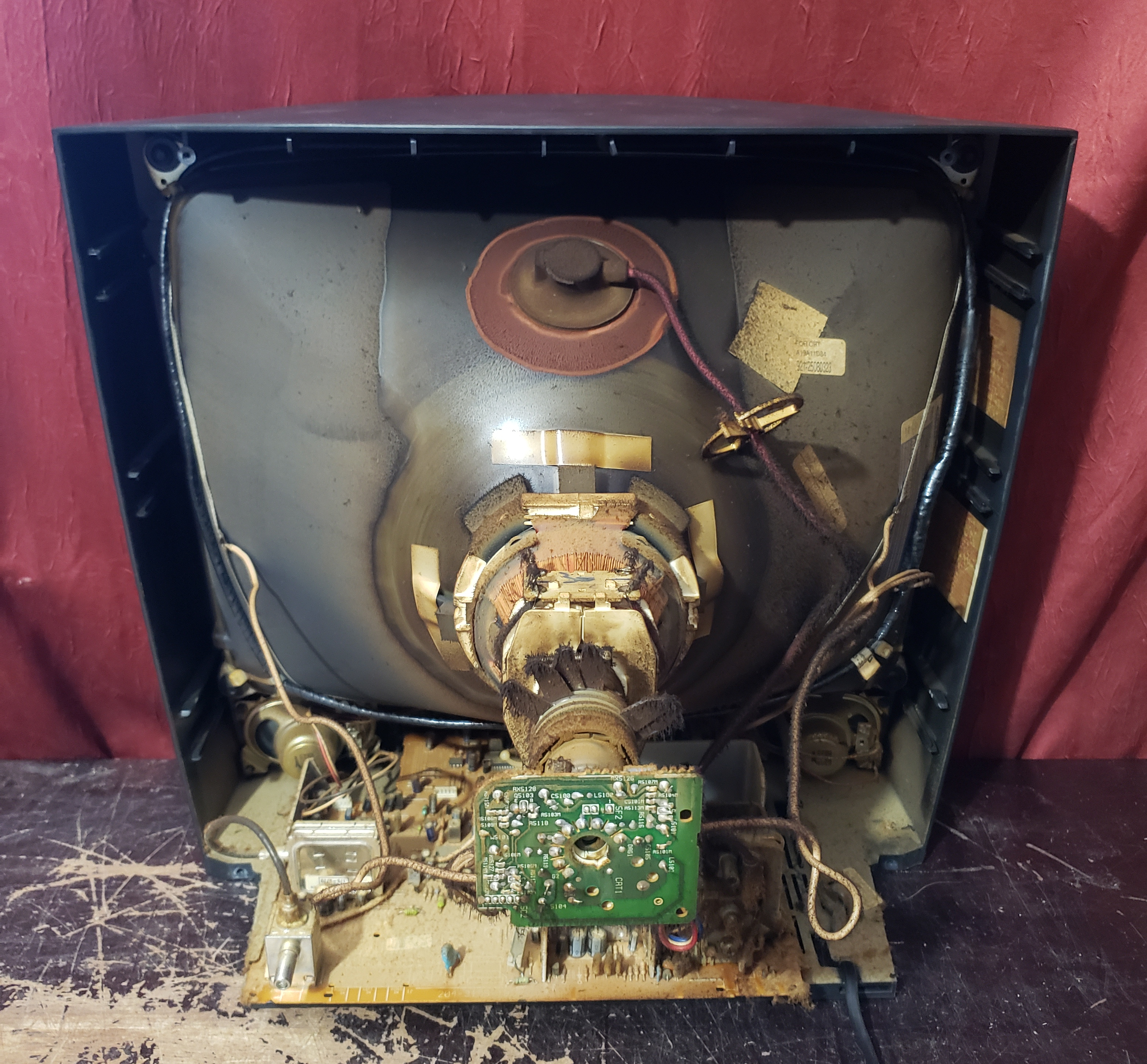

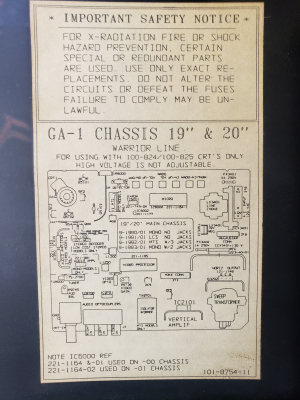

| Chassis: | GA-1, Warrior Line, GA |
| Weight: | 38 lbs (17.2 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Measurements, Needs Owners Manual |
