| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | Zenith |

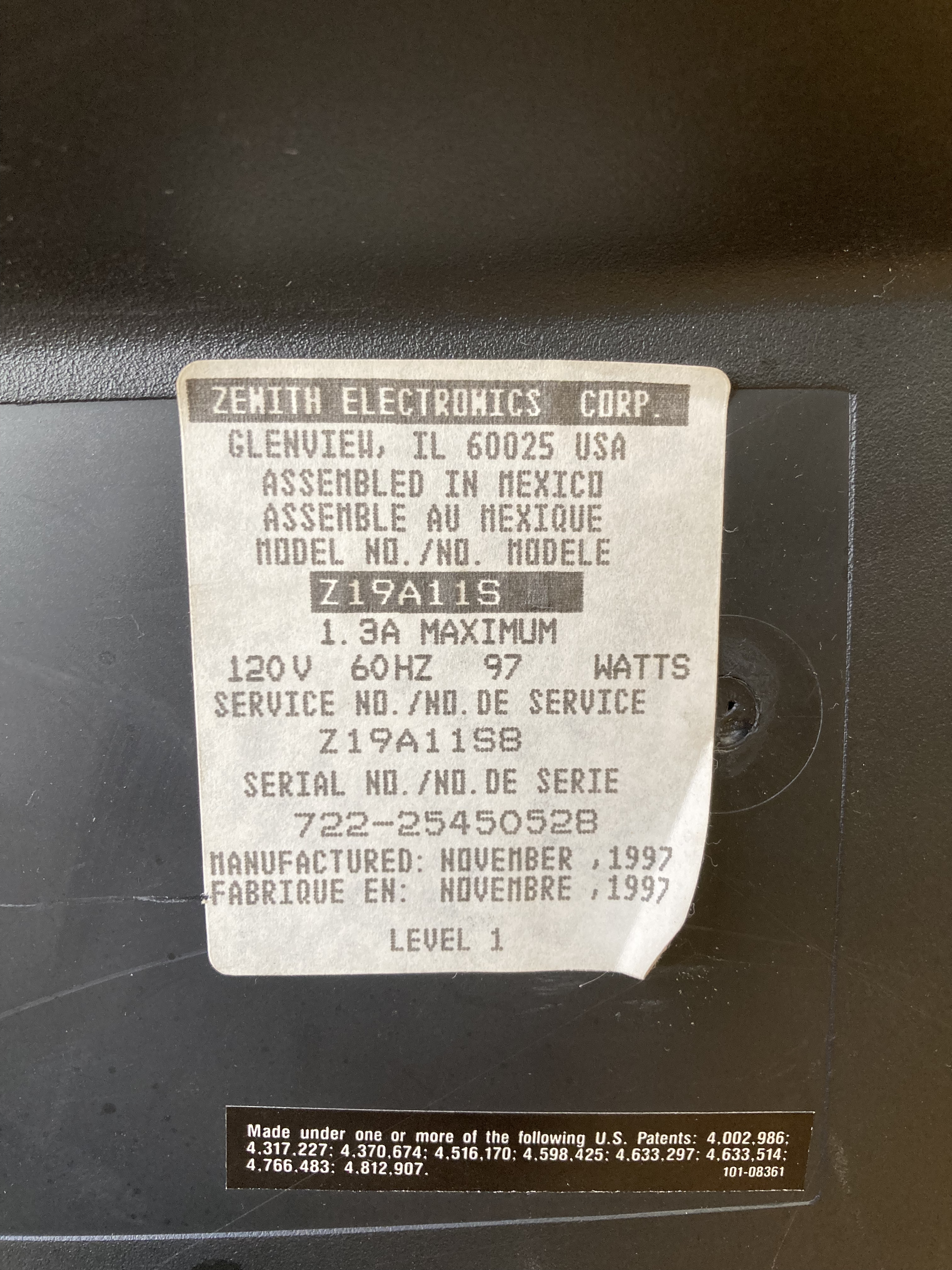

| Model: | Z19A11S |
| Series: | Sentry 2 |
| Viewable Size: | 19" |

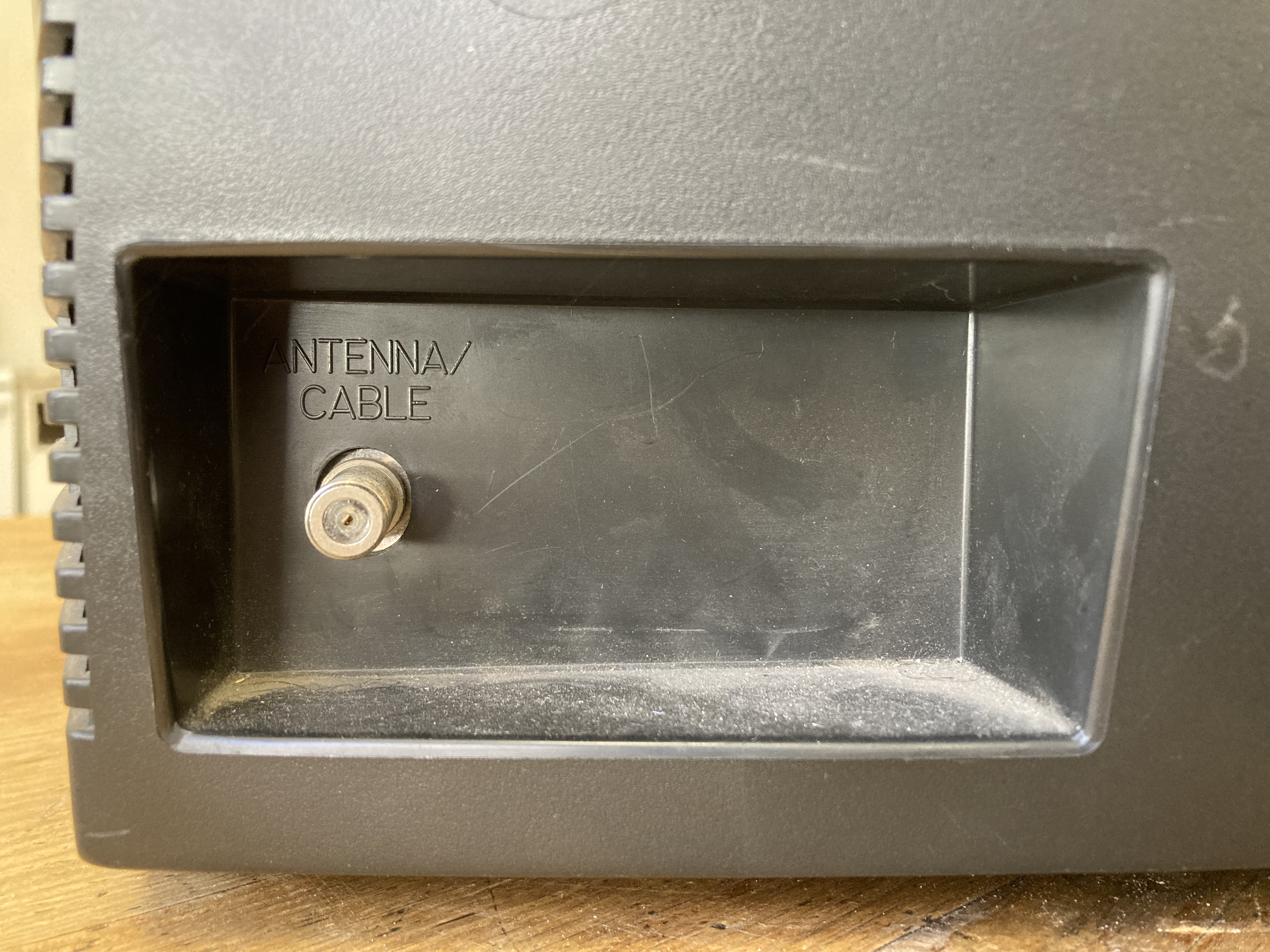

| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

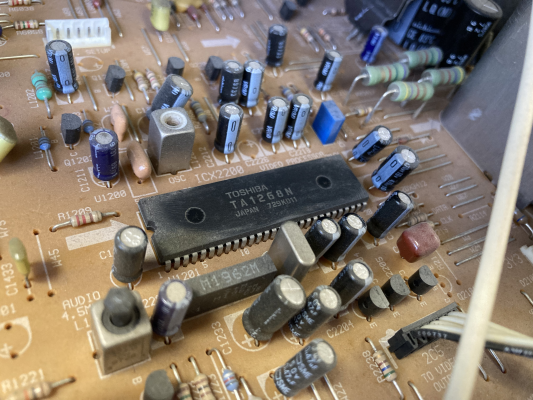

| Jungle IC: | Toshiba, TA1268N, TA1268 |
| Comb Filtering: | Notch |

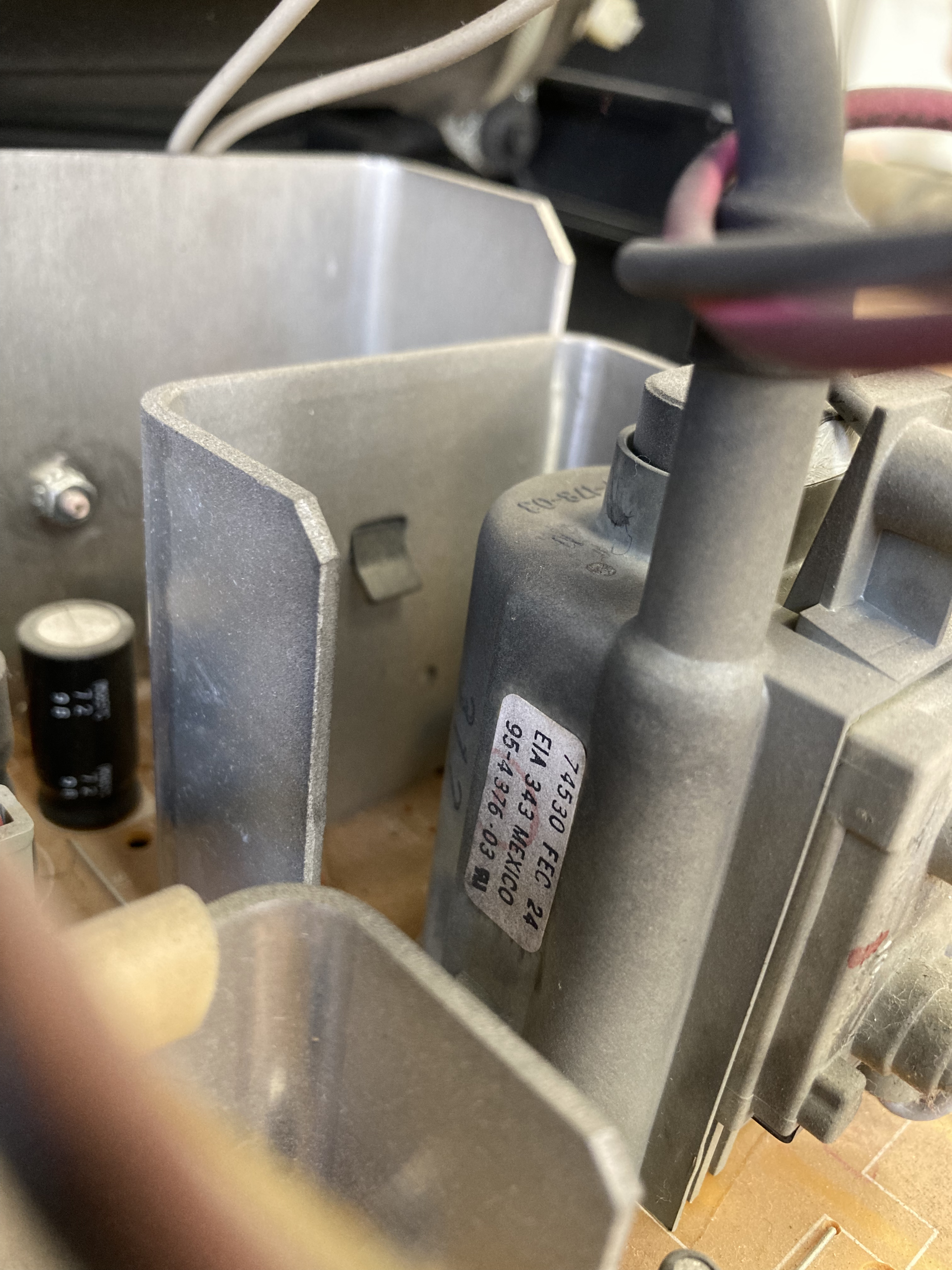

| Flyback: | 95-4376-03 |
| Focus Type: | Single |

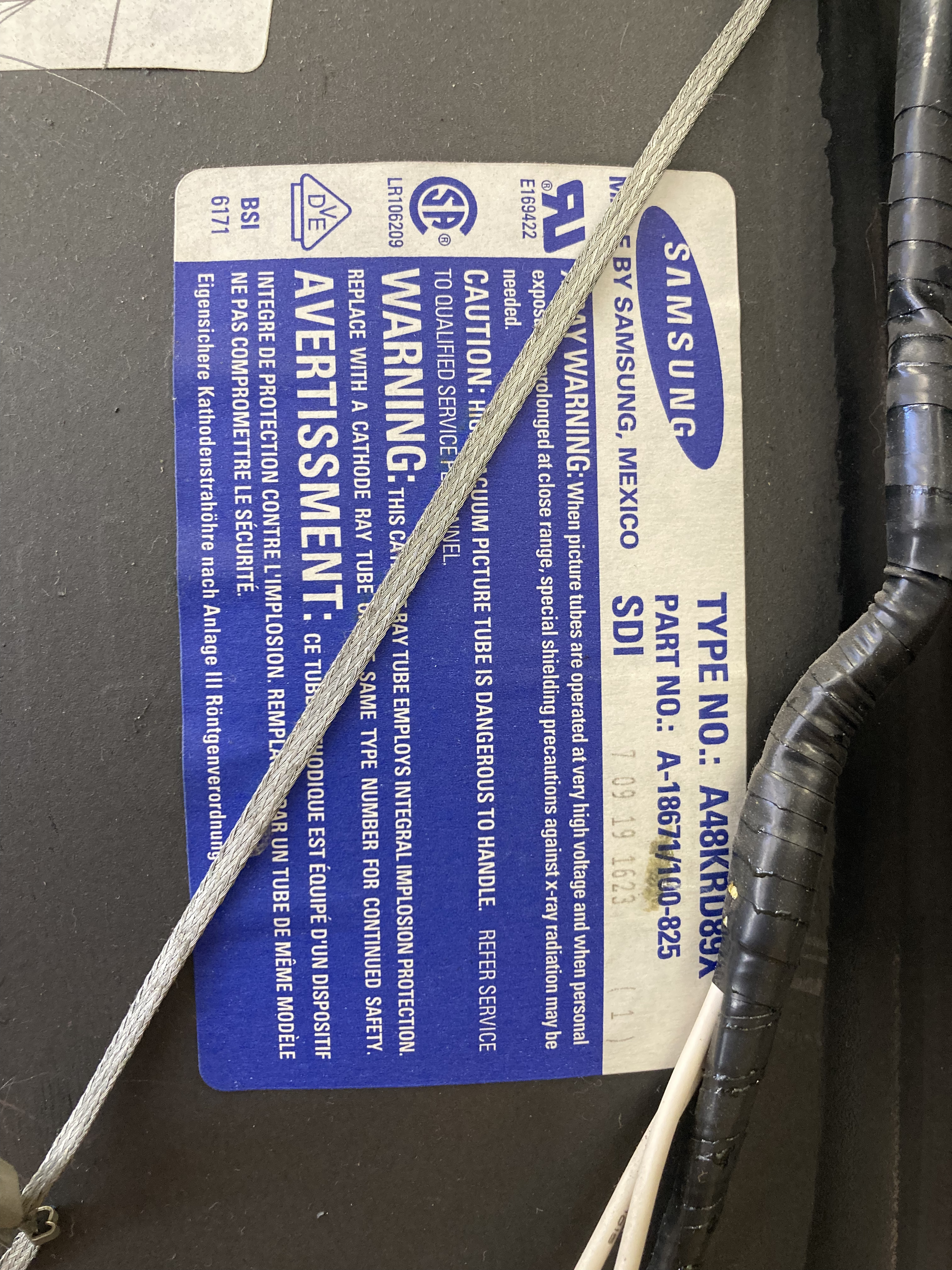

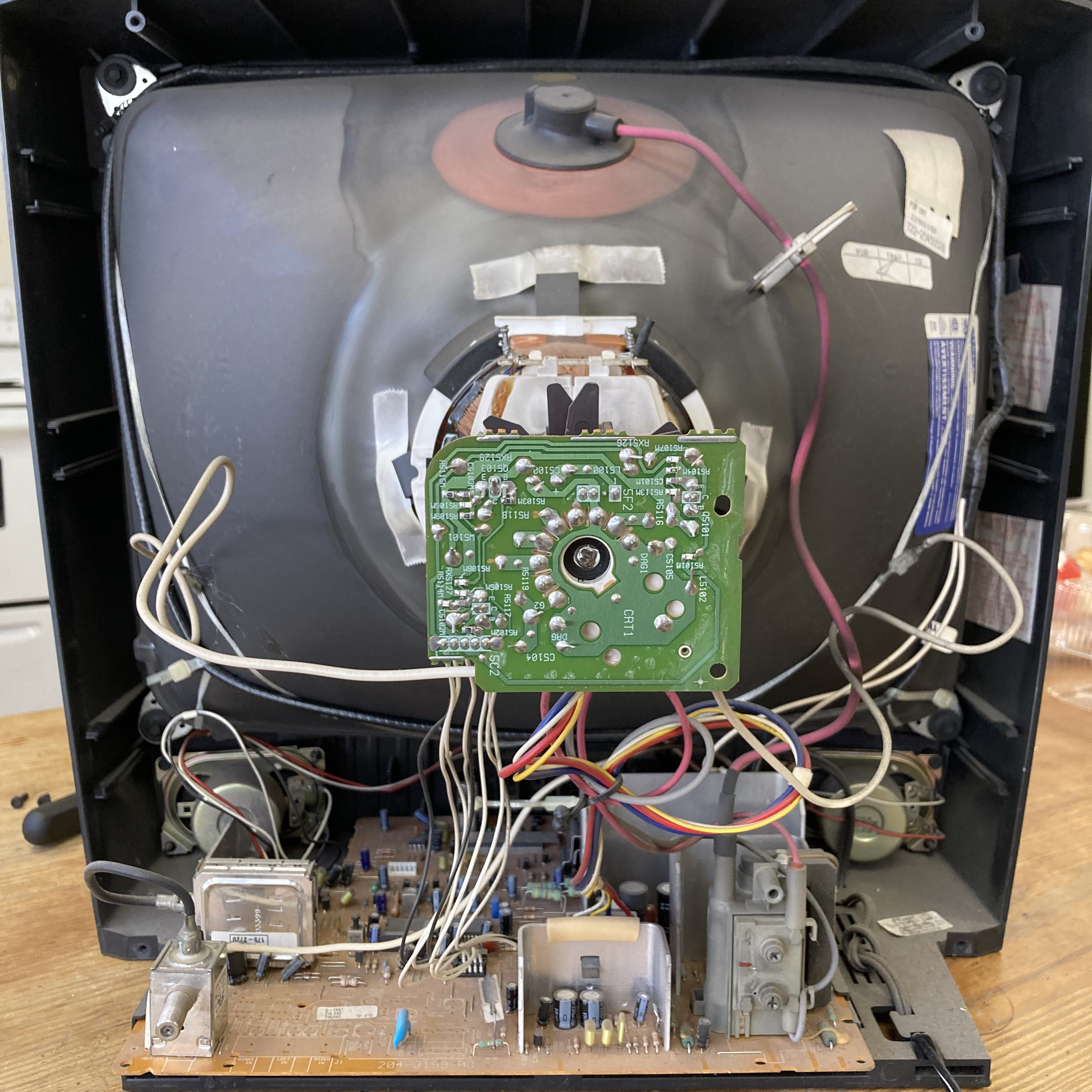

| Tube: | Samsung , A48KRD89X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

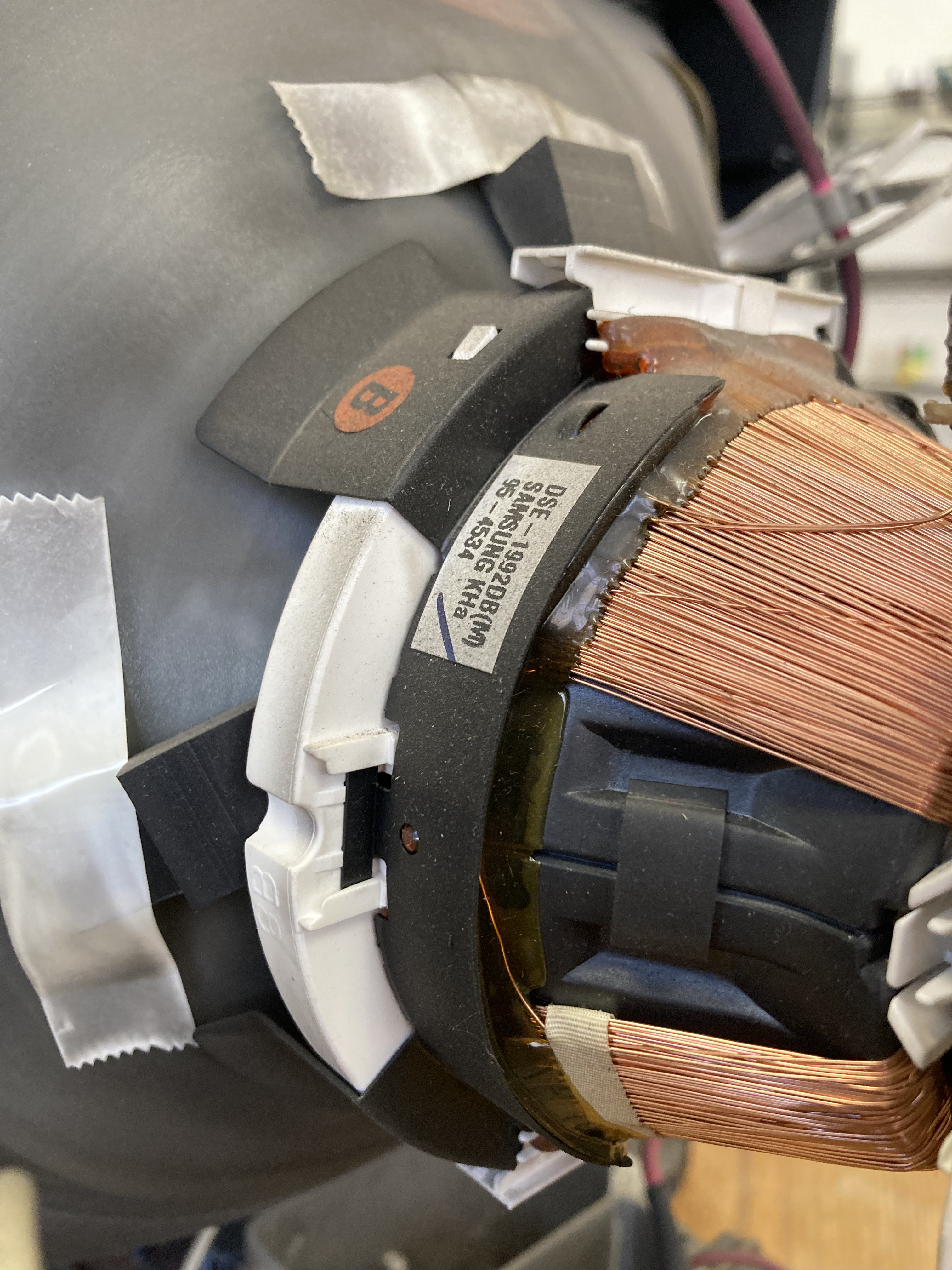

| Yoke: | DSE-1992DB(M) |

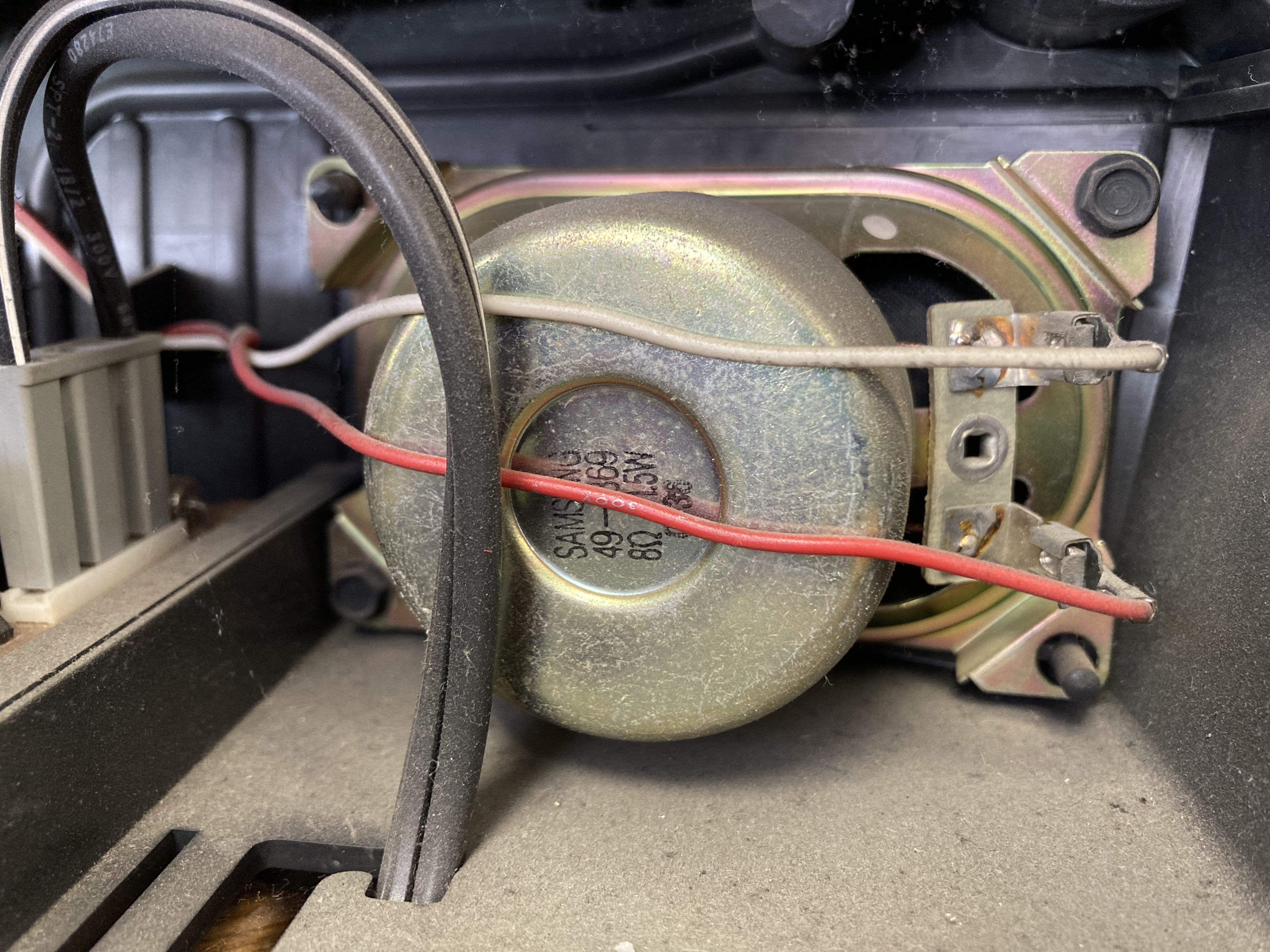

| Speakers: | Stereo, 1.5W x 2 |

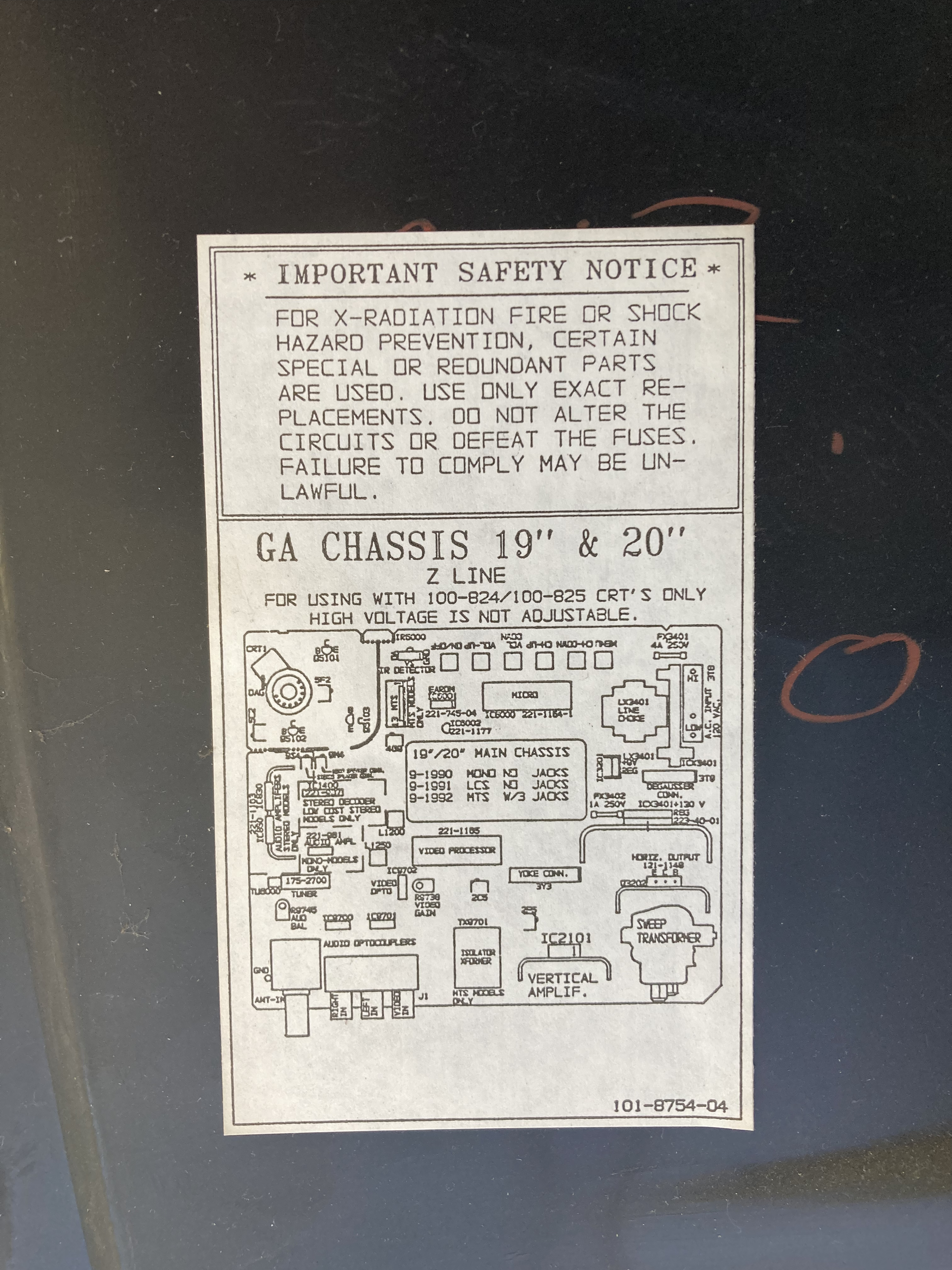

| Chassis: | CA |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1997 |
| MSRP: | 219 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Measurements |
