List of Chassis Models which are compatible with M23JHU10X
This list is automatically updated as more models are added to CRT Database.
CR-36 Socket
| Pin # |
Assignment |
| 1 |
Focus (G3) |
| 2 |
Keyed Out |
| 3 |
CV H-Stat (Sony) |
| 5 |
Heater (F1) |
| 6 |
Heater (F2) |
| 8 |
Blue Pin |
| 9 |
Green Pin |
| 10 |
Red Pin |
| 11 |
G1 Red Pin |
| 12 |
G2 Red Pin |
| 14 |
Keyed Out |
Note: If you only see one assignment for G1 (or G2), it means there is only a single G1 (or G2) grid shared across all cathodes. This is called "common G1" (or "common G2"). In this case, when using a Universal Adapter (UA), you only have to hook up one G1 (or G2) lead on your tester to connect all cathodes' G1 or G2 properly.
Notes
Used in the Sony CPD-9000 RGB Character Display monitor.
B&K 490 / 467 Tester Info
| Tester Model |
Heater |
Socket |
G1 Voltage |
| B&K 490 / 467 |
6.3V |
CR-36 |
50 |
Müter Socket Adapter
| Tester Model |
Socket |
| BMR 95 & 2005 |
828 |
Sencore CRT Tester Info
| Tester Model |
Heater |
Socket |
Bias |
Video |
| CR-7000 |
6.3V |
UA |
116V |
Video 1 |
| CR-70 |
6.3V |
5/10 |
68V |
VIDEO |
| CR-31 |
6.3V |
- |
D |
N/A |

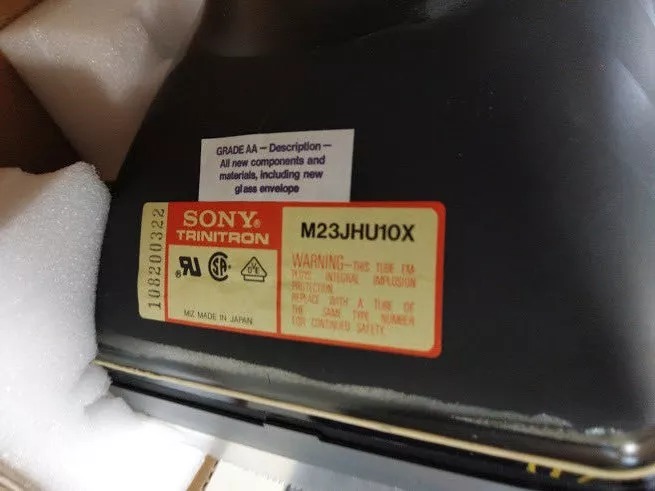

Gallery
