Summary
17" computer monitor from Dell. Member of the UltraScan 1000HS series. Has the typical attached VGA cable which functions as the sole video input.
Literature
Notes
WARNING: DO NOT CLEAN THIS MONITOR'S SCREEN WITH ANY PRODUCTS OTHER THAN DISTILLED WATER, OR DISH SOAP DILUTED IN DISTILLED WATER.
This tube has a fragile anti-glare coating which will be damaged by all common cleaning products including Ammonia-Free products. You should only clean it with distilled water or distilled water mixed with a few drops of dish soap. Use only a soft clean microfiber towel to wipe the screen. I reccomend buying a spray bottle to mist the screen with the water or dish soap solution.
If the screen has missing/discolored parts of the finish, or spots that look like scratches that don't come off, or parts where the mirror finish is missing, the coating has already been permanently damaged and should be removed. You can find instructions for removing and replacing the film here.
Many brands used these coatings including Mitsubishi, Sony, JVC, IBM, and more. Usually if the underlying tube technology is aperture grille-based and the monitor is a higher performance PC monitor, it can be assumed the tube has this fragile coating. The user manual of the monitor will also mention not to use any cleaning products on the screen.
Here is an example of what permanently damaged glare coating looks like: Click to open Image
This tube has a fragile anti-glare coating which will be damaged by all common cleaning products including Ammonia-Free products. You should only clean it with distilled water or distilled water mixed with a few drops of dish soap. Use only a soft clean microfiber towel to wipe the screen. I reccomend buying a spray bottle to mist the screen with the water or dish soap solution.
If the screen has missing/discolored parts of the finish, or spots that look like scratches that don't come off, or parts where the mirror finish is missing, the coating has already been permanently damaged and should be removed. You can find instructions for removing and replacing the film here.
Many brands used these coatings including Mitsubishi, Sony, JVC, IBM, and more. Usually if the underlying tube technology is aperture grille-based and the monitor is a higher performance PC monitor, it can be assumed the tube has this fragile coating. The user manual of the monitor will also mention not to use any cleaning products on the screen.
Here is an example of what permanently damaged glare coating looks like: Click to open Image
This monitor includes digital convergence controls, accessible through the OSD menu

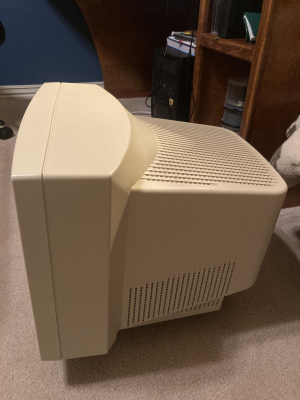

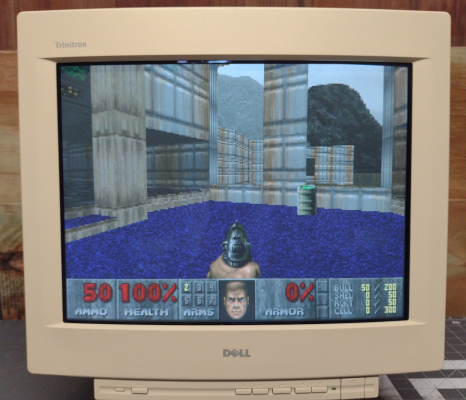

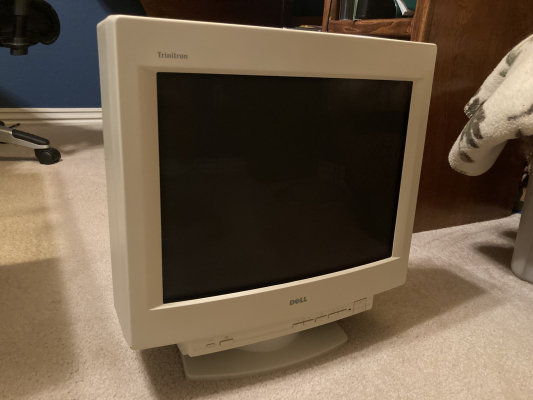

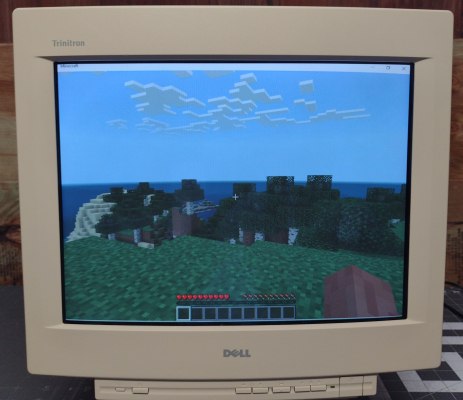

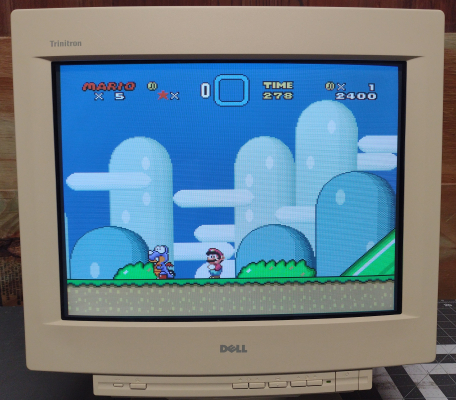

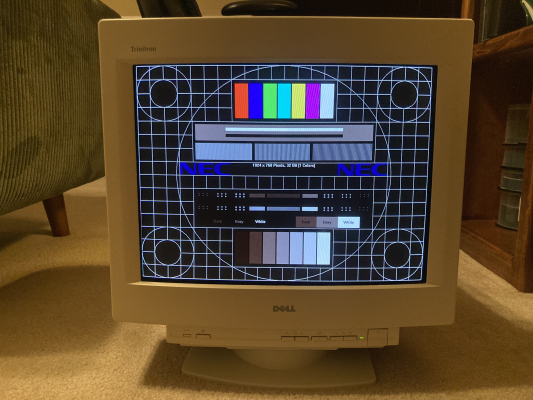

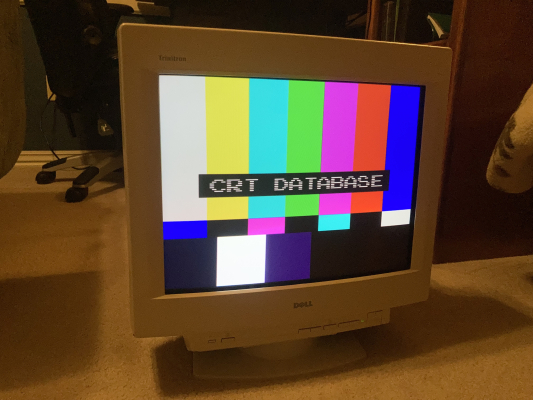

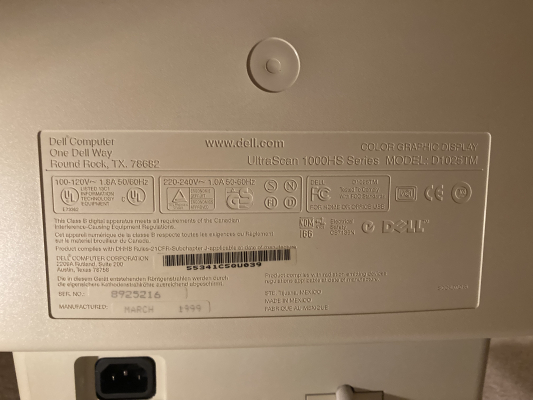

Gallery
Specifications | |
---|---|
Brand: | Dell |
Manufacturer: | Sony |
Model: | D1025TM |
Series: | UltraScan |
Viewable Size: | 16" |
Inputs: | VGA |
Sync: | HV Sync, CSYNC, Sync on Green |
Resolutions: | VGA, SVGA, XGA, SXGA |
Horizontal Scan Range: | 85 kHz |
Vertical Scan Range: | 120 Hz |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, Software Calibration |
Vertical Output IC: | LA7840 |
Flyback: | NX-4400, 8-598-812-70, 1-453-241-11 |
Tube: | Sony Trinitron , M41LKN15X |
Deflection: | 90° |
Mask: | Aperture Grille |
Pitch: | 0.25 mm |
Tint: | Dark |
Removable Glare Film: | Yes |
Yoke: | 8-451-430-21, 8-451-490-31 |
Yoke Horz. Inductance: | 0.11639 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 3.929 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 0.48 ohm |
Yoke Vert. Resistance: | 10.56 ohm |
Speakers: | None |
Chassis: | D-1H |
Weight: | 39.7 lbs (18 kg) |
Application: | Computer Monitor |
Cabinet Material: | ABS Plastic |
Launched: | 1998 |
Country of Manufacture: | Mexico |
Mounting: | Desk Stand |
Degaussing: | Automatic on Power-on, Manual |
Tag: | Needs Owners Manual |
