Summary

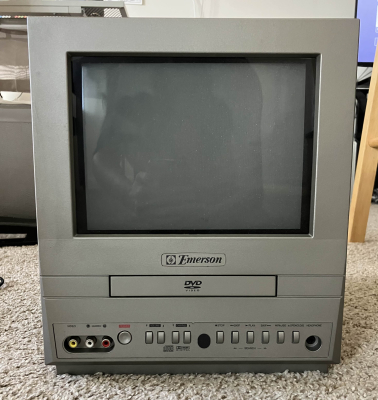

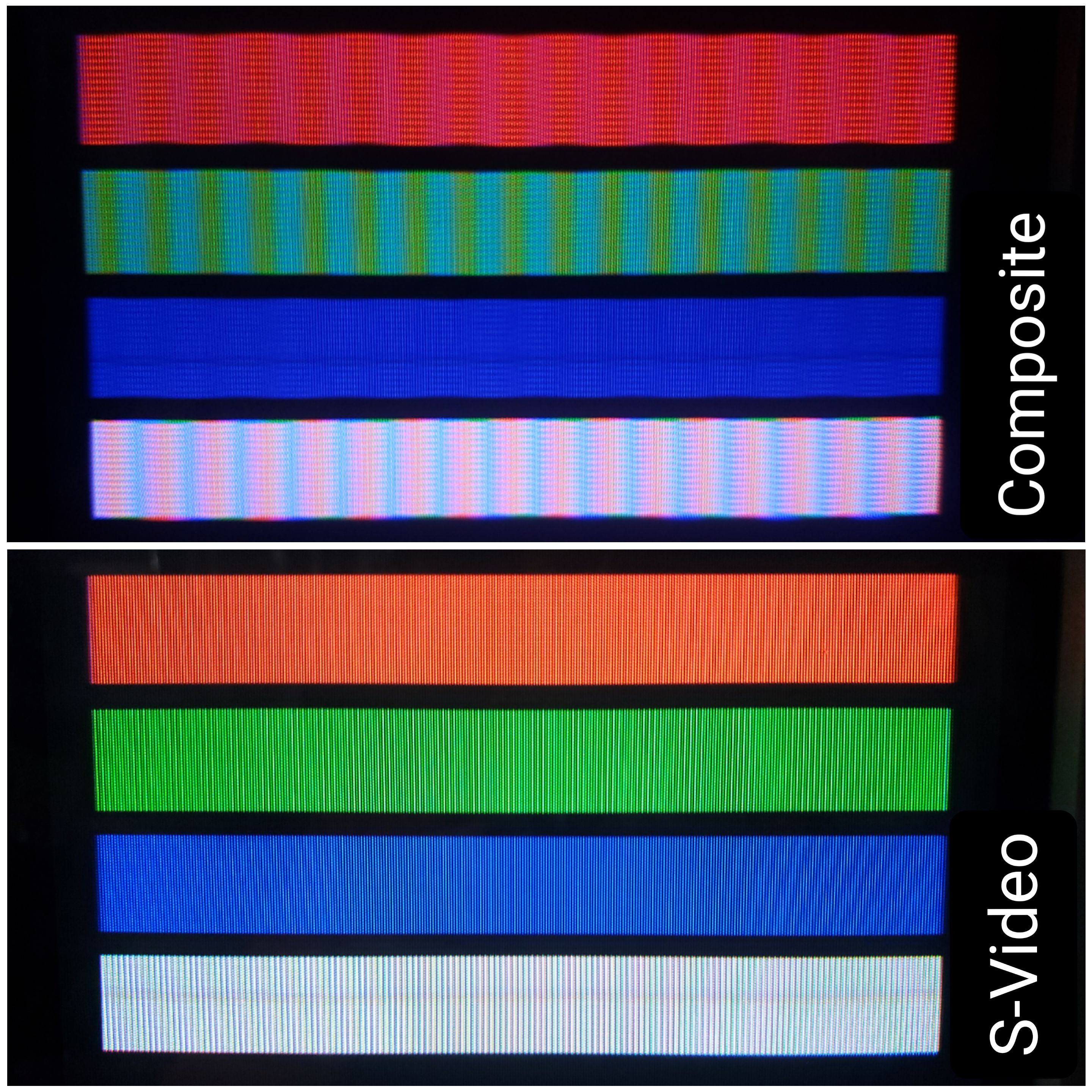

Identical to the Sylvania SSCG509D and manufactured by Funai. The unique feature is that it comes with it's own travel bag, but please take it right out of the bah when operating. Requires a compatible remote with a "Picture" button in order to access picture settings (Emerson, Sylvania, Symphonic, Magnavox). The S-Video mod produces a very clean image. Its tube has a stripe pitch equal to that of a number of 9" PVMs.
Manuals
Mods & Repair Guides
Notes
The internal DVD player is connected to the jungle chip via Y/C (S-Video). Accessing the service menu requires sacrificing a remote to lift and jump pins on a very small surface mount IC inside; doing so is not beginner-friendly. The unified Renesas jungle chip does not support RGB mods. All photos were taken connected via S-Video.

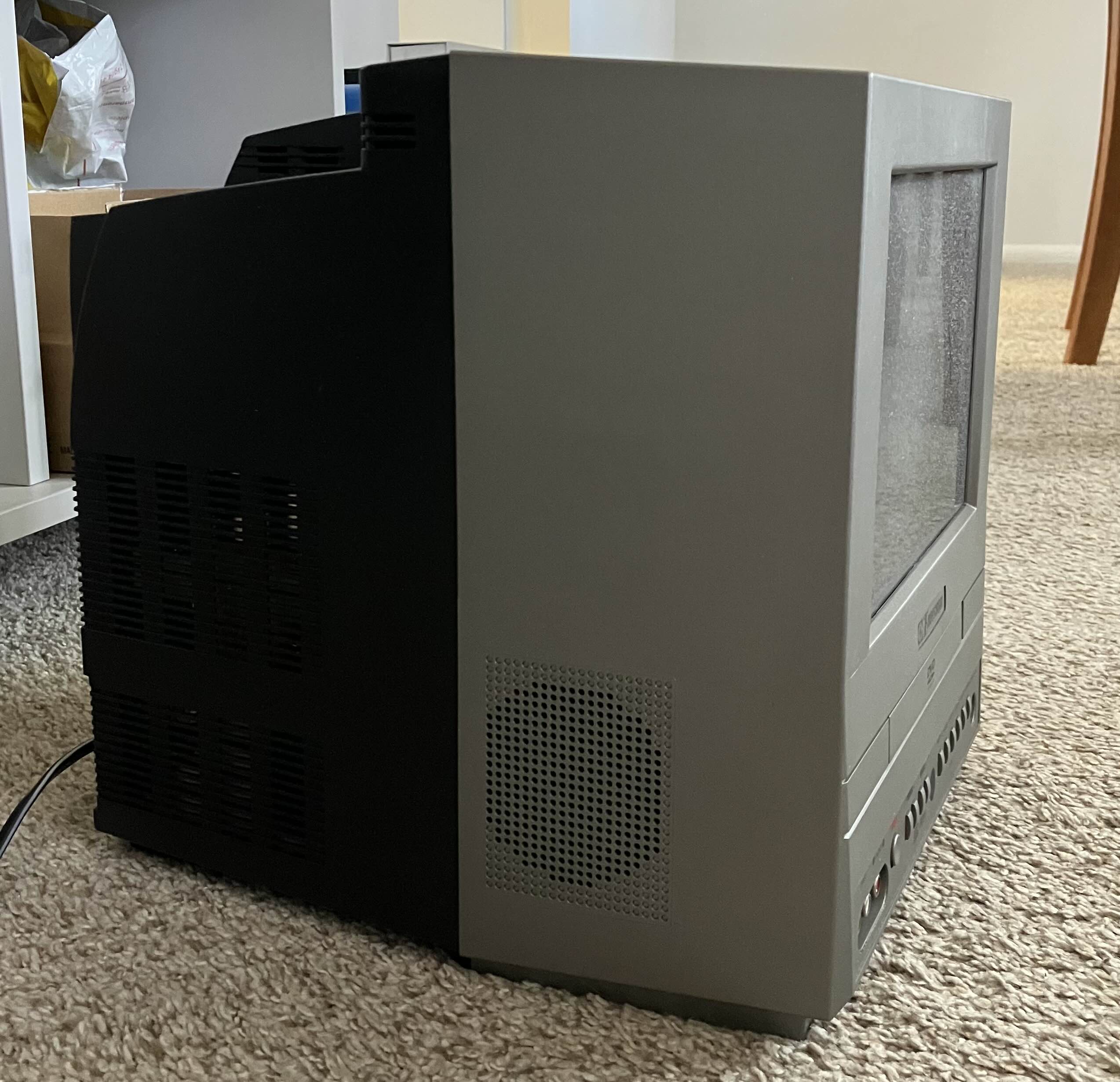

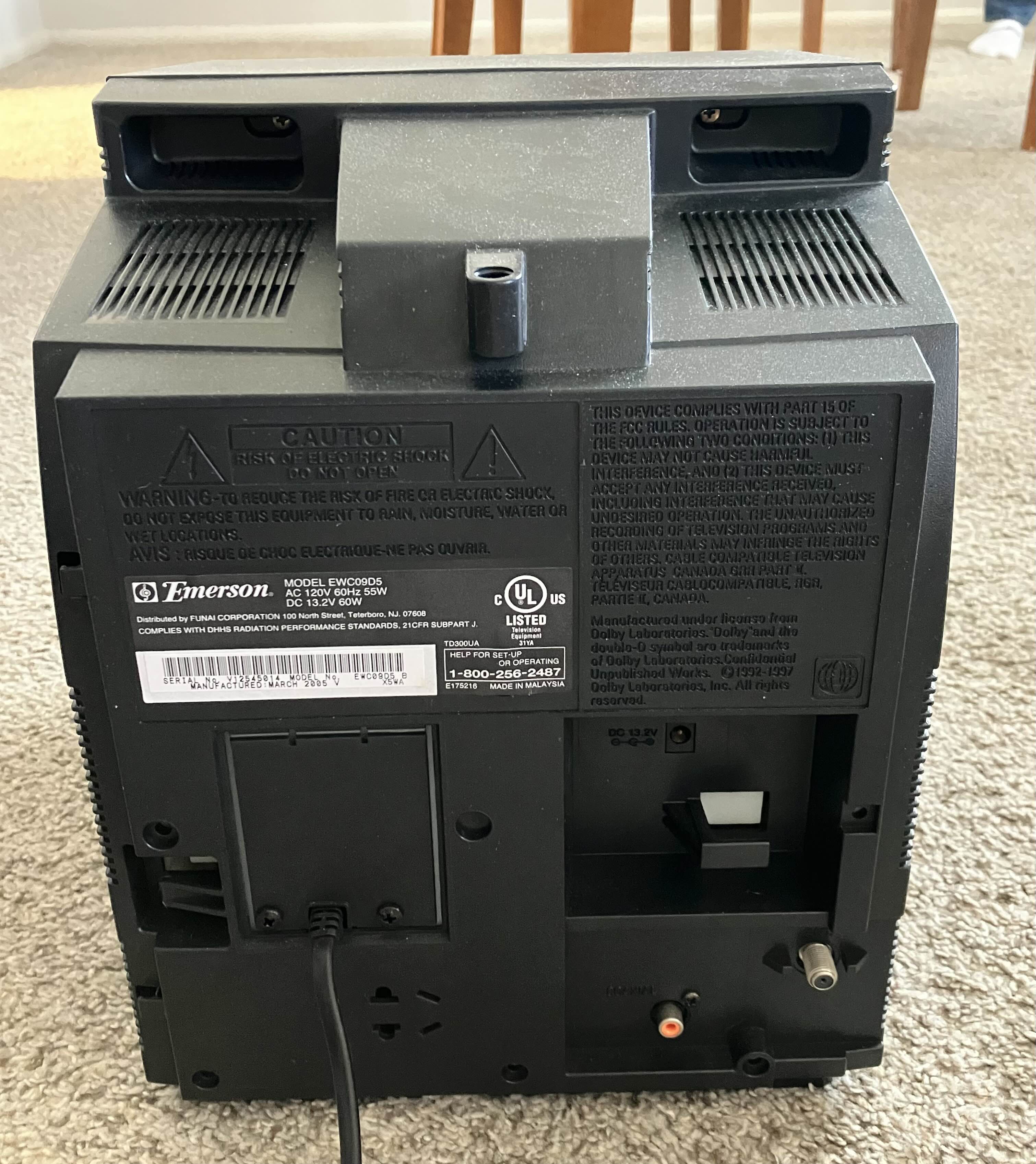

Gallery
| Specifications | |
|---|---|
| Brand: | Emerson |
| Manufacturer: | Funai |
| Model: | EWC09D5B |
| Series: | EWC |
| Viewable Size: | 9" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Renesas, M61271M8-053FP |
| Comb Filter IC: | Renesas, M61271M8-066FP |
| Focus Type: | Single |

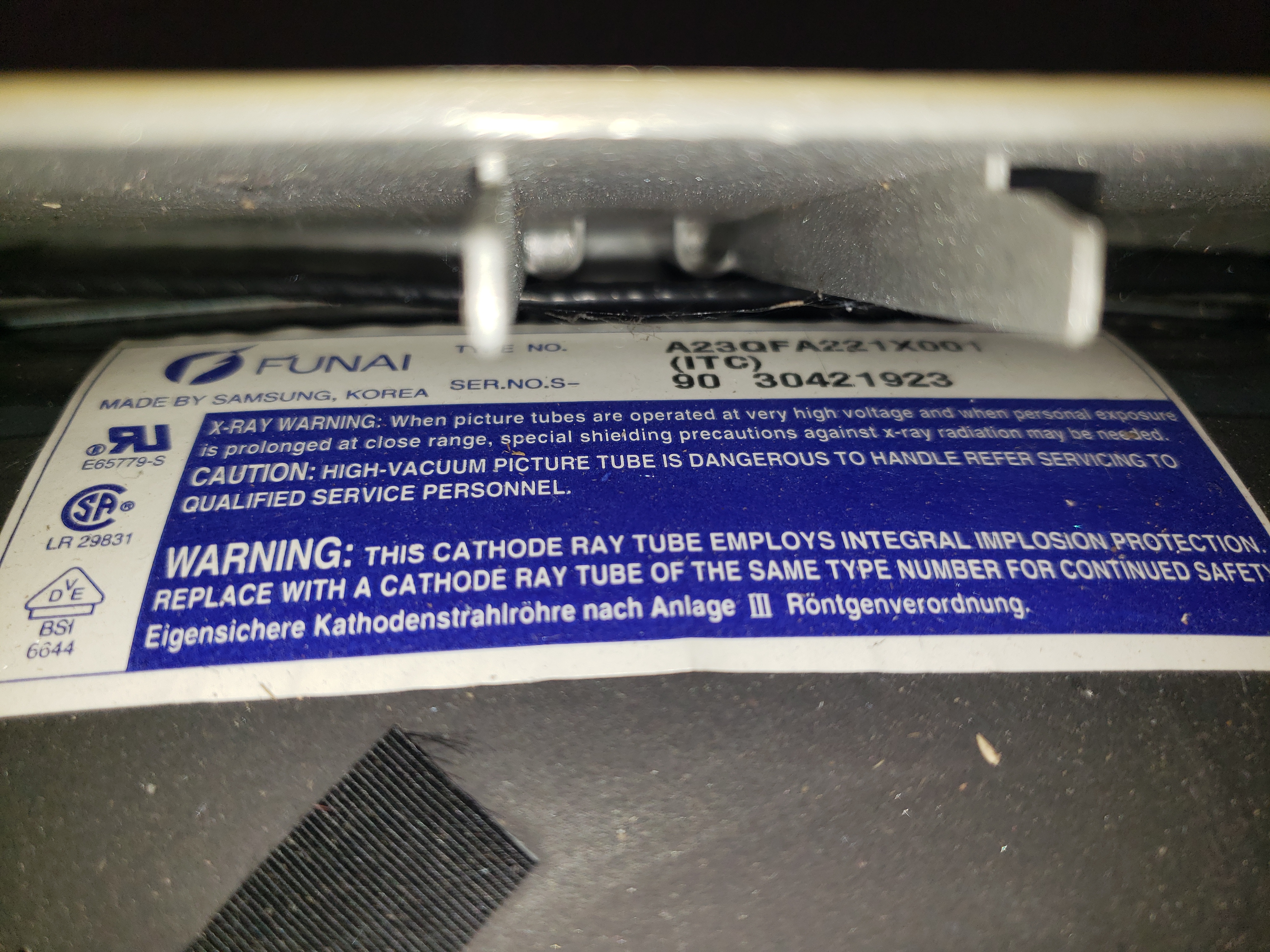

| Tube: | Samsung , A23QFA221X001 , A23QFA221X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.5 mm |
| Tint: | Light |
| Removable Glare Film: | No |
| Yoke Horz. Resistance: | 8.9 ohm |
| Yoke Vert. Resistance: | 14.6 ohm, 14.60 ohm |
| Speakers: | Stereo, 1W x 2 |
| Remote: | NE218UD |
| Chassis: | TD001UB |
| Weight: | 17.6 lbs (8 kg) |
| Dimensions (W/H/D): |
311 x 276 x 318 mm
(12.2 x 10.8 x 12.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v, 12VDC |
| Mounting: | Table Surface (Standard) |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
