| Specifications | |
|---|---|
| Brand: | Emerson |
| Manufacturer: | Funai |
| Model: | EWC1302 |
| Series: | EWC |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | AN5522, LA78040A |
| Jungle IC: | M61210FP, LA71091M |

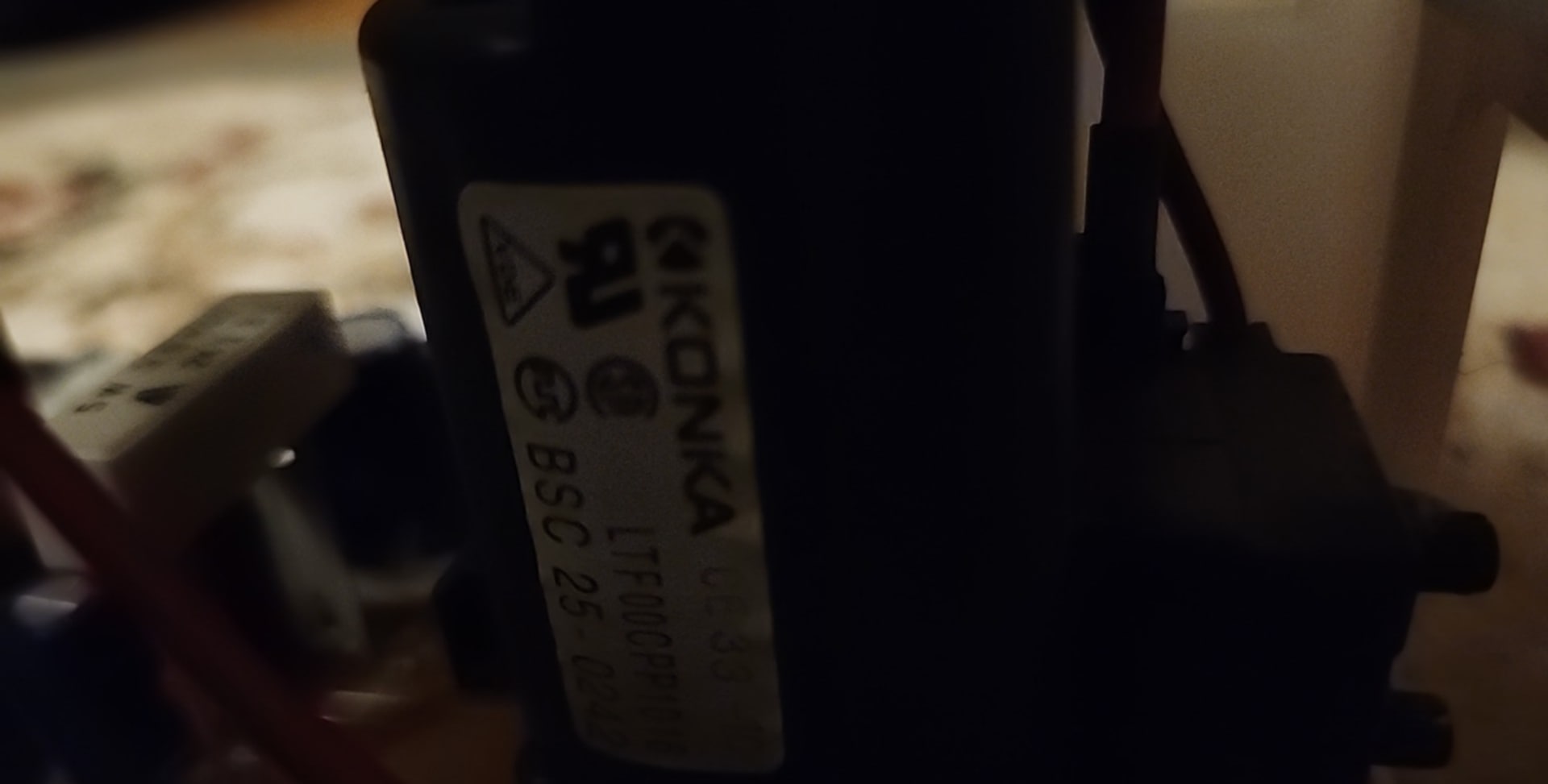

| Flyback: | BSC25-0242 |
| Focus Type: | Single |

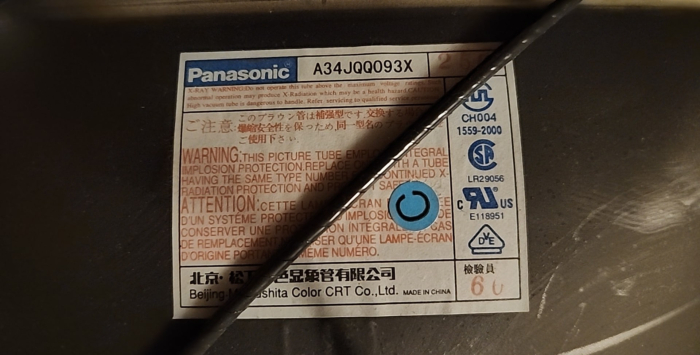

| Tube: | A34AGT13X , A34KQW42X , A34JQQ093X , A34JLL90X , A34LRQ90X , A34KPU02X , A34LEX10X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

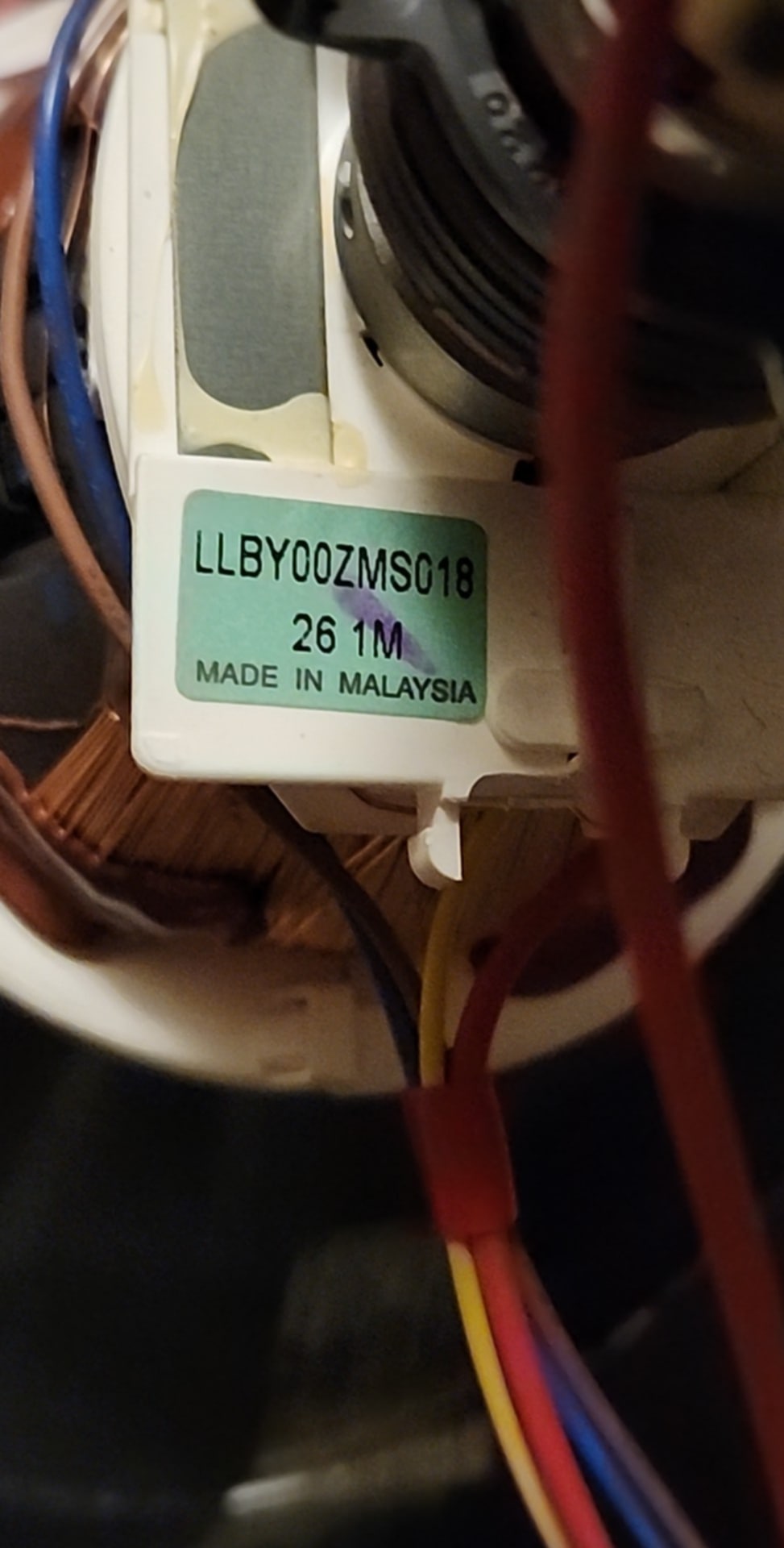

| Yoke: | LLBY00ZSY002, LLBY00ZMS018, CDY-M1456S, CDY-M1422F, CDY-M1455F, ST14PWRF01, KDY3GCB82X, KDY3GC734X, LLBY00ZSY005, KDY3GDA82X |
| Speakers: | Mono, Headphone Jack |
| Remote: | MIM-93M6DKF, PIC-37042LU |
| Chassis: | 0ESA04507, 0ESA04524 |
| Weight: | 23.1 lbs (10.5 kg) |
| Dimensions (W/H/D): |
367 x 389 x 377 mm
(14.4 x 15.3 x 14.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 129 USD |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
