Summary

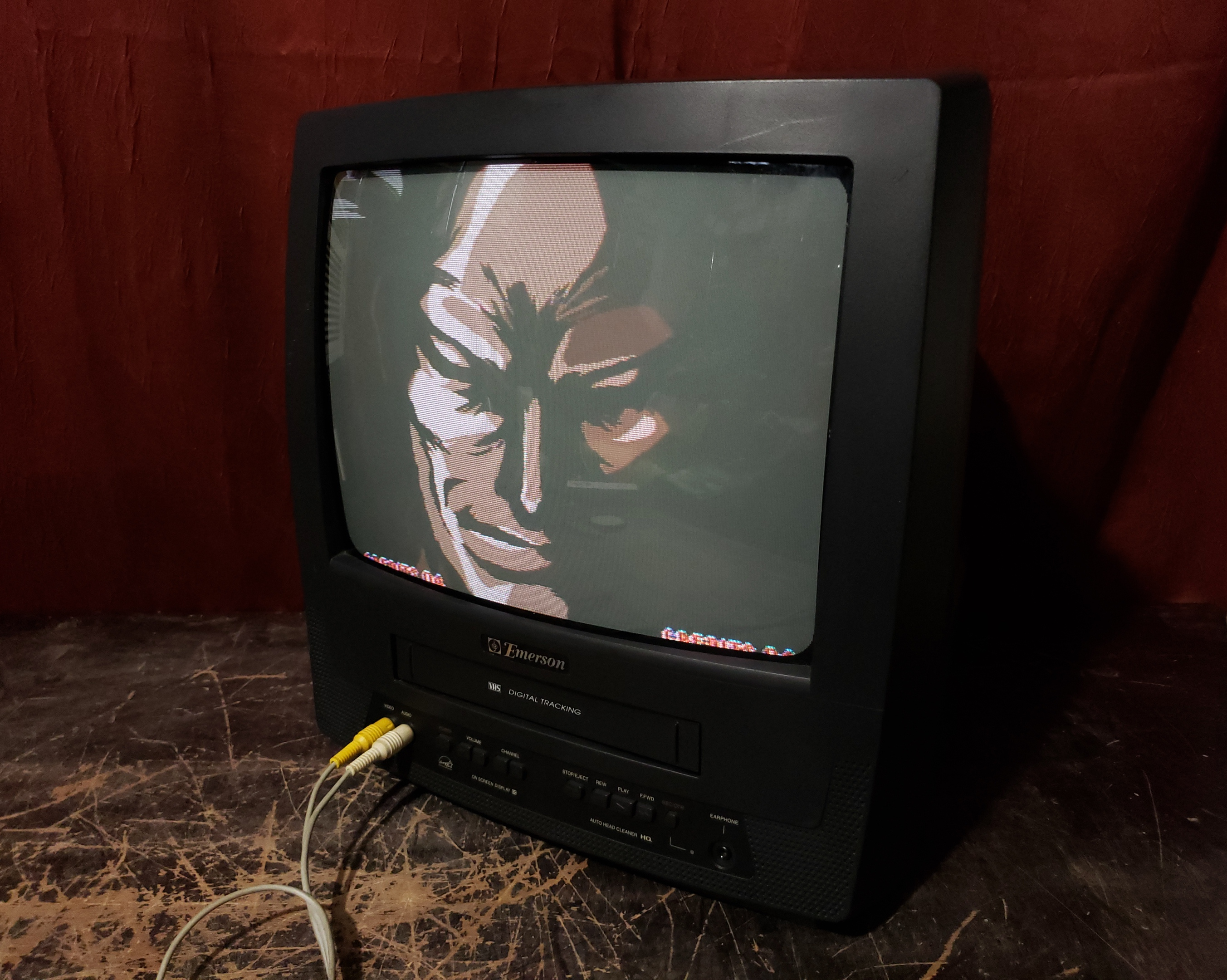

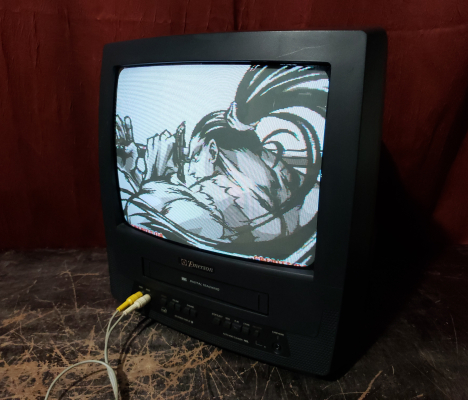

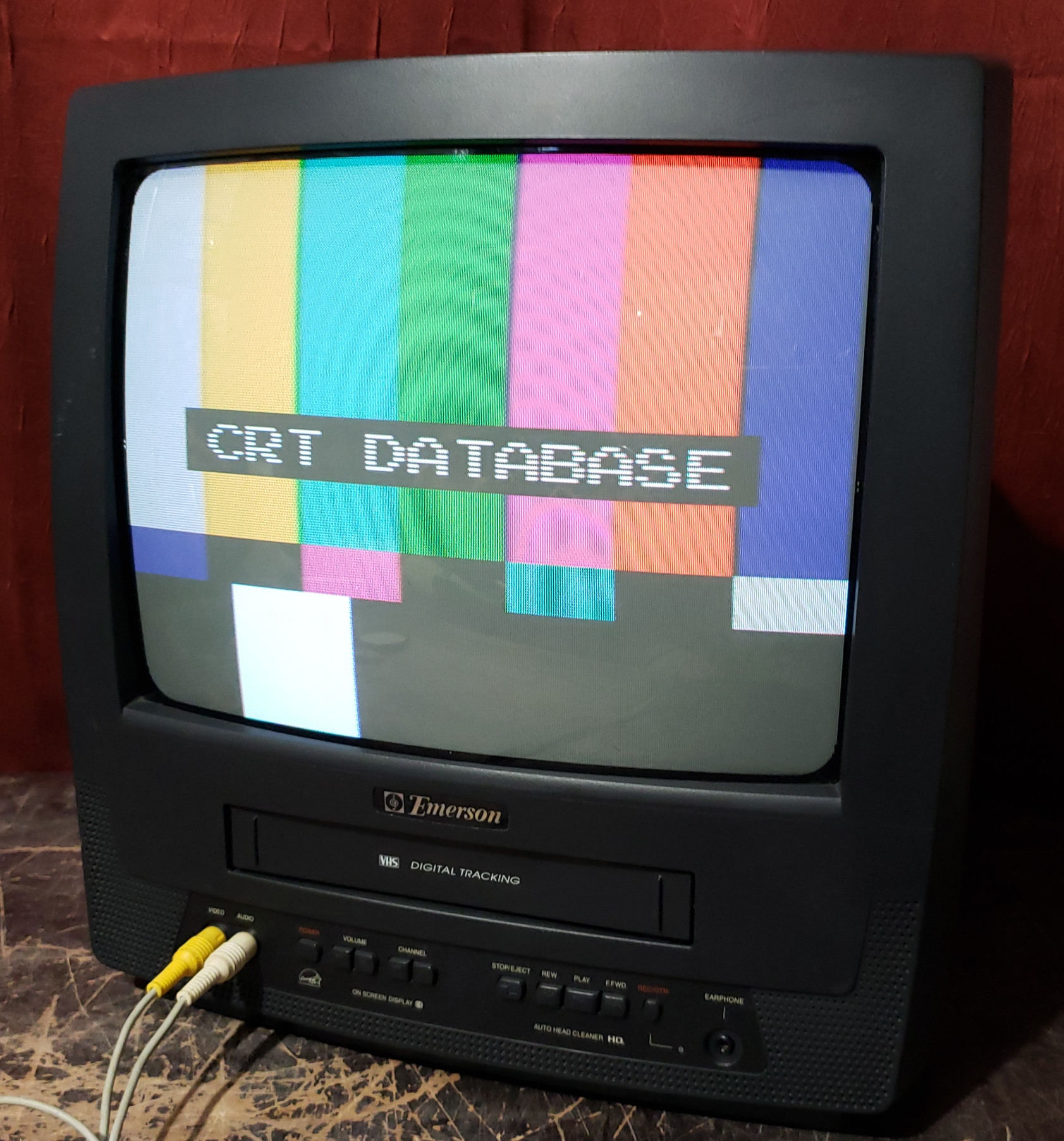

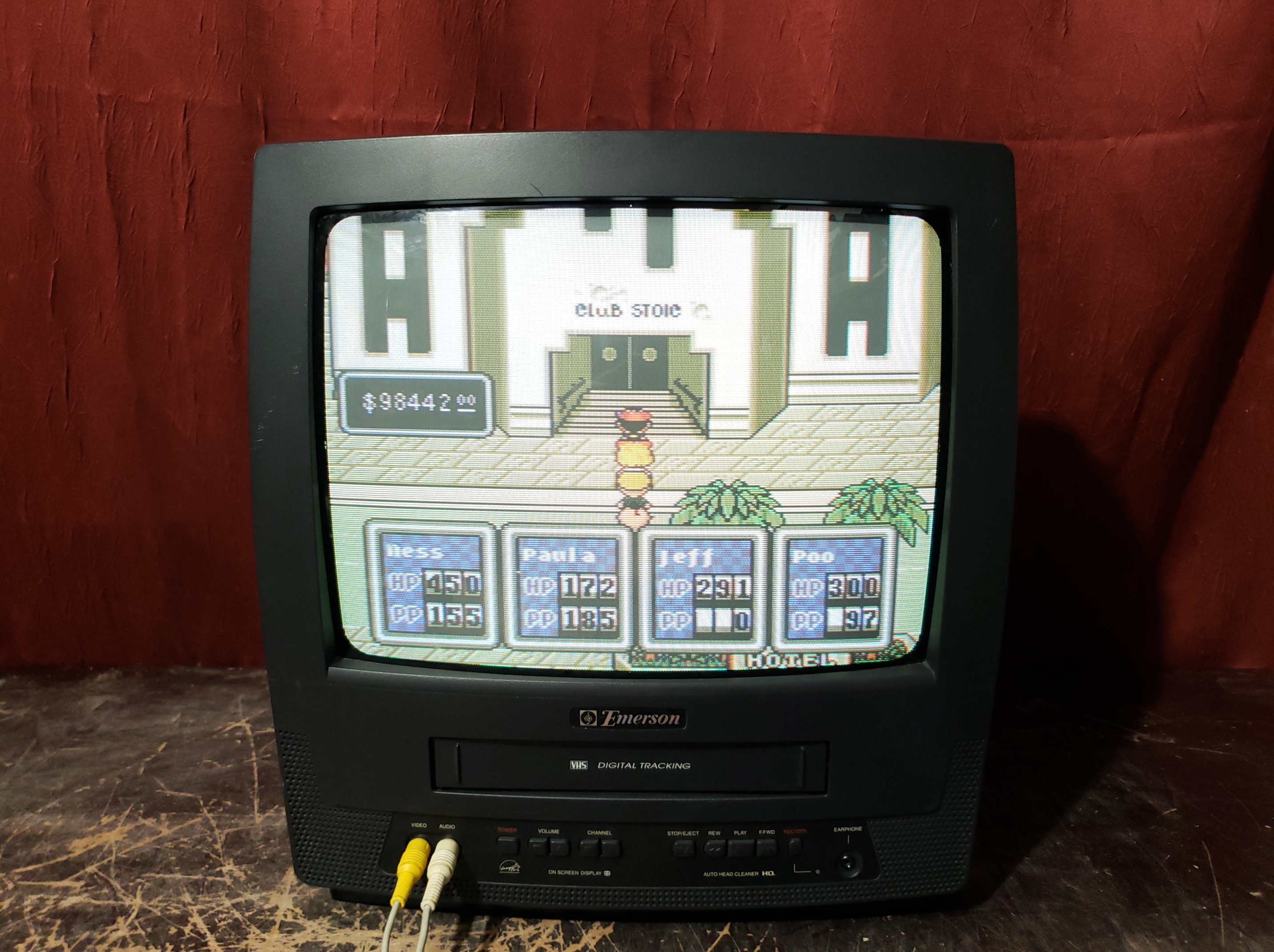

13" TV/VCR combo manufactured by Funai and sold under the Emerson brand. Has composite and RF inputs. TV only has mono audio.
Manuals
Media & Promo Materials
Notes
User menu can be access with the channel buttons, and navigated with the VCR buttons. STOP and PLAY move up and down, and F.FWD selects.
Gallery
| Specifications | |
|---|---|
| Brand: | Emerson |
| Manufacturer: | Funai |
| Model: | EWC1303 |
| Series: | EWC |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | TT2138LS-YB11 |
| Vertical Output IC: | LA78040A |
| Jungle: | M61275FP-61 |

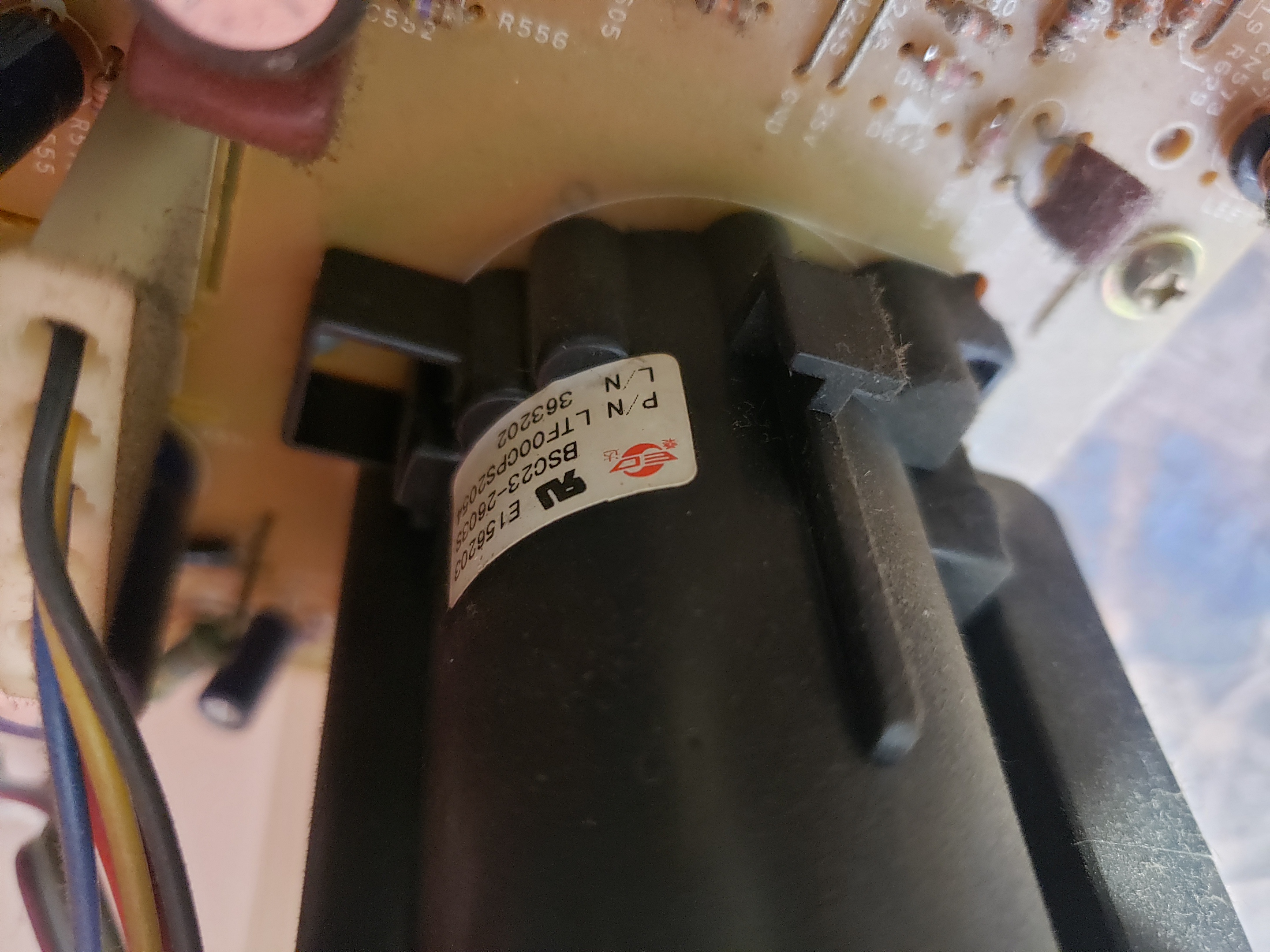

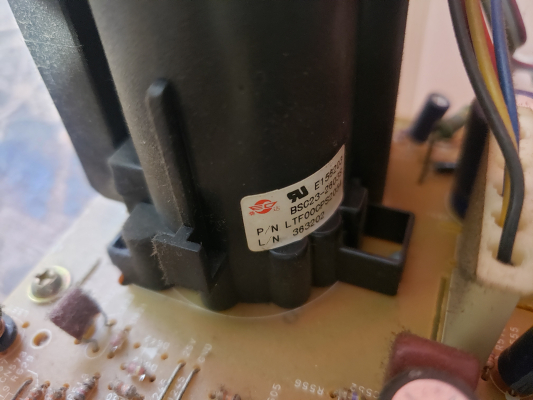

| Flyback: | BSC23-2603S |
| Focus Type: | Single |

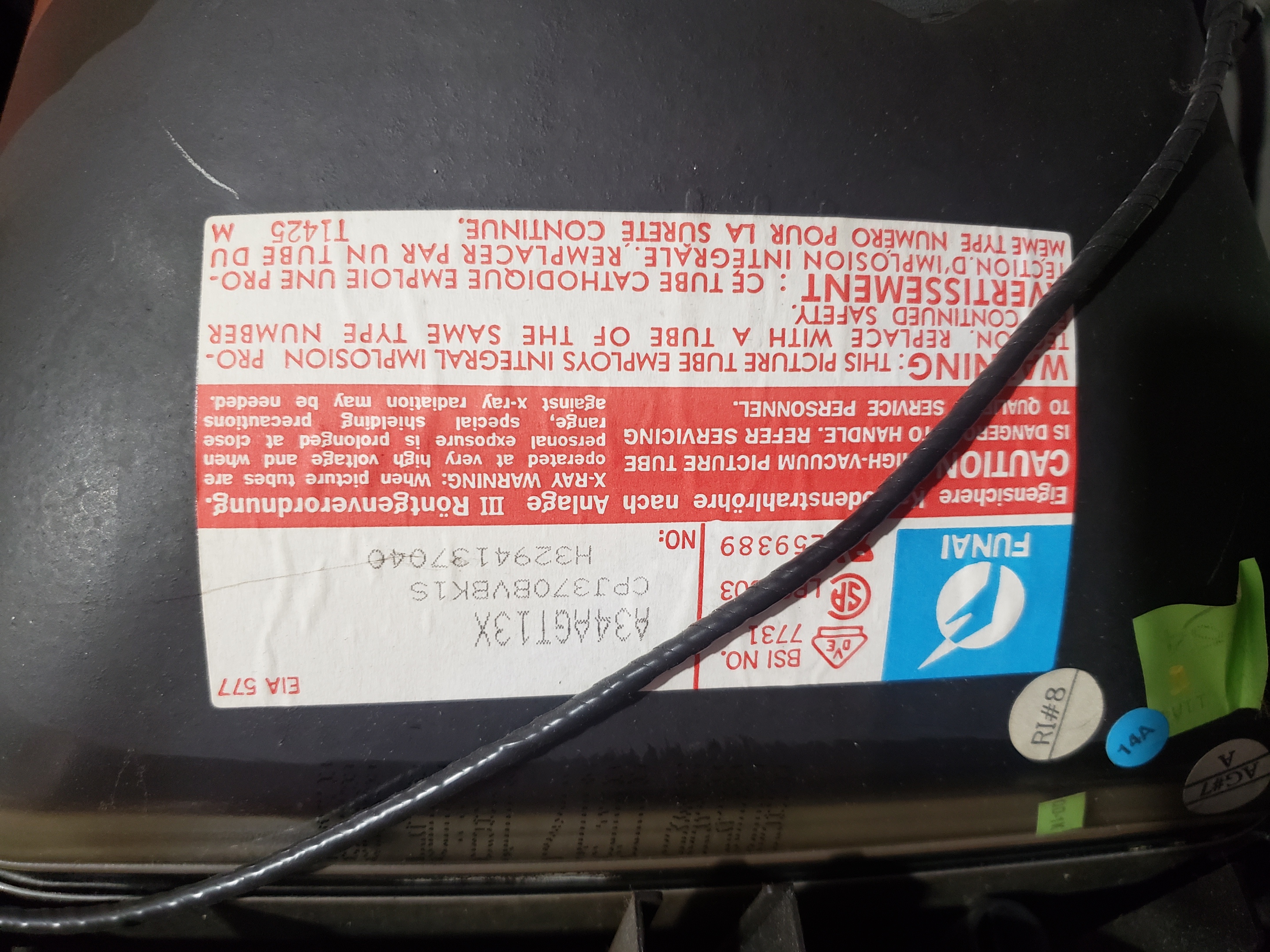

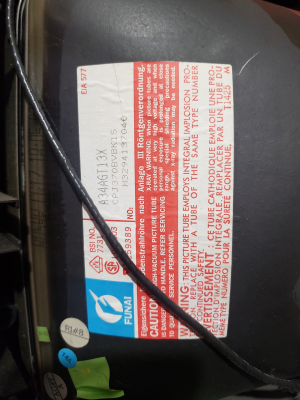

| Tube: | A34AGT13X , A34JXV70X , A34KQW42X , A34KPU02XX , A34JQQ093X , A34JLL90X , A34LRQ90X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

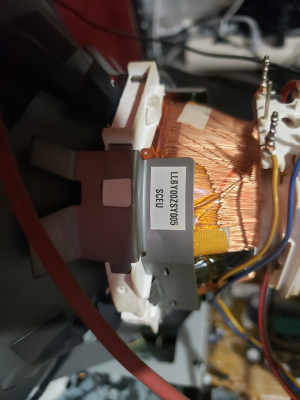

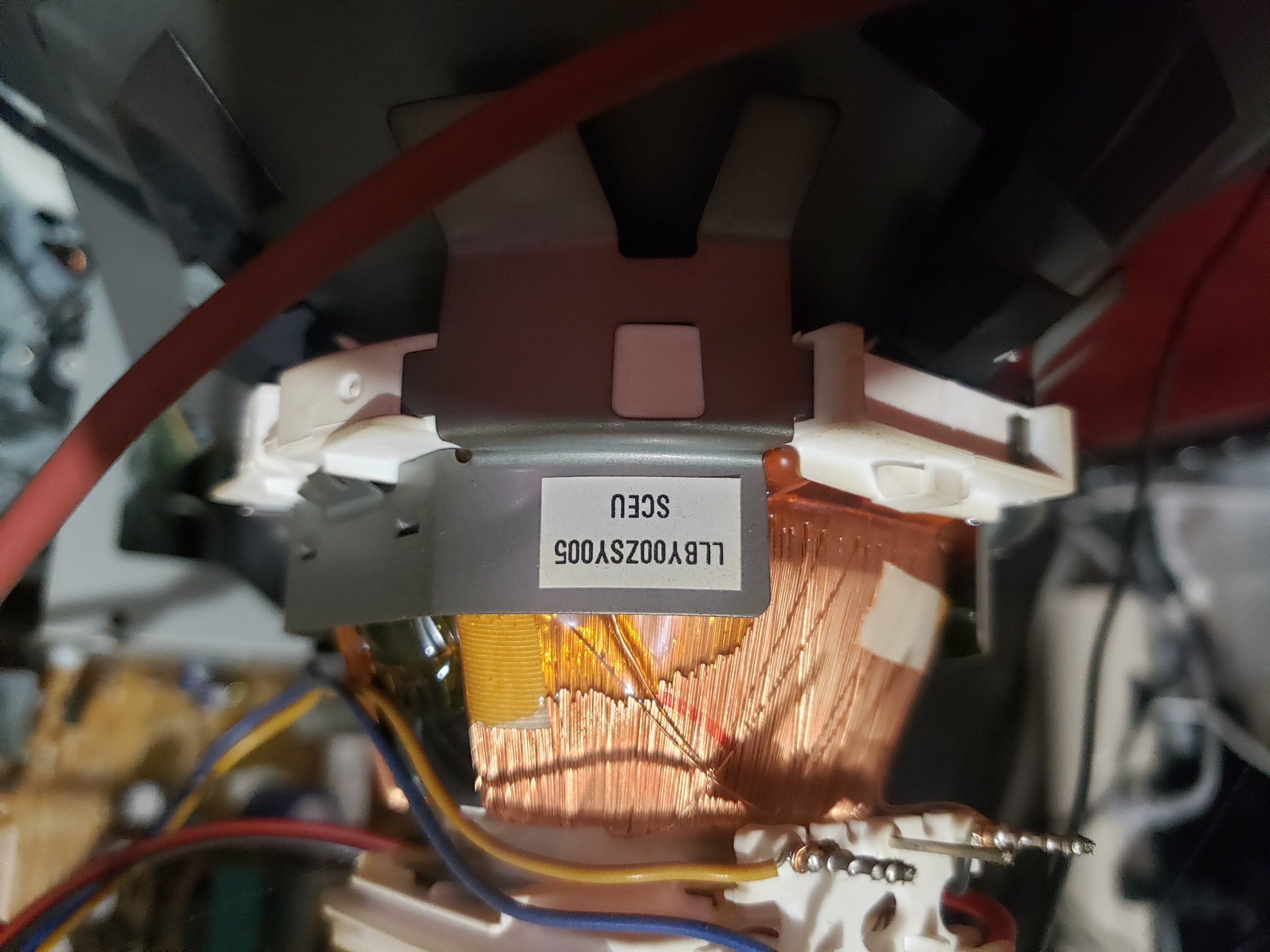

| Yoke: | DSE-2602CL, LLBY00ZSY002, CDY-M1456S, CDY-M1422F, CDY-M1455F, LLBY00ZSY005, KDY3GDA82X, KDY3GCE83X, DSE1493FU, LLBY00ZSY003, KDY3GD592X |
| Yoke Horz. Inductance: | 2.761 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 32.35 mH (@ 100 Hz) |
| Speakers: | Mono, Headphone Jack |
| Remote: | N0159UD, N0162UD |
| Chassis: | 0ESA05886 |
| Weight: | 23.15 lbs (10.5 kg) |

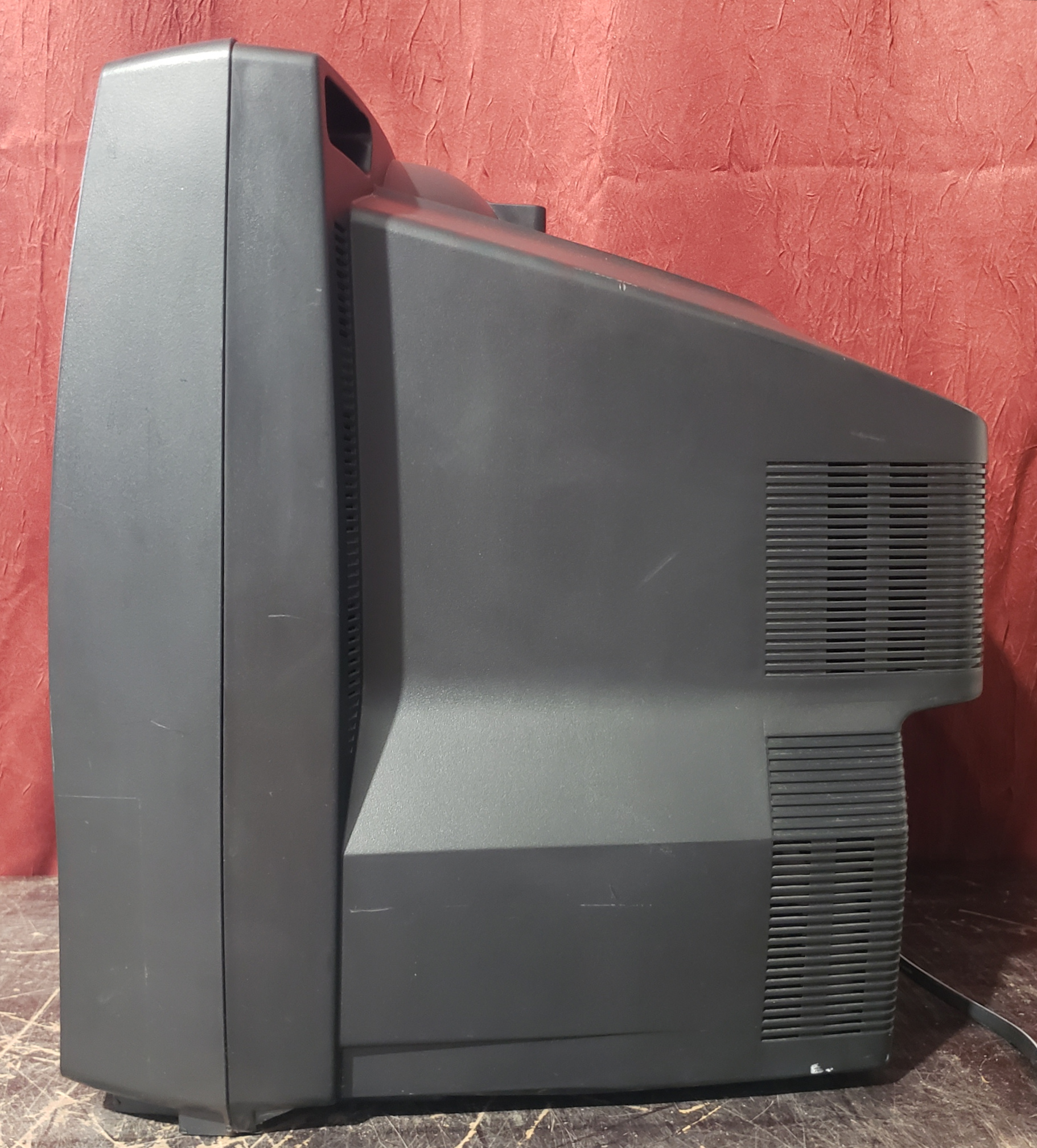

| Dimensions (W/H/D): |
367 x 389 x 377 mm
(14.4 x 15.3 x 14.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), Carrying Handle |
| Degaussing: | Automatic on Power-on |
