Summary

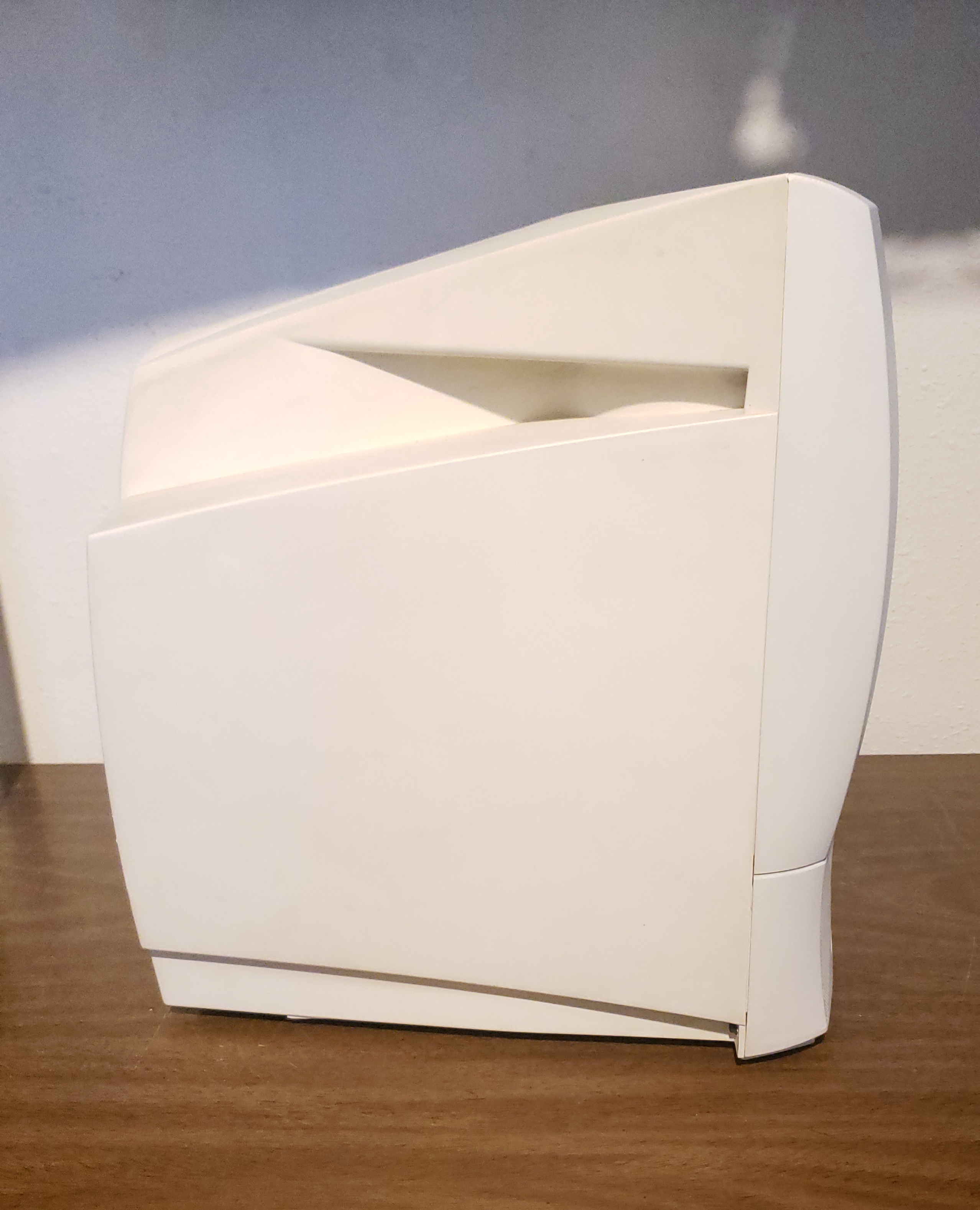

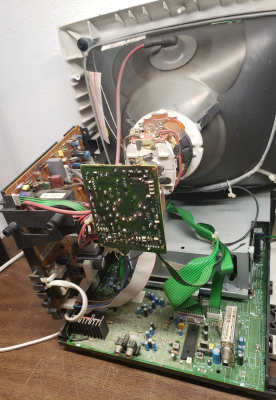

Has a hidden 180° swivel base. Same chassis and nearly the same plastics as the RCA T13062. Possible RGB mux mod with this Toshiba jungle chip.
Gallery
| Specifications | |
|---|---|
| Brand: | General Electric |
| Manufacturer: | General Electric |
| Model: | 13TVR72 |
| Series: | TV/VCR Combo |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | S2000N |
| Vertical Output IC: | TA8403K |
| Jungle IC: | TA1268N |
| Flyback: | 6174Z-80068 |
| Tube: | A34JXV70X , Thai CRT Co. , A34JXV70X14 |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.64 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 9D062 |
| Yoke Horz. Resistance: | 3.9 ohm |
| Yoke Vert. Resistance: | 15.1 ohm |
| Speakers: | Mono |
| Chassis: | UDP13/UR21 |
| Weight: | 29 lbs (13.2 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Thailand |
| Mounting: | Carrying Handle, Turntable |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
