Summary

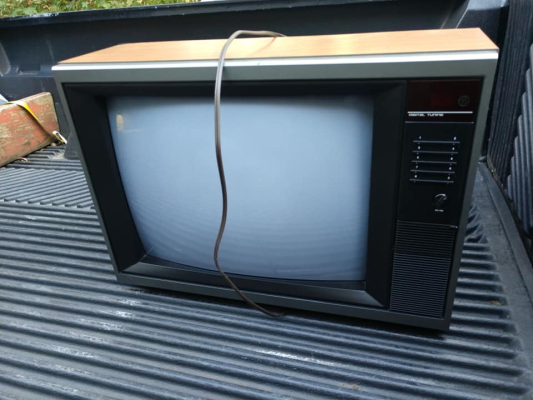

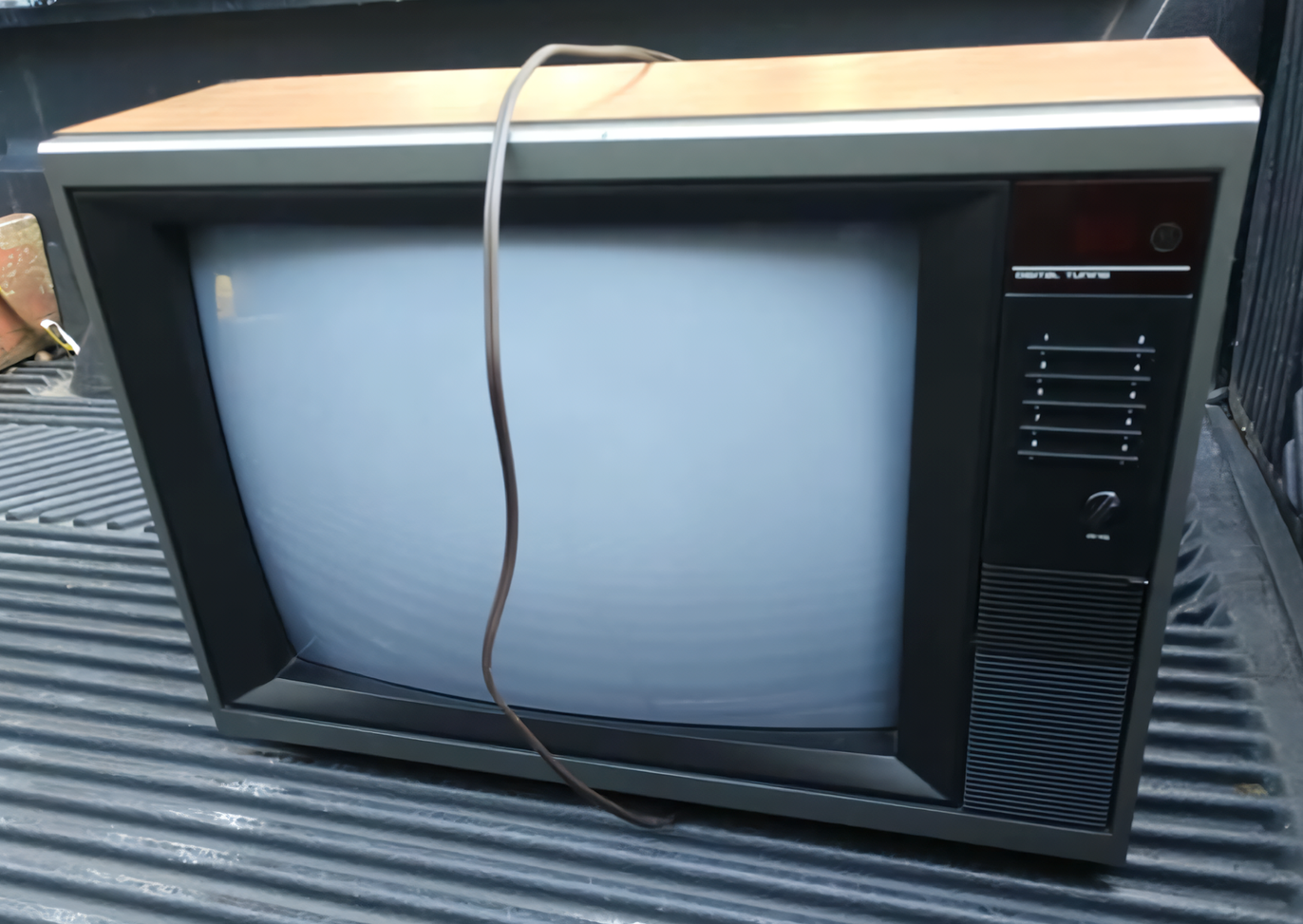

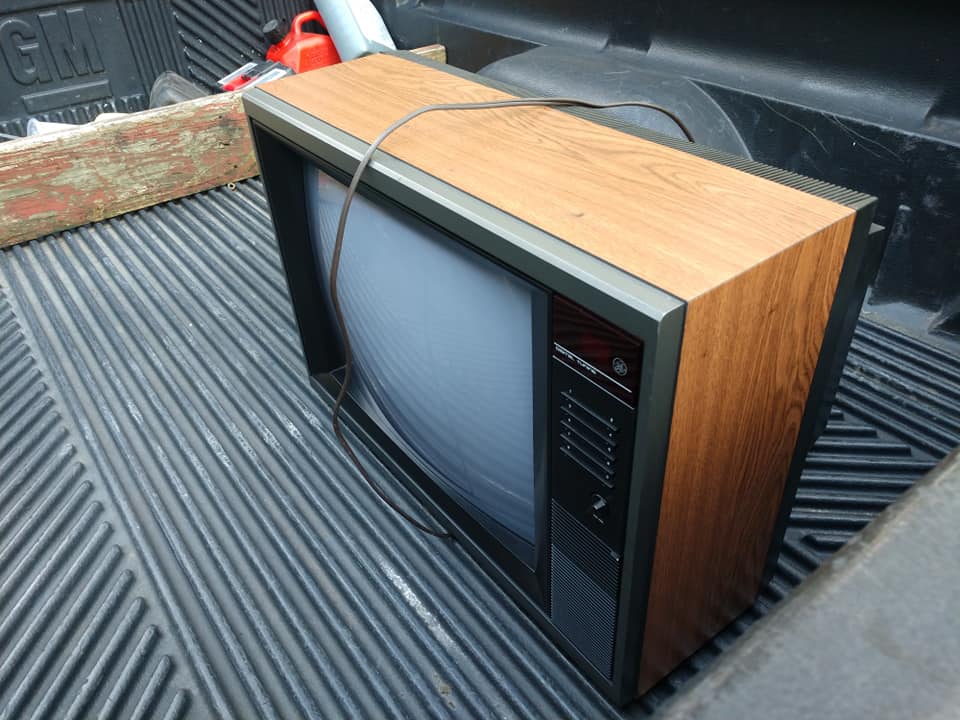

20" CRT by General Electric. Manufactured by RCA at their Indianapolis plant, which had come into the ownership of Thomson in 1987.
Manuals
(None at this time.)
Notes
GE had acquired RCA in 1985, and sold theirs and RCA's electronics division to Thomson in 1987.
Picture tube is a special model called Neo Vision. Made by RCA, it uses light-absorbing chemicals mixed into the glass to reduce glare. EIA registration

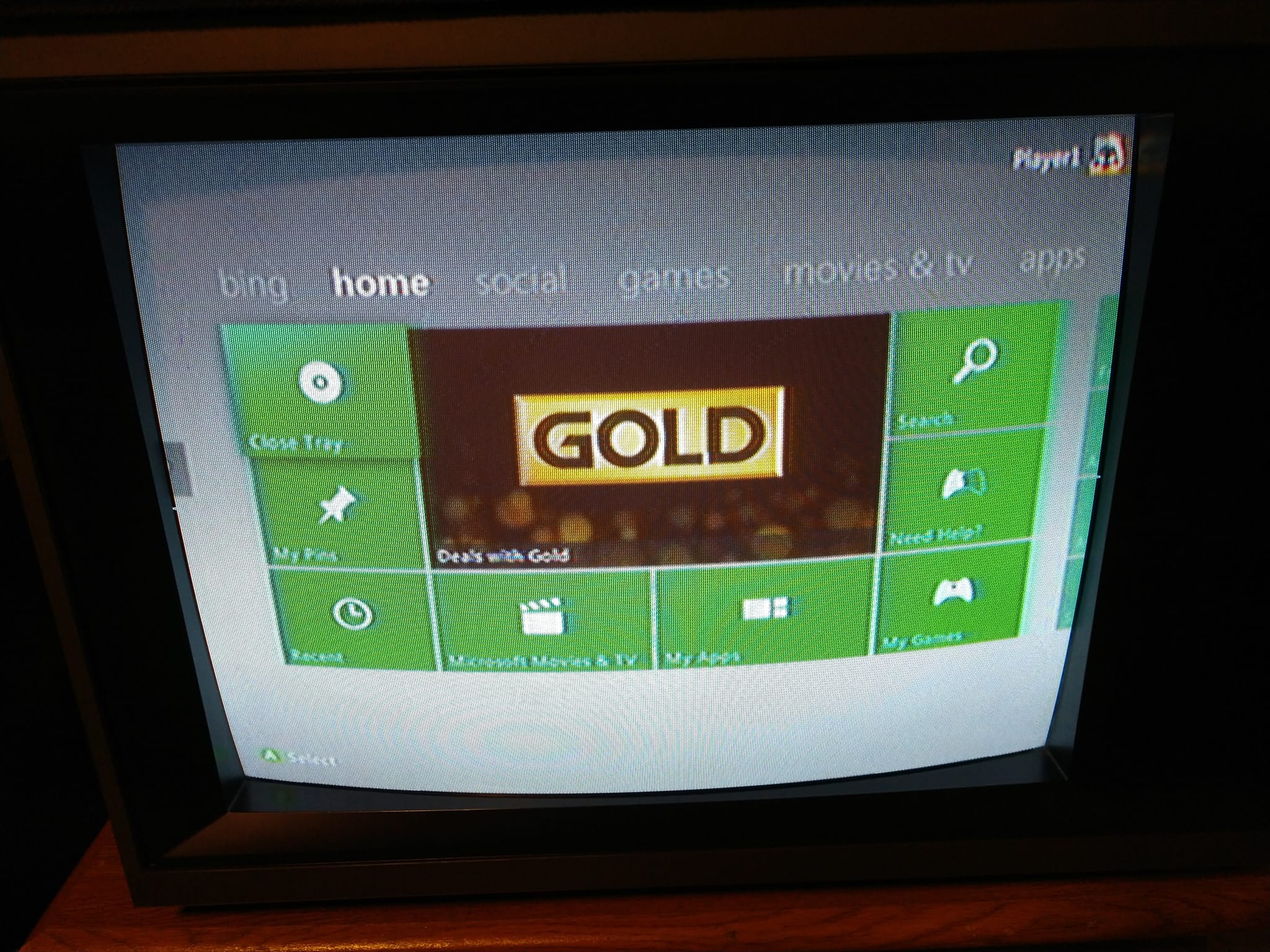

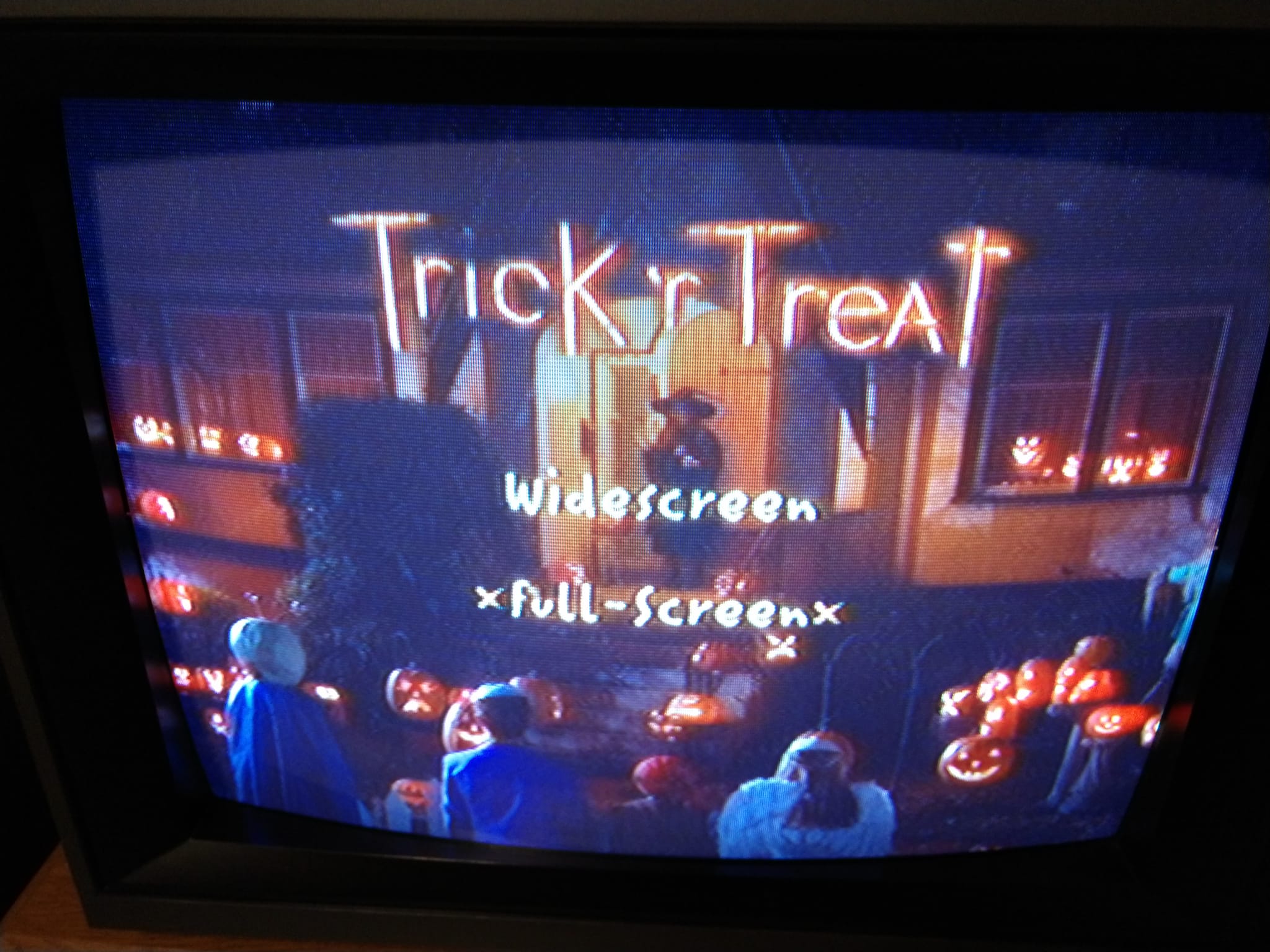

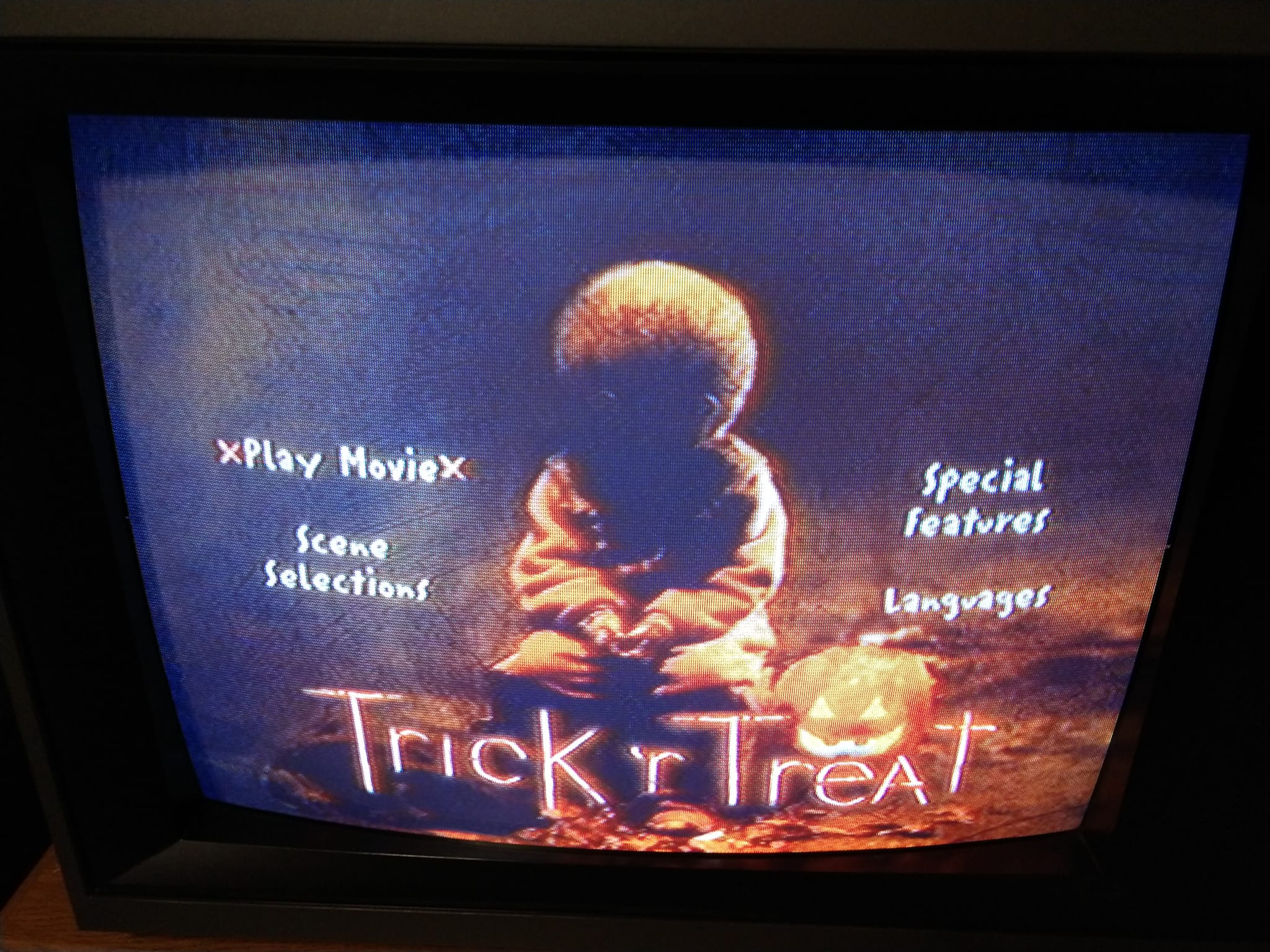

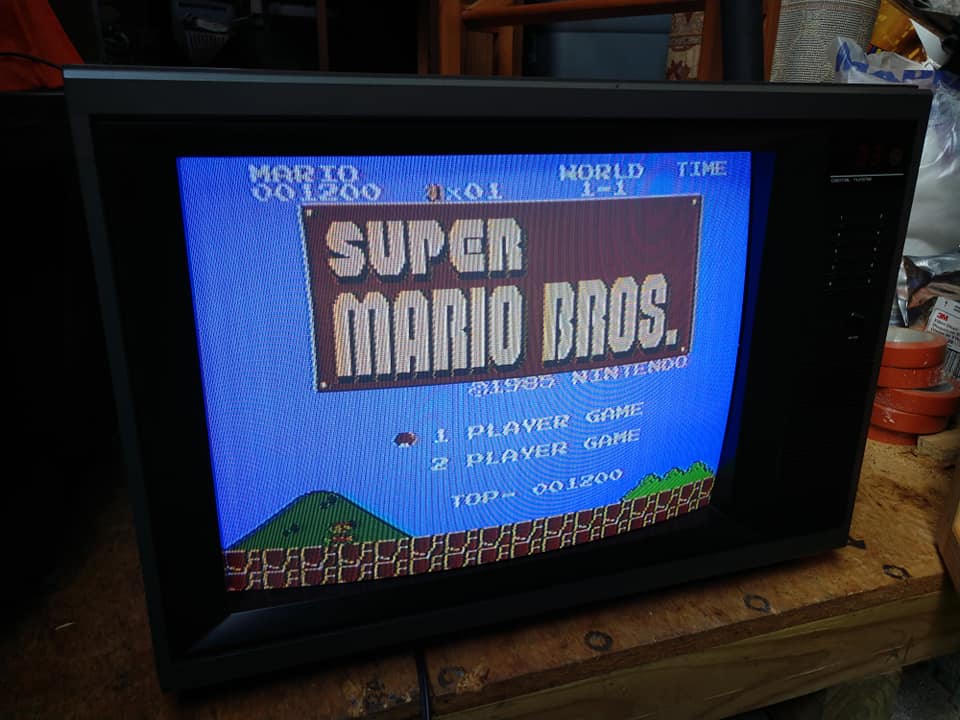

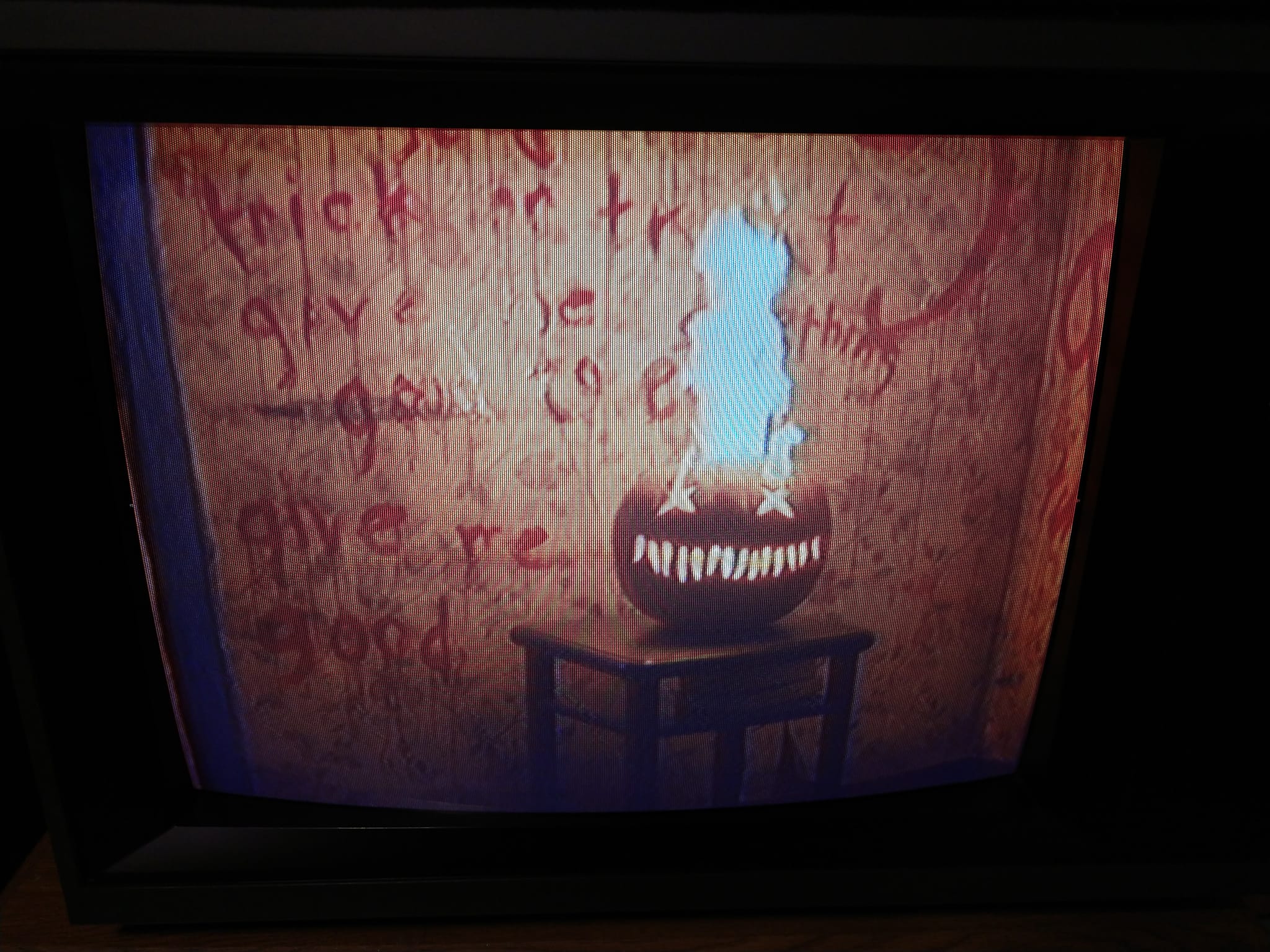

Gallery
| Specifications | |
|---|---|
| Brand: | General Electric |
| Manufacturer: | RCA-Thomson |

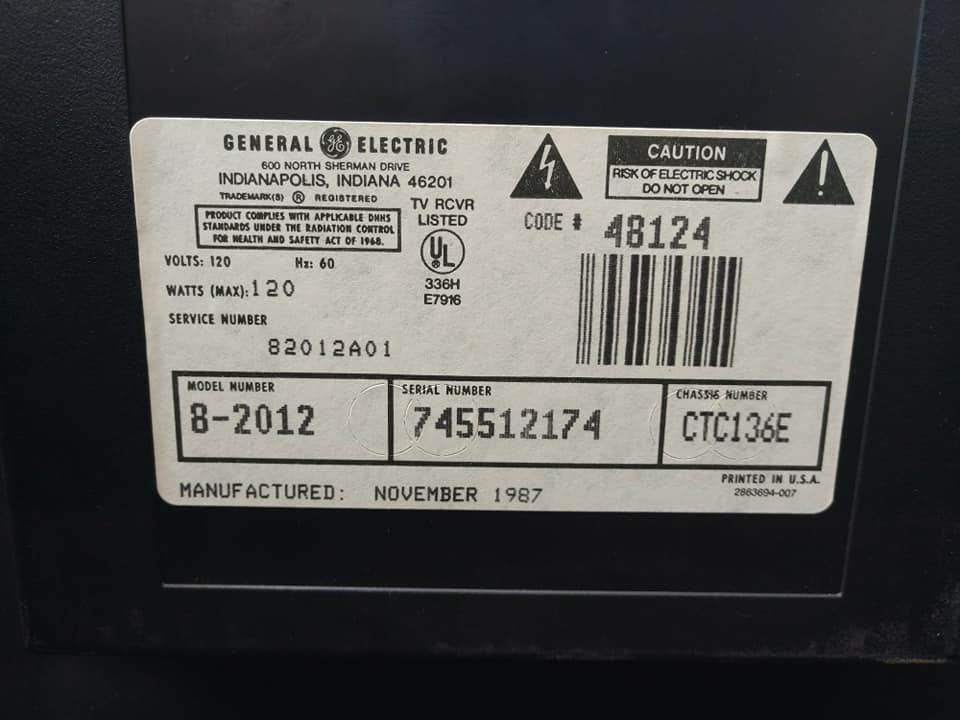

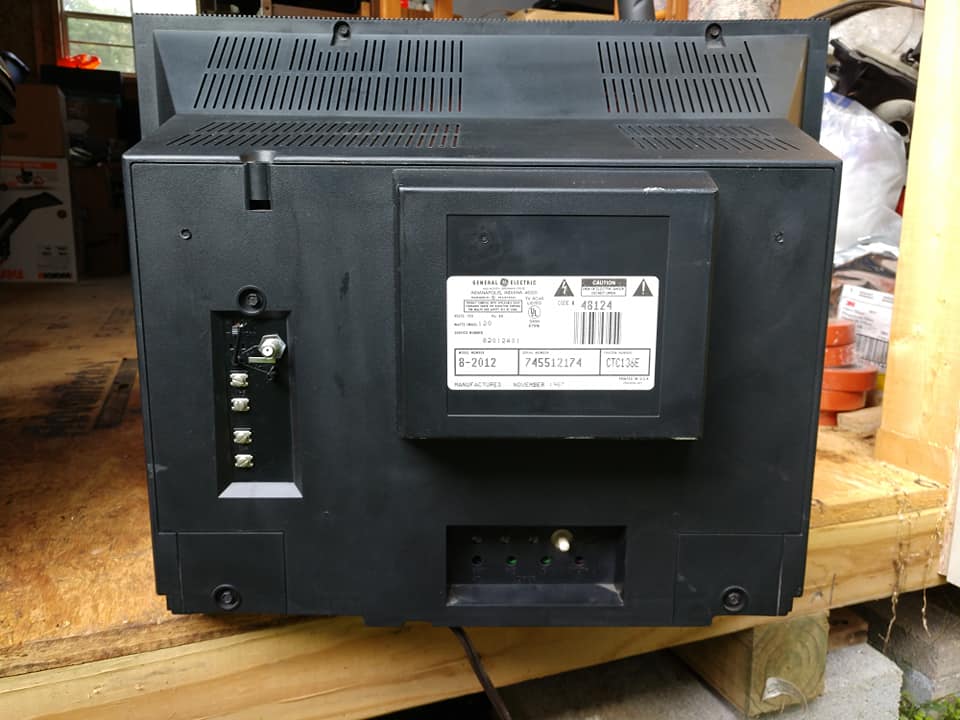

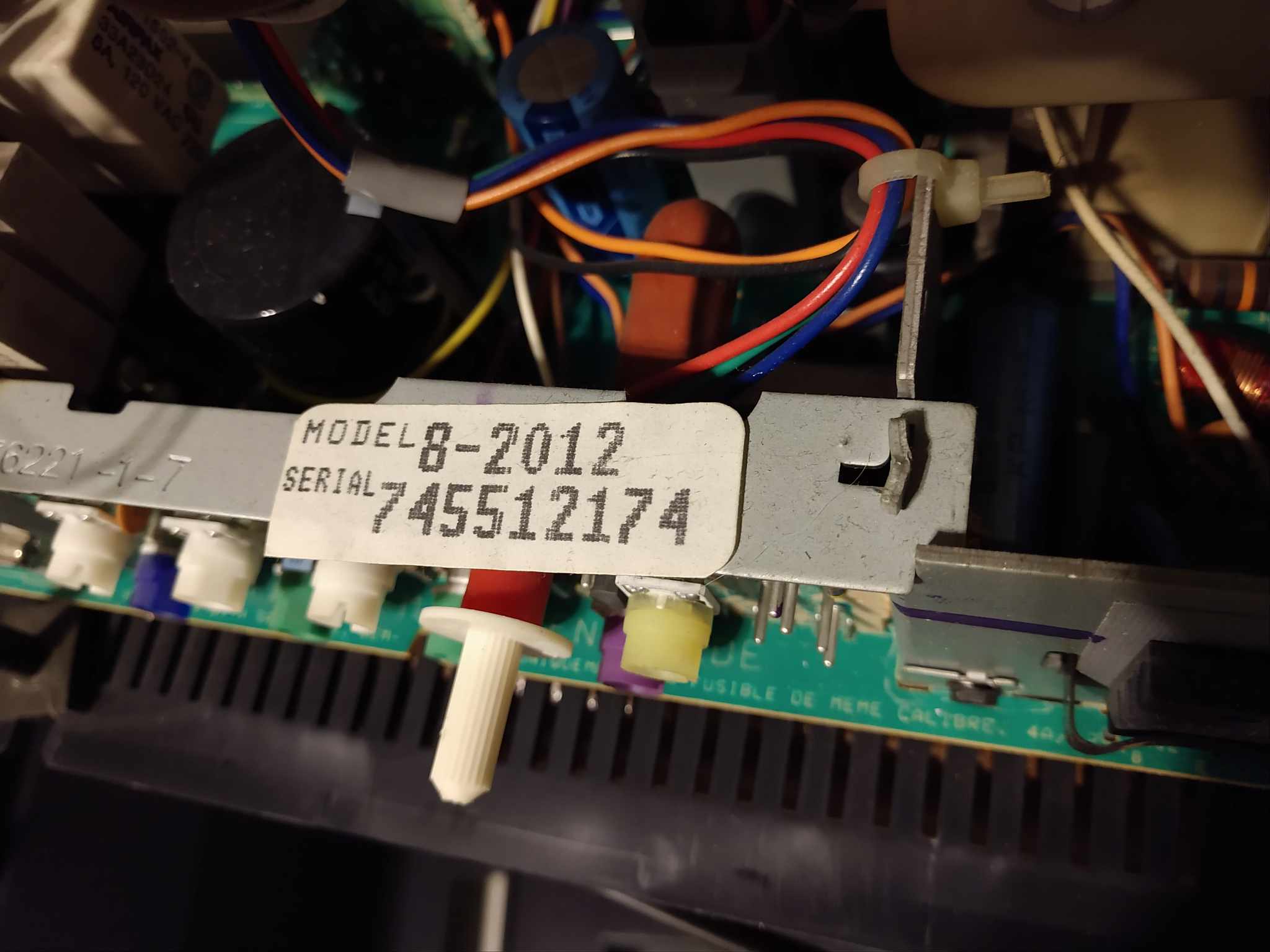

| Model: | 8-2012 |
| Series: | 8 |
| Viewable Size: | 20" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

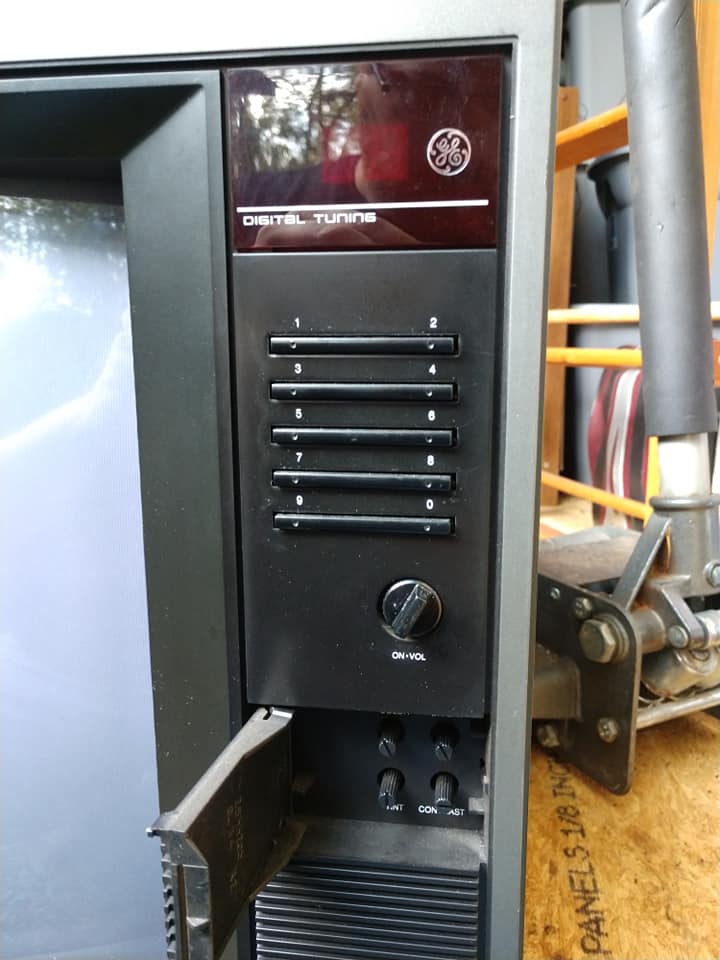

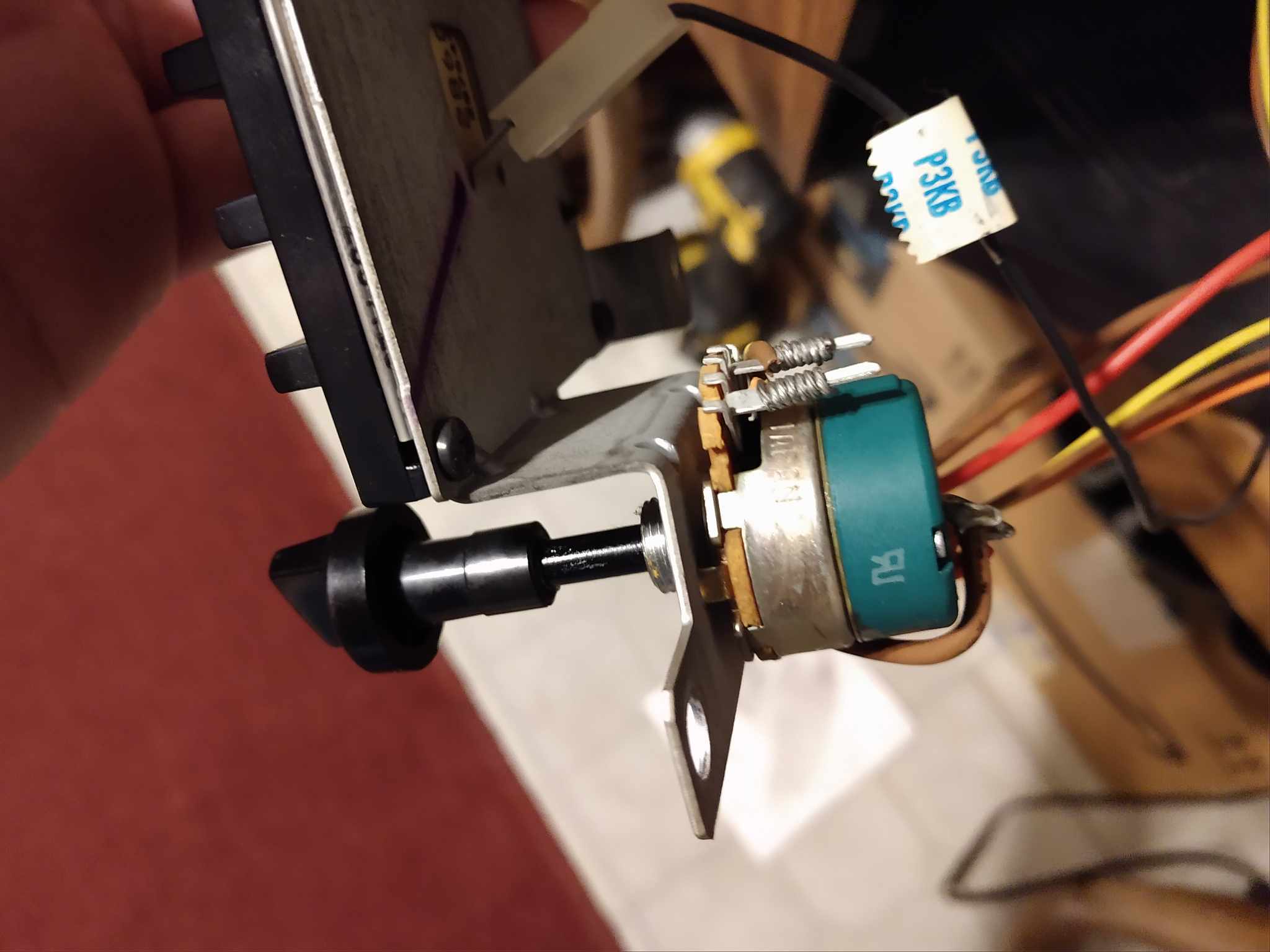

| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle: | Panasonic, A23 862-1 |
| Focus Type: | Single |

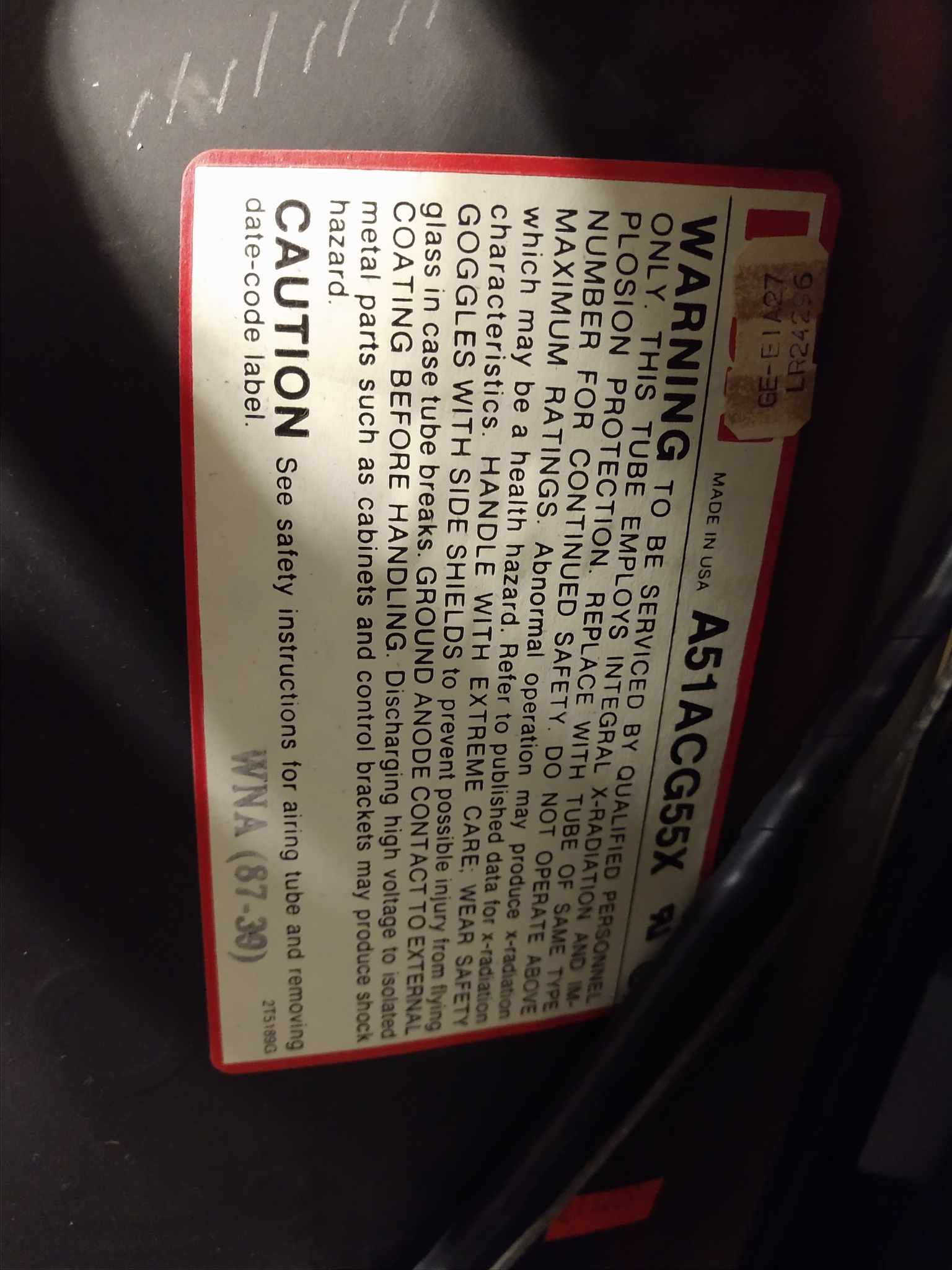

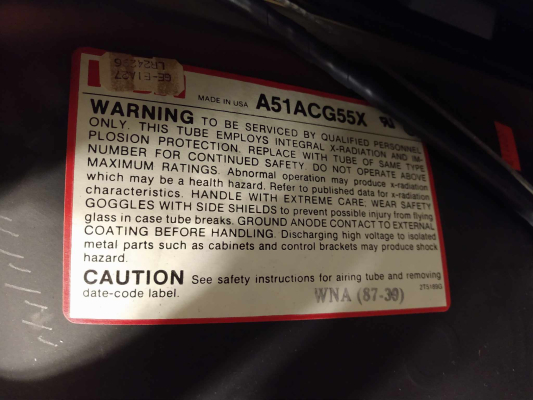

| Tube: | RCA , A51ACG55X |
| Mask: |
Slot
|
| Tint: | Neo Vision |
| Removable Glare Film: | No |

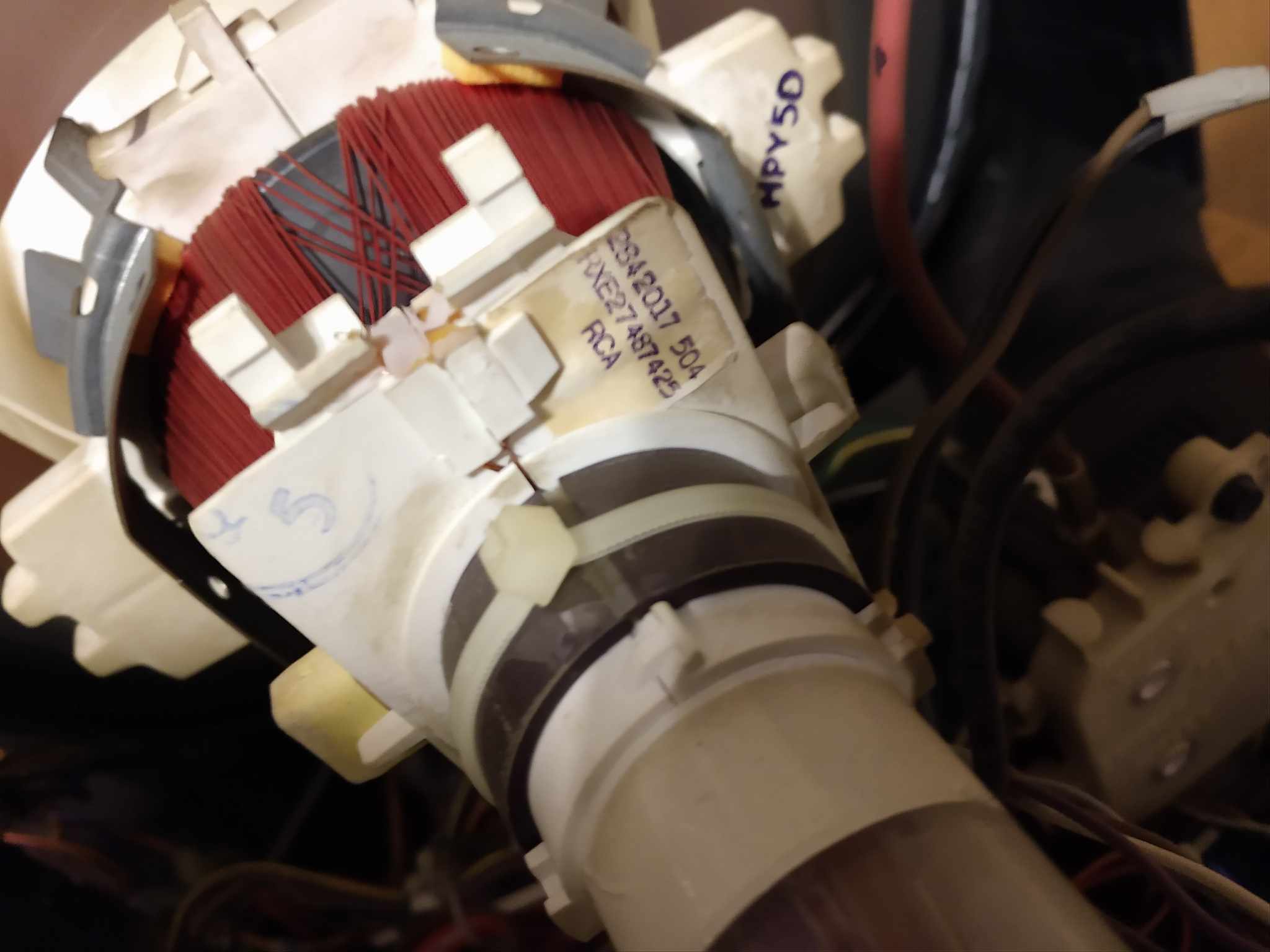

| Yoke: | RXE27487428 |
| Speakers: | Mono |

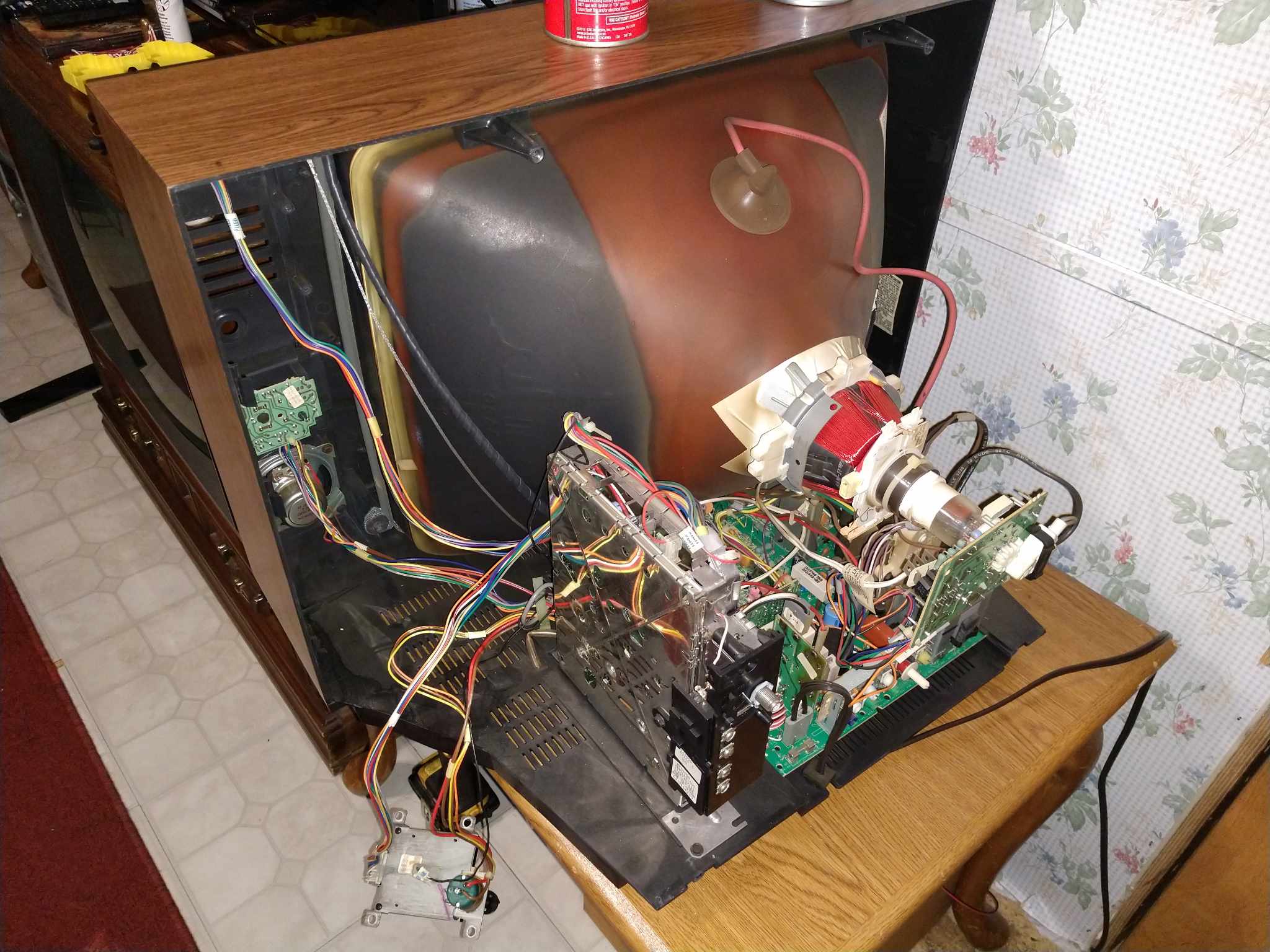

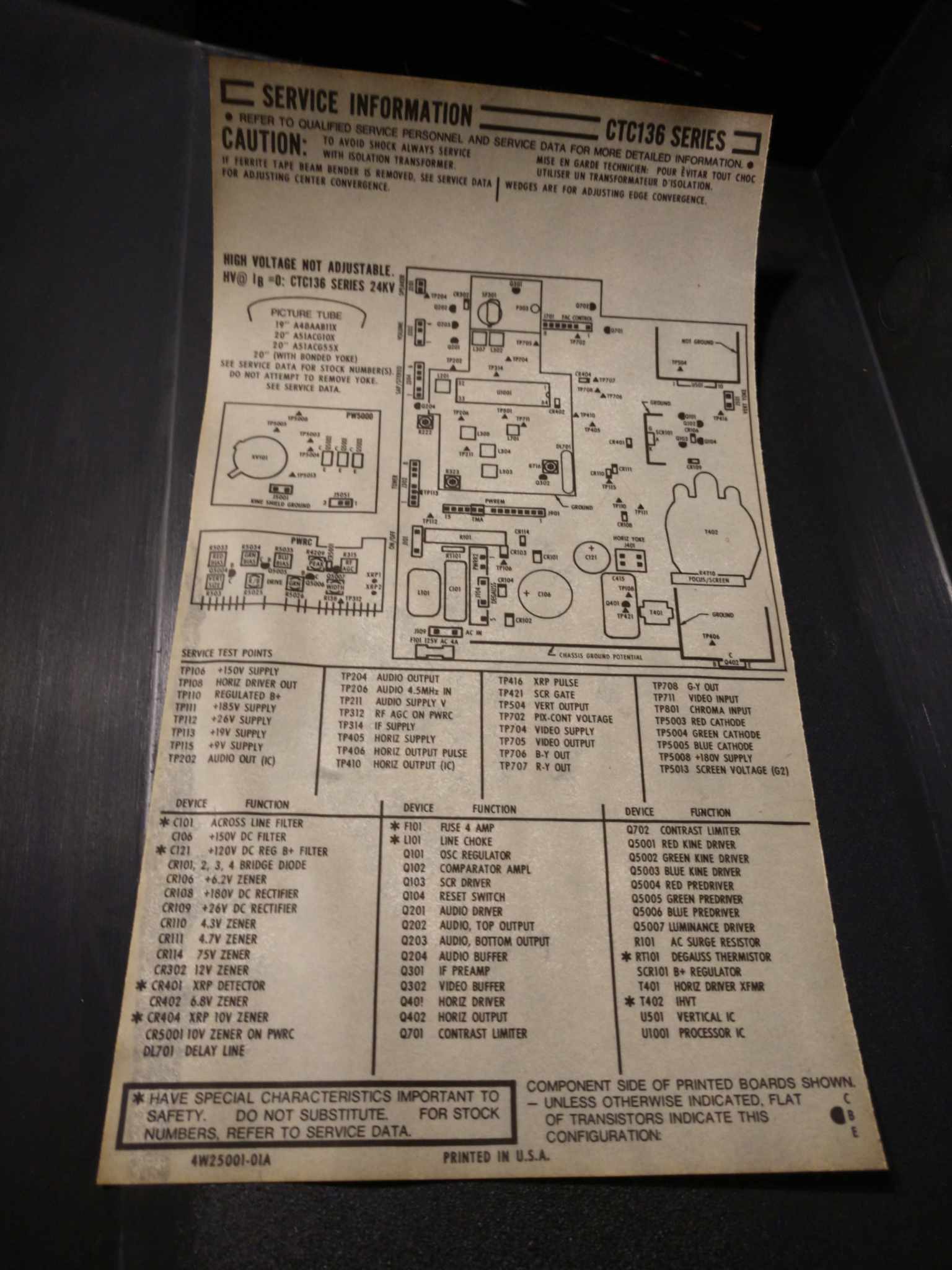

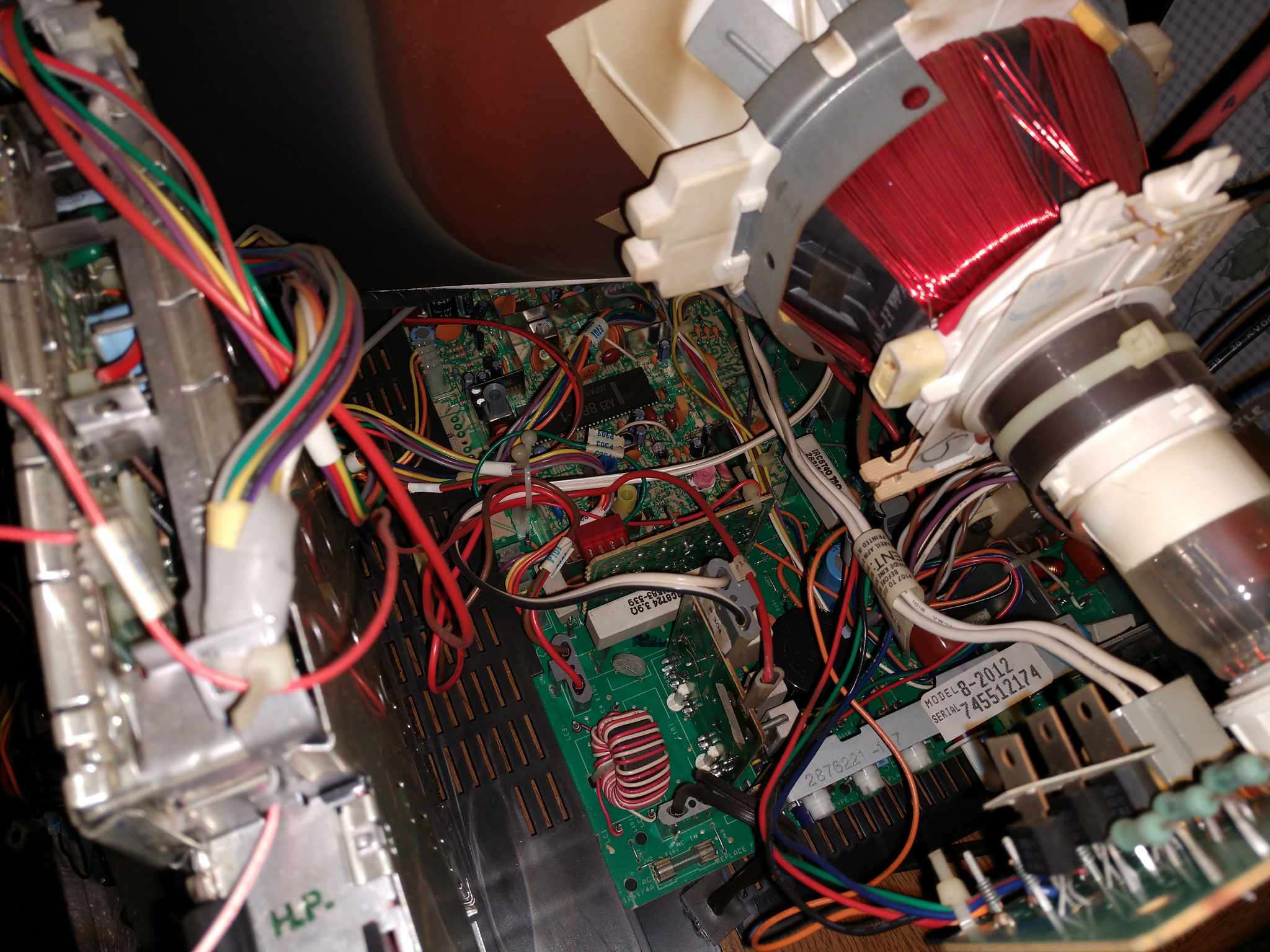

| Chassis: | CTC136E |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1987 |
| MSRP: | 349 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
