Summary

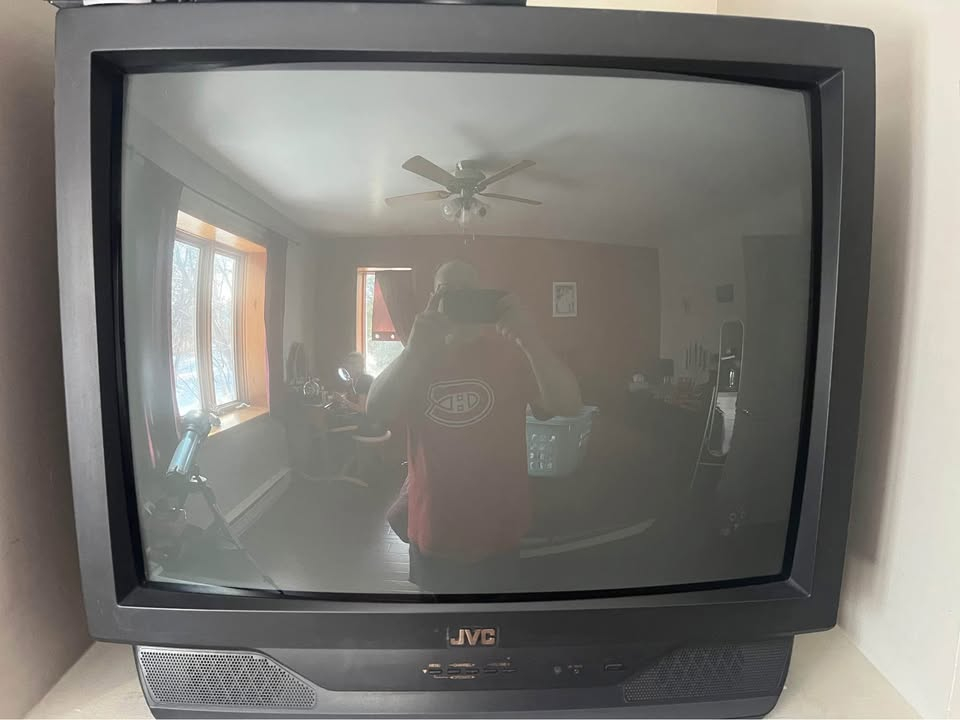

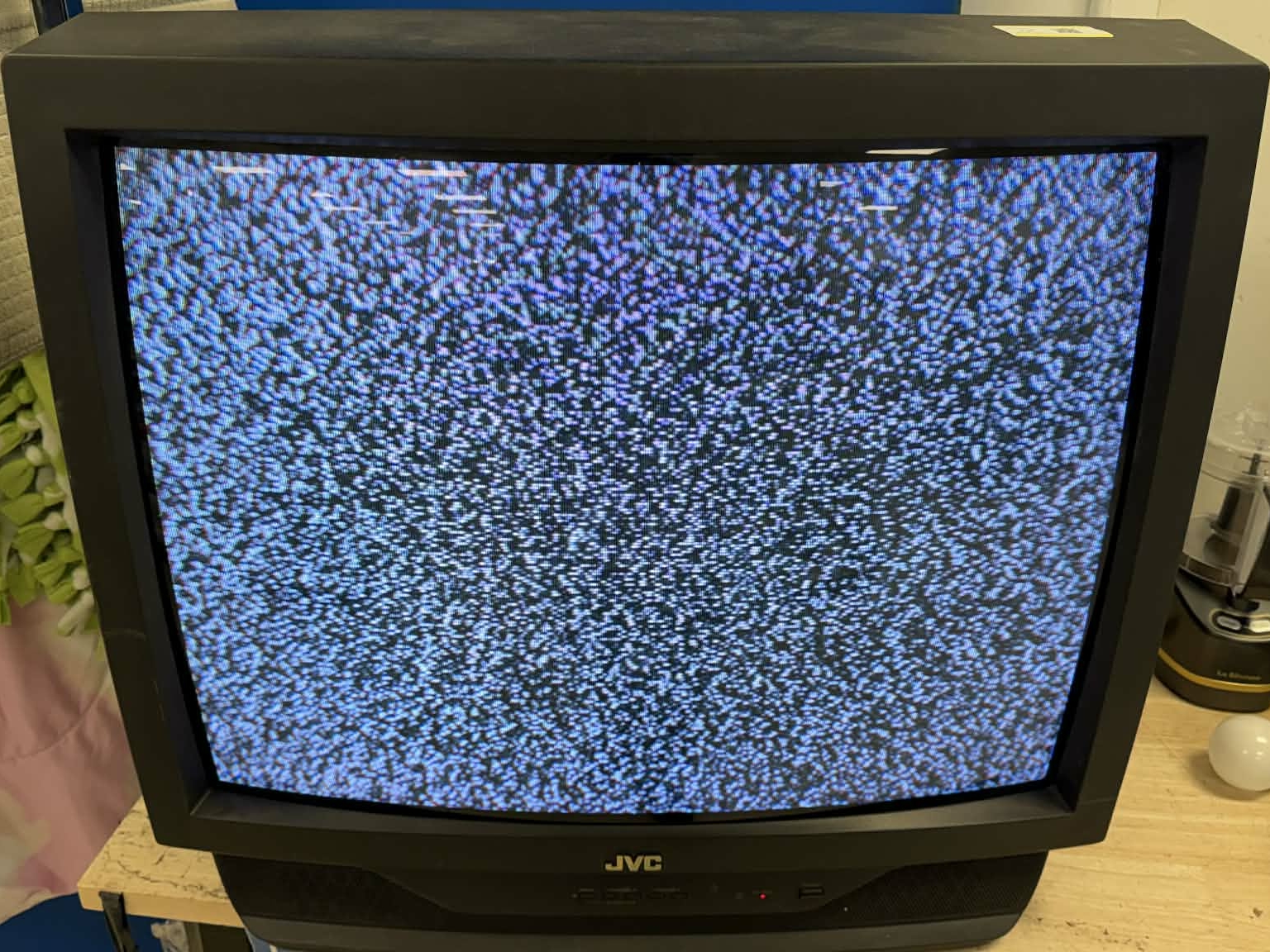

27" consumer TV from JVC with RF, composite, and S-Video inputs. Made in Mexico in 1999.
Manuals
Media & Promo Materials
RGB Mod
Link to Sunthar's RGB mod guide here: Link

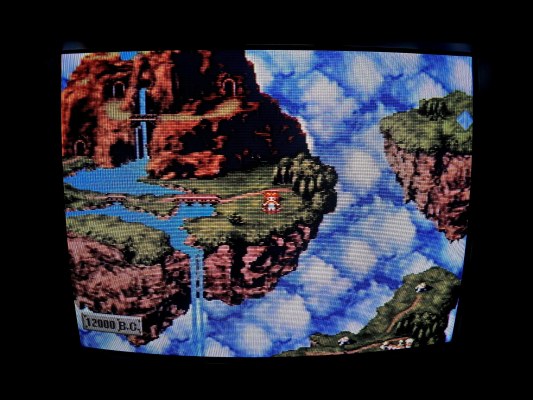

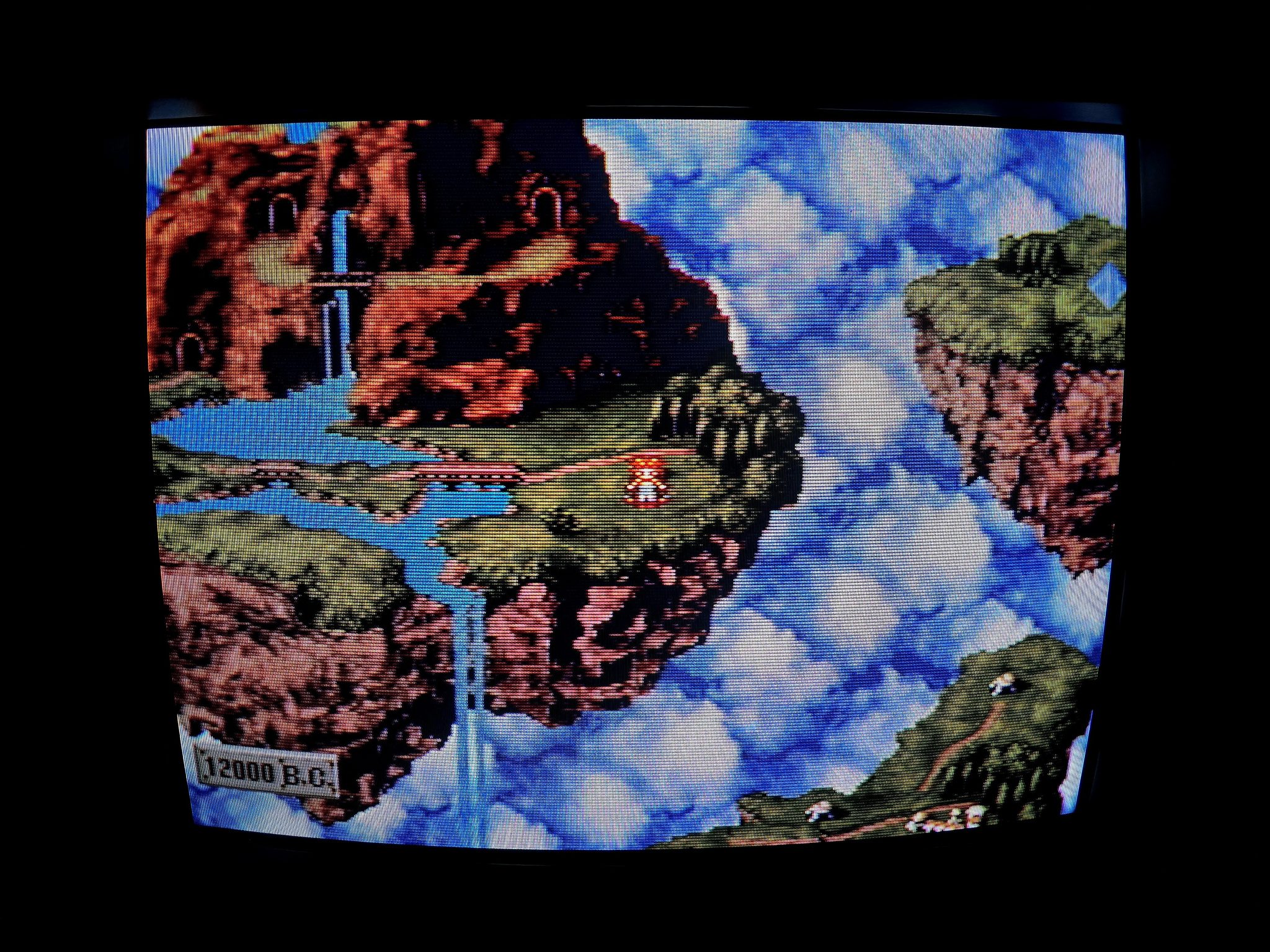

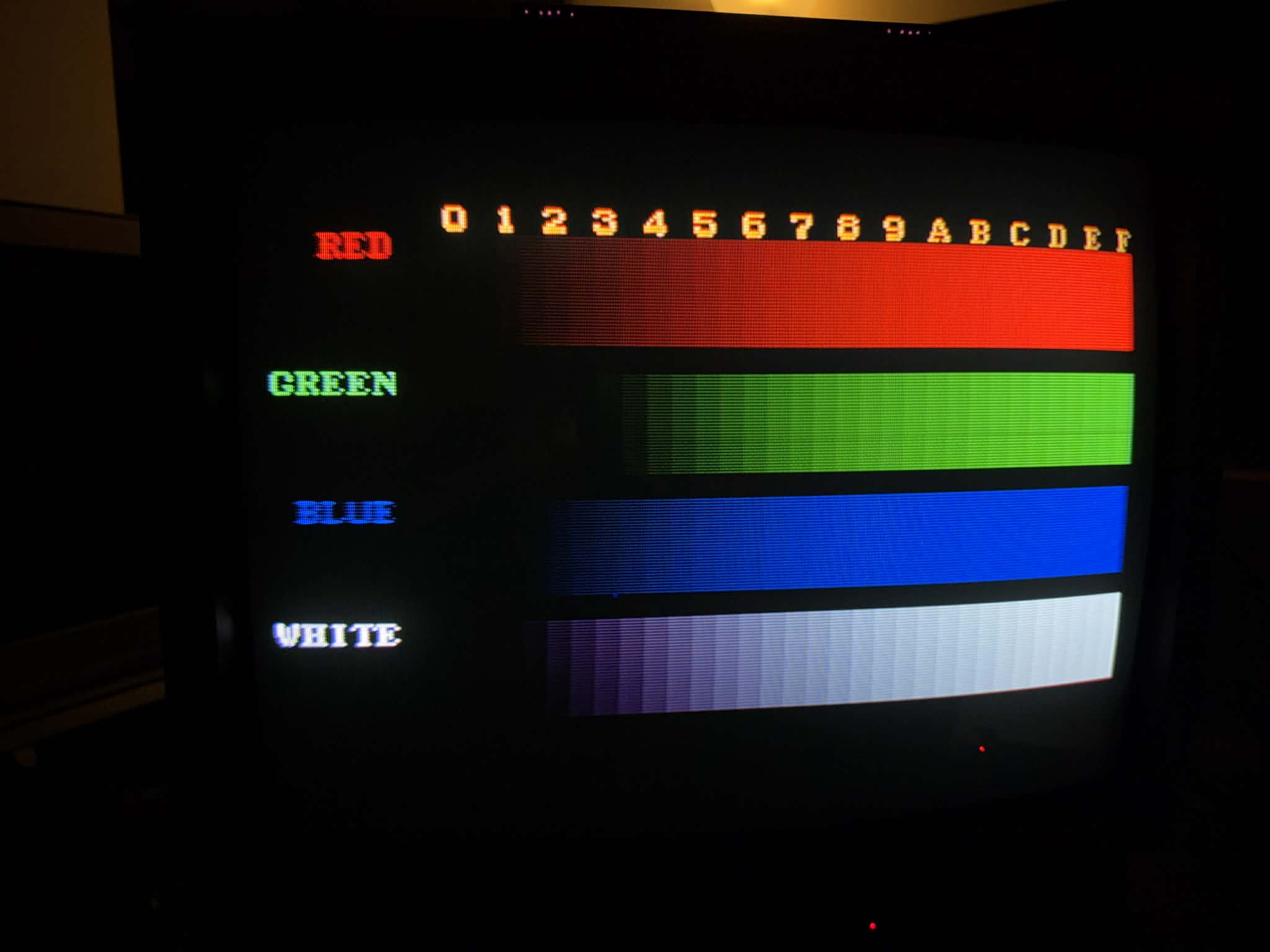

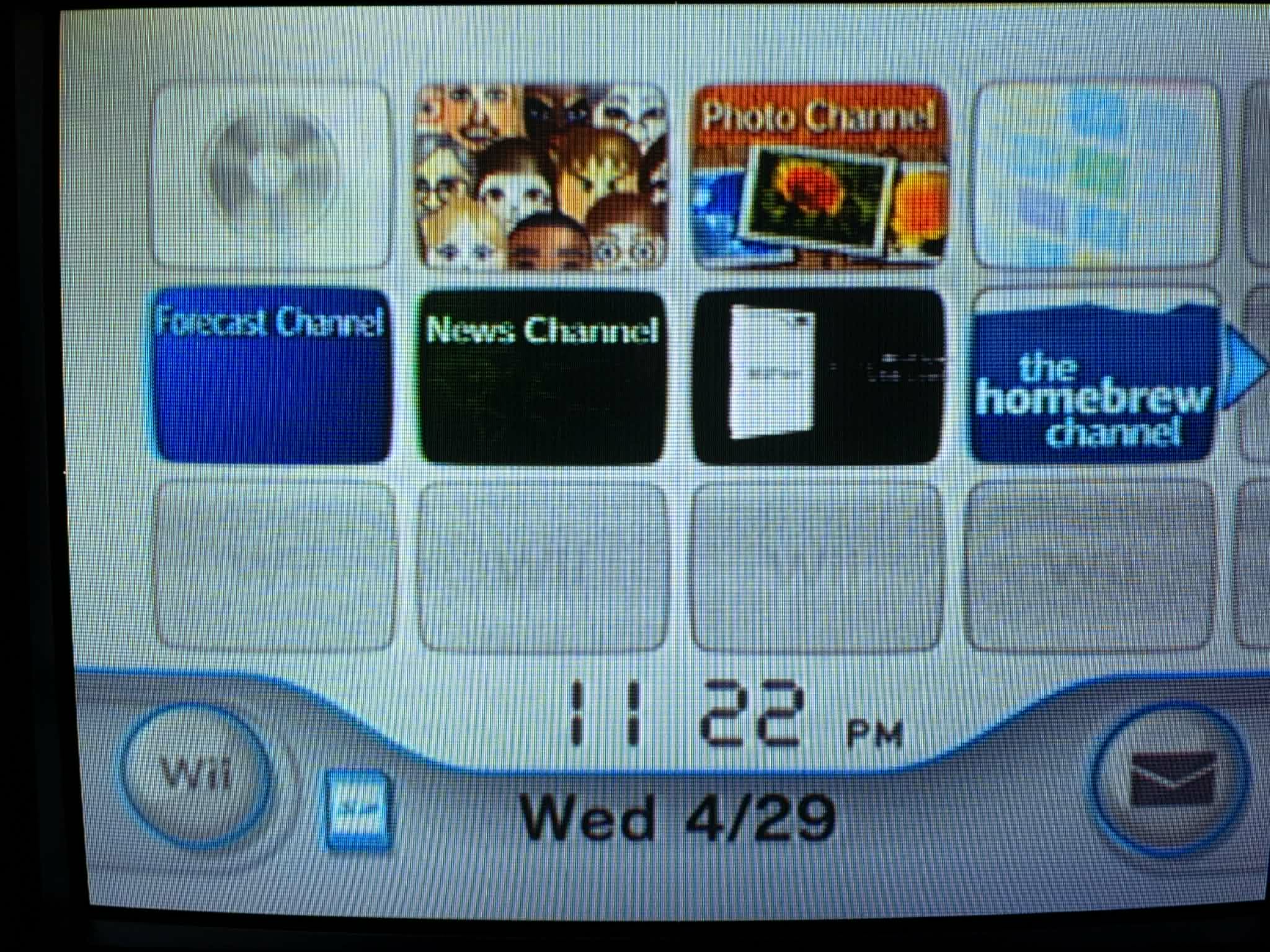

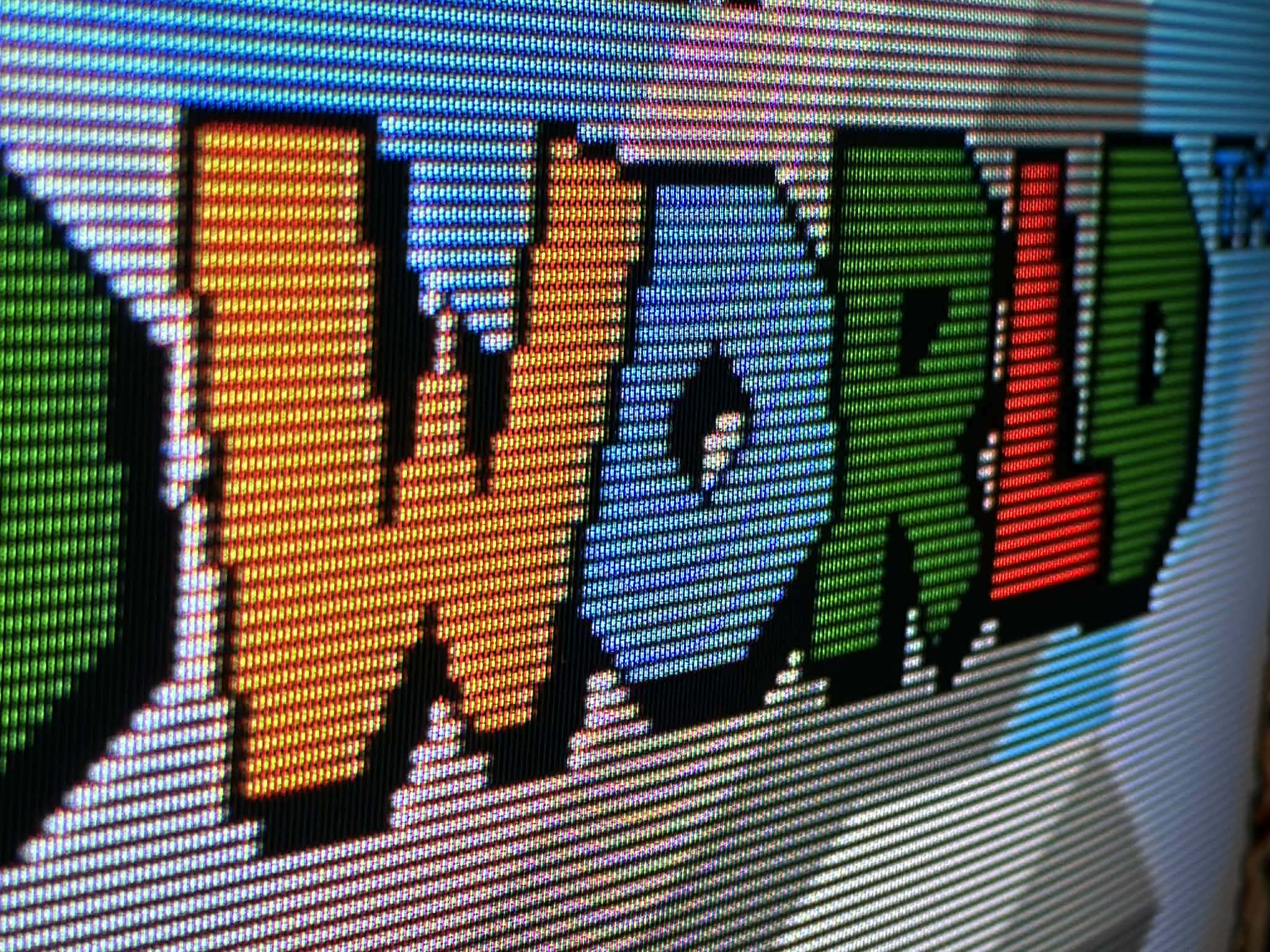

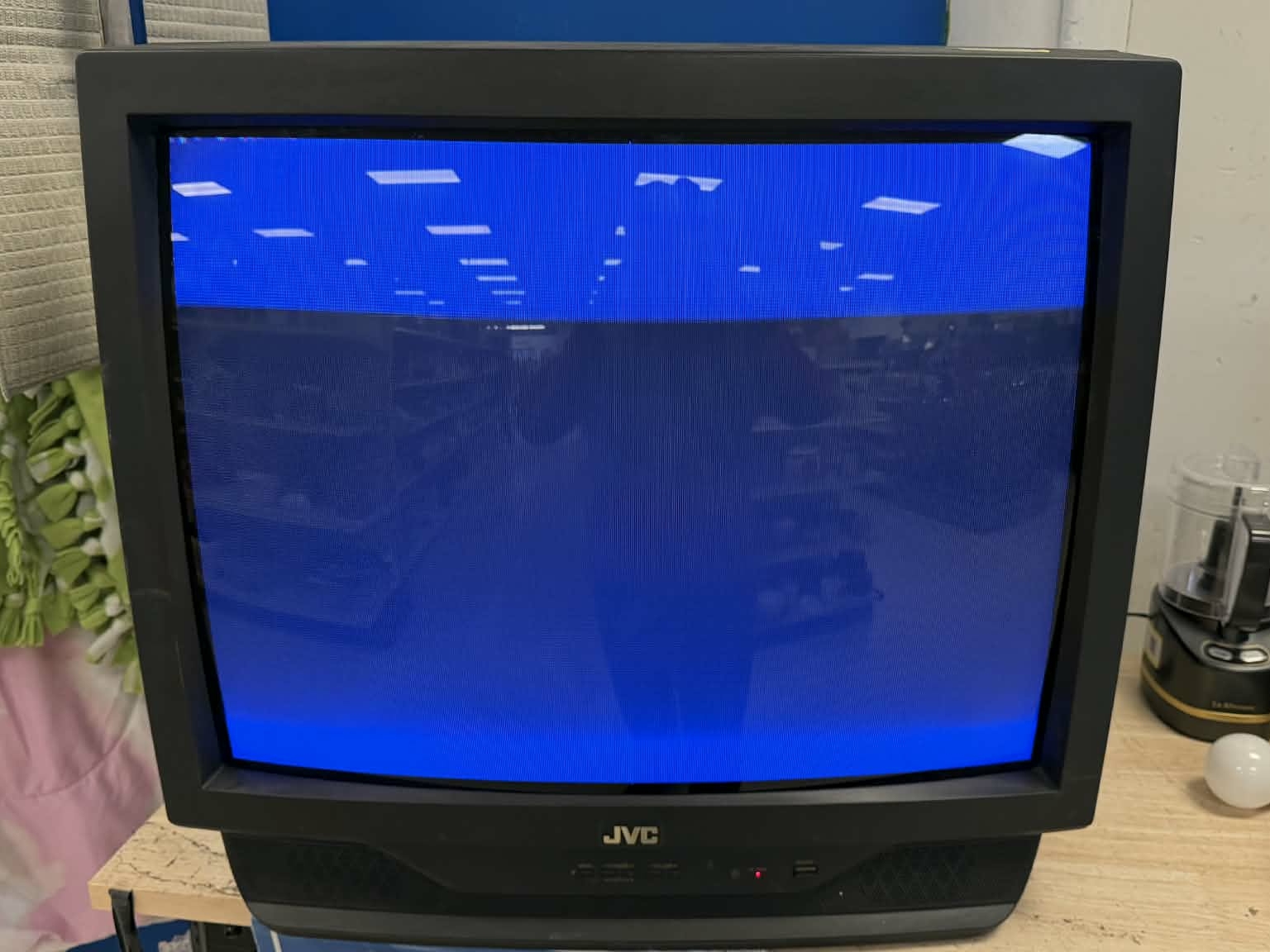

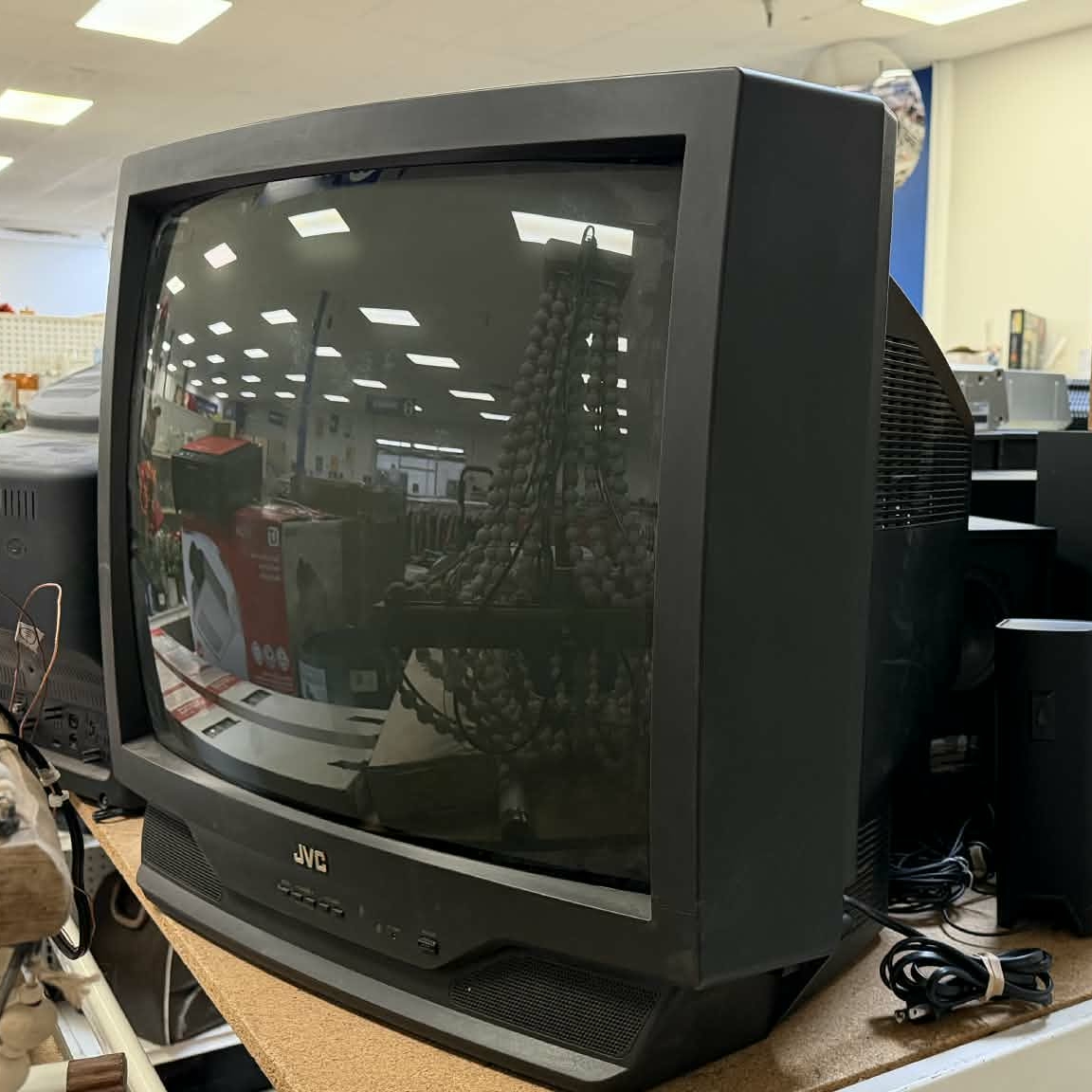

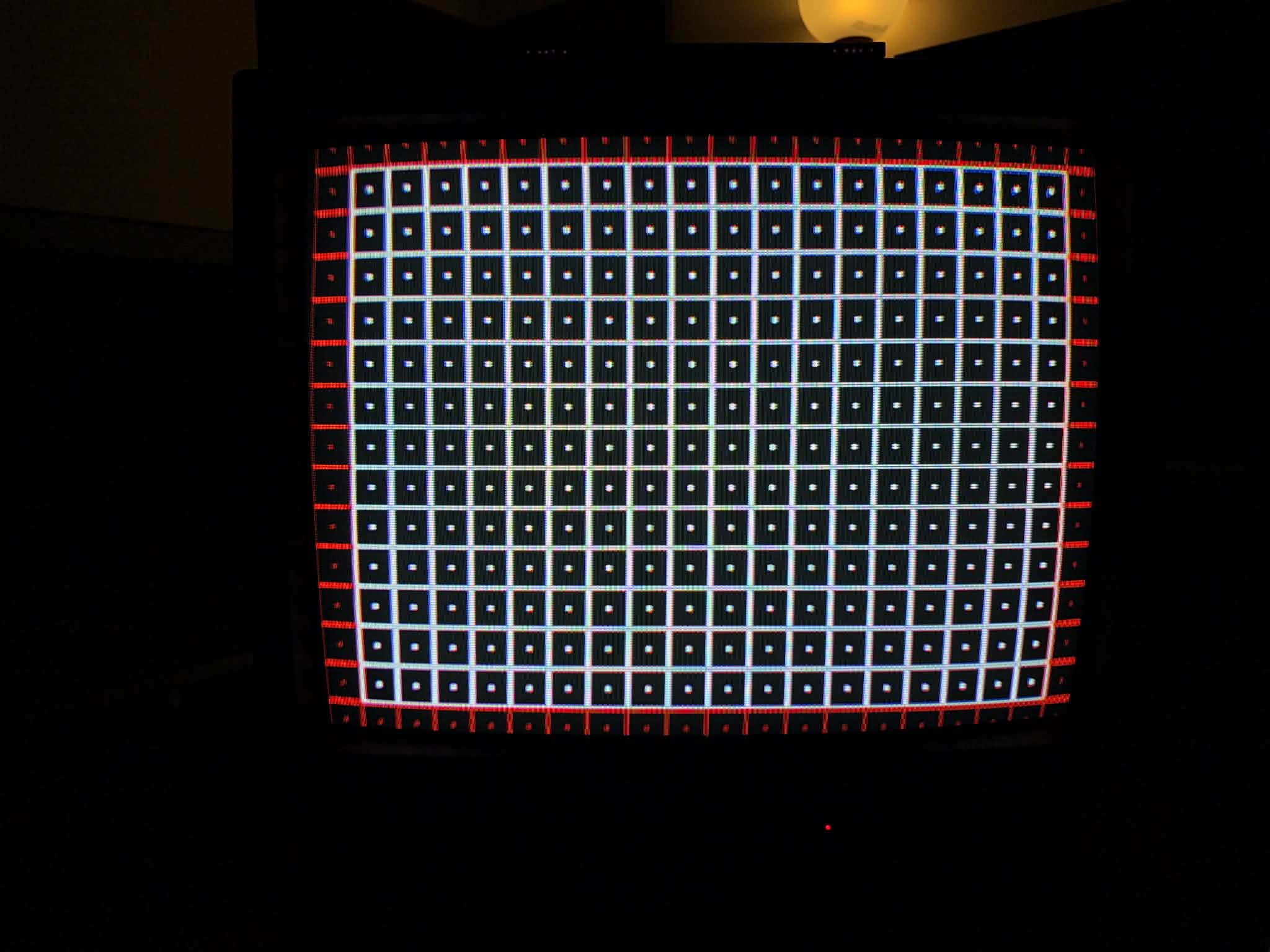

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |

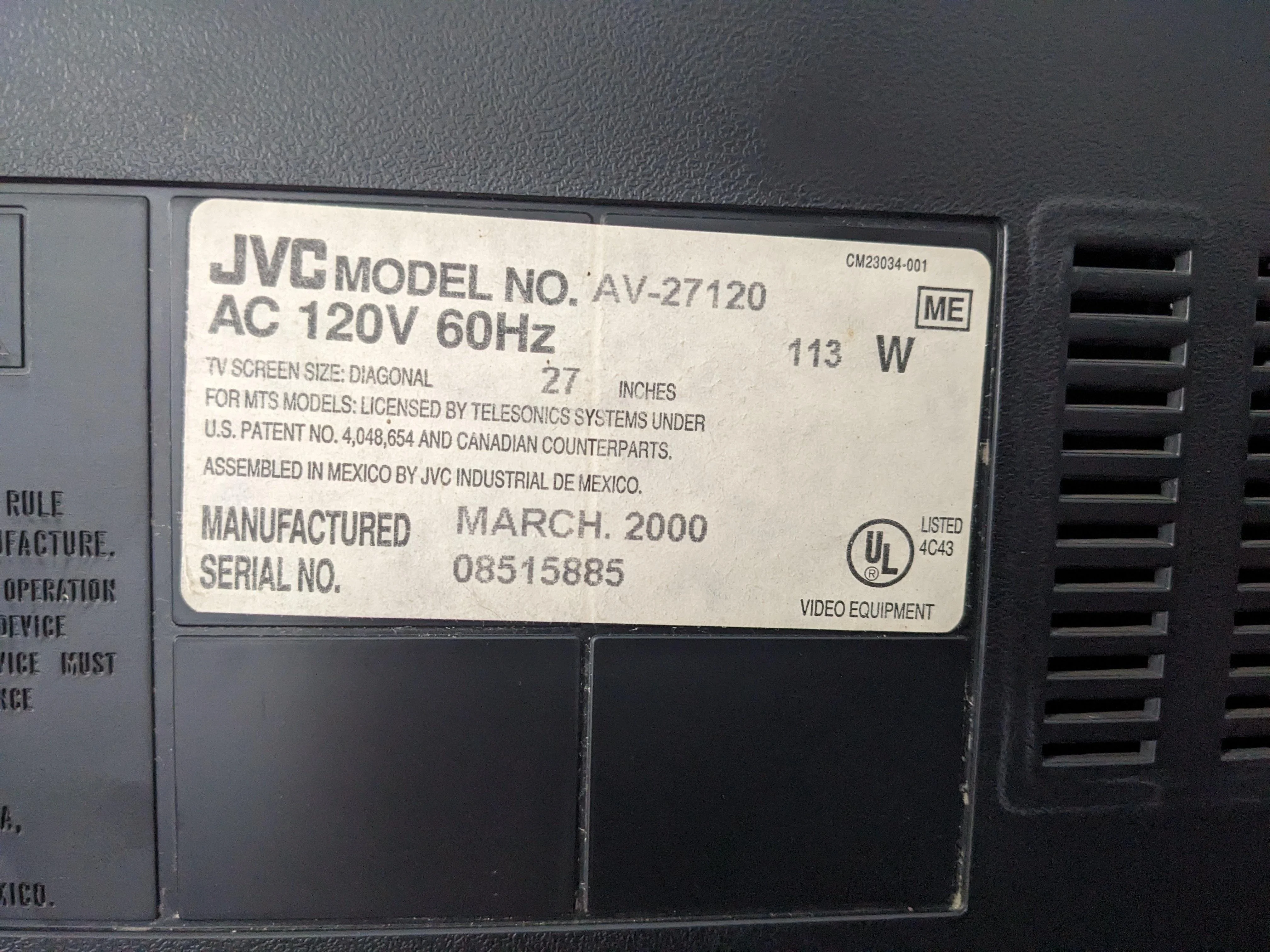

| Model: | AV-27120 |
| Series: | AV |
| Viewable Size: | 27" |

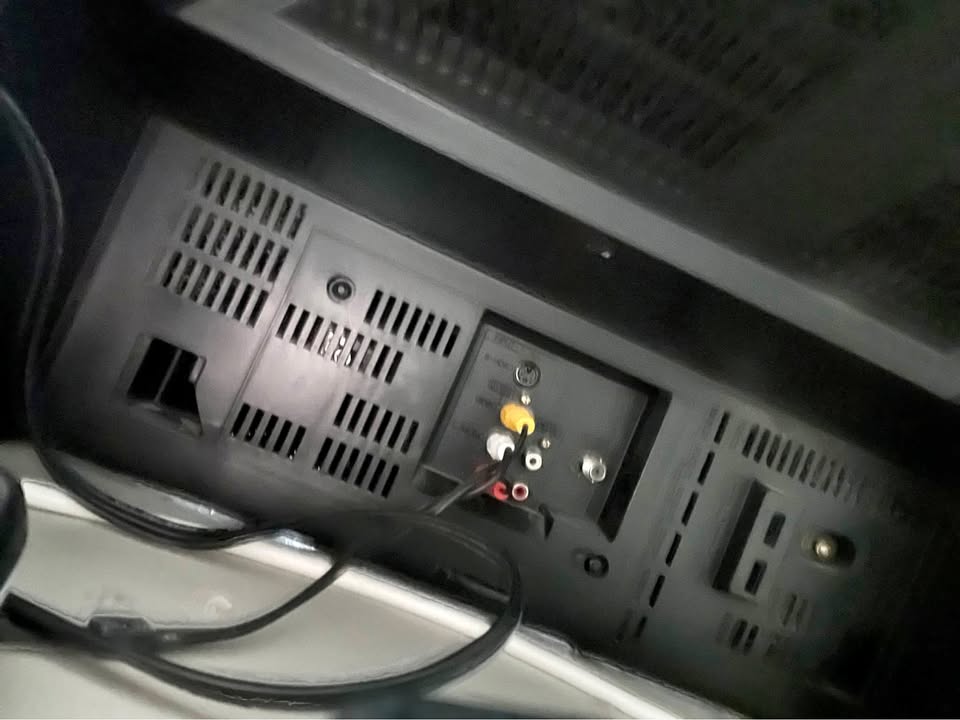

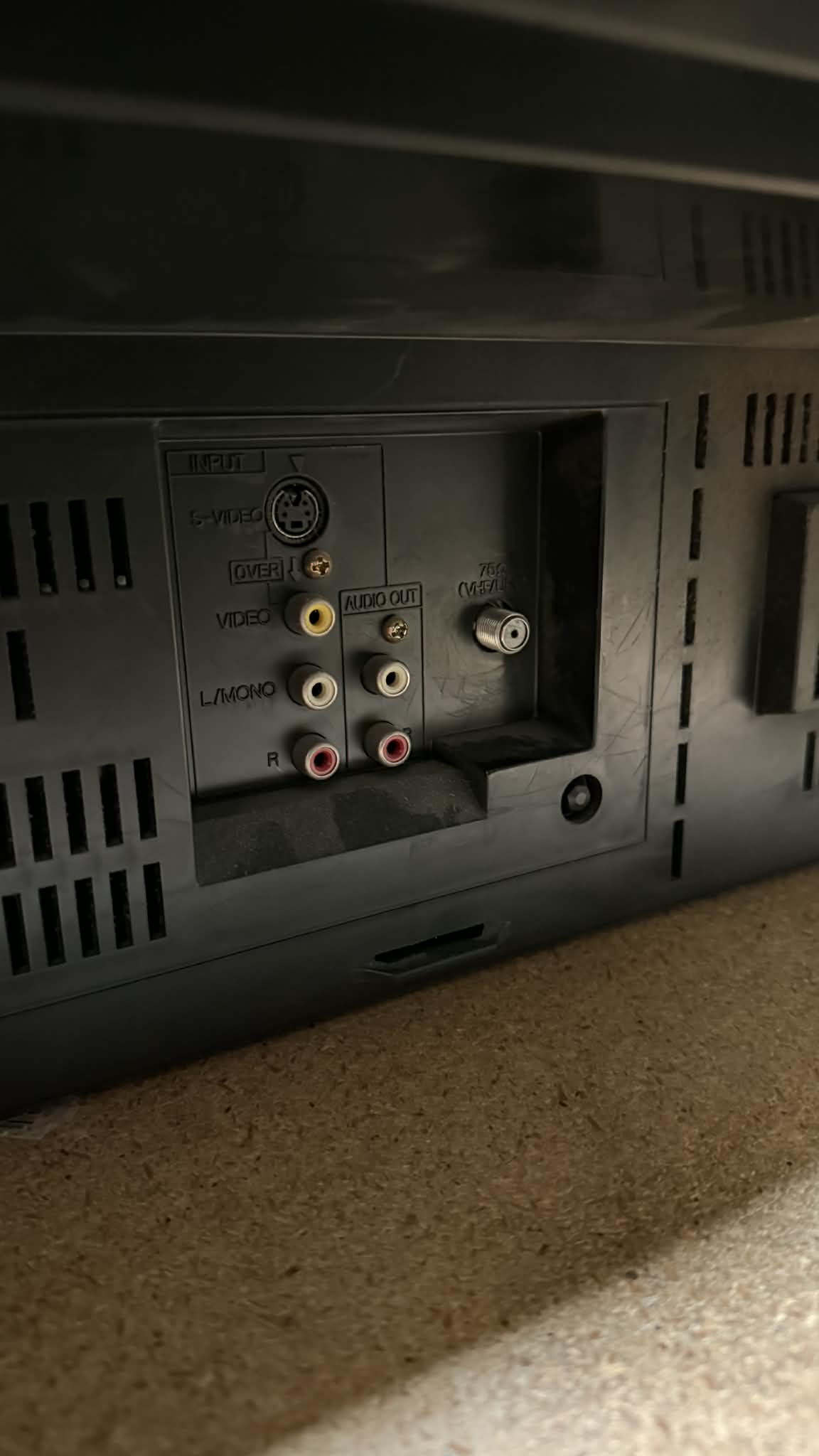

| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Toshiba, TB1242N |
| Comb Filtering: | 2-Line Digital |
| Focus Type: | Single |
| Tube: | Samsung , Thomson , A68QDN891X001 , A68ADT25X01 , A68ADT25X , A68QDN891X |
| Heater Voltage: | 6.3v |
| Deflection: | 111° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 1.2W x 2 |
| Remote: | RM-C380 |
| Dimensions (W/H/D): |
654 x 593 x 494 mm
(25.7 x 23.3 x 19.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
