Summary

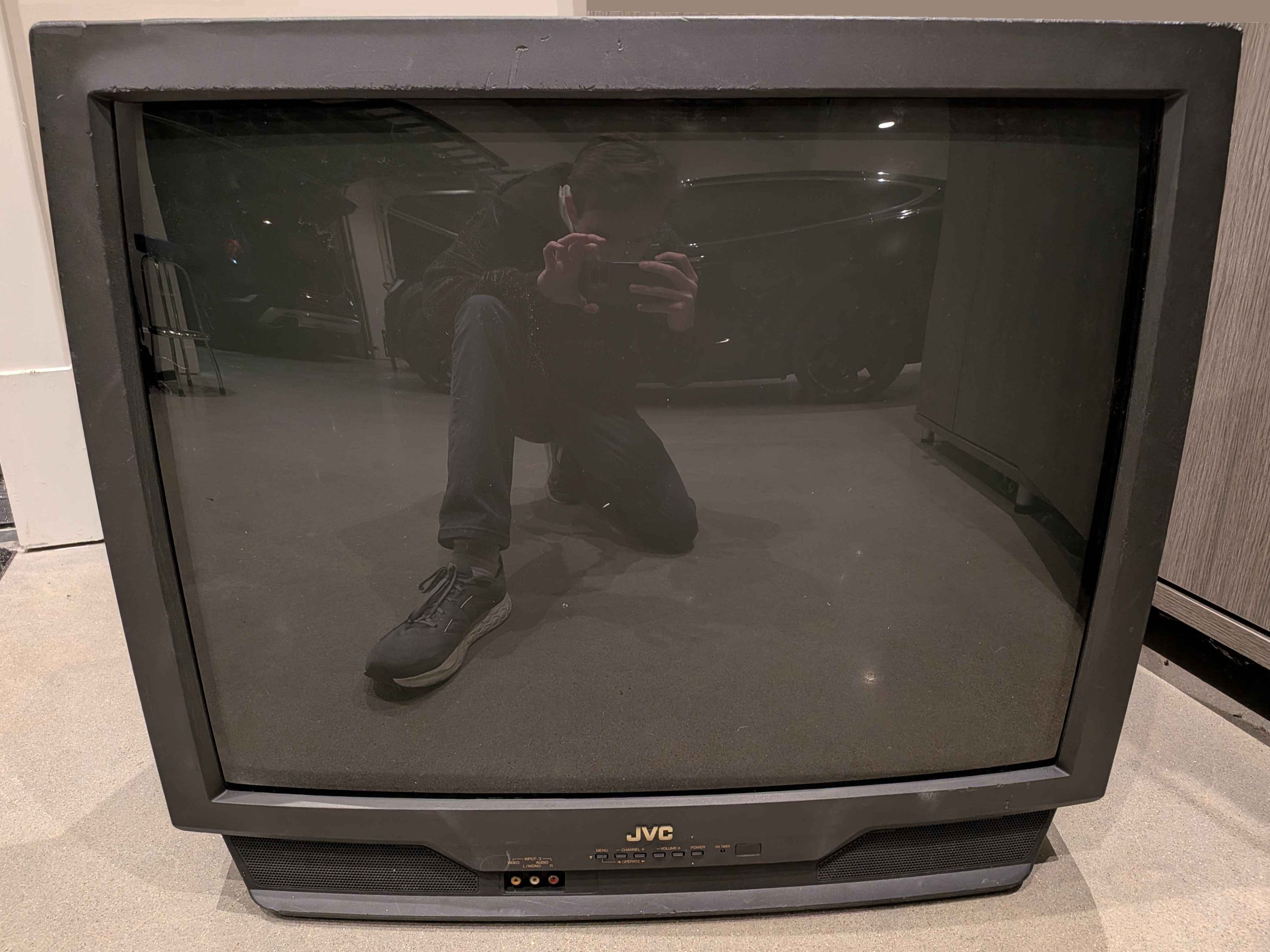

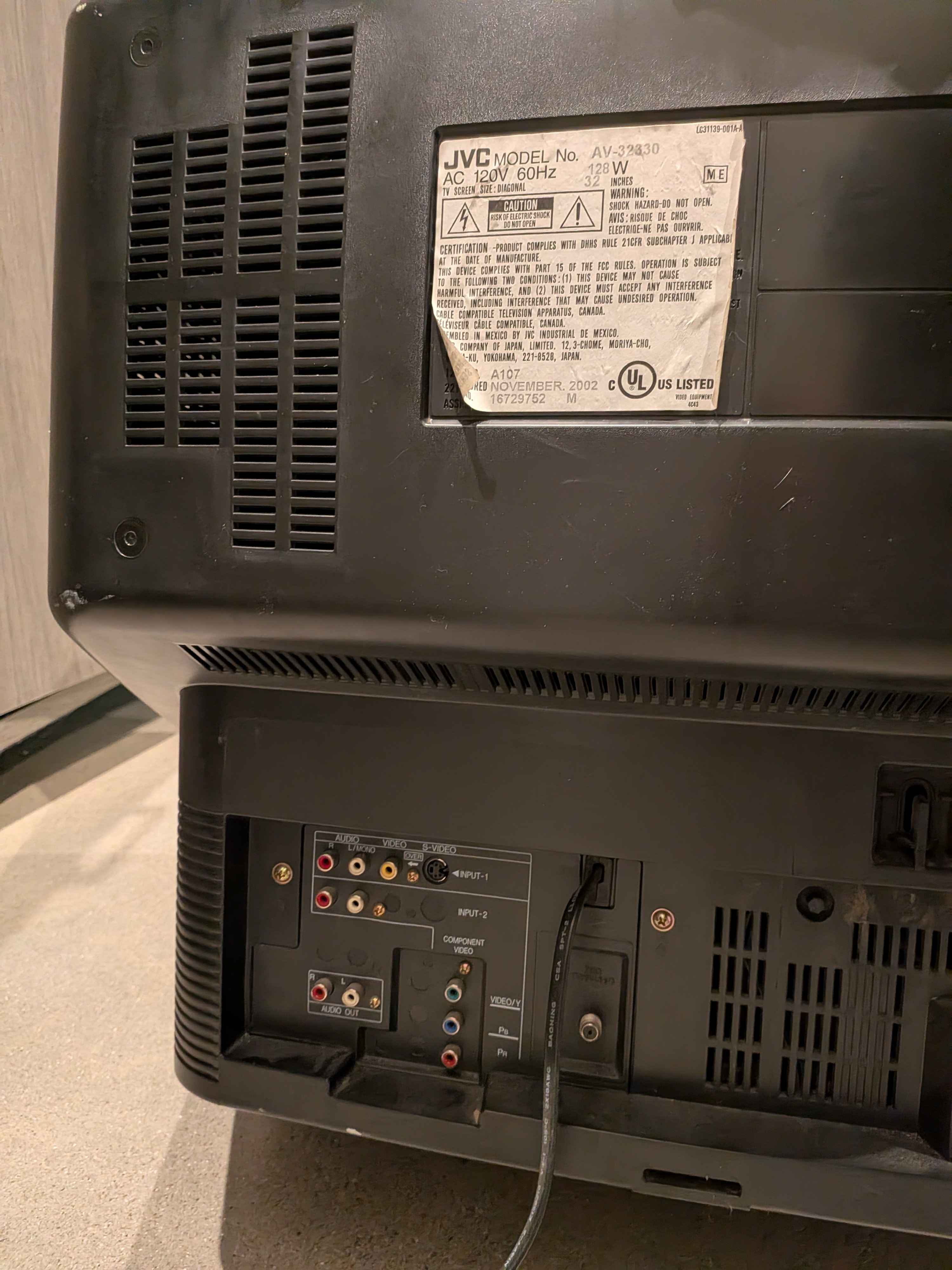

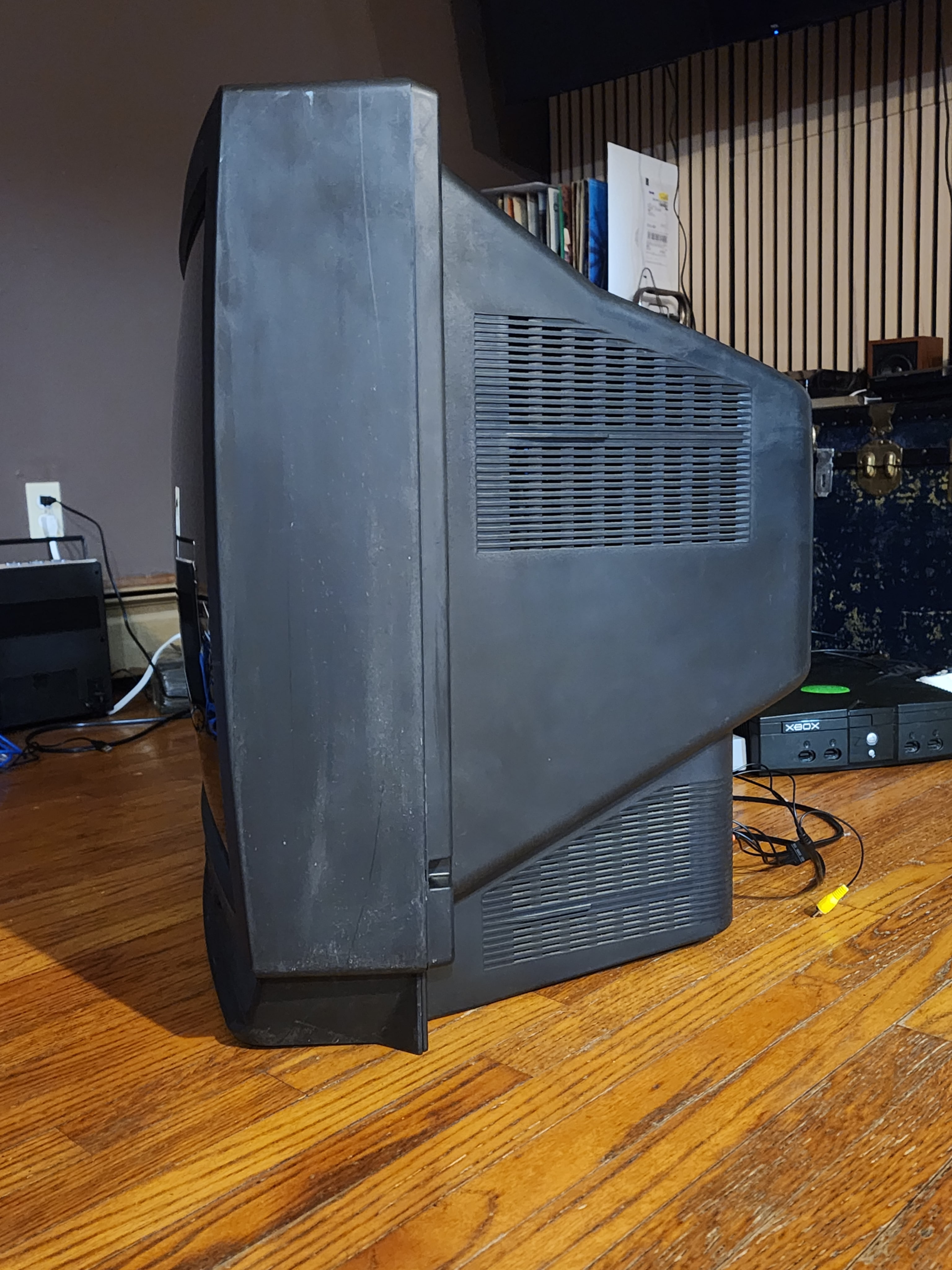

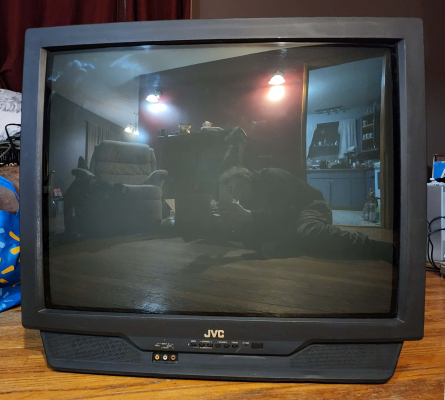

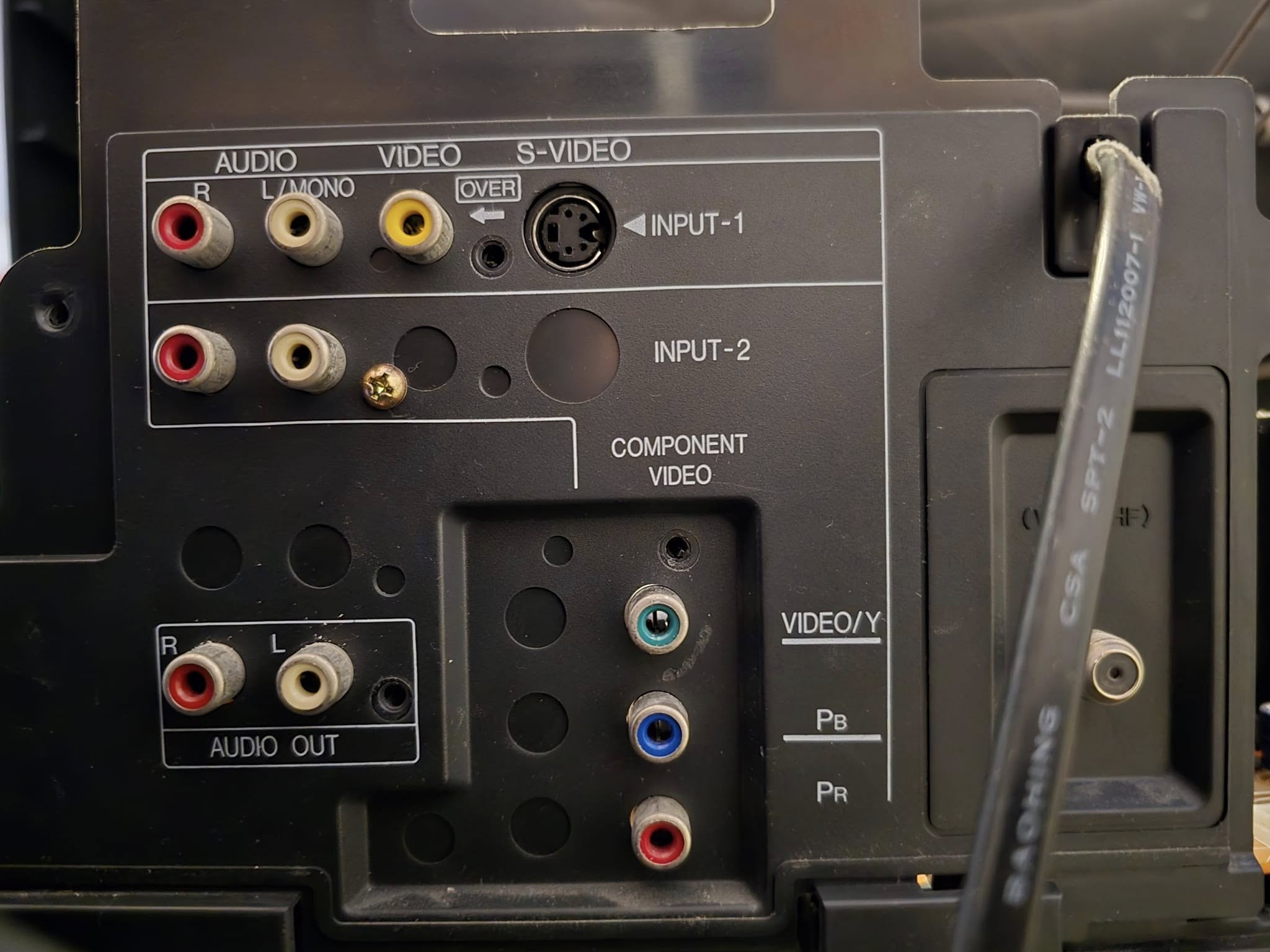

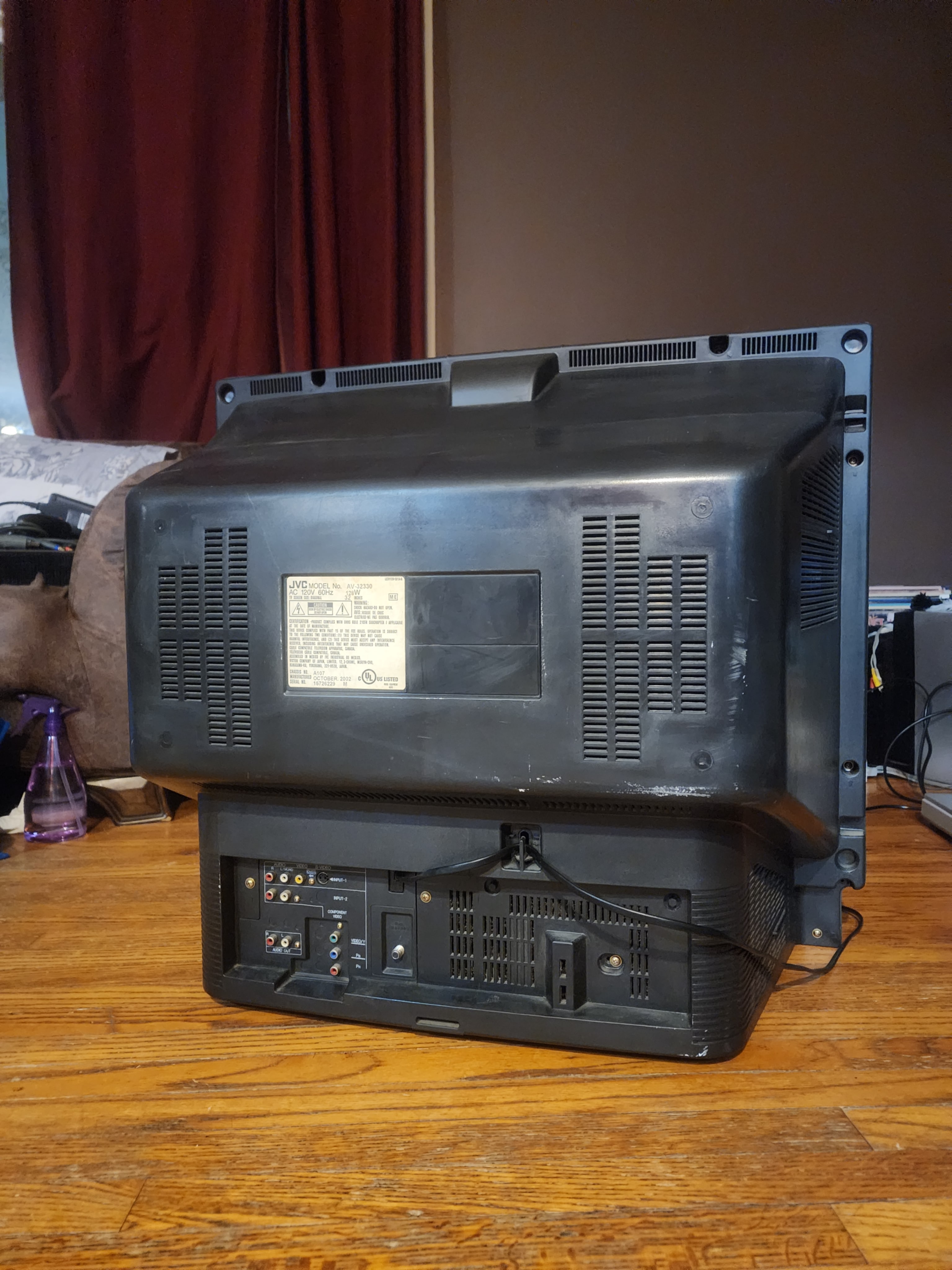

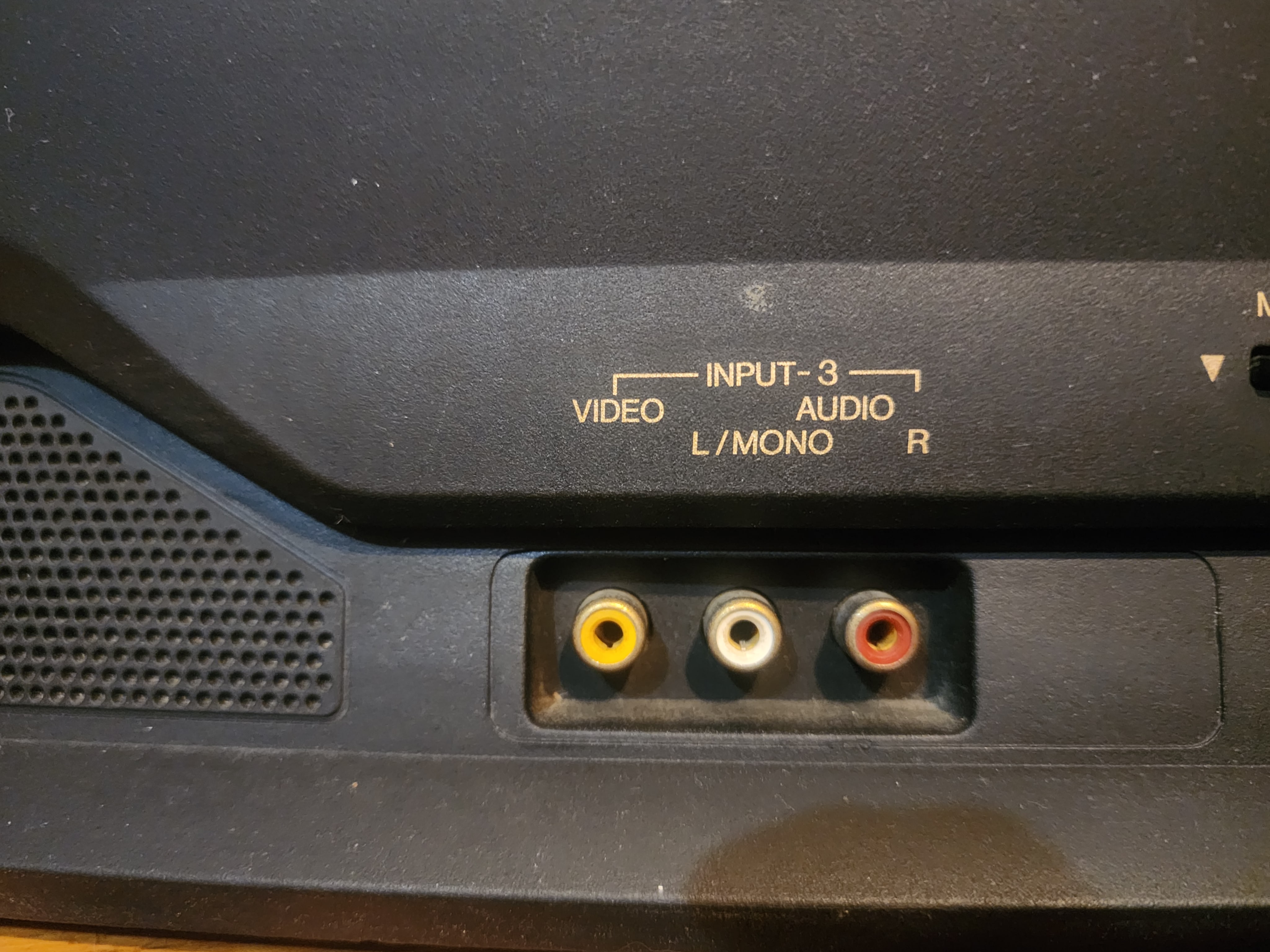

32" curved-screen CRT by JVC, made in Mexico in 2002. Has RF, composite, s-video and component inputs with stereo sound.
(Special thanks to John Chavez and Ethan Egan for the pics!)
Manuals
Media & Promo Materials
Notes

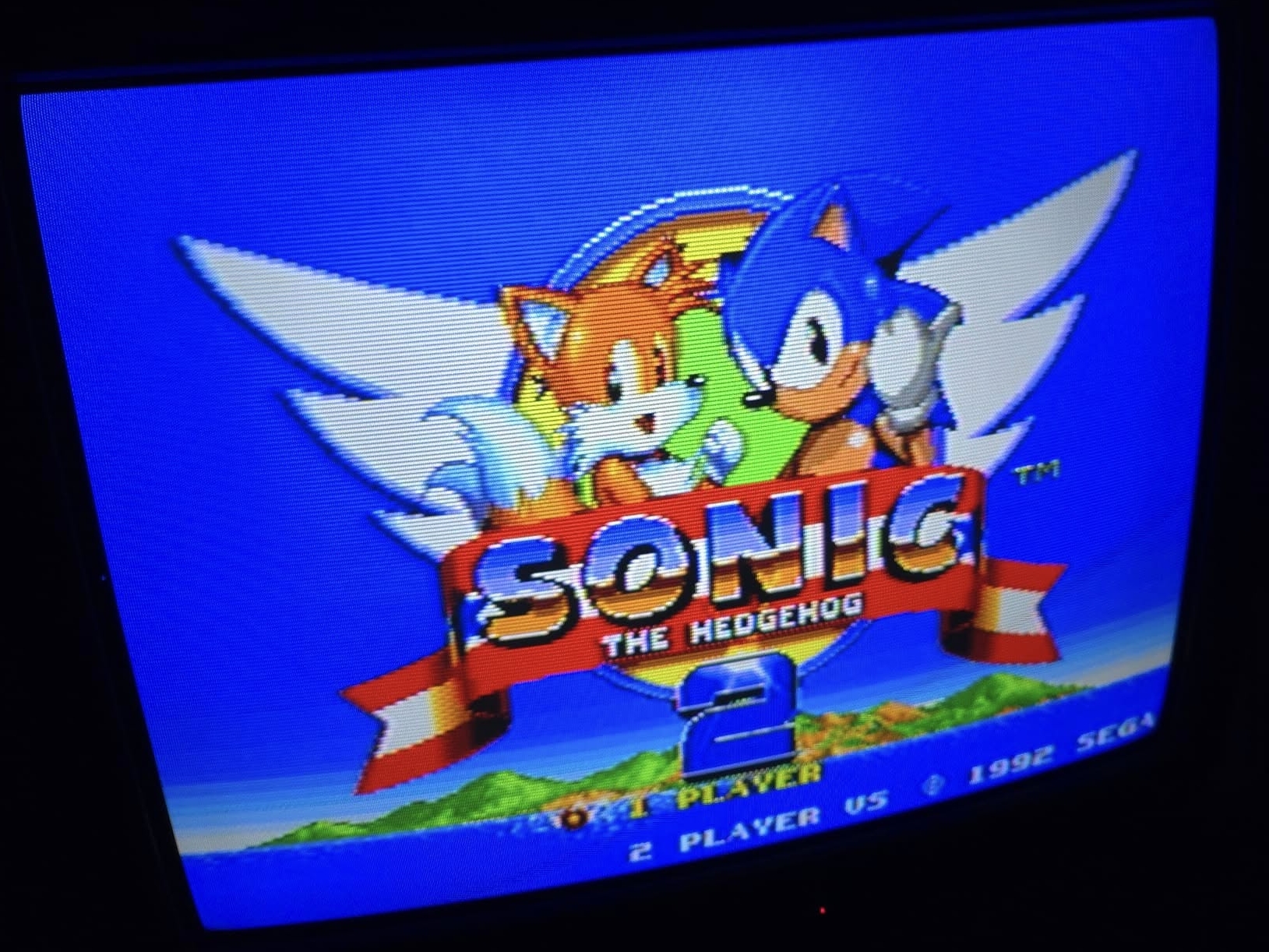

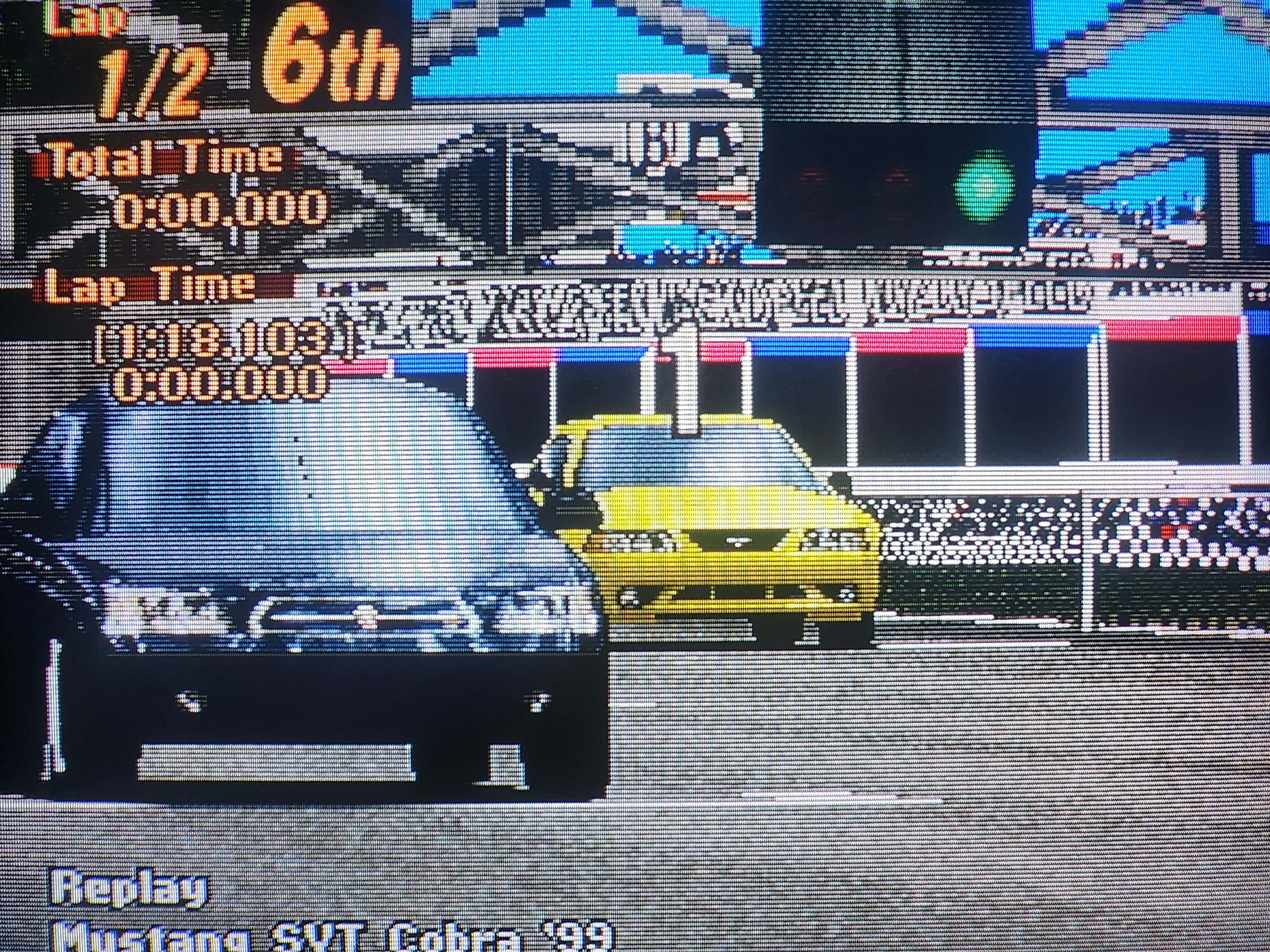

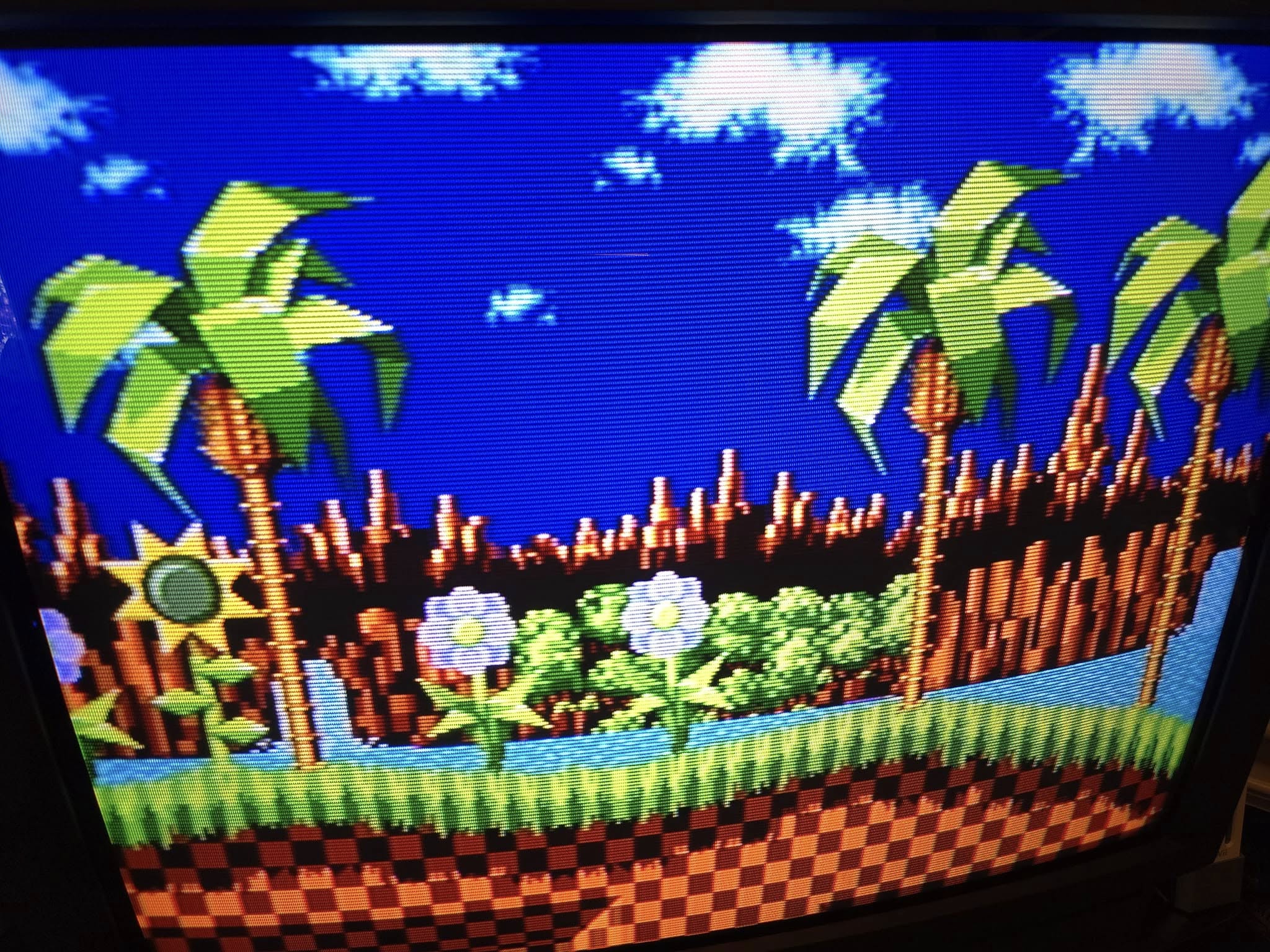

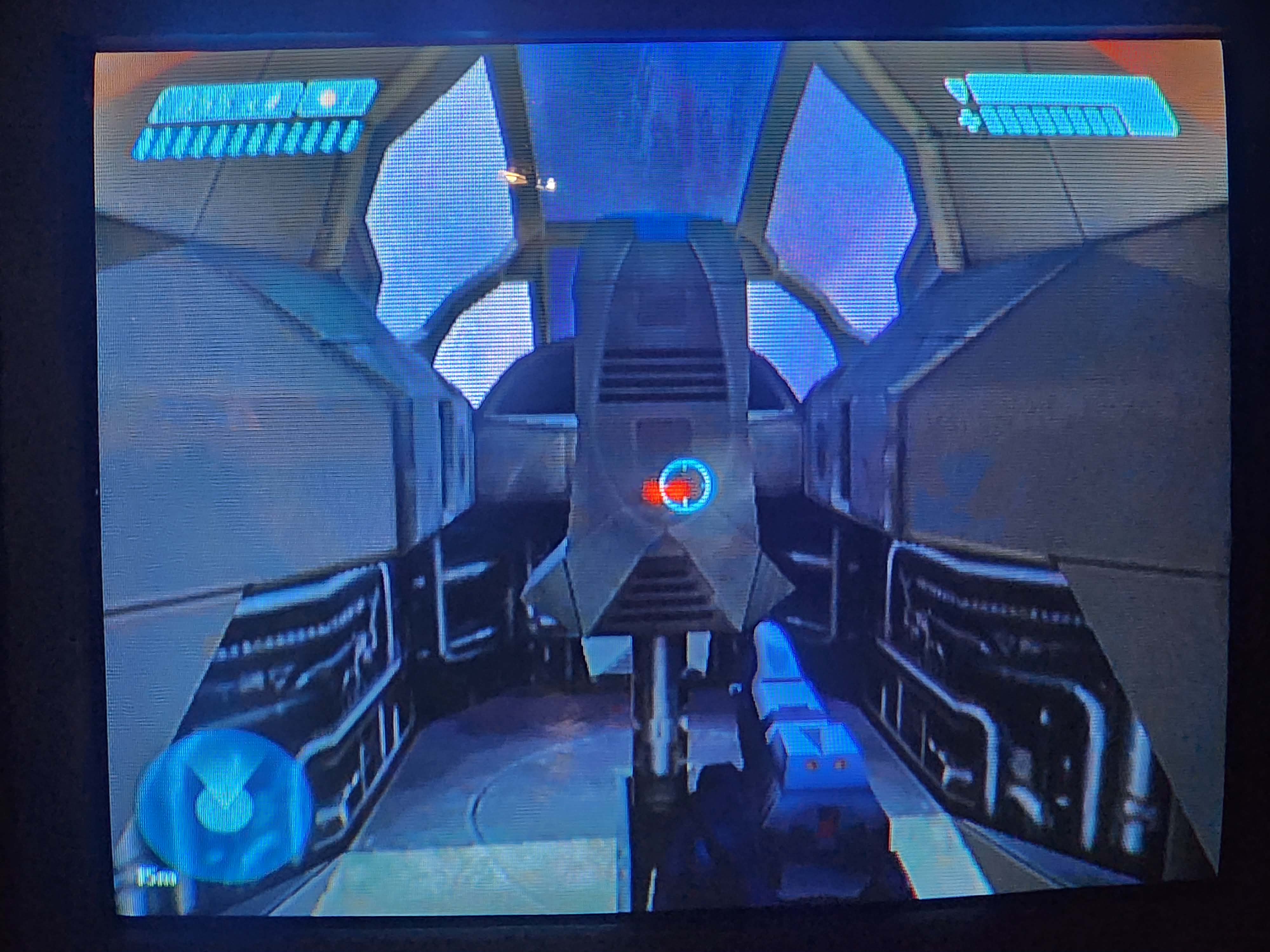

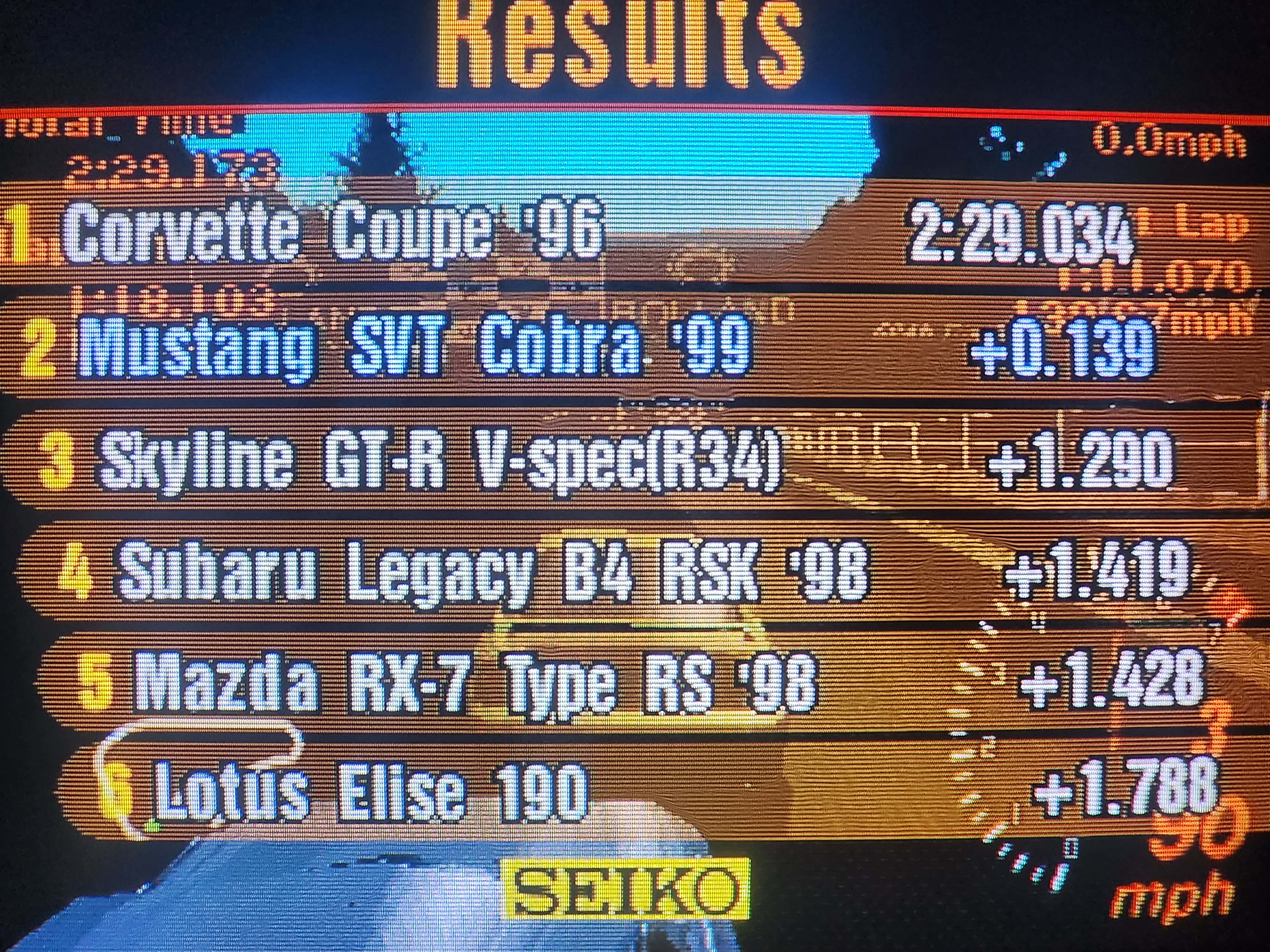

TV cannot be modded for RGB. However, the component video quality looks excellent.
This set has red-push. To disable it, follow THIS guide.
Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |

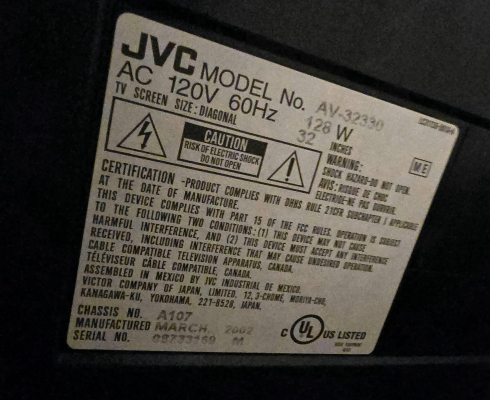

| Model: | AV-32330 |
| Series: | AV |
| Viewable Size: | 32" |

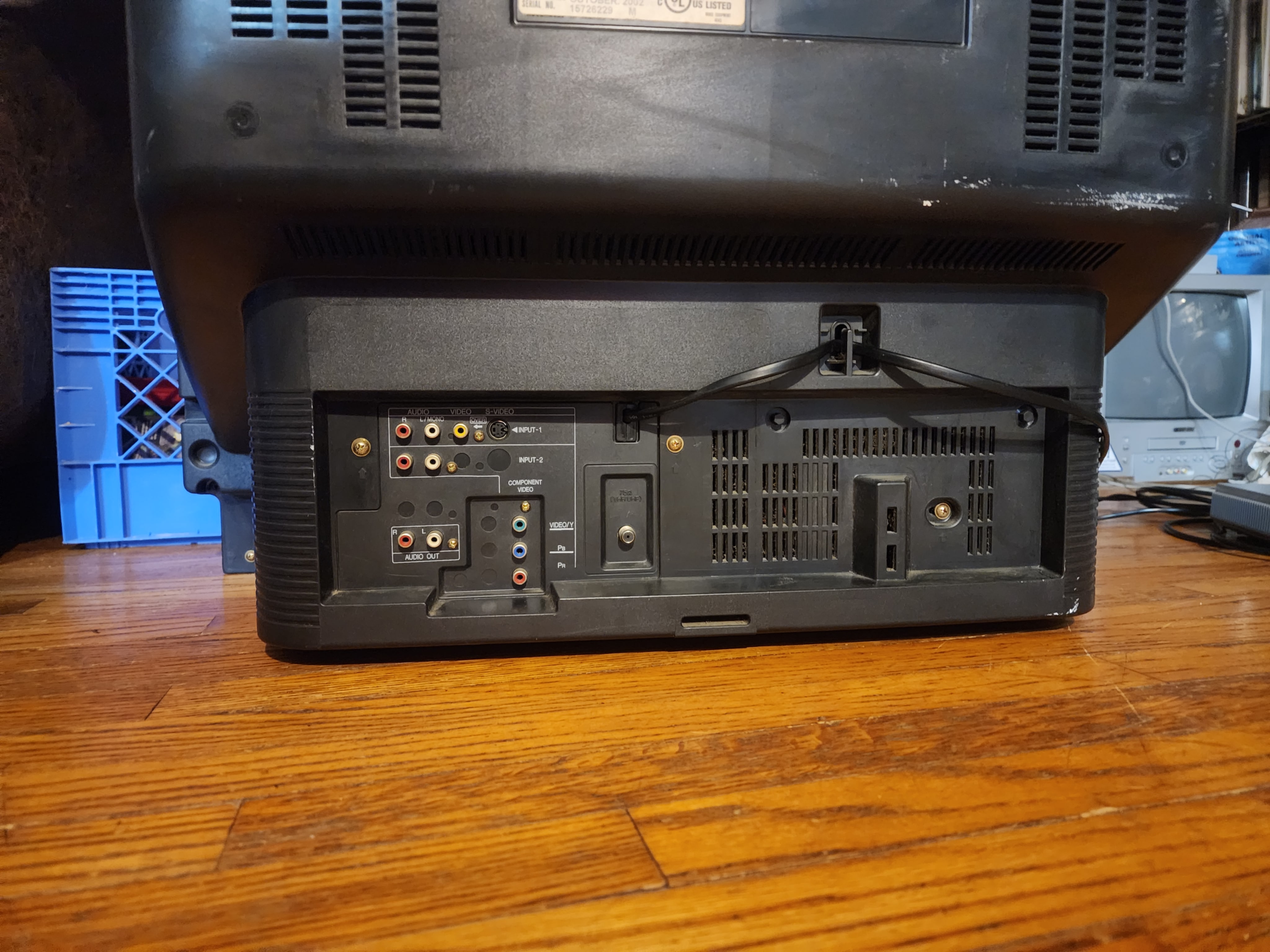

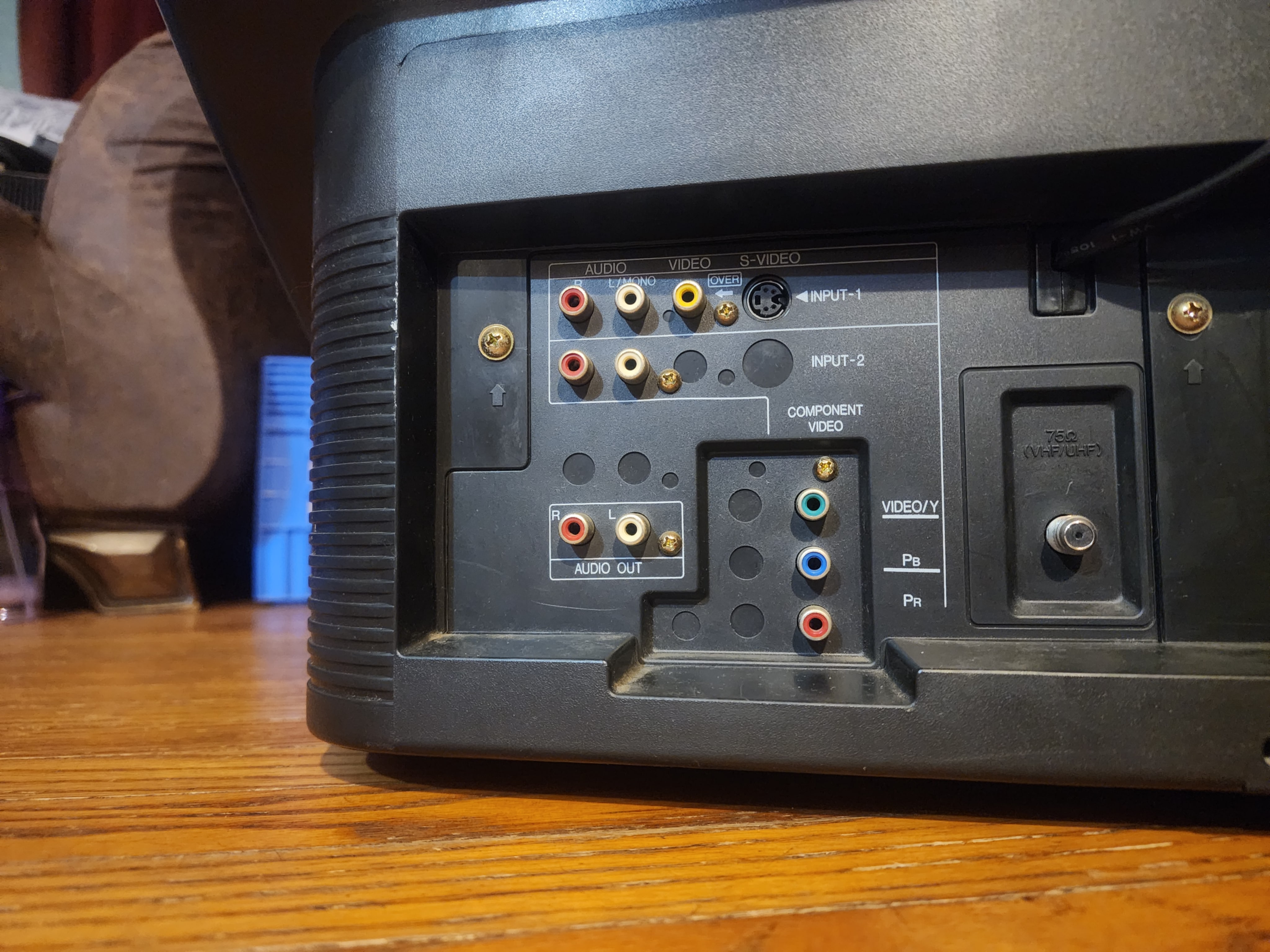

| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7841 |
| Comb Filter IC: | Toshiba, TC90A49P |
| Comb Filtering: | 3-Line Digital |
| Jungle IC: | Toshiba, TM8812C, TM8812CSBNG3U68 |
| Flyback: | QQH0121-001 |
| Focus Type: | Single |

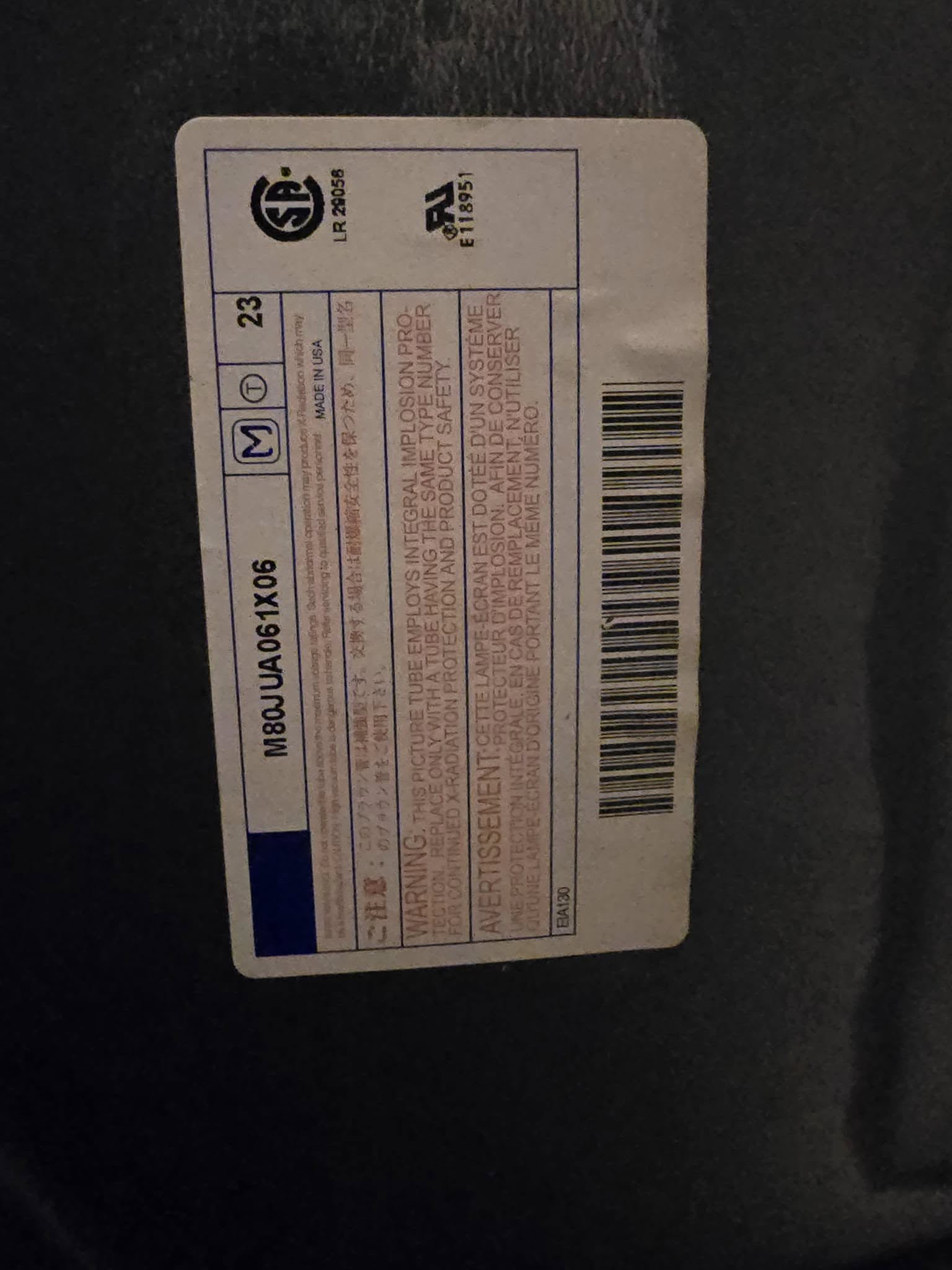

| Tube: | Panasonic , Toshiba , RCA , M80JUA061X , A80AEJ15X01 , A80AEJ15X , A80AKB50X04 , A80AKB50X , M80JUA061X06 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | (ITC) |

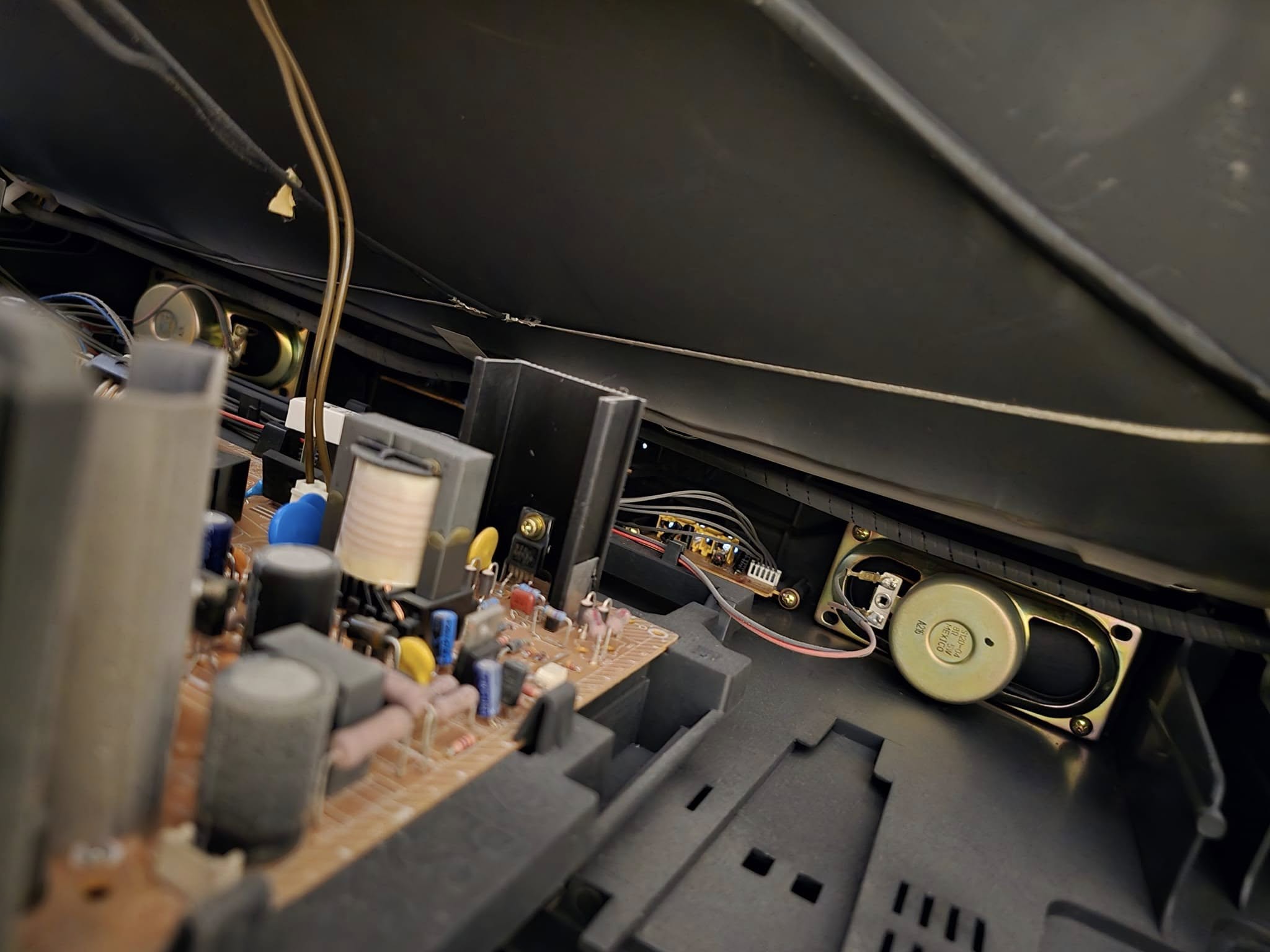

| Speakers: | Stereo, 3W x 2 |

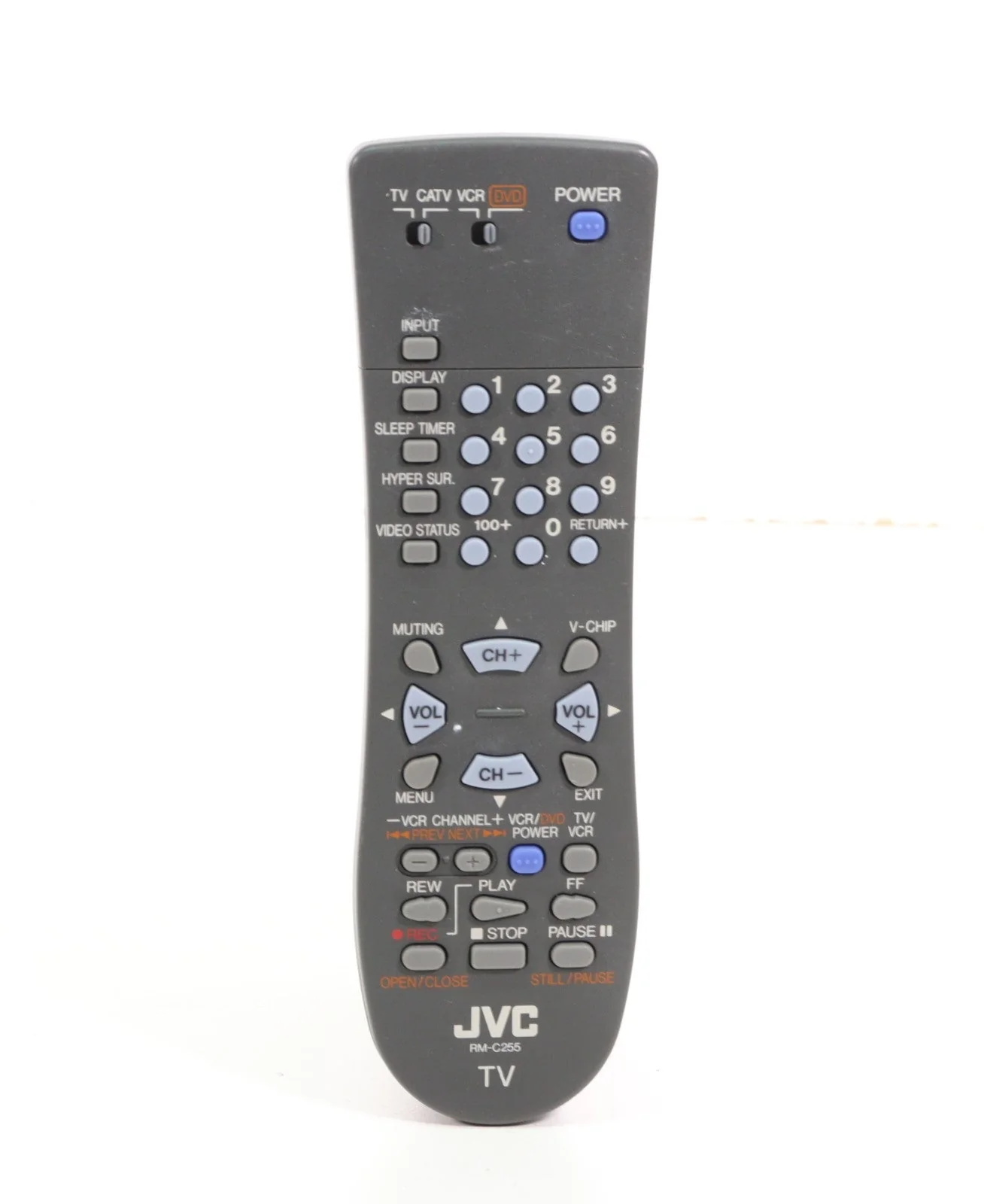

| Remote: | RM-C255 |

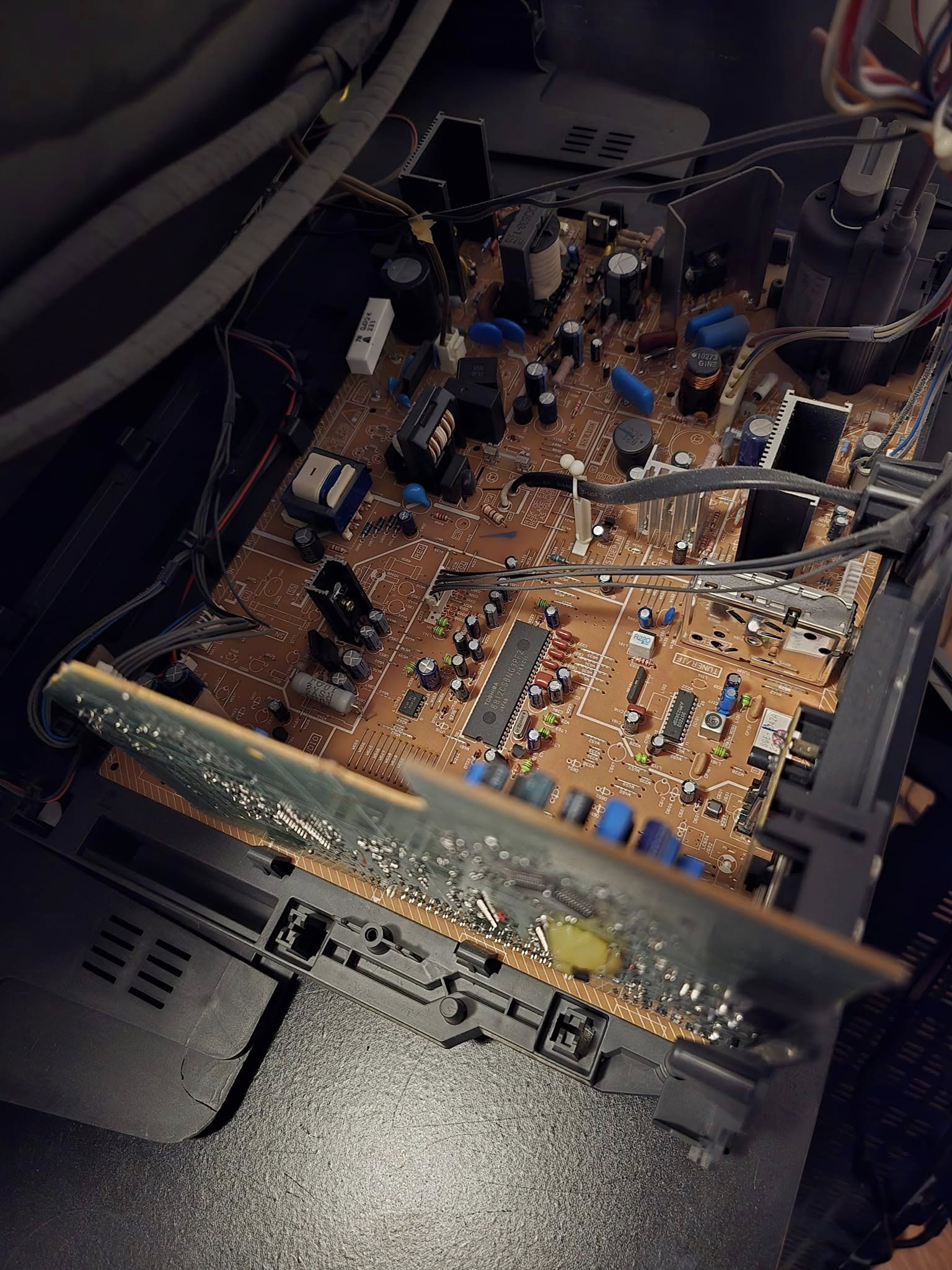

| Chassis: | A107 |
| Weight: | 149.2 lbs (67.7 kg) |
| Dimensions (W/H/D): |
860 x 765 x 603 mm
(33.8 x 30.1 x 23.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 499 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, RK-3298 |
| Degaussing: | Automatic on Power-on |
